We completed some final testing on the lights today. This is a light tunnel we normally use for testing headlight output but it serves a purpose for testing reverse lights as well. The test was set up to measure Lux from 5' this is much shorter distance than we normally measure headlights but reverse lights have different optics which spread light in a wider pattern so this range gave best results for accurate readings. We tested the factory halogen reverse light, factory LED revere light, and the new LED bumper light.

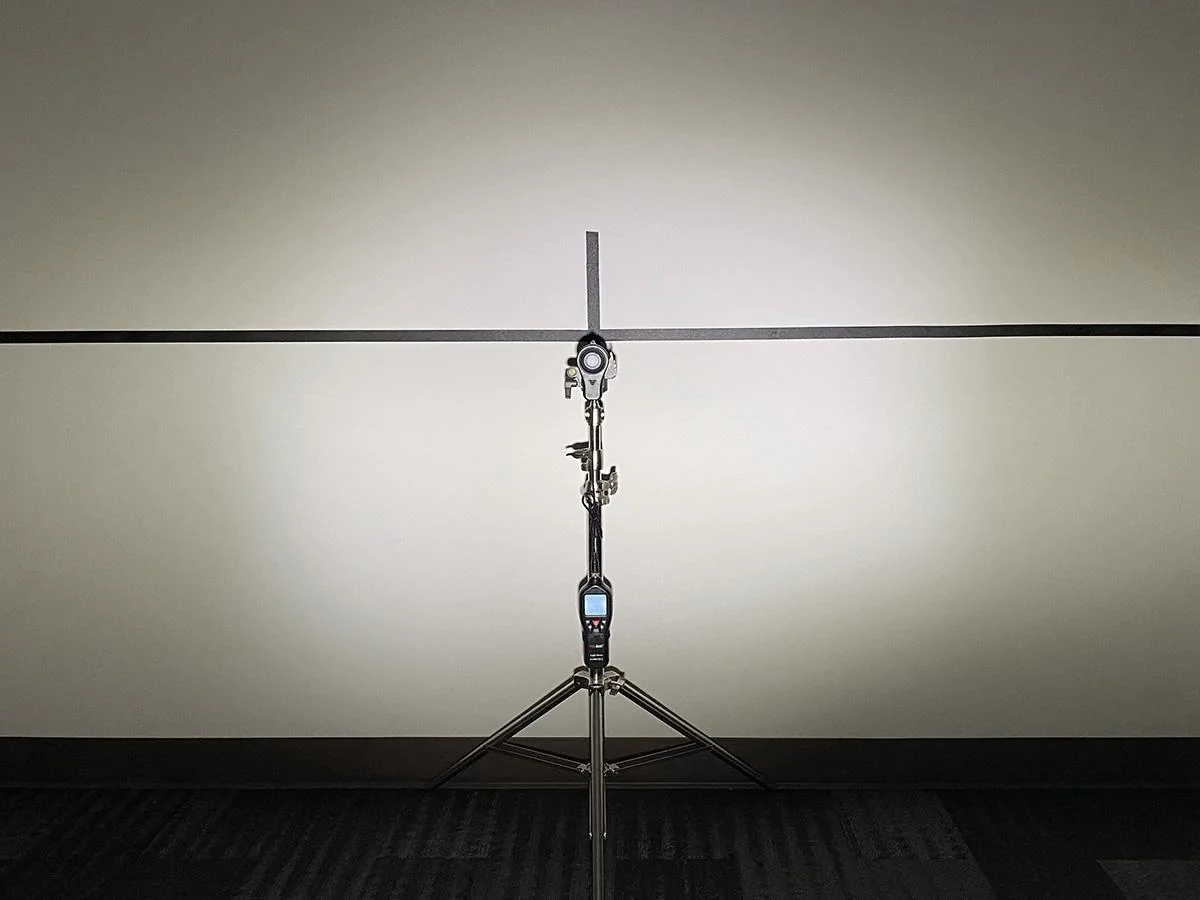

On the opposite wall we have a Lux meter set up to measure the brightness of each light. The Lux meter is set to Max to record the highest reading the and lamp is articulated back and forth then up and down to read the hottest part of the projection.

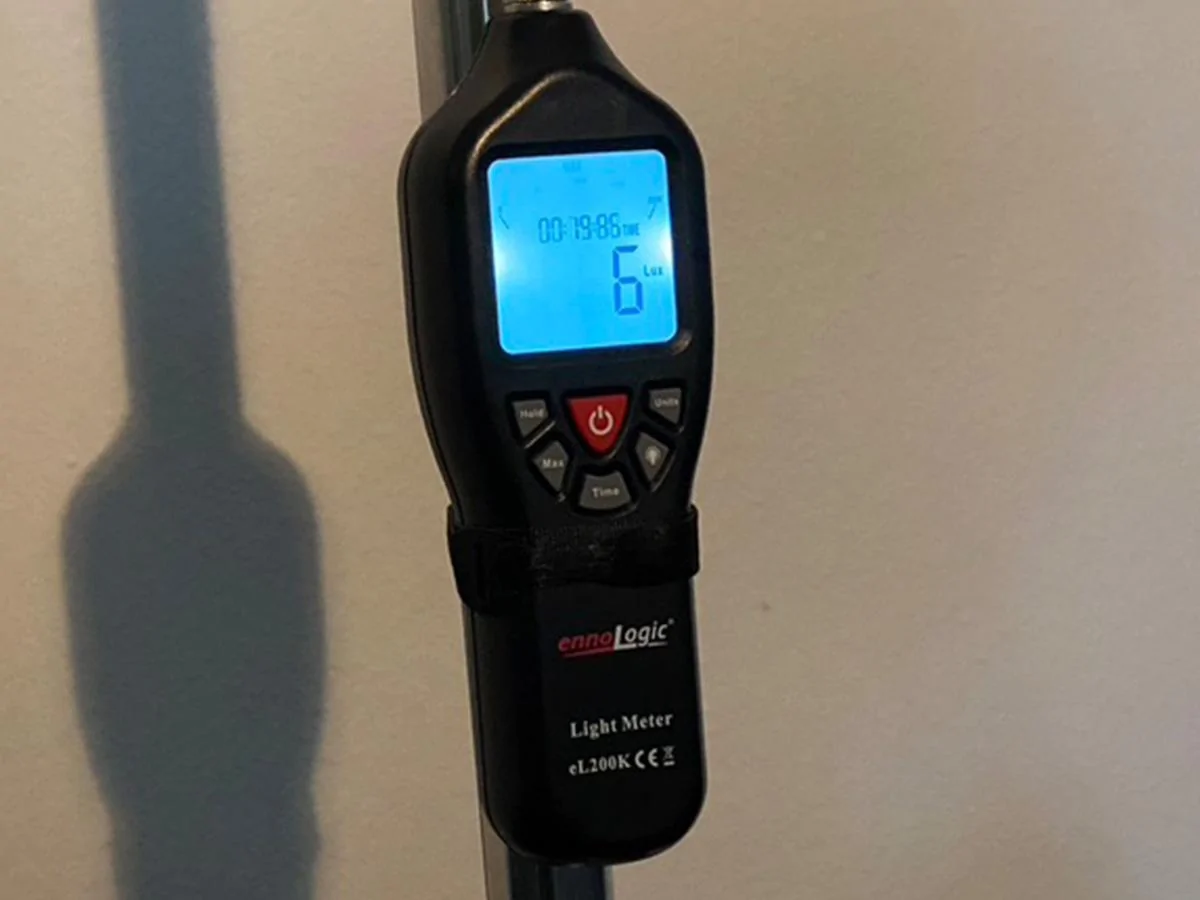

First up the factory Halogen light- Brightness of 6 Lux Max.

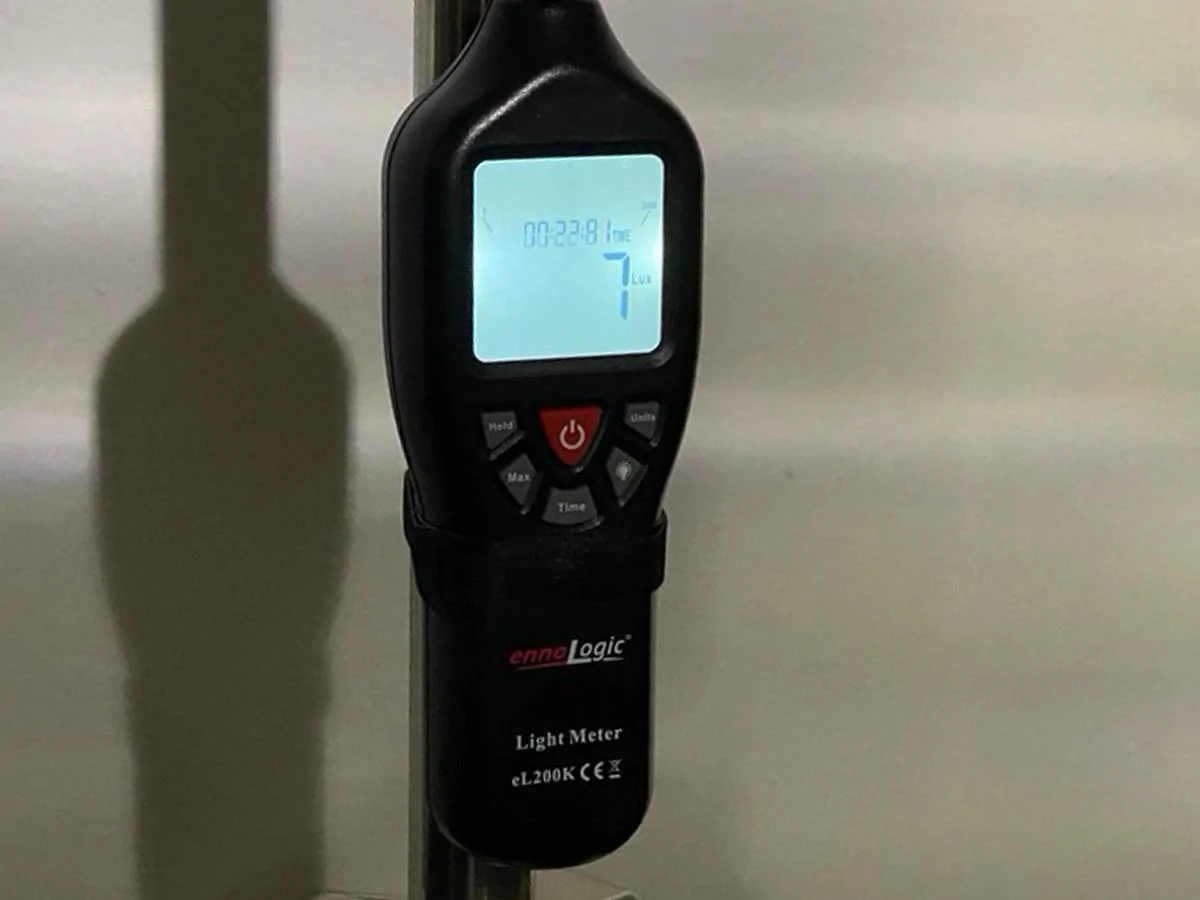

Next up the factory LED Tail light- Brightness of 7 Lux Max.

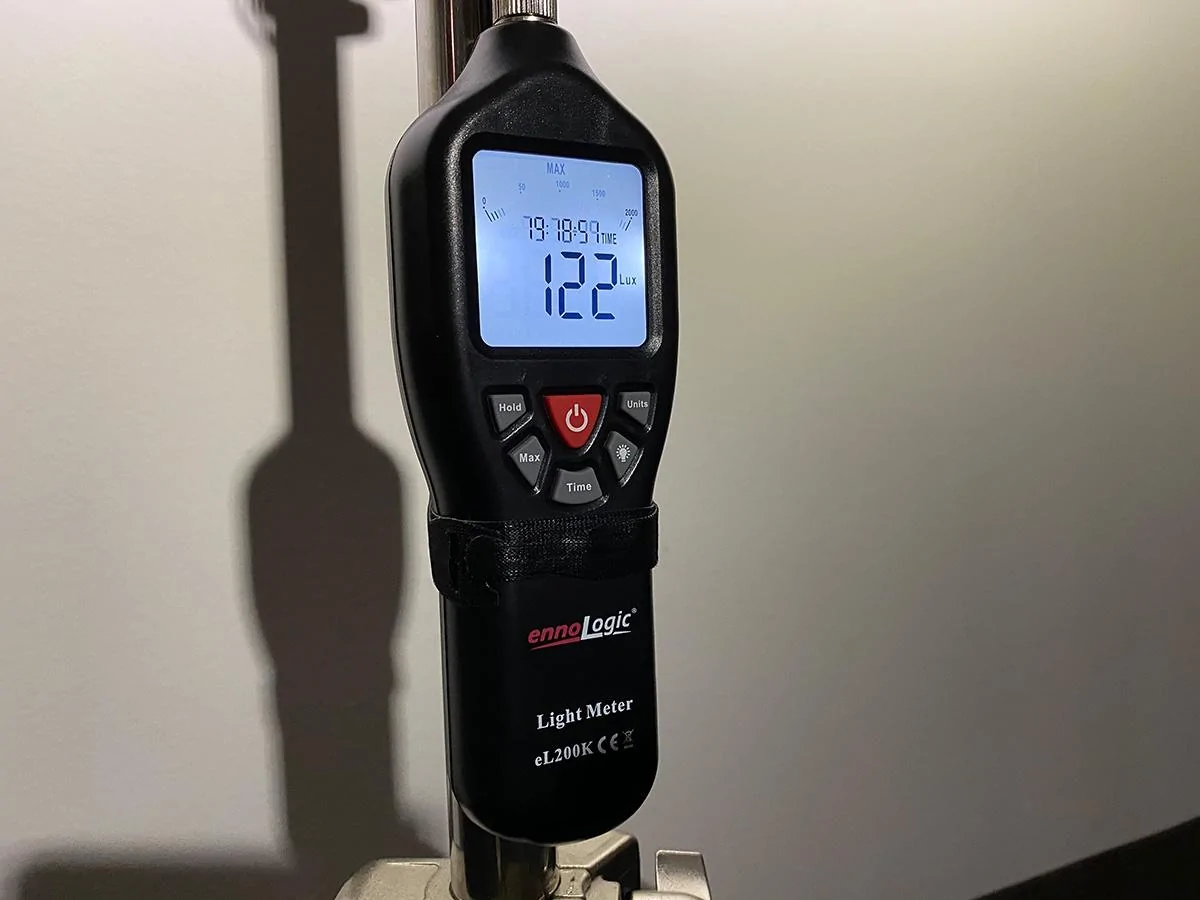

Last up is the new LED Bumper Light Prototype- Brightness of 122 Lux Max.
