I've was wondering how all the aftermarket baseline dyno curves compare to each other, and found a neat website that lets you convert images into CSV data www.graphreader.com. So with some work, I've collected some baseline 3.6 dyno charts and plotted them out together.

Some observations:
  • automobile-catalog.com provides engine torque that has been estimated by a computer. I'm not sure how they do this, but I found that factoring 85% for drivetrain losses puts it about in the correct spot. Unfortunately the curve doesn't really match all the other data.
  • Some plots don't look accurate below certain RPMs, and should probably be ignored
  • not all dynos measure power equally

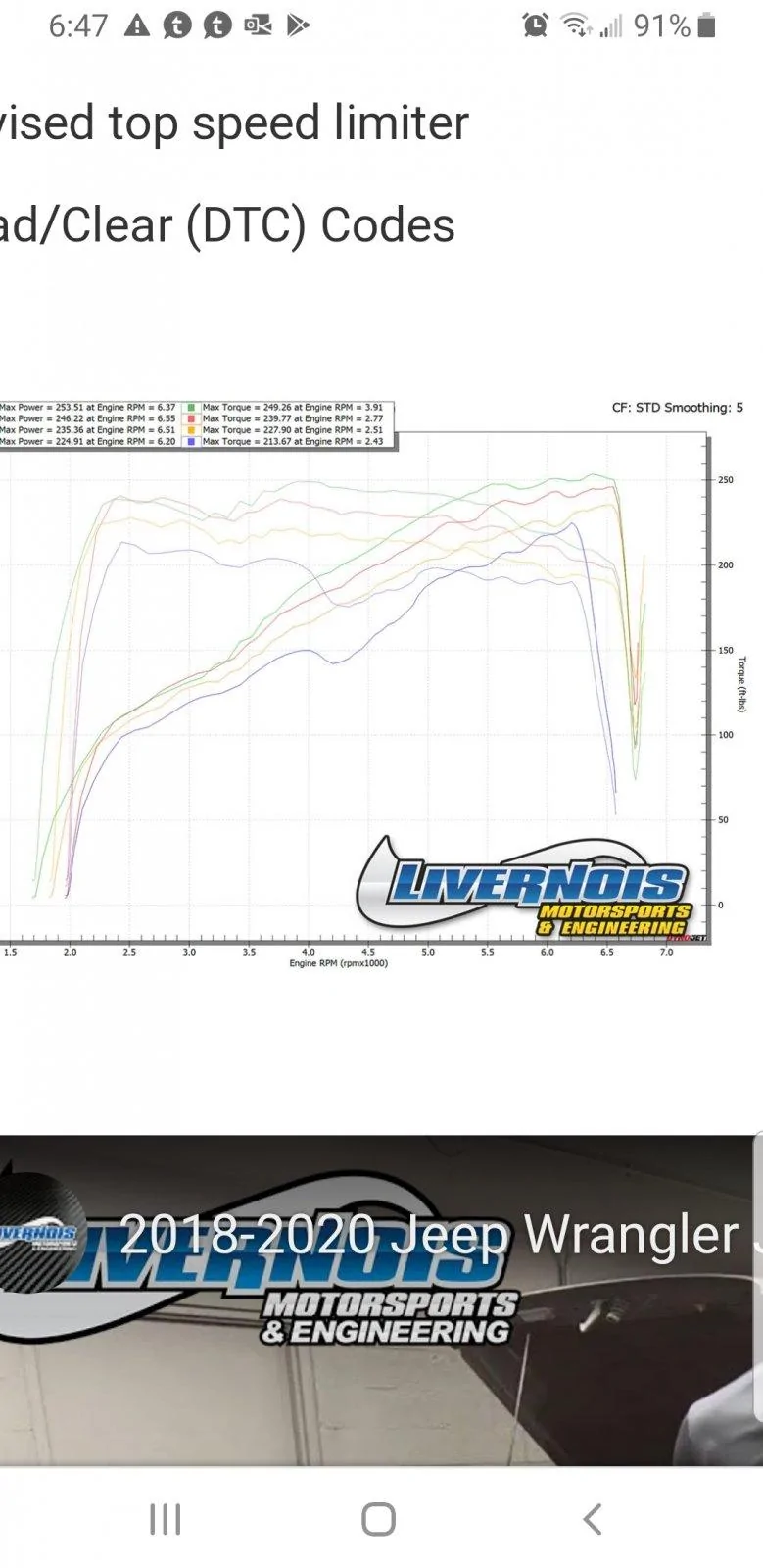

3.6 Stock Torque Curves.png


Sources:
Update: I did my best to get a realistic average of all the curves. The max torque is about 210 lb-ft, with above 190 lb-ft from 2250-5250. This is equal to roughly 19% drivetrain loss from the published 260 lb-ft at the crank. Here's what I took into consideration when making this average:
  • Ignored the computer generated data from automobile-catalog.com
  • Ignored the unrealistically steep sections at the beginning & ends of some of the pulls (ExtremeTerrain.com's & K&N)
  • Smoothed out minor bumps & dips from where certain data starts & stops
3.6 Stock Torque Curves.png
