Rear Bumper Integrated LED Reverse Lights

maddscot

Well-Known Member
First Name
Bob
Joined
Aug 1, 2019
Messages
126
Reaction score
103
Location
TX
Vehicle(s)
2019 Jeep Rubicon Wrangler Unlimited

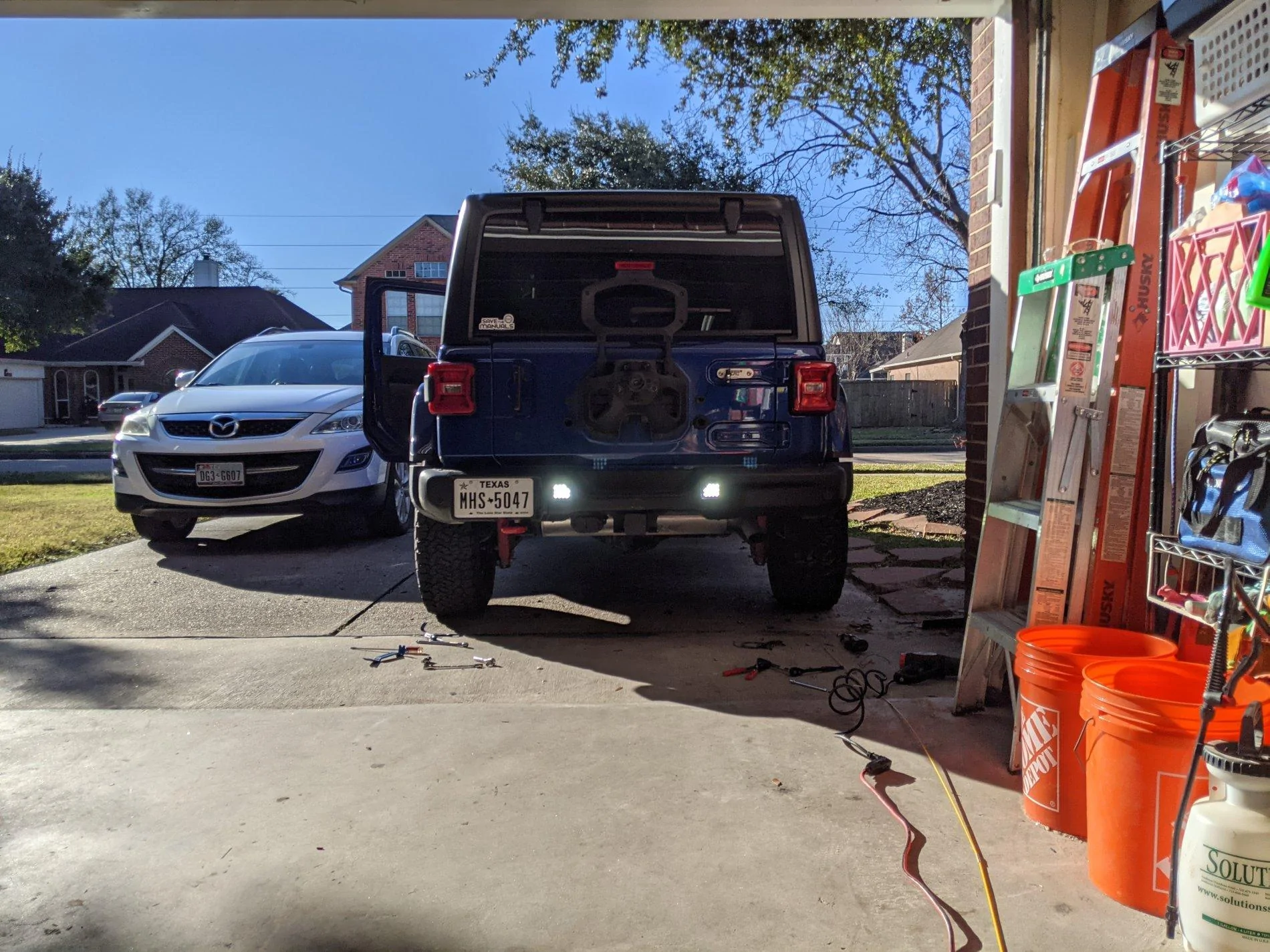

Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?
I too am looking at the options on installing... your note on being too bright is something I did not think of (general driving in lots, camp areas etc) I like the option to perhaps use only the Aux Switch or SPOD options for these and in turn still have the OEM back ups when in reverse and not in conjunction with the Oracle lights.

Being a noob to jeeps, how did you set your lights up, what diode to use/where to install in line, how to wire up etc. Would be really helpful. Thx!
