Rear Bumper Integrated LED Reverse Lights

BLACKMOAB

Well-Known Member
Joined
Nov 23, 2018
Messages
262
Reaction score
317
Location
Texas
Vehicle(s)
2018 Black MOAB (a collectors item)

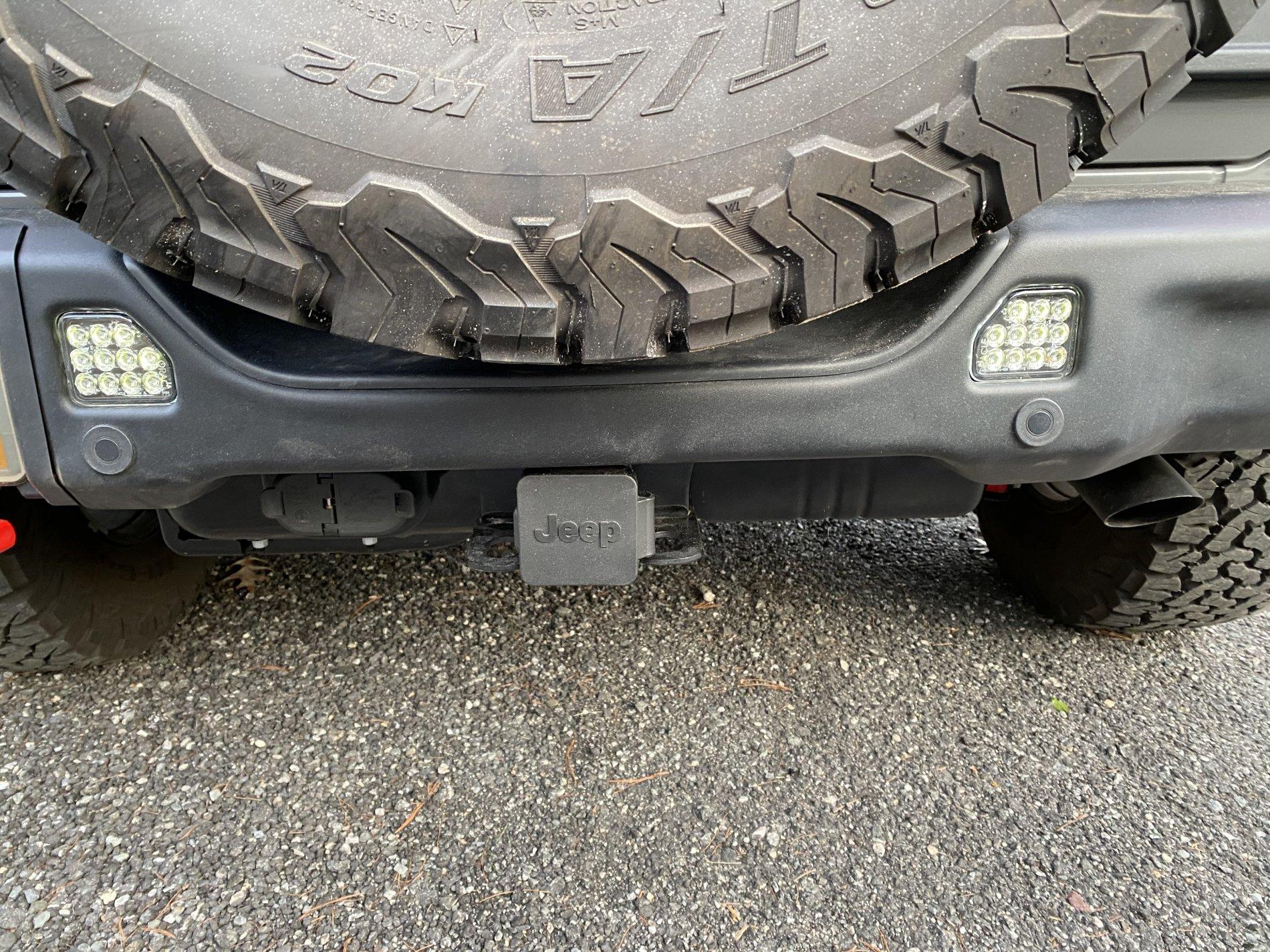

Lights all installed. I hooked them up to the AUX switch. I ran the wire thru the frame. Looks very nice.

Where did you ground? To the frame/rear bumper with a ring terminal? There‘s no reason to run a long wire for the ground.





Advertisement



Hinxster

Member
Joined
Sep 28, 2018
Messages
24
Reaction score
5
Location
Redondo Beach, CA
Vehicle(s)
2018 Rubicon JL
I have the metal rear bumper. Is the process to remove that the same as it is for the plastic version? I can't find an online video that's specific to the removal of the metal one.


BLACKMOAB

Well-Known Member
Joined
Nov 23, 2018
Messages
262
Reaction score
317
Location
Texas
Vehicle(s)
2018 Black MOAB (a collectors item)
I have the metal rear bumper. Is the process to remove that the same as it is for the plastic version? I can't find an online video that's specific to the removal of the metal one.
I think this one‘s metal.


RobAmy

Well-Known Member
Joined
Dec 5, 2020
Messages
136
Reaction score
362
Location
Chepachet, RI
Vehicle(s)
2021 3.0L Turbo Diesel Rubicon
Where did you ground? To the frame/rear bumper with a ring terminal? There‘s no reason to run a long wire for the ground.
Yes I grounded to the rear on the frame not the bumper. I only ran power from the front.


dietch

Active Member
First Name
Davis
Joined
Jun 28, 2020
Messages
31
Reaction score
10
Location
Raleigh
Vehicle(s)
2018 Jeep JL Sport S
Currently installing my set now and I decided to run them to my tail-light housing. For those of you with LED tail-lights I don't seem to see a black ground wire coming from the housing, is the ground the purple wire like described in Oracles instructions? I already know the two power wires are white/purple and white/beige.

However for those of you who just tied them in to the hitch wiring did y'all just apply both t-taps to the same white/beige wire and black wire just in two different places?

Thanks for the help, wish they would have provided wiring instructions for each type of tail-light instead of just the halogen option.


Pepe My Little Mule

Well-Known Member
First Name
J.D.
Joined
Aug 3, 2020
Messages
64
Reaction score
74
Location
Pennsylvania
Vehicle(s)
98 Jeep 4.7L; 2020 Jeep Wrangler Unlimited Willys
Currently installing my set now and I decided to run them to my tail-light housing. For those of you with LED tail-lights I don't seem to see a black ground wire coming from the housing, is the ground the purple wire like described in Oracles instructions? I already know the two power wires are white/purple and white/beige.

However for those of you who just tied them in to the hitch wiring did y'all just apply both t-taps to the same white/beige wire and black wire just in two different places?

Thanks for the help, wish they would have provided wiring instructions for each type of tail-light instead of just the halogen option.

Yes, the colors are correct on Oracle's instruction sheet for the LED's.


RobAmy

Well-Known Member
Joined
Dec 5, 2020
Messages
136
Reaction score
362
Location
Chepachet, RI
Vehicle(s)
2021 3.0L Turbo Diesel Rubicon

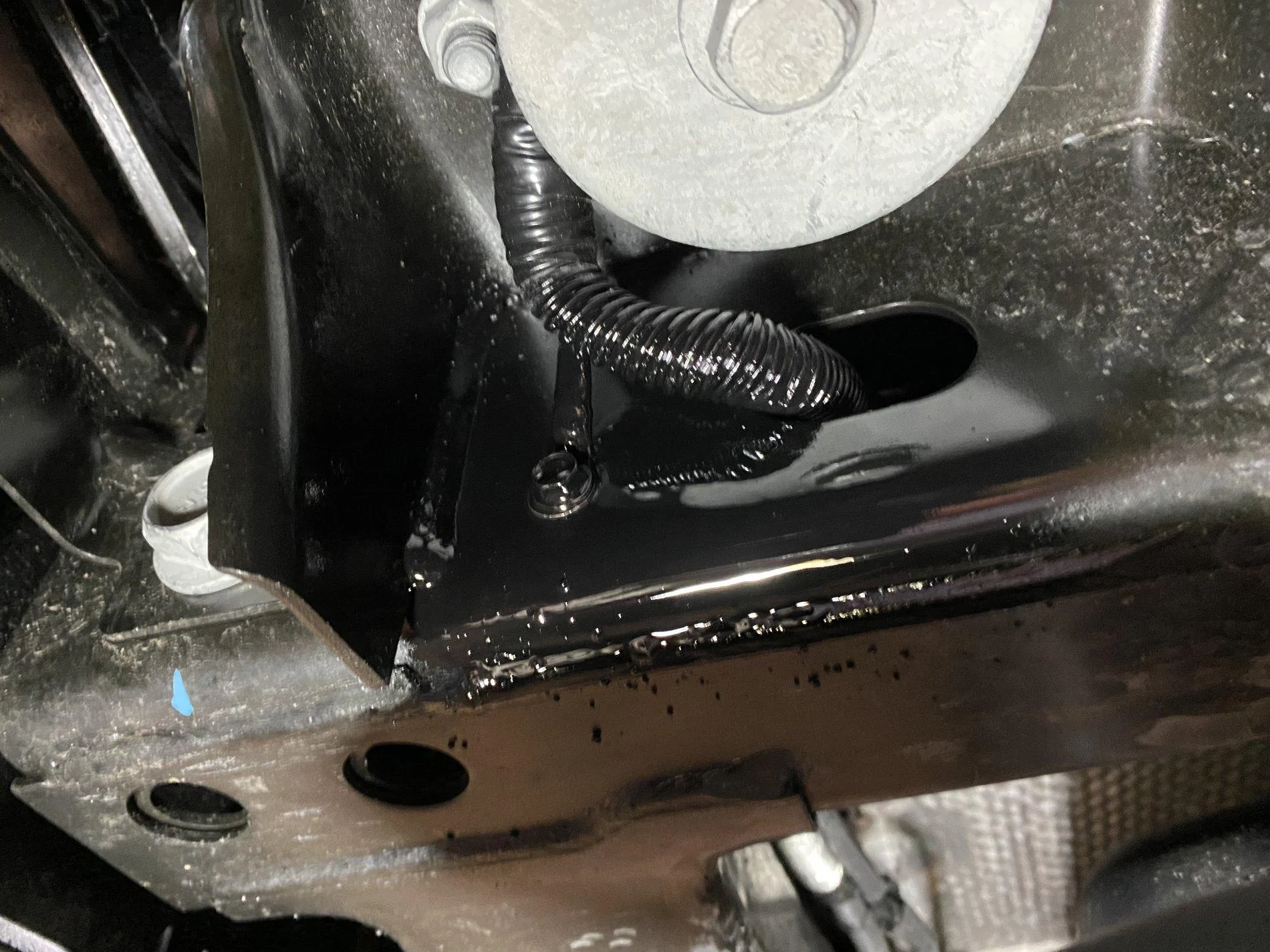

A couple people asked where I grounded the wire to the frame. I took the paint off for the ground then repainted once installed. I predrilled and then used a self tapping screw. The wire loom is the power wire going to the front to the AUX wire.



Windshieldfarmer

Well-Known Member
First Name
Randy
Joined
Feb 27, 2020
Messages
564
Reaction score
721
Location
Wichita, Ks
Vehicle(s)
2015 JKU, 2020 JlU on order
Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?


PA-Punkn

Well-Known Member
Joined
Jan 21, 2020
Messages
344
Reaction score
994
Location
Philly
Vehicle(s)
2020 JLR 3.6L 8AT, 2012 BMW 328 xDrive Wagon 6MT, 2002 BMW 330 Cabrio 5MT
Occupation
IT
Vehicle Showcase
3
Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?
That was my concern, I opted for Aux switch only.


Dudley Dawson

Well-Known Member
First Name
David
Joined
Aug 17, 2018
Messages
100
Reaction score
163
Location
Ashburn, Virginia
Vehicle(s)
18 JLU Turbocon
Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?
I don’t see the issue. Same as headlights on (especially JL LEDs) while departing a parking spot nose out. Activating them via AUX switch while driving - yes. (Not saying that is the intention - but that would be an obvious foul).


RobAmy

Well-Known Member
Joined
Dec 5, 2020
Messages
136
Reaction score
362
Location
Chepachet, RI
Vehicle(s)
2021 3.0L Turbo Diesel Rubicon
Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?
I felt they are a bit bright for all situations so that was my thought in deciding to use the AUX switch. For many situations I can see with the normal backup lights when I need more I have the option. Also I did not want to tap into my OEM wiring being so new (about 5 weeks)and not want any issues with warranty so early in the game. I can always add a diode down the road if I so choose. I also leave campsites early for wildlife photography and try to not use lights at all when possible for politeness to other campers.


GregorioJL

Member
First Name
Greg
Joined
Jul 13, 2020
Messages
16
Reaction score
10
Location
Germantown, MD
Vehicle(s)
2018 Jeep Wrangler JL
Finished my install - running from Auxilary 3 and have a diode installed so I can also have them work in reverse also. After seeing how bright they are I am becoming hesitant to have them automatically come in in reverse as I am afraid they would have a blind other drivers...thoughts?
I have dual 1400 LEDs and I've never been worried about flashing someone. I usually wait for people to move on before shifting in reverse. I also have them pointed down slightly so it isn't shining directly back.


am1978

Well-Known Member
Joined
Mar 10, 2018
Messages
1,133
Reaction score
985
Location
MD
Vehicle(s)
2018 JLU Sahara Bright White, 2018 JLU Sahara HellaYella
Occupation
‘Merica
Anyone done this yet by tying into the trailer harness reverse light wire?


Windshieldfarmer

Well-Known Member
First Name
Randy
Joined
Feb 27, 2020
Messages
564
Reaction score
721
Location
Wichita, Ks
Vehicle(s)
2015 JKU, 2020 JlU on order
I have dual 1400 LEDs and I've never been worried about flashing someone. I usually wait for people to move on before shifting in reverse. I also have them pointed down slightly so it isn't shining directly back.
The Oracle lights are wide angle and can’t be “aimed” effectively. Unlike headlights, these lights “spray” in all directions...and I like that for off-roading or trailer loading, but not for backing up in grocery store parking lots.
