Backup Lights

  1. JeffK

    JeffK Member

    First Name:
    Jeff
    Vehicle(s):
    06 Ram 2500 5.9 2019 JLU Rubicon
    Joined:
    May 5, 2018
    Location:
    Pa
    Posts:
    21
    Liked:
    79

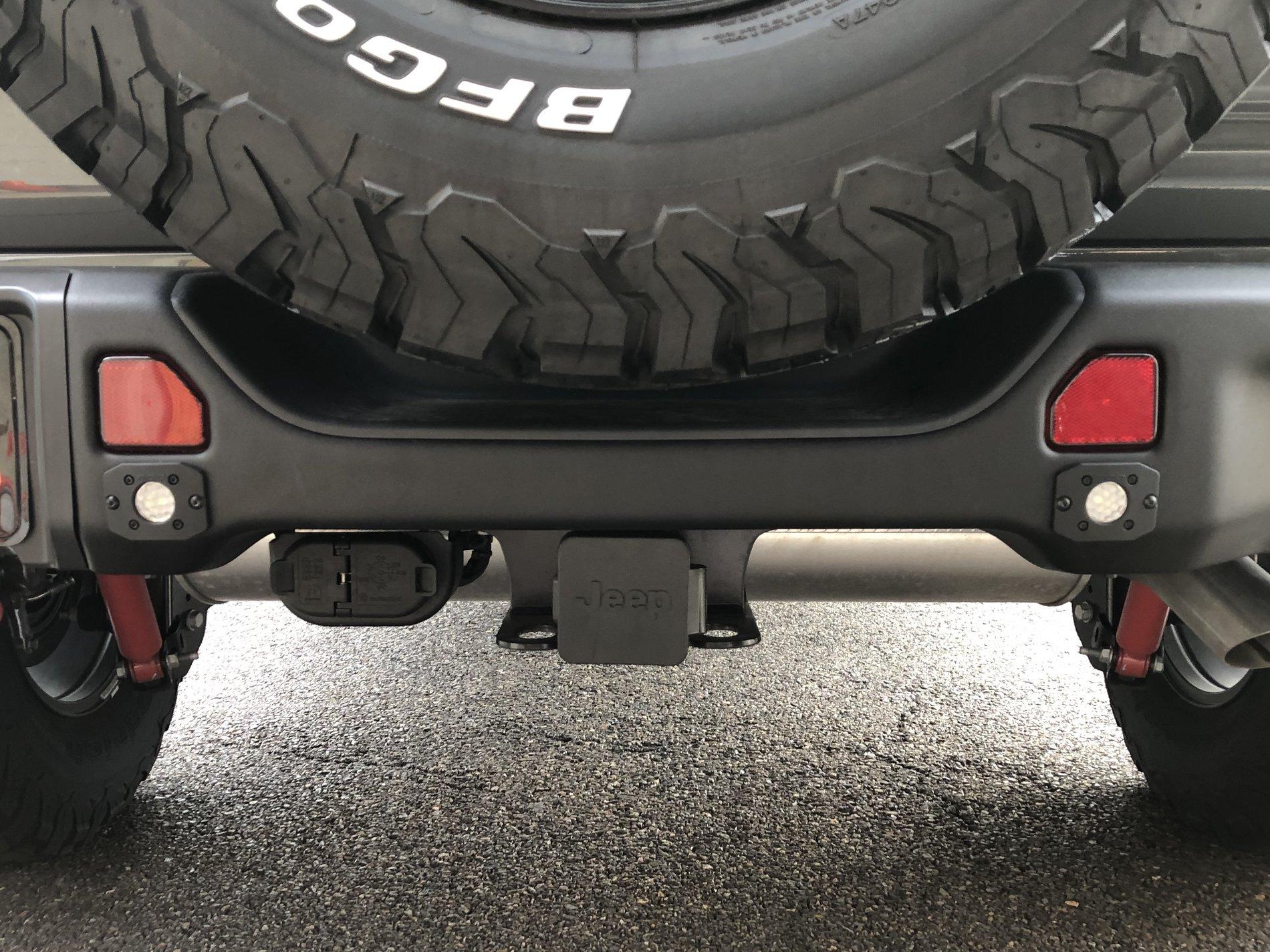

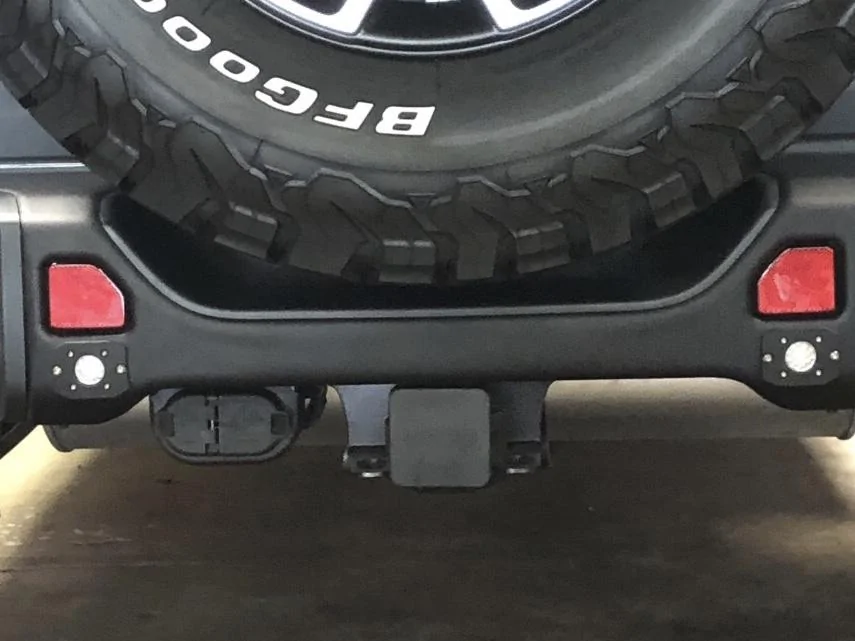

    Was annoyed with the chrome screws on the back up lights. Decided to paint them flat black.



  2. Beetle Bailey

    Beetle Bailey Well-Known Member

    First Name:
    Joe
    Vehicle(s):
    2019 JLUR, HD Dyna, HD Softail
    Joined:
    Aug 31, 2018
    Location:
    SoCal - Orange County
    Posts:
    104
    Liked:
    117
    Yes you will need two of them

  3. CarbonSteel

    CarbonSteel Well-Known Member

    Vehicle(s):
    2019 Jeep Rubicon Unlimited
    Joined:
    Jul 21, 2019
    Location:
    Texas
    Posts:
    393
    Liked:
    281
    Garage Profiles:
    1
    I am about to start this project myself (waiting for my Borla S to arrive this week so I mount the lights in the best place) and I want to keep my diodes under the hood.

    To that end, has anyone tapped into the trailer backup wiring under the hood? I looked at the wiring diagrams and the wire appears to go up to a relay somewhere under the hood.

    Anyone have any insight?

  4. SeanD

    SeanD Well-Known Member

    First Name:
    Sean
    Vehicle(s):
    2018 Jeep JLU Rubicon, 2013 Acura RDX
    Joined:
    Jul 17, 2018
    Location:
    Oregon
    Posts:
    116
    Liked:
    127
    Garage Profiles:
    1
    #379 Sep 8, 2019
    Last edited: Sep 8, 2019

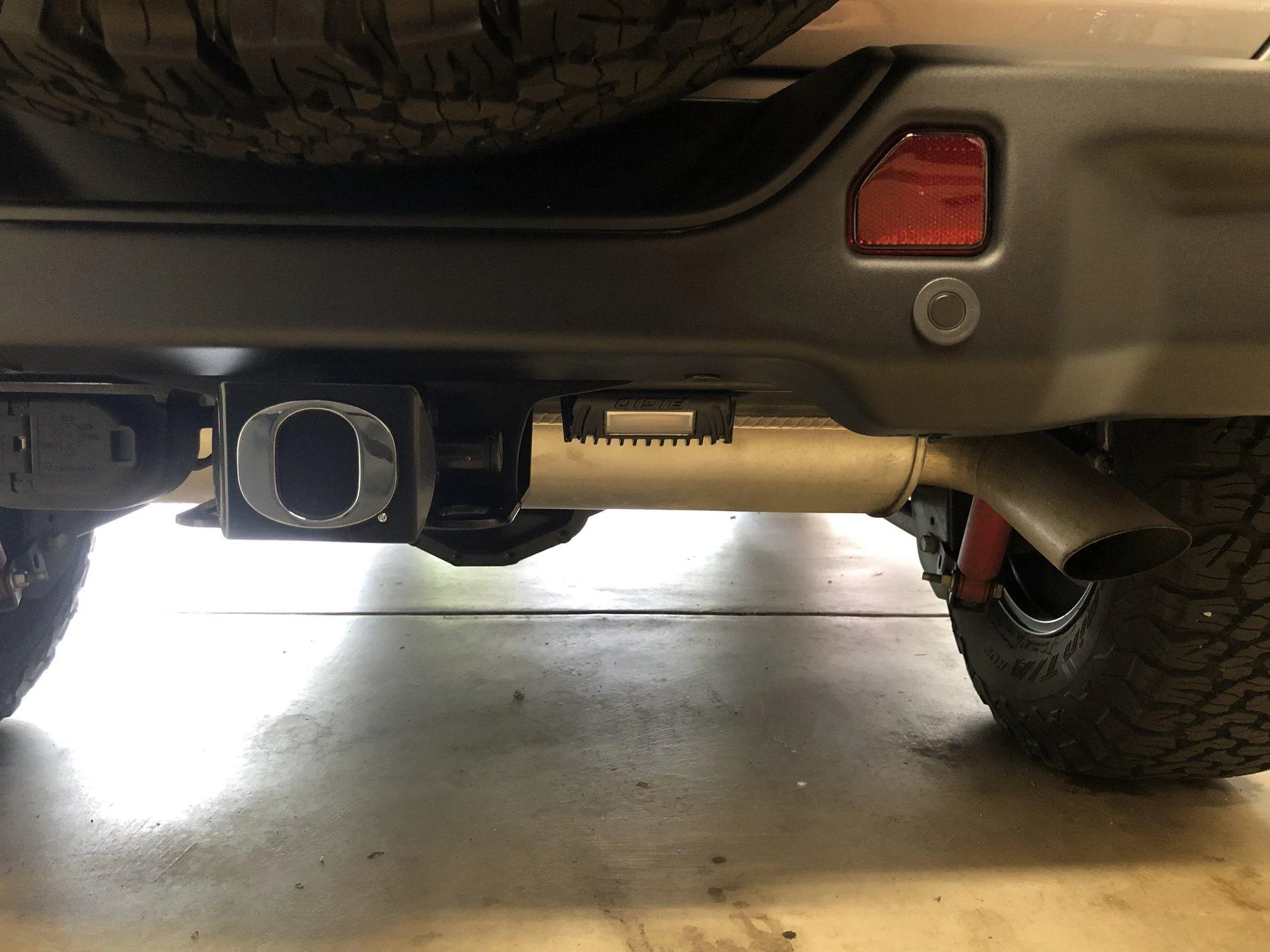

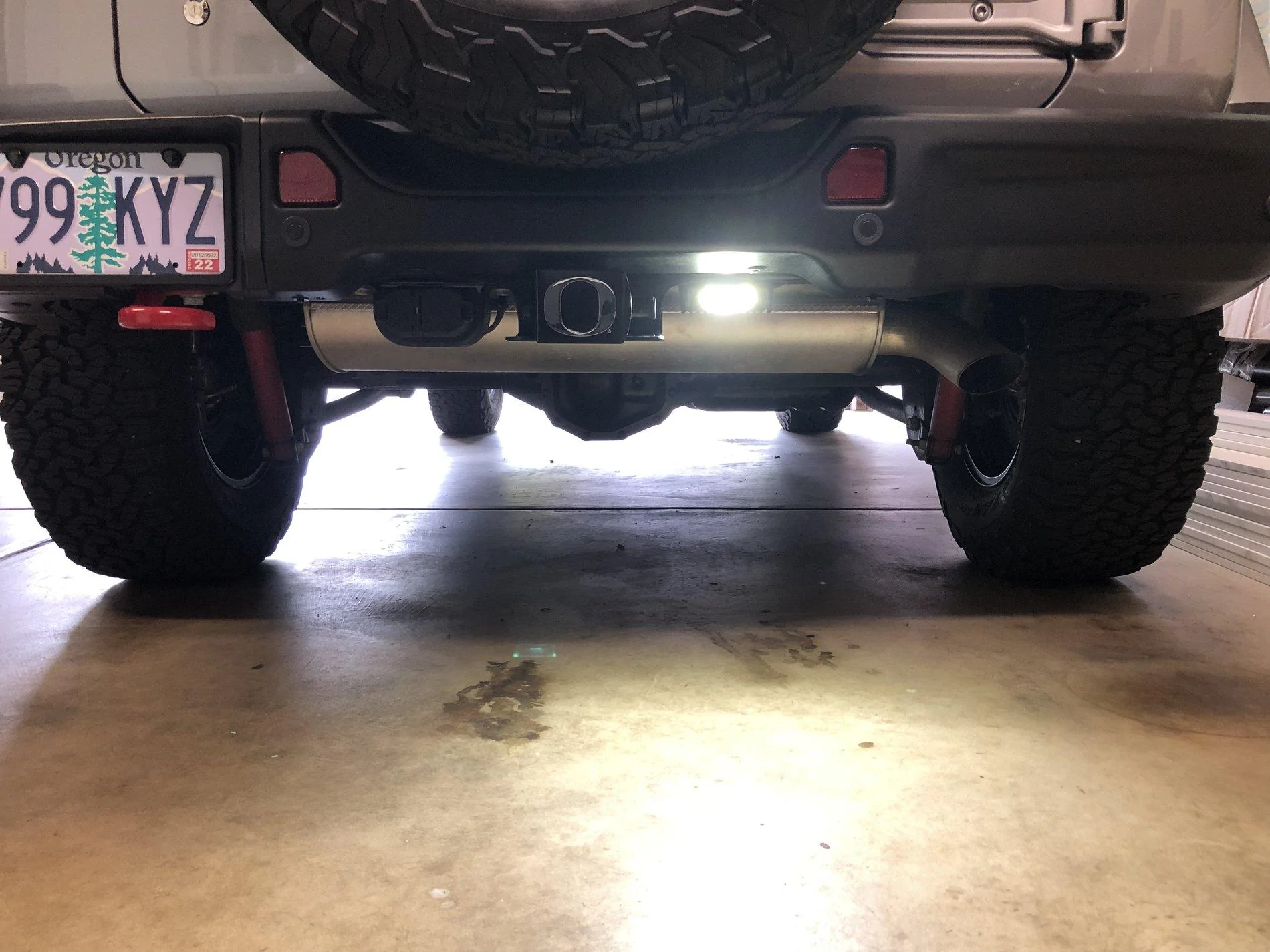

    I really liked @Jeeper ‘s idea using the Rigid Scene Light, but chose to mount it to the side of my hitch like many others using a single light (eg, Baja Designs S2) rather than to the bottom of the hitch where it would have been more nicely centered. I was worried about it hanging down too far and being exposed more than I liked.

    The Rigid Scene Light is relatively inexpensive ($82 on Amazon) and has a sleek, low profile which is quite elegant. However, because it doesn’t project the light out straight, it won’t be as bright and evenly spread as some other dual light solutions (which will surely bug my OCD!), but it is still quite an improvement and adequate for my needs.

    I just wired it direct to Aux 4 for now going through the frame rail, but will eventually also wire to the backup lights behind the passenger side taillight using the two diode approach. I just ran out of time today.

    And yes, I still need to paint my muffler. ;)



    Ctaylor1432 likes this.
  5. Scarr2k

    Scarr2k Well-Known Member

    Vehicle(s):
    19 JLUR
    Joined:
    Jun 14, 2019
    Location:
    NC
    Posts:
    187
    Liked:
    72
    @ColoradoRubicon - Love the light install and actually ordered a set based on this. One thing I wanted to ask has anyone installed this exact set of LED's from e-trailer on a plastic bumper with the backup sensors? I believe I have two sensors right where @ColoradoRubicon installed his. I've seen a few Rigid flush mount LEDs that were mounted on the outer edges of the bumper with backup sensors but wanted to see anyone who used the e-trailer ones.

  6. spurly

    spurly Well-Known Member

    First Name:
    Zach
    Vehicle(s):
    2019 Bright White JLUR
    Joined:
    Sep 10, 2018
    Location:
    Nebraska
    Posts:
    638
    Liked:
    574
    #381 Sep 9, 2019
    Last edited: Sep 9, 2019
    Well I read through the entire thread sitting at the bar tonight. Ok more like skimmed.

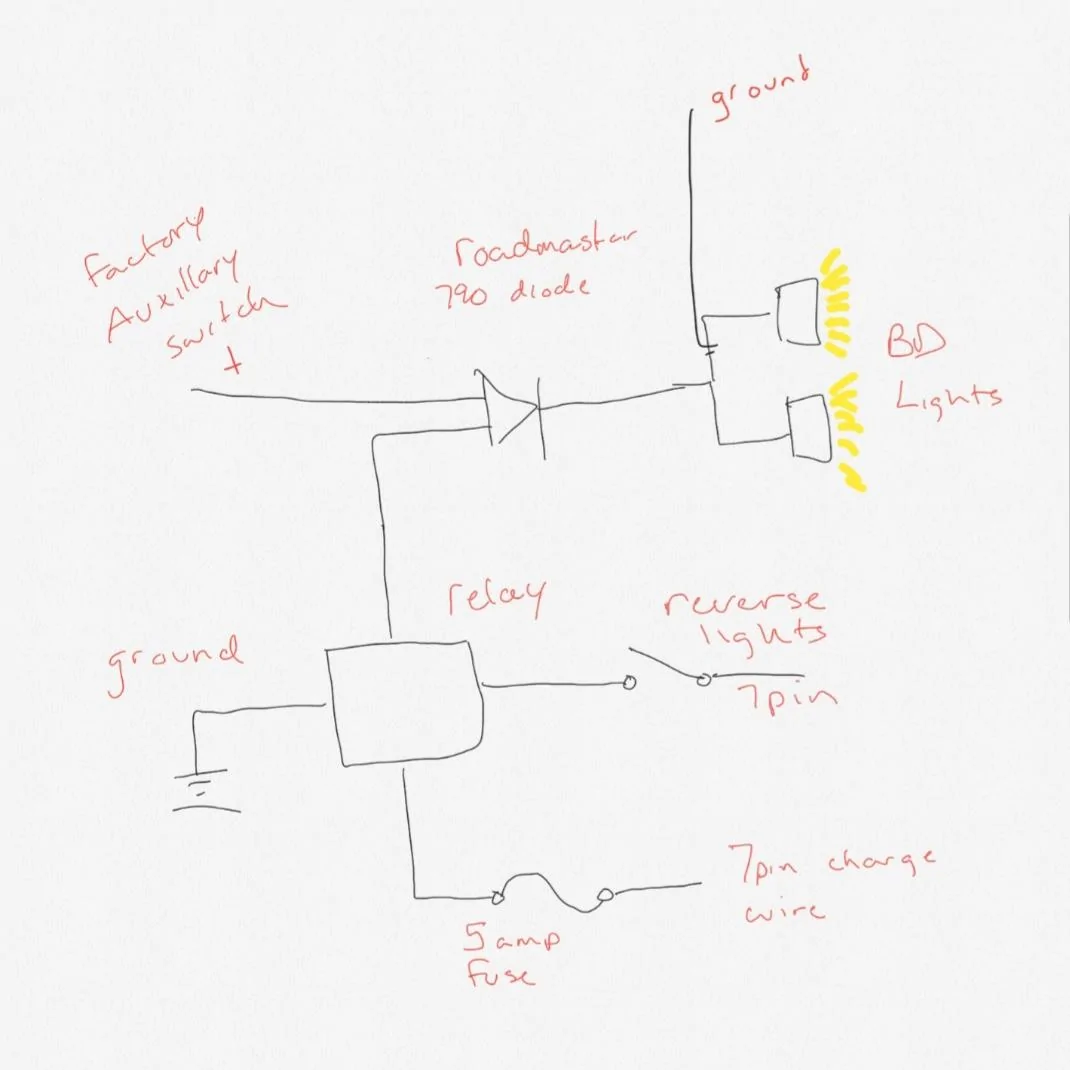

    I have a new aftermarket bumper arriving tomorrow that I will be installing 2 Baja Designs S2 Sport flush mounts into. I've been planning on wiring them up to both the AUX switch AND and the reverse lights. I will not be splicing into the taillight wire harness for the reverse switch power but instead splicing into the reverse wire from the 7pin trailer harness to switch the relay AND the charge wire from the 7 pin harness to provide 12v power to the lights. After reading through the thread, I think I may have (but now I'm second guessing myself) simplified the wiring a bit but I wanted someone to double check my math so to speak (cough @Rhinebeck01 cough). Roadmaster actually makes a 2 in 1 out diode that should make this a bit easier.

    (The 5 amp fuse off the charge wire is just extra security and the "switch" I show coming off the 7pin reverse lights is just my way of saying this is the trigger for the relay)

    On paper it works, but will the Jeep like it?


    alphalife9 likes this.
  7. spurly

    spurly Well-Known Member

    First Name:
    Zach
    Vehicle(s):
    2019 Bright White JLUR
    Joined:
    Sep 10, 2018
    Location:
    Nebraska
    Posts:
    638
    Liked:
    574
    Well I guess Rhinebeck is no longer on the forum according to his profile. So maybe someone else can help check my math.

  8. SmartStopStart.com

    SmartStopStart.com Well-Known Member
    Peak Sponsor (Level 2)

    First Name:
    Steve
    Vehicle(s):
    2019 Wrangler JL Rubicon Unlimited Sting Grey
    Joined:
    Feb 27, 2017
    Location:
    Arlington, VA
    Posts:
    150
    Liked:
    220
    Occupation:
    Electronics Engineer and Business Owner
    Mostly this is OK, but It is unnecessarily complicated. You do not need to add a relay since the trailer harness backup light already has a dedicated built in relay in the vehicle for for the trailer lights. The only other issue is you have drawn the ground to the two lights on top of the power wires to the lights. The ground to the lights is a separate wire.

  9. spurly

    spurly Well-Known Member

    First Name:
    Zach
    Vehicle(s):
    2019 Bright White JLUR
    Joined:
    Sep 10, 2018
    Location:
    Nebraska
    Posts:
    638
    Liked:
    574

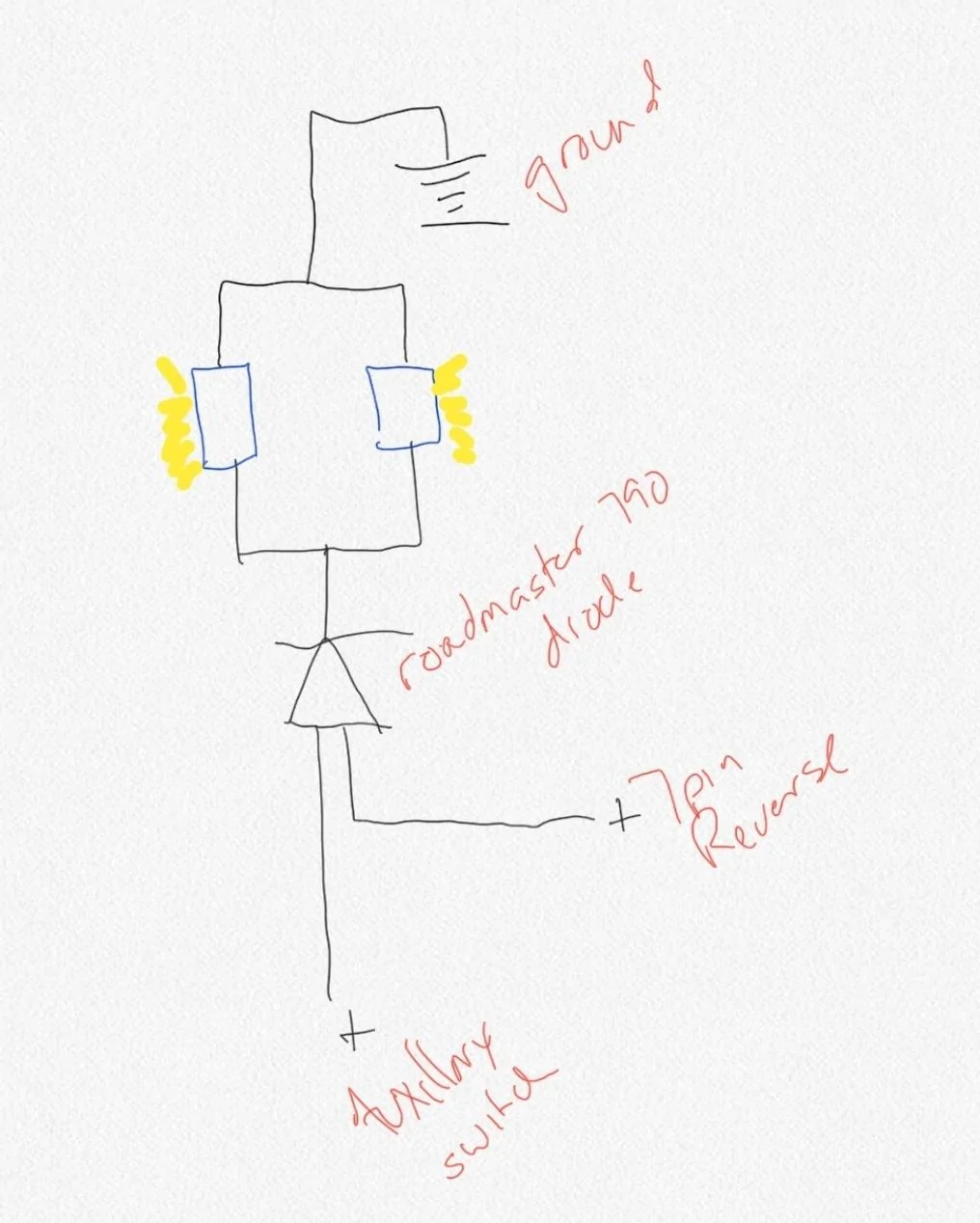

    Good point, I was planning on using the wire harness that came with the lights because I didn't think about the 7pin reverse already having a dedicated relay. The ground for the lights was a last second catch and I ran out of room on my tablet to correctly draw it in. This should be much easier.

    Screenshot_20190910-190445_Samsung Notes.jpg

  10. CarbonSteel

    CarbonSteel Well-Known Member

    Vehicle(s):
    2019 Jeep Rubicon Unlimited
    Joined:
    Jul 21, 2019
    Location:
    Texas
    Posts:
    393
    Liked:
    281
    Garage Profiles:
    1
    I joined the backup light club yesterday and it took about 4 hours (really took my time to do everything right). I connected the lights to Aux #4 and to the backup light lead for the 7 pin trailer connector. I could not justify the cost of the Rigid branded lights (for something that may be torn off) so I used two ADZOON 2'' 27W Waterproof Mini LED Cube lights.


    I ran marine 14/2 wiring inside 3/8” split loom tubing from the engine bay to the rear using a ¼” 25 foot fish tape (https://www.lowes.com/pd/Southwire-25-ft-Steel-Fish-Tape/50114239). This particular tape is great and when I initially ran it through the frame, it hit an obstacle very quickly. I thought -great, this is what everyone has struggled with, but when I began tracing it, I was pleasantly surprised to find it hitting the bumper—totally painless, but I think the ¼” blade versus the more common 1/8” blade made the difference.


    All wiring was ran inside split loom tubing and taped at appropriate intervals. All connections were either covered in heat shrink tubing or siliconed and taped. The crimper I bought does a much better job than my Thomas & Betts crimpers (https://www.amazon.com/Thomas-Betts-WT111M-Insulated-Terminals/dp/B0018LD2PU) which have a tendency to cut through the insulation.


    I installed a diode in the engine bay for the wiring running from Aux #4 to the rear and installed a second diode at the top of the rear passenger taillight cavity. All in all, I am very pleased with the results and the increased light at night. Jeep seriously needs to do something about the OEM LED backup lights—they suck to the point of being dangerous.



    Major parts and tools:



    Lights - https://www.amazon.com/gp/product/B07JD8P1VV


    Wire - https://www.amazon.com/gp/product/B0799JDF5K


    Posi-Taps - https://www.amazon.com/gp/product/B01EINQXEG


    Heat Shrink Butt Connectors - https://www.amazon.com/gp/product/B07B518GCJ


    Diodes - https://www.amazon.com/gp/product/B007HRO4X8


    Heat Shrink Tubing - https://www.amazon.com/gp/product/B075WR9FVL


    Crimpers - https://www.amazon.com/gp/product/B0069TRKJ0




    Mikepa, MNWrangx2, Jeepney18 and 4 others like this.
  11. AnthemAVM

    AnthemAVM Well-Known Member

    Vehicle(s):
    Jeep JL
    Joined:
    Apr 29, 2018
    Location:
    92646
    Posts:
    246
    Liked:
    153
    Amazing write up

  12. jimmyzwheelz

    jimmyzwheelz Well-Known Member

    First Name:
    Jimmy
    Vehicle(s):
    2019 Wrangler Rubicon 2DR
    Joined:
    May 4, 2018
    Location:
    Little Rock, AR
    Posts:
    227
    Liked:
    231
    Thanks for the tip on the crimper tool! I always hated the way my standard crimper worked...this one looks great!

    CarbonSteel likes this.
  13. CarbonSteel

    CarbonSteel Well-Known Member

    Vehicle(s):
    2019 Jeep Rubicon Unlimited
    Joined:
    Jul 21, 2019
    Location:
    Texas
    Posts:
    393
    Liked:
    281
    Garage Profiles:
    1
    It is a ratcheting style and will not let you over-crimp and it also does a "double crimp" about 1/8" apart. For the cost of the Titan crimpers, I am impressed.

    jimmyzwheelz likes this.
  14. blnewt

    blnewt Well-Known Member

    First Name:
    Brad
    Vehicle(s):
    2019 Jeep JL Sport S, 03 Toyota 4Runner, Infiniti G37, Toyota T100 (Retired 74 CJ-5, 80 CJ-7)
    Joined:
    Oct 8, 2018
    Location:
    New Mexico
    Posts:
    1,703
    Liked:
    1,486
    @CarbonSteel , great contribution there, way to pay it forward!

    CarbonSteel likes this.
  15. Poynter32

    Poynter32 Well-Known Member

    Vehicle(s):
    2018 JL Rubicon Granite Crystal - Chevy Silverado Duamax
    Joined:
    Aug 26, 2017
    Location:
    Vero Beach, FL
    Posts:
    148
    Liked:
    147
    #390 Oct 6, 2019
    Last edited: Oct 6, 2019
Loading...
