I ended mounting lights in my spare tire delete, it’s amazing haha.



How did you fit those lights behind that plate? Aren't they much deeper?

I love it, but then I'd have to put my spare in my only trunk space. Which may not be bad with a bikini and no carpets setup...

:movember:


Hydroboy35th

Well-Known Member
First Name
Josh
Joined
Apr 17, 2018
Messages
401
Reaction score
949
Location
Zanesfield Ohio
Vehicle(s)
2018 JLR
Vehicle Showcase
1
How did you fit those lights behind that plate? Aren't they much deeper?

I love it, but then I'd have to put my spare in my only trunk space. Which may not be bad with a bikini and no carpets setup...

:movember:

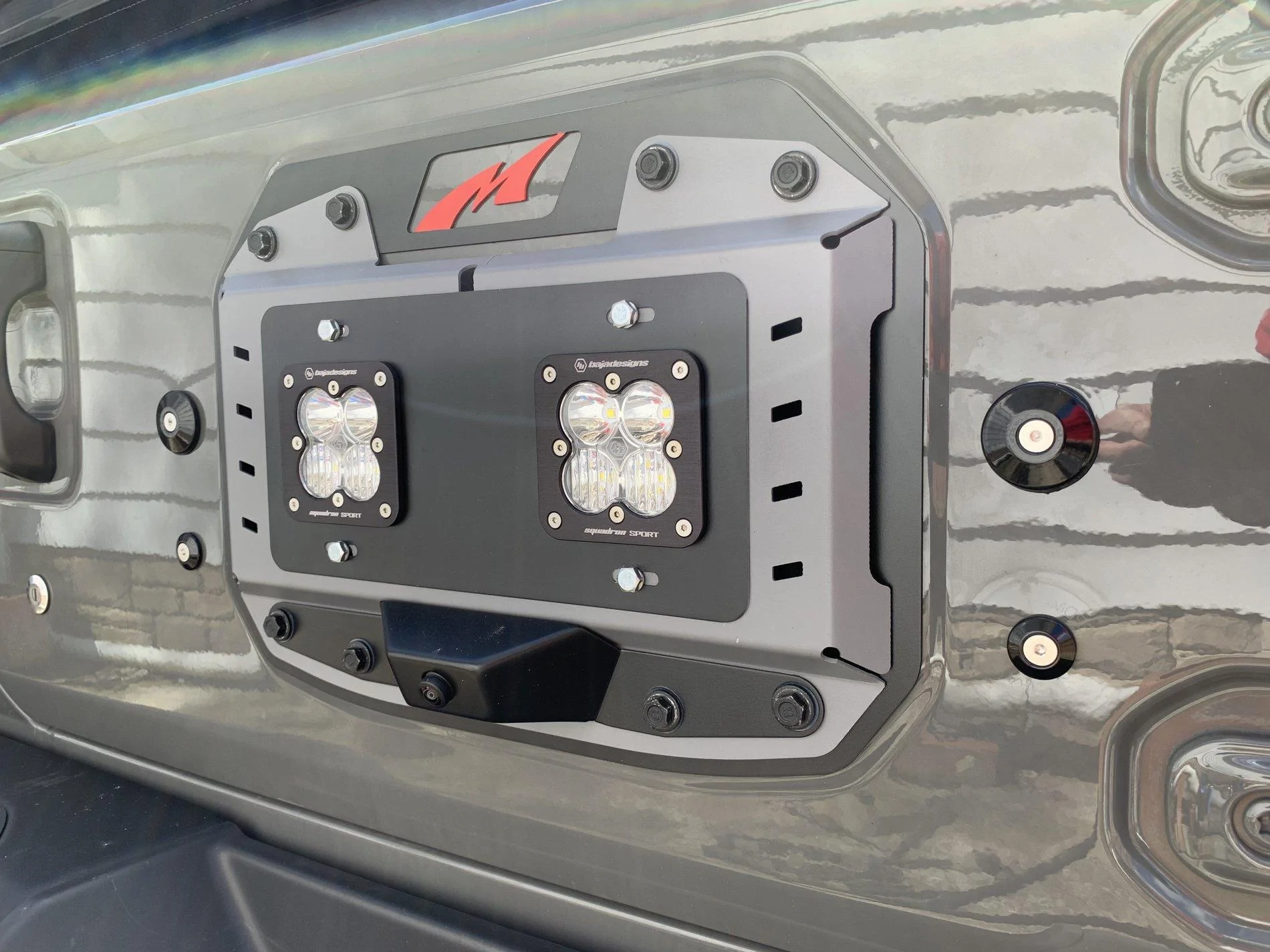

Yes the lights are deeper than the allowed space. I cut the center out of the air outlet vents in the tailgate to allow room for the lights. I tucked the wiring inside the trim panels along the side and up to the aux wiring under the dash (aux4).


dpowell5523

Member
First Name
Donald
Joined
Mar 20, 2019
Messages
19
Reaction score
14
Location
Dallas, TX
Vehicle(s)
2018 JLUR

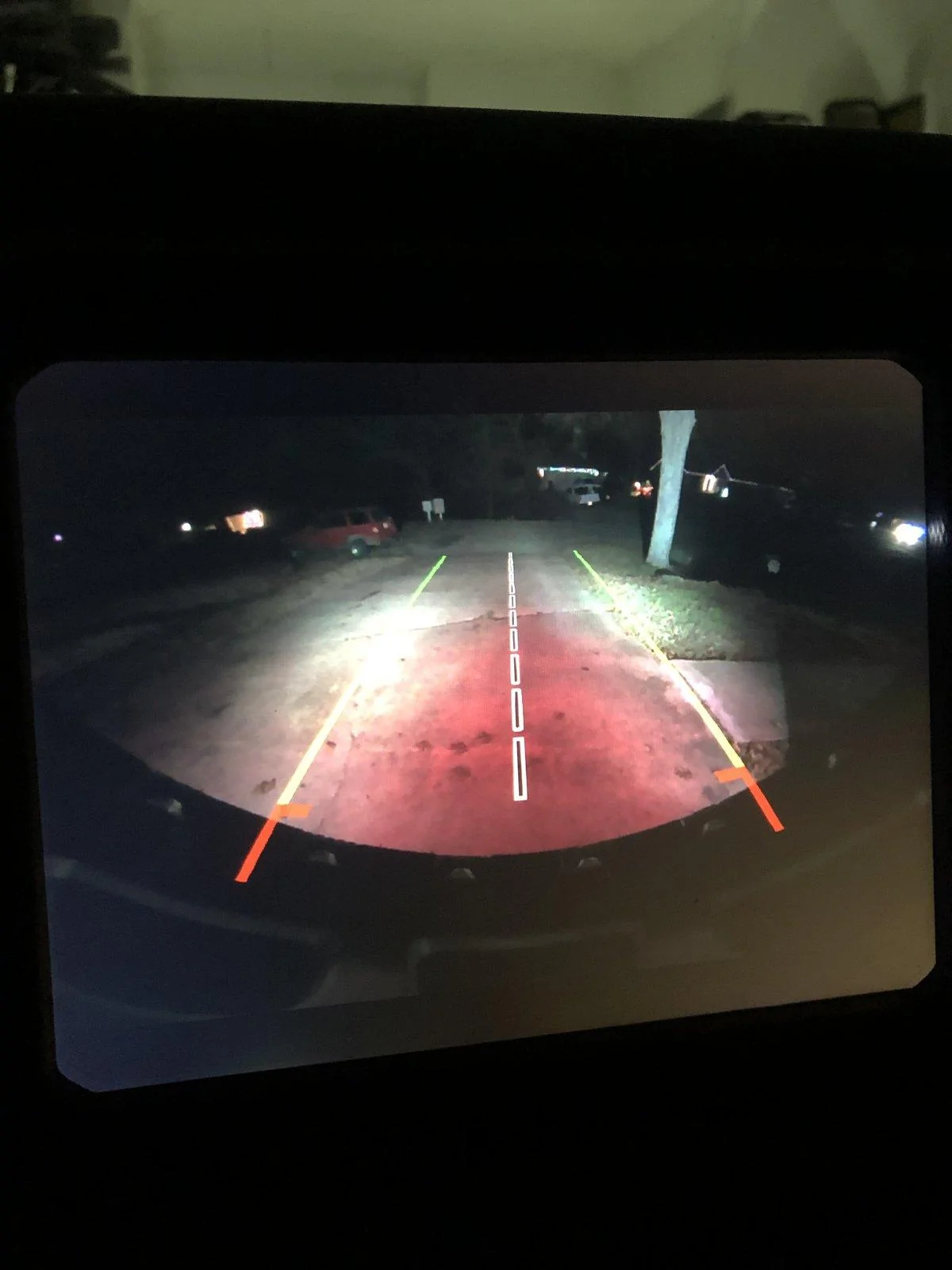

Here is what I did a week ago. Wired into the left tail light. The white wire with the brown stripe is the reverse light circuit. I like how the lights go right along the guidelines on the screen. I used the flush mount rigid LEDs that you guys were talking about putting in the reflectors.





Krondor

Well-Known Member
First Name
Gary
Joined
Jan 23, 2018
Messages
12,199
Reaction score
74,472
Location
Golden, CO
Vehicle(s)
2018 Punk'n Edition JLR
Build Thread
Link
Here is what I did a week ago. Wired into the left tail light. The white wire with the brown stripe is the reverse light circuit. I like how the lights go right along the guidelines on the screen. I used the flush mount rigid LEDs that you guys were talking about putting in the reflectors.



Nice job. Looks very clean!


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Messages
1,707
Reaction score
1,696
Location
FERNLEY NV
Vehicle(s)
2018 HELLAYELLA JLU SAHARA/2016 "STINGER YELLOW" RAM
Now that's a great jog--congrats !

JIMBO


pcpopcorn

Well-Known Member
Joined
Aug 25, 2018
Messages
112
Reaction score
45
Location
Clarkston Mi
Vehicle(s)
2018 JL Rubicon Firecracker Red
Here is what I did a week ago. Wired into the left tail light. The white wire with the brown stripe is the reverse light circuit. I like how the lights go right along the guidelines on the screen. I used the flush mount rigid LEDs that you guys were talking about putting in the reflectors.



Love it
Is that a plastic or steel bumper?


FulThrotl

Well-Known Member
First Name
Randy
Joined
Feb 14, 2018
Messages
121
Reaction score
165
Location
Huntington Beach, CA
Vehicle(s)
2018 JL Rubicon
You can also install these bad boys in the spare 😎😜

what i'm inclined to do, is stick a single laser spot right in the center, above the spare tire mount, with the light carefully aimed directly at the retinas of tailgating drivers. what i need, is the lidar that is used in adaptive cruise controls, so when you get in range, the closer you get, the brighter it gets. i want something that will zap you at high noon on a sunny day. i need a tailgater repellent.

my work car is a CTS-V, and that has a throttle pedal that renders tailgaters null and void. the jeep however, won't pull strongly to 185, and so i need a death star light....


KrawlSpace

Member
First Name
Chris
Joined
Nov 29, 2020
Messages
20
Reaction score
45
Location
Taint of the world
Vehicle(s)
2021 JLU 3L eco Rubi
Bodam said: "How do you tie into the existing LED reverse lights? I can't find any wiring anywhere."

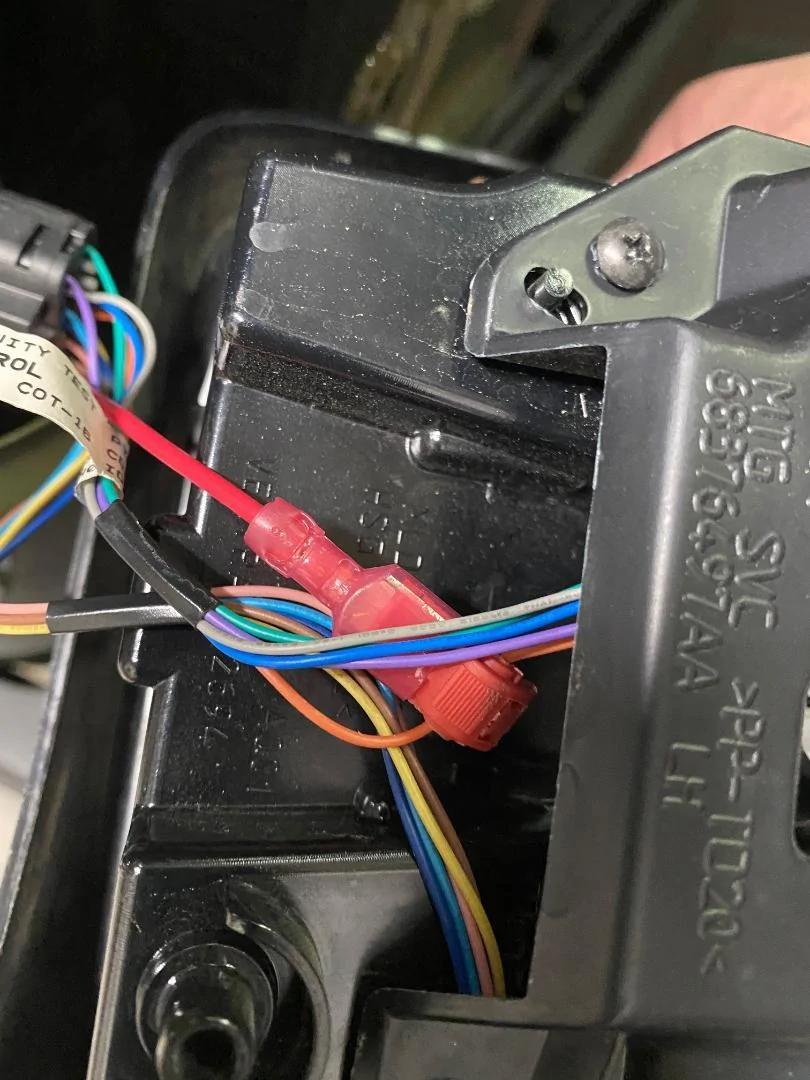

Bob, I tied into the driver side LED just above the clip with "t"-wire connectors. The Orange wire is the "hot" wire for the reverse light aspect of the LED.

led reverse wire.jpeg


dpowell5523

Member
First Name
Donald
Joined
Mar 20, 2019
Messages
19
Reaction score
14
Location
Dallas, TX
Vehicle(s)
2018 JLUR
The wiring in the left tail light. It’s been over a year since I did it. It’s either an orange wire with a white stripe or a white wire with an orange stripe. I tapped into that one and mine only come on with the reverse lights.


Taxman

Well-Known Member
First Name
Alex
Joined
Apr 13, 2018
Messages
196
Reaction score
329
Location
Raleigh, NC
Vehicle(s)
1985 CJ-7, 2018 JLUR
Occupation
CPA
Vehicle Showcase
1
These are finally out now! I preordered mine and they shipped two days ago! Can’t wait...
