Mounting ARB Air Compressor

CptFloridaMan

Well-Known Member
First Name
Gabriel
Joined
Jun 25, 2019
Threads
72
Messages
1,093
Reaction score
744
Location
Miami
Vehicle(s)
2018 JLU Sport 2.0
Kinda bounced through the 50 pages as i’m planning to get either a twin or a single.
Would like to mount under either seat if possible, but is the wire harness that comes with it long enough to be ran to an aux switch under the hood like voswitch? Or would I need to extend some wires?

Or is it better to run it under the hood somewhere for plumbing and wiring?

And assuming i’d like to add lockers later, what is everyone doing for plumbing while it’s under the seat for lockers?
Sponsored


Last edited:

Tech Tim

Well-Known Member
Summit Sponsor (Level 3)
First Name
Tim
Joined
Jan 16, 2018
Threads
14
Messages
1,488
Reaction score
9,693
Location
Poulsbo, WA
Vehicle(s)
4x4 of all kinds
Occupation
Part of the Northridge4x4 team
Kinda bounced through the 50 pages as i’m planning to get either a twin or a single.
Would like to mount under either seat if possible, but is the wire harness that comes with it long enough to be ran to an aux switch under the hood like voswitch? Or would I need to extend some wires?

Or is it better to run it under the hood somewhere for plumbing and wiring?

And assuming i’d like to add lockers later, what is everyone doing for plumbing while it’s under the seat for lockers?

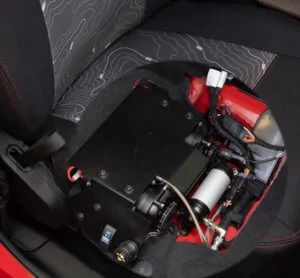

If you want an under-the-seat mount and planning on adding Air Lockers, then the genuine ARB UTS compressor mount is probably your best bet: https://www.northridge4x4.com/part/...0220-arb-twin-air-compressor-mounting-bracket

It mounts under the driver or passenger seat and is designed to work with the ARB manifold, locker actuator solenoids, Lynx system etc.

Jeep Wrangler JL Mounting ARB Air Compressor JL_Compressor_bracket-300x278


1996cc

Well-Known Member
Joined
Aug 19, 2019
Threads
20
Messages
780
Reaction score
986
Location
Oregon
Vehicle(s)
21 JLUR 392
If under seat, you could still mount the little reservoir and solenoids under the hood. Just need a longer hose between.


CptFloridaMan

Well-Known Member
First Name
Gabriel
Joined
Jun 25, 2019
Threads
72
Messages
1,093
Reaction score
744
Location
Miami
Vehicle(s)
2018 JLU Sport 2.0
If you want an under-the-seat mount and planning on adding Air Lockers, then the genuine ARB UTS compressor mount is probably your best bet: https://www.northridge4x4.com/part/...0220-arb-twin-air-compressor-mounting-bracket

It mounts under the driver or passenger seat and is designed to work with the ARB manifold, locker actuator solenoids, Lynx system etc.

Jeep Wrangler JL Mounting ARB Air Compressor JL_Compressor_bracket-300x278
Out of curiosity, how would plumbing look for lockers if it’s under the seat? As in to mount the manifold under the hood, what’s a good option to plumb a line from the compressor? Does it fit in the grommet in the firewall Im assuming?


X-Treme

Well-Known Member
Joined
Jul 10, 2021
Threads
5
Messages
209
Reaction score
586
Location
New Mexico
Vehicle(s)
2021 Rubicon Xtreme Recon
Occupation
Happily Retired

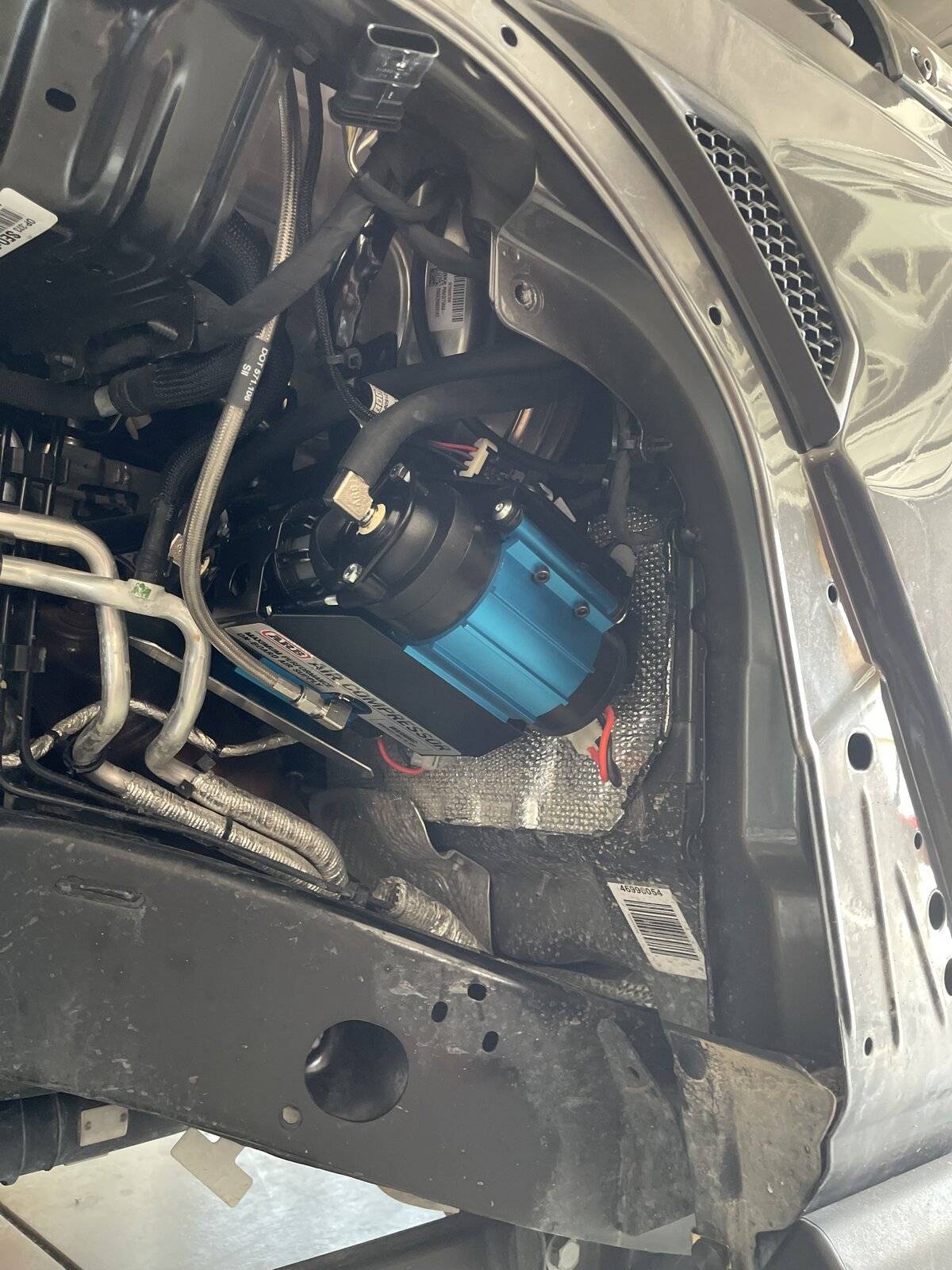

Grimm off-road mount.



That’s exactly where i put mine

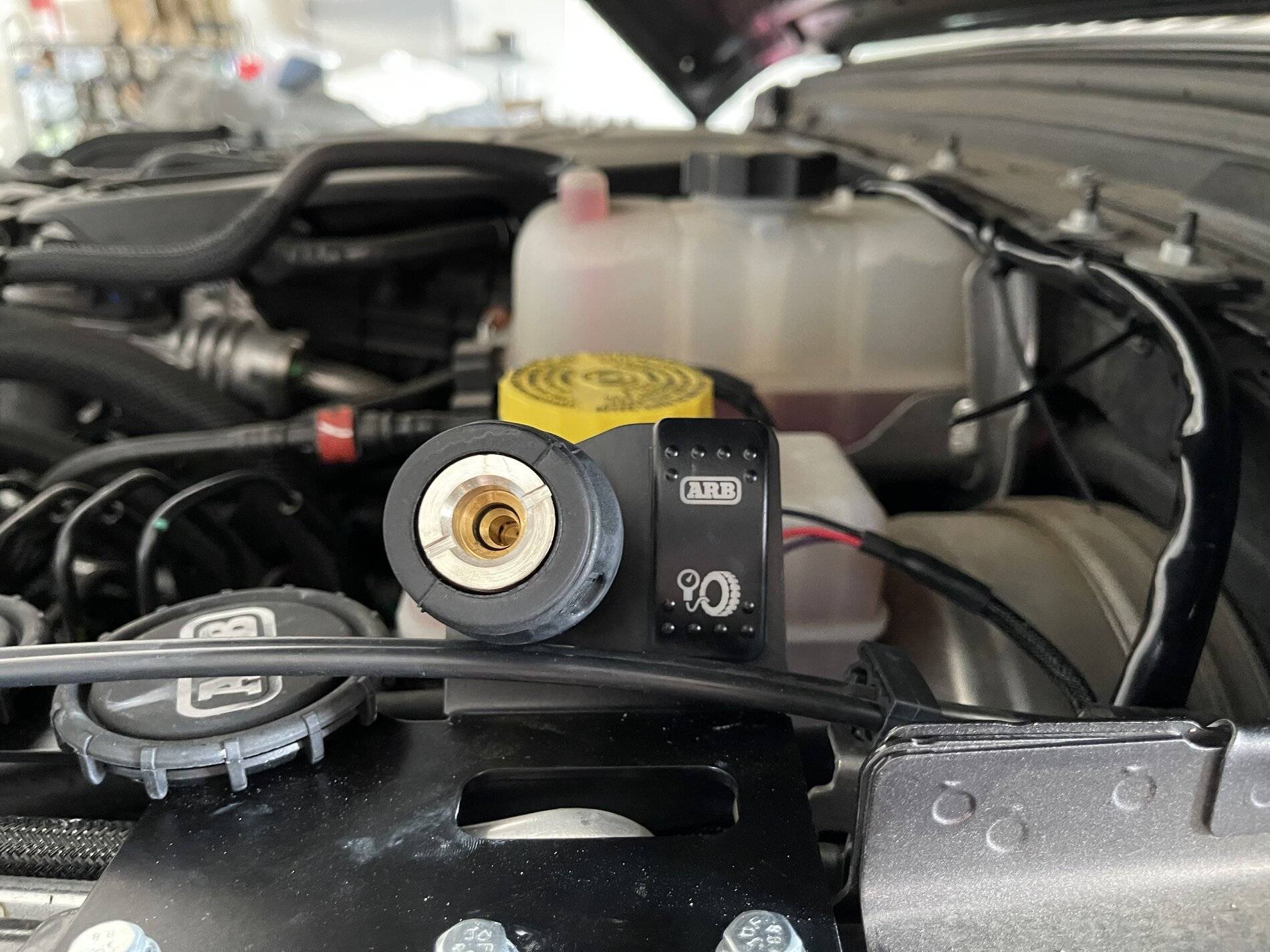

It’s a great setup. The one I have. I added a dust cover for the air fitting.

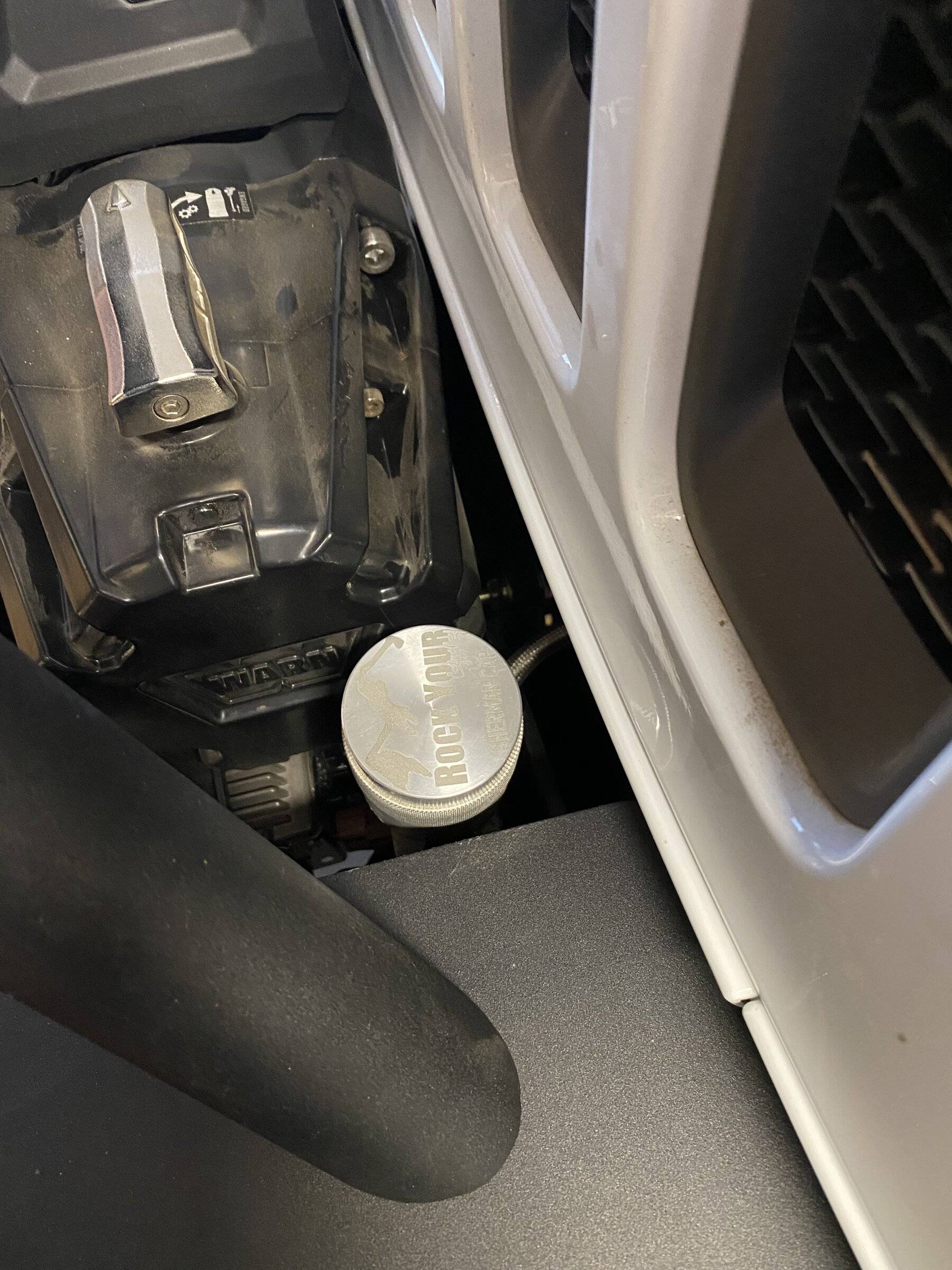

yep, thats where i put mine. My air fitting is in front next to my winch. I added a Sherman dust cover cap to mine as i live in the dusty NM desert.



Sponsored

Tech Tim

Well-Known Member
Summit Sponsor (Level 3)
First Name
Tim
Joined
Jan 16, 2018
Threads
14
Messages
1,488
Reaction score
9,693
Location
Poulsbo, WA
Vehicle(s)
4x4 of all kinds
Occupation
Part of the Northridge4x4 team
Out of curiosity, how would plumbing look for lockers if it’s under the seat? As in to mount the manifold under the hood, what’s a good option to plumb a line from the compressor? Does it fit in the grommet in the firewall Im assuming?

The ARB manifold mounts right to the bracket, you can see it in the pic.

The actuating solenoids mount to the manifold and then the air lines run out from there.

If you wanted to mount the manifold under the hood, you'd need a long enough SS air line to go from the compressor to the manifold.

Grimm Offroad offers a bunch of different length SS air hoses, here is an 80"er: https://www.northridge4x4.com/part/...ies/10058-grimm-offroad-braided-air-hose-80in


smokeythecat

Well-Known Member
Joined
Oct 31, 2021
Threads
6
Messages
651
Reaction score
1,189
Location
California
Vehicle(s)
2021 Willys Sport 2-door, 2019 Mini Cooper S
No room under the JL seat.
Is that because you already have something mounted there? I installed the InnovativeAT 4-tire system under the passenger seat and I love it. It is so easy to air down and up, and when something is easy to do you tend to do it.


CptFloridaMan

Well-Known Member
First Name
Gabriel
Joined
Jun 25, 2019
Threads
72
Messages
1,093
Reaction score
744
Location
Miami
Vehicle(s)
2018 JLU Sport 2.0
The ARB manifold mounts right to the bracket, you can see it in the pic.

The actuating solenoids mount to the manifold and then the air lines run out from there.

If you wanted to mount the manifold under the hood, you'd need a long enough SS air line to go from the compressor to the manifold.

Grimm Offroad offers a bunch of different length SS air hoses, here is an 80"er: https://www.northridge4x4.com/part/...ies/10058-grimm-offroad-braided-air-hose-80in
Thanks for the link, I think i’m leaning towards the grimm fender bracket due to it having the heat shield. Small question, does it have any issues with fender liner clearance? Running paramount fender flares which look to be just like OEM.


Headbarcode

Well-Known Member
First Name
Mike
Joined
Aug 16, 2018
Threads
26
Messages
7,782
Reaction score
17,829
Location
LI, New York
Vehicle(s)
2019 JLUR Stingray 2.0 turbo
Vehicle Showcase
1
Thanks for the link, I think i’m leaning towards the grimm fender bracket due to it having the heat shield. Small question, does it have any issues with fender liner clearance? Running paramount fender flares which look to be just like OEM.
Your safe with factory liners, or any others that aren't of a high tuck design.


Sponsored

JLAFAKASI

Well-Known Member
First Name
Lito
Joined
Nov 30, 2020
Threads
8
Messages
794
Reaction score
142
Location
Richmond, VA
Vehicle(s)
JlU Sport S 2019
Vehicle Showcase
1
Thanks for the link, I think i’m leaning towards the grimm fender bracket due to it having the heat shield. Small question, does it have any issues with fender liner clearance? Running paramount fender flares which look to be just like OEM.
you got pics of dif angles of those fender flares from paramount?


sardogtella

Well-Known Member
First Name
Jim
Joined
Nov 23, 2021
Threads
7
Messages
123
Reaction score
214
Location
Burlingame ca
Vehicle(s)
2012 JKUR. 2021 JLURXR
I second the Grimm Offroad mount. It was easy to install and the filters are up out of the dirt in the engine bay. Grimm customer service was great. I originally purchased the wrong model bracket and they sent me the proper bracket free of charge.


CptFloridaMan

Well-Known Member
First Name
Gabriel
Joined
Jun 25, 2019
Threads
72
Messages
1,093
Reaction score
744
Location
Miami
Vehicle(s)
2018 JLU Sport 2.0
you got pics of dif angles of those fender flares from paramount?
Let me get off work I’ll snag a few photos for you, for the price they’re decent. I wanna replace them with paramount again later because of some small fitmejt issues eventually.


Membrain

Well-Known Member
First Name
Dirk
Joined
Mar 7, 2020
Threads
5
Messages
1,088
Reaction score
2,823
Location
DFW TX
Vehicle(s)
'20 JTR / '21 XR392
Occupation
Engineer
lol - keeping this thread going... I have a 392 and am not seeing any room under the hood, so either under the seat or under the cargo compartment floor... for those who were asking about in the cargo area but behind the rear passenger side seats might want to look and some of the JK MOLLE panels that mount back there.


OnlyOne

Banned
Banned
Banned
Joined
Feb 17, 2018
Threads
37
Messages
1,676
Reaction score
3,221
Location
Northwestern New Mexico
Vehicle(s)
2021 Sport S Diesel on 37s
Is that because you already have something mounted there? I installed the InnovativeAT 4-tire system under the passenger seat and I love it. It is so easy to air down and up, and when something is easy to do you tend to do it.
At the time that mount didn’t exist. I don’t run a ARB anymore. I have a powertank.
