Could you have mounted lower? Do you have a list of parts you needed to mount the compressor?

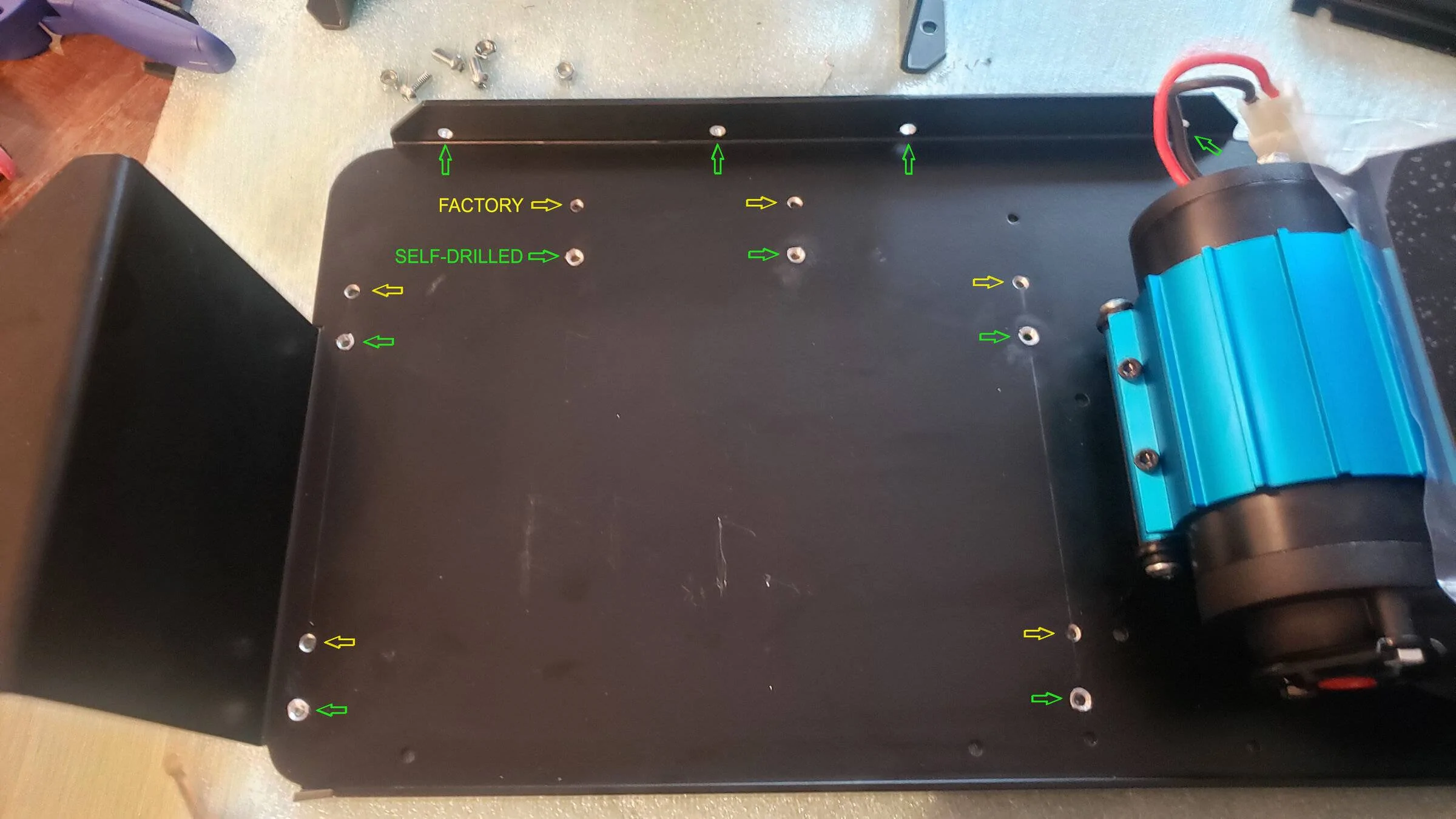

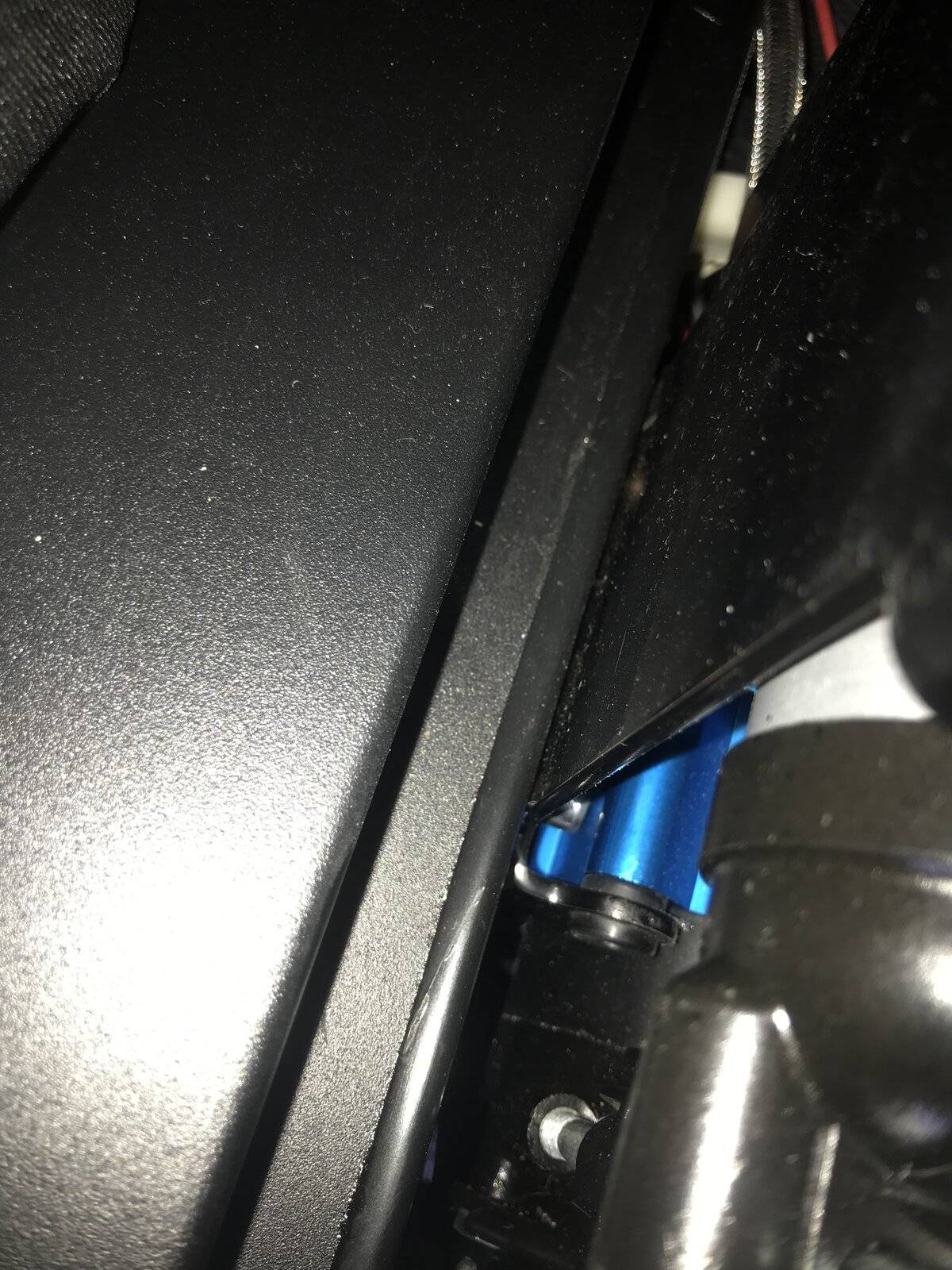

I originally had it mounted slightly lower and more forward. You can see the original top forward hole in this picture. It fit, but one of the air filters touched the seat back and it touched the carpeting. I didn’t want it to melt the carpet (not sure if it would but played safe) so moved it. It likely could be mounted lower, as I pretty much put it as high as I could.

Scott



falcon241073

Well-Known Member
First Name
Trey
Joined
Jun 15, 2021
Messages
221
Reaction score
277
Location
Byhalia, MS
Vehicle(s)
2021 JLUR
Build Thread
Link
I originally had it mounted slightly lower and more forward. You can see the original top forward hole in this picture. It fit, but one of the air filters touched the seat back and it touched the carpeting. I didn’t want it to melt the carpet (not sure if it would but played safe) so moved it. It likely could be mounted lower, as I pretty much put it as high as I could.

Scott


Thanks. I have the Tuffy security trunk and I like the idea.

What did you buy to use as the stand off spacers to move it away from the side wall of the enclosure? And do you remember the bolt sizes you used


DaddyEngineer

Well-Known Member
First Name
Scott
Joined
May 8, 2019
Messages
245
Reaction score
241
Location
Tomball Texas
Vehicle(s)
2019 JLU Rubicon
Thanks. I have the Tuffy security trunk and I like the idea.

What did you buy to use as the stand off spacers to move it away from the side wall of the enclosure? And do you remember the bolt sizes you used

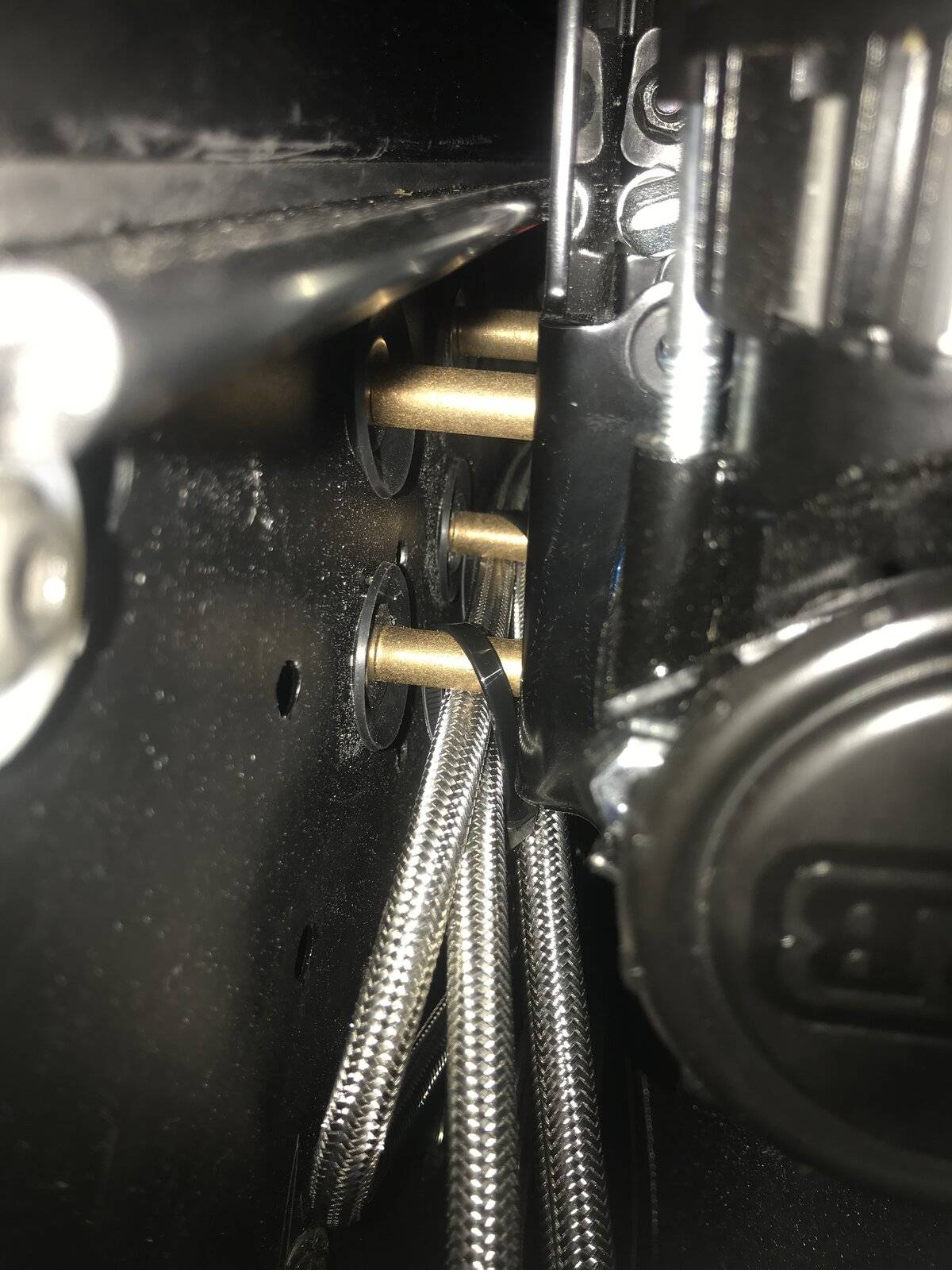

I went to Ace Hardware with the mounting bolts and matched them up. I think they were an M8, but not fully sure of that. I also got some bronze bushings that fit over the mounting bolts. I think 1-1/2” long. I can measure tomorrow and check. My compressor was the portable in the case, so it’s configuration may be slightly different than the one designed to be mounted. If you need hoses, you can find them cheaper without the ARB brand. https://www.ebay.com/itm/JIC-Hydrau...=p2349624.m2548.l6249&mkrid=711-127632-2357-0
Mine uses the JIC end on the compressor and the air chuck.

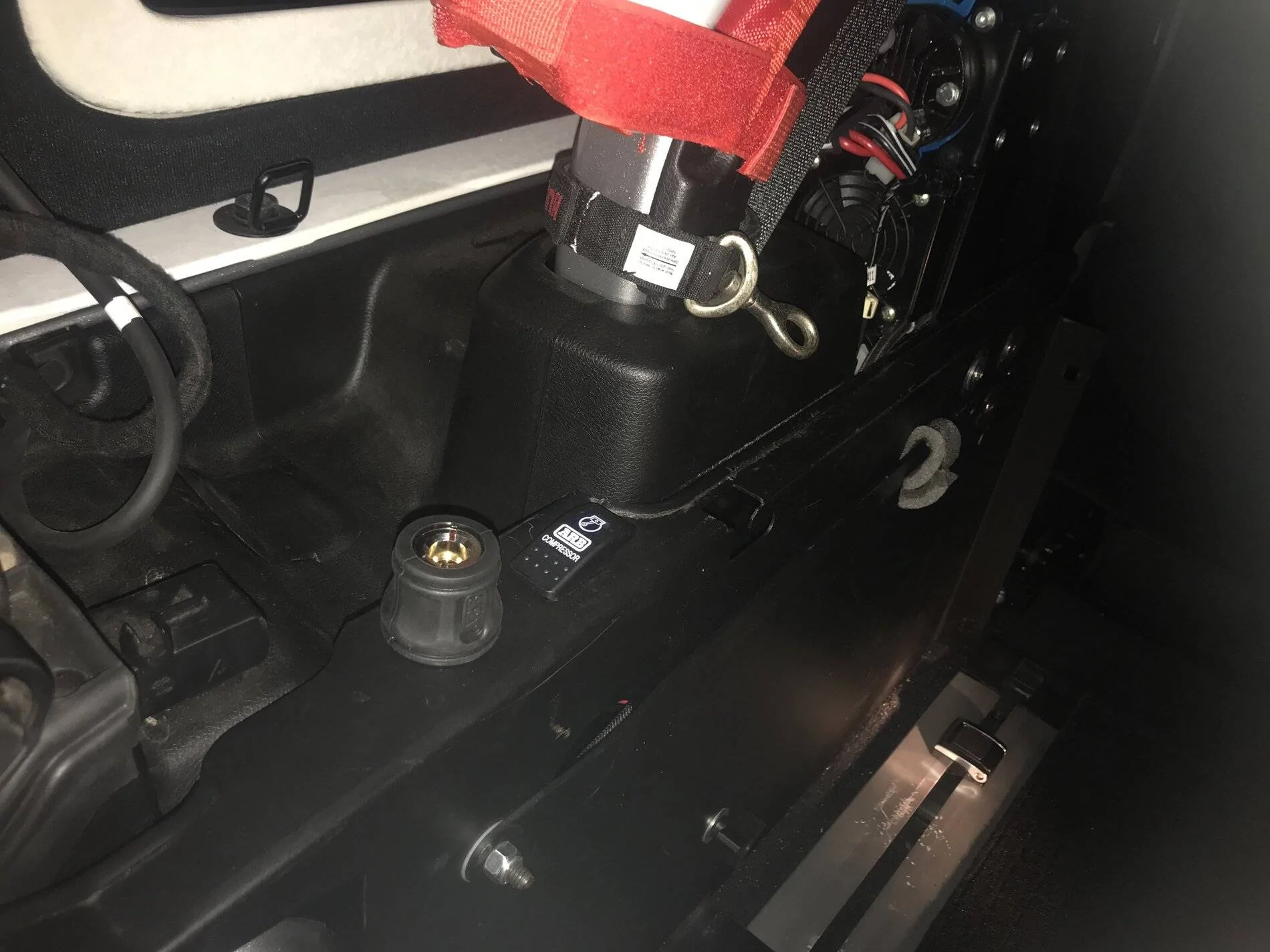

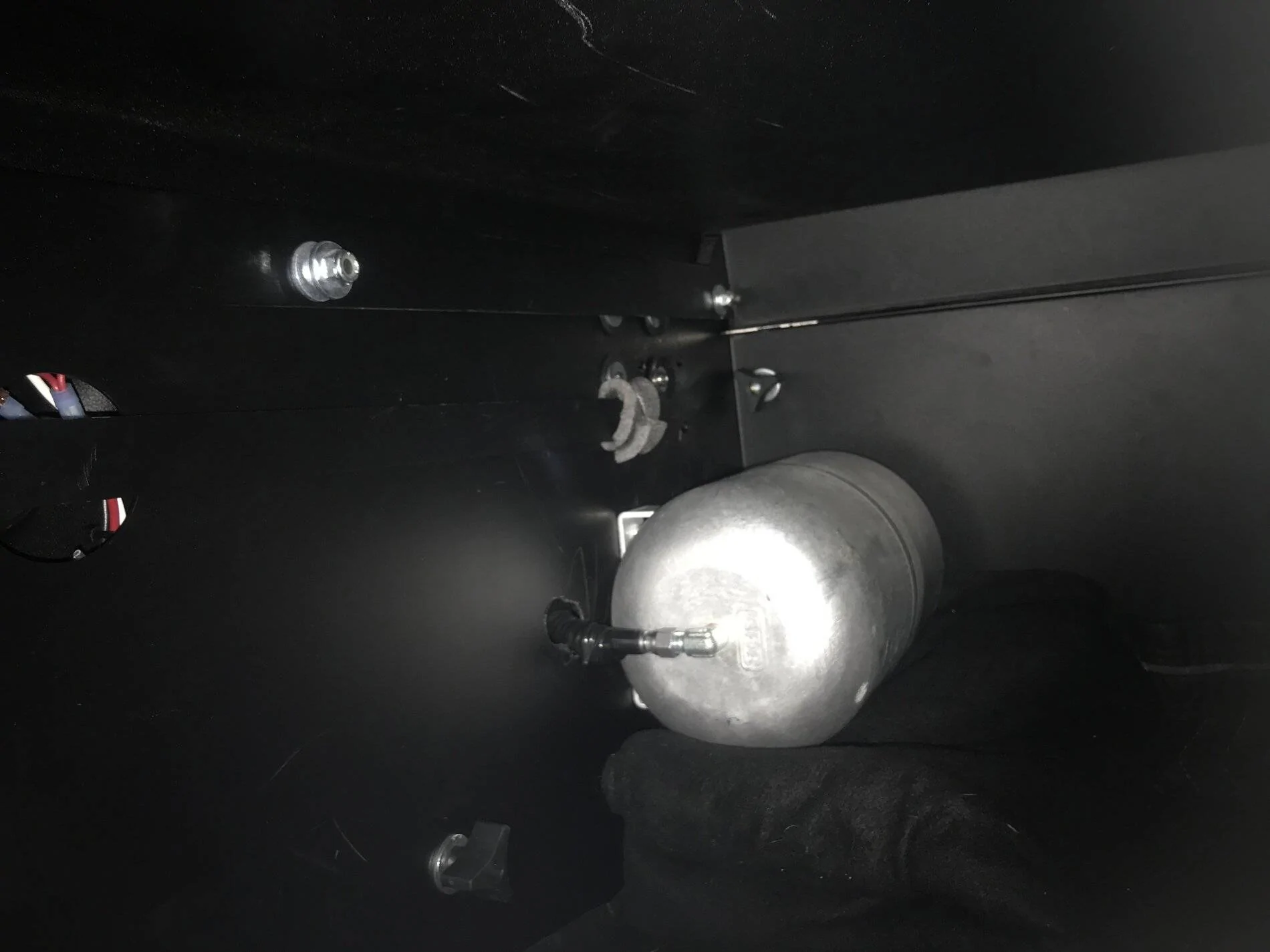

I also mounted the tank on the inside of the trunk wall. Thought about cutting the wall and mounting it half in and half out, so it didn’t take up as much room, but decided that was too much effort.

Scott


DaddyEngineer

Well-Known Member
First Name
Scott
Joined
May 8, 2019
Messages
245
Reaction score
241
Location
Tomball Texas
Vehicle(s)
2019 JLU Rubicon
Thanks. I have the Tuffy security trunk and I like the idea.

What did you buy to use as the stand off spacers to move it away from the side wall of the enclosure? And do you remember the bolt sizes you used

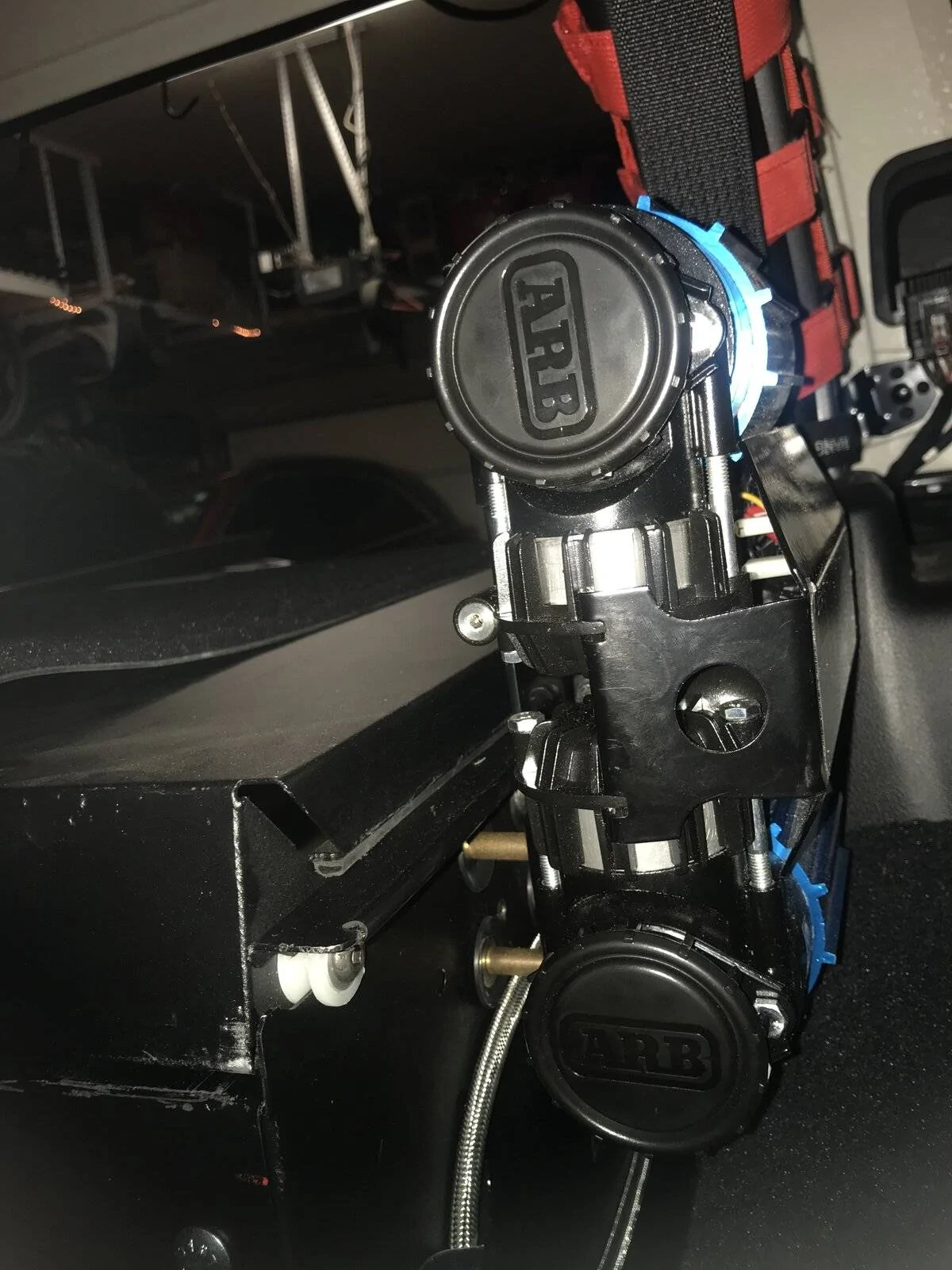

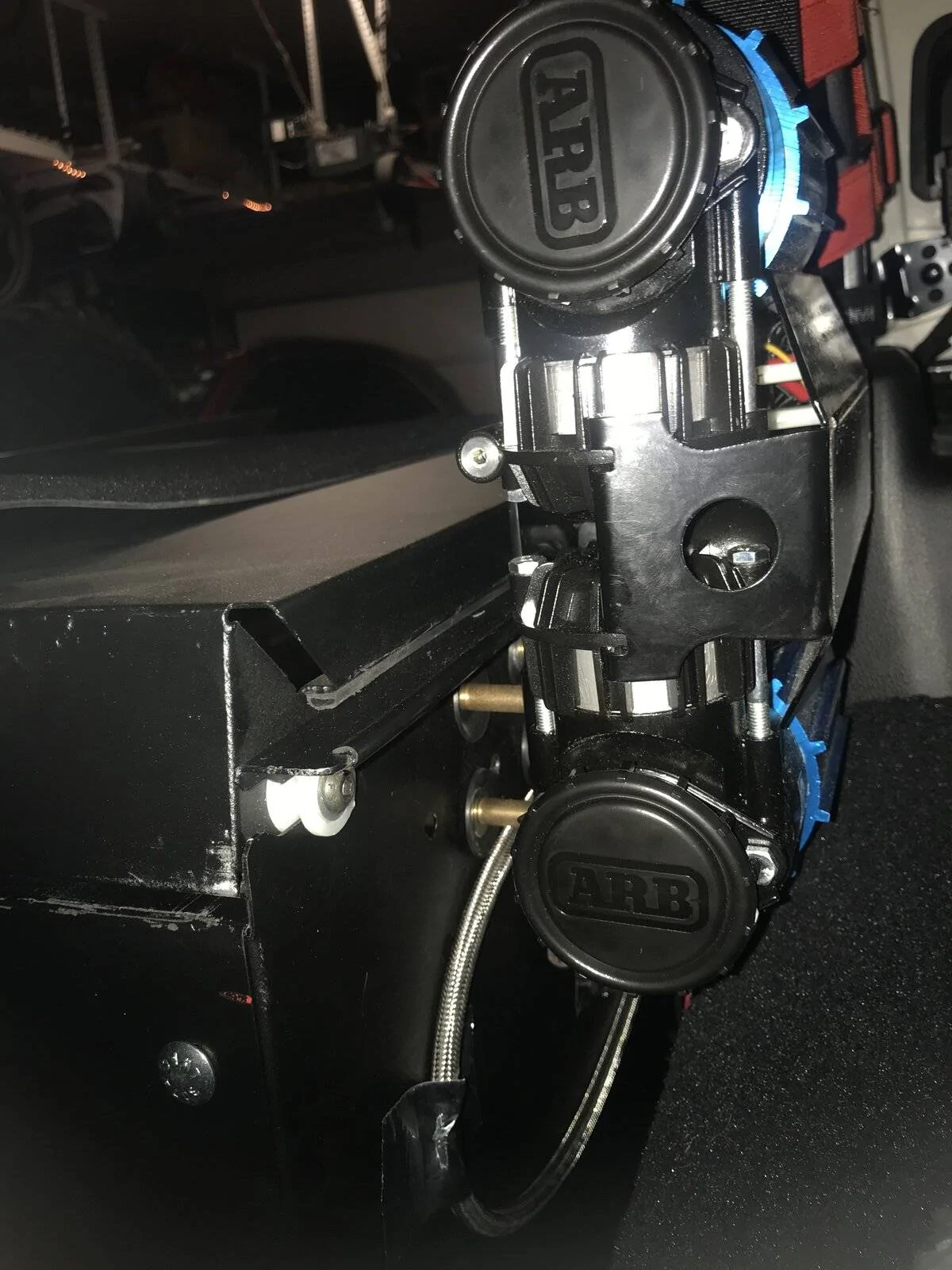

The spacers are only an inch long and I just clear the lip. Here’s my tank mounted too. I have over a hand thickness between the compressor and the carpet and seat back.

Scott







AlpacaLies

New Member
First Name
Bill
Joined
Oct 2, 2021
Messages
2
Reaction score
1
Location
MA
Vehicle(s)
2020 Jeep Gladiator
Not super hot on engine bay mounting for heat concerns. Inside the wheel well liner seems crazy for water crossings, as does putting it under the seat (recall that all our seats are manual because Jeep didn’t want to put electric motors that could short during water intrusion).
My thought is to use a swing out box in the bed of my gladiator and mount a single cylinder ARB compressor in there (rubber gaskets to make it water proof for wires).
Thoughts?


Tech Tim

Well-Known Member
Summit Sponsor (Level 3)
First Name
Tim
Joined
Jan 16, 2018
Messages
561
Reaction score
1,040
Location
Poulsbo, WA
Vehicle(s)
4x4 of all kinds
Occupation
Part of the Northridge4x4 team
The ARB compressors are sealed and can be ran through water. The two caveats is to relocate the air intake filter to a high and dry spot and to not let dirt/muck/mud stack up in-between the two compressor bodies, you gotta keep that area clear so the fan can cool the cylinder heads.


SCOverlander

Well-Known Member
First Name
Jeff
Joined
Jun 26, 2020
Messages
57
Reaction score
54
Location
Bay Area, CA
Vehicle(s)
2021 JL Rubicon Diesel
do you have to keep the lid open every time you operate it? can you run the air intakes out somehow? i often have a full trunk, it would be crazy to unload every time.
Negative. The American Adventure lab base is always on. It has plenty of holes for air flow.
