Mounting ARB Air Compressor

1996cc

Well-Known Member
Joined
Aug 19, 2019
Messages
335
Reaction score
257
Location
Oregon
Vehicle(s)
19 JKUR

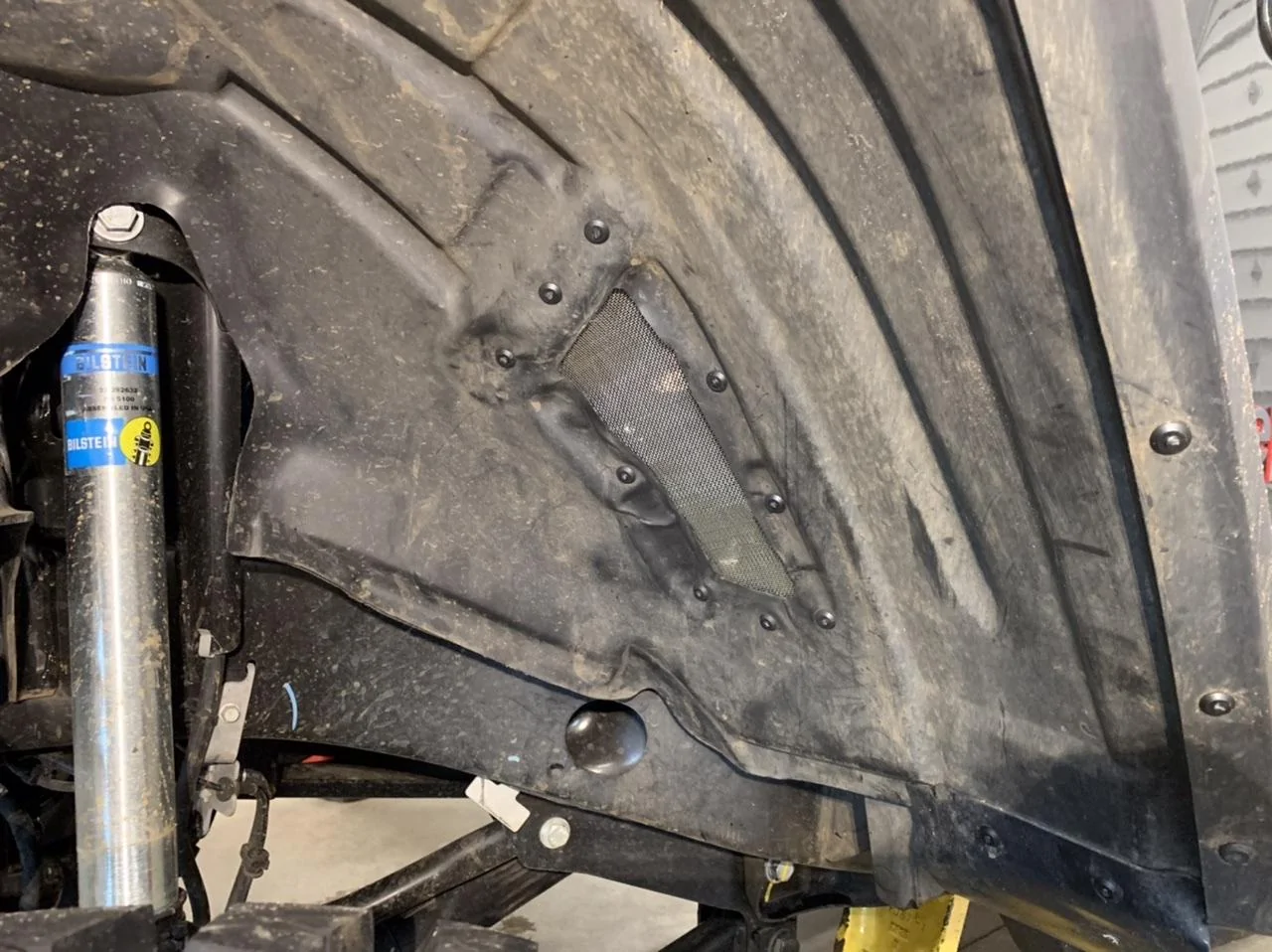

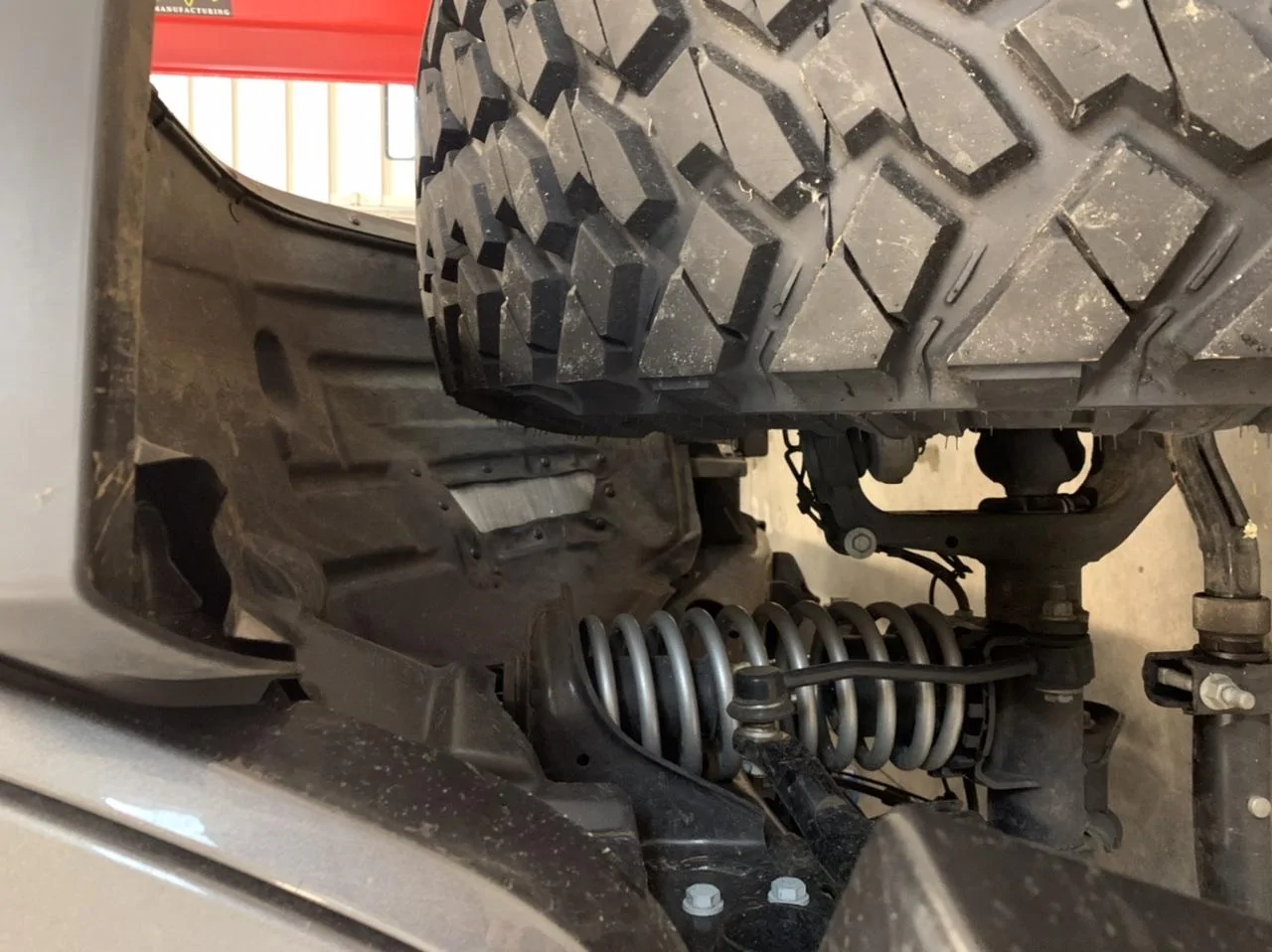

After airing up my 37”s from 4 to 20 psi, even with the hood open in the snow, it shut down after 3 tires. I added this stainless mesh in the fender liner today to hopefully give it some more airflow.





Brian0128

Well-Known Member
First Name
Brian
Joined
Feb 25, 2019
Messages
298
Reaction score
332
Location
Annapolis, MD
Vehicle(s)
2019 JLUR, 2018 Toyota TRD PRO
Build Thread
Link
Occupation
Engineer
Vehicle Showcase
1

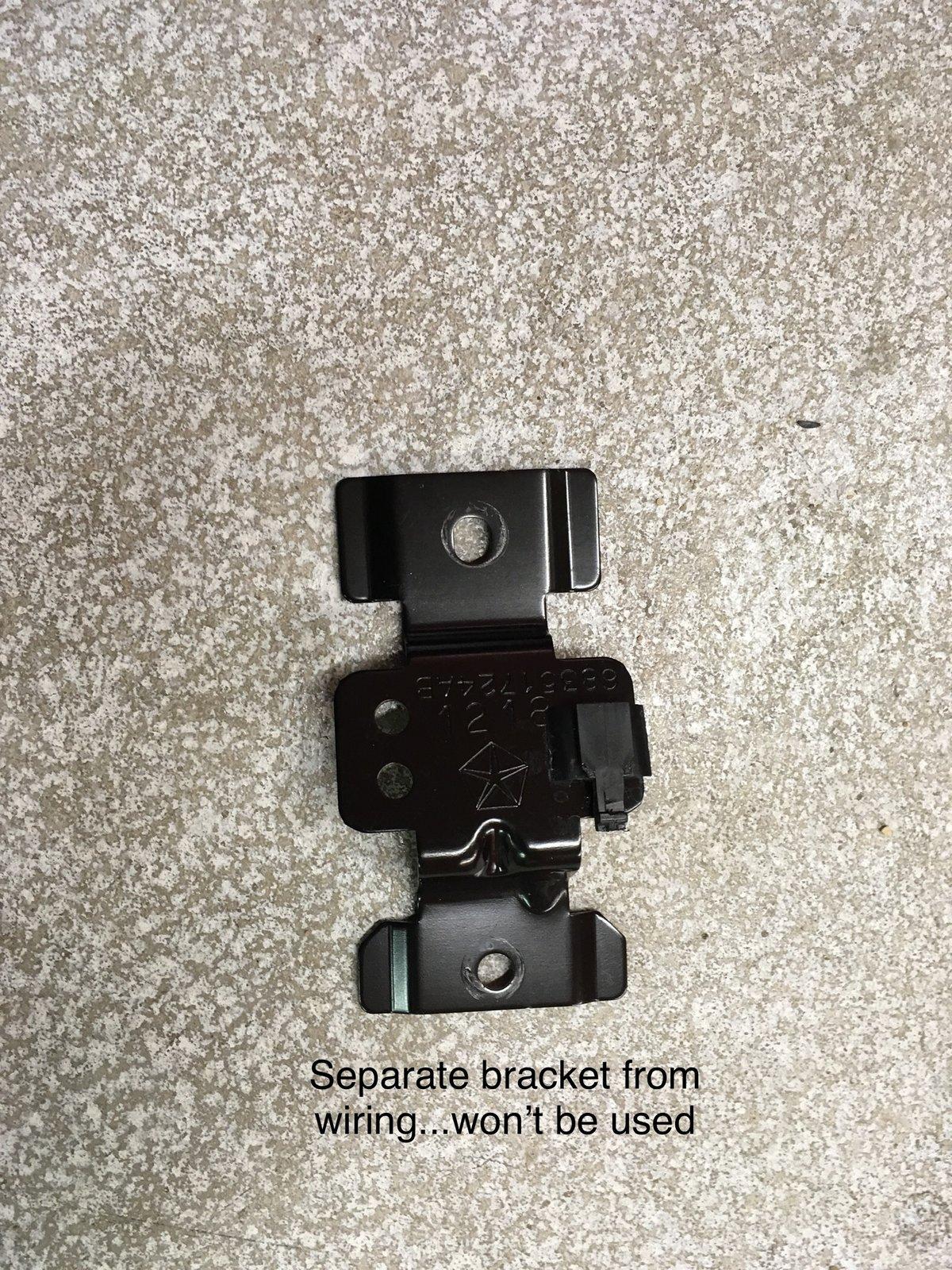

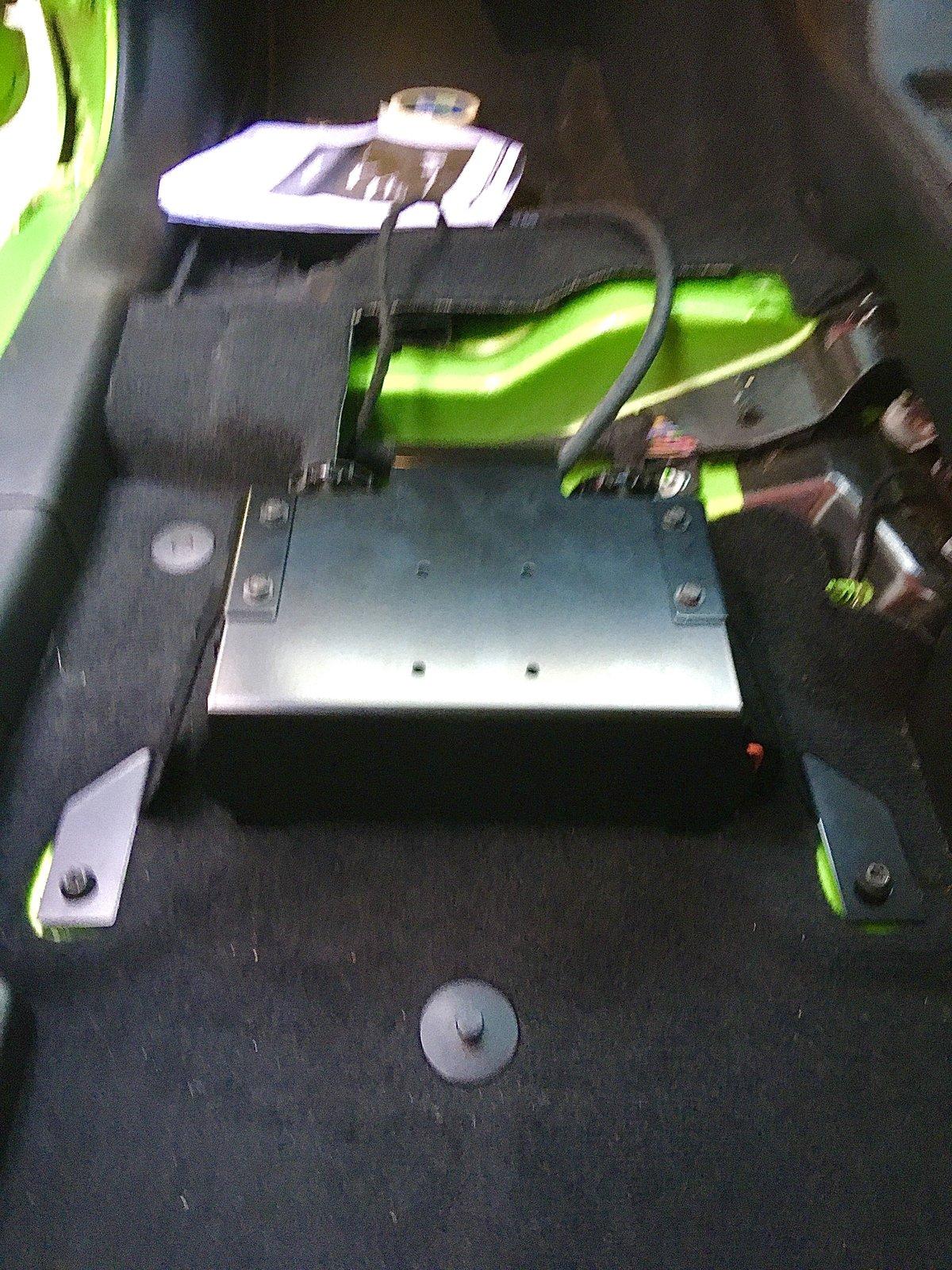

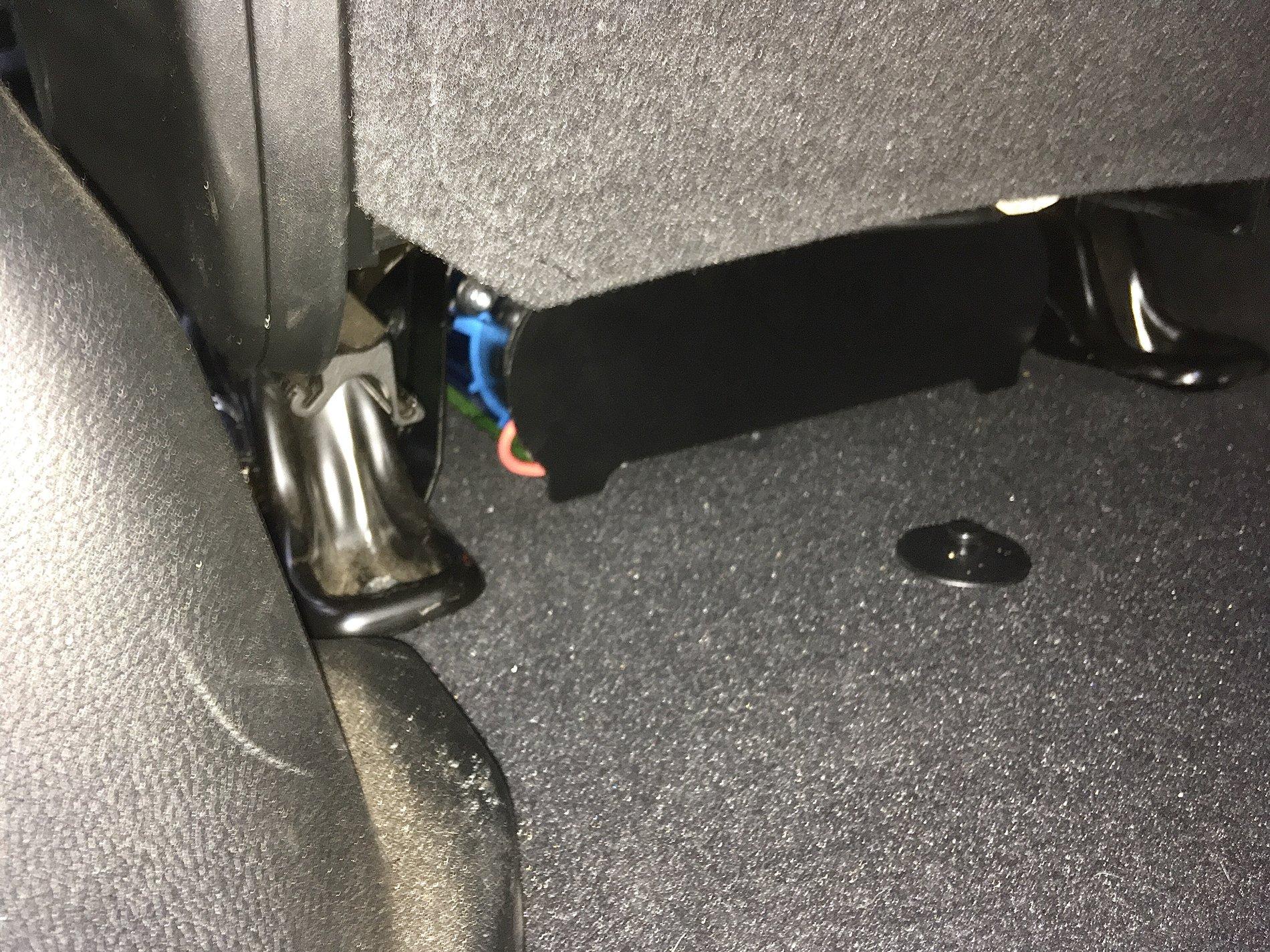

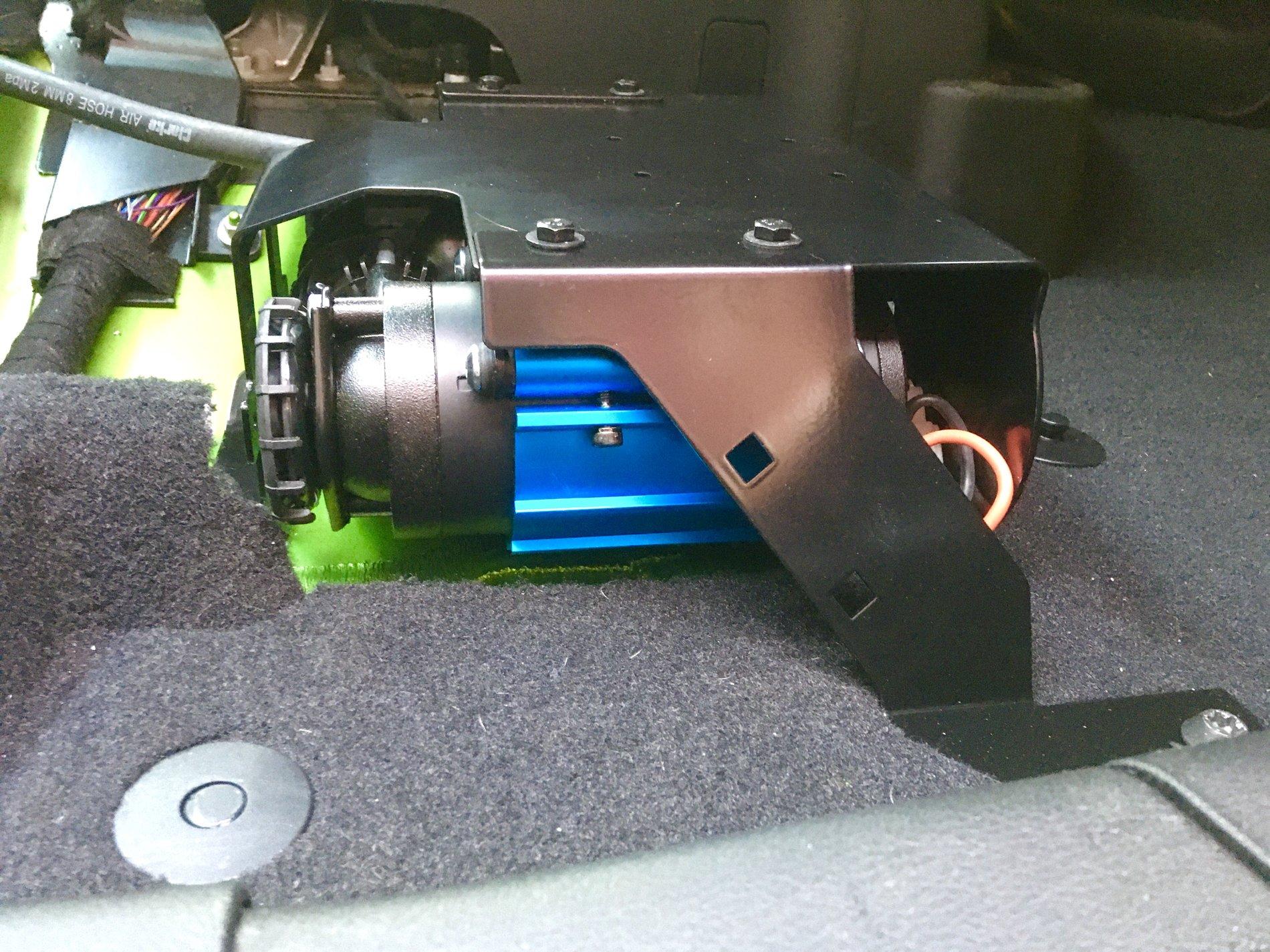

I installed my ARB dual compressor today using ARB’s new underseat mount. It’s much further under the seat than the other underseat product I’ve seen.

Nice product, terrible instructions!


I just got my ARB mount from Quadratec. I saw that you had to locally source some items to make it work. What did you have to purchase?


Rudolph Hart

Well-Known Member
First Name
John
Joined
Feb 23, 2019
Messages
3,491
Reaction score
25,387
Location
Cheshire UK
Vehicle(s)
2018 JLUR GME Mojito!
Occupation
Semi retired
I just got my ARB mount from Quadratec. I saw that you had to locally source some items to make it work. What did you have to purchase?

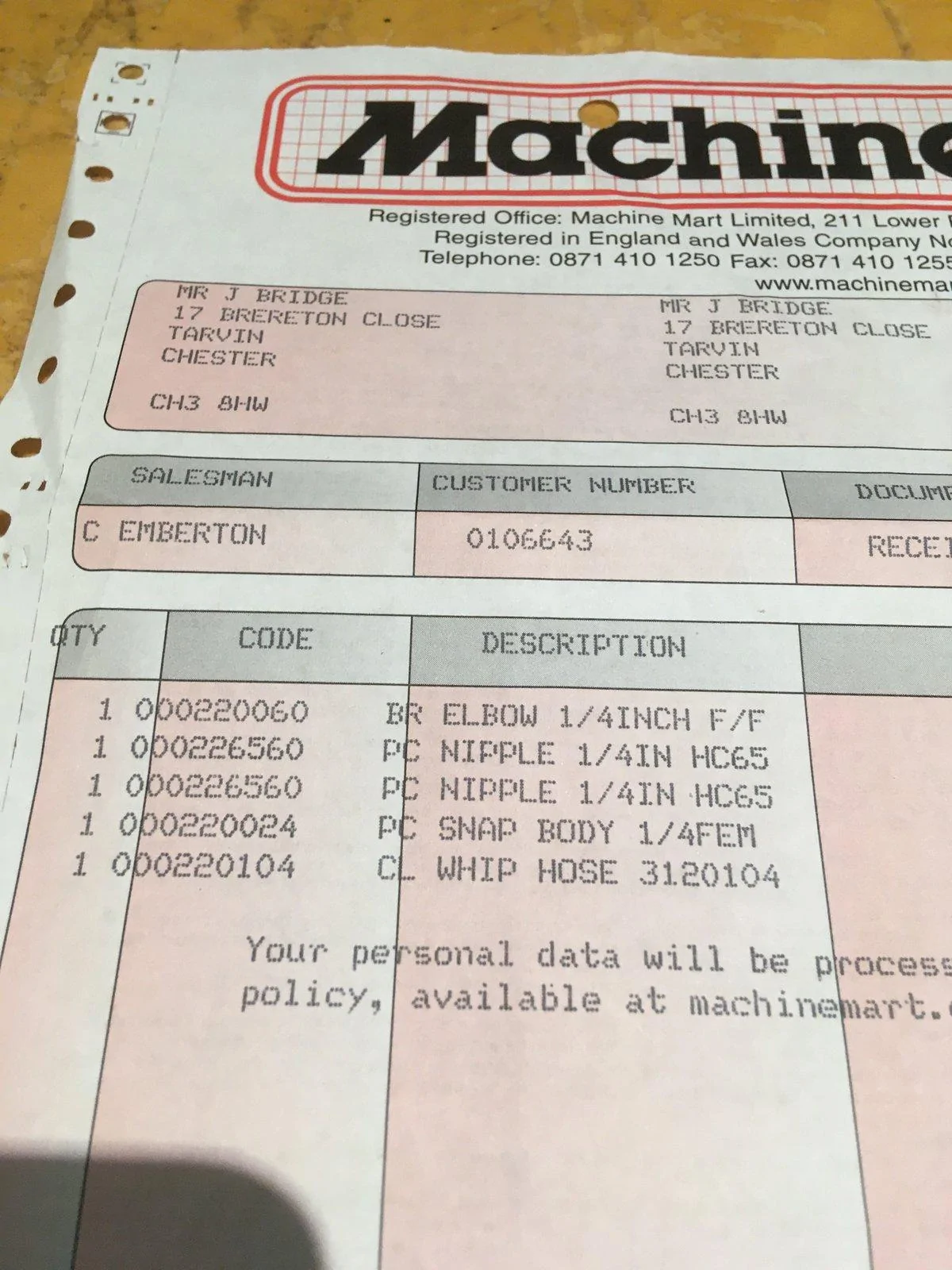

Hi Brian, yes you’ll need the fittings to create the pipe from the manifold on the compressor to the point where you want to connect the main length of hose. I got this stuff from Machine Mart here in the U.K., this is the invoice....



Total cost was less than £20 (say $25). It might be helpful for you if you can access their website www.machinemart.co.uk and enter their codes to see what I bought.


GrauGeist

Member
First Name
Jason
Joined
May 25, 2019
Messages
20
Reaction score
13
Location
Seminole, FL
Vehicle(s)
2018 JLUR

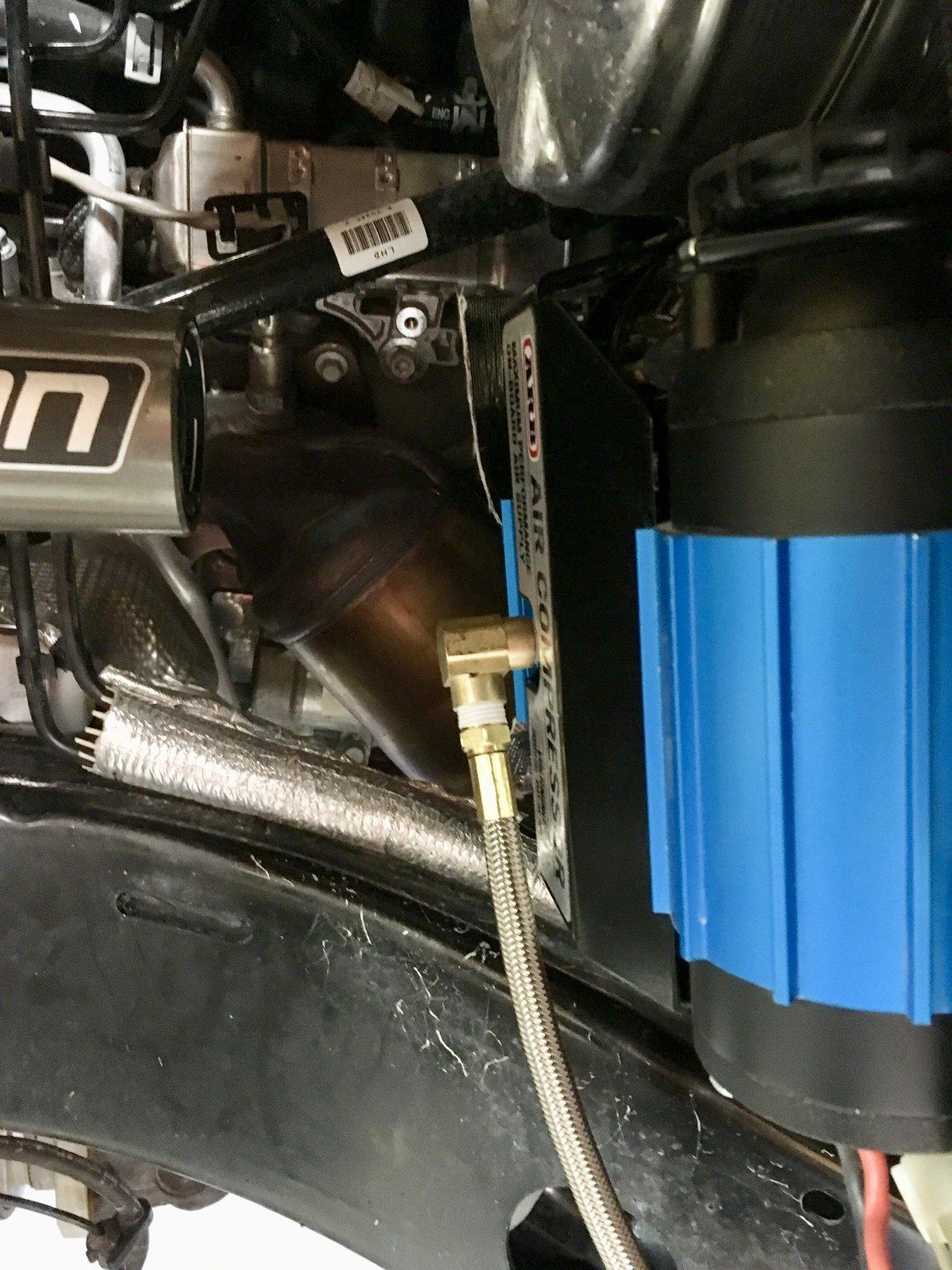

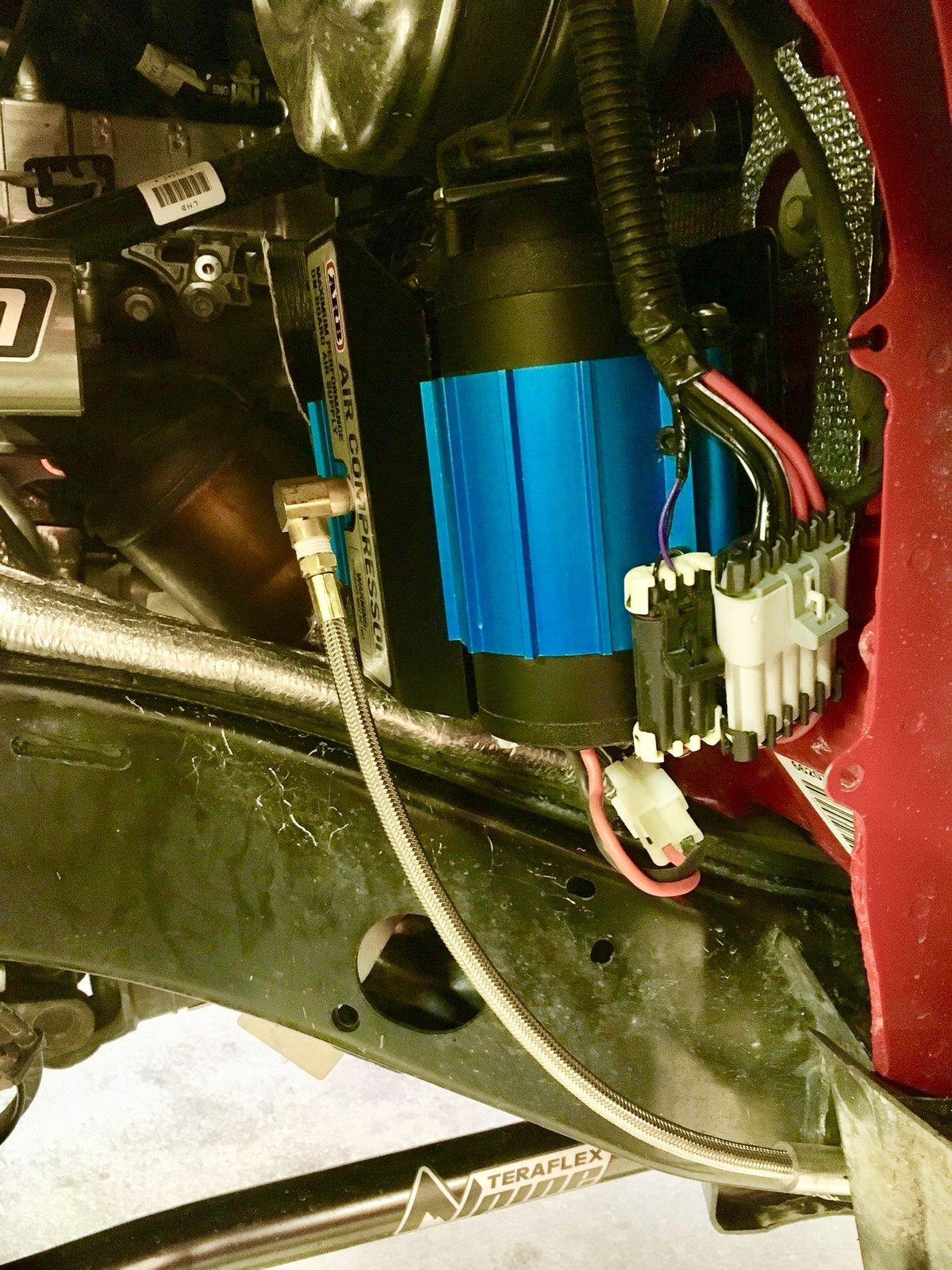

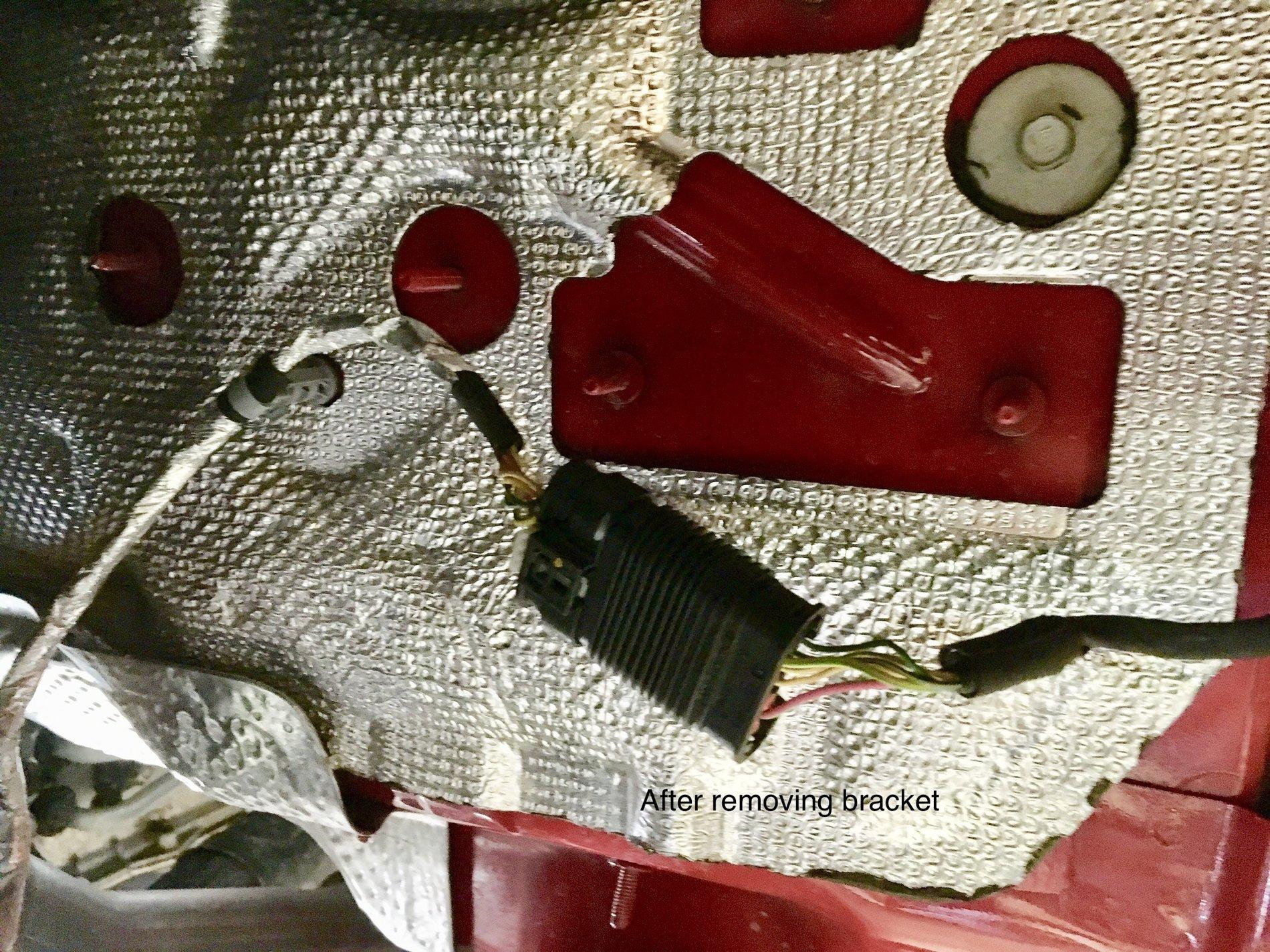

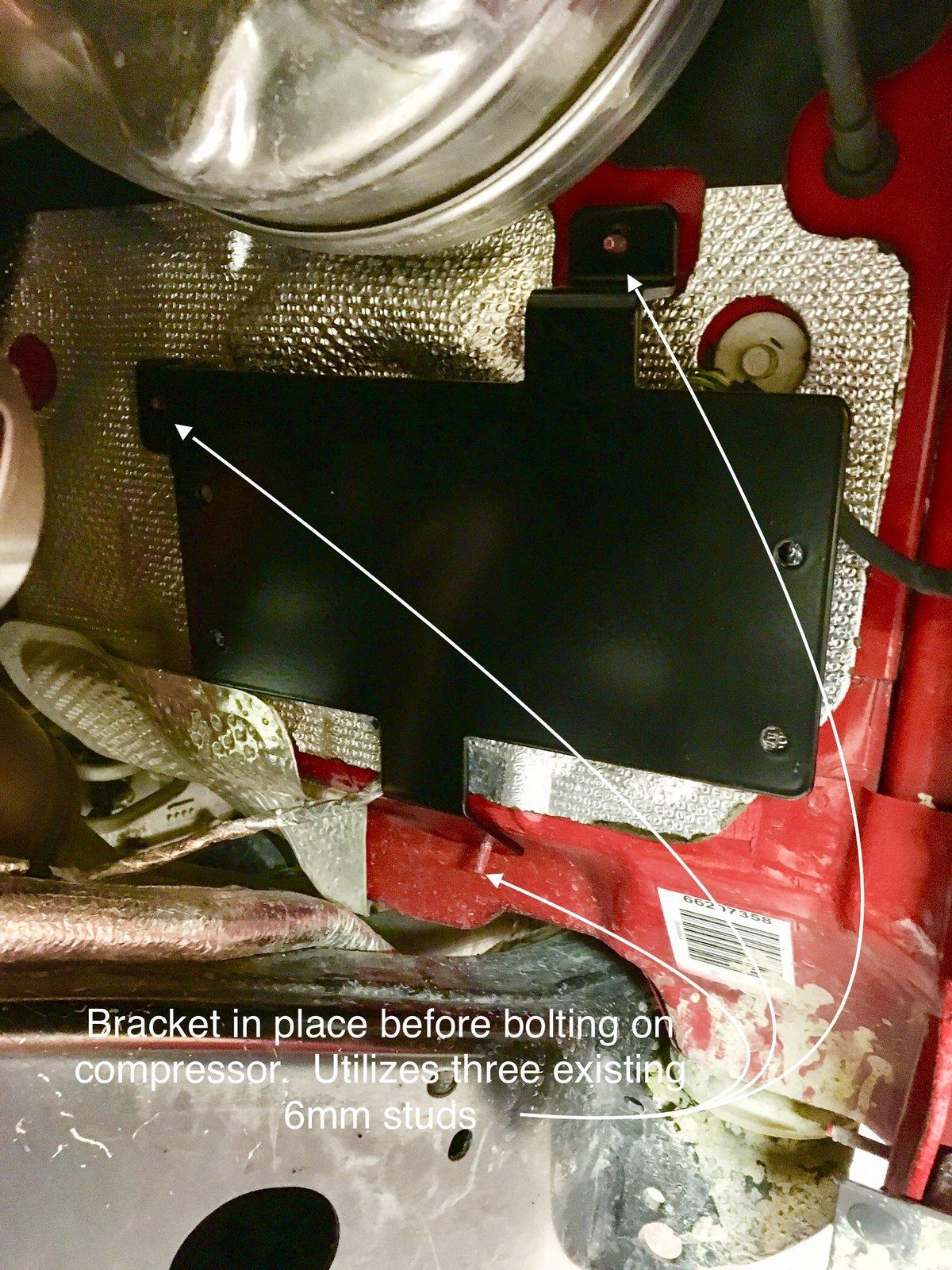

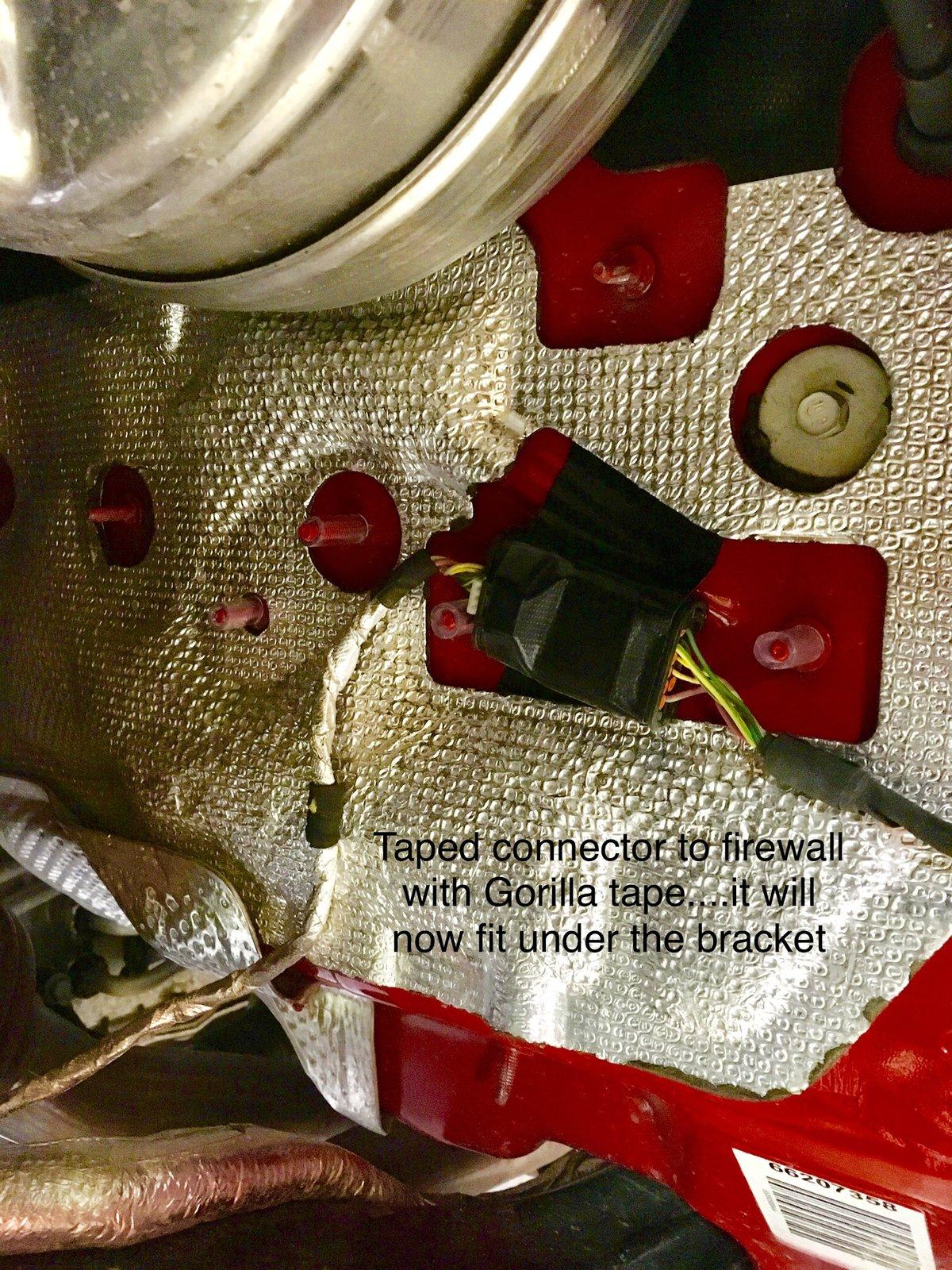

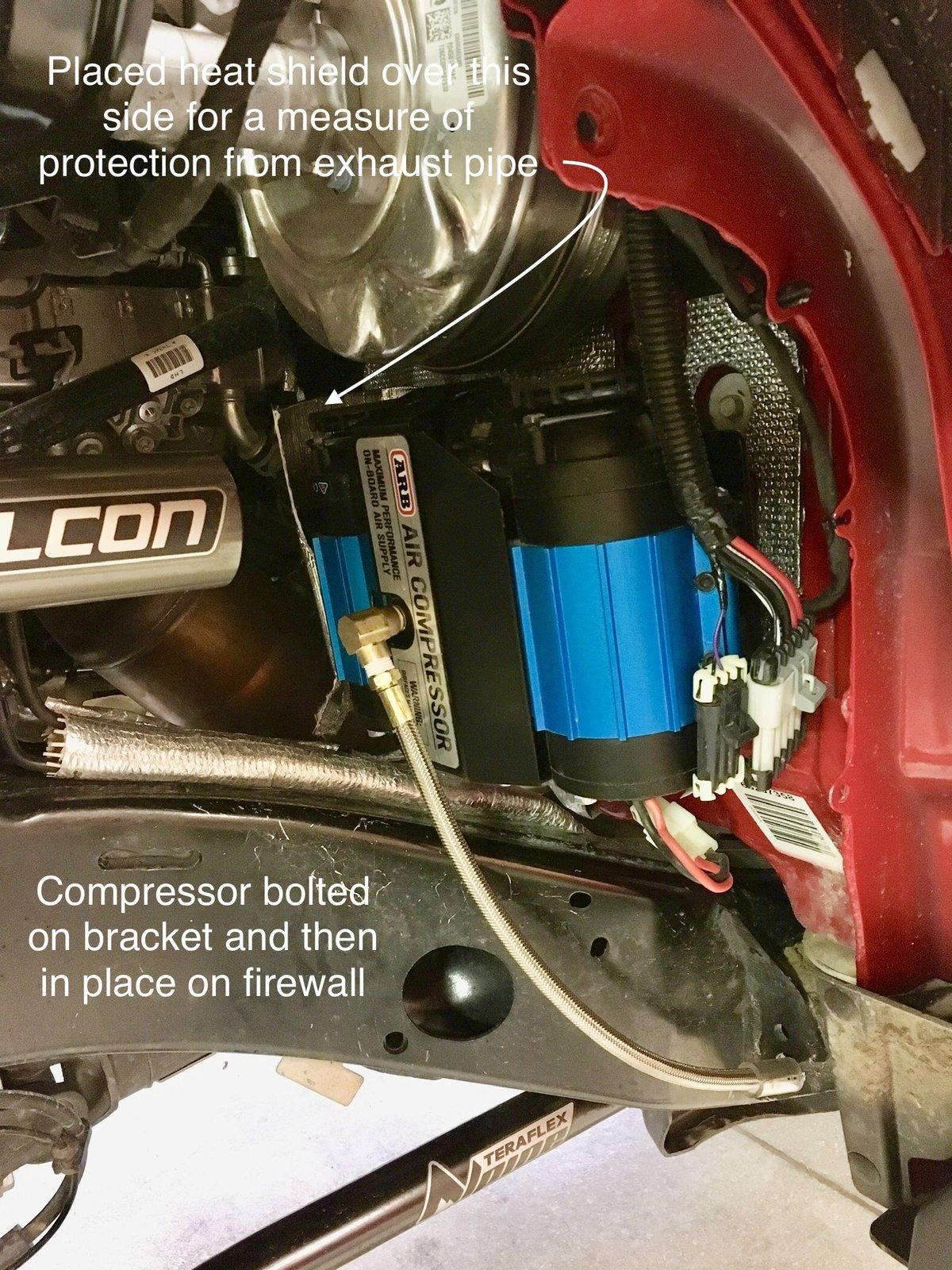

I ran into the same problem when I installed the Falcon 3.1 shocks so had to come up with another solution. It now mounts on the firewall. It still sits up high enough to be protected by the fender liner and above fording depth.















Do you happen to know if your mount works for 2.0 Turbo


BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
60
Reaction score
101
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
Upon some compressor location research I just procured all items from CE Auto Supply (see pic for contact), built my wiring harness (see pics for loom routing), and installed mine under the drivers seat with pop rivets to body-tub. Tied relay supply power to my AUX 4 15A factory switch. The ARB single compressor came out of my trade in vehicle, a 2003 TJ Rubicon (RIP).
If you’re interested I also added the parts list with 8AWG wire and 40A fused power to the post.
Please feel free to criticize my write up as it’s my first.

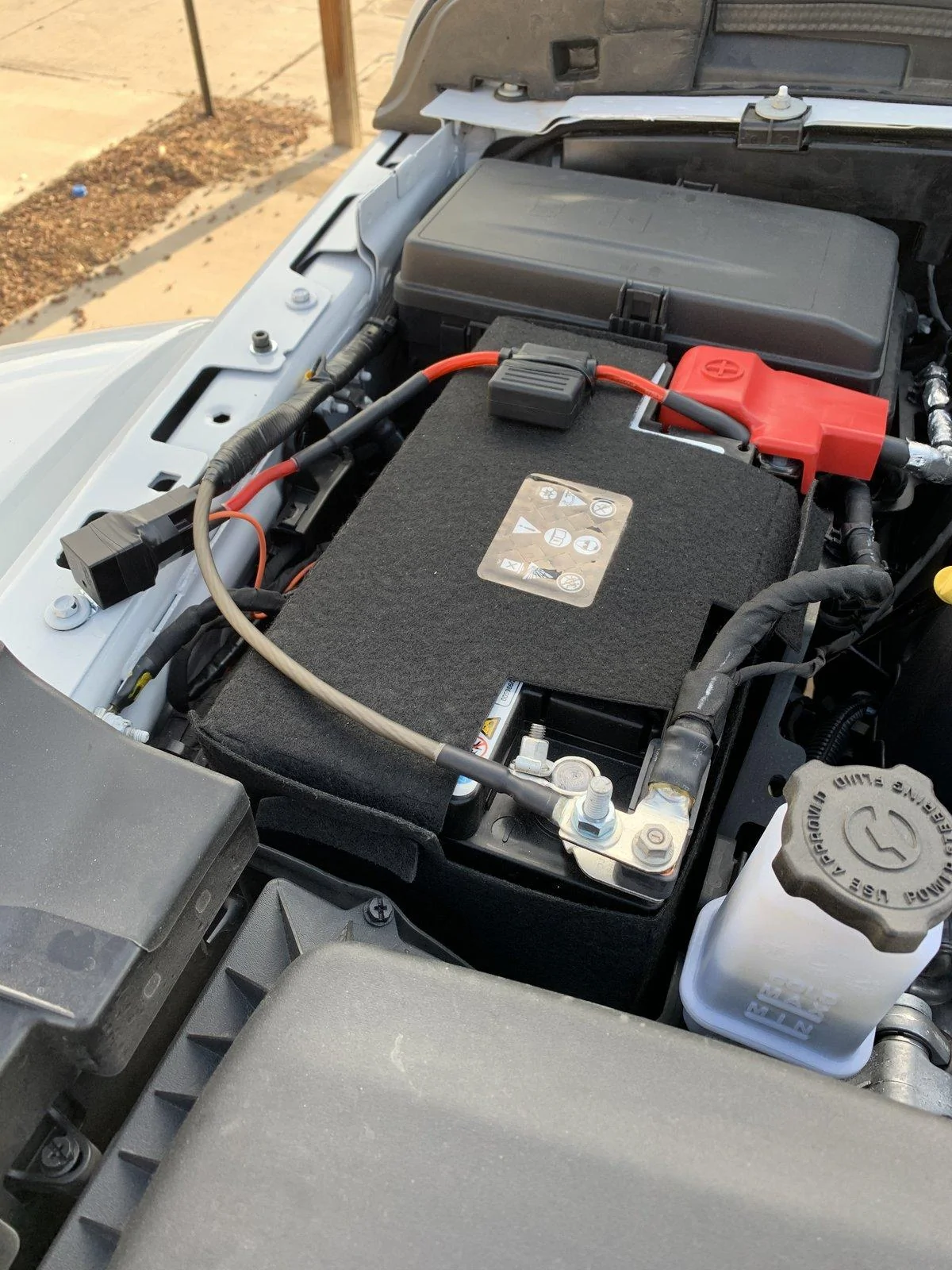

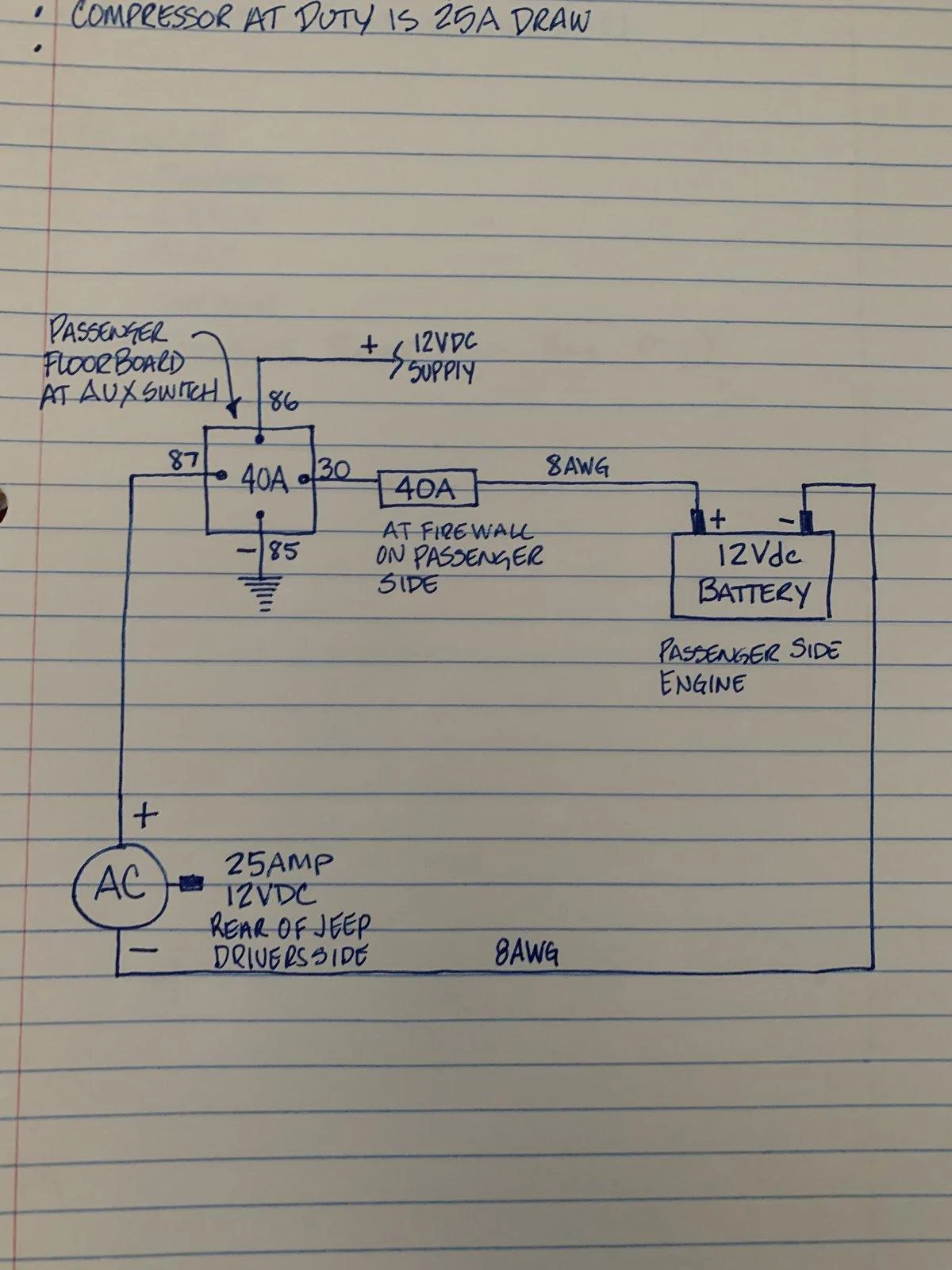

rough sketch/location wiring

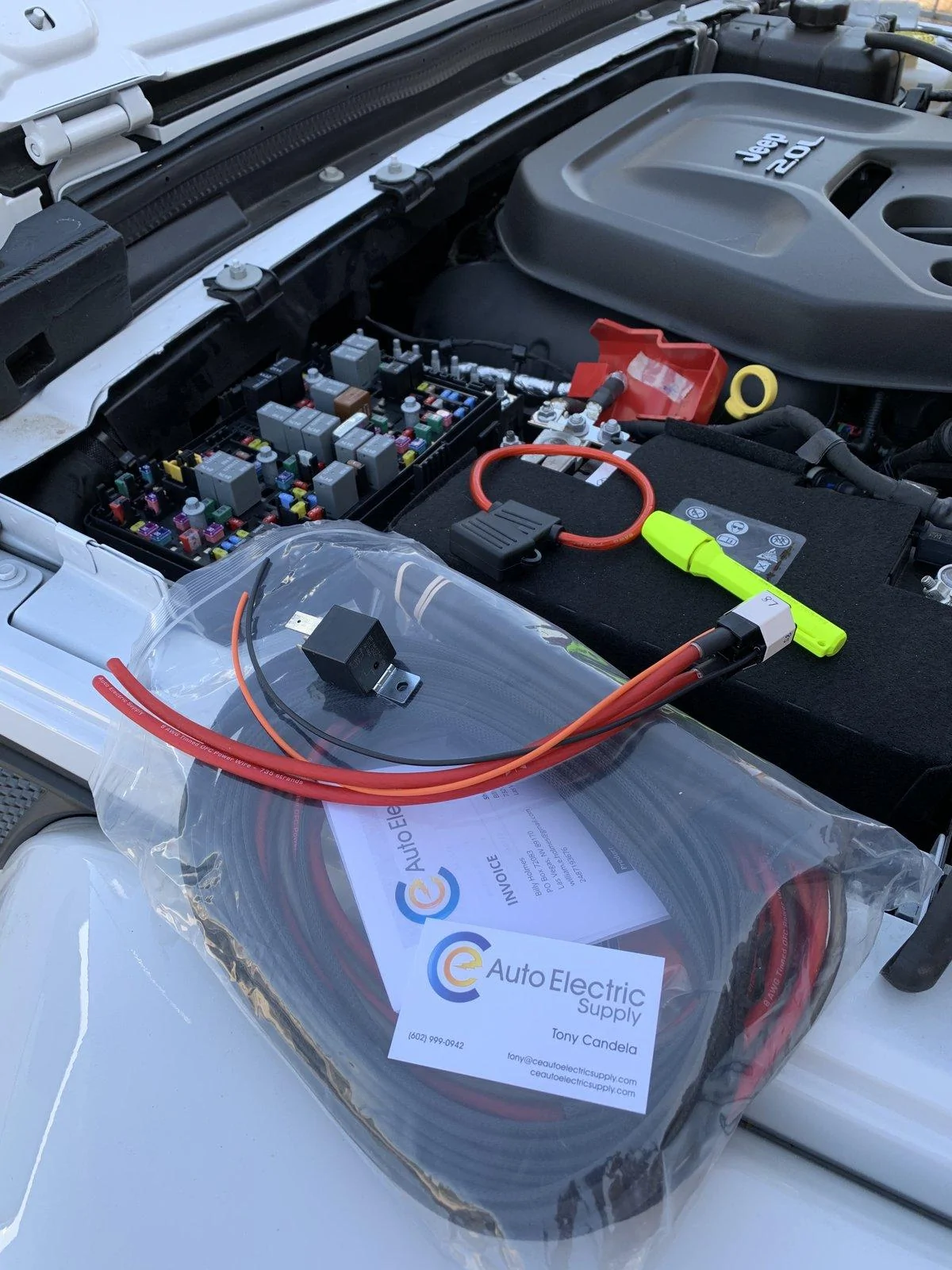

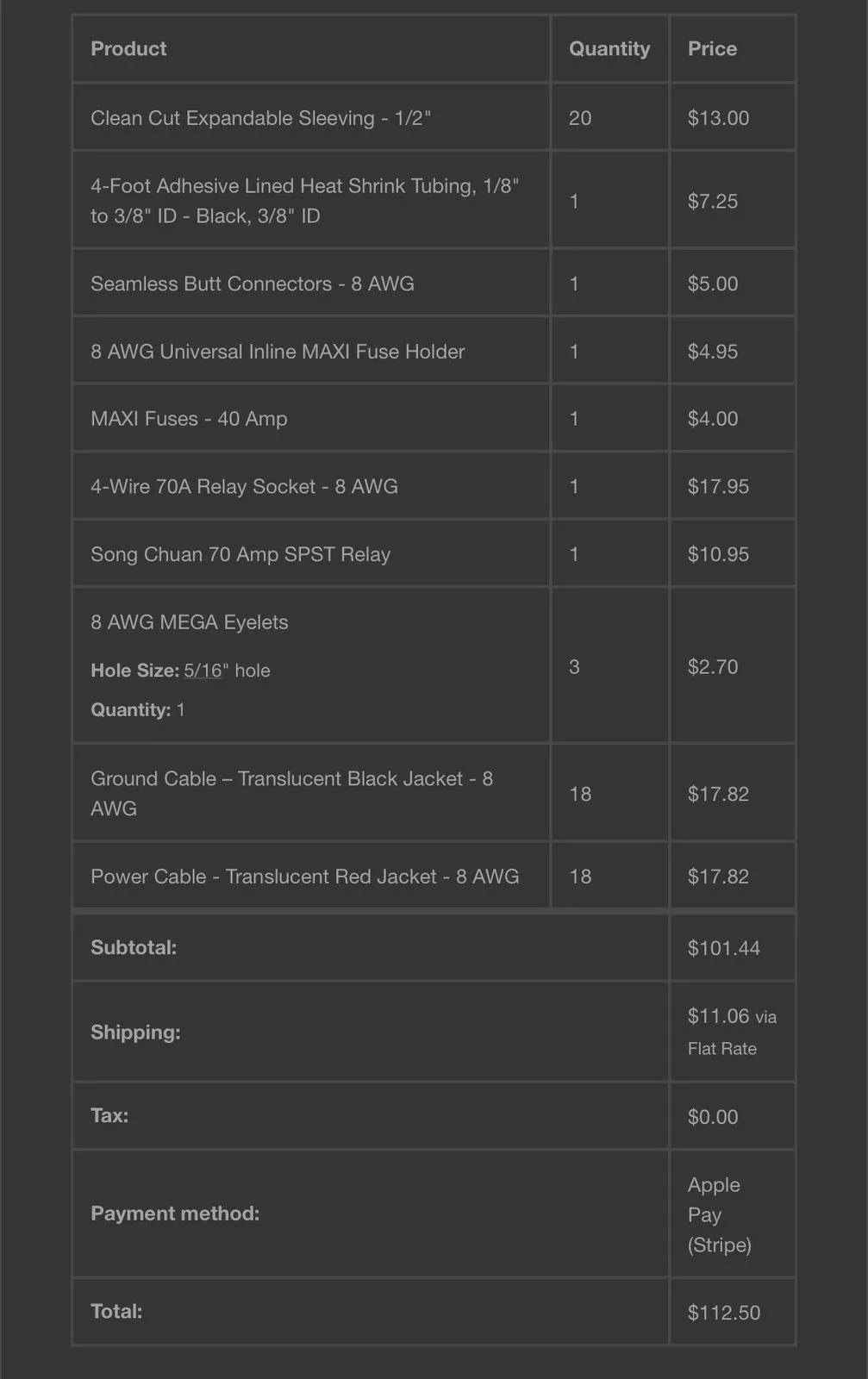

CE Auto Supply Parts List

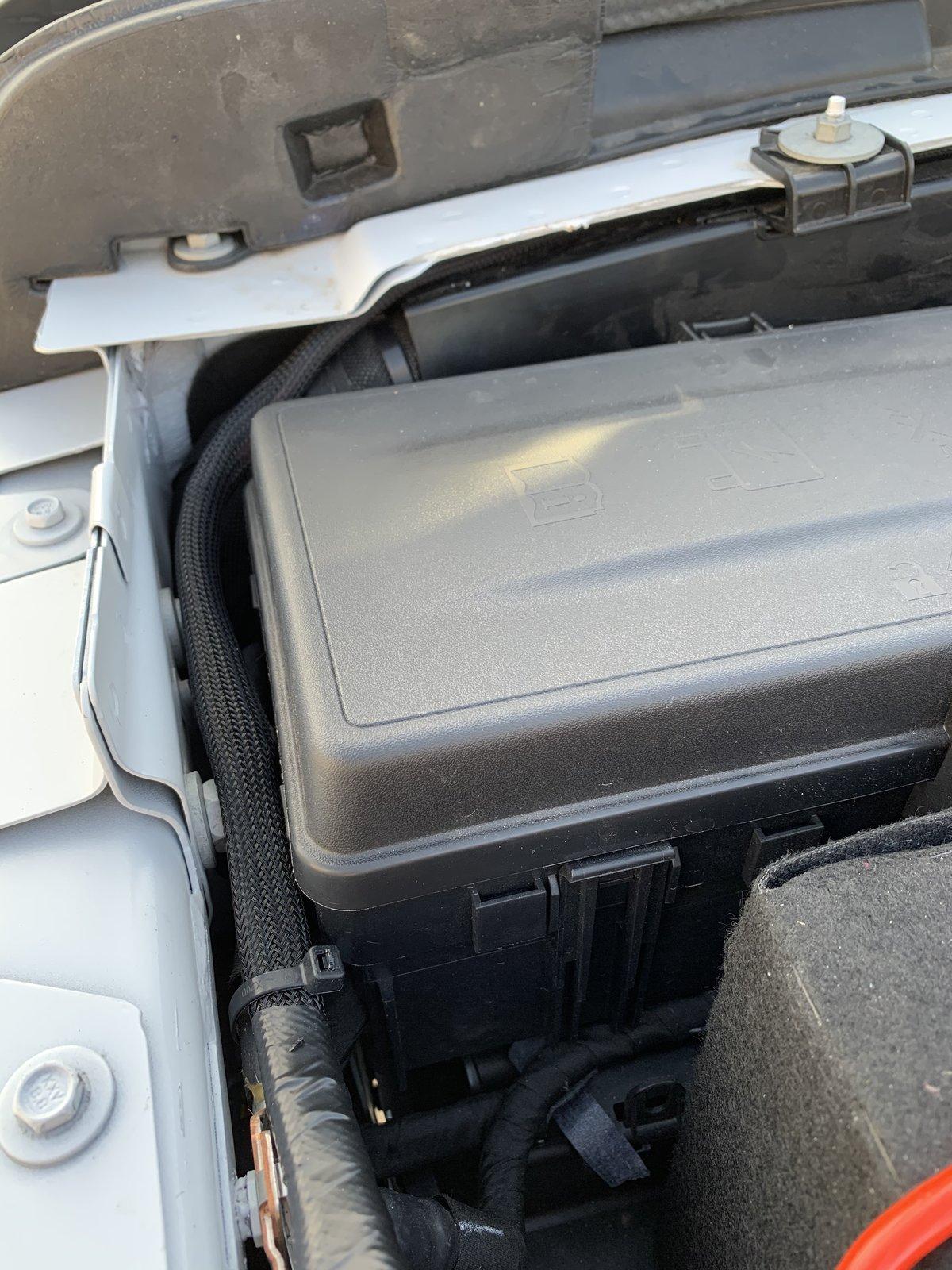

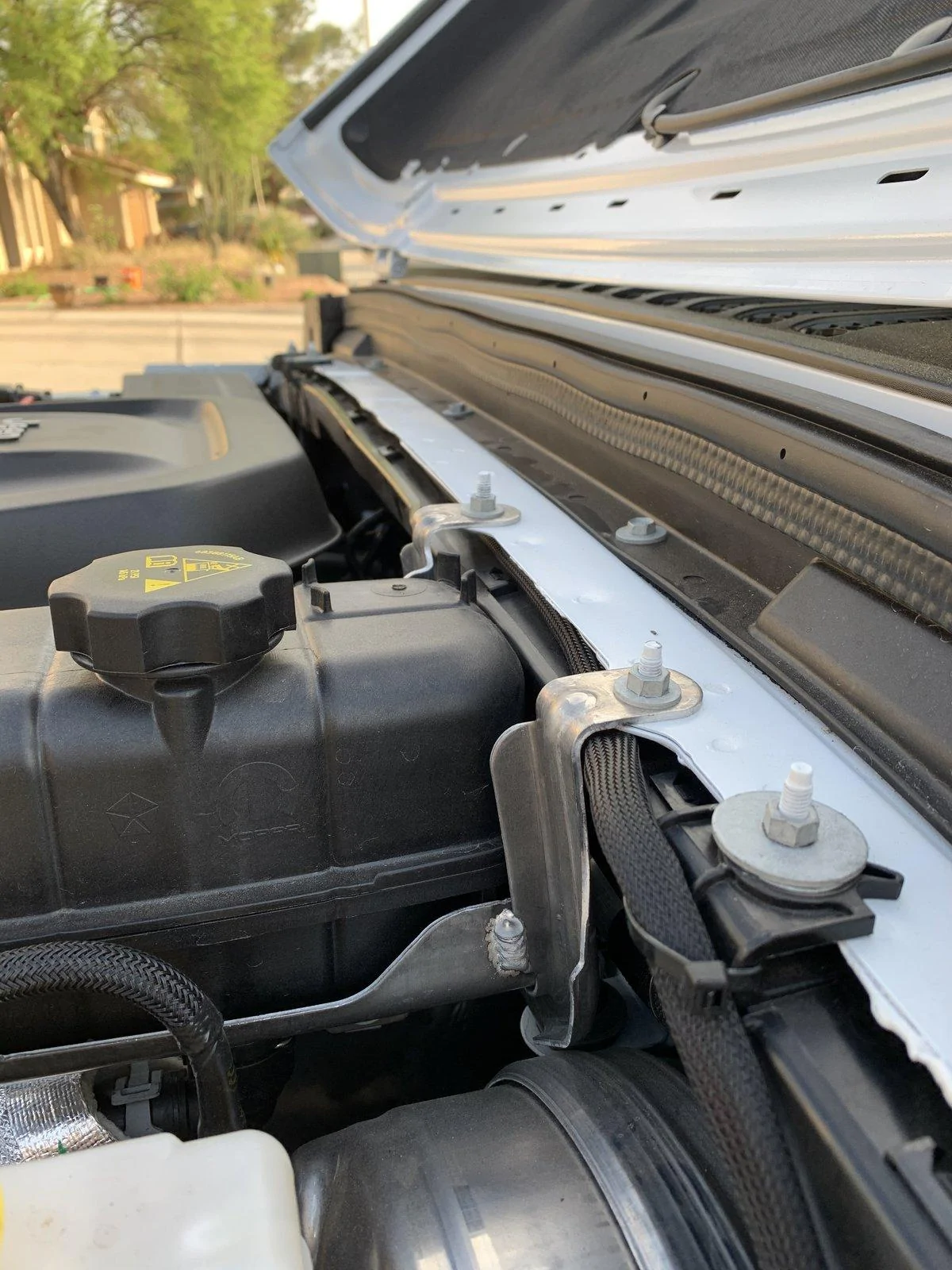

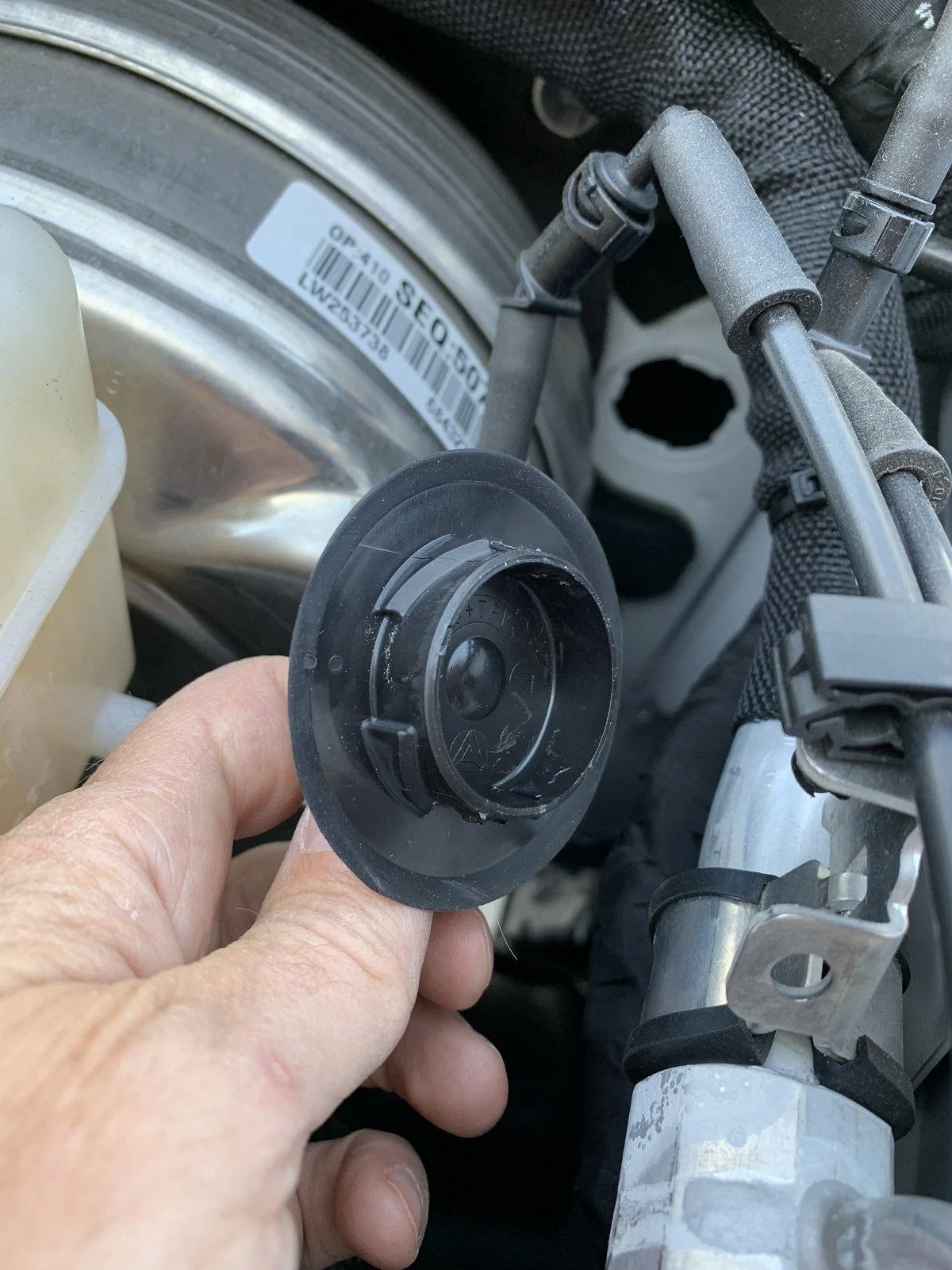

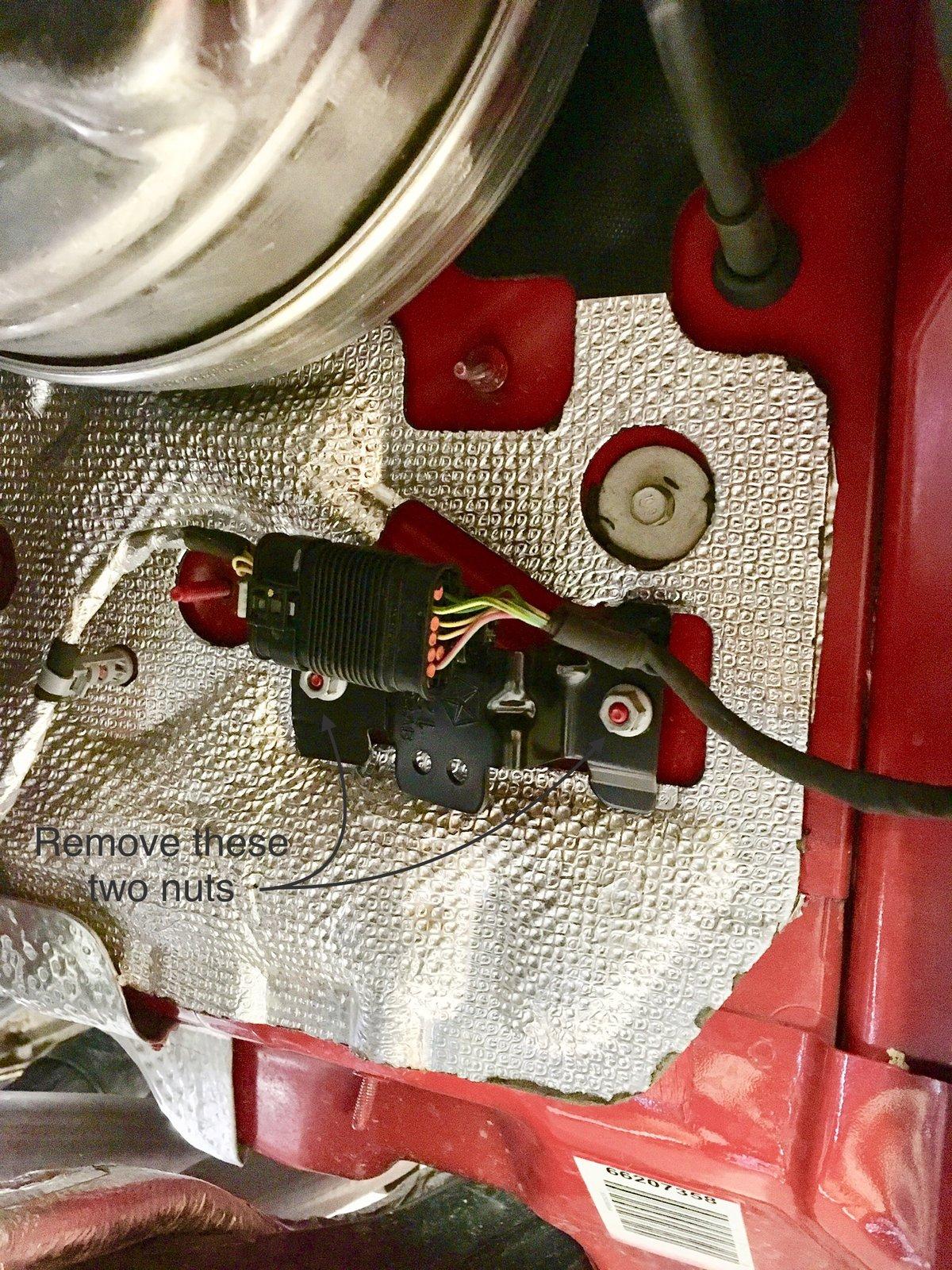

Firewall penetration (drivers side)

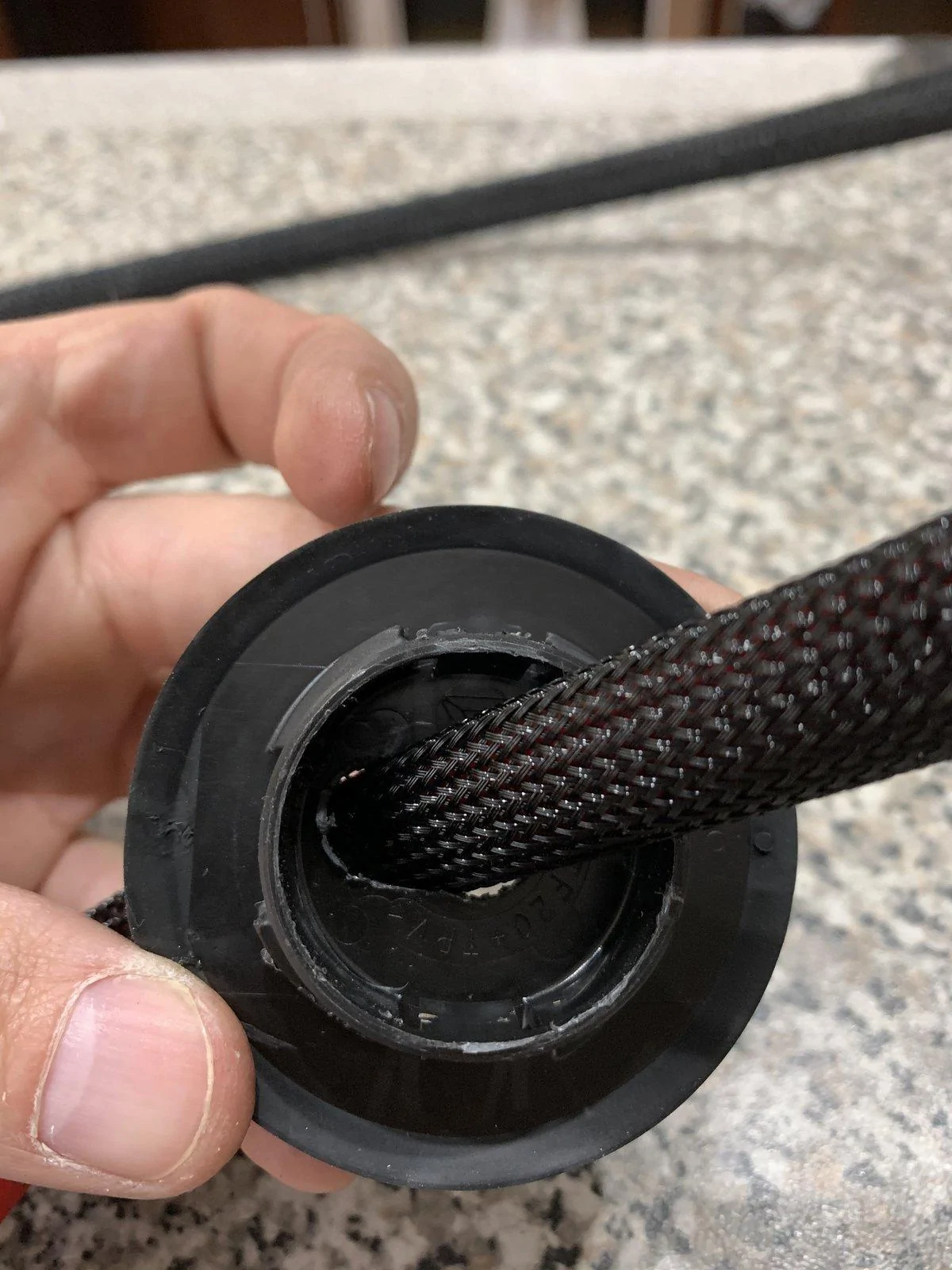

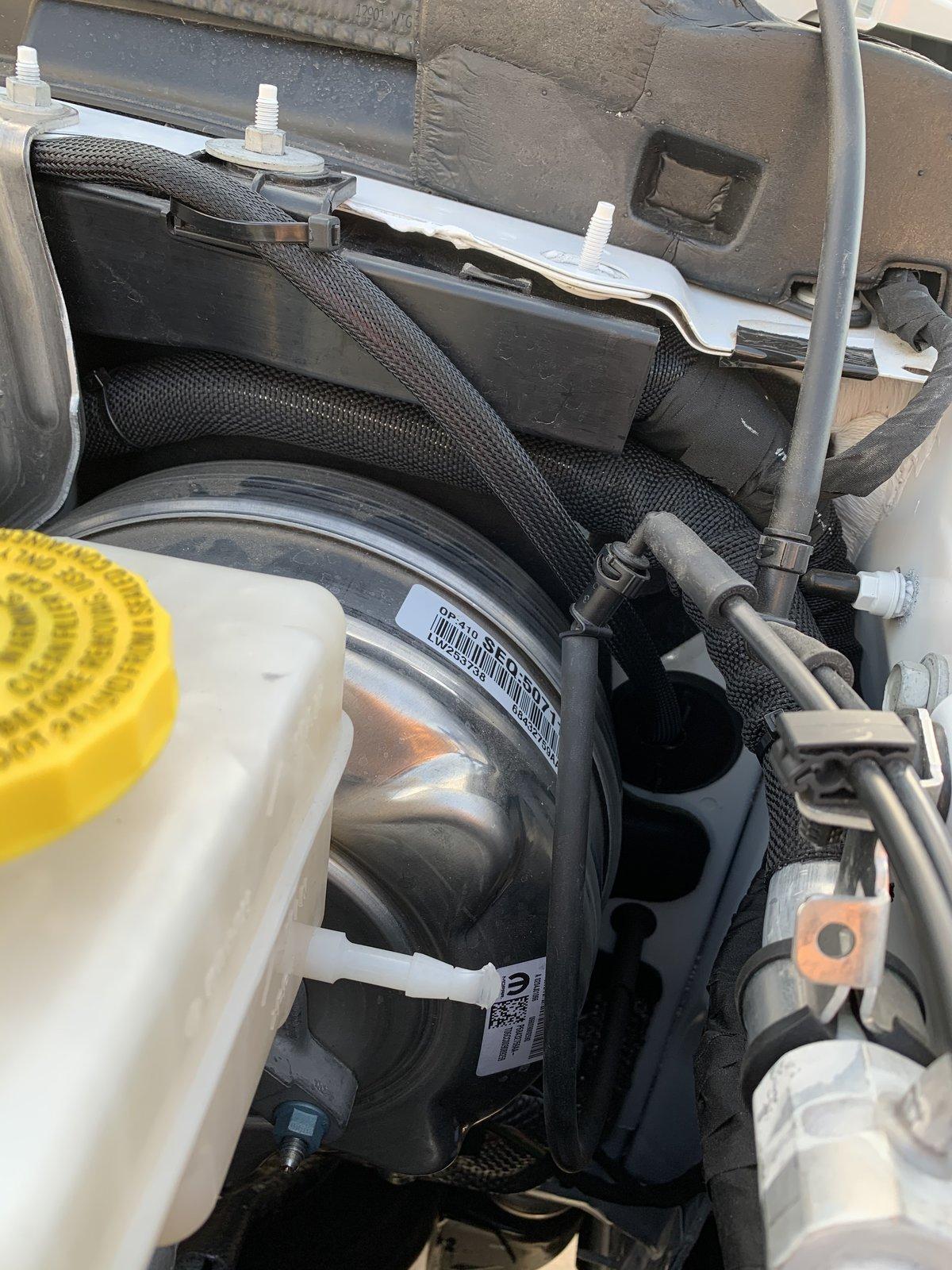

Firewall penetration slotted for loom and sealed with RVT after install.

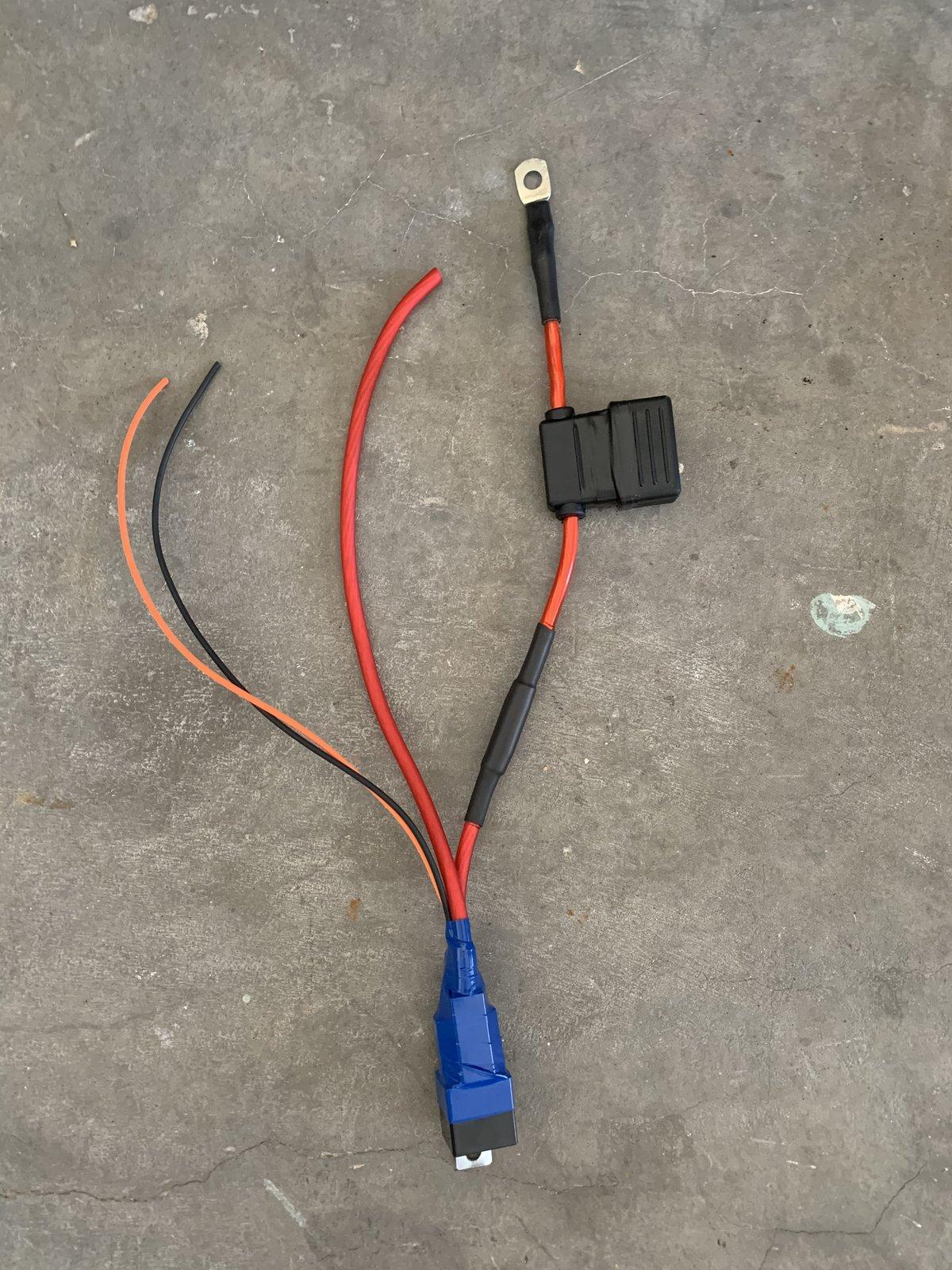

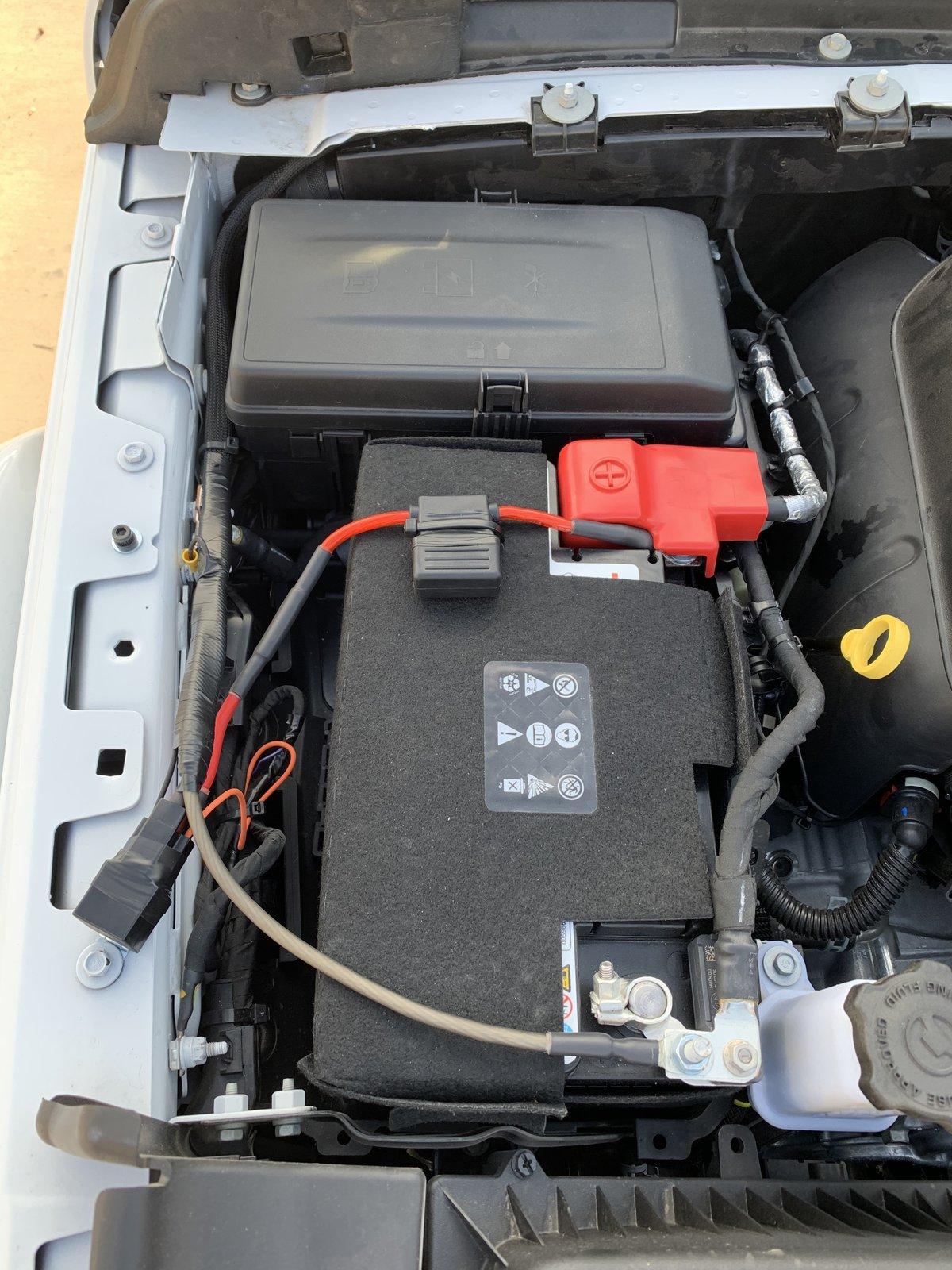

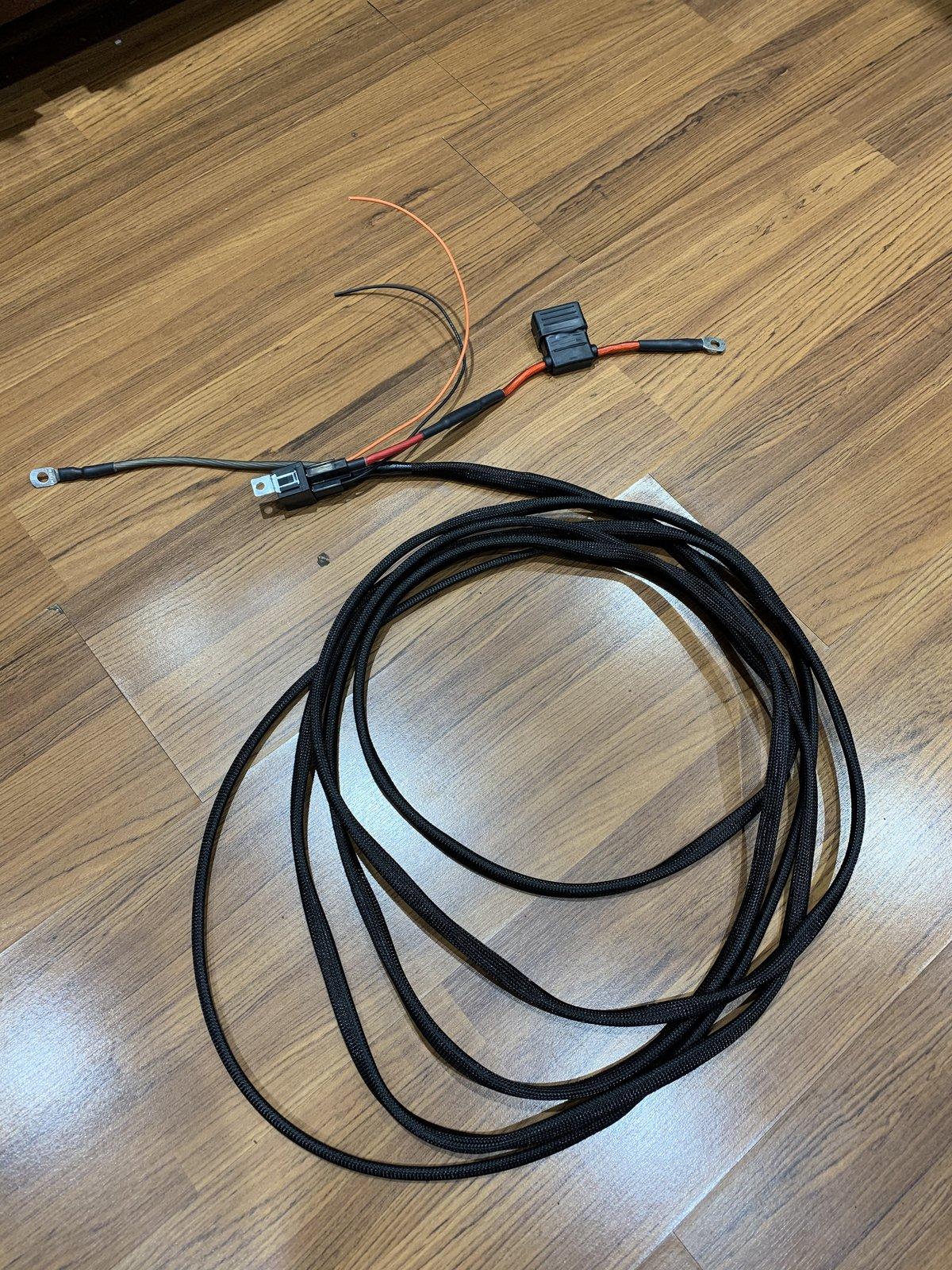

Built harness/loom after all measurements taken.

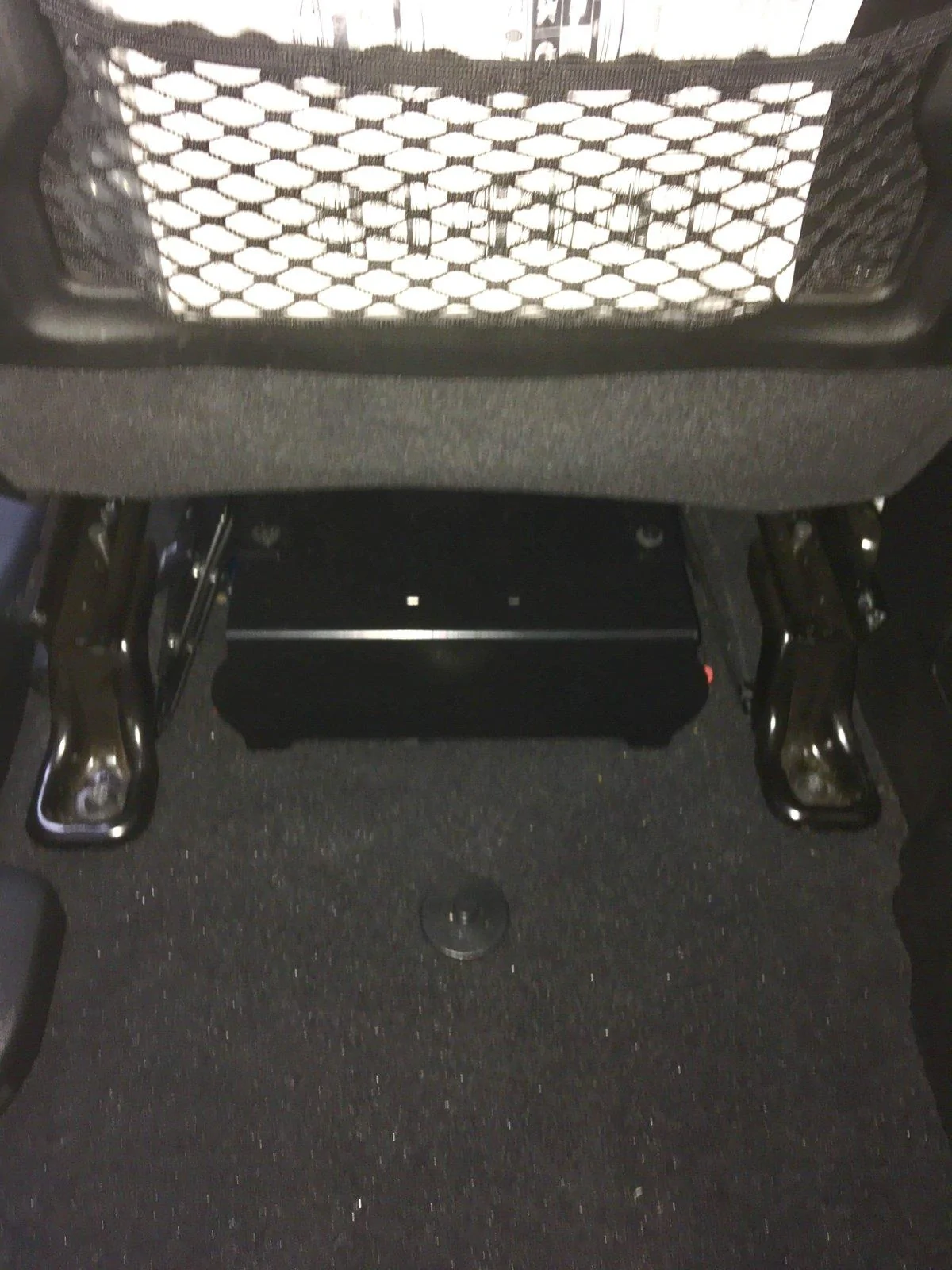

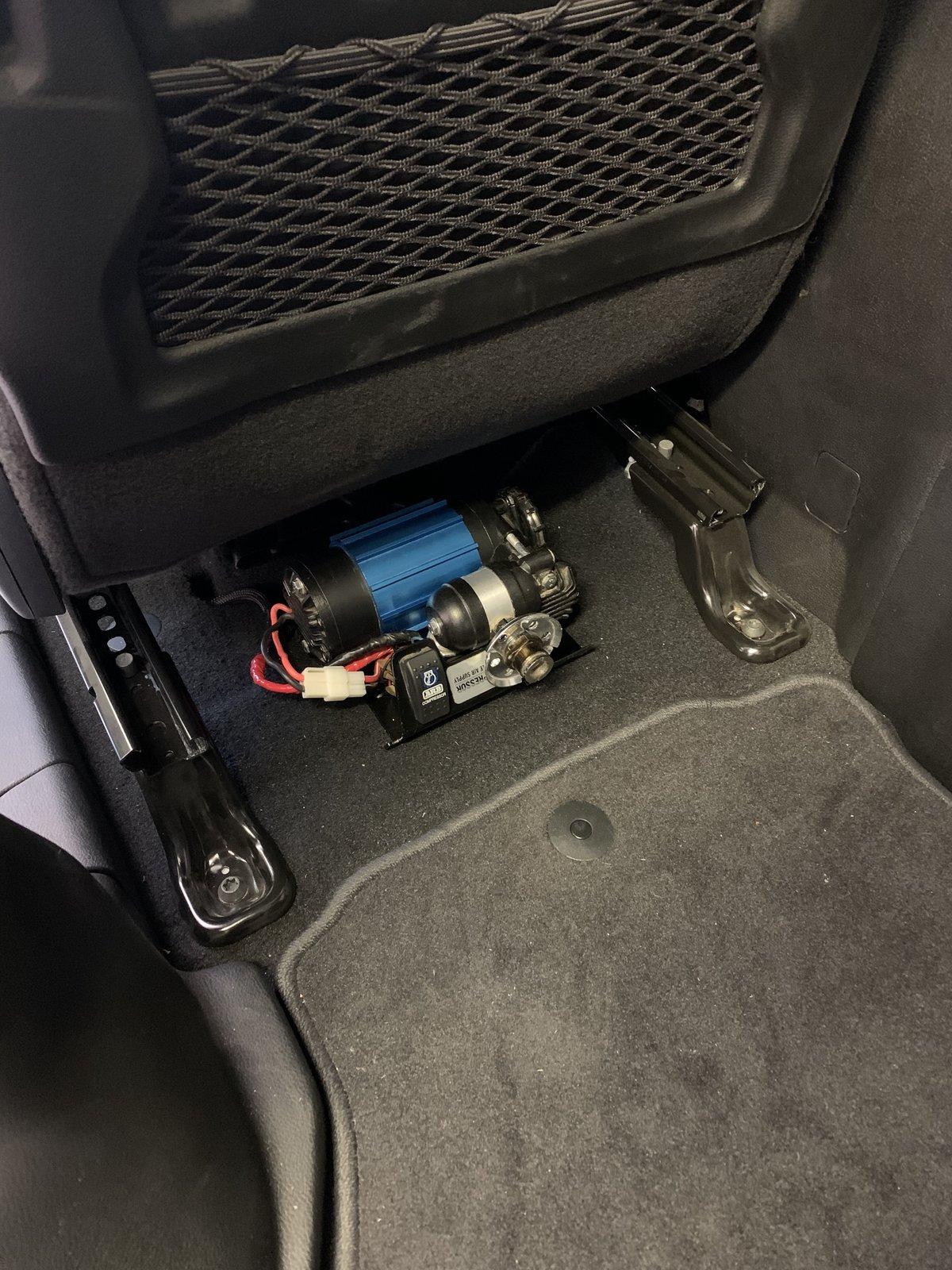

Location under the drivers seat with pop rivets to body-tub


porkchop

Well-Known Member
Joined
Jun 21, 2018
Messages
98
Reaction score
52
Location
SoCal
Vehicle(s)
2018 JLUR / Billet / Teraflex ST2 / Icon Shocks
Upon some compressor location research I just procured all items from CE Auto Supply (see pic for contact), built my wiring harness (see pics for loom routing), and installed mine under the drivers seat with pop rivets to body-tub. Tied relay supply power to my AUX 4 15A factory switch. The ARB single compressor came out of my trade in vehicle, a 2003 TJ Rubicon (RIP).
If you’re interested I also added the parts list with 8AWG wire and 40A fused power to the post.
Please feel free to criticize my write up as it’s my first.

rough sketch/location wiring

CE Auto Supply Parts List


Firewall penetration (drivers side)

Firewall penetration slotted for loom and sealed with RVT after install.

Built harness/loom after all measurements taken.

Location under the drivers seat with pop rivets to body-tub


porkchop

Well-Known Member
Joined
Jun 21, 2018
Messages
98
Reaction score
52
Location
SoCal
Vehicle(s)
2018 JLUR / Billet / Teraflex ST2 / Icon Shocks
Looks really clean. Nice work and write up

  • Like
Reactions: BHo

Jlrut

Well-Known Member
First Name
Ben
Joined
Apr 7, 2018
Messages
157
Reaction score
103
Location
Alabama
Vehicle(s)
2012 Sahara sold: 2dr Rub ordered 1/17 traded: 2019 2 door picked up 12/27
I just finished using the ARB under seat mount for the ARB twin compressor. Sorry, no photos but a couple of thoughts. Oh, and I only have the compressor..no lockers, and mounted under the passenger seat.

***Some parts are not included as noted by others. Specifically, the elbow(0740104) and adapter (0740101). I also used the ARB .3m hose.
Shame on ARB for not including these, especially the adapter and elbow. I tried to source both locally, but due to this being a tight fit, the local sourced products were slightly longer and not useable.

I used one to the longer wiring harnesses available on eBay. This made it just a little simpler, and I was going to need more wire anyway.

I routed this wiring thru the passenger side cowl as noted on another thread.

I wired the Isolation Switch as noted in a YouTube video using the MORE bracket, BUT the length for this wiring needs to be longer for the ARB bracket...not much, but a little. Best to measure this with the bracket and compressor in hand.

I went to the ignition wire, that is part of the AUX switches wiring group for the Rubicon, located under dash and in front of passenger foot area, and thus used the ARB rocker switch instead of one of the AUX switches. I used a T Tap electrical connector for this.
Best Wishes.


Focker

Well-Known Member
First Name
Scott
Joined
Jan 30, 2020
Messages
390
Reaction score
679
Location
Sacramento, CA
Website
www.ducati.ms
Vehicle(s)
2020 Jeep Rubicon
Occupation
General Manager
Vehicle Showcase
1
I just finished using the ARB under seat mount for the ARB twin compressor. Sorry, no photos but a couple of thoughts. Oh, and I only have the compressor..no lockers, and mounted under the passenger seat.

***Some parts are not included as noted by others. Specifically, the elbow(0740104) and adapter (0740101). I also used the ARB .3m hose.
Shame on ARB for not including these, especially the adapter and elbow. I tried to source both locally, but due to this being a tight fit, the local sourced products were slightly longer and not useable.

I used one to the longer wiring harnesses available on eBay. This made it just a little simpler, and I was going to need more wire anyway.

I routed this wiring thru the passenger side cowl as noted on another thread.

I wired the Isolation Switch as noted in a YouTube video using the MORE bracket, BUT the length for this wiring needs to be longer for the ARB bracket...not much, but a little. Best to measure this with the bracket and compressor in hand.

I went to the ignition wire, that is part of the AUX switches wiring group for the Rubicon, located under dash and in front of passenger foot area, and thus used the ARB rocker switch instead of one of the AUX switches. I used a T Tap electrical connector for this.
Best Wishes.
Would love to see some photos at some point :like:


Focker

Well-Known Member
First Name
Scott
Joined
Jan 30, 2020
Messages
390
Reaction score
679
Location
Sacramento, CA
Website
www.ducati.ms
Vehicle(s)
2020 Jeep Rubicon
Occupation
General Manager
Vehicle Showcase
1
I went with UPDOWN AIR. underseat mount and their quick connect system for airing up and down all four tires at one time. Install was pretty easy.
Took out my UpDownAir. That shit never worked right.
We are working on ideas for mounting under the passenger seat and the UpDownAir looks like a nice solution. @Escareno187 , how is yours working for you at this point? Did you buy the complete kit or just the mount?

@Mantacon , what kind of problems did you experience with yours that weren't working?

Any input from anyone else would be great as far as using the ARB underseat mount or the UpDownAir.


_olllllllo_

Well-Known Member
First Name
William
Joined
Jul 18, 2018
Messages
823
Reaction score
1,308
Location
The Wild Wild West in AZ
Vehicle(s)
2019 Hellayella JLU Rubicon 6-speed
I just finished using the ARB under seat mount for the ARB twin compressor. Sorry, no photos but a couple of thoughts. Oh, and I only have the compressor..no lockers, and mounted under the passenger seat.

***Some parts are not included as noted by others. Specifically, the elbow(0740104) and adapter (0740101). I also used the ARB .3m hose.
Shame on ARB for not including these, especially the adapter and elbow. I tried to source both locally, but due to this being a tight fit, the local sourced products were slightly longer and not useable.

I used one to the longer wiring harnesses available on eBay. This made it just a little simpler, and I was going to need more wire anyway.

I routed this wiring thru the passenger side cowl as noted on another thread.

I wired the Isolation Switch as noted in a YouTube video using the MORE bracket, BUT the length for this wiring needs to be longer for the ARB bracket...not much, but a little. Best to measure this with the bracket and compressor in hand.

I went to the ignition wire, that is part of the AUX switches wiring group for the Rubicon, located under dash and in front of passenger foot area, and thus used the ARB rocker switch instead of one of the AUX switches. I used a T Tap electrical connector for this.
Best Wishes.

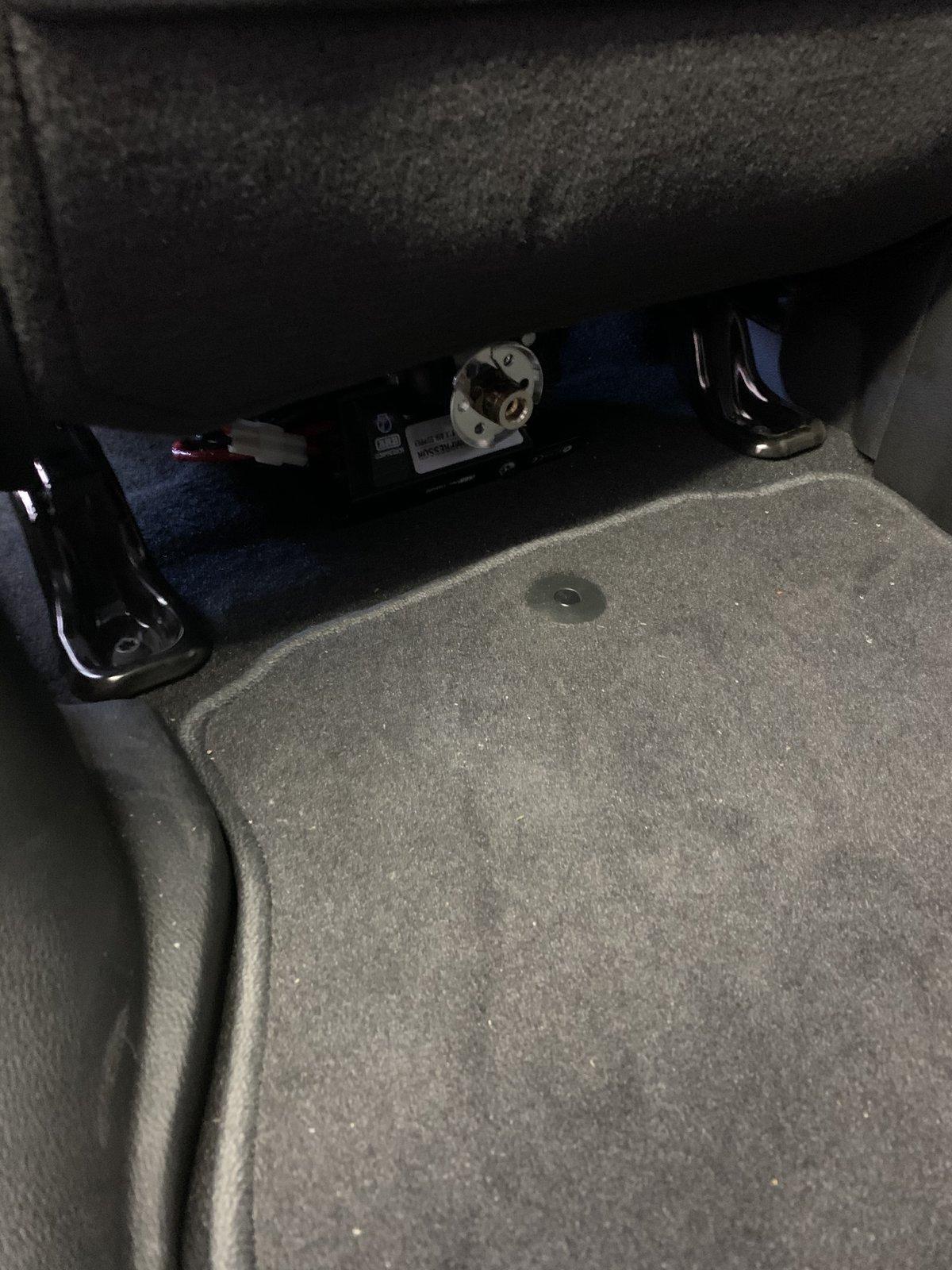

I agree that ARB should definitely include the quick connect adapter. I had to buy a different kit to get it. The length of harness was just long enough for my installation, but I am going to modify the quick adapter plate to remove material to make the routing of the harness less vulnerable as it is going over the rear mount of the seat. I also hooked my compressor to Aux 4 in my JLUR. I didn't cut my all weather floor mat and it just lays up a bit under the seat.

I am very happy with the under seat location for a couple reasons:

1. Out of sight - reduces chances that someone will break in based on seeing a high-value target.
2. I cut a smaller amount of the under seat duct as I didn't need the small tank for air lockers. The advantage is that I run my A/C on the floor setting to provide additional airflow over the compressor and help keep it cooler.

I have used the compressor many times and it is fantastic that it is always available to use whenever I need it. One less thing to forget at home.


Goin2drt

Well-Known Member
Joined
Oct 25, 2017
Messages
2,266
Reaction score
2,582
Location
Kentucky (formerly Peoples Republik of Kalifornia)
Vehicle(s)
18 Rubicon, 17 Grand Cherokee Trailhawk
