I dont think they ever provided instructions for that. Look back on the first page of posts on this thread there are some good diagrams that people provided, thats how I did mine.
Yeah I'm starting to think I watched a video on it and misremembered. Thanks! Switch enroute. This things great. Must have mod.

I had to install it using a flashlight my lights are so dim.. then cranked it on and had to turn it down to not blast my neighbors windows.





Advertisement



swozey

Well-Known Member
First Name
Mike
Joined
Dec 18, 2017
Messages
382
Reaction score
279
Location
Denver, CO
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
Brawlee sent me the instruction manual, they're great to deal with. Here it is if anyone else needs it.

Edit: Oh, be aware that they've probably updated the product a few times if not more, so they might be less specific to your install


Attachments

Last edited:

JRod

Well-Known Member
First Name
Jarrod
Joined
Sep 28, 2019
Messages
94
Reaction score
81
Location
North Carolina
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
I installed the switch today. I used the quadratec wire tap (https://www.quadratec.com/p/quadratec/12-volt-power-adapter-jeep-wrangler-jl) and a switch from Amazon (Ulincos Latching Push Button Switch U19C1 1NO1NC SPDT ON/Off Black Metal Shell with Red LED Suitable for 19mm 3/4" Mounting Hole (Red) https://www.amazon.com/dp/B017KP67GI/ref=cm_sw_r_cp_apa_i_rhBoEbM7WCMCP). The switch needs this harness (Ulincos NOT FIT U19D1, 19mm Pigtail, Wire Connector, Socket Plug for U19C1 Push Button Switch (Pack of 2) https://www.amazon.com/dp/B01H5BXC0G/ref=cm_sw_r_cp_apa_i_liBoEbS92DHNY).

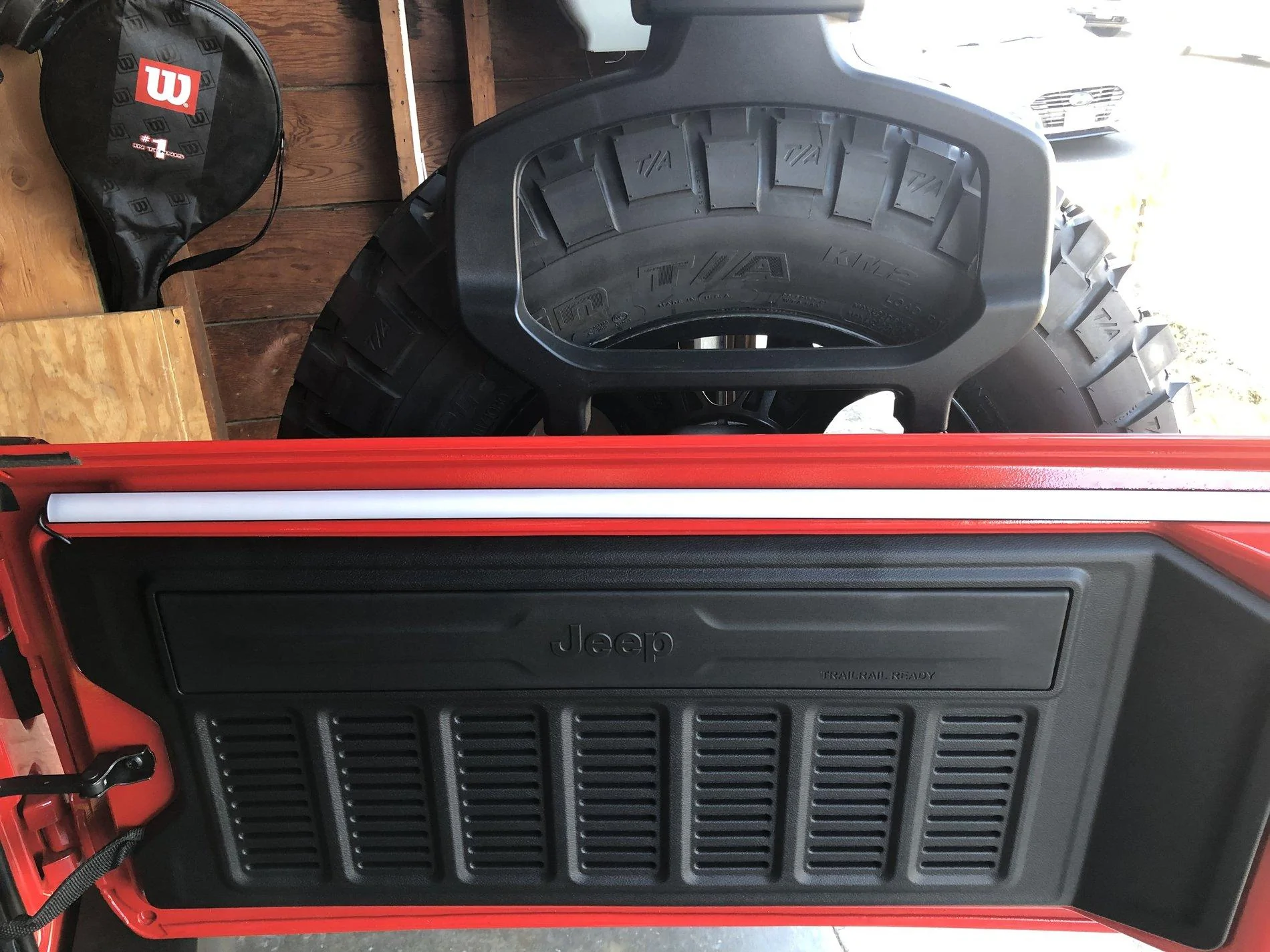

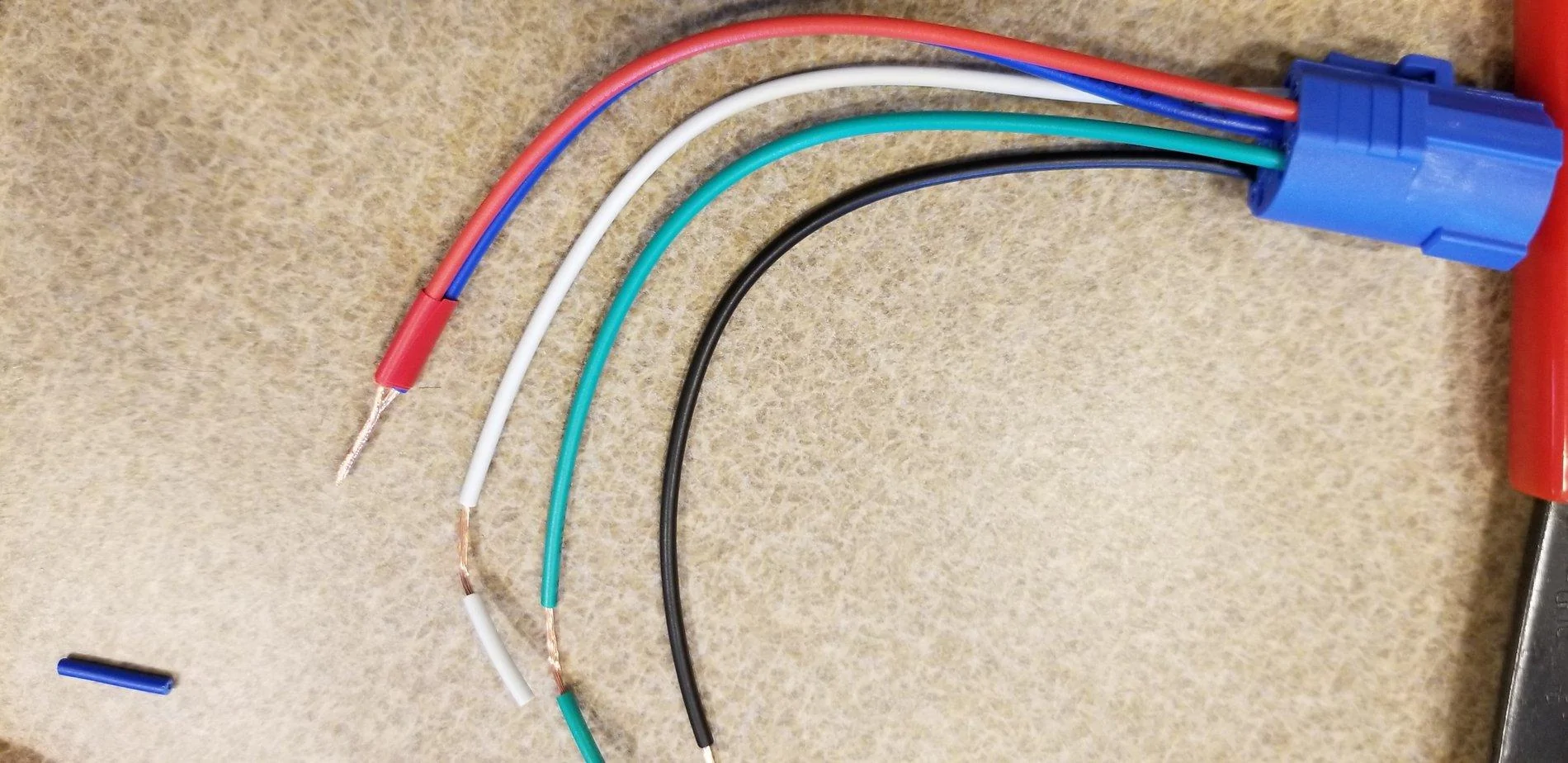

Wiring was pretty simple with the harness. If you want the switch lit up when the light is on, connect the blue and red on the harness to the red wire on the quadratec harness, and the black on the harness and the black from the light to the black on the quadratec harness. The white from the switch harness goes to the red on the quadratec harness.

The red and blue wire from the switch harness goes to the red wire for the light (sorry, forgot to get a picture.)

I used a step drill to make a 3/4" hole for the switch. I did not use the led controller.









JSFoster75

Well-Known Member
First Name
Scott
Joined
Oct 6, 2019
Messages
522
Reaction score
404
Location
Bluff City, TN
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Sahara x2
Vehicle Showcase
1
I installed the switch today. I used the quadratec wire tap (https://www.quadratec.com/p/quadratec/12-volt-power-adapter-jeep-wrangler-jl) and a switch from Amazon (Ulincos Latching Push Button Switch U19C1 1NO1NC SPDT ON/Off Black Metal Shell with Red LED Suitable for 19mm 3/4" Mounting Hole (Red) https://www.amazon.com/dp/B017KP67GI/ref=cm_sw_r_cp_apa_i_rhBoEbM7WCMCP). The switch needs this harness (Ulincos NOT FIT U19D1, 19mm Pigtail, Wire Connector, Socket Plug for U19C1 Push Button Switch (Pack of 2) https://www.amazon.com/dp/B01H5BXC0G/ref=cm_sw_r_cp_apa_i_liBoEbS92DHNY).

Wiring was pretty simple with the harness. If you want the switch lit up when the light is on, connect the blue and red on the harness to the red wire on the quadratec harness, and the black on the harness and the black from the light to the black on the quadratec harness. The white from the switch harness goes to the red on the quadratec harness.

The red and blue wire from the switch harness goes to the red wire for the light (sorry, forgot to get a picture.)

I used a step drill to make a 3/4" hole for the switch. I did not use the led controller.







Nice install, you may want to find something to soften the end of that cut tie strap…


Oskar79

Well-Known Member
Joined
Jan 28, 2019
Messages
56
Reaction score
80
Location
Los Angeles California
Vehicle(s)
2019 Wrangler JLU
Vehicle Showcase
1
Any ideas for mounting this with a soft top? I used my hard top September - May but it would be nice to use it for camping trips over the summer. I saw someone posted an image with the light mounted on the tailgate. Thoughts?
Any Luck mounting this with the Soft Top?


melendez69

Well-Known Member
First Name
Marc
Joined
Jun 22, 2018
Messages
2,592
Reaction score
4,217
Location
Pineville, NC
Vehicle(s)
2013 911 / 2013 E92 M3 / 2018 JLR (all manual, of course)
Occupation
Yes
Vehicle Showcase
1
yes, exactly

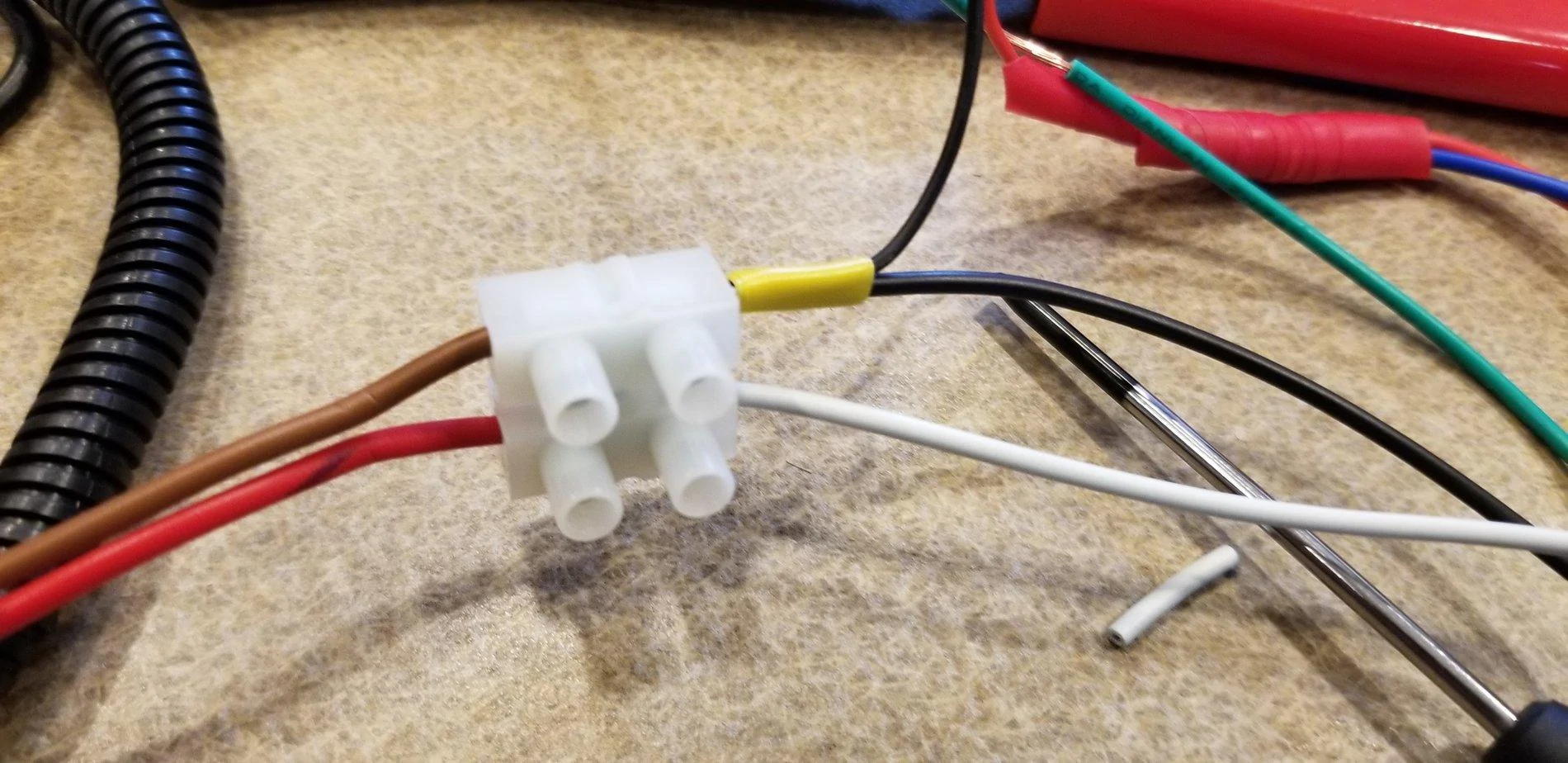

There are 2 wires going into the cigarette lighter (in the diagram below its the "power supply). The black ground wire gets tapped into and goes to both the switch ground and the light.

The other wire gets tapped to your switch.

Then the red wire on the brawlee light gets connected to the third point on the switch.
So I wired my Oracle tailgate light exactly how you illustrated using the same rocker switch. Light came on, I flicked it off & on and it worked fine. I wanted to make it nice & neat so I disconnected everything, rewired it all, and.....nothing. Tried a different switch, still nothing. Reconnected the cigar lighter, plugged in the light, & still nothing.... fuse is good.

I checked the ground with a multimeter & it bounced around. It seems as though the ground is no good now. The ground near the battery terminal seemed fine. I checked the power from the 12v terminal and it doesn't seem to have any. What in tarnation could have happened?


JSFoster75

Well-Known Member
First Name
Scott
Joined
Oct 6, 2019
Messages
522
Reaction score
404
Location
Bluff City, TN
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Sahara x2
Vehicle Showcase
1
So I wired my Oracle tailgate light exactly how you illustrated using the same rocker switch. Light came on, I flicked it off & on and it worked fine. I wanted to make it nice & neat so I disconnected everything, rewired it all, and.....nothing. Tried a different switch, still nothing. Reconnected the cigar lighter, plugged in the light, & still nothing.... fuse is good.

I checked the ground with a multimeter & it bounced around. It seems as though the ground is no good now. The ground near the battery terminal seemed fine. I checked the power from the 12v terminal and it doesn't seem to have any. What in tarnation could have happened?
Is it possible you didn't splice a wire together well and that the connection is loose?


melendez69

Well-Known Member
First Name
Marc
Joined
Jun 22, 2018
Messages
2,592
Reaction score
4,217
Location
Pineville, NC
Vehicle(s)
2013 911 / 2013 E92 M3 / 2018 JLR (all manual, of course)
Occupation
Yes
Vehicle Showcase
1
Is it possible you didn't splice a wire together well and that the connection is loose?
I used Posi-taps to avoid clipping the lighter connector, but it looks like I'm gonna have to cut the dang thing off to know for sure. The strange thing is, the cigar lighter has no power.


jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon
Anyone have any advice on how to remove the plastic trim piece on the window glass to hide and run the wire behind? Thanks


melendez69

Well-Known Member
First Name
Marc
Joined
Jun 22, 2018
Messages
2,592
Reaction score
4,217
Location
Pineville, NC
Vehicle(s)
2013 911 / 2013 E92 M3 / 2018 JLR (all manual, of course)
Occupation
Yes
Vehicle Showcase
1
Anyone have any advice on how to remove the plastic trim piece on the window glass to hide and run the wire behind? Thanks
Use a plastic trim-remover tool thingy. He starts about te 8:15 mark here > > >



jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon
Anyone have or can draw a quick wiring schematic to tap the 12v cigarette lighter with a lighted switch?

Thanks in advance


fyr145

Well-Known Member
First Name
Lon
Joined
May 25, 2019
Messages
66
Reaction score
101
Location
AZ
Vehicle(s)
2018 JLU Sahara
Occupation
Public Safety
Vehicle Showcase
1
I used Posi-taps to avoid clipping the lighter connector, but it looks like I'm gonna have to cut the dang thing off to know for sure. The strange thing is, the cigar lighter has no power.
If the lighter itself has no power, you might want to check the fuse (20 amp yellow) itself first before cutting. I believe its fuse location # 45. I don't remember, but I did this Brawlee tailgate lightbar awhile back and had to move the fuse over to the constant hot side (#43 position) from the intermittent side(#45) of the socket where the fuse goes in at. Also, get a meter and check the fuse as well for continuity. Get a flashlight and look directly down at the place where that fuse goes into and you'll see there's a way to insert the fuse over a bit. (I did a write up on this issue of power on another site.)
