Tailgate Brawlee LED light

melendez69

Well-Known Member
First Name
Marc
Joined
Jun 22, 2018
Messages
2,592
Reaction score
4,217
Location
Pineville, NC
Vehicle(s)
2013 911 / 2013 E92 M3 / 2018 JLR (all manual, of course)
Occupation
Yes
Vehicle Showcase
1
If the lighter itself has no power, you might want to check the fuse (20 amp yellow) itself first before cutting. I believe its fuse location # 45. I don't remember, but I did this Brawlee tailgate lightbar awhile back and had to move the fuse over to the constant hot side (#43 position) from the intermittent side(#45) of the socket where the fuse goes in at. Also, get a meter and check the fuse as well for continuity. Get a flashlight and look directly down at the place where that fuse goes into and you'll see there's a way to insert the fuse over a bit. (I did a write up on this issue of power on another site.)

Well, if you had the F word as being the cause, you were right. Initially, I only checked F43, but F45 was toast. I totally forgot about F43. I finished it up with a different switch since I wanted to keep the 12v location and didn't want to drill a hole for a lighted switch. Works just fine. Thank you, and @JSFoster75 for the guidance.






Advertisement



jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon
Anyone have a schematic for wiring directly to the 12v outlet in the rear for a switch with a light built in?


fyr145

Well-Known Member
First Name
Lon
Joined
May 25, 2019
Messages
66
Reaction score
101
Location
AZ
Vehicle(s)
2018 JLU Sahara
Occupation
Public Safety
Vehicle Showcase
1
Here ya go.....................

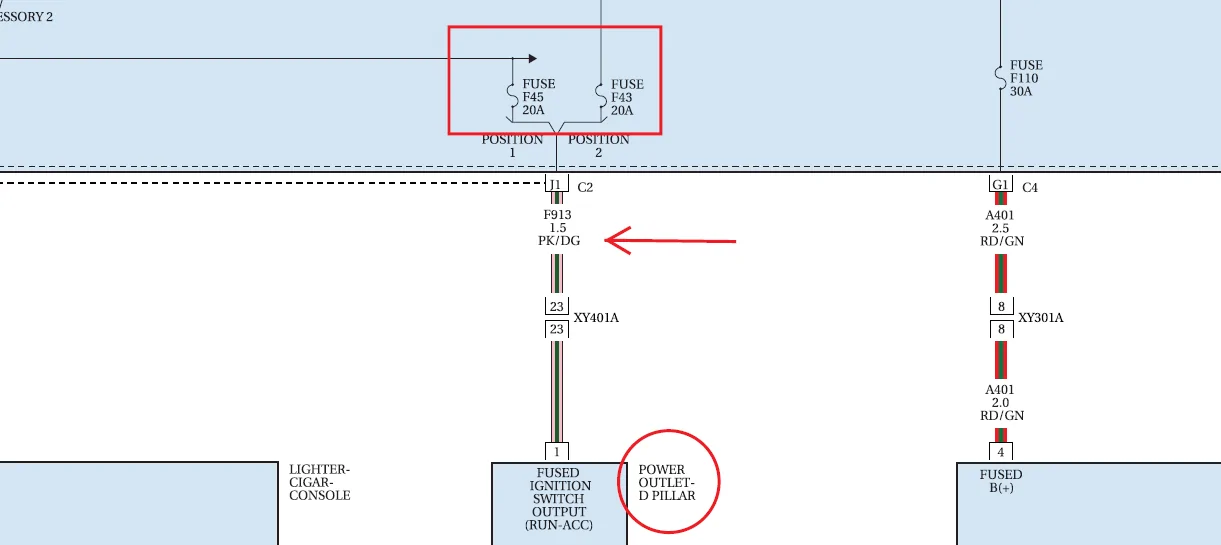

The area in the schematic has been highlighted in red for you. I also have done this mod and have written this up a few times as well. Note your position on the yellow 20 amp fuse. One position is for accessory power only while the other position is for constant power.



Attachments

Last edited:

jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon

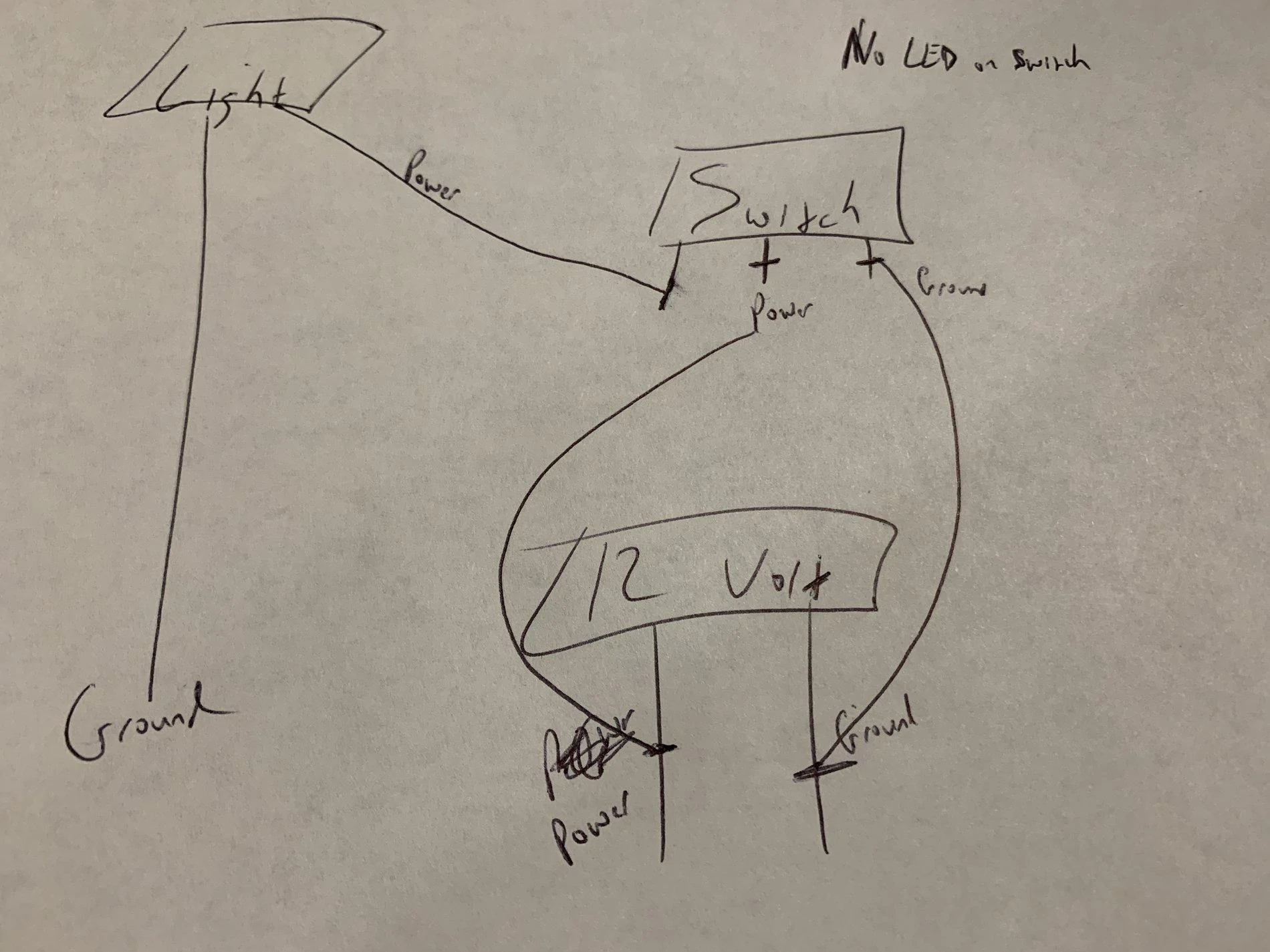

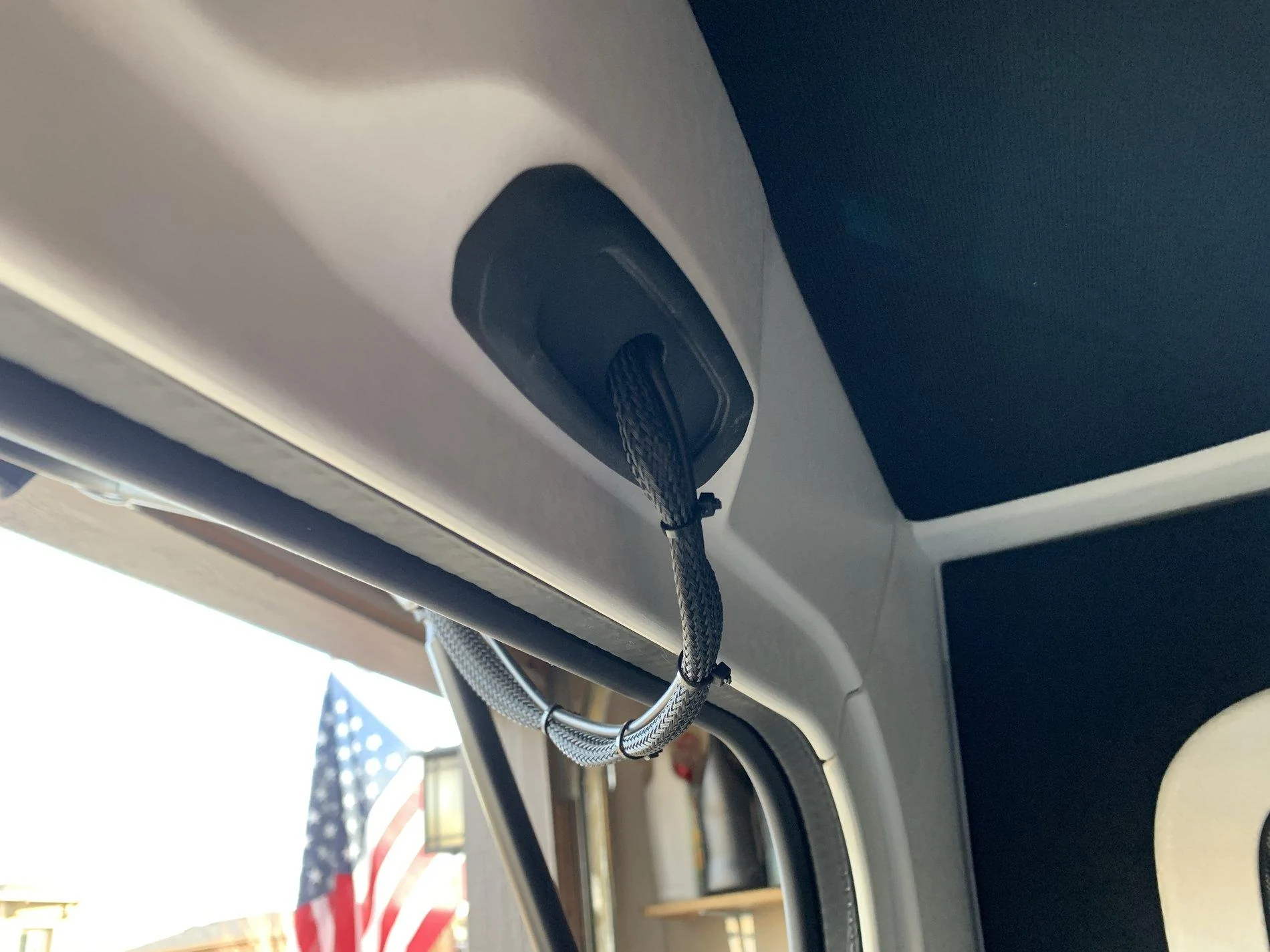

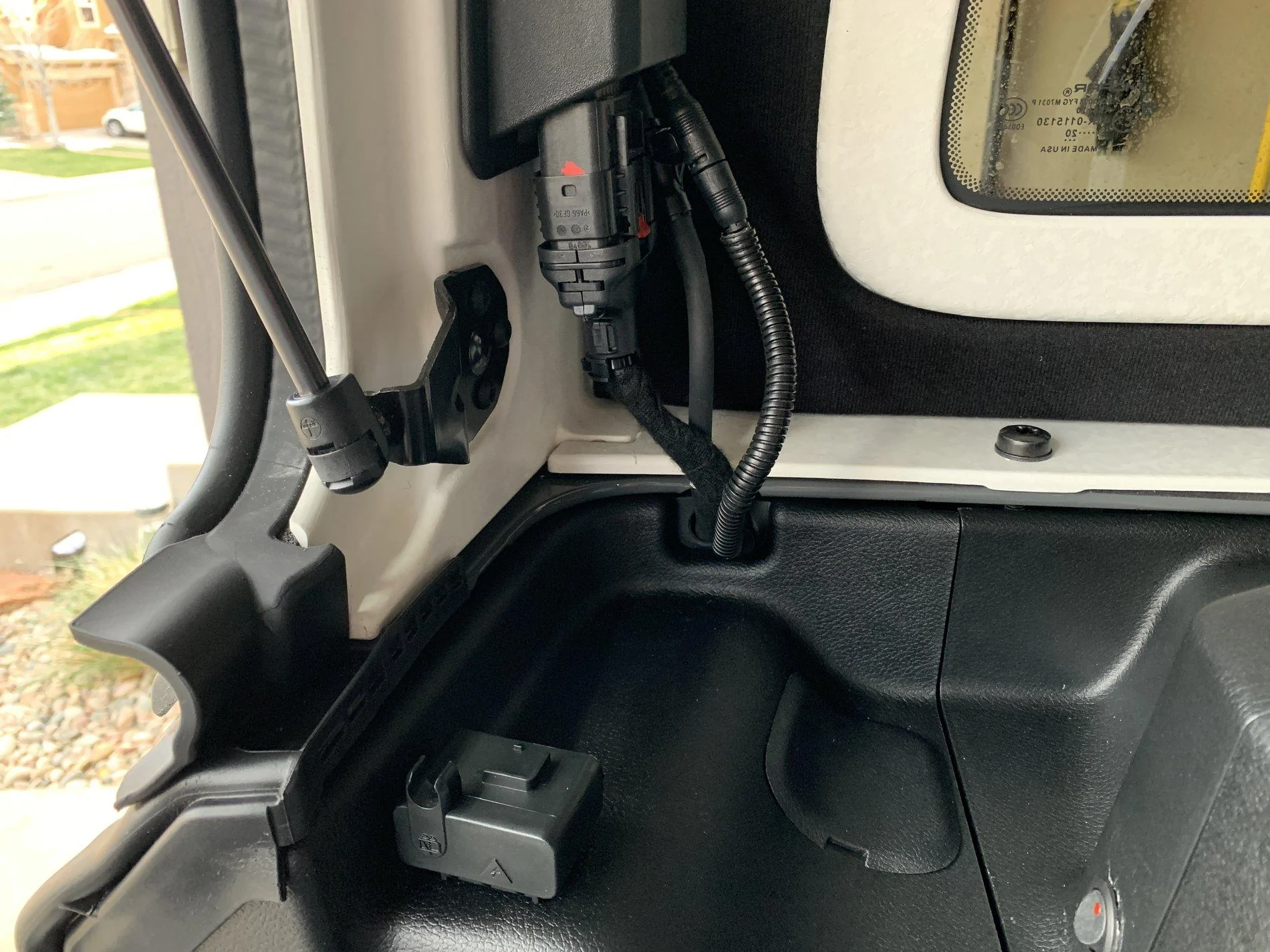

Ok got around to installing mine today. Wired it to my Rocker Switch but the light on the switch won’t come on. Here are some pics of my install and how I wired the light and switch.

Any suggestions on the switch would be appreciated.











fyr145

Well-Known Member
First Name
Lon
Joined
May 25, 2019
Messages
66
Reaction score
101
Location
AZ
Vehicle(s)
2018 JLU Sahara
Occupation
Public Safety
Vehicle Showcase
1
Jason0341,

In looking at your diagram, it would appear that you need to change places between the center wire of the switch with the power wire going to the light so that way both the light AND the LED on the switch get power at the same time. try that and post back.



jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon
Jason0341,

In looking at your diagram, it would appear that you need to change places between the center wire of the switch with the power wire going to the light so that way both the light AND the LED on the switch get power at the same time. try that and post back.

Thanks! I'll get it switched over tomorrow and let you know.


jason0341

Well-Known Member
First Name
Jason
Joined
Aug 21, 2019
Messages
249
Reaction score
750
Location
Colorado
Vehicle(s)
2020 2.0L Rubicon
Jason0341,

In looking at your diagram, it would appear that you need to change places between the center wire of the switch with the power wire going to the light so that way both the light AND the LED on the switch get power at the same time. try that and post back.

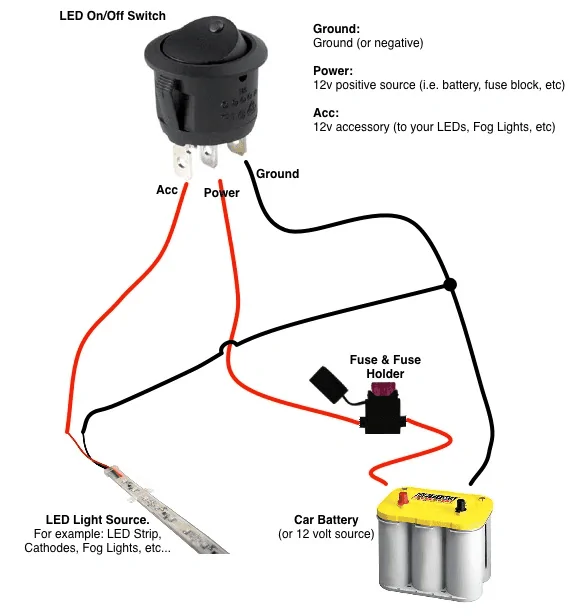

So I found this diagram as well and it resembles how I am wired up, but it’s different from the diagram above but the same switch.



Moabtj

Active Member
First Name
Edwin
Joined
Aug 28, 2019
Messages
42
Reaction score
5
Location
Hollister
Vehicle(s)
19’ Jeep Rubicon JL

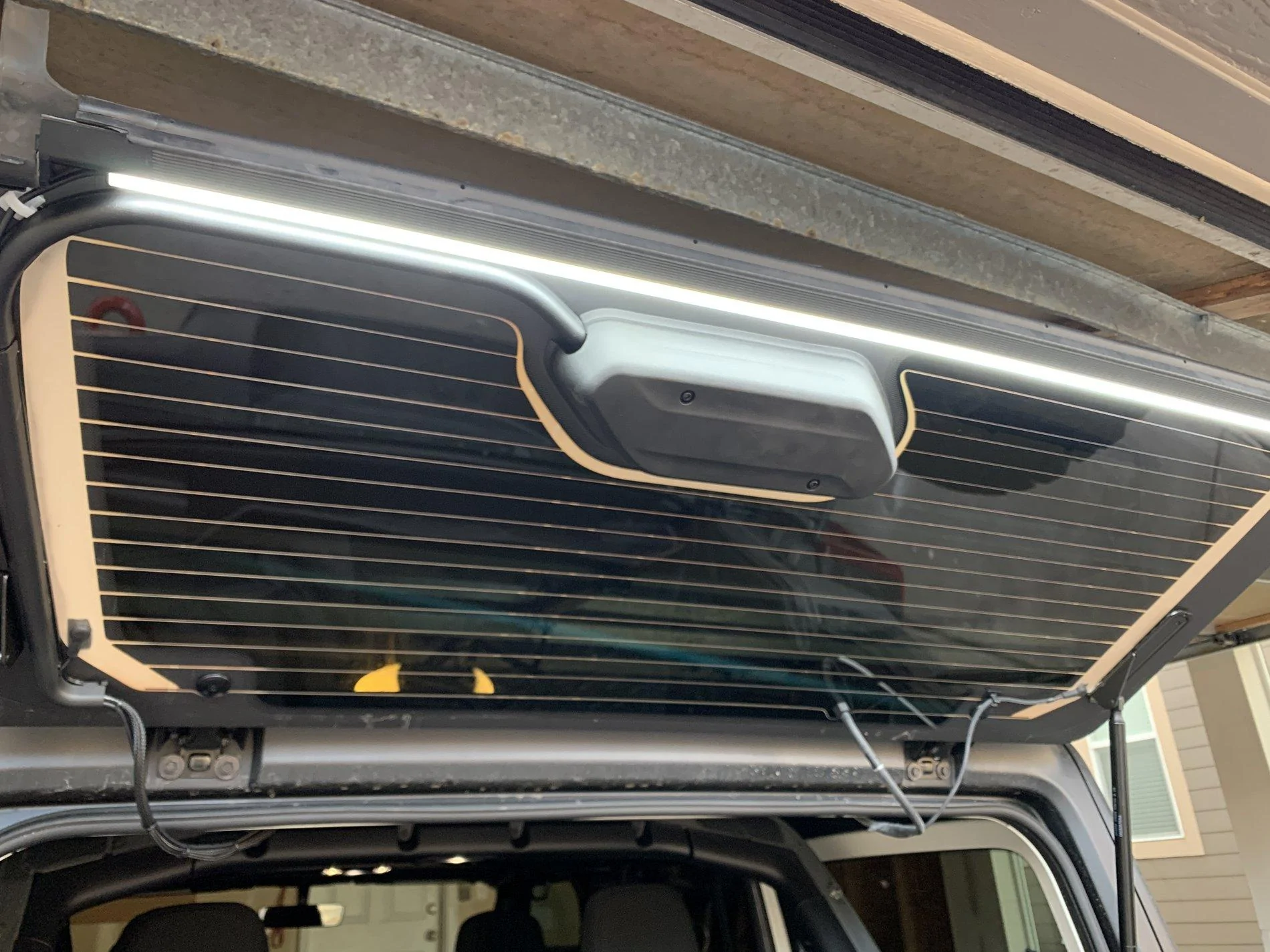

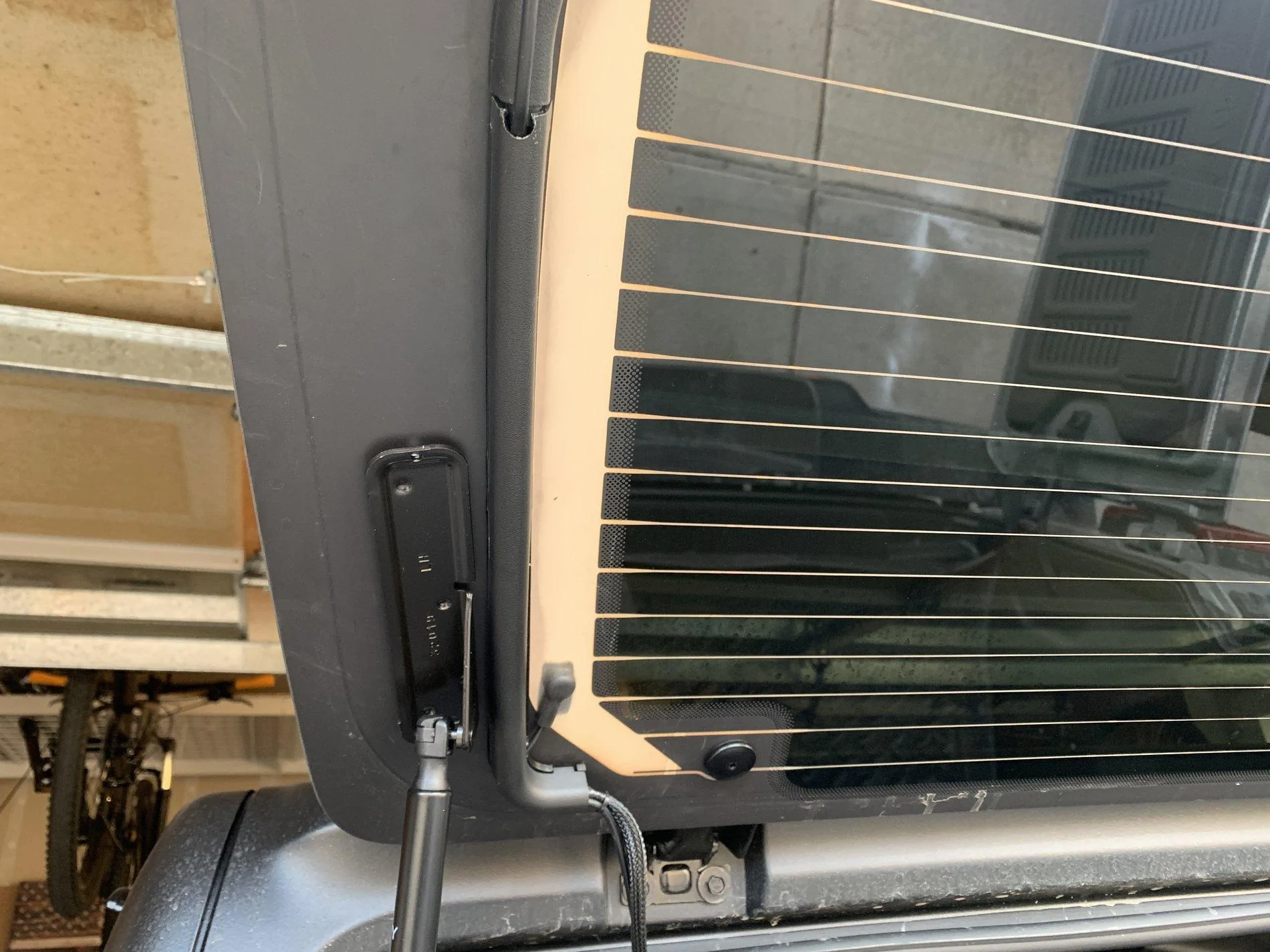

So, I finished up my install. I installed a rocker switch and a reed switch. So, the light shuts off, automatically, when the tailgate is closed. I used a neodymium magnet epoxied to the tailgate, instead of the supplied contact. I think it turned out well.

Very clean installl

First Name
Andy
Joined
May 11, 2020
Messages
7
Reaction score
1
Location
Georgia
Vehicle(s)
Jeep JL

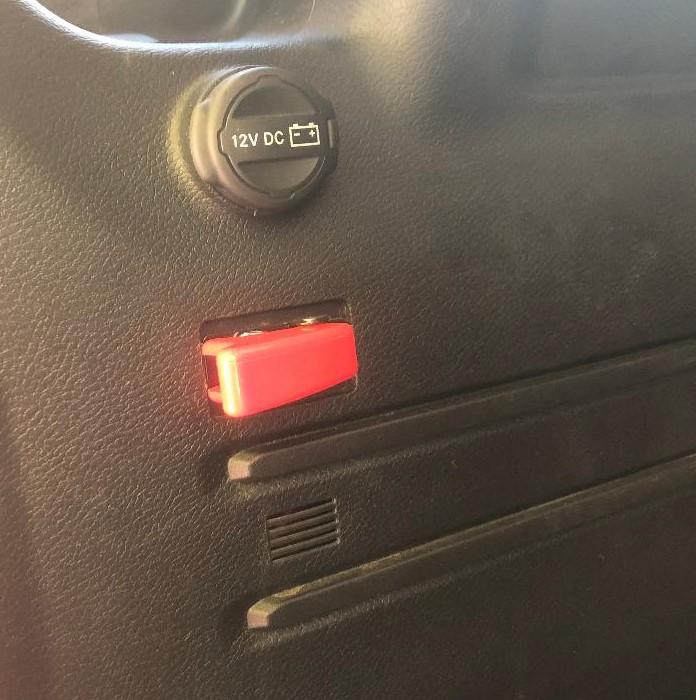

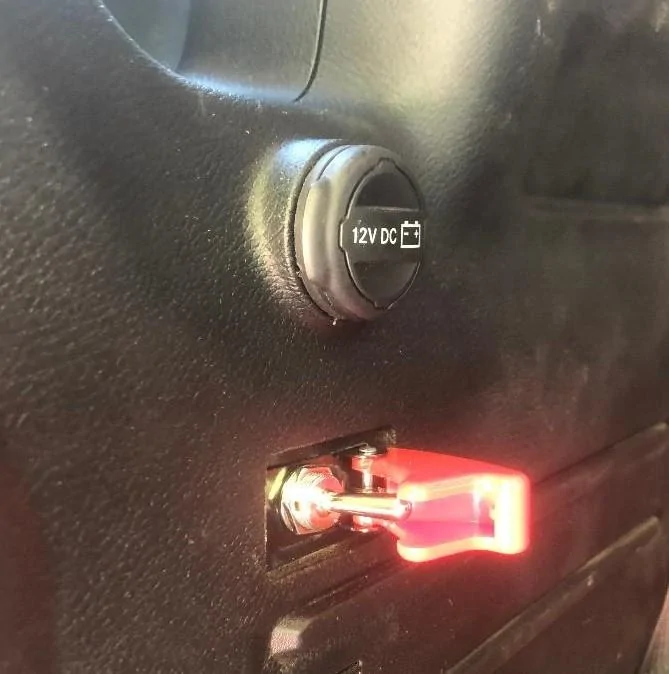

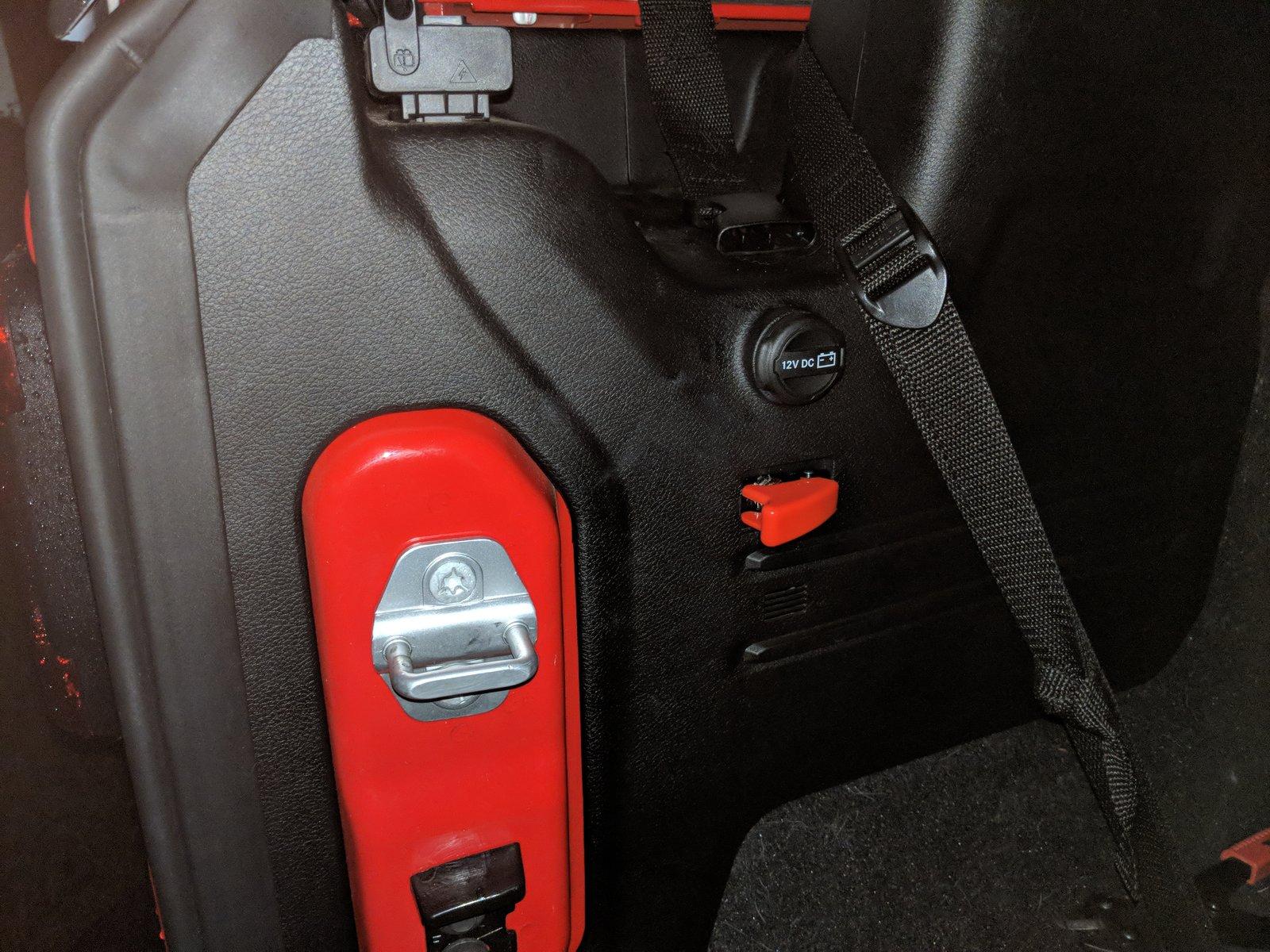

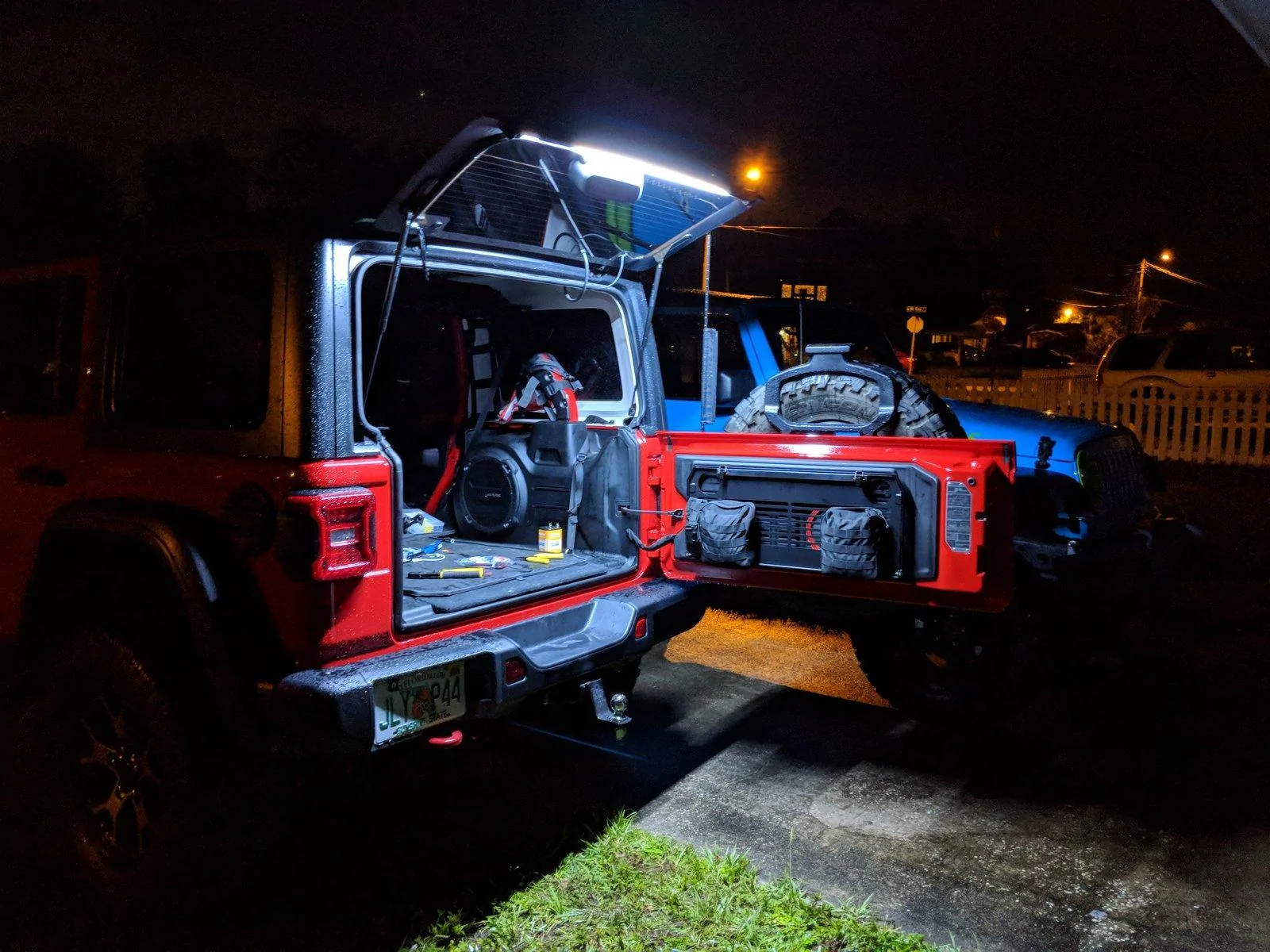

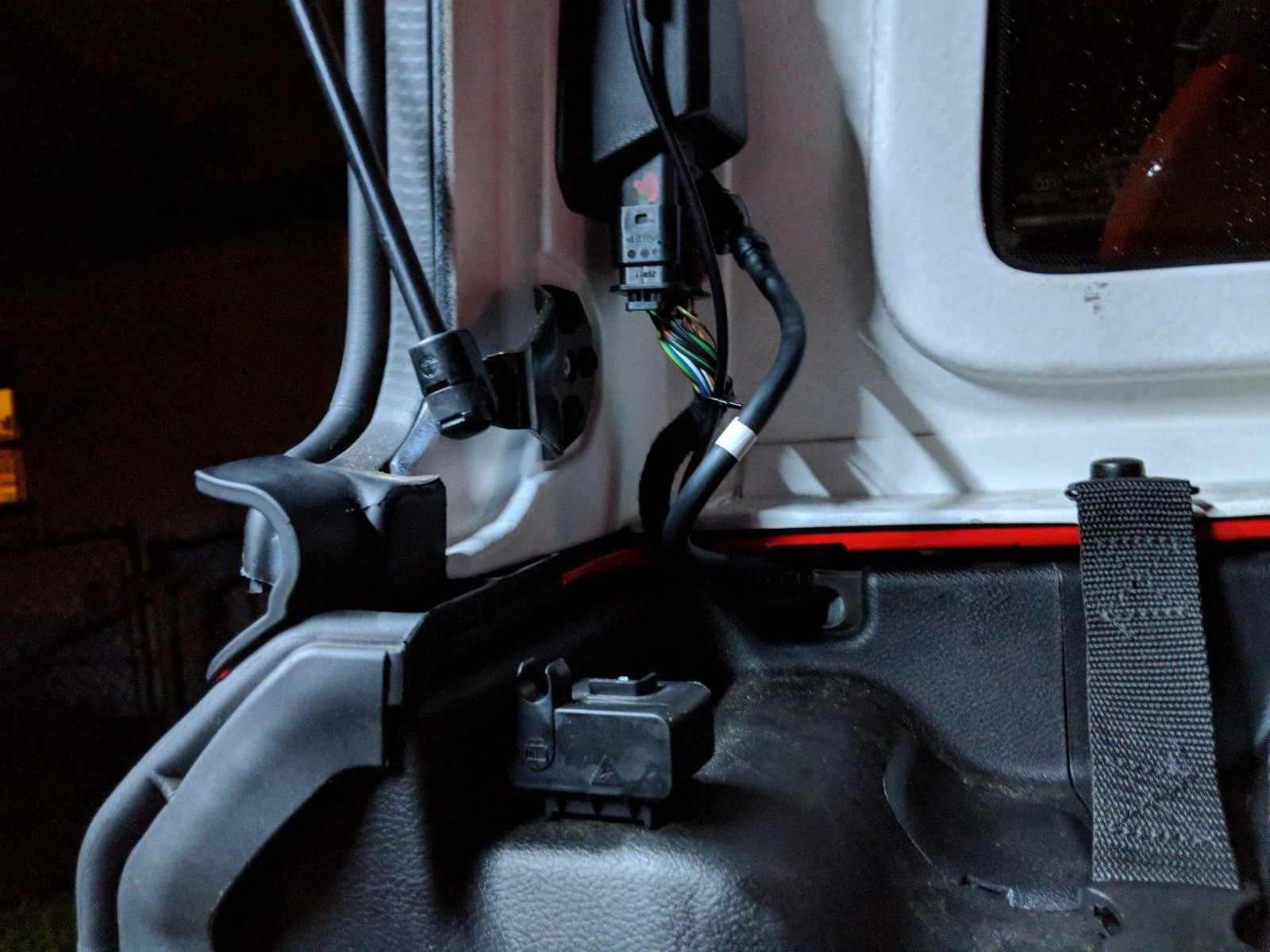

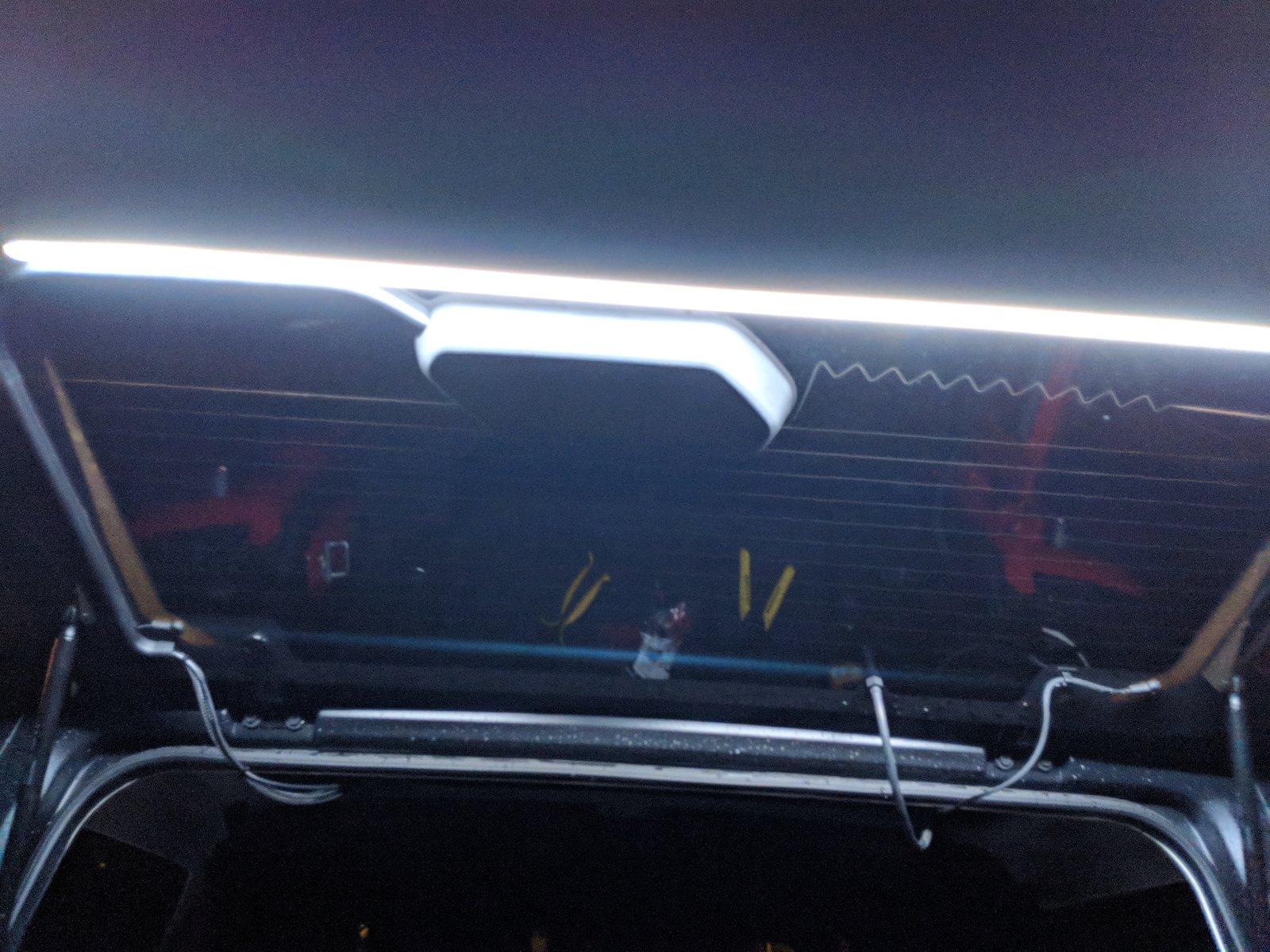

I put on the Brawlee Led light bar for the rear window so I can have a light while overlanding/camping! I decided to wire it into the cigarette lighter so I can have it running with the jeep off and then added a switch into the small cutout. I can't tell if that spot was made for a switch since it fits perfectly!

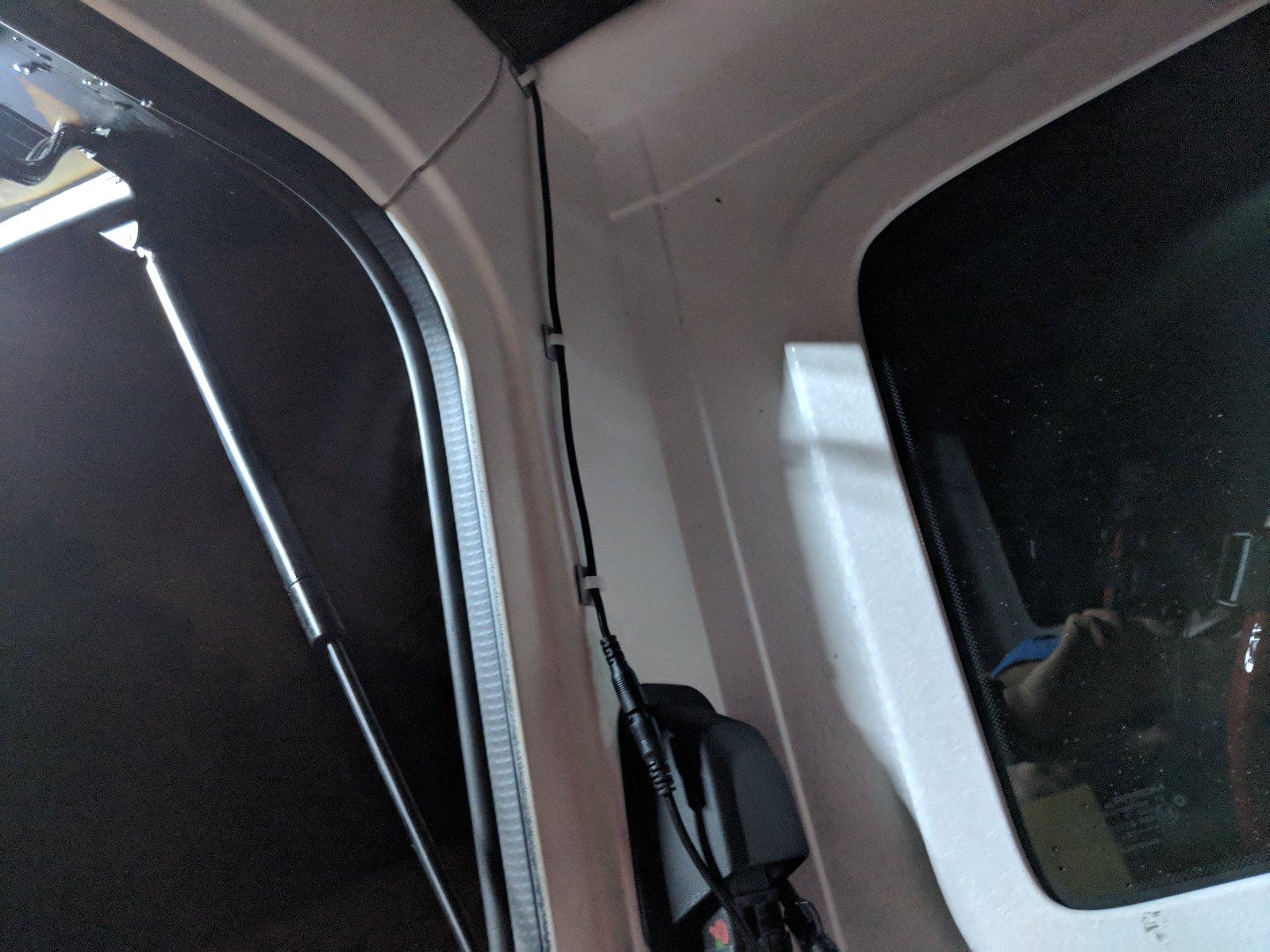

IMG_20180803_211126.jpg IMG_20180803_211120.jpg IMG_20180803_211117.jpg IMG_20180803_211114.jpg IMG_20180803_211057.jpg IMG_20180803_211102.jpg
