Tailgate Brawlee LED light

Magnetdragon

Well-Known Member
First Name
Erwin
Joined
Feb 12, 2018
Messages
256
Reaction score
419
Location
Tampa
Vehicle(s)
Jlu!!
I put on the Brawlee Led light bar for the rear window so I can have a light while overlanding/camping! I decided to wire it into the cigarette lighter so I can have it running with the jeep off and then added a switch into the small cutout. I can't tell if that spot was made for a switch since it fits perfectly!



IMG_20180803_211126.jpg IMG_20180803_211120.jpg IMG_20180803_211117.jpg IMG_20180803_211114.jpg IMG_20180803_211057.jpg IMG_20180803_211102.jpg






Advertisement



Jeepmarkjl

Well-Known Member
First Name
Mark
Joined
Apr 2, 2018
Messages
512
Reaction score
901
Location
Chicago
Vehicle(s)
2018 Wrangler JLU Rubicon
Occupation
Marketing
Brilliant! I watched the video and pretty much have it figured out but I’m also a guy that can mess up toast. I couldn’t quite figure the wiring to the lighter socket. Any chance of a labeled picture?


TheWingman

Well-Known Member
Joined
May 2, 2018
Messages
193
Reaction score
158
Location
Texas
Vehicle(s)
2018 Firecracker Red JLUR
My parts to do this are in the mail. lol. Such a good idea, as I always need light back there.


klhjeep2018

Well-Known Member
First Name
Kevin
Joined
Mar 15, 2018
Messages
592
Reaction score
538
Location
Harpers Ferry, WV
Vehicle(s)
2018 Rubicon JL
Occupation
Sales manager
I can’t say enough good things about this light add on its great!


paulr

Well-Known Member
Joined
Jan 17, 2018
Messages
396
Reaction score
602
Location
California
Vehicle(s)
2018 Sting Gray JLUR

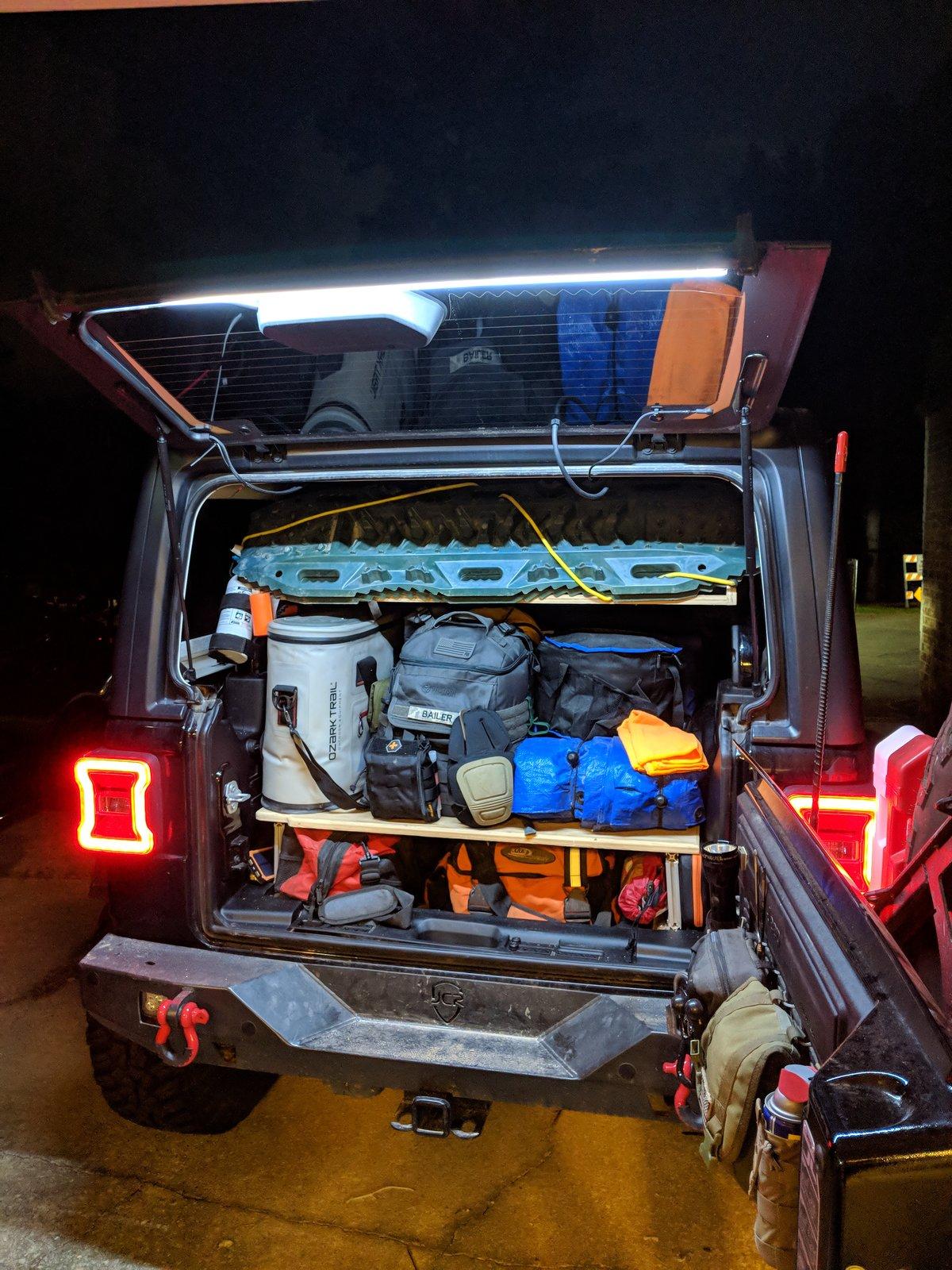

Just installed mine, love this thing. SO BRIGHT. Little suggestion to everyone wiring this, you can actually very easily route the wire into the hardtop where the wiper tube goes into and fish it out where the other disconnects come out, makes for a much cleaner install without the clips and wire showing at all on the window or on the inside of the hard top. Decided to put my switch in a slightly different location than the OP so it doesn't get bumped by cargo since my switch didn't have a cover.













DToxic

Well-Known Member
First Name
Blake
Joined
Jun 20, 2018
Messages
210
Reaction score
68
Location
Bay Area, CA
Vehicle(s)
2018 JL Rubicon
did you guys split off the cigarette plug so that the cigarette plug is still usable?


Alacon01

Well-Known Member
First Name
Cody
Joined
Apr 15, 2018
Messages
209
Reaction score
274
Location
Fayetteville
Website
www.instagram.com
Vehicle(s)
2018 JLUR
Vehicle Showcase
1
I'm with everyone else, this is one simple mod that everyone seems to be amazed by. I did however just hook mine up to the interior lights. I'm considering putting a LED strip under my shelf and putting it on a switch though.


Jeepmarkjl

Well-Known Member
First Name
Mark
Joined
Apr 2, 2018
Messages
512
Reaction score
901
Location
Chicago
Vehicle(s)
2018 Wrangler JLU Rubicon
Occupation
Marketing
For those that are electrically challenged (ME) can someone who has “tapped” into the 12v socket provide details on which wire goes to what exactly? Pics with labels?


paulr

Well-Known Member
Joined
Jan 17, 2018
Messages
396
Reaction score
602
Location
California
Vehicle(s)
2018 Sting Gray JLUR
did you guys split off the cigarette plug so that the cigarette plug is still usable?
yes, exactly

For those that are electrically challenged (ME) can someone who has “tapped” into the 12v socket provide details on which wire goes to what exactly? Pics with labels?
There are 2 wires going into the cigarette lighter (in the diagram below its the "power supply). The black ground wire gets tapped into and goes to both the switch ground and the light.

The other wire gets tapped to your switch.

Then the red wire on the brawlee light gets connected to the third point on the switch.



Jeepmarkjl

Well-Known Member
First Name
Mark
Joined
Apr 2, 2018
Messages
512
Reaction score
901
Location
Chicago
Vehicle(s)
2018 Wrangler JLU Rubicon
Occupation
Marketing
yes, exactly



There are 2 wires going into the cigarette lighter (in the diagram below its the "power supply). The black ground wire gets tapped into and goes to both the switch ground and the light.

The other wire gets tapped to your switch.

Then the red wire on the brawlee light gets connected to the third point on the switch.

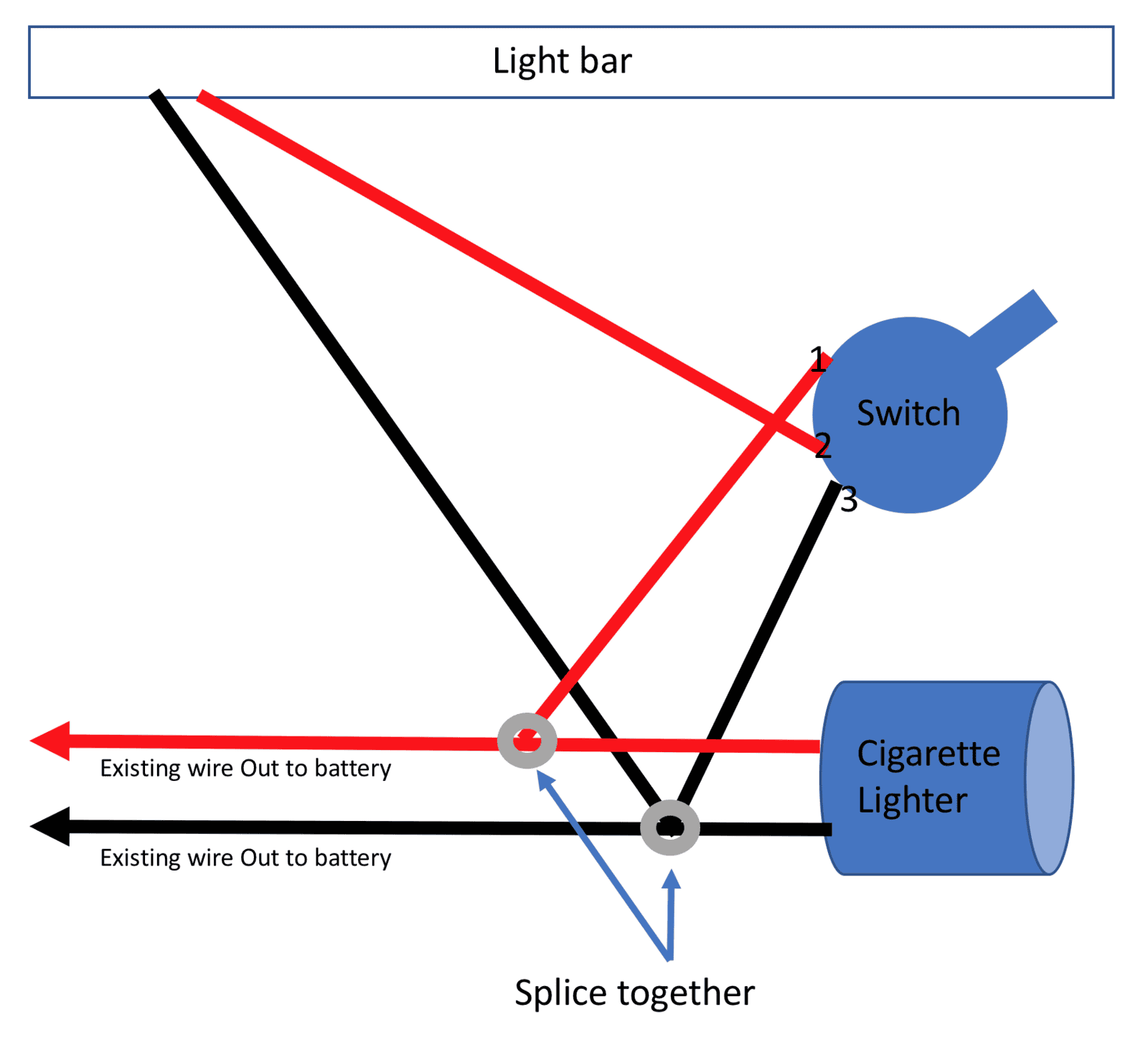

Helps me to draw it out with "actual" parts. Did I get it right?

Screen Shot 2018-08-30 at 3.21.59 PM.png


paulr

Well-Known Member
Joined
Jan 17, 2018
Messages
396
Reaction score
602
Location
California
Vehicle(s)
2018 Sting Gray JLUR
Helps me to draw it out with "actual" parts. Did I get it right?

Screen Shot 2018-08-30 at 3.21.59 PM.png
Yes, exactly... you have 1 and 3 switched, but really that is specific to your actual switch you decide to use, the one I used came with one of my Rigid light bars that I never used, you'll notice on many of the switches the ground prong is a different color than the other 2 so its easy to tell which is the ground. As far as the splicing I ended up making a little mini wiring harness from extra wire I had from a previous project and used that to kind of make a Y connector that goes from the cigarette lighter splice then to the switch and to the light, that way there's only one splice on the cigarette ground. I used the wire taps that came with the brawlee light to tap into the cigarette lighter wires.


DToxic

Well-Known Member
First Name
Blake
Joined
Jun 20, 2018
Messages
210
Reaction score
68
Location
Bay Area, CA
Vehicle(s)
2018 JL Rubicon
Just installed mine, love this thing. SO BRIGHT. Little suggestion to everyone wiring this, you can actually very easily route the wire into the hardtop where the wiper tube goes into and fish it out where the other disconnects come out, makes for a much cleaner install without the clips and wire showing at all on the window or on the inside of the hard top. Decided to put my switch in a slightly different location than the OP so it doesn't get bumped by cargo since my switch didn't have a cover.











do you know the power draw of your switch? i.e. are you worried it will eventually drain your battery?


Btsnyder11

Active Member
First Name
Taylor
Joined
Aug 7, 2018
Messages
35
Reaction score
8
Location
Oklahoma City
Vehicle(s)
2016 Toyota Tacoma
Just installed mine, love this thing. SO BRIGHT. Little suggestion to everyone wiring this, you can actually very easily route the wire into the hardtop where the wiper tube goes into and fish it out where the other disconnects come out, makes for a much cleaner install without the clips and wire showing at all on the window or on the inside of the hard top. Decided to put my switch in a slightly different location than the OP so it doesn't get bumped by cargo since my switch didn't have a cover.











I'm new to mods, especially lighting and cutting into the covers. What did you use to cut a hole for the switch? It looks great!

Last edited:

Btsnyder11

Active Member
First Name
Taylor
Joined
Aug 7, 2018
Messages
35
Reaction score
8
Location
Oklahoma City
Vehicle(s)
2016 Toyota Tacoma
I put on the Brawlee Led light bar for the rear window so I can have a light while overlanding/camping! I decided to wire it into the cigarette lighter so I can have it running with the jeep off and then added a switch into the small cutout. I can't tell if that spot was made for a switch since it fits perfectly!



IMG_20180803_211126.jpg IMG_20180803_211120.jpg IMG_20180803_211117.jpg IMG_20180803_211114.jpg IMG_20180803_211057.jpg IMG_20180803_211102.jpg

I put on the Brawlee Led light bar for the rear window so I can have a light while overlanding/camping! I decided to wire it into the cigarette lighter so I can have it running with the jeep off and then added a switch into the small cutout. I can't tell if that spot was made for a switch since it fits perfectly!



IMG_20180803_211126.jpg IMG_20180803_211120.jpg IMG_20180803_211117.jpg IMG_20180803_211114.jpg IMG_20180803_211057.jpg IMG_20180803_211102.jpg

what kind of switch is that, I'm looking to do exactly what you did. Thanks


paulr

Well-Known Member
Joined
Jan 17, 2018
Messages
396
Reaction score
602
Location
California
Vehicle(s)
2018 Sting Gray JLUR
do you know the power draw of your switch? i.e. are you worried it will eventually drain your battery?
this is the standard switch that comes with any Rigid light bar, the switch isn't lit up when it's off so there's no power draw, it just lights up like the images when it's flipped on

I'm new to mods, especially lighting and cutting into the covers. What did you use to cut a hole for the switch? It looks great!
thanks! I started with a small drill but moved to my dremel tool in order to slowly widen the hole until the switch fit in snug without making the hole too large
