My extra wire was there... Just plug and play, shes at the dealer now getting a new steering box and a flash... I'll let yall know...



New Jeep Wrangler 2021 2 Door (JL) owner here.

Yes, I am really new and I am sure you can tell by the way I have introduced myself to the community.
:)

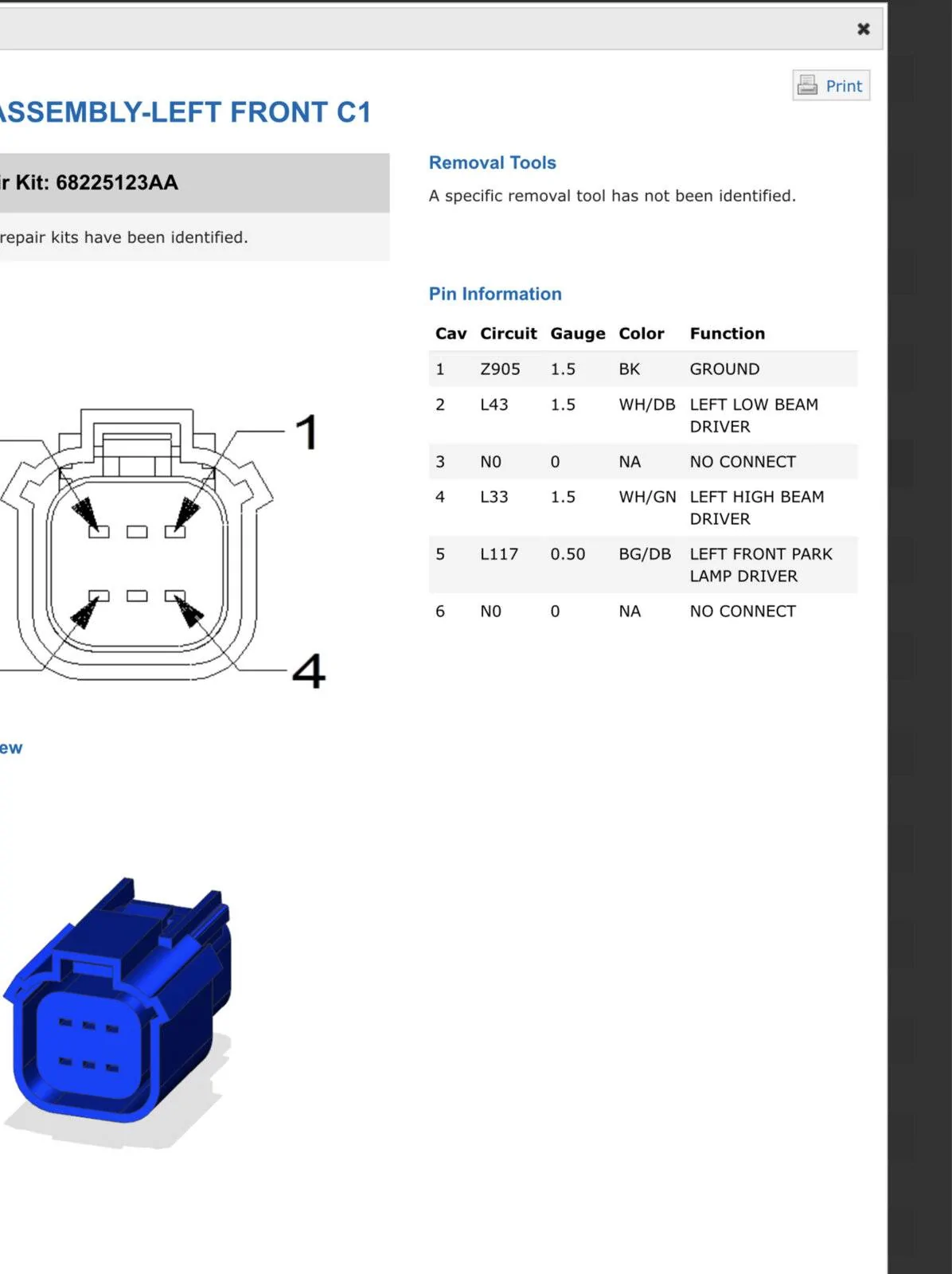

I have the stock halogen headlights and yes, I have the extra wires at the plug seen at the picture above.

So, I keep reading that it is a very easy and a plug and play.

So what am i supposed to connect.

1) Do I need to even run anything to the BCM at the passenger kick plate side?
2) Do i need a dealer flash?

Please help me... really new at this and with the car electronics as well

Thanks





Advertisement



JRobes

Well-Known Member
First Name
Josh
Joined
Mar 18, 2020
Messages
71
Reaction score
49
Location
South Dakota
Vehicle(s)
2020 JT Max Tow, 2004 WJ Overland
New Jeep Wrangler 2021 2 Door (JL) owner here.

Yes, I am really new and I am sure you can tell by the way I have introduced myself to the community.
:)

I have the stock halogen headlights and yes, I have the extra wires at the plug seen at the picture above.

So, I keep reading that it is a very easy and a plug and play.

So what am i supposed to connect.

1) Do I need to even run anything to the BCM at the passenger kick plate side?
2) Do i need a dealer flash?

Please help me... really new at this and with the car electronics as well

Thanks
If you have the extra wire all you need to do is plug the new ones in and flash the vehicle for the led headlight option either at the dealership or with a programmer (JScan/tazer/etc)


Brendon

Well-Known Member
First Name
Brendon
Joined
Jul 8, 2020
Messages
141
Reaction score
175
Location
Butte, Mt
Vehicle(s)
2021 2dr Willys 2020 GMC Denali 2500 HD
Vehicle Showcase
1
If you have the extra wire all you need to do is plug the new ones in and flash the vehicle for the led headlight option either at the dealership or with a programmer (JScan/tazer/etc)
On my 2021 Willys, the dealers could not flash it - they didn't have a new code as of October 2020. I went to 3 different dealers and they all said the same thing. That is why I ended up with the HH harness and no need for a flash.


amantri

Member
First Name
Ashish
Joined
Apr 6, 2021
Messages
12
Reaction score
3
Location
94542
Vehicle(s)
Jeep Wrangler Sport S JL 2021 (TWO Door)
Thank you JRobes and Brendon.
Like I said previously, I have the 4 wires going to the plug (as seen in the picture from original poster.

So, a few more questions::

1) I just plug the newly purchased Mopar Led headlamps plugs in this? What do I do with the plastic pins that are showing in the picture? Do i need to remove those?

2) Do I need to even run anything to the BCM at the passenger kick plate side? Any wiring to be run to that module inside the vehicle?

3) Do I need to purchase the Jeep JL Led Fog Light Anti-flicker module (from headlight haven) and hook it up?

4) How much does a dealer flash cost?

Side Note:: I have yet to purchase the Mopar led head lamps.
recently purchased the 2021 Jeep Wrangler JL (2 door) and need to justify the cost.

Thanks in advance


Brendon

Well-Known Member
First Name
Brendon
Joined
Jul 8, 2020
Messages
141
Reaction score
175
Location
Butte, Mt
Vehicle(s)
2021 2dr Willys 2020 GMC Denali 2500 HD
Vehicle Showcase
1
Thank you JRobes and Brendon.
Like I said previously, I have the 4 wires going to the plug (as seen in the picture from original poster.

So, a few more questions::

1) I just plug the newly purchased Mopar Led headlamps plugs in this? What do I do with the plastic pins that are showing in the picture? Do i need to remove those?

2) Do I need to even run anything to the BCM at the passenger kick plate side? Any wiring to be run to that module inside the vehicle?

3) Do I need to purchase the Jeep JL Led Fog Light Anti-flicker module (from headlight haven) and hook it up?

4) How much does a dealer flash cost?

Side Note:: I have yet to purchase the Mopar led head lamps.
recently purchased the 2021 Jeep Wrangler JL (2 door) and need to justify the cost.

Thanks in advance
Per my post above, the first thing I would do is check with the dealer and find out if they can flash it. For some reason, they did not have a code for the 2021 Sport and FCA and Jeep Wave were completely useless in helping me solve the issue. That is why I went to the HH harness. It is basically pug and play and no flash required. I can't answer your other questions because I used the harness. Jeff at HH was great at answering any questions about installation. BTW I really like the LED's on my Willys


amantri

Member
First Name
Ashish
Joined
Apr 6, 2021
Messages
12
Reaction score
3
Location
94542
Vehicle(s)
Jeep Wrangler Sport S JL 2021 (TWO Door)
@Brendon Thank you so much for the response. I shall call the dealership firth thing tomorrow and see what they have to say. Hopefully the Led headlamp is available. I shall also look into the HH harness as you suggested.

Thanks


Brendon

Well-Known Member
First Name
Brendon
Joined
Jul 8, 2020
Messages
141
Reaction score
175
Location
Butte, Mt
Vehicle(s)
2021 2dr Willys 2020 GMC Denali 2500 HD
Vehicle Showcase
1
@Brendon Thank you so much for the response. I shall call the dealership firth thing tomorrow and see what they have to say. Hopefully the Led headlamp is available. I shall also look into the HH harness as you suggested.

Thanks
Be sure the dealership knows what it is talking about when you contact it. I brought my Willys in with the LED headlights I purchased on line. It removed the halogens and installed the LED's and then realized there was no code in its computer to flash a 2021. It could flash any prior year up to 2020. It had to remove the LED's and re-install the halogens.


JL.FR

Well-Known Member
First Name
Casa
Joined
Feb 3, 2019
Messages
103
Reaction score
75
Location
France (Europe)
Vehicle(s)
JLU RUBICON 2.0 Turbo MOJITO
I did the install. I actually wasted my time running the supplied wiring harness for the Mopar LED headlights to find out after that my 2020 came with the wiring. It goes into a different pin configuration than the 5+7 cavities though. From what I've been told the headlights are completely separate than the LED parking lamps/turn signals.

It doesnt make much sense for me to be getting a turn signal out light unless the system is programmed for the LED parking lamps, and there clearly isn't any power going into the cavities for the LED parking lamp inputs.

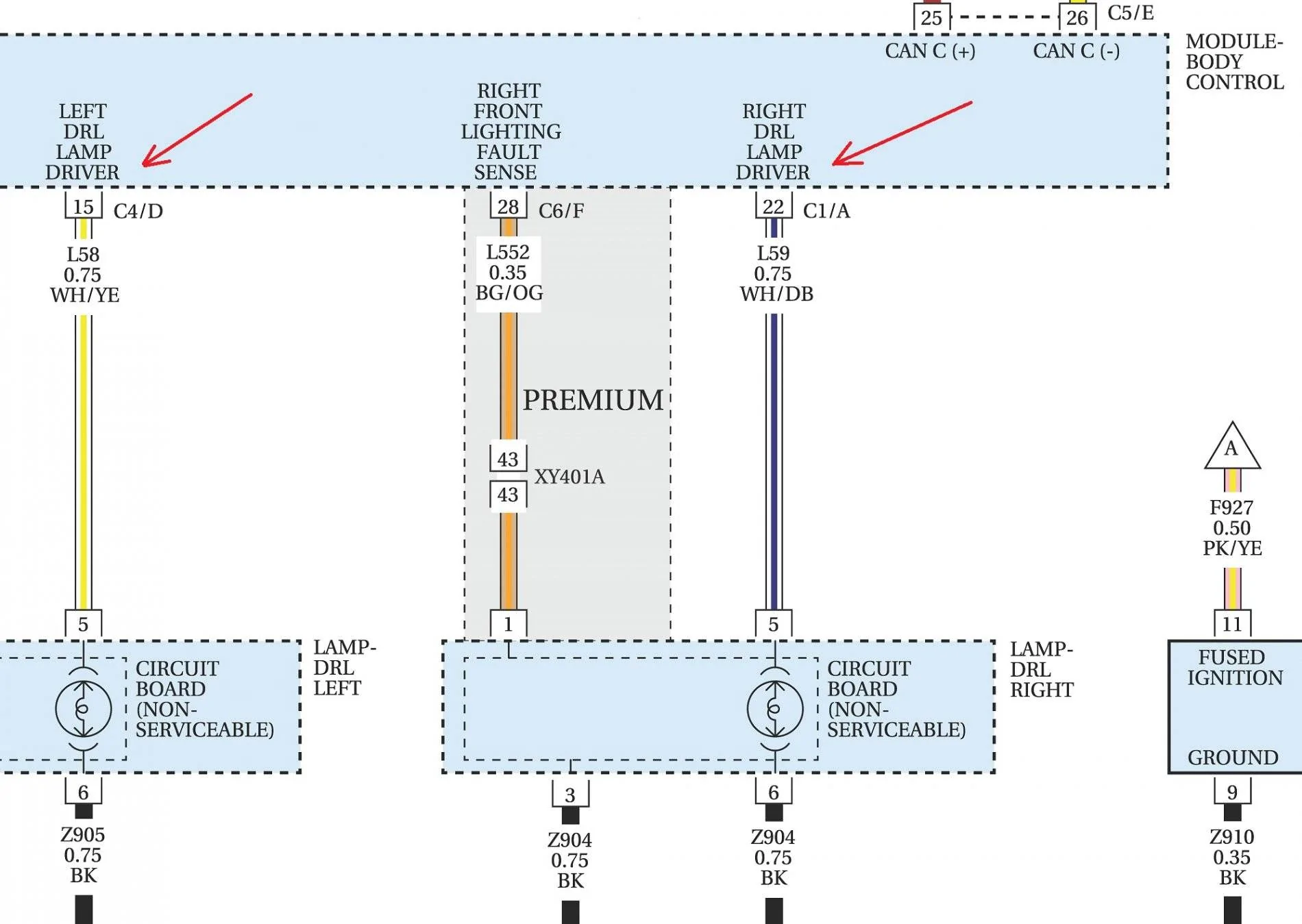

It's weird that FCA says plug in pins 5 and 7 of their harness with the kit. Because the diagram (factory) does not indicate these positions. Also look at the beginning of this tread (page3) there is a diagram of the C1 / A connector it is well indicated the pin 22 "right DRL lamp driver" as on the diagram that I publish here (22 of C1 and 15 of C4) , and not pins 5 and 7 of C1 of the kit ... the colors of the wire of the pin 22 WH / DB correspond well to the diagram on page 3. It would be necessary that a JEEPER who has the LED of the factory check if the pin 22 is well connected and the WH / DB wire ... The solution may be there and it will be possible to activate or deactivate (as for factory leds) with Tazer or others
HEADLAMPS-SYSTEM 1.jpg
