    Hey guys,

    Happy to be making the post finally after chasing this factory kit (for a year) from Mopar.

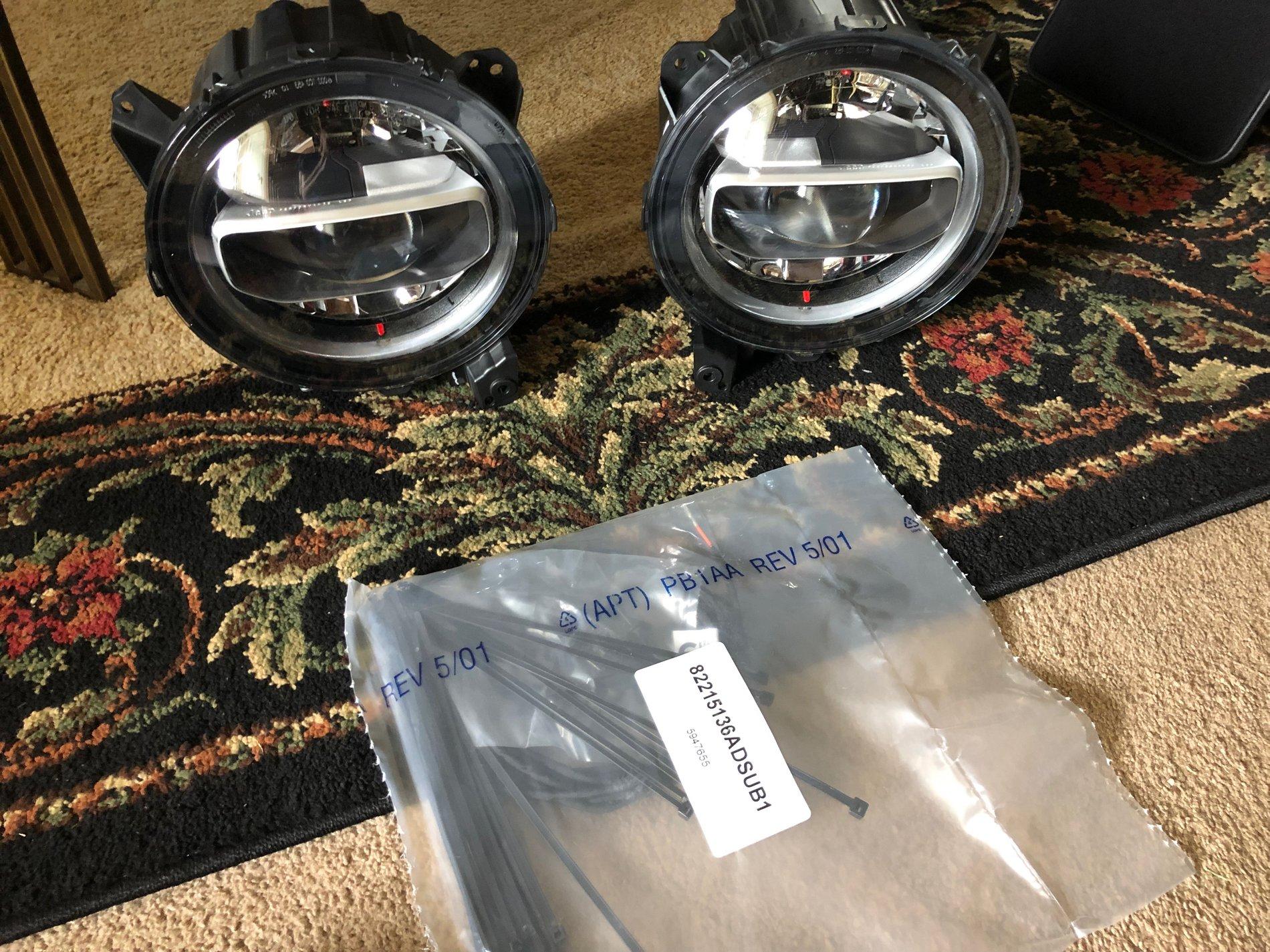

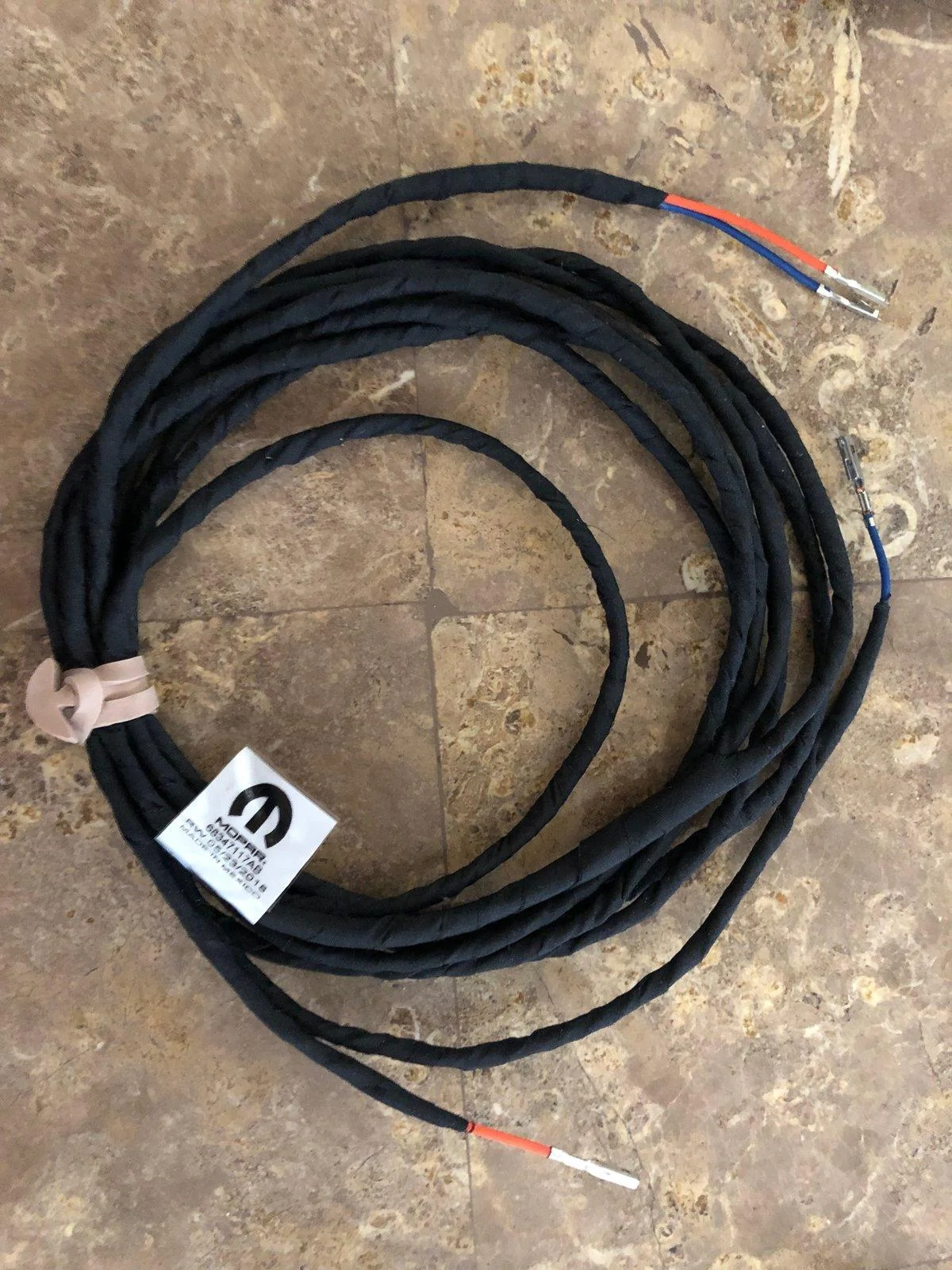

    I got a call from my dealership this morning that my LED Conversion Kit had arrived from Mopar. Seems pretty simple actually, both headlights, a very simple but well made wire harness that (works with) your factory halogen harness, the sales code to add, and a guide on how to align the headlights once installed.

    The manual is 25 pages long, but comes with pictures and pretty decent step by step instructions. Comes with zip ties and a few extra clips for the installation as well.

    This is the factory kit some people wanted for the lights, harness, etc that everyone with the Sport/Sport S and Non LED Saharas/Rubi's needed to complete the factory LED Headlight set up. Other routes exist besides this but I rarely read much about the kit from Mopar so I wanted to share it for anyone interested. I was surprised by how simple they made the kit, but again, I'm always happy for the non-complicated route.

    I'll try to get this put on someday this week if the weather holds out. Nothing but rain clouds and storms here in Ohio. :rain:

    I'll attach a few pictures to explain some of my gibberish lol. Fingers crossed it ends as smoothly as it looks. :rock:

    Backstory: I went for this kit because I didn't have very good luck buying take offs from other owners, vendors, etc. I had a set of those 9" kiwi's and they blinded everyone in front of me and they're useless since I can't adjust those so I sent those back. I ended up with a weird LED set a few months back that was from Europe actually and those didn't have the (4th halo wire), which didn't have the halo ring and one was actually broken. Sooo long story short, I gave up and waited for my best option for me personally which was the factory offering LED Kit. At least these I can adjust and they aren't broken right out of the box haha. :CWL:

    (TL:DR.........:handsinair: new lights showed up!)


    thewise1, Grateful1, Patsloft and 2 others like this.
  2. Mark Elliott

    Mark Elliott Well-Known Member

    First Name:
    Mark
    Vehicle(s):
    2018 Rubicon
    Joined:
    Nov 24, 2018
    Location:
    Orlando
    Posts:
    296
    Liked:
    203
    #2 Jun 17, 2019
    Last edited: Jun 18, 2019
    Please take as many pictures as you can of the install as i and many others will be doing this. The only hard part will be under the dash connecting it to the BCM, from what i saw. Thanks and congrats!

  3. RatherDashing

    RatherDashing Member

    First Name:
    Ammon
    Vehicle(s):
    2018 Jeep Wrangler
    Joined:
    Jun 16, 2019
    Location:
    Oregon
    Posts:
    11
    Liked:
    8
    What was the bill, if you don't mind me asking?

  4. RMC2

    RMC2 Well-Known Member

    First Name:
    Matt
    Vehicle(s):
    13 JKUR waiting on an 18 JLUR
    Joined:
    Apr 21, 2018
    Location:
    MO
    Posts:
    57
    Liked:
    37
    It was in one of his photos. $900 plus $65 tax.

    ButWhatDoIKnow and l.a.j.o.i.e like this.
  5. OP
    OP
    l.a.j.o.i.e

    l.a.j.o.i.e Active Member

    First Name:
    Cory
    Vehicle(s):
    2018 JL Sport S 2DR
    Joined:
    Jul 20, 2018
    Location:
    Perrysburg, Ohio
    Posts:
    30
    Liked:
    45
    I will certainly do my very best, I hope the weather cooperates so I can take my time and get some clear shots!

  6. OP
    OP
    l.a.j.o.i.e

    l.a.j.o.i.e Active Member

    First Name:
    Cory
    Vehicle(s):
    2018 JL Sport S 2DR
    Joined:
    Jul 20, 2018
    Location:
    Perrysburg, Ohio
    Posts:
    30
    Liked:
    45
    Hey guys,

    So today I installed the kit, sun was out for most the day :like:. Still working on fine tuning everything like zip ties, double checking the seating of the new wires inside the existing plugs, but the good news is the headlights work great! I just need to align them soon, maybe tonight I'll do that. The halos don't work but are officially hooked up. I'm hoping tomorrow if I can sneak a quick visit to the dealership and have them add the sales code from the instructions, that'll turn the halo's on. Otherwise I'll have to recheck my wiring which should be pretty damn easy at least. I took plenty of pictures, some I couldn't snap because I could barely fit my hand in some places (Firewall)/(BCM) and others are pretty self explanatory, but the instructions are very helpful filling in those gaps (but not perfect). :angry:

    Just brainstorming, but are they not on simply because it's more of a DRL and that isn't enabled yet technically? (assuming I've hooked everything up correctly)....

    Either way, I need the code added tomorrow and an oil change and rotation, so I hope I leave there happy with working halos and without an extra quart of oil like last time....:headbang:

    ~Cory

    thewise1 and Mark Elliott like this.
  7. Alasek

    Alasek Active Member

    Vehicle(s):
    2018 Jeep Wrangler JL
    Joined:
    Jun 18, 2019
    Location:
    Chula Vista CA
    Posts:
    29
    Liked:
    12
    I installed my Mopar LED headlights today but the one on the right side blinks and I wonder if is doing that because the BCM has to be re flash
    Also when you ran the new wires to the BCM
    Did you stick those pins where there were only two slots left on the harness?

  8. OP
    OP
    l.a.j.o.i.e

    l.a.j.o.i.e Active Member

    First Name:
    Cory
    Vehicle(s):
    2018 JL Sport S 2DR
    Joined:
    Jul 20, 2018
    Location:
    Perrysburg, Ohio
    Posts:
    30
    Liked:
    45
    Alasek,

    Tomorrow I'll try to get in and get the software things taken care of. Now I only had one flicker and it was tonight as I was aiming the new lights, but that's probably because I haven't had the BCM updated yet so I kinda figured it would happen to me at least once.

    Also yes, as best as I could I pushed/inserted the pins into the open slots like the diagram said. I hope it was pushed in far enough because I couldn't go any farther. Do your halos work?

    Weird but, I had like 3 open spots left on my harness to the BCM so go figure, the diagram said I should only have 2, but I still put them in the corresponding slots, even though I had more open slots compared to the sheet. It's pretty easy to see the correct ones so I know I didn't put it in the wrong one, I just hope I pushed them in far enough.......:whew:

  9. Alasek

    Alasek Active Member

    Vehicle(s):
    2018 Jeep Wrangler JL
    Joined:
    Jun 18, 2019
    Location:
    Chula Vista CA
    Posts:
    29
    Liked:
    12
    My halos didn’t work
    I have an appointment tomorrow at the dealer for the BCM configuration
    I hope that configuration to the BCM works
    Also on the diagram it’s kind of confusing where you supposed to run those pins
    I had to go on the mopar website and look at the harness and see which was the #5 and 7 slot and it’s a little bit different than on the diagram that came in i the kit
    The row full of pins that used after I ran the pins into the slots there were not free slots

    ButWhatDoIKnow likes this.
  10. Mark Elliott

    Mark Elliott Well-Known Member

    First Name:
    Mark
    Vehicle(s):
    2018 Rubicon
    Joined:
    Nov 24, 2018
    Location:
    Orlando
    Posts:
    296
    Liked:
    203
    Do you have a link for that Mopar website for the pin diagram? Thanks!

  11. Alasek

    Alasek Active Member

    Vehicle(s):
    2018 Jeep Wrangler JL
    Joined:
    Jun 18, 2019
    Location:
    Chula Vista CA
    Posts:
    29
    Liked:
    12
    0DF9428D-F87C-4B40-9BE3-FAD36B46DA41.png [GALLERY=][/GALLERY]

  12. Alasek

    Alasek Active Member

    Vehicle(s):
    2018 Jeep Wrangler JL
    Joined:
    Jun 18, 2019
    Location:
    Chula Vista CA
    Posts:
    29
    Liked:
    12

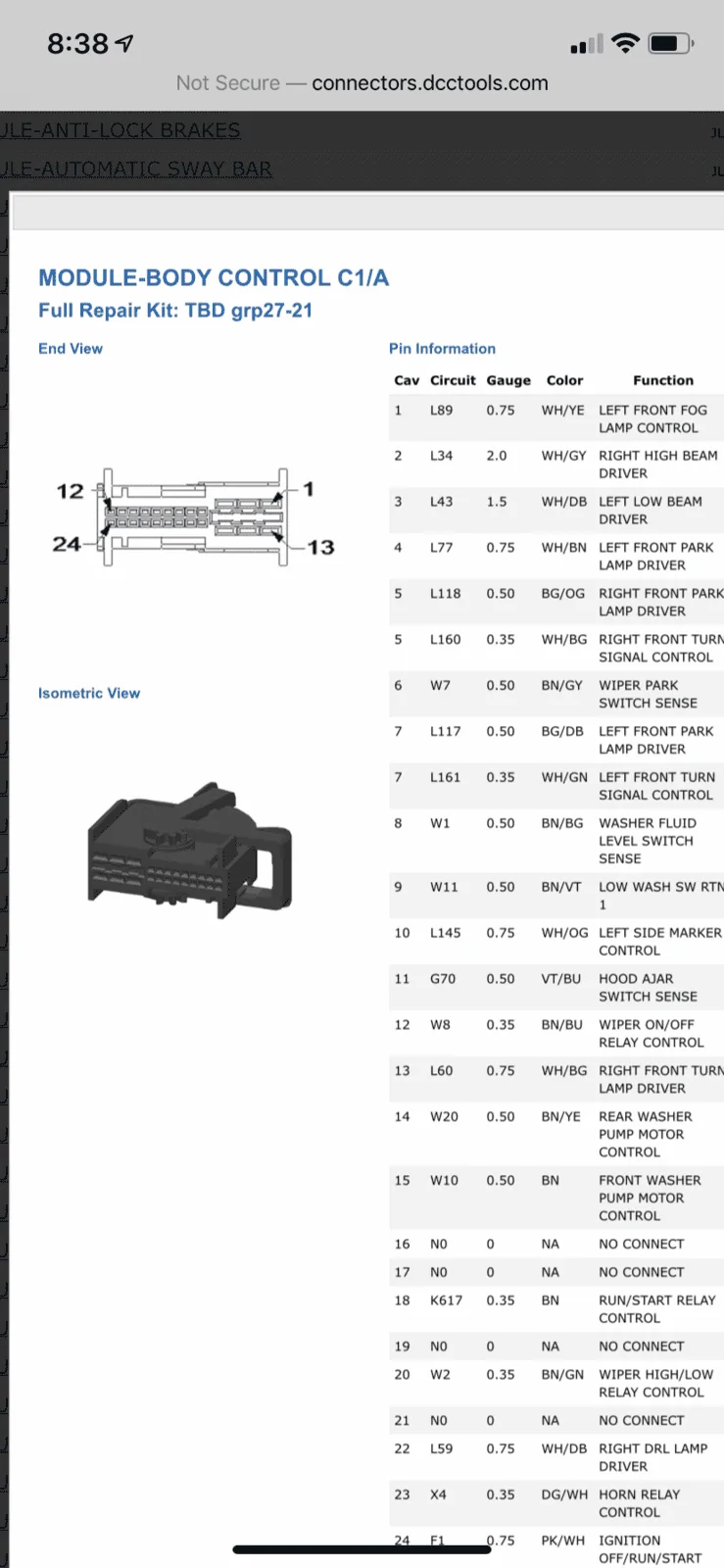

    I got the link from the forum but I cannot find it but I took a screenshot of it
