I did exactly that and I'm not getting any power to the dashcam! That's why I'm wondering if I missed a step!
You wired power to pink/orange correct? My wires were opposite from the original post in this thread.

Also, make sure your dashcam doesn’t need to have the voltage stepped down to 5V. I wired my dashcam to ignition and it wouldn’t work until I added a converter to go from 12V to 5V.
Advertisement



gkrash

Active Member
First Name
Gary
Joined
Mar 18, 2019
Messages
27
Reaction score
16
Location
Harrisburg, PA
Vehicle(s)
2019 JLU Sahara
So I just used this handy handy chart to wire my CB to Aux the instead of ignition as I intended and now I need to desolder because I was an idiot and trusted something I read on the internet without further testing - please can someone fix this image on the post or Can a mod delete it?

*grumble*


rent

Well-Known Member
Joined
Jul 18, 2021
Messages
209
Reaction score
385
Location
Roaming Around
Vehicle(s)
JLUR XR
I did exactly that and I'm not getting any power to the dashcam! That's why I'm wondering if I missed a step!
Did you happen to wire to the Orange/Pink wire (for Aux 3) instead of the Pink/Orange wire (Ignition/Acc)?


Saddle Tramp

Well-Known Member
First Name
Mitch
Joined
Jun 30, 2021
Messages
63
Reaction score
150
Location
Hays NC
Vehicle(s)
2021 Rubicon 3.0 Turbo Diesel
Need some help - Must be missing something
I finally found the Aux wire bundle in the passenger side foot well. If I am correct one of the 2 heavier gauge wires White / Red should be constant battery power - but I get nothing even with the ruck running. Can some one point a frustrated Jeep Newbee in the right direction


Thanks
in advance


WhereRU_A-A-Ron

Well-Known Member
First Name
Aaron
Joined
May 23, 2020
Messages
352
Reaction score
698
Location
Arkansas
Vehicle(s)
2021 Unlimited Willys, 2015 Toyota Sienna XLE
Occupation
Restaurant Manager
Need some help - Must be missing something
I finally found the Aux wire bundle in the passenger side foot well. If I am correct one of the 2 heavier gauge wires White / Red should be constant battery power - but I get nothing even with the ruck running. Can some one point a frustrated Jeep Newbee in the right direction


Thanks
in advance
The red/white wire should actually be one of the smaller wires. What are you trying to power? Is there no power at the wire itself?


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,406
Reaction score
9,358
Location
.
Vehicle(s)
2018 2dr. Rubi
Need some help - Must be missing something
I finally found the Aux wire bundle in the passenger side foot well. If I am correct one of the 2 heavier gauge wires White / Red should be constant battery power - but I get nothing even with the ruck running. Can some one point a frustrated Jeep Newbee in the right direction


Thanks
in advance
@Saddle Tramp

The two "heavier gauge" wires are Aux 1 and 2 ... both are rated at 40 amp.

You want the smaller red/white for Direct to Battery. It is rated at 10 amp.


timd99

New Member
First Name
Tim
Joined
Jul 3, 2021
Messages
1
Reaction score
0
Location
San Diego
Vehicle(s)
2021 JL Rubicon
Just another tip... My aux switch wires were not in the typical location where everyone's pictures show.

I did eventually find my wires, but they were on the inside of the passenger footwell under carpeting near the infotainment system/shifter/center stack (opposite side of everyone else which are nearest the door).

Pulling the carpet from the passenger footwell and looking everywhere in there, they should be there somewhere.
I'm glad I found this. On my 2021, they were just under the dash on the left hand side of the glove box. I looked forever in the footwell, this post made me expand my search.

Thanks.


zyt

Well-Known Member
Joined
Dec 21, 2017
Messages
321
Reaction score
215
Location
Maryland
Vehicle(s)
Mazda Miata
Hi all Aux Switch Grurus- @Rhinebeck01 and a few others, question for your all:
It seems everything I've read here suggest Aux 1 & 2 are for 40 amps and Aux 3 & 4 are for 15 amps. I believe this is true for factory installed options.
What about the mopar switches (82215190AE) that can be purchased afterward? I installed those myself and Mopar instruction shows that Aux 1 & 3 are rated for 40 amps, 2 & 4 are 15 amps. I confirmed this on my jeep by checking the actual fuse starting from passenger side, and they are in fact 40A=>15A=>40A=> 15A. I assume the picture accurately labeled the order of Aux switch 3=>4=>1=>2.

Anyone know if this is accurate? I've searched quite a bit here, but it seems everyone is saying aux 1&2 are 40A, and 3&4 are 15A

Screen Shot 2021-08-11 at 10.43.43 PM.png


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
7,406
Reaction score
9,358
Location
.
Vehicle(s)
2018 2dr. Rubi
@zyt

Well, in 3 yrs. of closely following posts on this forum and elsewhere, no one has mentioned this before....... in posts regarding the Mopar Auxiliary Switch Bank you installed.

I have no first hands on experience with the offering. I have worked with a bunch of JL's with the factory installed Aux switches.

On the Mopar Auxiliary Switch Bank you just installed, look at each of the Aux wires where you would attach your say add on light, etc, to.. On the Aux wires that are fused at 40 amp larger diameter wire / heavier gauge? Are the Aux wires fused at 15 amp, smaller diameter / smaller gauge?

Would like to know the answers to the questions above.

Would also like to hear from other's here that have actually installed the Genuine Mopar Auxiliary Switch Bank on their JL regarding this..

I have helped a few guys here trouble shoot issues with that the add on Aux, and no one ever mentioned what you have brought to the table here.... Interesting... a big deal and something that needs publicizing so to speak.

.


BMF98

New Member
First Name
Brian
Joined
May 6, 2020
Messages
2
Reaction score
11
Location
Raleigh, NC
Vehicle(s)
2018 JLU Rubicon
Hi all -

First time I can actually add value to a post on the forum

I had the Mopar Auxiliary Switch Bank added to my 2018 JL about 6 months ago via the dealer. My set up is exactly the same as @zyt had described above with Aux 1 & 3 rated for 40 amps, 2 & 4 at 15 amps.

Since having the switch bank installed, I've added some auxiliary lights. In doing so, I can also confirm that the 40amp wires are larger diameter vs the 15amp wires. To be fair though, I've only used the 2 15 amp switches to date and have not tested anything on the 40amp connections (Aux 1 & 3) yet.

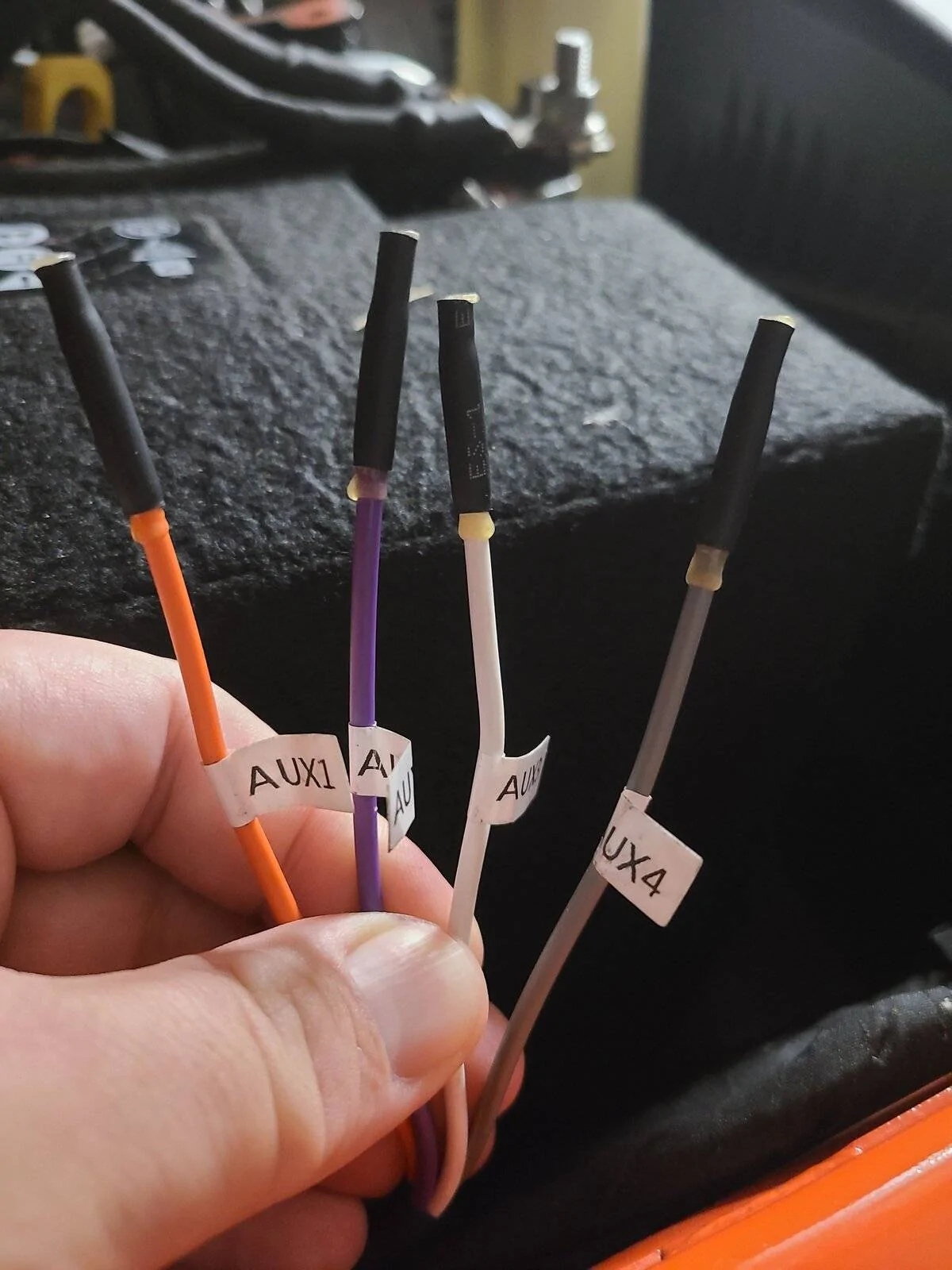

Picture doesn't do a great job showing the difference -

(Edited for wire color/switch clarity)
Orange - Aux 1
Purple - Aux 2
White - Aux 3
Grey - Aux 4



Hope that helps

Last edited:

392Newbie

Member
First Name
ira
Joined
Feb 6, 2021
Messages
23
Reaction score
15
Location
Ny
Vehicle(s)
Jeep Wrangler 392

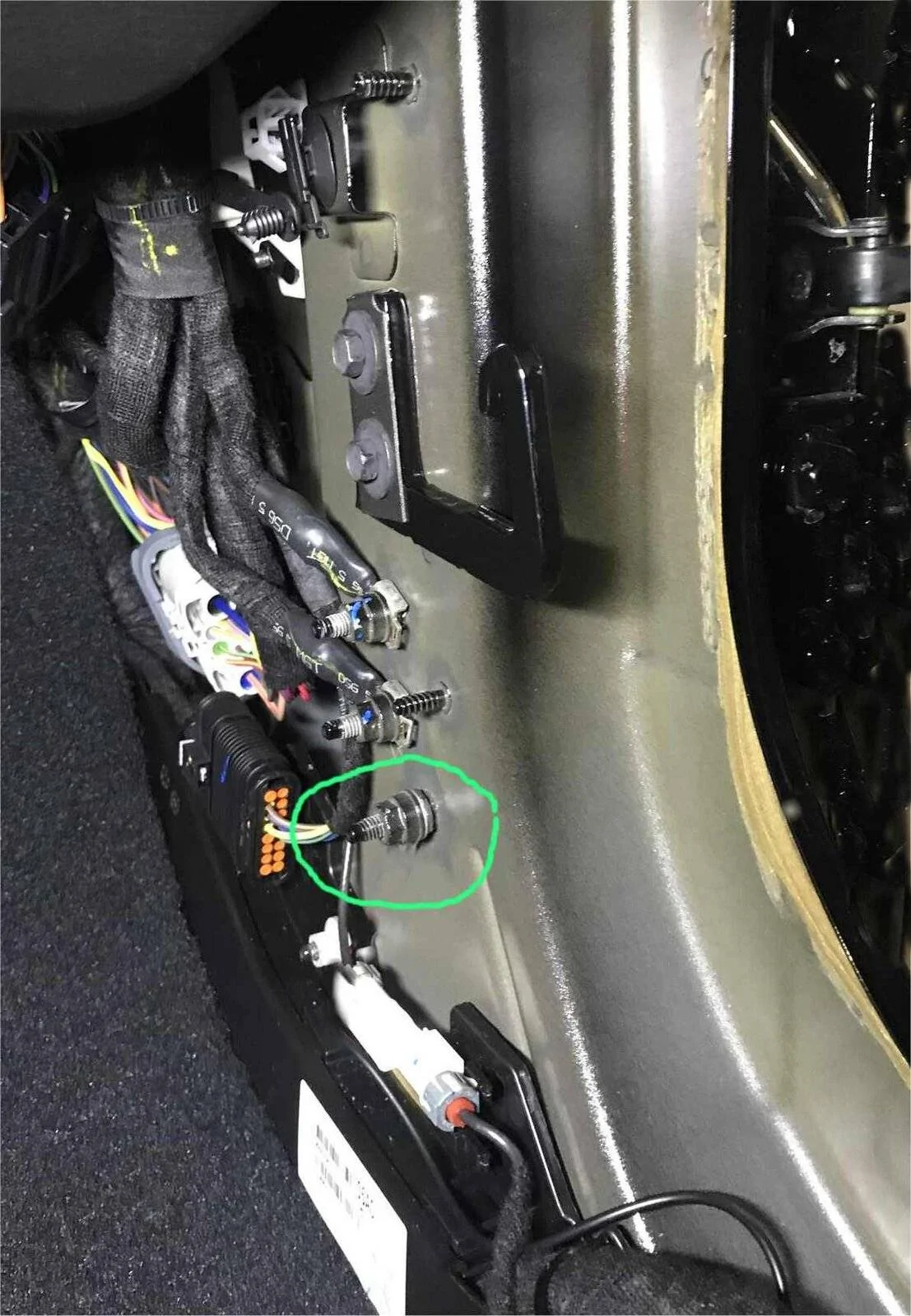

Where is the ground if I use the footwell aux switches?


SuboneWH

Well-Known Member
First Name
Roger
Joined
Oct 19, 2019
Messages
244
Reaction score
355
Location
NC
Vehicle(s)
2021 JLUR Hydro Blue
Occupation
Retired USN and GS
I just picked up my 21 Rubicon this week my aux wires under the hood are 40amp Green-pink/Orange-pink/////15amp bright Orange?-pink/Blue-pink. Not sure which ones are aux 1, 2 40amp and not sure which aux 3,4 are 15amp yet, that will be next.

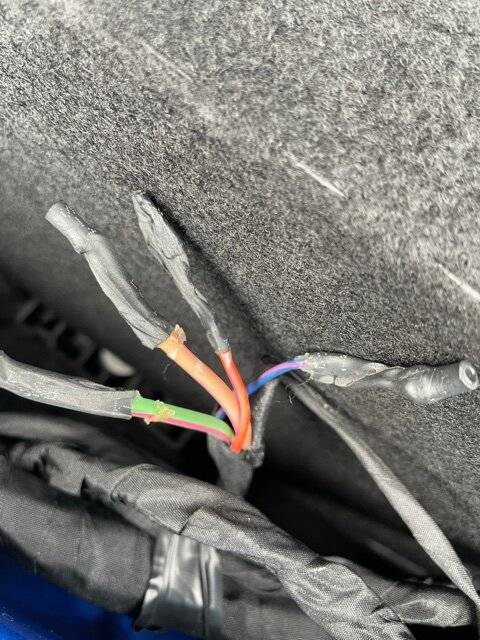

Aux wires.jpeg
