Today we installed a lighted whip on the back of the Jeep (mounted it on the tire carrier, relocation bracket / mount).

After much research we wanted to help and/or save others time finding and identifying the AUX cables.

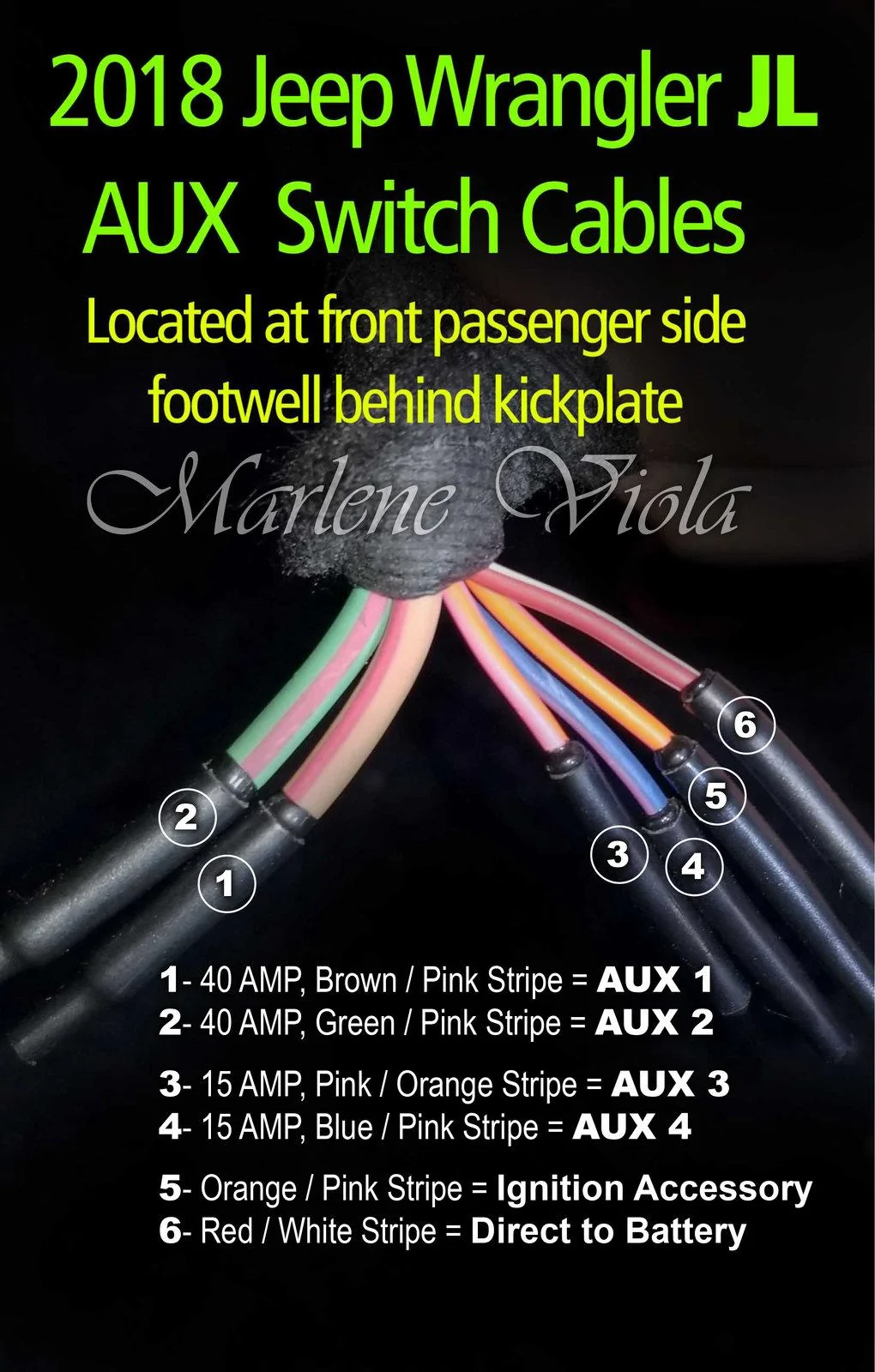

Here is a short video and photo showing the wiring color codes and where to find them to install your Jeep accessories, which will work with your AUX switches.

The interior AUX cables / wires are located inside front passengers side footwell area or foot kick plate area (as the video and photo below shows).

Hope it helps!





Jeep Acc.jpg

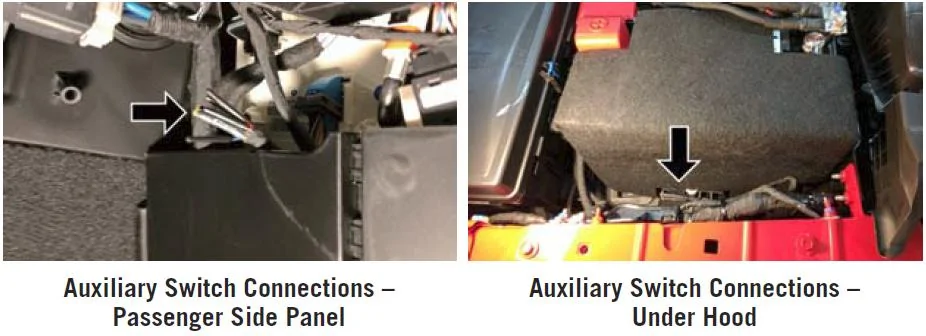

Also underhood locations (posted by @Brazilbombsqd):

Aux Switch 1 F93 - 40 Amp Beige/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 2 F92 - 40 Amp Green/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 3 F103 - 15 Amp Orange/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 4 F108 - 15 Amp Dark Blue/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Battery F72 - 10 Amp Red/White Interior (passenger side under instrument panel)
Ignition F50 - 10 Amp Pink/Orange Interior (passenger side under instrument panel)



Also see other AUX switch discussions @ https://www.jlwranglerforums.com/fo...switches-configuration-installation-diy.1477/





Advertisement


Last edited by a moderator:

Gdub

Well-Known Member
First Name
Geoff
Joined
Mar 25, 2018
Messages
289
Reaction score
301
Location
Tucson az
Vehicle(s)
2018 JL Sahara
Occupation
Engineer
I assume these are the same for under the hood connections?

OP
Marlene

Marlene

Member
First Name
Marlene
Joined
Mar 12, 2018
Messages
15
Reaction score
56
Location
Melbourne, FL
Vehicle(s)
Jeep Wrangler JL Unlimited Sport S
Occupation
Graphic Designer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #4
@Marlene

Yes, nice, for sure alot prettier then the pic I have been posting for months now.. 8-)

You do know that there are Aux wires under the hood too right?

12v source wires.jpeg

Awwwwe, your picture is pretty too ;)


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
5,309
Reaction score
6,167
Location
.
Vehicle(s)
9/1/20.............................................Am quitting the forum!..........Just an occasional lurker from now on...
I assume these are the same for under the hood connections?
Yes, the same same under the hood. Do know though, that the Aux kit that is installed by the owner only has 4 wires. No Direct to Battery and Ignition/Acc wire.

Remember, if you use 1,2,3,4 under the hood you can't use the same in the foot well and vice versa.


Torero

Well-Known Member
First Name
J. Diego
Joined
Apr 21, 2018
Messages
784
Reaction score
674
Location
Illinois
Vehicle(s)
JL Rubicon, FJ Cruiser, BMW Z3, GTI, F650, MB GL63 AMG
Yes, the same same under the hood

Remember, if you use 1,2,3,4 under the hood you can't use the same in the foot well and vice versa.
You can’t use outside and inside wiring or you can but both things will be energized at the same time? Is it so sophisticated that if you use both none will work? Or only the first one used remains working?
How someone could think that the same switch could power two different things independently? How would it be decided?


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
5,309
Reaction score
6,167
Location
.
Vehicle(s)
9/1/20.............................................Am quitting the forum!..........Just an occasional lurker from now on...
@Torero

Not sure what you are asking... but ............... you could put say an led light on Aux3 under the hood ,and another say led light on Aux 3 in the foot well, but when you press Aux 3 button, both lights would light up. Only makes sense right....

This is pretty elementary to me but to some................. well some are lets say out of their element and clueless ....

No, it is not that sophisticated. It is a simple switch that has to places to play with but you use only one.


Torero

Well-Known Member
First Name
J. Diego
Joined
Apr 21, 2018
Messages
784
Reaction score
674
Location
Illinois
Vehicle(s)
JL Rubicon, FJ Cruiser, BMW Z3, GTI, F650, MB GL63 AMG
@Torero

Not sure what you are asking... but ............... you could put say an led light on Aux3 under the hood ,and another say led light on Aux 3 in the foot well, but when you press Aux 3 button, both lights would light up. Only makes sense right....

This is pretty elementary to me but to some................. well some are lets say out of their element and clueless ....

No, it is not that sophisticated. It is a simple switch that has to places to play with but you use only one.
Right. That’s common sense to me. It’s just semantics, people keep saying you cannot do this or that, when you can, even if it doesn’t make a lot of sense.


Brew211

Well-Known Member
First Name
Todd
Joined
Jun 18, 2018
Messages
506
Reaction score
336
Location
Peoria, Arizona
Vehicle(s)
2018 JLUR - Manual, Tundra
Vehicle Showcase
1
Question, how are they wired inside and under the hood? I'm so confused!!!!


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
5,309
Reaction score
6,167
Location
.
Vehicle(s)
9/1/20.............................................Am quitting the forum!..........Just an occasional lurker from now on...
@Brew211

There is alot of info in regard to the Aux Switches and the wires you use with them. Do a forum search..

In the short of it, if the factory installed the Aux Switches, you will have two different places to get the wires that the 4 Aux switches, switch / provide power to. You have a bundle of wires right by the battery and a bundle in the passenger foot well. See the pics earlier in this thread.

Now, if you install the OEM Aux Switches yourself then what you end up with will be a tad different. Again, a forum search will give you a scad of info on Aux switches.

IF you have any particular questions, post clearly, your questions, here and you will get answers...

.


Brew211

Well-Known Member
First Name
Todd
Joined
Jun 18, 2018
Messages
506
Reaction score
336
Location
Peoria, Arizona
Vehicle(s)
2018 JLUR - Manual, Tundra
Vehicle Showcase
1
@Brew211

There is alot of info in regard to the Aux Switches and the wires you use with them. Do a forum search..

In the short of it, if the factory installed the Aux Switches, you will have two different places to get the wires that the 4 Aux switches, switch / provide power to. You have a bundle of wires right by the battery and a bundle in the passenger foot well. See the pics earlier in this thread.

Now, if you install the OEM Aux Switches yourself then what you end up with will be a tad different. Again, a forum search will give you a scad of info on Aux switches.

IF you have any particular questions, post clearly, your questions, here and you will get answers...

.
Thanks for the clarification, I’m just impressed that they pre-wired two locations to connect to. Thanks again.


Brazilbombsqd

Member
Joined
Jun 11, 2018
Messages
19
Reaction score
33
Location
Arkansas
Vehicle(s)
2018 JLU Rubicon
Vehicle Showcase
1
I assume these are the same for under the hood connections?
Aux Switch 1 F93 - 40 Amp Beige/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 2 F92 - 40 Amp Green/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 3 F103 - 15 Amp Orange/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Aux Switch 4 F108 - 15 Amp Dark Blue/Pink Interior (passenger side under instrument panel) & Underhood (right side near battery)
Battery F72 - 10 Amp Red/White Interior (passenger side under instrument panel)
Ignition F50 - 10 Amp Pink/Orange Interior (passenger side under instrument panel)


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
5,309
Reaction score
6,167
Location
.
Vehicle(s)
9/1/20.............................................Am quitting the forum!..........Just an occasional lurker from now on...
@Brazilbombsqd
Yup the same... but those referencing the chart, read closely!

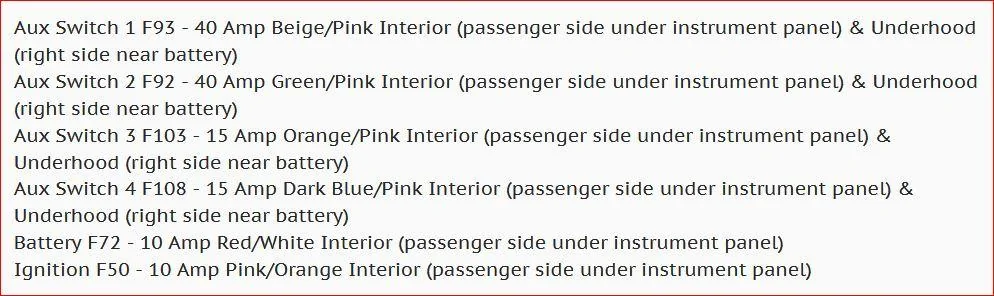

Aux fuse listing.JPG


Jeepsterfreak

Well-Known Member
Joined
Jan 2, 2017
Messages
2,163
Reaction score
1,271
Location
USA
Vehicle(s)
Honda, Future JLU
Is the aux switch programming available in the base UConnect 3 or do you need UConnect 4 to change the switch behavior?


sirryan

Well-Known Member
First Name
Ryan
Joined
Aug 7, 2018
Messages
93
Reaction score
88
Location
Clarksville, TN
Vehicle(s)
2018 JLU Sport S
