Billy’s Build: Rubi Two

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #16
Tried a flex test today in the newly lifted Rubicon. Note: I did remove some rear inner fender plastic prior to clear the 37” BFG MTs.

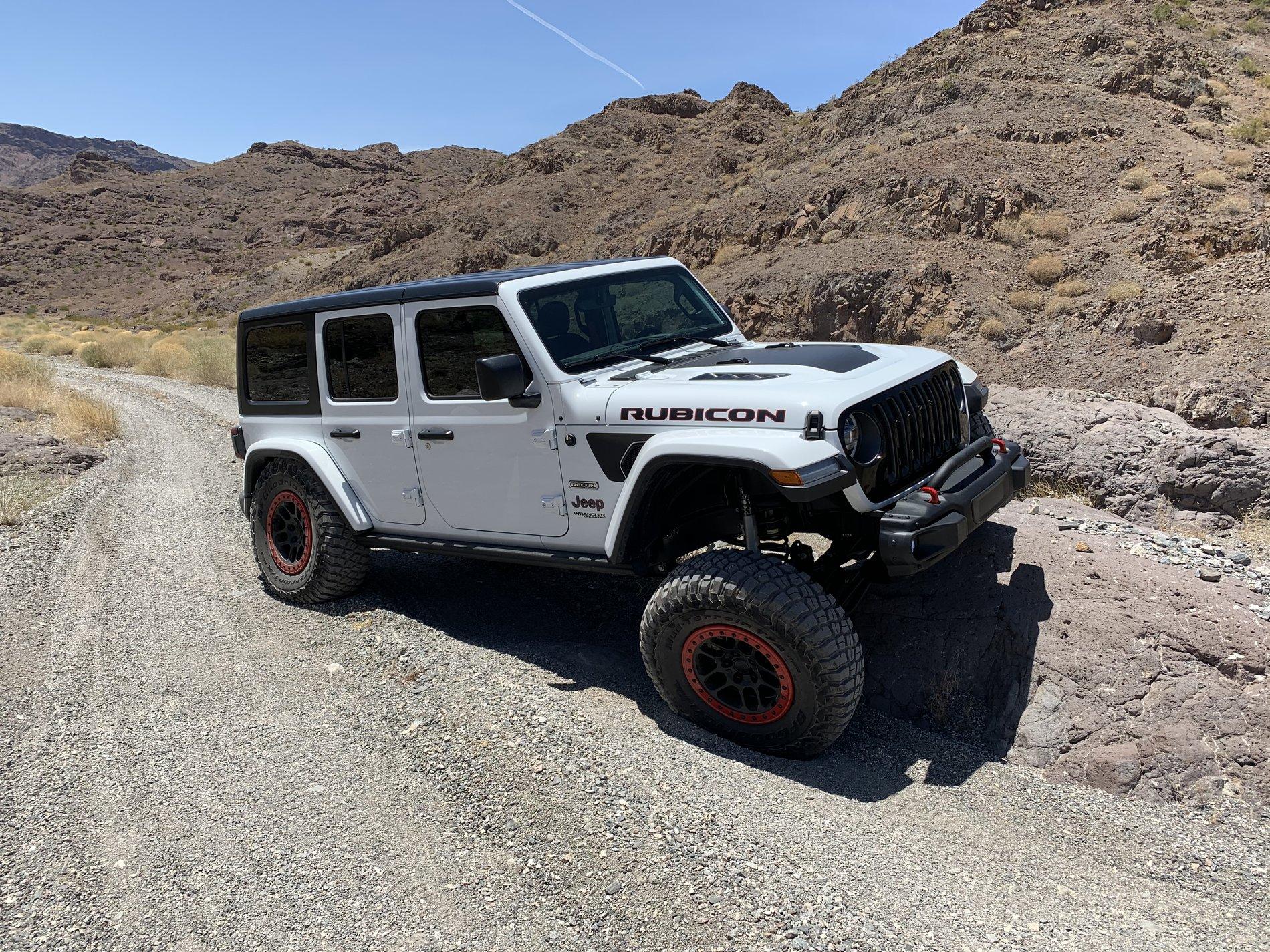

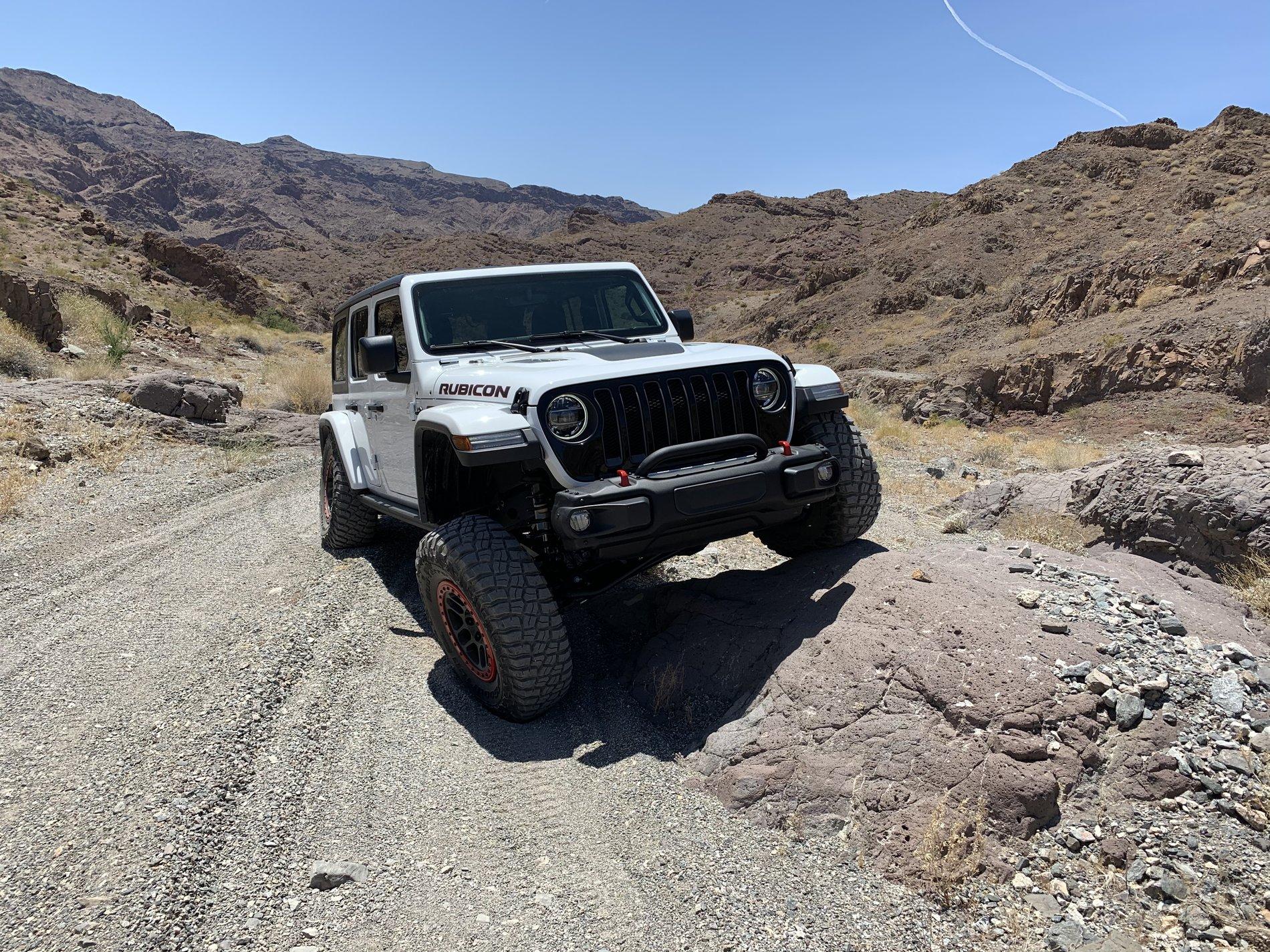

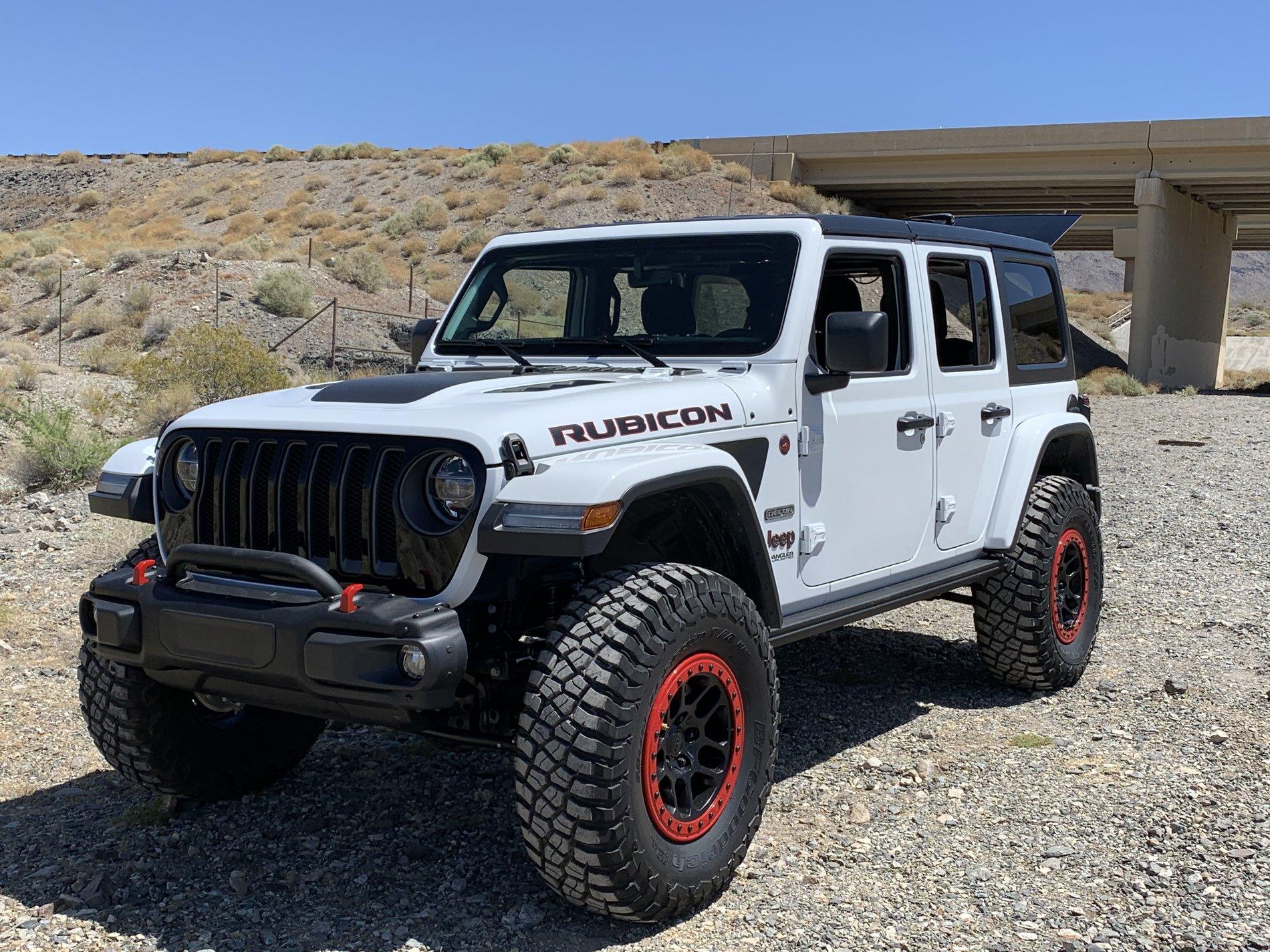

Had to snap a poser pic while airing down to 12psig:

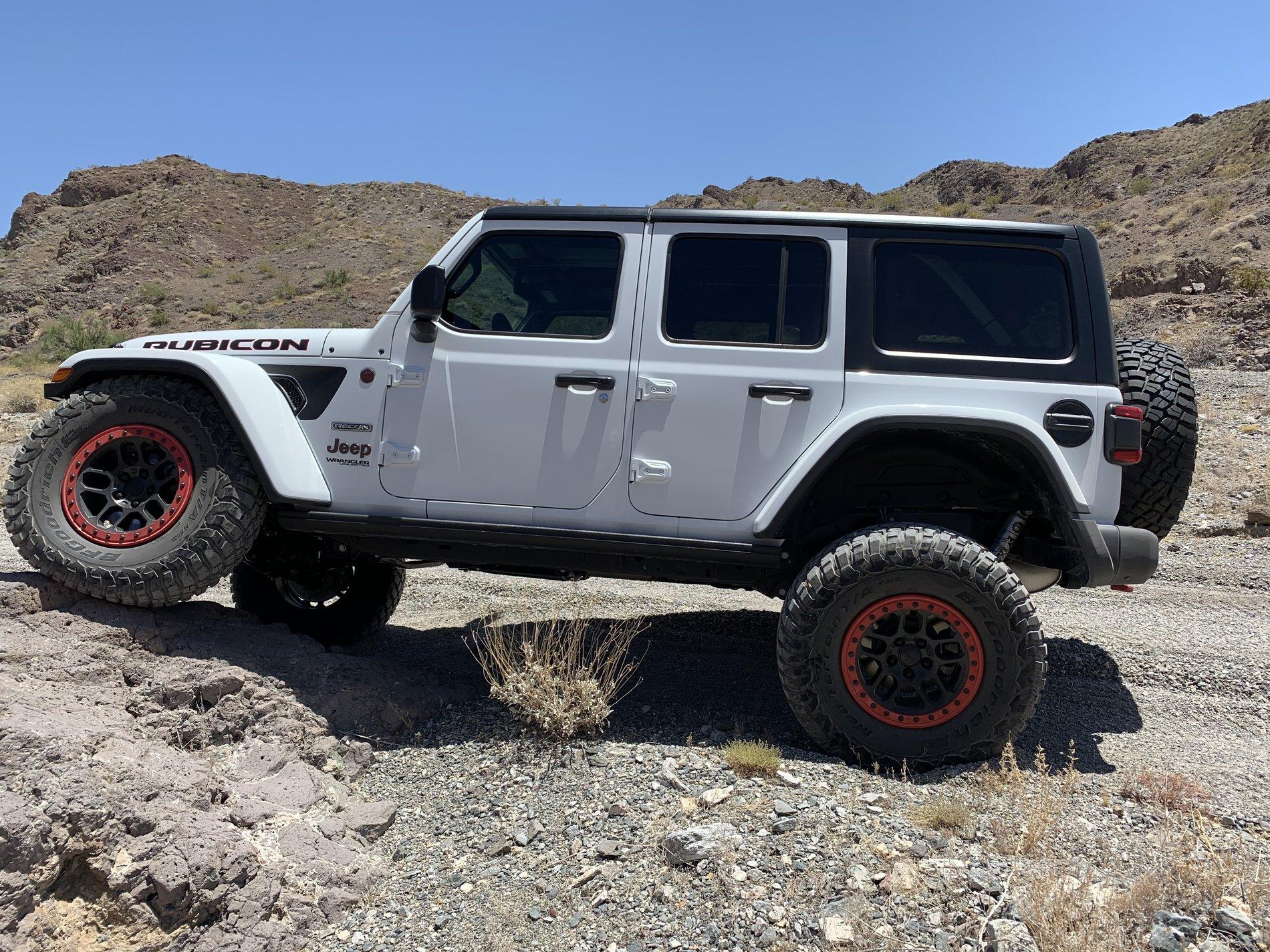

Articulation with full contact at front diver and rear passenger bump stops:


Rear clearance:

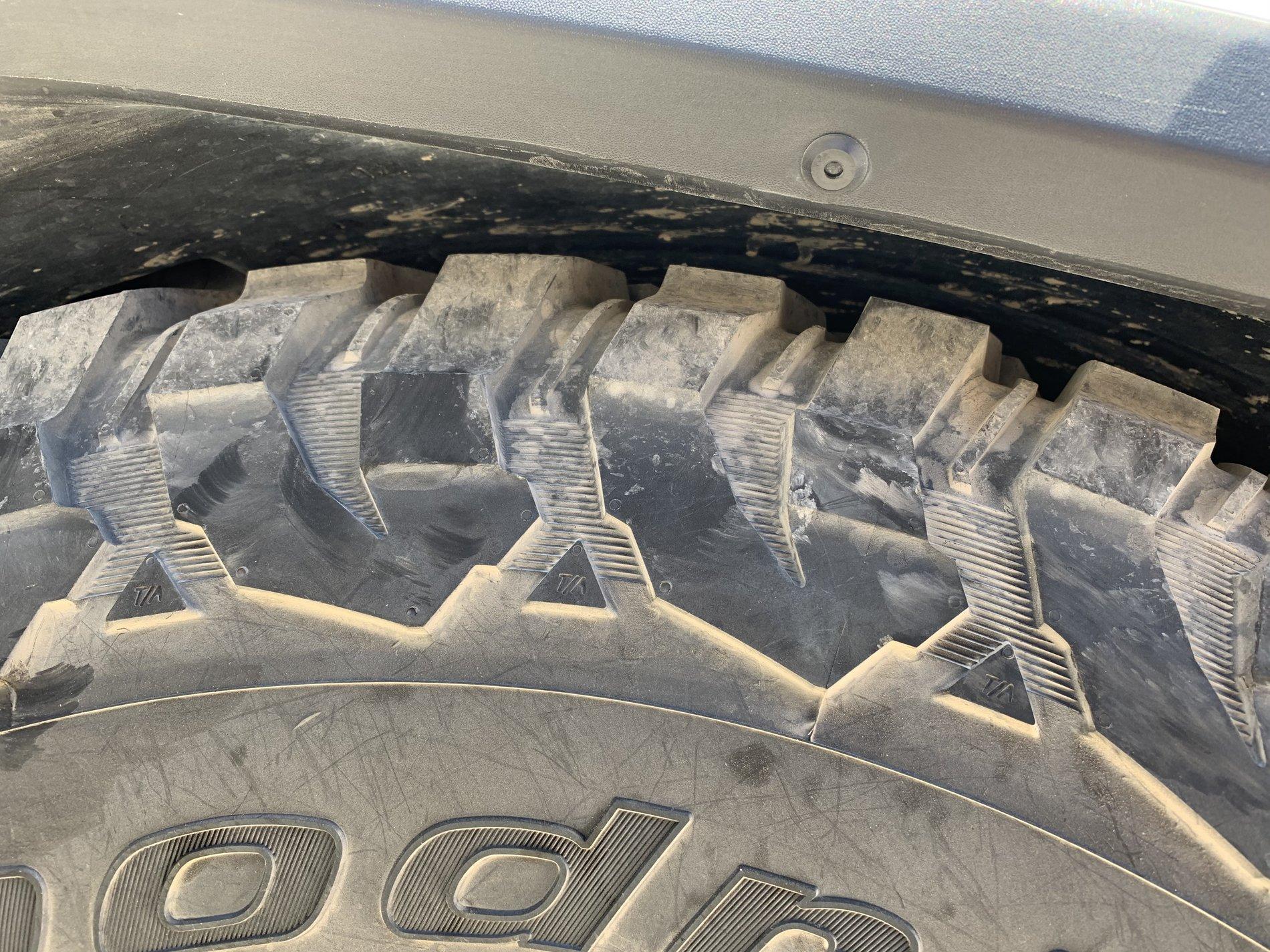

Upper fenderwell of passenger rear.

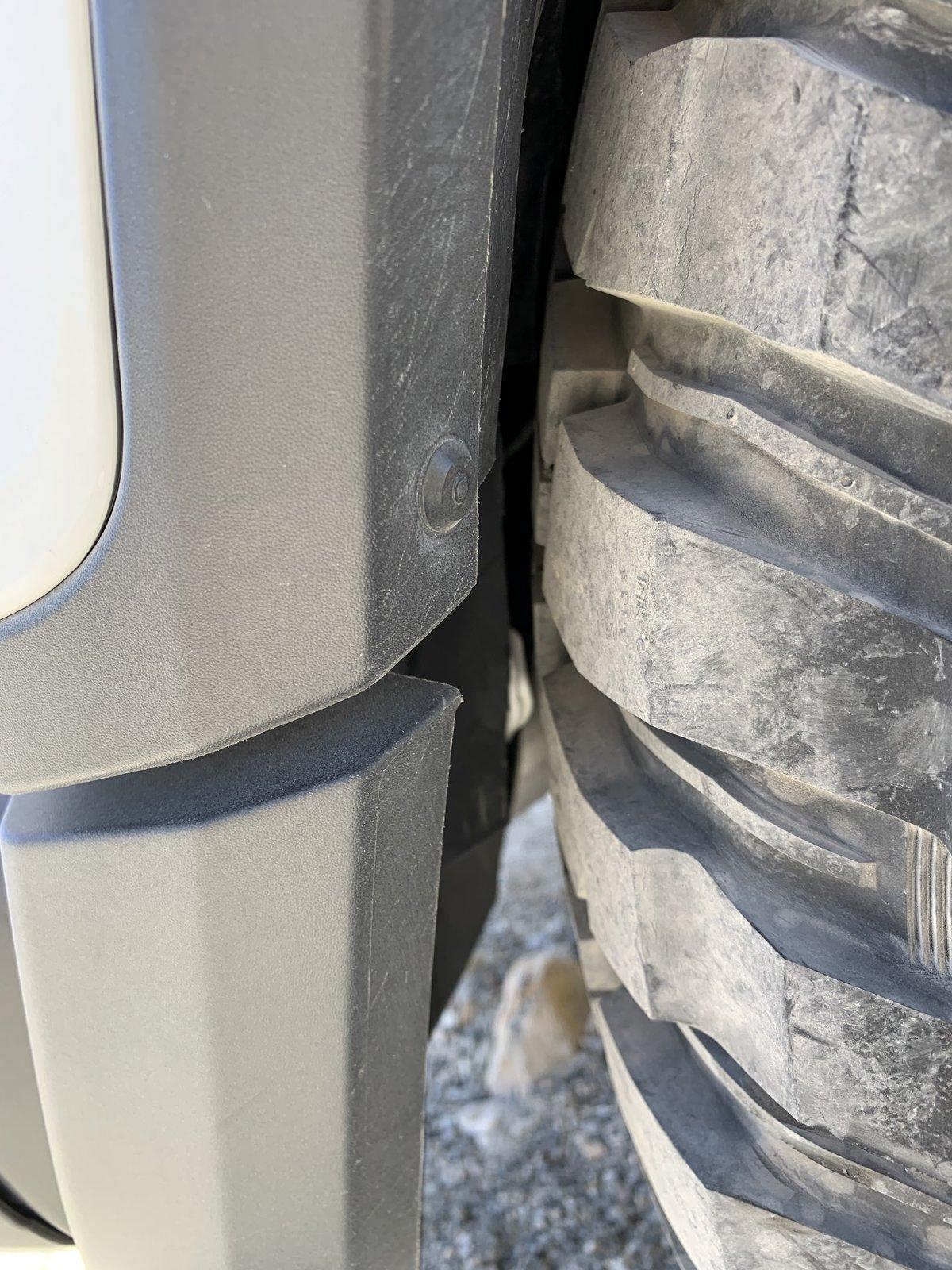

Back part of fenderwell after cutting out and heat molding. Measured 1/2” clearance from lower edge of painted metal to OD of tire.





Advertisement



Creeker

Well-Known Member
First Name
Jim
Joined
Nov 19, 2019
Messages
347
Reaction score
729
Location
Hickory, NC
Vehicle(s)
CJ-7, 2020 JLR
Build Thread
Link
Looks good.
Any thoughts on going with aftermarket fender liners (e.g., Artec) to get more flex?

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #18
Looks good.
Any thoughts on going with aftermarket fender liners (e.g., Artec) to get more flex?
Not in the near future. I’m working on a ABS moldable plastic insert for the rear.


grandsrus

Well-Known Member
Joined
Jul 1, 2019
Messages
239
Reaction score
187
Location
dfw
Vehicle(s)
2019 jlur
Tried a flex test today in the newly lifted Rubicon. Note: I did remove some rear inner fender plastic prior to clear the 37” BFG MTs.

Had to snap a poser pic while airing down to 12psig:


Articulation with full contact at front diver and rear passenger bump stops:


Rear clearance:
Upper fenderwell of passenger rear.


Back part of fenderwell after cutting out and heat molding. Measured 1/2” clearance from lower edge of painted metal to OD of tire.
Writeup on this please?

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #21
Writeup on this please?

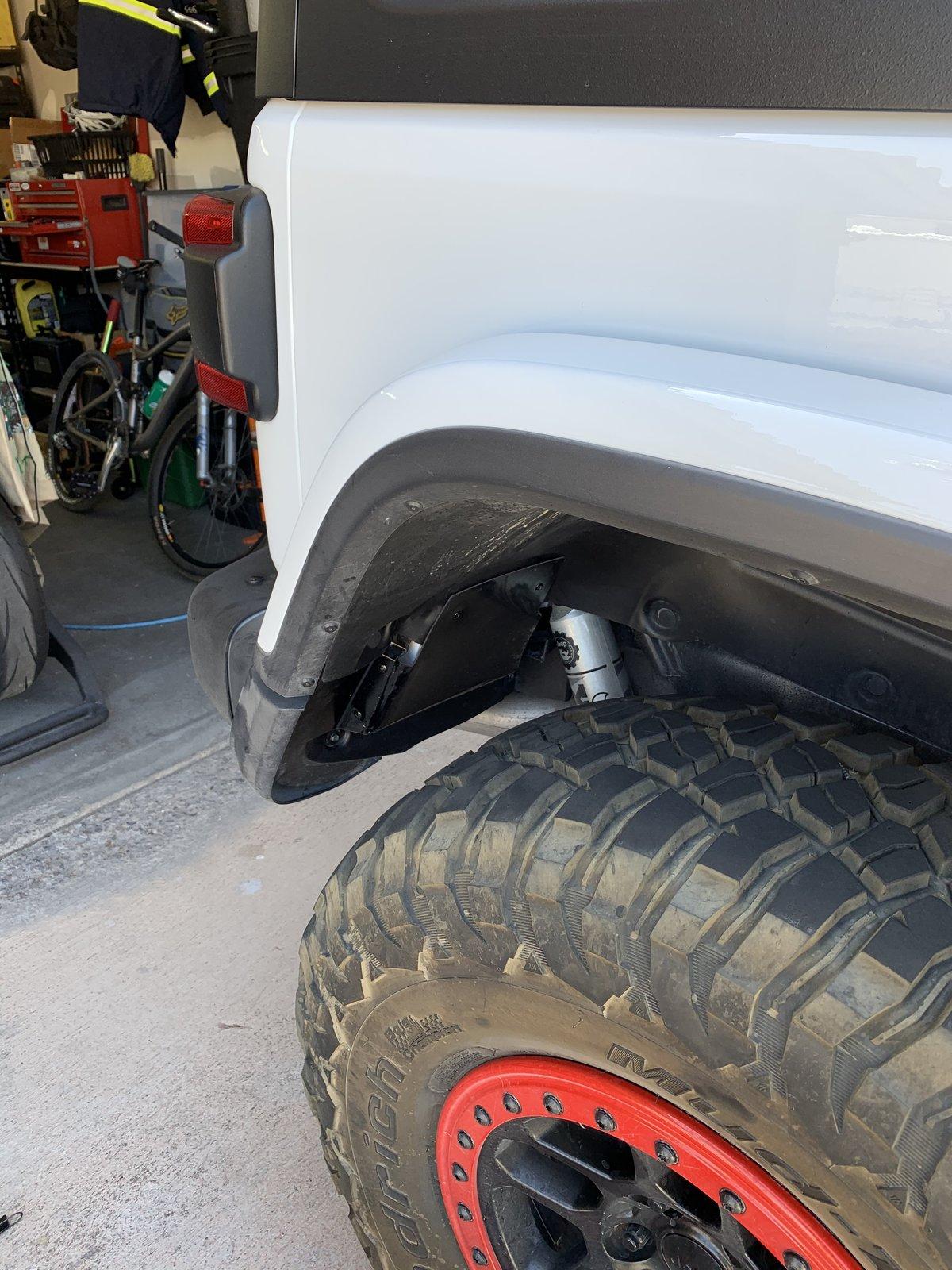

I’ll post my complete writeup once I have all the cosmetics finished up. I bought ABS Plastic to fill my fender trimming. However, here’s a rough picture of its current state with upper lip heat molded back and lower plastic trimmed/removed to accommodate rear tire travel.

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #22
Here’s my writeup on rear inner fender trimming to accommodate 37” tires with full travel to bump stops. I have NO rubbing in the rear after this modification.

_____

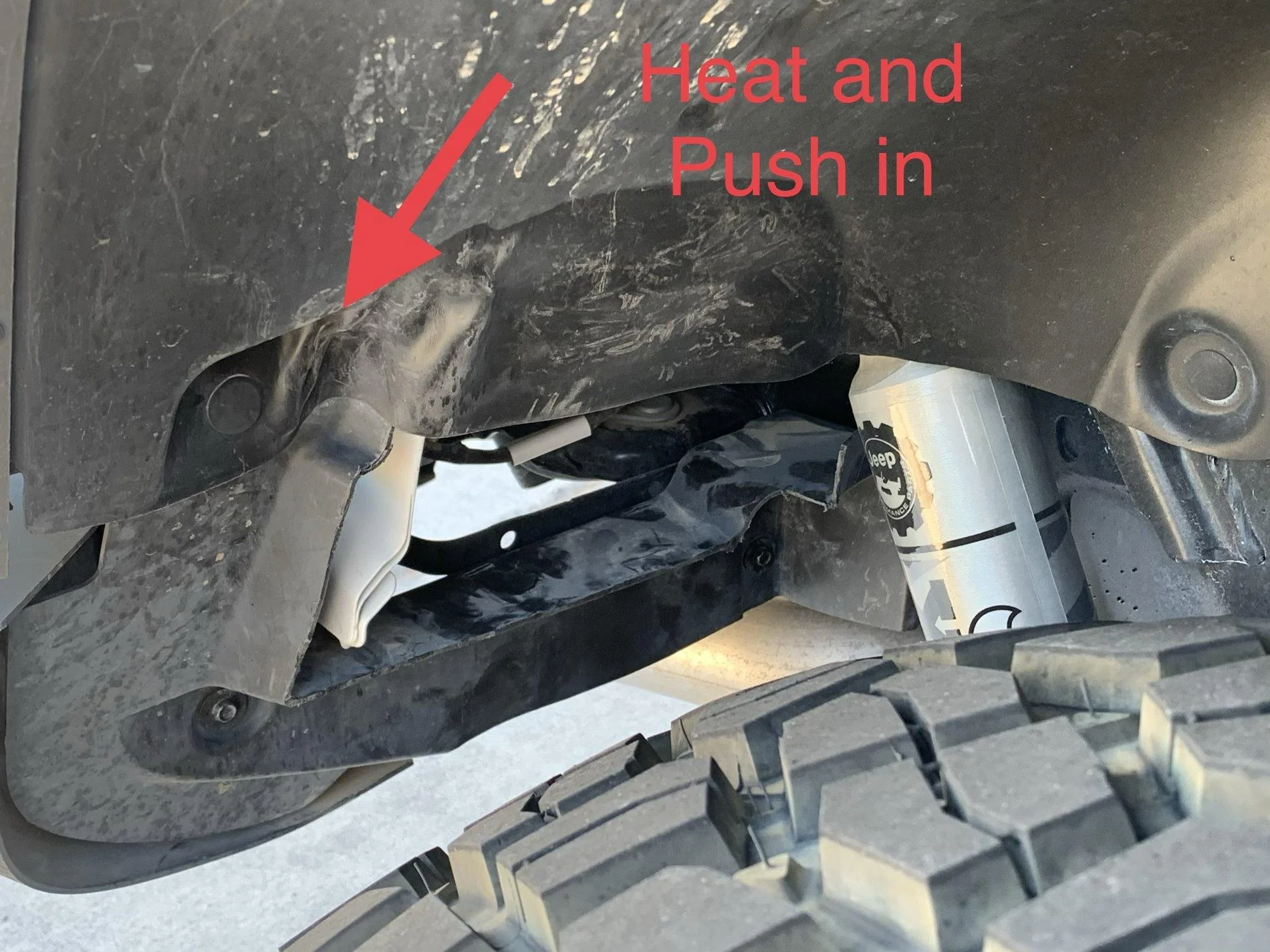

I believe the forum is calling this upper plastic heating “Eddie’s Modification”. Smooth out upper plastic with heat.

——-

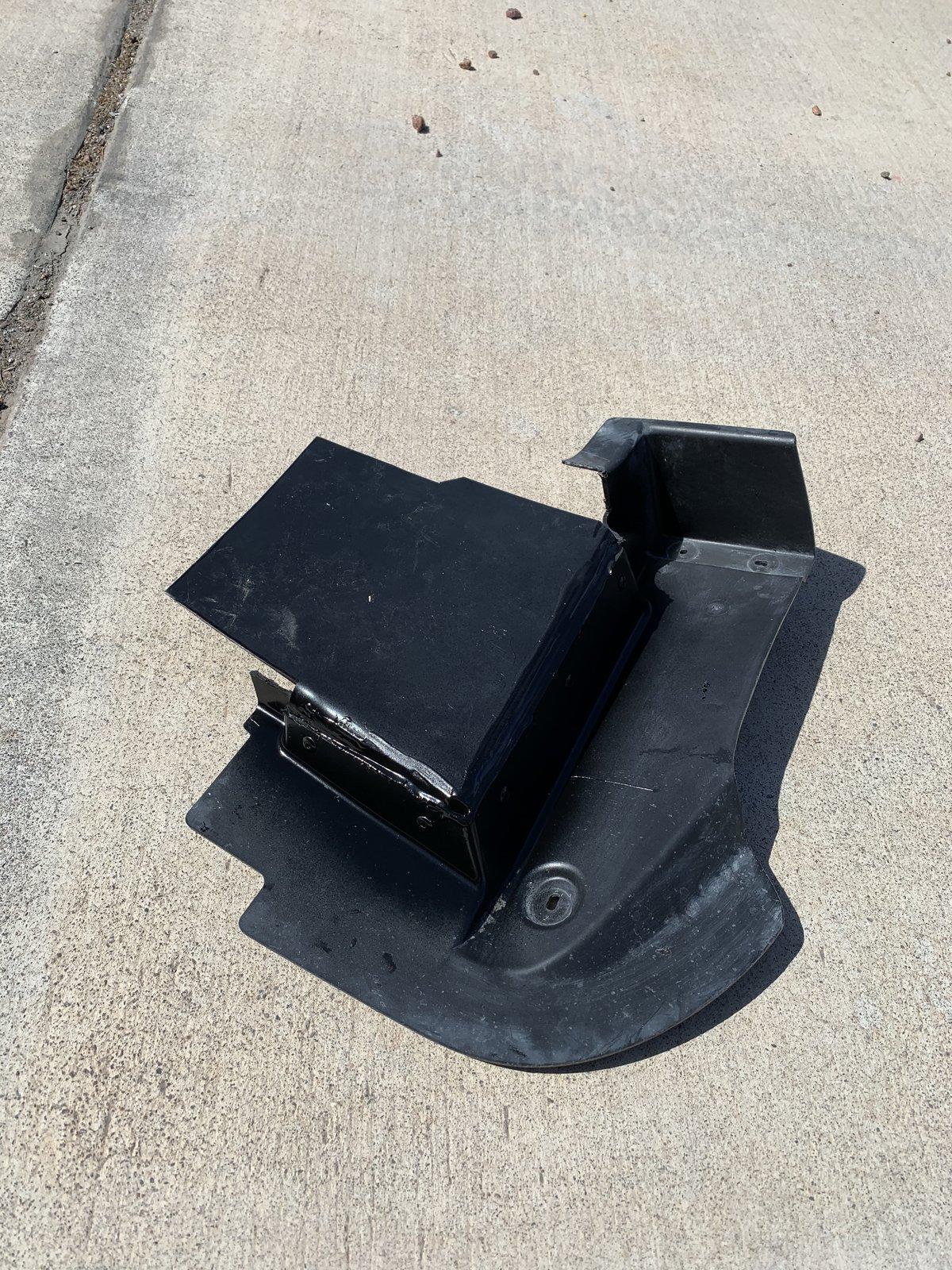

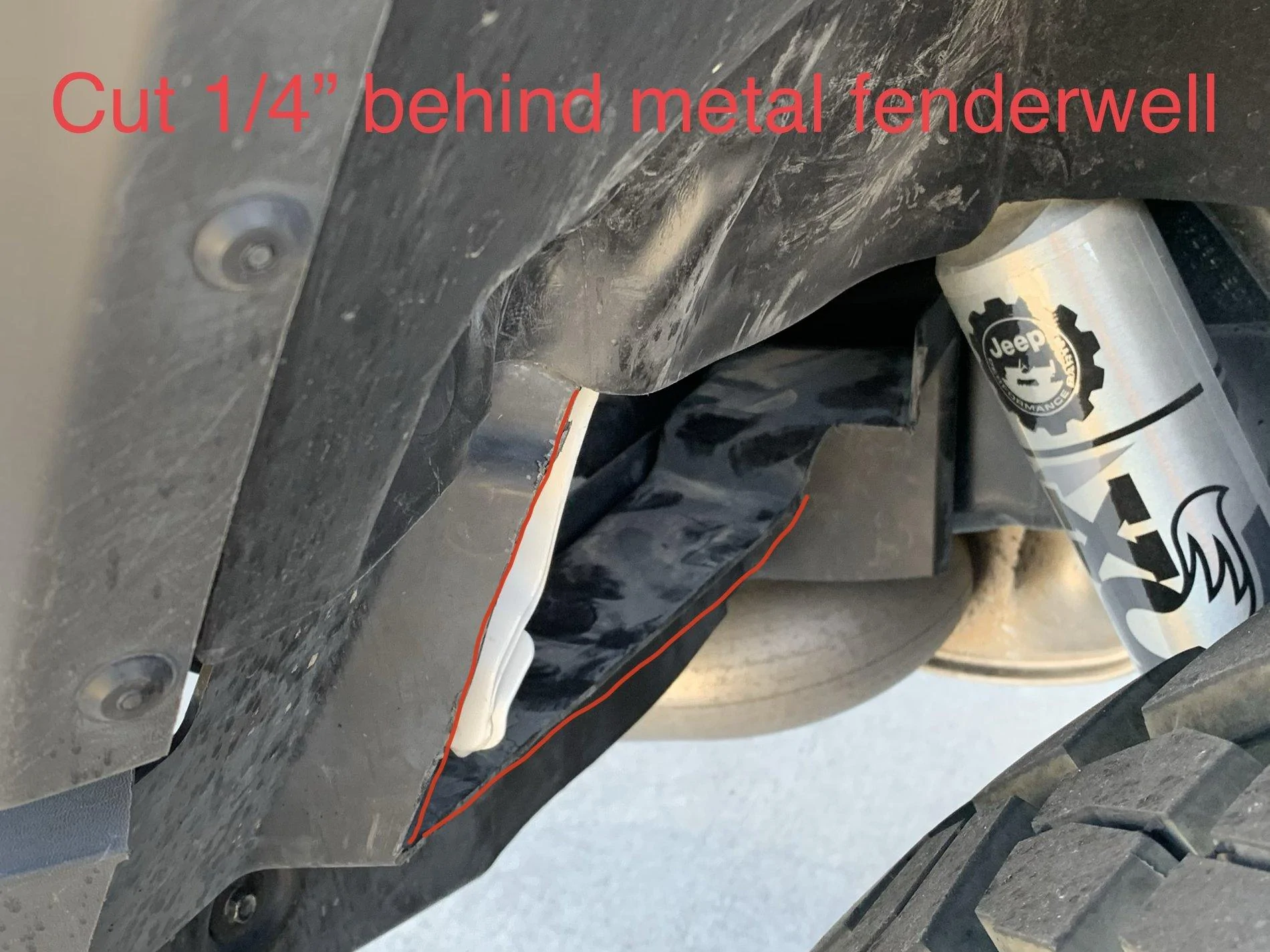

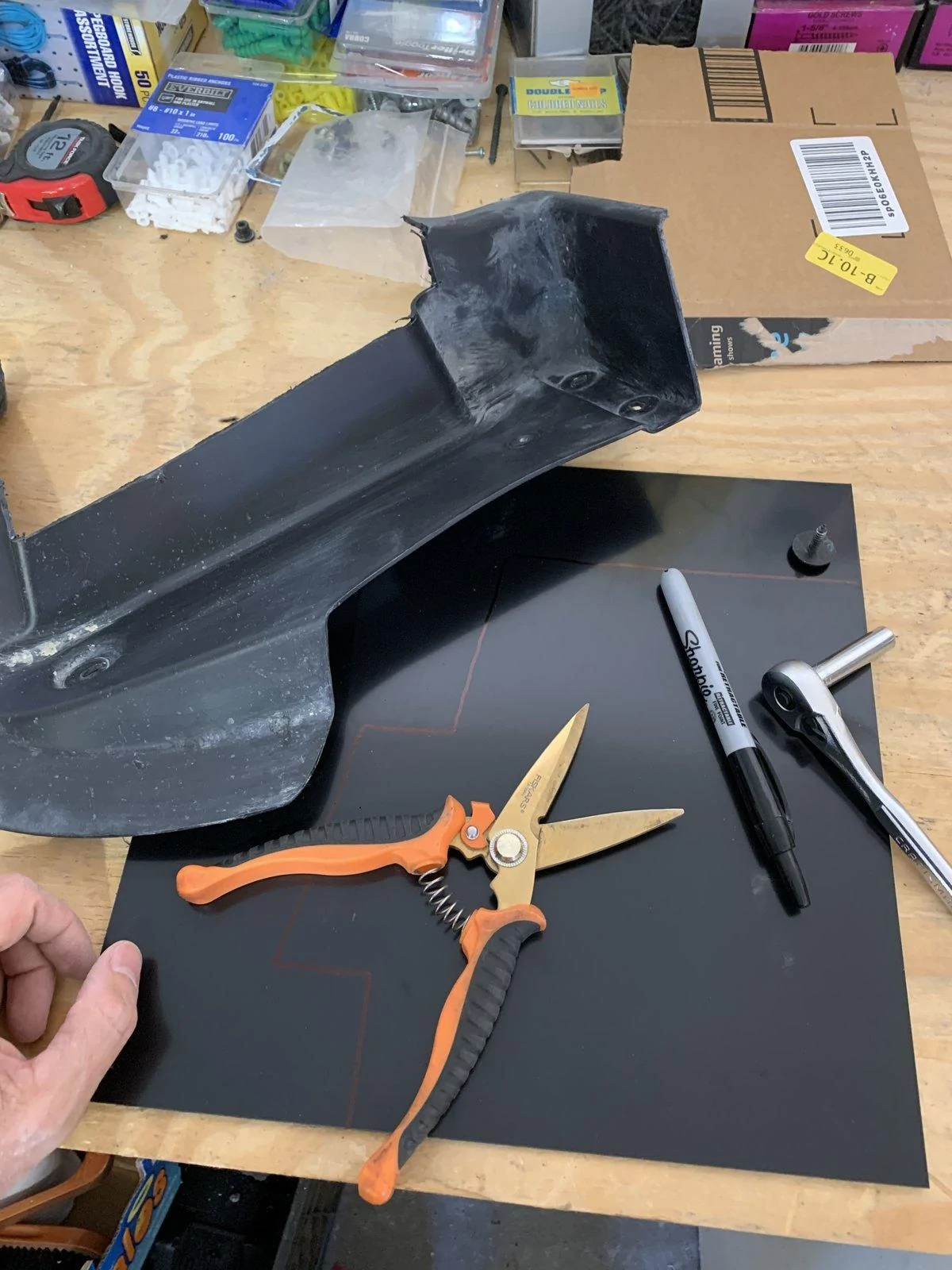

I removed the lower section for trimming. A good pair of Fisker Scissors did the job, but I think a dermal work also work.

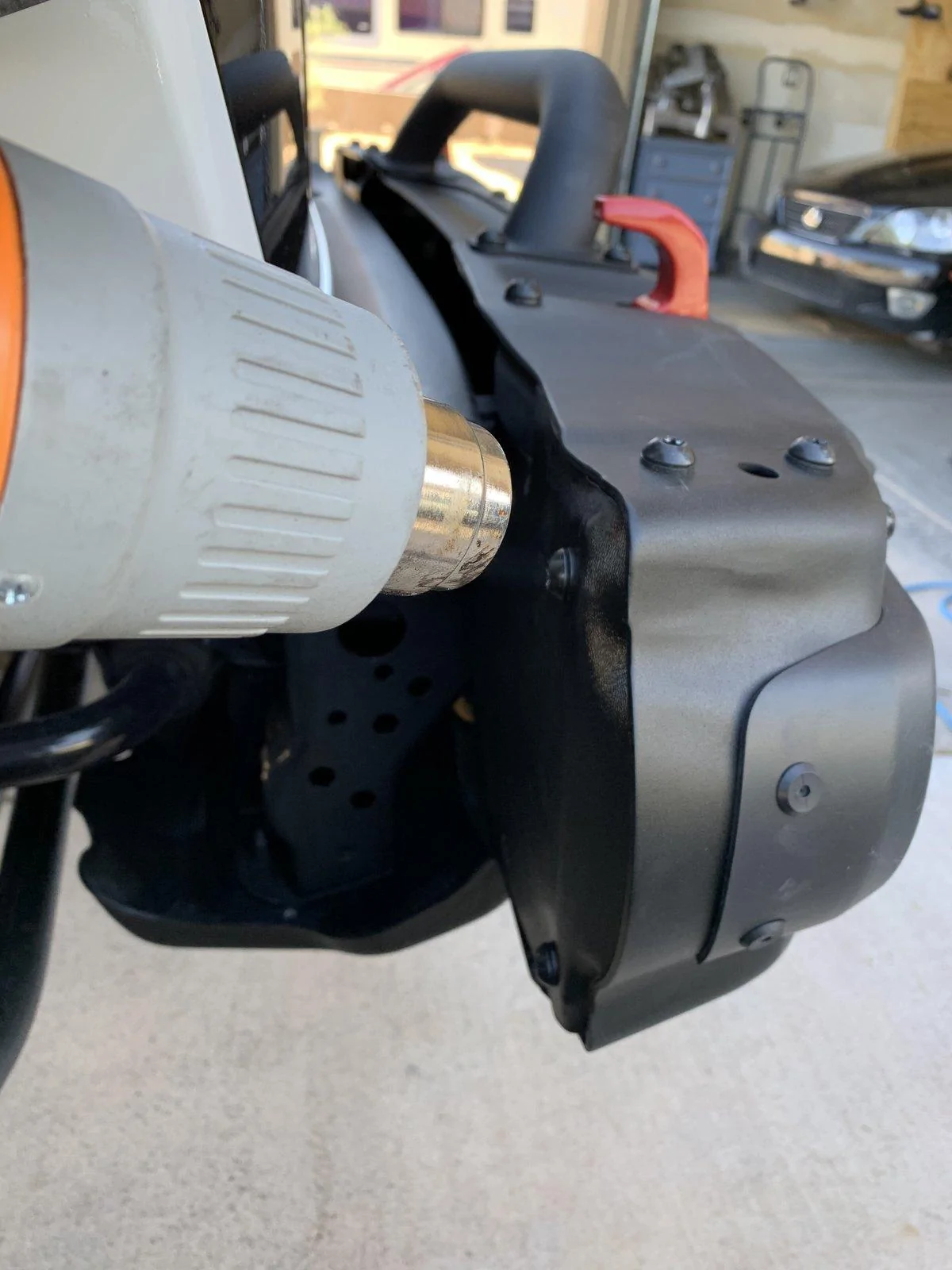

I used 2 ABS plastic Sheets from my front bumper order. See that post for amazon link.

——-

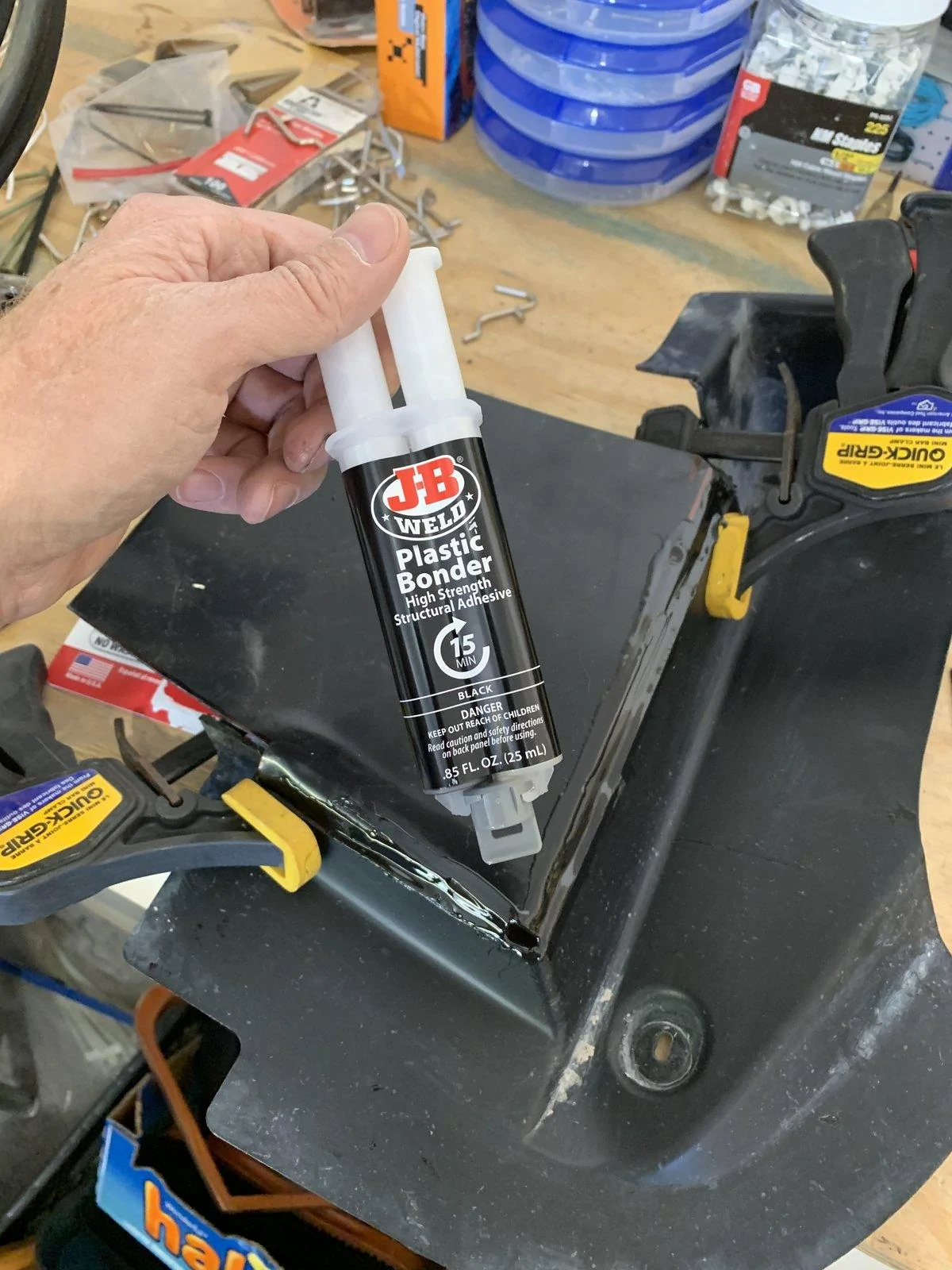

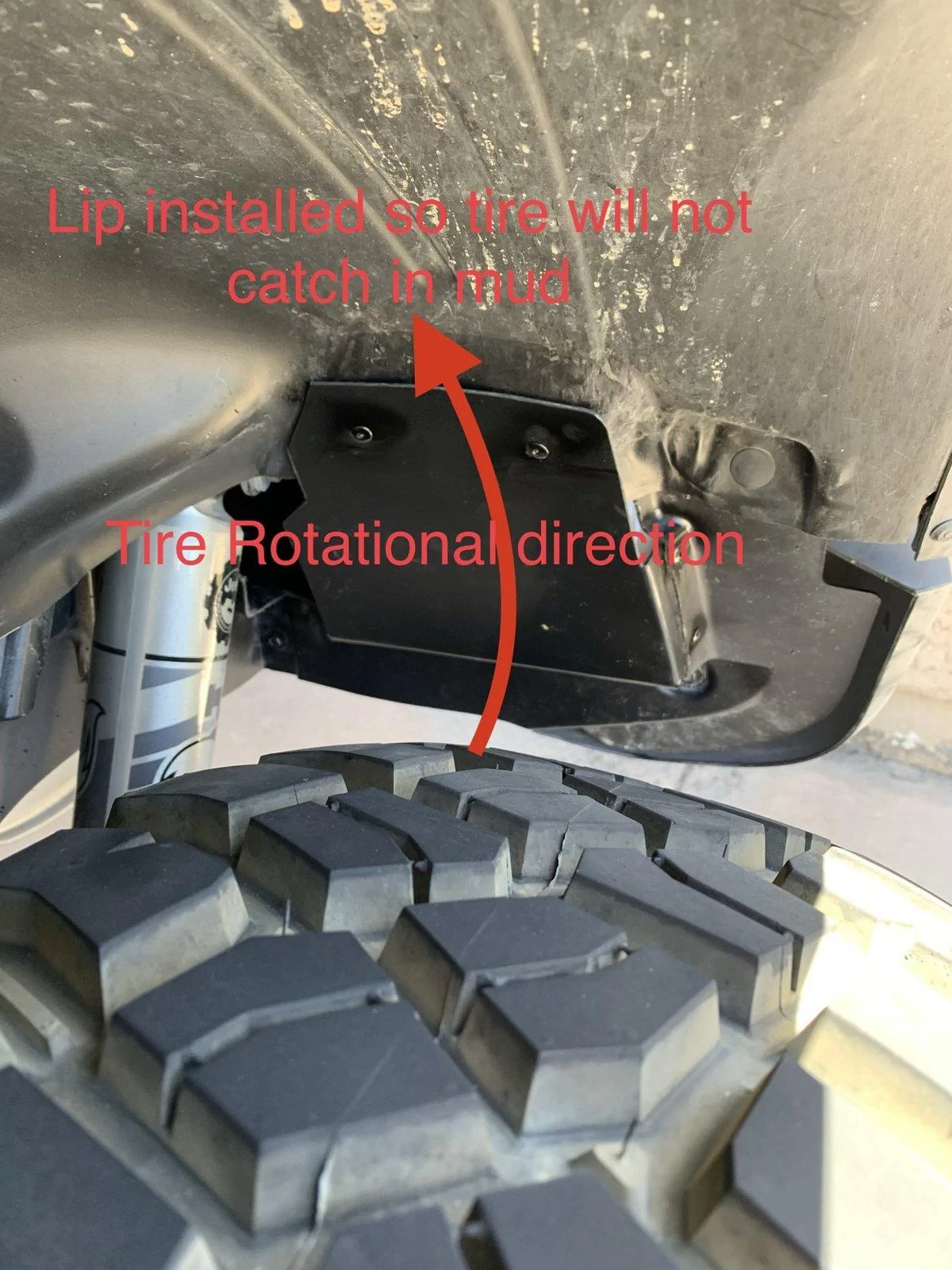

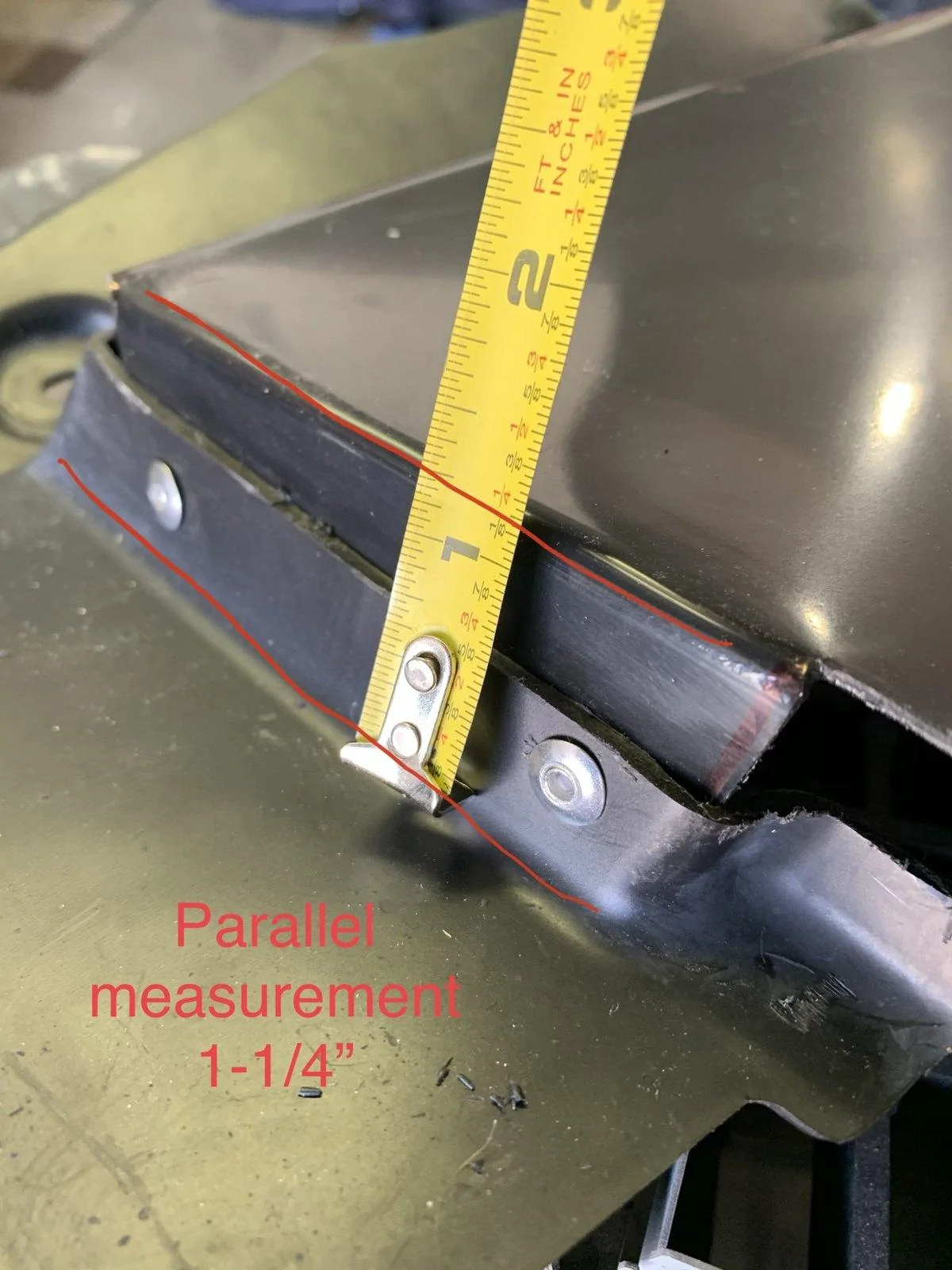

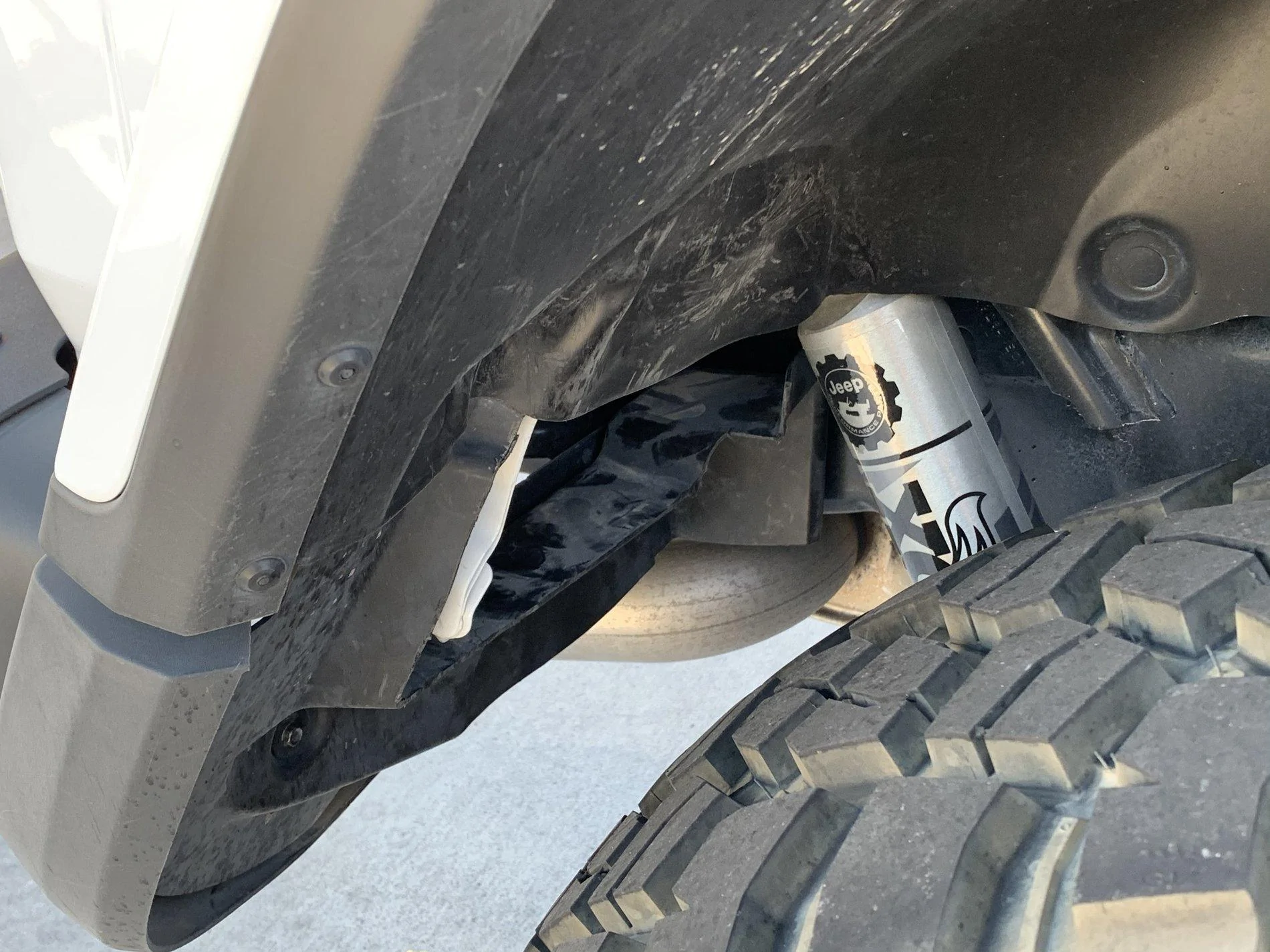

You can either Plastic Bond or Rivet. I decided the rivet with #10 backing washers, and heat gun worked better after playing with both methods. The Plastic Bond looks much nicer, but I try to follow the 15’ away cosmetic rule. If it looks good 15’ away, I’m happy!

——-

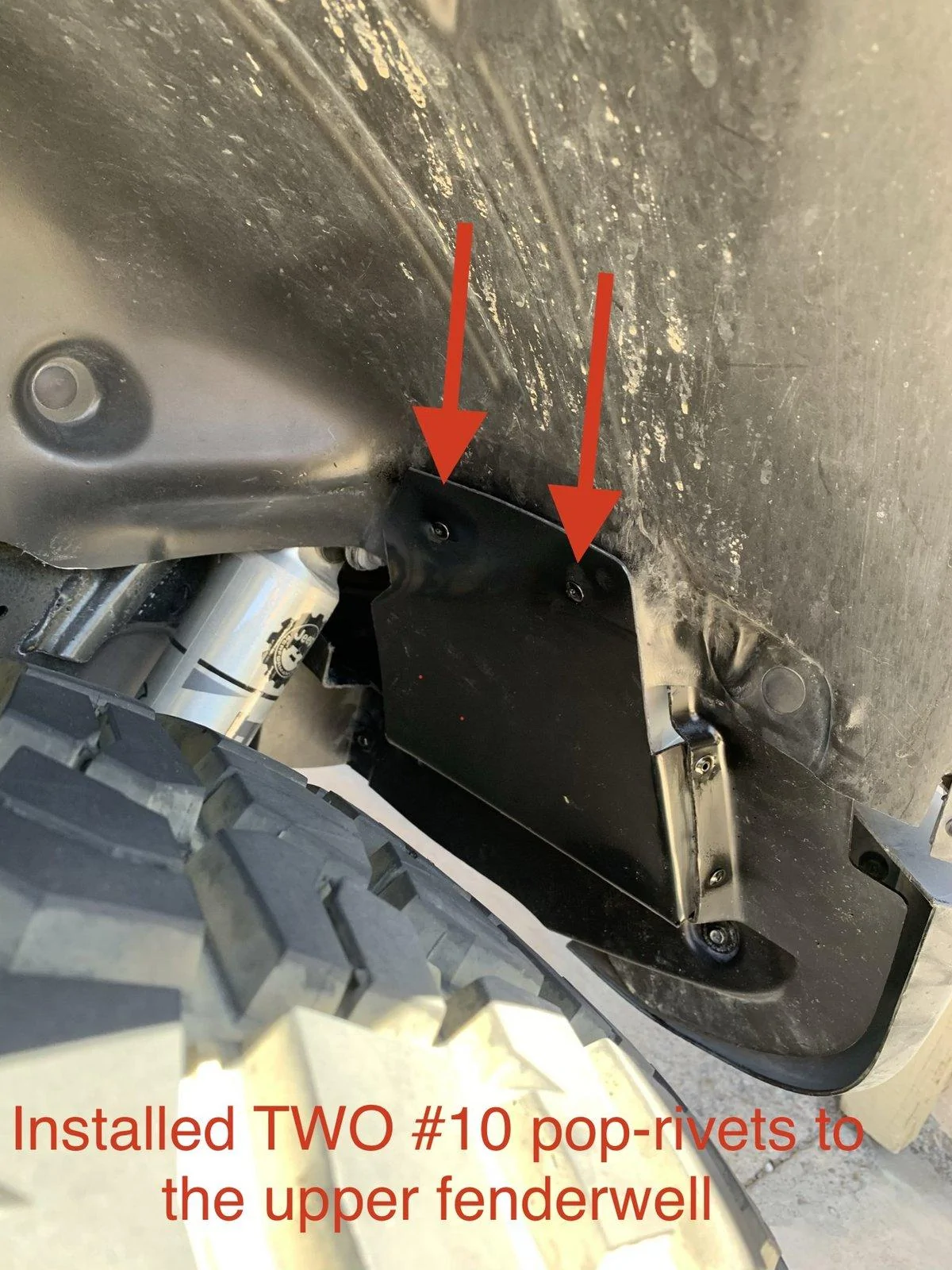

I removed the lower section of plastic to drill the two upper holes and used my HI-LIFT to give myself some additional working clearance.

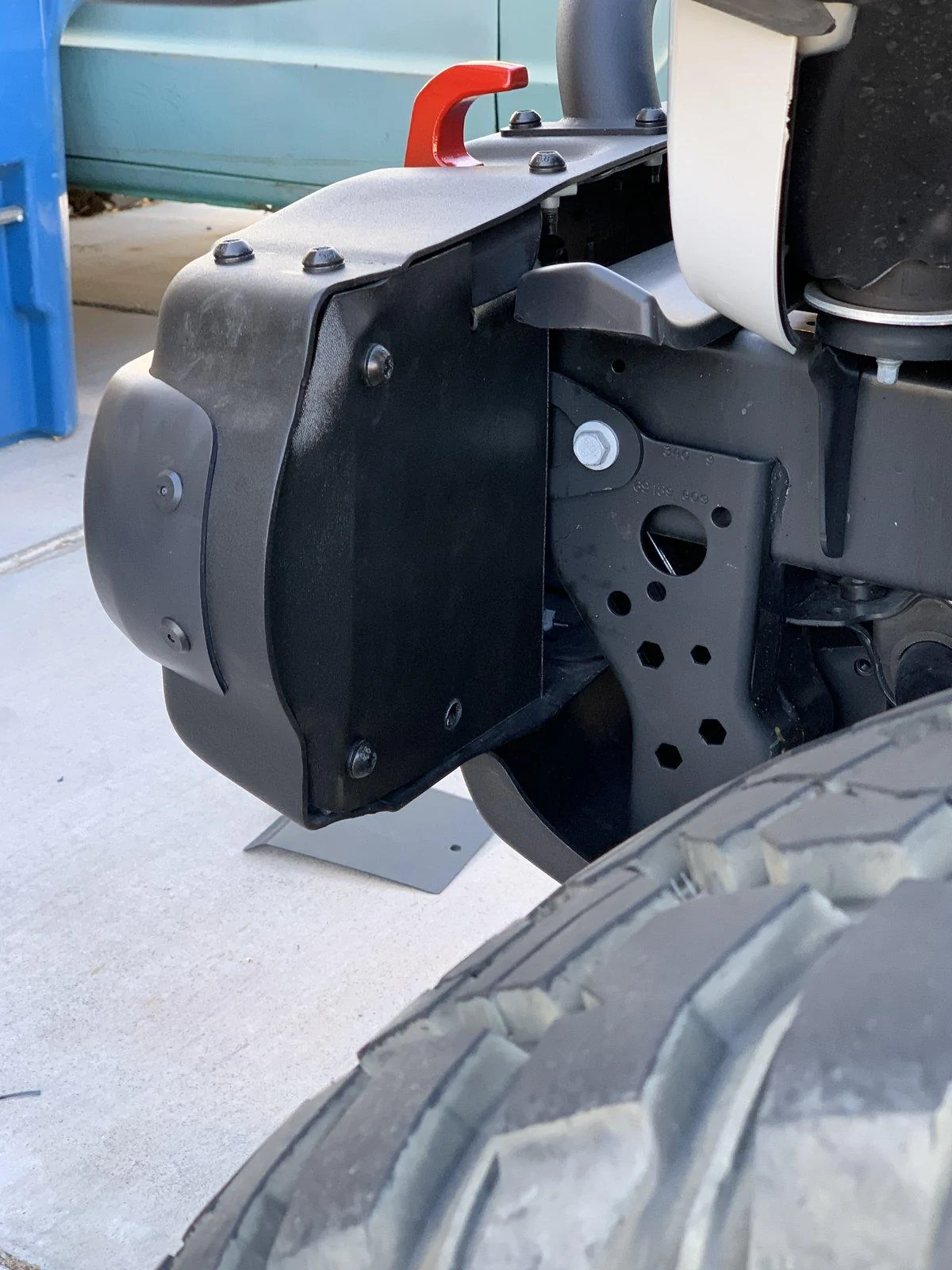

NOTE: I rattle canned all my pop rivet heads semi gloss black after installation. You can purcase black pop rivets.

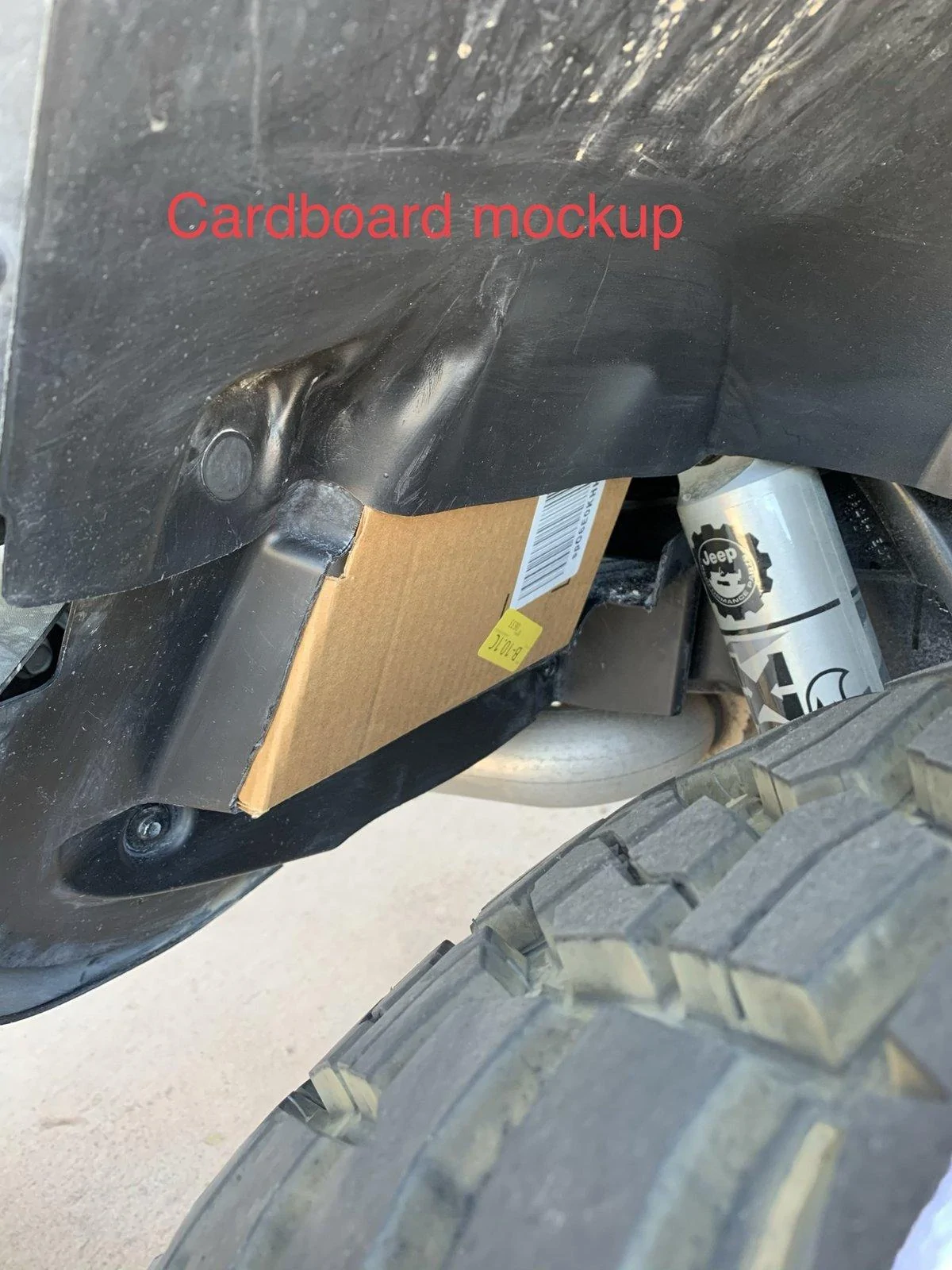

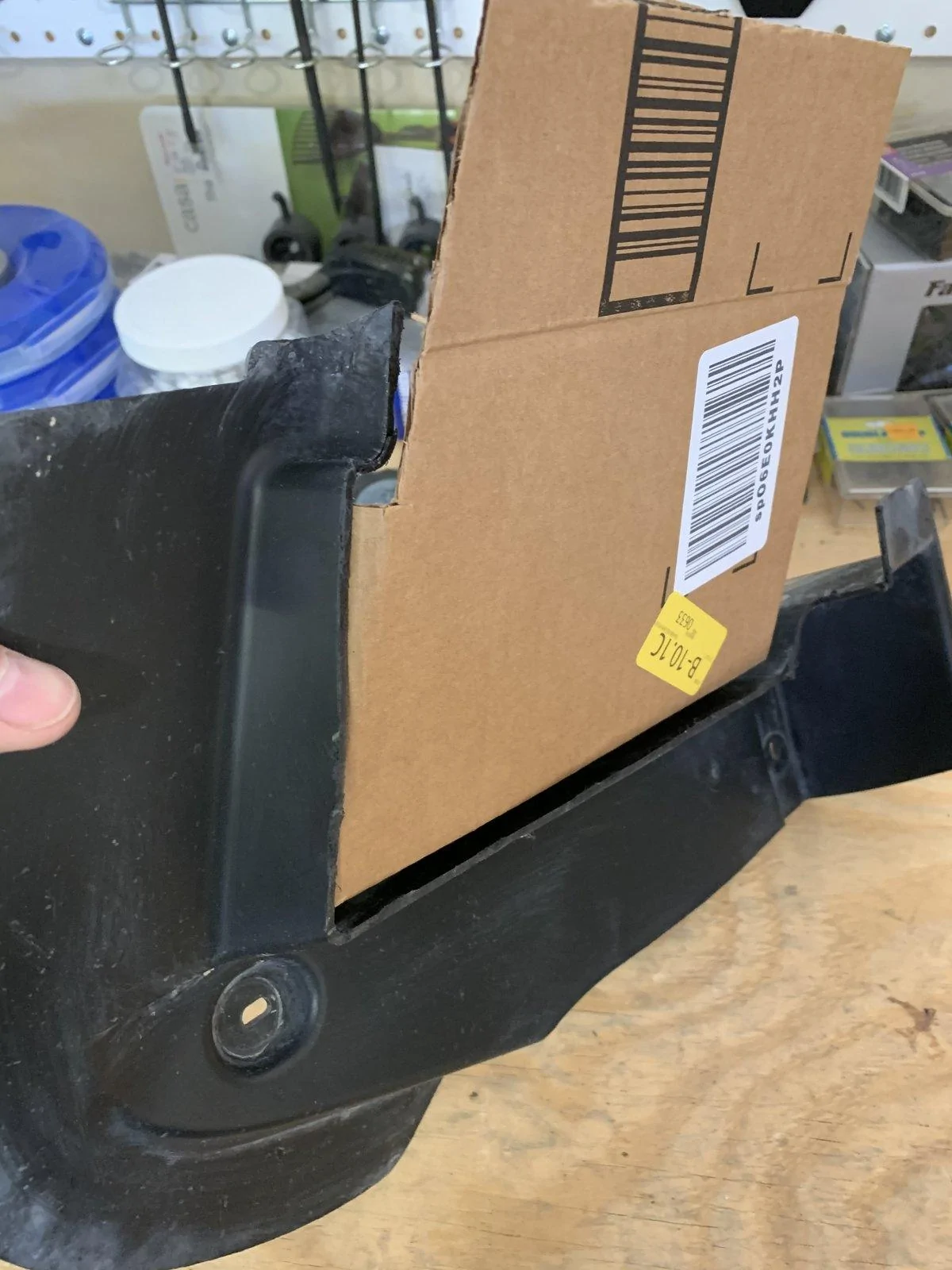

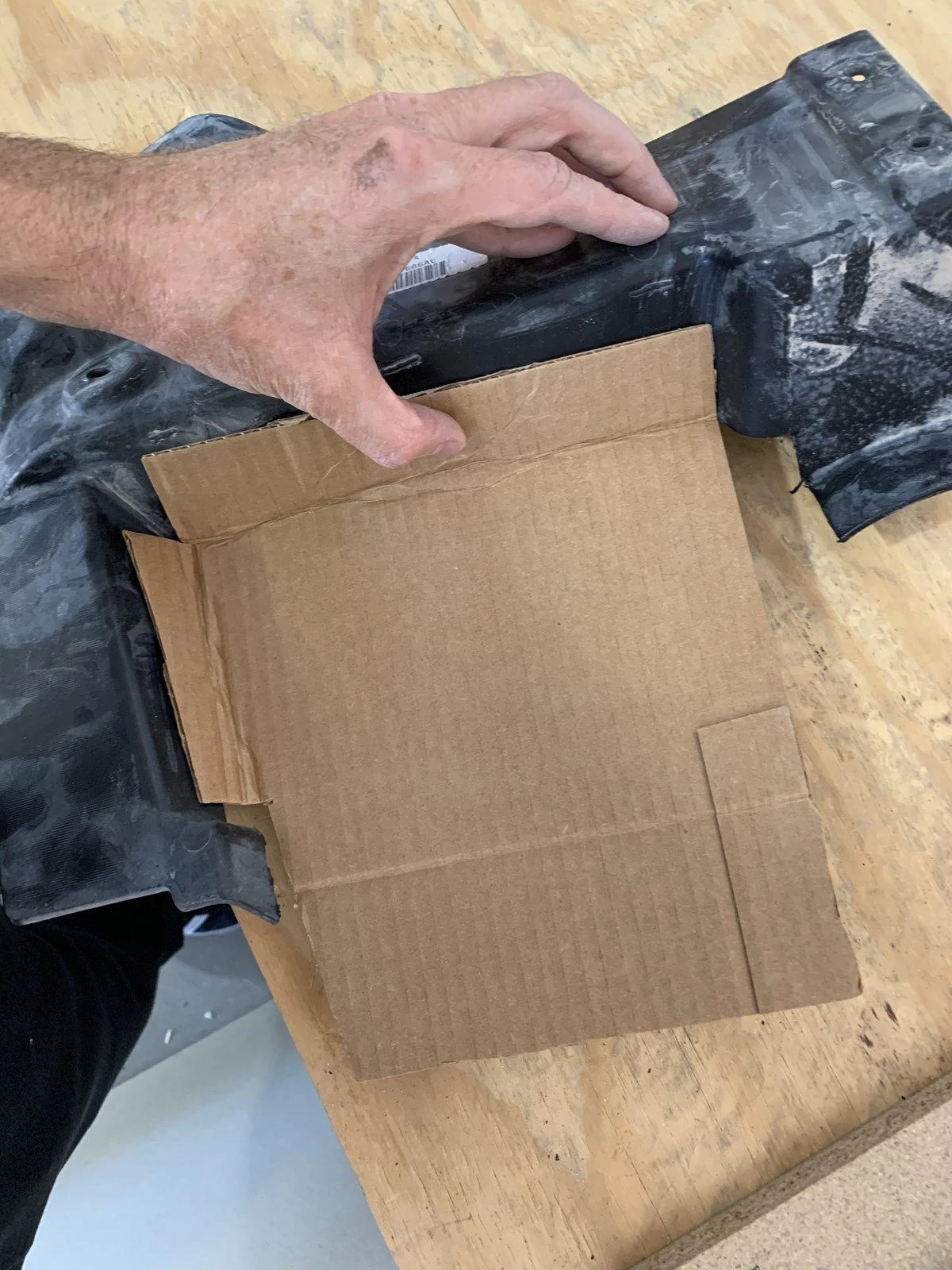

This project was a bit of fussing with plastic and took a methodical and patient approach. I might CAD up downloadable/printable templates and instructions for DIY at a later date. That is assuming people are interested in cheap modifications versus buying expensive aftermarket parts.


grandsrus

Well-Known Member
Joined
Jul 1, 2019
Messages
239
Reaction score
187
Location
dfw
Vehicle(s)
2019 jlur
Here’s my writeup on rear inner fender trimming to accommodate 37” tires with full travel to bump stops. I have NO rubbing in the rear after this modification.

_____
I believe the forum is calling this upper plastic heating “Eddie’s Modification”. Smooth out upper plastic with heat.

——-
I removed the lower section for trimming. A good pair of Fisker Scissors did the job, but I think a dermal work also work.




I used 2 ABS plastic Sheets from my front bumper order. See that post for amazon link.

——-
You can either Plastic Bond or Rivet. I decided the rivet with #10 backing washers, and heat gun worked better after playing with both methods. The Plastic Bond looks much nicer, but I try to follow the 15’ away cosmetic rule. If it looks good 15’ away, I’m happy!

——-
I removed the lower section of plastic to drill the two upper holes and used my HI-LIFT to give myself some additional working clearance.

NOTE: I rattle canned all my pop rivet heads semi gloss black after installation. You can purcase black pop rivets.

This project was a bit of fussing with plastic and took a methodical and patient approach. I might CAD up downloadable/printable templates and instructions for DIY at a later date. That is assuming people are interested in cheap modifications versus buying expensive aftermarket parts.
Yes we are interested, thank you!

  • Like
Reactions: BHo

ALEX-4LO

Well-Known Member
First Name
Alex
Joined
Jan 21, 2018
Messages
348
Reaction score
206
Location
No where
Vehicle(s)
2018 JLUR & 2020 JLUR - Project JL's
"Eddies Mod" did not work for my 38" tires, they still rub. It looks like you cut into the bottom of the plastic inner. My tire rubs on the upper middle of the inner fender. I will eventually pull them off.

Let's trail Rocky Gap

  • Sad
Reactions: BHo
OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #25
"Eddies Mod" did not work for my 38" tires, they still rub. It looks like you cut into the bottom of the plastic inner. My tire rubs on the upper middle of the inner fender. I will eventually pull them off.

Let's trail Rocky Gap
Yeah, on 38” mile stars you’re going to need to bumpstop or pull the Inner fender liners. My 37s just (I mean JUST) clear the upper inner fenders.

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #26
Found a suiting name for the new rig. Welcome “Grizzly” to my family.


72Blazer

Well-Known Member
Joined
Feb 16, 2020
Messages
669
Reaction score
659
Location
The Real South Texas
Vehicle(s)
72 Blazer 07.5 Duramax 18 JLUR
Occupation
SLP
Any rubbing on the front? I’ve been wanting to do this mod on my rear inners but not at the point where I want to cut the plastic/ metal.

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #29
Any rubbing on the front? I’ve been wanting to do this mod on my rear inners but not at the point where I want to cut the plastic/ metal.
No rubbing on the front. I did remove the steel bumper wings, tested at full articulation (to the bump stop) and cycled my steering lock-to-lock. I think 13.50”W tires will require A minimal amount more offset, but the 12.50”W tires work great on the MOPAR wheels.

OP
BHo

BHo

Well-Known Member
First Name
Billy
Joined
Apr 29, 2020
Messages
58
Reaction score
99
Location
Las Vegas, NV
Vehicle(s)
2020 Wrangler JLU Rubicon Recon
Occupation
Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #30
That TJ looked pristine
I’m kinda kicking myself for letting it go, but didn’t want to commit to stretching it and 39” BFG MT mods. I think I’ll find an older CJ7, LS swap, and coil with 39”s.
