392 Specific Lift Kits

[cball508]

For $379 the AEV spacer lift is a pretty good deal. I’ll probably add the control arms up front. This should get me by until I decide where to go from there and will clear 37’s after the weight added from winch and rear aev carrier

I was thinking the same setup with the Teraflex sport LCAs
https://teraflex.com/jl-jt-sport-control-arm-kit-front-lower-1-5-3-5-2-5-3-5.html

Sponsored



[MNGladiator]

This is going in Saturday. @Clayton Off Road 3.5" Overland + Lift, @RPM STEERING , @TeraFlex shock extensions. I am staying with the stock shocks for now. The Falcon 3.3 quick adjust for the diesel weight are on backorder. I was thinking about going with the spacers, but then adding the LCA and track bars to keep things straight I decided to just do a whole kit.



[Brew211]

We've still got them heavily in the works, and things have been moving along pretty smooth. We don't have an exact final set ETA quite yet, but we're hoping for this summer possibly early fall this year. Stay tuned!

Still staying tuned.........
Let me know if you hear anything. Thanks



[JEEP4U]

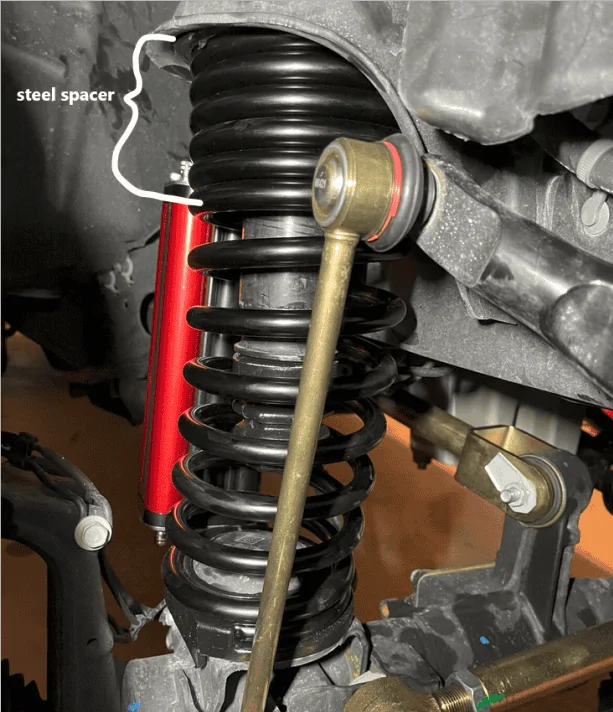

Whats the deal with MC non linear springs......its like having a steel spacer on top.



[dgerb]

Whats the deal with MC non linear springs......its like having a steel spacer on top.

Except it expands when the axle drops....more articulation...



[katko9792]

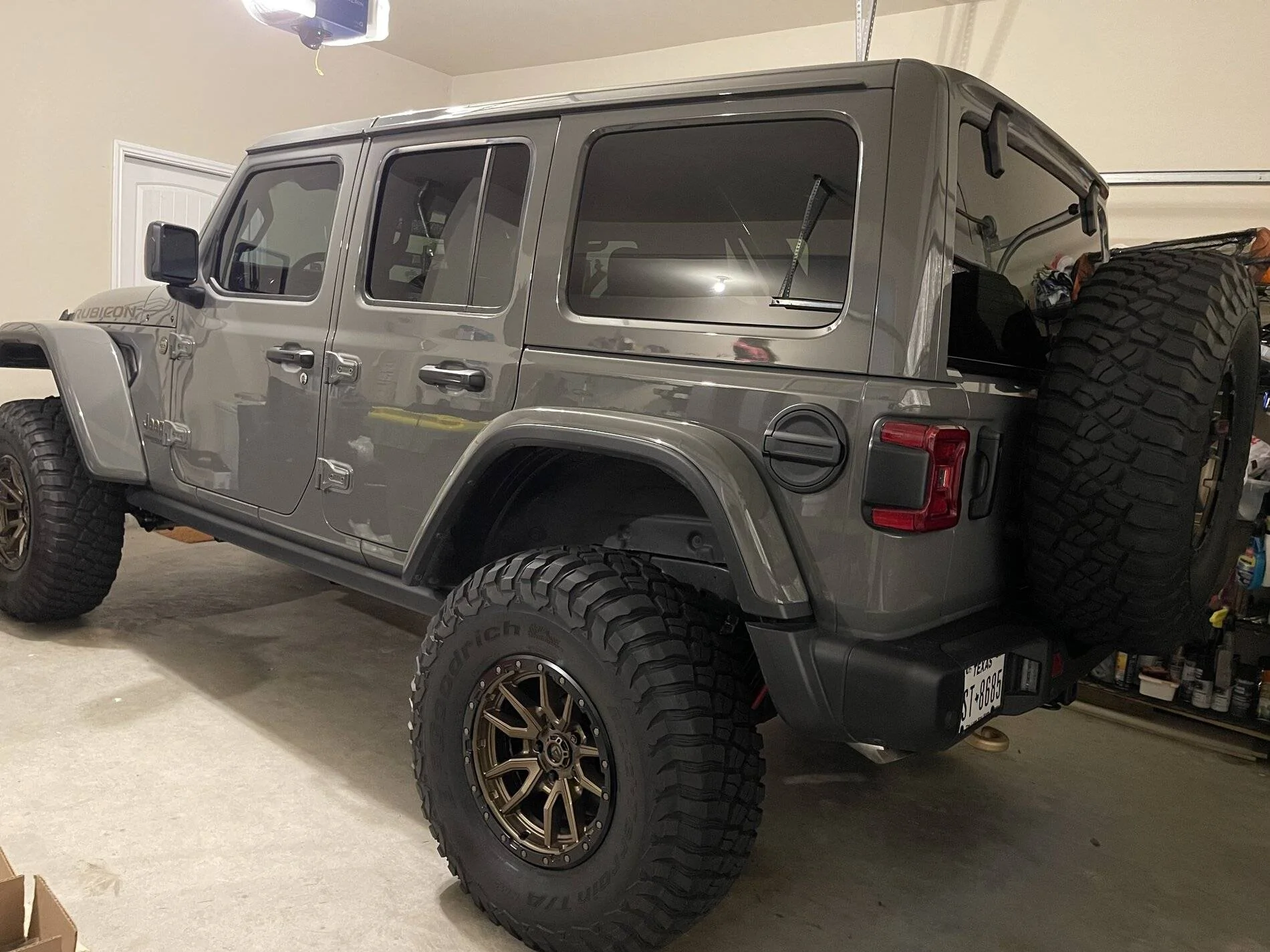

I just had the MetalCloak 3.5 GC installed yesterday. Previously I was on 1" (2x .5", stacked) Teraflex spacers.

For those concerned with ride height, the 3.5" is definitely taller than the spacer setup I was running before. I totally forgot to get before measurements but my overall height is right at 78.75". On 37" KM3's

MC 3.5 GC

vs

1" Teraflex Spacers

I'll work on getting a similar pic soon for better comparison. For now, the day is early.

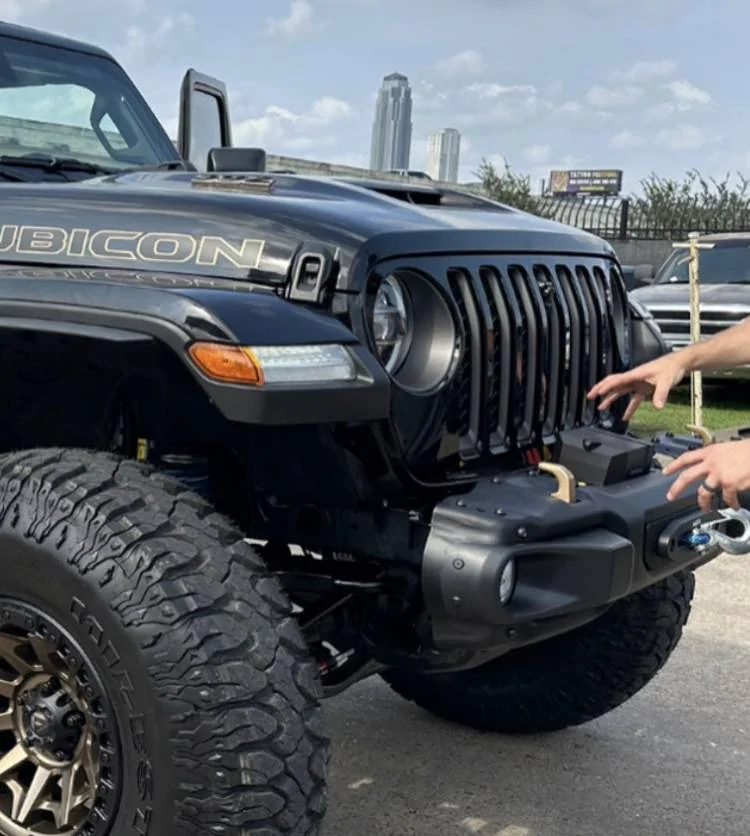

Your front bumper looks awesome. Where did you buy it?



[Fast-n-Furious]

Can someone help clear my confusion? Some places say the 392 comes with 1” factory lift while other sources say 2” lift. Some YouTube videos even mention 1.5” lift compared with the regular Rubicon. I’m totally confused. If it’s 2” lift, is it the same Mopar 2” lift?



[GATORB8]

Can someone help clear my confusion? Some places say the 392 comes with 1” factory lift while other sources say 2” lift. Some YouTube videos even mention 1.5” lift compared with the regular Rubicon. I’m totally confused. If it’s 2” lift, is it the same Mopar 2” lift?

It’s not the Mopar.



[Bronson90]

rpm steering 3-link front double triangulated 4-link rear



[Platinum7990]

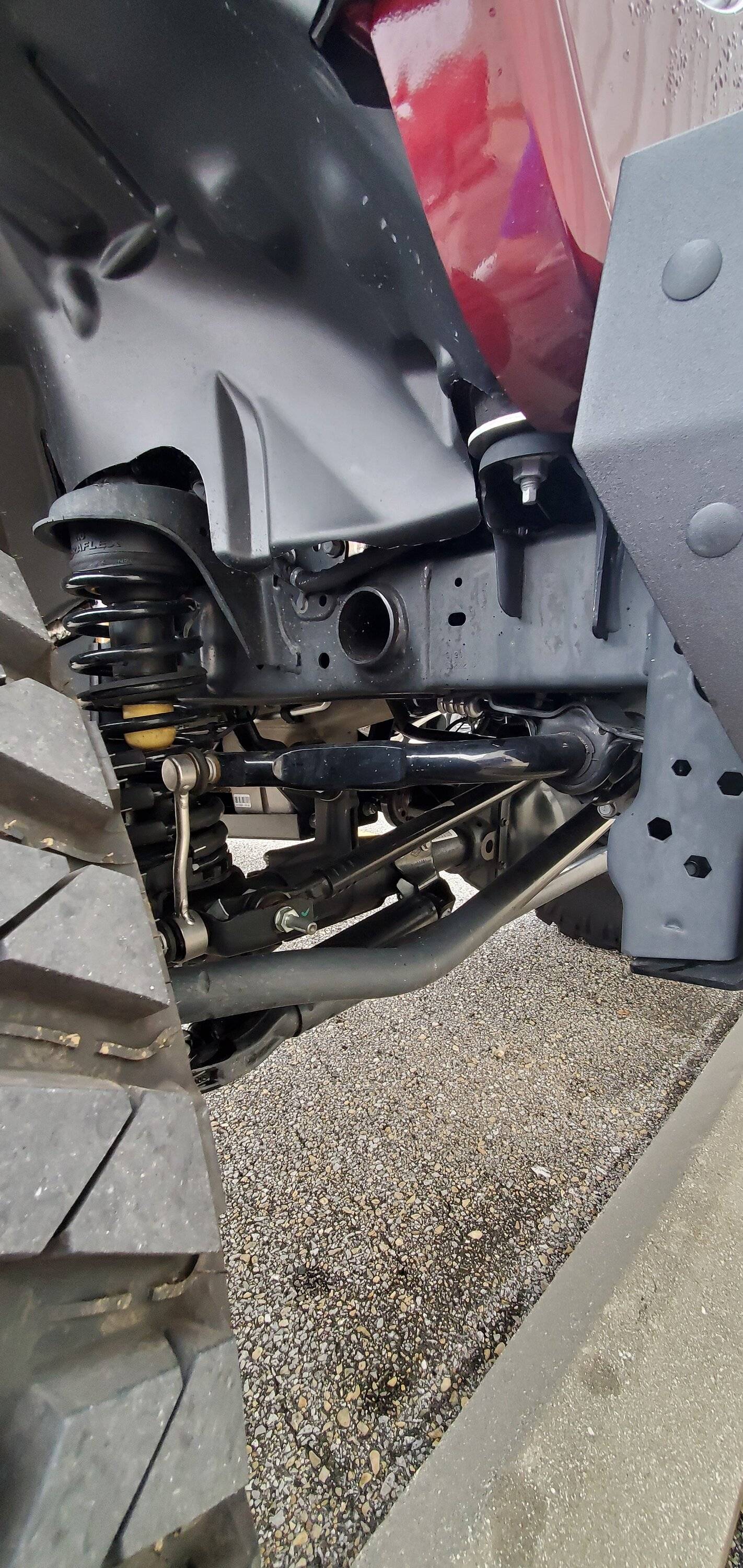

Here are some better pics of the TeraFlex extended bumps, 2 inch front & 1.5 rear spacer, shock extensions and mopar LCAs. It drives great. Super happy.

did you also change the sway bar end links? Or just the spacers and bump stops with the Mopar LCAs?



[Usethis83]

did you also change the sway bar end links? Or just the spacers and bump stops with the Mopar LCAs?

No, i did not lengthen the sway bar links, they look pretty level. Just spacers, bumps, lcas and shock extensions. Rides great and have a couple thousand miles on it since​

​



[DoneDeal]

AEV 3" HD spring dual rate lift. I added a 3/4" spacer up front to eleminate the rake. 38x13.50s. It drives great and still fits in a standard garage.



[Daywalker78]

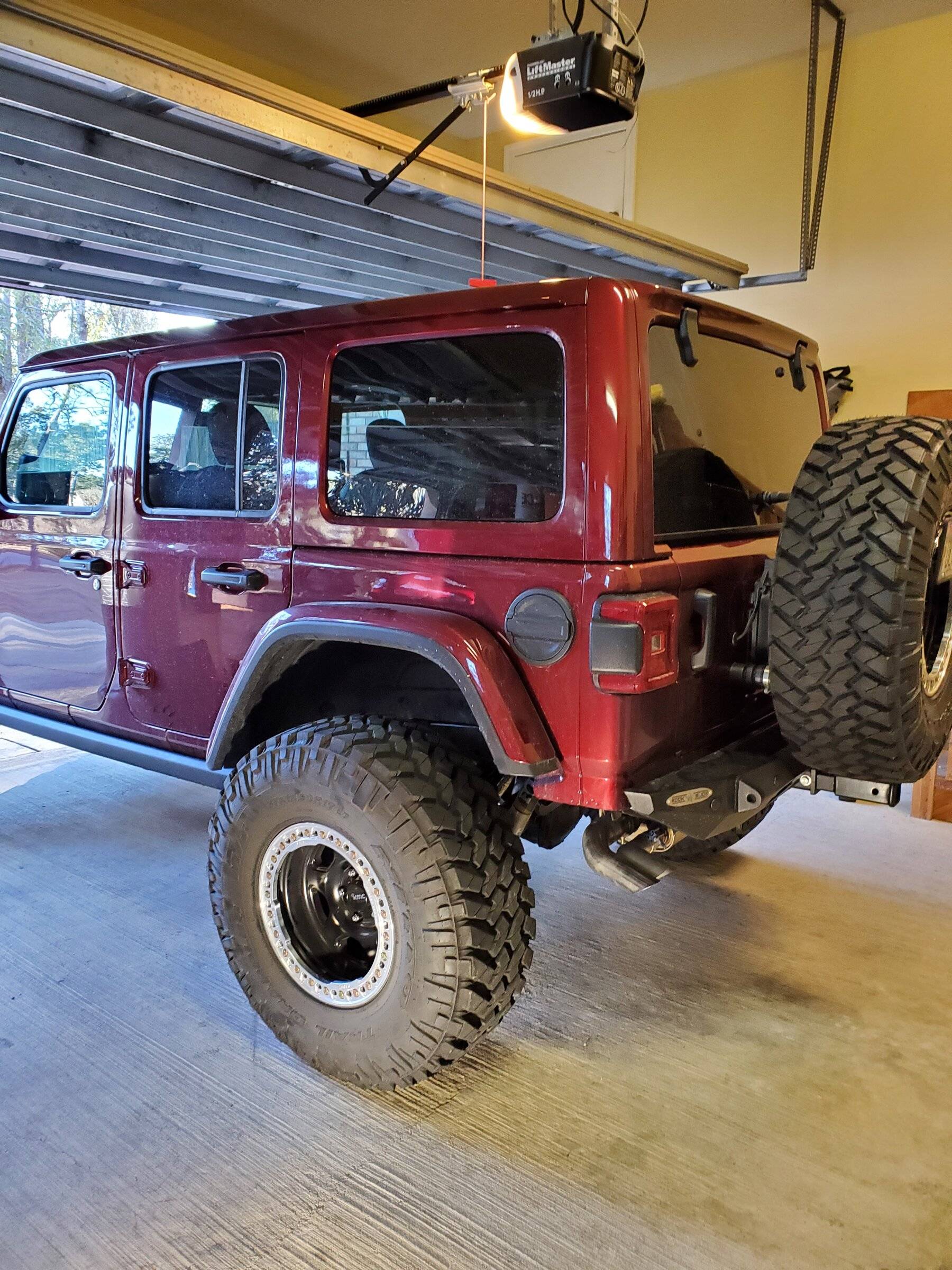

Actually yes. I knocked it out Saturday. I am really happy with the overall height. I have not driven it yet becuase it needs shock extensions to work well. I was hoping to drive it before going deeper down the rabbit hole, but the stock shocks ( which i really like) are too short to even drive on the street. I dont want to clog up this thread with my frankenlift, so i will put more detail and better pics in my build thread. Teraflex 2" front, 1.5" rear, mopar 24.25 lcas and teraflex 2" bumps.

Have you measured your height at every corner? I'm gonna do something similar tomorrow, probably 1" all around but I'm considering doing 1" up front and 1/2" in the rear.



[TheBirdie72]

AEV 3" HD spring dual rate lift. I added a 3/4" spacer up front to eleminate the rake. 38x13.50s. It drives great and still fits in a standard garage.

Jedi force-operated winch?



[Daywalker78]

Decided to do a Teraflex 1" spacer up front, and stacked two of the 1/2" spacers in the rear. Paired that up with some Falcon 3.3s, I dig it.
