ARB Compressor with MORE mount write-up

  1. Mrbiggerstaff

    Mrbiggerstaff Member

    First Name:
    Ben
    Vehicle(s):
    ‘18 JLU Rubicon
    Joined:
    Oct 22, 2018
    Location:
    Boise
    Posts:
    15
    Liked:
    2
    This would be simple. Aux 1 sending 40 Amps to the pressure switch wouldn’t be a prob? And nothing needed with the blue pressure switch wire?

  2. OP
    OP
    TroyBoy

    TroyBoy Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2018 JLUR
    Joined:
    Jun 14, 2017
    Location:
    Parksville
    Posts:
    954
    Liked:
    842

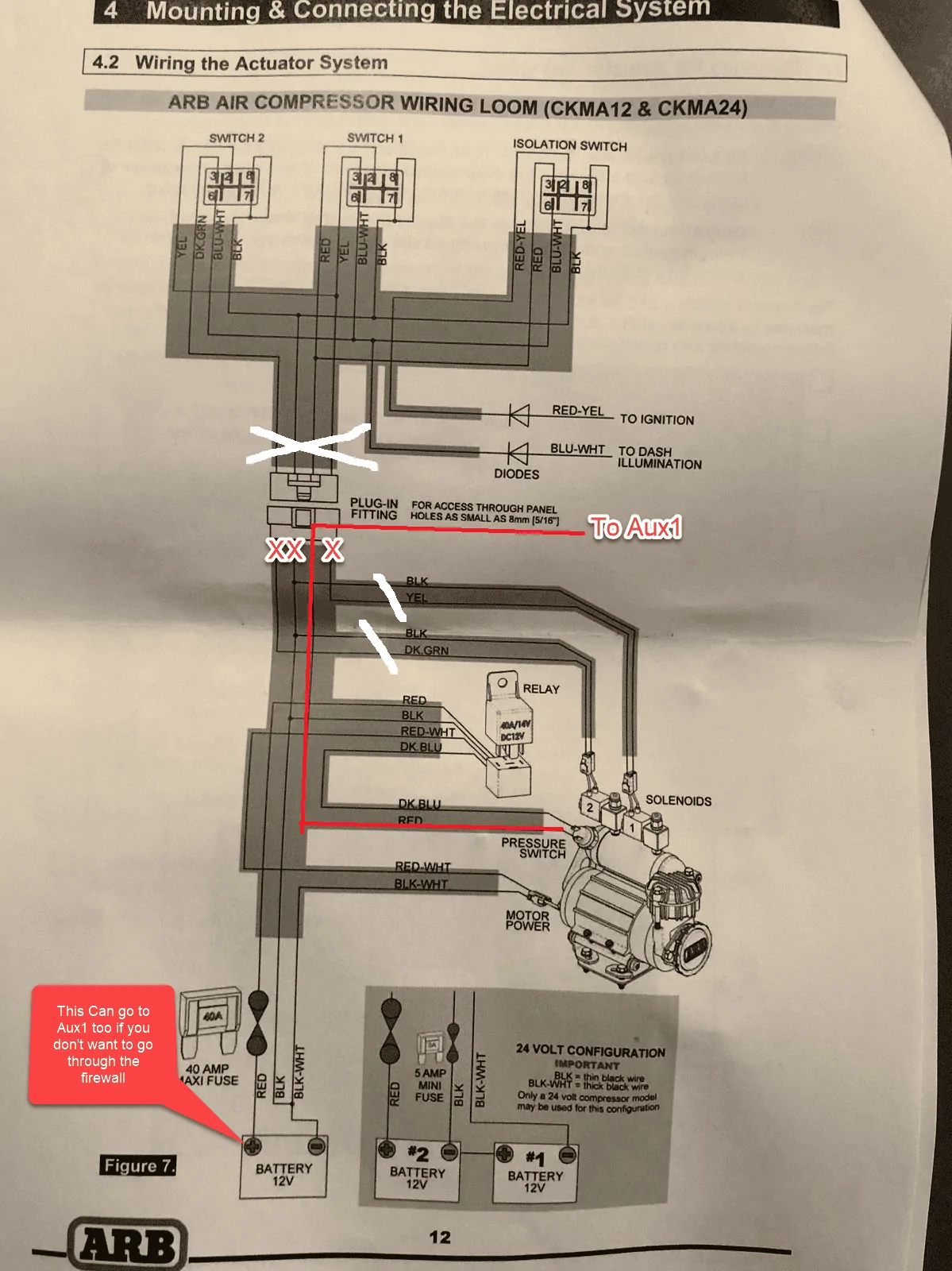

    The dark blue from the pressure switch and the relay is still needed. The red and dark blue trigger the relay and allows power from the battery to get to the compressor motor.

    Edit: and it is not sending 40 amps to the pressure switch/relay. It draws only what is needed to flip the relay. Probably less than 1amp.

    Mrbiggerstaff likes this.
  3. Mrbiggerstaff

    Mrbiggerstaff Member

    First Name:
    Ben
    Vehicle(s):
    ‘18 JLU Rubicon
    Joined:
    Oct 22, 2018
    Location:
    Boise
    Posts:
    15
    Liked:
    2
    There’s the small black coming out of the relay also. Do I need to rewire that back in and ground it or no?

  4. OP
    OP
    TroyBoy

    TroyBoy Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2018 JLUR
    Joined:
    Jun 14, 2017
    Location:
    Parksville
    Posts:
    954
    Liked:
    842
    Yes. All the wires for the relay need to be used.

    Mrbiggerstaff likes this.
  5. Mrbiggerstaff

    Mrbiggerstaff Member

    First Name:
    Ben
    Vehicle(s):
    ‘18 JLU Rubicon
    Joined:
    Oct 22, 2018
    Location:
    Boise
    Posts:
    15
    Liked:
    2
    It works! All wired to Aux 1. Didnt go to battery at all. Thanks for the visual and help.

    TroyBoy likes this.
  6. Mrbiggerstaff

    Mrbiggerstaff Member

    First Name:
    Ben
    Vehicle(s):
    ‘18 JLU Rubicon
    Joined:
    Oct 22, 2018
    Location:
    Boise
    Posts:
    15
    Liked:
    2
    That worked. Thanks. Didn’t have to go to the battery. Red power wire and red pressure switch to the Aux 1. Ground and small ground from relay to same kick plate frame bolt.
    Wish I figured it out before cutting up the harness! But I learned a lot. Thanks.

    TroyBoy likes this.
  7. KinderMojo

    KinderMojo Member

    First Name:
    Adel
    Vehicle(s):
    Wrangler Jl Sport S. GMC Sierra, Mercedes G63
    Joined:
    Dec 17, 2018
    Location:
    United Arab Emirates
    Posts:
    23
    Liked:
    27
    Occupation:
    Engineer
    Firstly, thanks a lot for the write up, it helped a ton since the instructions from the MORE bracket were next to useless and there are no youtube videos up yet.

    I've done everything but need help with the switches. I wanted to use the switch on the bracket instead of using one of my AUX switches. I tested the compressor by connecting the purple plug to the aux switches and all worked fine but doesn't work with the arb switch on the mount. (I discarded the whole harness and only using the plug with the purple wire)

  8. OP
    OP
    TroyBoy

    TroyBoy Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2018 JLUR
    Joined:
    Jun 14, 2017
    Location:
    Parksville
    Posts:
    954
    Liked:
    842
    Hmm, going based on memory, it should be as simple as running your power source to the switch and then the other switch lead to the purple wire but I can’t remember what that switch looked like since I tossed it.

  9. KinderMojo

    KinderMojo Member

    First Name:
    Adel
    Vehicle(s):
    Wrangler Jl Sport S. GMC Sierra, Mercedes G63
    Joined:
    Dec 17, 2018
    Location:
    United Arab Emirates
    Posts:
    23
    Liked:
    27
    Occupation:
    Engineer
    Ya that's what I was guessing, does the power source come directly from the battery or can be from anywhere??

  10. OP
    OP
    TroyBoy

    TroyBoy Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2018 JLUR
    Joined:
    Jun 14, 2017
    Location:
    Parksville
    Posts:
    954
    Liked:
    842
    The power for the purple wire is low amp so it can come from anywhere. It’s just for flipping a relay inside the compressor.

  11. KinderMojo

    KinderMojo Member

    First Name:
    Adel
    Vehicle(s):
    Wrangler Jl Sport S. GMC Sierra, Mercedes G63
    Joined:
    Dec 17, 2018
    Location:
    United Arab Emirates
    Posts:
    23
    Liked:
    27
    Occupation:
    Engineer
    Thanks a lot, tested everything out and worked perfectly, now just need to finish up..
