My DIY Portable ARB Air Compressor

Berserker

New Member
Joined
Nov 29, 2017
Messages
1
Reaction score
2
Location
Overland Park, KS
Vehicle(s)
2020 Jeep Wrangler Rubicon Unlimited
Hello, fellow adventure travelers. Below is a quick overview of my portable ARB air compressor build. I've had this compressor for eight years and it was hard-mounted in my first two Jeeps. On my third build, I wanted a customizable solution wherein my Jeep isn't always burdened with my off-road gear. This Jeep is my daily driver and I keep weight down when possible. In seven years I never needed my compressor outside of trips. My motivation for doing this is I don't have to keep buying vehicle-specific compressor mounts when I change rigs and can hand it off to a fellow traveler.

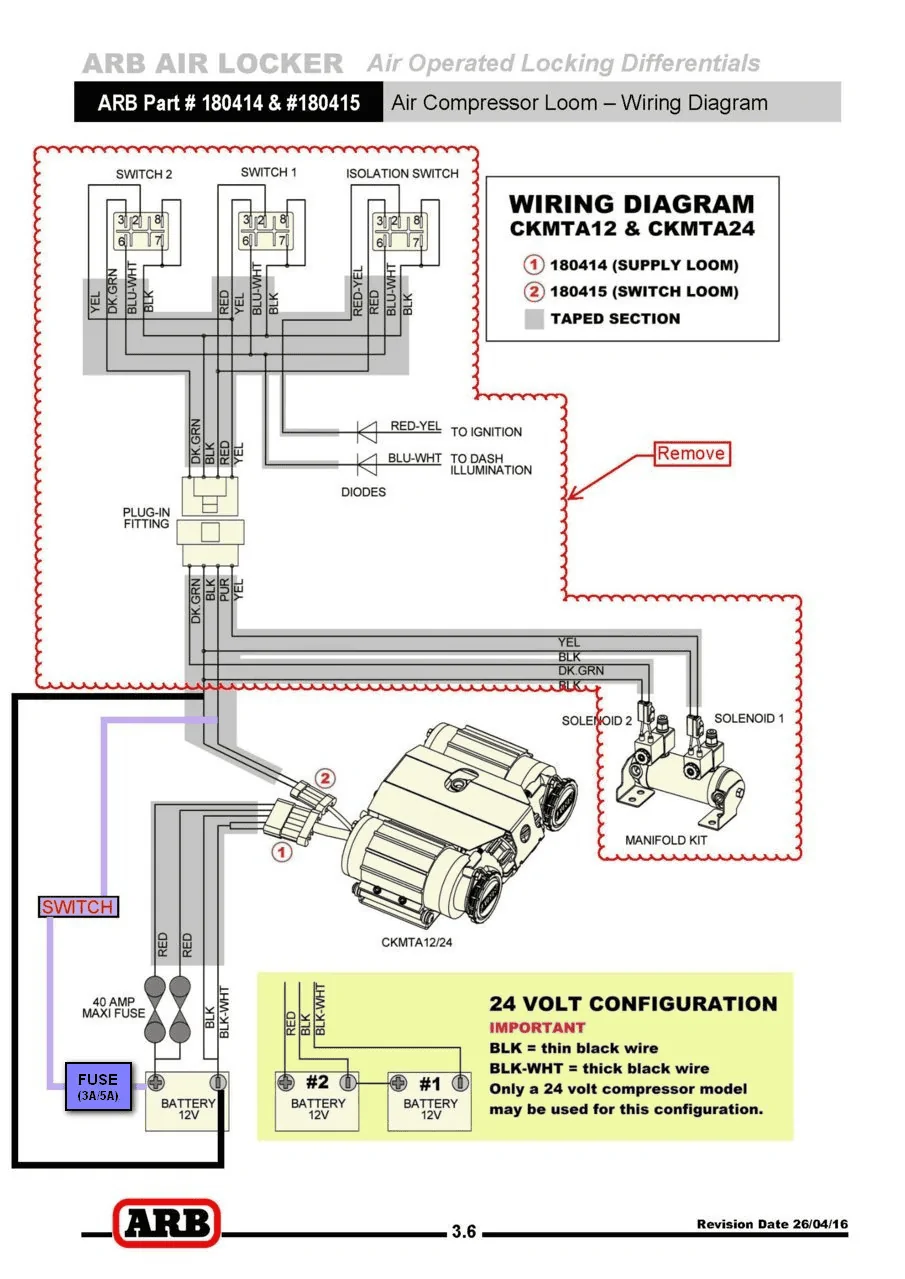

In the video, I briefly discuss the build and how you can duplicate it. The video also includes how I modified the ARB wiring harness with a diagram.

I used a Zarges K470 case.

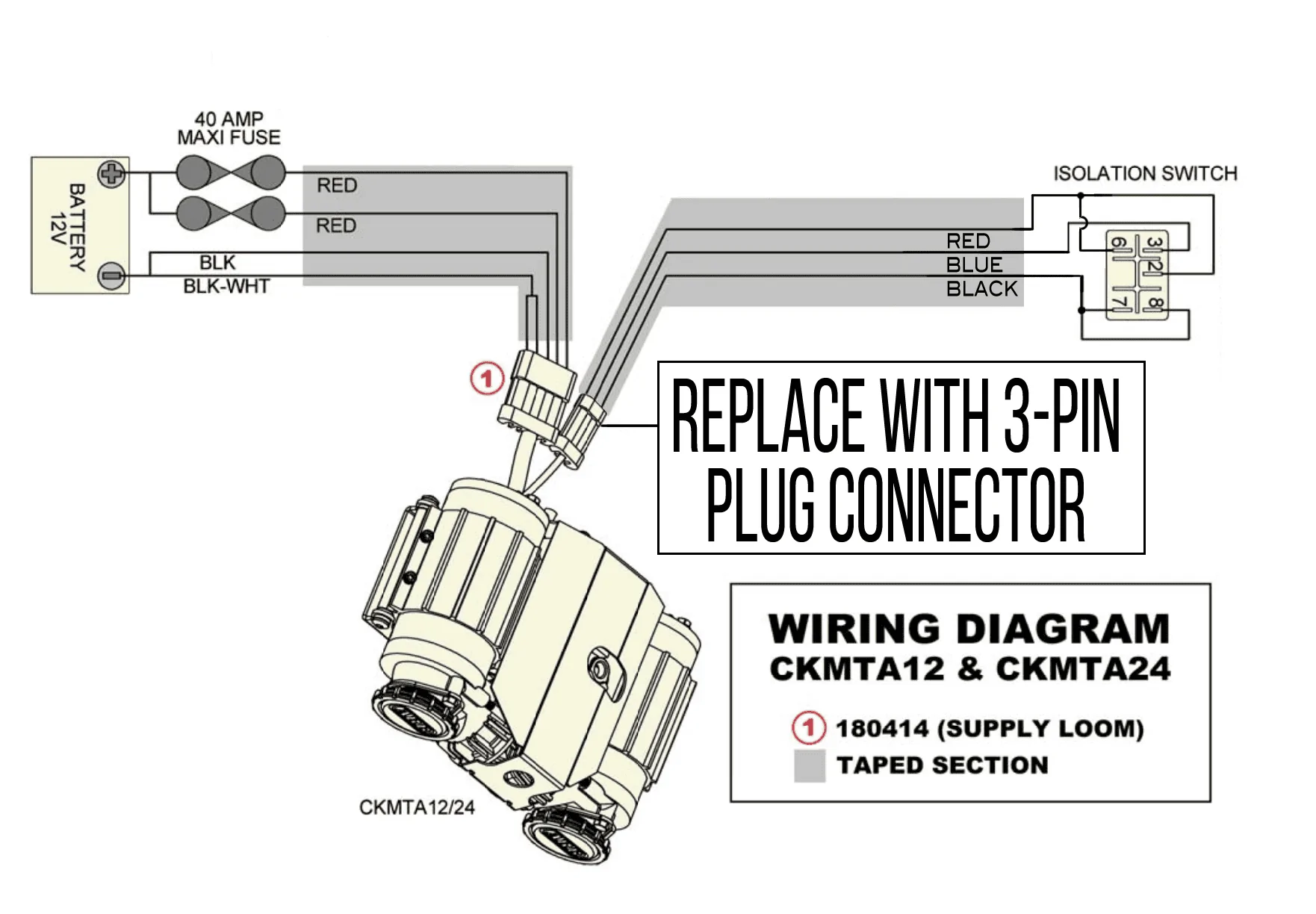

Here's my wiring diagram:
ARB Dual Compressor Wiring Schematic.png


SwissSteph

Well-Known Member
First Name
Steph
Joined
Oct 29, 2019
Messages
223
Reaction score
141
Location
Switzerland
Website
www.swissjeepjl.com
Vehicle(s)
JL Wrangler Rubicon - Hella Yella - 2.2 Diesel
Vehicle Showcase
1
Thank you for your sharing and Schematic wirring. :like:


vhfan5150

Well-Known Member
First Name
Sean
Joined
Feb 15, 2018
Messages
190
Reaction score
267
Location
Cincinnati
Vehicle(s)
Bright White JLU Rubicon
Vehicle Showcase
1
Love the photobomb at the beginning of your video! I am just waiting to pull the trigger on a compressor. Still trying to tell myself to buy once/cry once with an ARB instead of a Smittybilt.
