2 door subwoofer wire locations?

[cosmokenney]

Does anyone have a picture, or know which color wires go to which connector on the subwoofer speaker? This is the factory in-floor subwoofer. I had to pull the grille off and remove a whole bunch of caked on dog hair and mud. It would not come out with a blast of air from the compressor. It was in clumps and wouldn't break down.

So, to my surprise, I found four pairs of wires connected at the 12, 3, 6 and 9 o'clock positions on the speaker. I popped them all off and then realized that the grill was going to take some extra work to get off of the speaker itself. By the time I had the grille off, my memory of the wire locations was gone :-(

I've looked at the wiring diagrams on this site and did not see any location specified.

Sponsored



[cosmokenney]

Anyone have any idea on this?



[AnnDee4444]

I can't help with the wiring color vs. location, but I do know this sounds like a dual voice coil subwoofer & 2-channel amplifier.

Edit: apparently not. According to Crutchfield "Wrangler 2-door: The Wrangler’s 8", quad-voice coil (2 ohms per voice coil) sub is located under the cargo area floor."



[AnnDee4444]

Maybe the wire colors/locations are similar to a 4-door subwoofer (or even the JK in-floor sub).

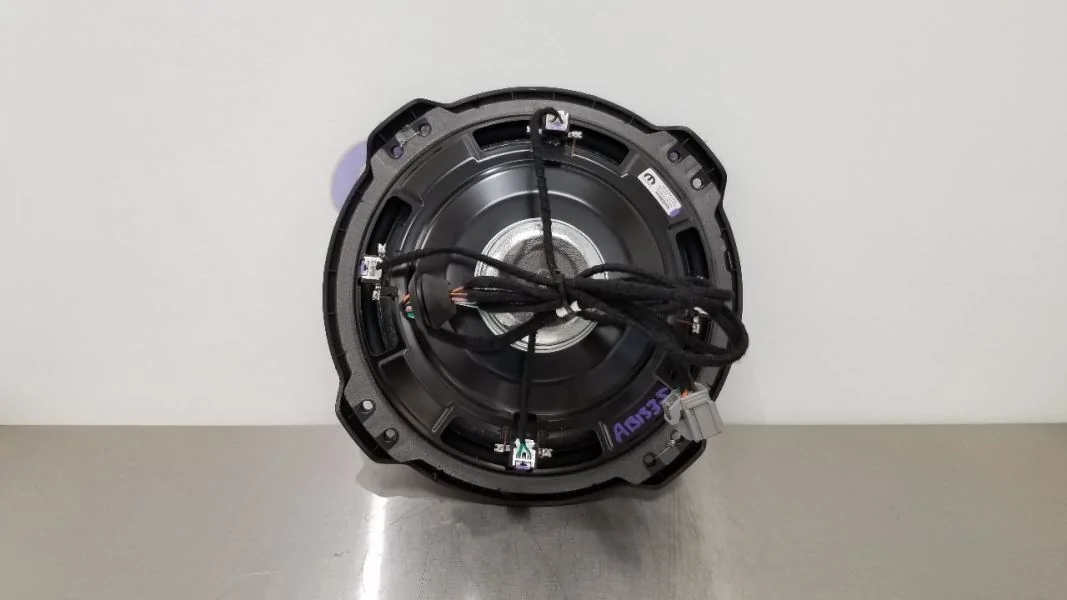

4-door JL:



[cosmokenney]

Maybe the wire colors/locations are similar to a 4-door subwoofer (or even the JK in-floor sub).

4-door JL:

That does look similar.



[AnnDee4444]

That does look similar.

Can you take a photo of the back of the subwoofer? I can't find any photos online.



[cosmokenney]

Can you take a photo of the back of the subwoofer? I can't find any photos online.

Yea, but its going to have to wait until the weekend. I have a storage box in place of the rear seat that I have to remove before accessing the sub.



[AnnDee4444]

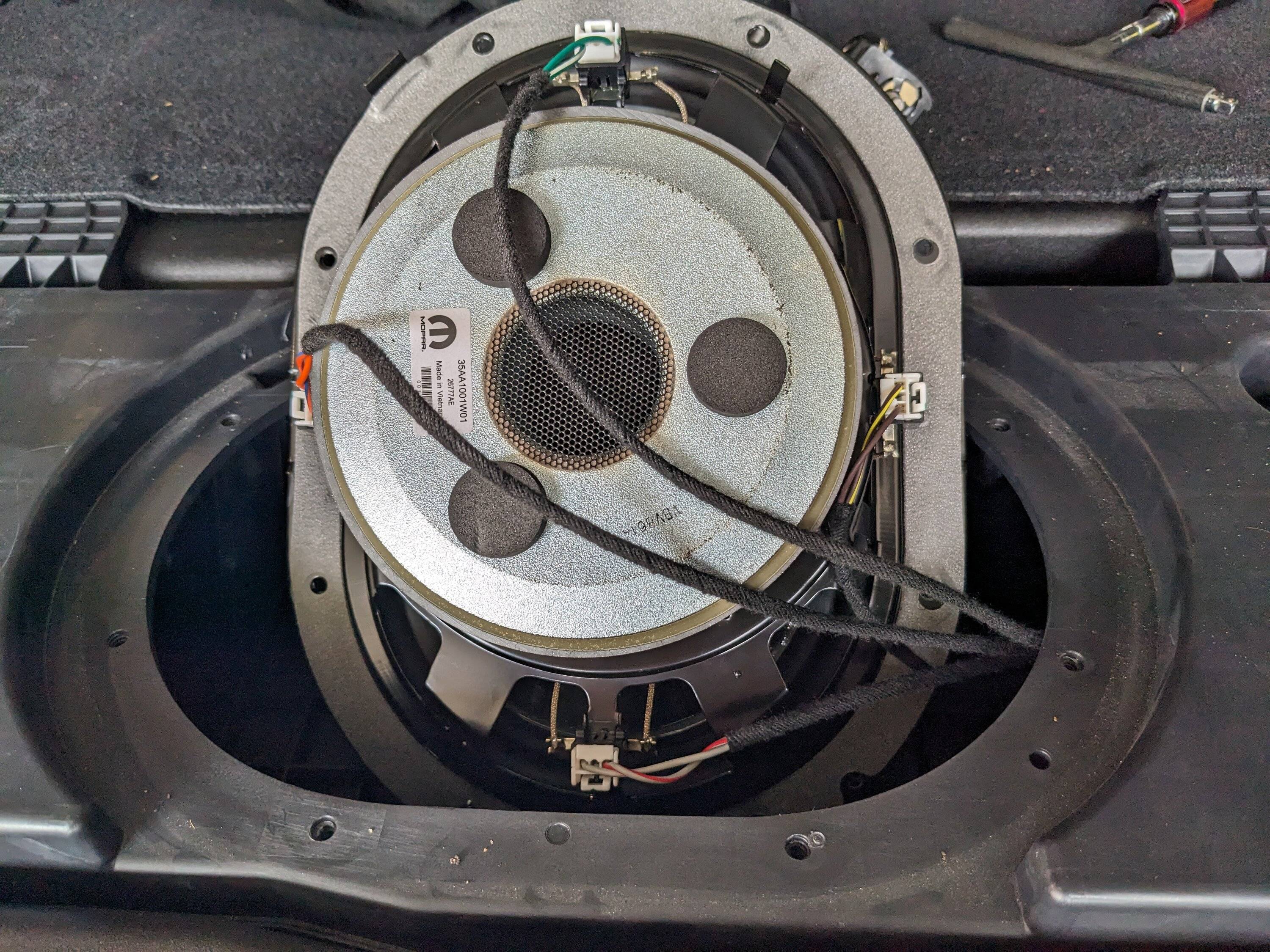

Following up on the wire color/locations. The Mopar sticker on the back of the magnet goes towards the front of the vehicle when installed. Due to the length of wires, it's easiest to position it with the sticker on the drivers side (like the photo below)

Wire color	Final installed location
Orange/Blue	Front
Green/White	Passenger
Brown/Yellow	Rear
Red/Gray	Driver

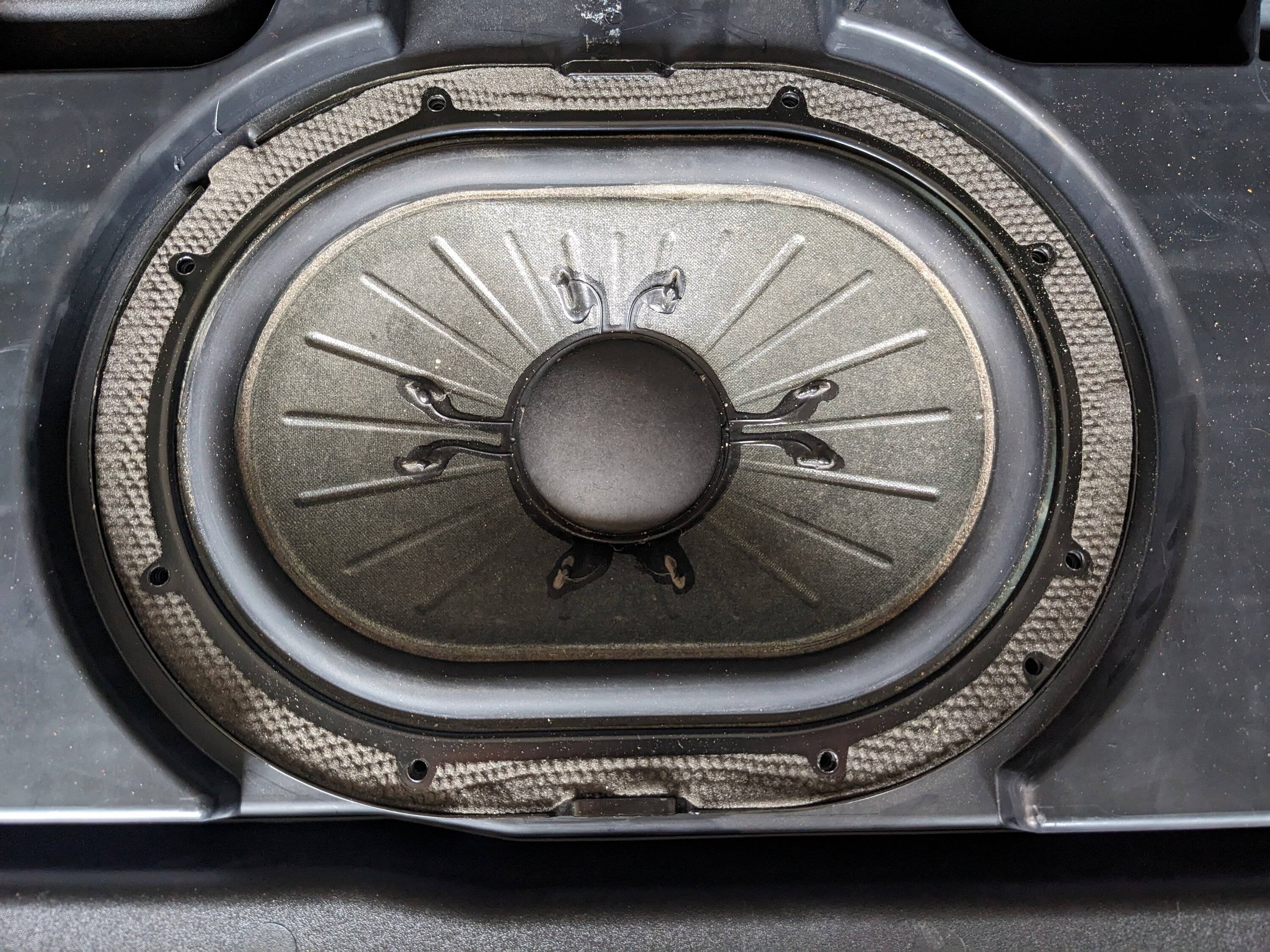

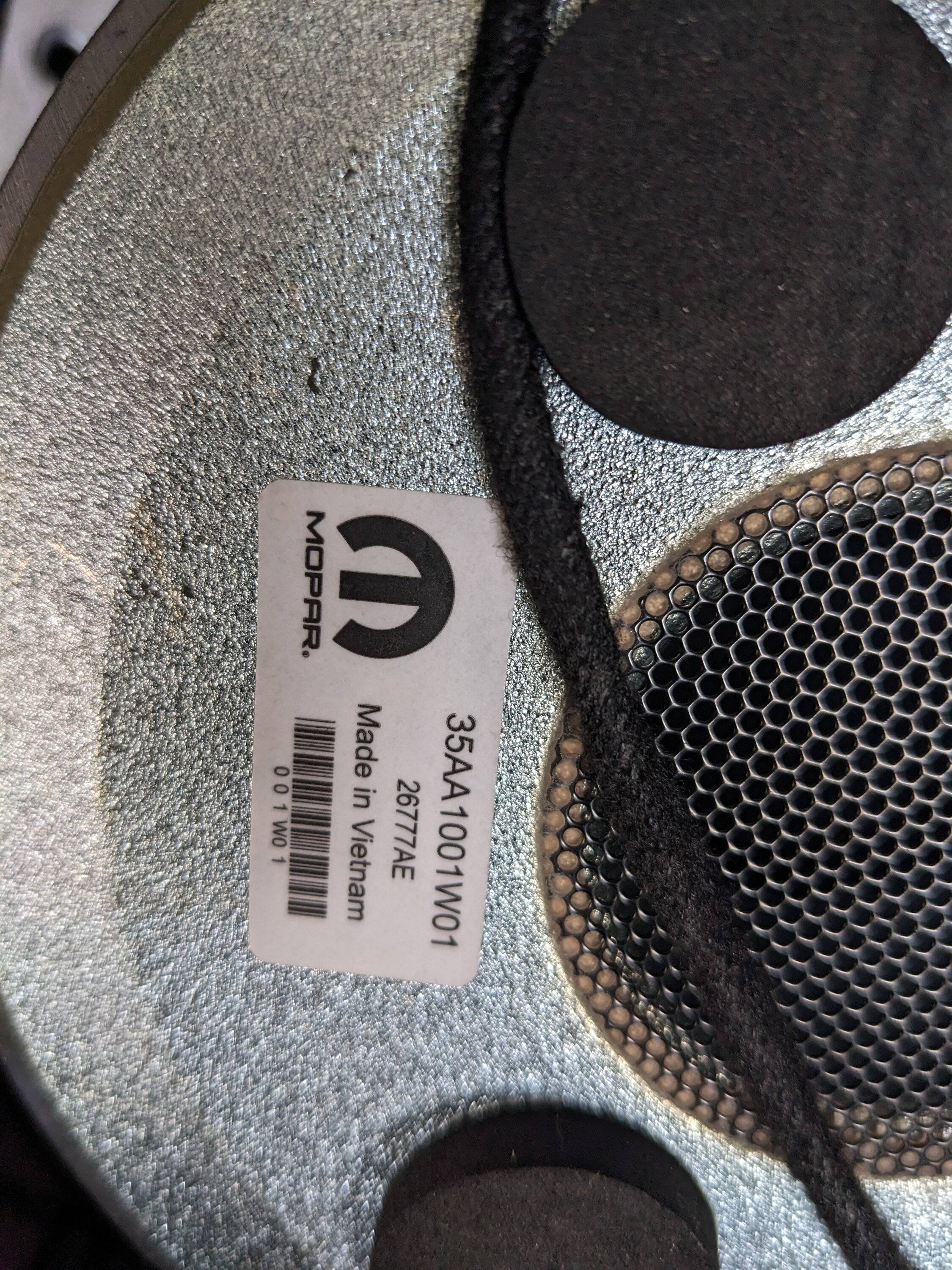

For anyone searching in the future the numbers on the sticker are 35AA1001W01 & 26777AE. The magnet has VBV8614 printed on it also.



[AnnDee4444]



[cosmokenney]

Following up on the wire color/locations. The Mopar sticker on the back of the magnet goes towards the front of the vehicle when installed. Due to the length of wires, it's easiest to position it with the sticker on the drivers side (like the photo below)

Wire color	Final installed location
Orange/Blue	Front
Green/White	Passenger
Brown/Yellow	Rear
Red/Gray	Driver

For anyone searching in the future the numbers on the sticker are 35AA1001W01 & 26777AE. The magnet has VBV8614 printed on it also.
