Tilting cargo shelf

[ElDoc72]

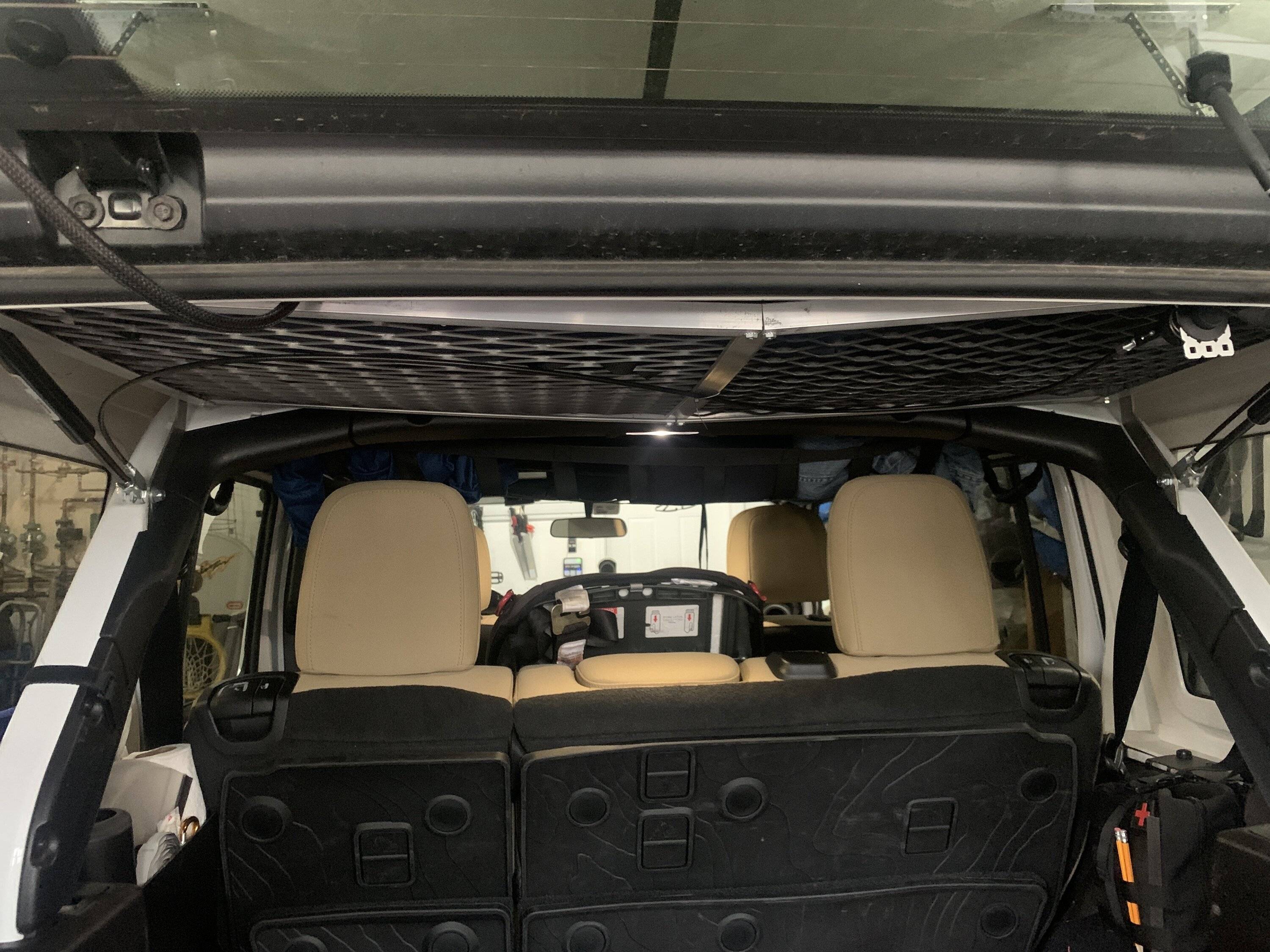

After couple of months of design, building and gathering components, I finally installed a tilting cargo shelf in the back of my jlu.
I was inspired by a design I saw somewhere else in this forum.

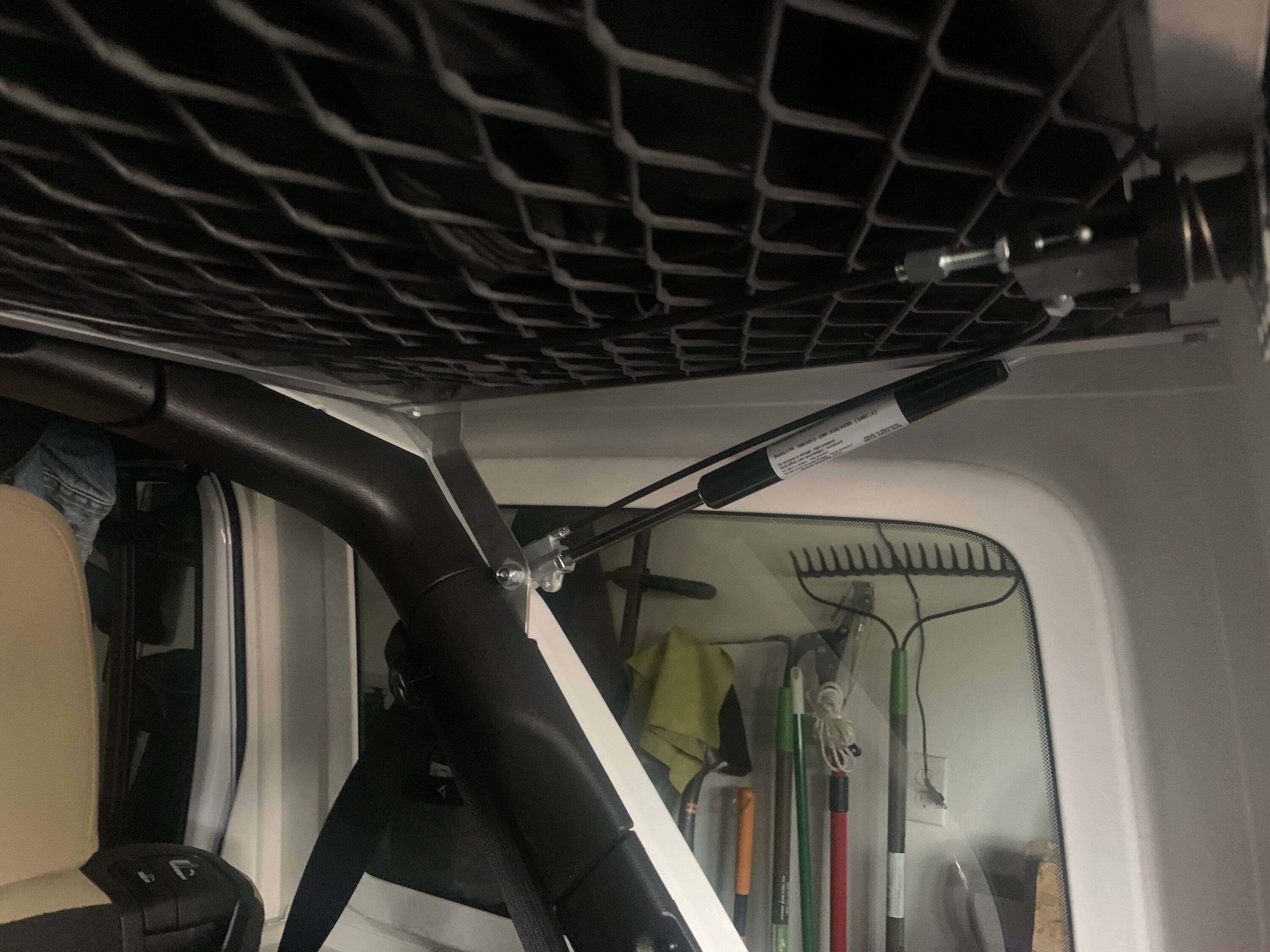

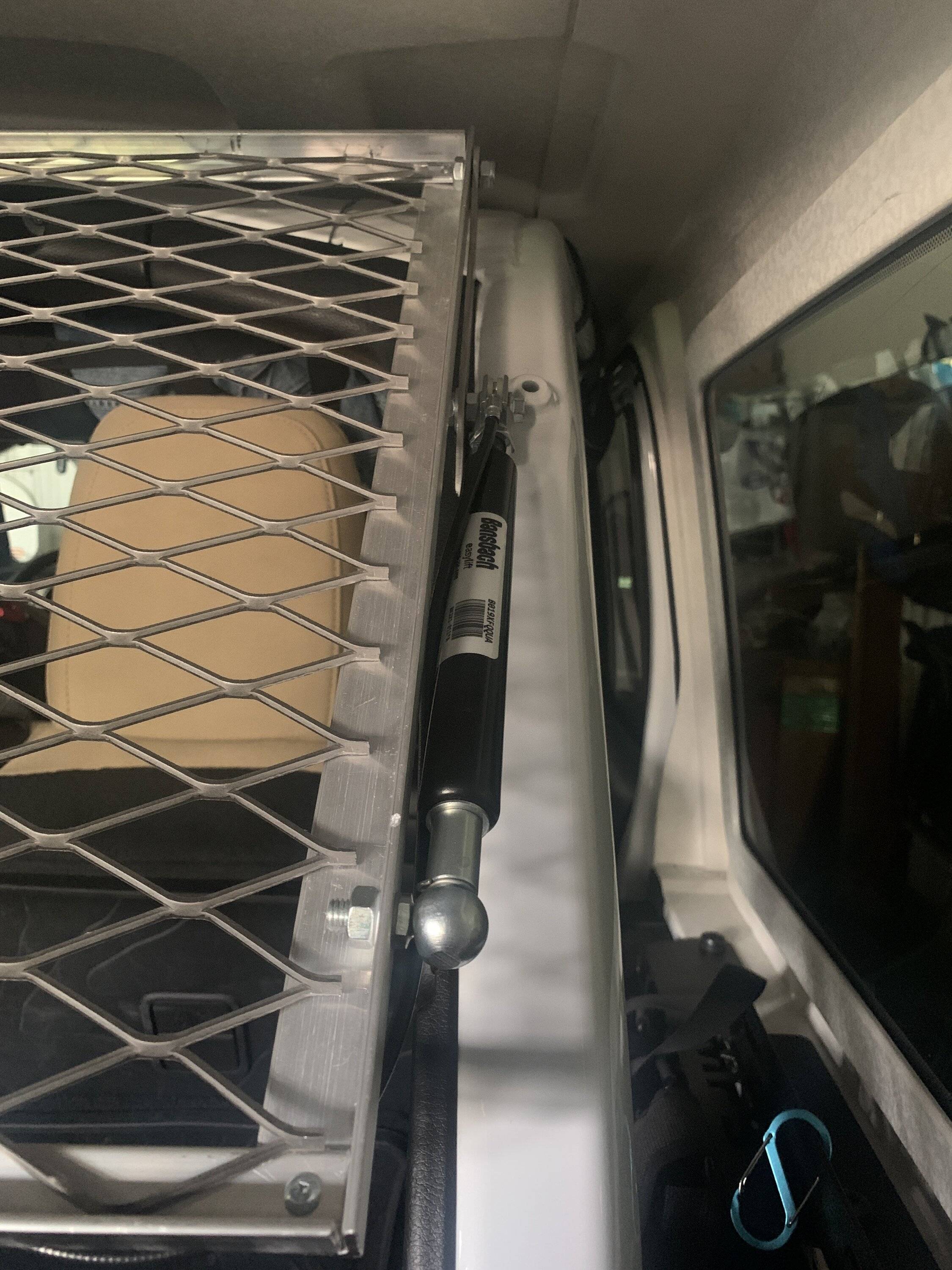

I used sendcutsend.com to fabricate the support brackets that bolt on to the roll bar. In Amazon I found lockable gas springs to allow the shelf to tilt down for loading and unloading while allowing it to stop anywhere along the way.

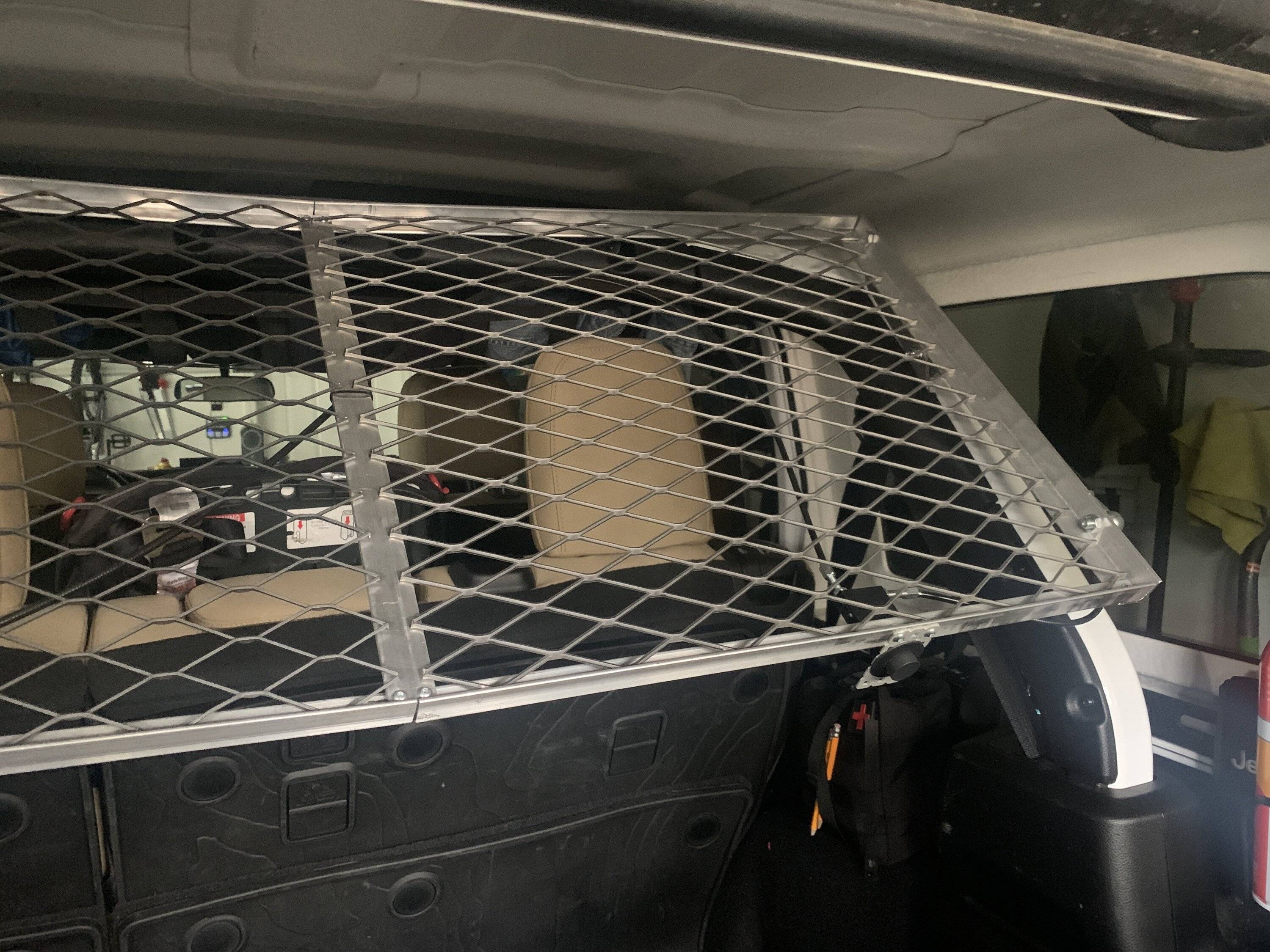

Finally, since I couldn’t find a cheap aluminum tray or cargo rack to reuse, I ordered regular aluminum angle stock and expanded steel sheet to make the shelf. I still need to do some welding for strength, but bolts would do for now.

Sponsored



[Recoil]

Interesting idea. What do you plan to carry on it? I assume the point is to tilt it up and out of the way when empty?



[ElDoc72]

Interesting idea. What do you plan to carry on it? I assume the point is to tilt it up and out of the way when empty?

Right now I put there the freedom panel bag, a camping table and chairs. It keeps all that up and out of the way.



[ChuckQue]

Huh. That’s pretty nifty. I like the idea of using it to store your freedom panels. Let us see some more photos once you get it welded up!



[Qurtyslyn]

Nice, I've had the same idea floating around in my head as well. Looking to build it this summer.



[Beachcomber72]

After couple of months of design, building and gathering components, I finally installed a tilting cargo shelf in the back of my jlu.
I was inspired by a design I saw somewhere else in this forum.
I used sendcutsend.com to fabricate the support brackets that bolt on to the roll bar. In Amazon I found lockable gas springs to allow the shelf to tilt down for loading and unloading while allowing it to stop anywhere along the way.
Finally, since I couldn’t find a cheap aluminum tray or cargo rack to reuse, I ordered regular aluminum angle stock and expanded steel sheet to make the shelf. I still need to do some welding for strength, but bolts would do for now.

Looking forward to a complete write up.



[manapiko]

Nice work!
