I decided to make my own, usually not a good thing,

I went to my welding/manufacturing shop I use and told them what I wanted.

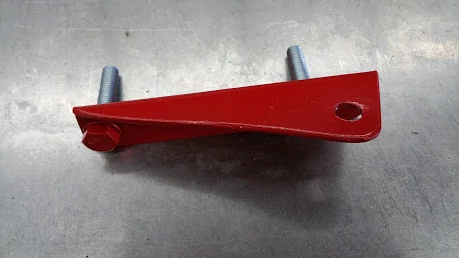

This is what we came up with:

1UqCVH5yAfk1oR9QaYzbwmxB8ko0j7Q3ACxqqMvCRBVsibzl_bEFQFjEGk9agqZUKB9Tt1JXf1ftBSj1gBE=w459-h258-no.jpg


M6fgO5xVqdKYTbaA4RE6f9I_CDtjOj0viL3-6-MvDv4pVV03aiFfJjQi3ZMPAWTwX3iwv9OqDZsmkJG8u5c=w534-h949-no.jpg


A5tzysVrG5c7_QCSlyG6eNXYBZvHCvSYHBxzJ8bPgKLgk4X4tJUVvObBHX6oinvQKuIak1p903RDGPnK3PA=w534-h949-no.jpg


I had it powder coated to match the red accents of the Rubicon.

It grounds to the tailgate so an easy mount.

It looks good and has room for my 37's when I jump.......... LOL
I know I am late to the party but what size bolts did you use and what size holes did you drill


PaPasJP

Well-Known Member
First Name
David
Joined
Dec 20, 2017
Messages
525
Reaction score
620
Location
Gainesville, FL
Vehicle(s)
2018 JLUR
Occupation
Retired
Vehicle Showcase
1
No drilling, used the same diameter bolt just longer.


BostonBilly

Well-Known Member
First Name
Billy
Joined
Dec 18, 2017
Messages
1,248
Reaction score
2,582
Location
Mass
Vehicle(s)
2015 JKU
No drilling, used the same diameter bolt just longer.
Yup meant the holes in your bracket. Just looking to see what diameter bolt I need. 5/16 or 3/8


PaPasJP

Well-Known Member
First Name
David
Joined
Dec 20, 2017
Messages
525
Reaction score
620
Location
Gainesville, FL
Vehicle(s)
2018 JLUR
Occupation
Retired
Vehicle Showcase
1
Sorry, I don't remember.

Just took the old bolt out and found one with the same threads, longer, and a drill that covered it.


Trav.city

Well-Known Member
First Name
Rich
Joined
Aug 25, 2018
Messages
313
Reaction score
209
Location
Michigan
Vehicle(s)
2018 Wrangler Unlimited JL Rubicon
Occupation
Sales Manager
Vehicle Showcase
1

Aclud4

Well-Known Member
First Name
Al
Joined
Jun 23, 2018
Messages
109
Reaction score
87
Location
NJ
Vehicle(s)
2018 JLUS
Ok @CoolTech I’ve done quite a bit of reading on the forums tonight and placed my order. Hopefully Cali shipping makes it all the way to the east coast fast, I’m heading back to Rausch this weekend!

Thanks for participating here on the forums!

-AL


CoolTech

Well-Known Member
Rock Sponsor (Level 1)
First Name
Kendall
Joined
Feb 5, 2018
Messages
272
Reaction score
464
Location
Santa Clarita, CA
Vehicle(s)
2018 Rubicon
Giddy up, Al! Our tracking shows that it made it to your front porch yesterday. We now want to see it all installed before the end of the weekend!


Aclud4

Well-Known Member
First Name
Al
Joined
Jun 23, 2018
Messages
109
Reaction score
87
Location
NJ
Vehicle(s)
2018 JLUS
Giddy up, Al! Our tracking shows that it made it to your front porch yesterday. We now want to see it all installed before the end of the weekend!
You rock, it arrived yesterday and will have me ready for the weekend! Thanks again for the quick ship and quality product!


Aclud4

Well-Known Member
First Name
Al
Joined
Jun 23, 2018
Messages
109
Reaction score
87
Location
NJ
Vehicle(s)
2018 JLUS

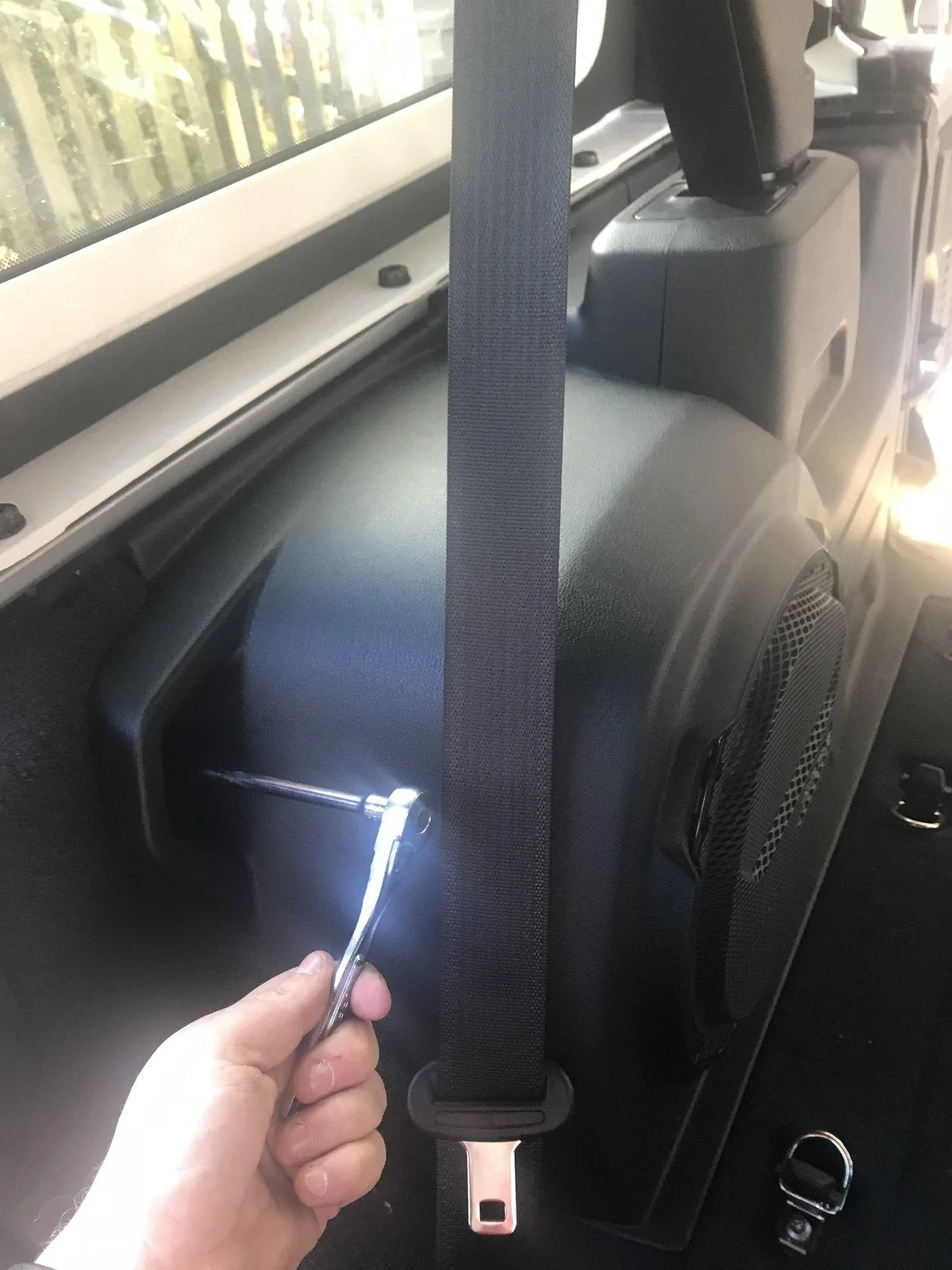

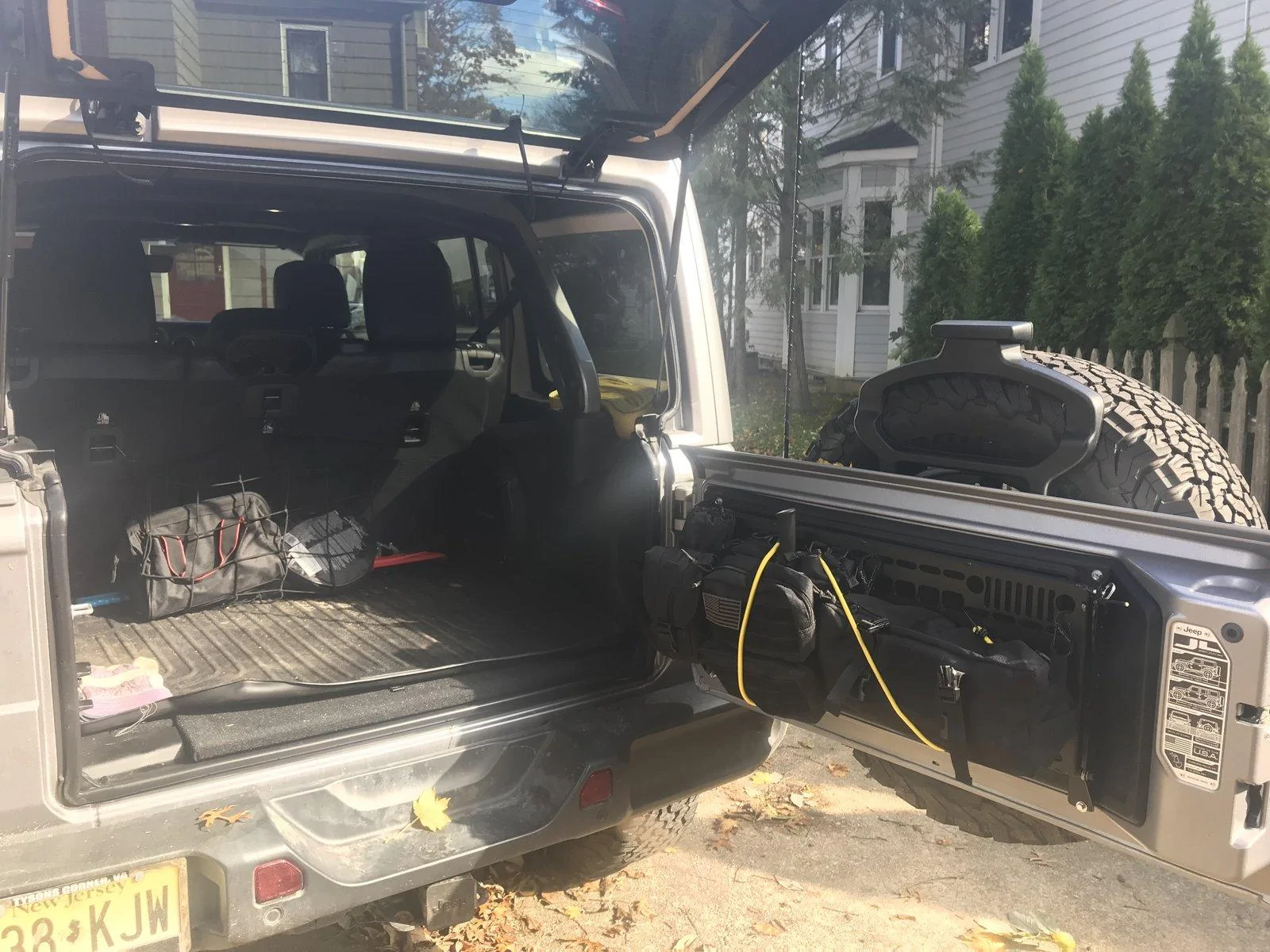

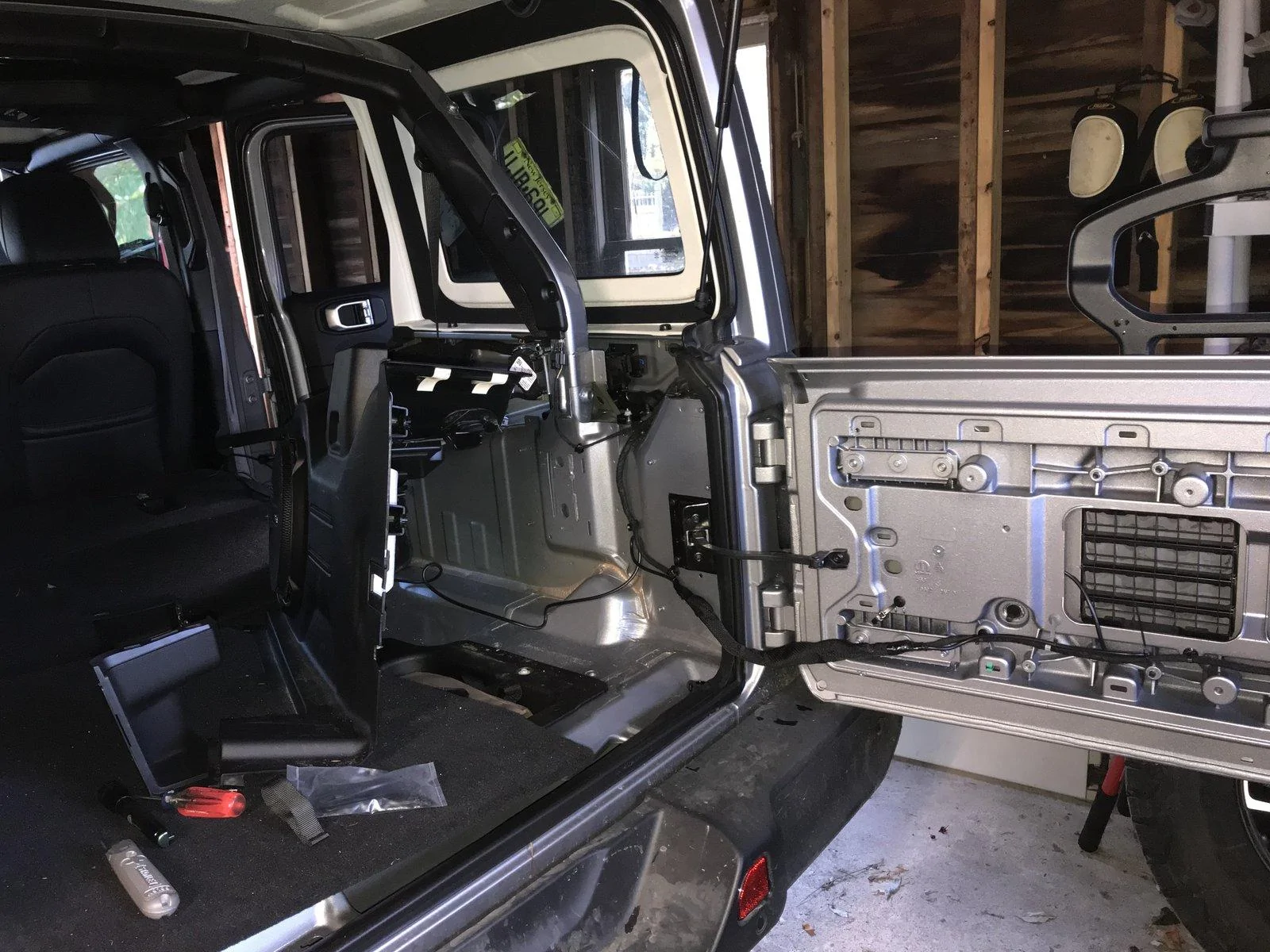

Thanks to @RogueKJ for the video of his install. Mine went smoothly - only differences are I also needed a T20 for a screw on the panel with the subwoofer and I used a T30 to remove the tie downs to make sliding the panel out a little easier for me.

Got my little midland 75-822 tuned as best I could in crowded NJ and was able to talk clearly with someone about 5 miles away.

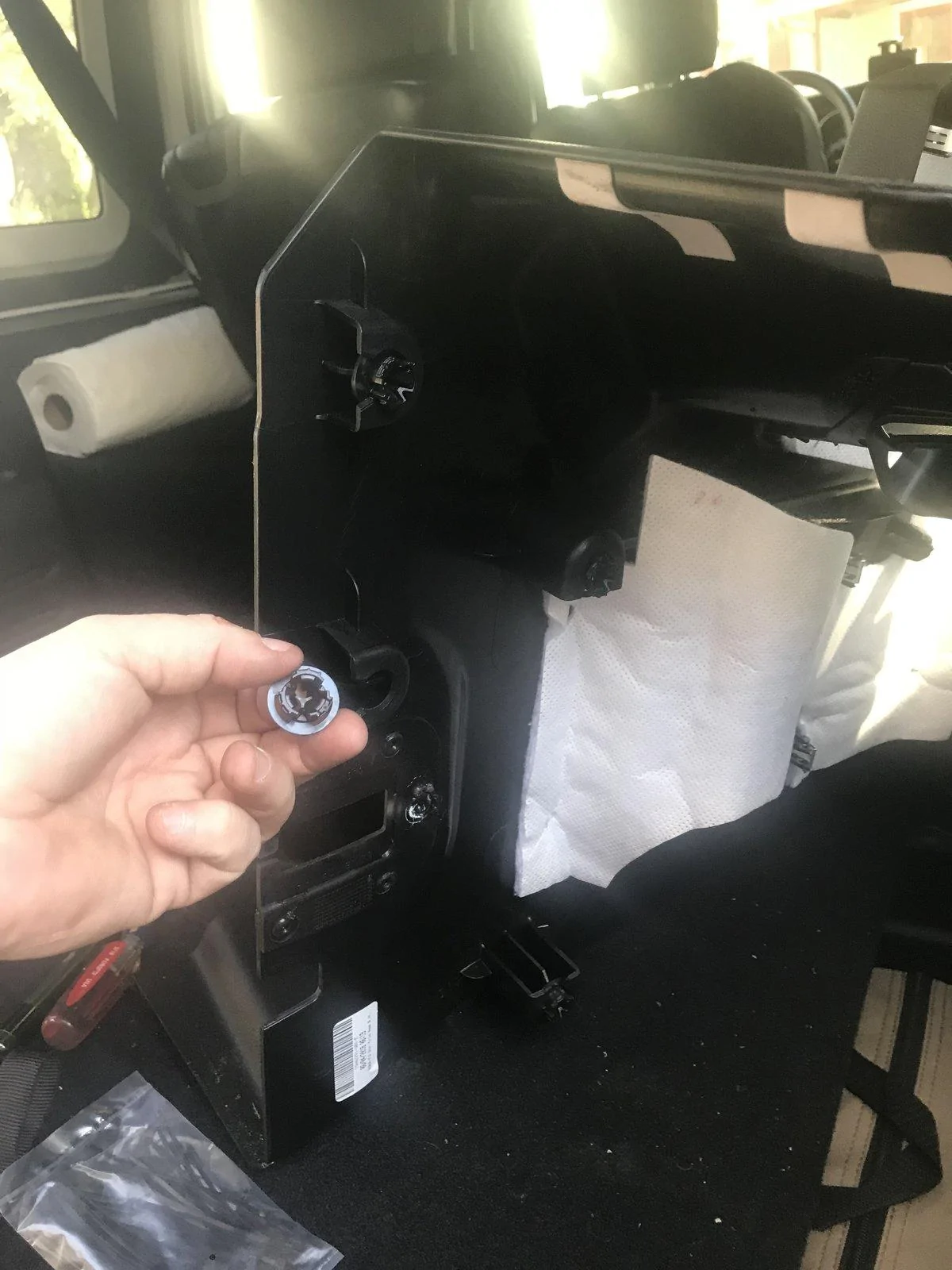

The panel has nice little plastic inserts that clip to the body, so don’t be afraid to crank on it to remove. The plastic insert just pops back in (seen in a pic below).

Thanks again @CoolTech for the quality product and quick shipping all the way from the left coast!

-AL





Jeep Generation

Well-Known Member
First Name
Kevin
Joined
May 12, 2018
Messages
1,285
Reaction score
3,149
Location
San Dimas CA
Website
www.youtube.com
Vehicle(s)
2018 JLU Rubicon, 2014 JK Willys, 1999 TJ Sport, 1966 CJ5-A
Thanks to @RogueKJ for the video of his install. Mine went smoothly - only differences are I also needed a T20 for a screw on the panel with the subwoofer and I used a T30 to remove the tie downs to make sliding the panel out a little easier for me.

Got my little midland 75-822 tuned as best I could in crowded NJ and was able to talk clearly with someone about 5 miles away.

The panel has nice little plastic inserts that clip to the body, so don’t be afraid to crank on it to remove. The plastic insert just pops back in (seen in a pic below).

Thanks again @CoolTech for the quality product and quick shipping all the way from the left coast!

-AL



Glad the video helped. :)


Andras

Active Member
First Name
Andras
Joined
May 25, 2018
Messages
36
Reaction score
24
Location
07047
Vehicle(s)
Land Rover LR4, Jeep Wrangler JL
would the steel rear bumper work better for ground plane?


Fuel Fire Desire

Well-Known Member
Joined
Feb 17, 2018
Messages
324
Reaction score
334
Location
Michigan
Vehicle(s)
2018 JLU Sport S, 2020 JT Sport
would the steel rear bumper work better for ground plane?

No.


An electrical ground and a ground plane are two different things. Think of a ground plane as a "mirror" for RF. The ground plane is what the antenna uses to "push off" of to emit RF efficiently. Ideally, the ground plane should have a radius of 1/4 the wavelength of the frequency used. Being wranglers don't have a metal roof, the only perpendicular sheet metal that can be used as an efficient ground plane is the hood. CB is also in the 11m bandwidth, which means 1/4 wave antennas and ground planes are impractically large. This is why the "ideal" CB antenna is a 102" stainless whip, since 102" is 1/4 the wavelength of the median of the CB band (26.965 MHz to 27.405 MHz).

BUT.....having a CB antenna mounted in the center of the hood looks dumb. Which is why I mounted mine in place of the factory AM/FM antenna. Thats "the best we can do" with what we have without looking ridiculous.

Keep in mind though, this ground plane stuff is for peak radio efficiency. A CB antenna mounted on the tailgate is still going to emit RF, though instead of it shooting off 4-7 miles, it will probably just flounder around within 1-2 miles. Still more than enough for trail rides and talking to other jeeps in a caravan.


https://www.electronics-notes.com/a...rthing/antenna-ground-plane-theory-design.php



I don't remember if I brought this up in this thread or not, but there are more efficient and compact means of comms. I have both a CB and a UHF/VHF rig in my jeep. The CB will reach about 4-5 miles with my "ideal" setup, 1:1 SWR, 4' stick antenna, and full legal 4 watts. My UHF/VHF mounted in the same location but opposite the CB antenna reaches 40 miles straight line on 25 watts, and 140 miles when using a large repeater (or to any telephone using an autopatch capable repeater). AND the signals are much cleaner, with less static, and never get clogged up with skip talkers in competition with one another to drown the other out with amplified rigs. A basic UHF/VHF radio costa about the same asa decent CB, but lets you get into a multitude of freq bands. HAM, FRS (the cheap handheld talkie radios), GMRS (the nicer talkie/ business radios), marine, and any emergency service that doesn't use a trunked or encoded system.

The catch is you have to be licensed to use it....but the written test for Technician class is not hard, and its just a pay-to-play license for GMRS ($25 I think). And everyone and their brother has a CB, where not everyone has a UHF/ VHF.

I always have both on and monitoring when Im driving around, and typically use the CB for local (within 4 miles) alerts on the highway and the UHF/VHF for regional (the repeater on top of the GM building in Detroit has coverage from Toledo to Flint) and the traffic on these bands are WAY more professional/ helpful than CB traffic.
