Having a really hard time opening the ODBII “locking tabs on both sides”. I’ve tried small screwdriver and dental pick but I’ve only put several gashes in the plastic tabs but they remain closed. What is the trick here? Can I just shove #1 and #9 in without opening the locking tabs?
Are you doing it in the right place? they open easily. The lock is a flap cover that sits in the middle of the connector from plug end to wire insertion end. If you look at the sketch in the instructions it is much better than you would initially think. the flap or door is about 1/4in in size and covers most of the width of the connector. It opens from the plug end; hinge on the wire insertion end. I'll see if I can find a photo to help. I don't have my jeep w/ me today

I know I struggled trying to figure out where the locking flap was that had to be opened.

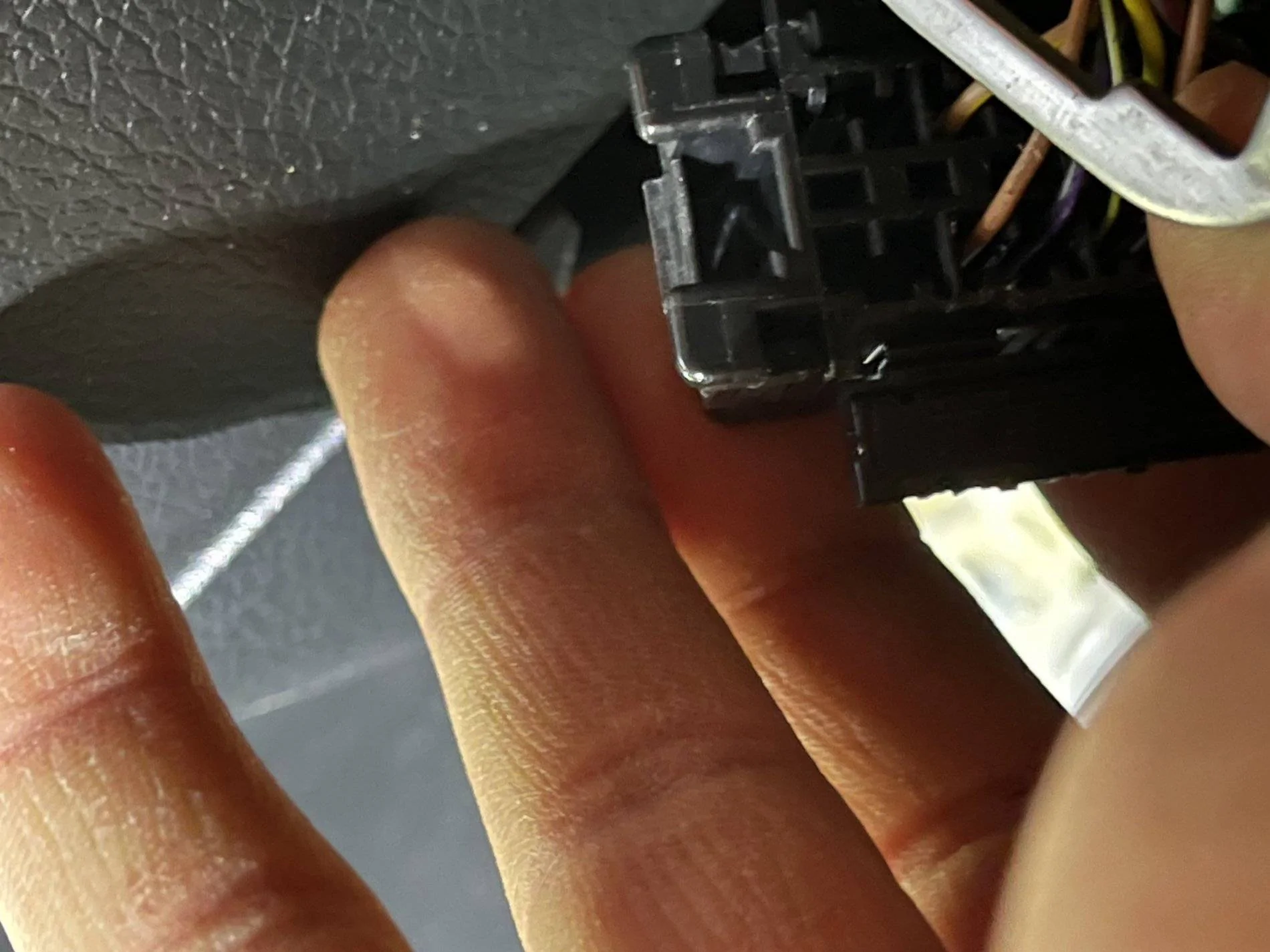

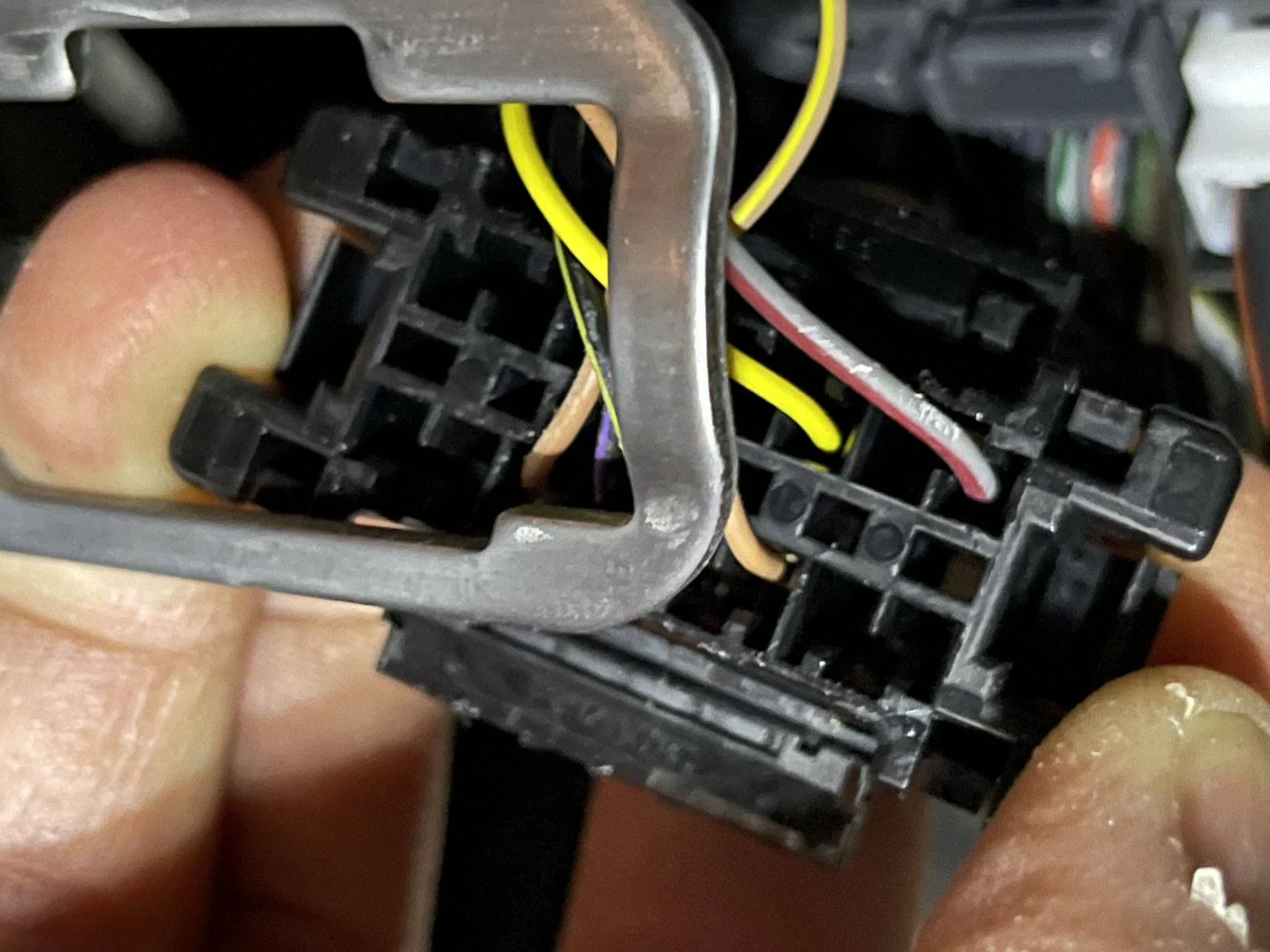

update. I took some pics(not very good ones) of the back of the connector trying to see the #s printed on it. But you can see the doors/flaps open in these pics if that helps you identify where they are. They’re on the top/bottom of the connector and the front/back wouldbe the plug and wire ends. These aren’t the most helpful pics, but maybe they’ll be just enough to help you figure it out.





shane340

Member
First Name
Shane
Joined
Jan 21, 2021
Messages
7
Reaction score
12
Location
Milwaukee
Vehicle(s)
JLR
Are you doing it in the right place? they open easily. The lock is a flap cover that sits in the middle of the connector from plug end to wire insertion end. If you look at the sketch in the instructions it is much better than you would initially think. the flap or door is about 1/4in in size and covers most of the width of the connector. It opens from the plug end; hinge on the wire insertion end. I'll see if I can find a photo to help. I don't have my jeep w/ me today

I know I struggled trying to figure out where the locking flap was that had to be opened.

update. I took some pics(not very good ones) of the back of the connector trying to see the #s printed on it. But you can see the doors/flaps open in these pics if that helps you identify where they are. They’re on the top/bottom of the connector and the front/back wouldbe the plug and wire ends. These aren’t the most helpful pics, but maybe they’ll be just enough to help you figure it out.



Thanks! I was able to get it using a dental pick I picked up from the toothpaste aisle in Target! The problem was that I was picking at the far sides/ends of the locking tabs/flaps. Once I pushed the pick in the next groove over from the end the pick was able to hook in and snap it open. I still got some gashing in the plastic but nothing is broken. I finished the install pretty quickly after that and got my tire size set and tpms lowered to 30 psi. Thanks for the pictures.

If you could take a picture of where you hooked your screwdriver/pick that'd be great. My location worked but I wouldn't say that it "opened easily", so I may have been using the wrong or less optimal location.


Bandana

Well-Known Member
Joined
Sep 19, 2017
Messages
220
Reaction score
351
Location
Los Angeles, CA
Vehicle(s)
18 JLUR
Having a really hard time opening the ODBII “locking tabs on both sides”. I’ve tried small screwdriver and dental pick but I’ve only put several gashes in the plastic tabs but they remain closed. What is the trick here? Can I just shove #1 and #9 in without opening the locking tabs?
I used a small nail from a picture hanging frame kit. Good luck
