Need help installing AEV PROCAL SNAP

[sarum87]

for those of you that have installed this Procal, hoping you can help me figure out how to identify the right holes on the back of the ORBI connector to plug in the two terminals of the harness.

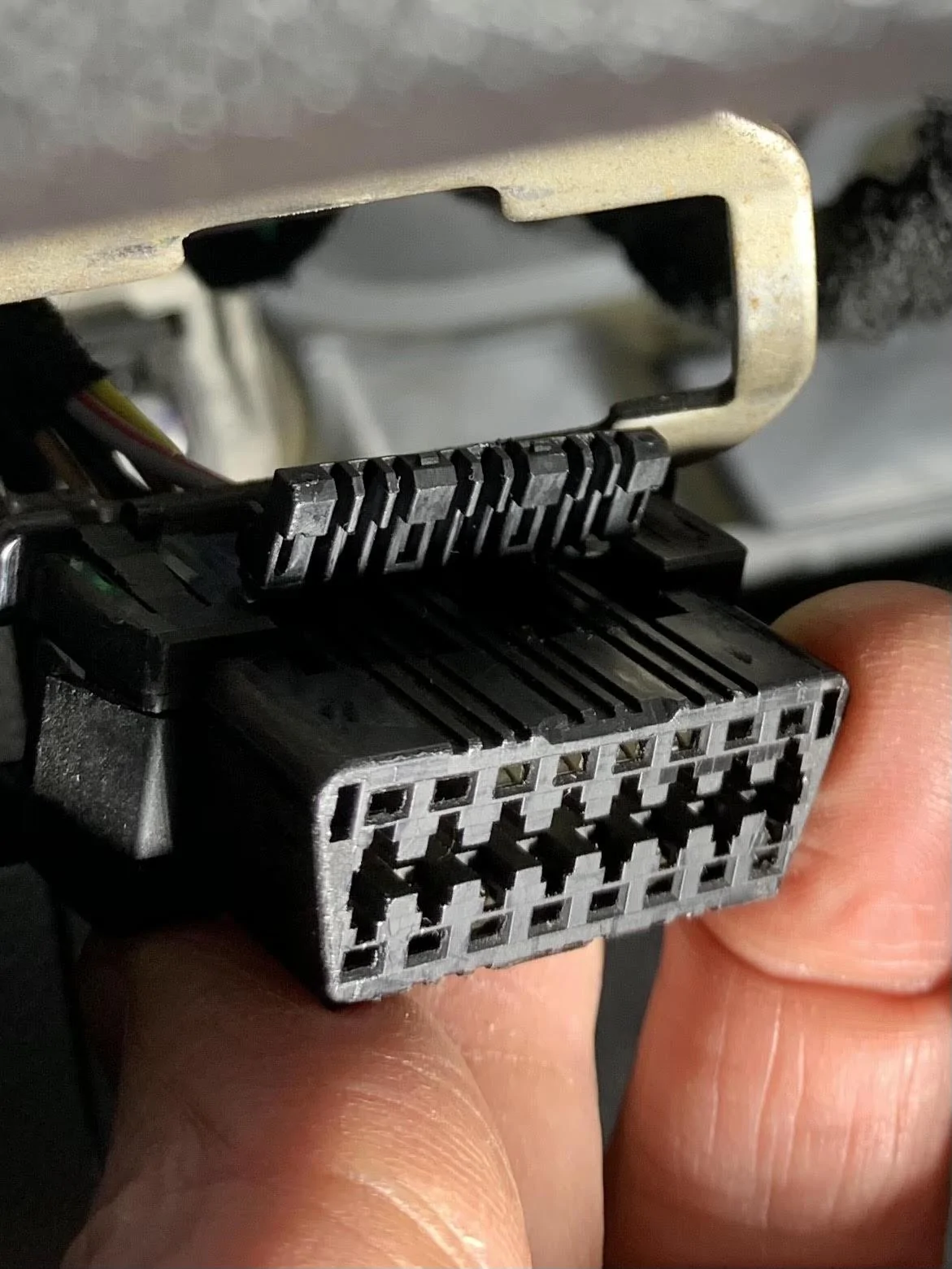

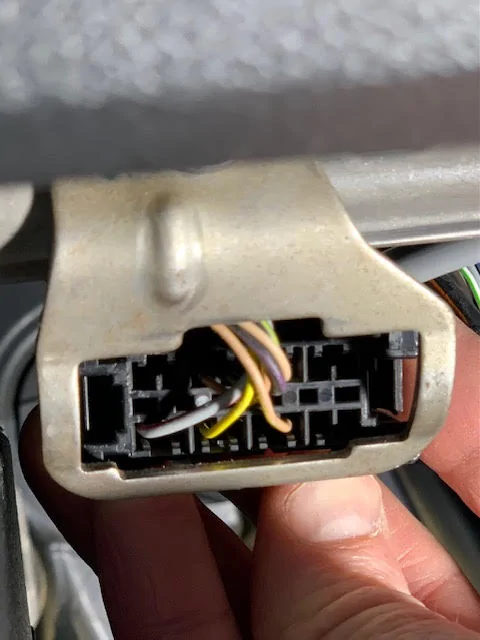

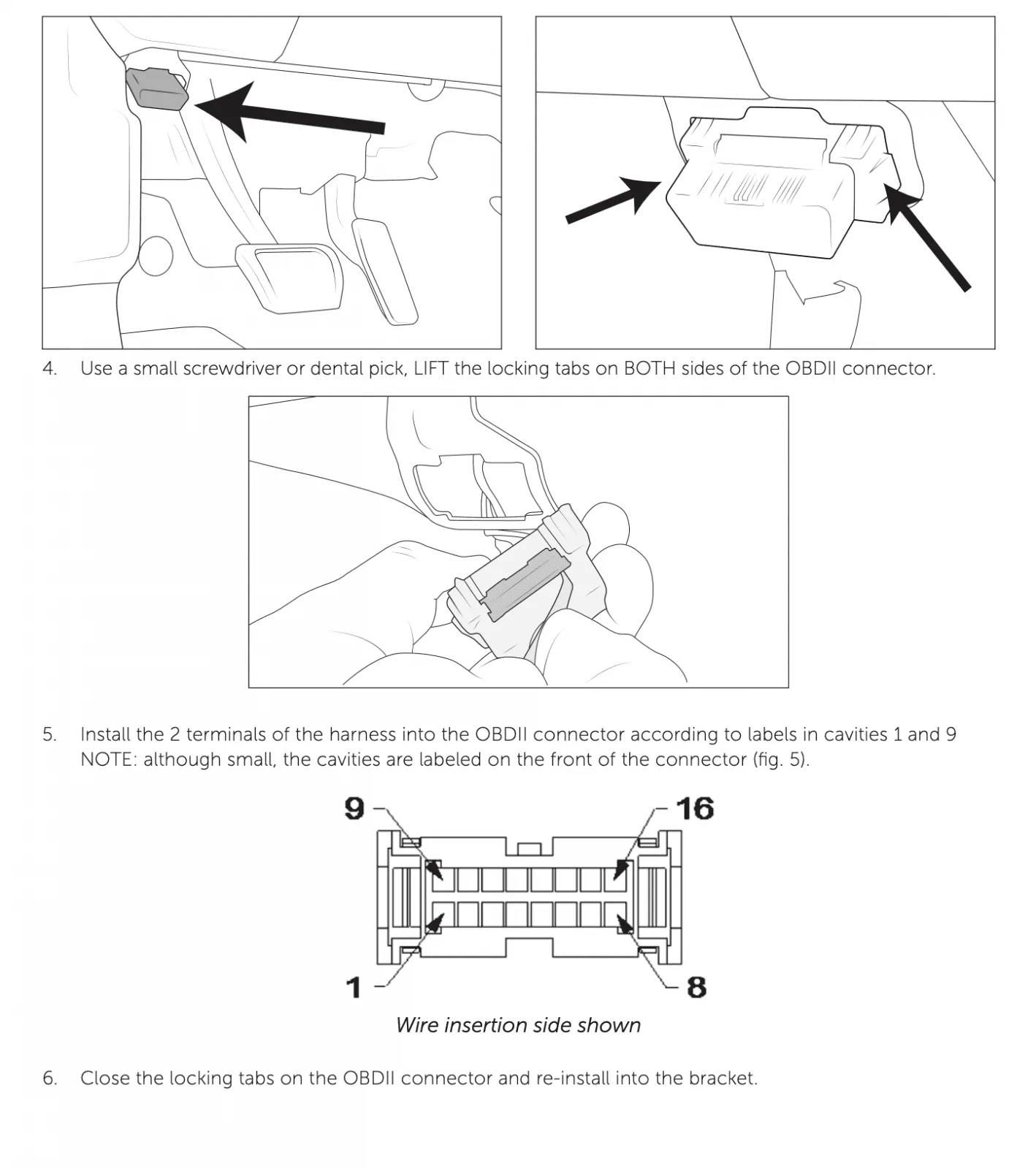

As you can see in the screen shot of the instructions, I need to put terminal 9 and 1 into the left side of the back of the ORBI connector. See the picture of the back of the ORBI connector that I took. Do I need to just flip the ORBI around so that the 9 and 1 hole are on the left? I'm stuck on the instructions and having a hard time determining which holes on the back of the ORBI I should be using.

Thanks!

Sponsored



[aldo98229]

I thought it went in only one way.



[xaugievike]

did you figure this out? Im doing this tomorrow. The way I read the directions you insert from the back side where the existing currently are.
