Adding Sun Sensor and In-Cabin Sensor for Auto A/C

jgdiablo

Well-Known Member
Joined
Jun 5, 2019
Messages
68
Reaction score
28
Location
Freehold, NJ
Vehicle(s)
2018 Wrangler Sport Unlimited - Ocean Blue Soft Top
Vehicle Showcase
1
Part ordered. I’ll try it out this weekend.
Parts arrived and after looking at that new wiring harness, it's, unfortunately, not what's needed. This is a HVAC harness, but I suspect the harness that connects the sun sensor, cabin temperature and C2 on the HVAC module is part of the 'Body' Wiring harness, rather than part of the HVAC harness. The trial failed...the part is being returned. We're now stuck...





Advertisement



El Zilcho

Well-Known Member
First Name
Max
Joined
Jul 21, 2019
Messages
218
Reaction score
81
Location
San Diego
Vehicle(s)
2018 JLU Sport
Parts arrived and after looking at that new wiring harness, it's, unfortunately, not what's needed. This is a HVAC harness, but I suspect the harness that connects the sun sensor, cabin temperature and C2 on the HVAC module is part of the 'Body' Wiring harness, rather than part of the HVAC harness. The trial failed...the part is being returned. We're now stuck...
As I understand its part of instrument panel wiring harness.


jgdiablo

Well-Known Member
Joined
Jun 5, 2019
Messages
68
Reaction score
28
Location
Freehold, NJ
Vehicle(s)
2018 Wrangler Sport Unlimited - Ocean Blue Soft Top
Vehicle Showcase
1
As I understand its part of instrument panel wiring harness.
Interesting....wonder how to confirm. A few of the discontinued variants (i.e. 68413040AD can be purchased for ~$125). It may be worth a trial...


El Zilcho

Well-Known Member
First Name
Max
Joined
Jul 21, 2019
Messages
218
Reaction score
81
Location
San Diego
Vehicle(s)
2018 JLU Sport
Interesting....wonder how to confirm. A few of the discontinued variants (i.e. 68413040AD can be purchased for ~$125). It may be worth a trial...
Just keep in mind there are more than 10 different part numbers for it depending on the options and 125 is really cheap.
Edit: Looking at sales codes it should have correct plugs. Really tempting as I need it to add heated seats and steering wheel.

Last edited:

jaj6127

Member
First Name
Jim
Joined
Feb 6, 2020
Messages
13
Reaction score
4
Location
Raleigh NC
Vehicle(s)
2019 JLU
Quick question, can a Flashcal work or is a Tazer JL needed??


scottedontknow

Well-Known Member
First Name
Scott
Joined
Sep 24, 2020
Messages
63
Reaction score
28
Location
PA
Vehicle(s)
89 YJ, 95 YJ, 2019 JLU x2
Theses are the times i really with i had a good friend that worked for Jeep lol. Im sure they have access to a BOAT load more then what they're telling us haha!


jaj6127

Member
First Name
Jim
Joined
Feb 6, 2020
Messages
13
Reaction score
4
Location
Raleigh NC
Vehicle(s)
2019 JLU
i apologize upfront for the dumb question. I have a 2019 JLU Sport with the 5" radio. I bought a 7" radio and the climate control unit. My Jeep has the sun sensor already. Does this need to be replaced with the new one that came with my unit?? Also the in cabin temp control piece would I have that already if I have the sport?? I purchased mine from Infotainment and it came with the sensors. Their support team told me I would not have to replace these two sensors and it should work properly. Im not too sure I am getting the right info. Im just trying to figure out exactly where to find the harness that I connect the in cabin sensor to. Thanks. I have never done this before but would like to do this install for myself and not have to hire someone to do it.


jgdiablo

Well-Known Member
Joined
Jun 5, 2019
Messages
68
Reaction score
28
Location
Freehold, NJ
Vehicle(s)
2018 Wrangler Sport Unlimited - Ocean Blue Soft Top
Vehicle Showcase
1
i apologize upfront for the dumb question. I have a 2019 JLU Sport with the 5" radio. I bought a 7" radio and the climate control unit. My Jeep has the sun sensor already. Does this need to be replaced with the new one that came with my unit?? Also the in cabin temp control piece would I have that already if I have the sport?? I purchased mine from Infotainment and it came with the sensors. Their support team told me I would not have to replace these two sensors and it should work properly. Im not too sure I am getting the right info. Im just trying to figure out exactly where to find the harness that I connect the in cabin sensor to. Thanks. I have never done this before but would like to do this install for myself and not have to hire someone to do it.
I believe everything you're asking about would be answered in this document: https://www.jlwranglerforums.com/forum/attachments/installing-sun-sensor-in-cab-sensor-pdf.298205/

First Name
David
Joined
Nov 9, 2020
Messages
16
Reaction score
1
Location
Milledgeville Ga
Vehicle(s)
2019 Jeep Wrangler Sport
This is the first write-up I've done here on the forums so feel free to message me if you have any questions. Ever since Joe added the ability to turn on Automatic Climate Control for those who upgraded to the 7-inch UConnect, there's been many of us who wondered how we could add the missing sensors to make the "Auto" feature work as intended. I've had these sensors installed on my Jeep since April of last year, and it thought I would share on here a detailed guide on how to do it.

Be warned, there's a lot of information on the guide itself so make sure to read all of it thoroughly before attempting anything. Make sure to familiarize yourself with the wording used as to not get confused later on. Basic electrical and wiring knowledge is need to do this install.

The guide covers those of you who have an existing sun sensor on their Jeeps as well as us who have the base model and do not.
How much would you charge to make me some I already have the sensors? I have a sport mine came with one sun sensor from following what u stated I need to change that sensor as well.


ambrose

Member
First Name
Ambrose
Joined
Feb 26, 2018
Messages
24
Reaction score
12
Location
Central NJ, USA
Vehicle(s)
2018 Wrangler JLU Rubicon
Occupation
Software Engineer
@danny01, thanks a bunch. The diagram was helpful for me to see how to get the sensor out. Maybe I'm being too nervous, but I had a heck of a time getting that out. I ended up putting the windshield down so I could get the pry tool in behind the back part (closest to the windshield) to pry it up out of there.

But once I got it out, it was very clear from the doc what to do. Easy peasy after that. Thanks again.


Mrbuck50

Well-Known Member
First Name
Chris
Joined
Oct 1, 2020
Messages
53
Reaction score
9
Location
Georgia
Vehicle(s)
2019 JL
I’m trying to wire up my sun sensor. The plastic plug is available but the pins are on back order. Does anyone have any pins they would be willing to sell?


vkyolv

New Member
First Name
Mark
Joined
Mar 11, 2021
Messages
1
Reaction score
0
Location
Houston
Vehicle(s)
2020 Jeep Gladiator, 2021 Jeep Wrangler Willys
i'm in the same boat as you. Damn pins are backordered everywhere.

First Name
David
Joined
Nov 9, 2020
Messages
16
Reaction score
1
Location
Milledgeville Ga
Vehicle(s)
2019 Jeep Wrangler Sport

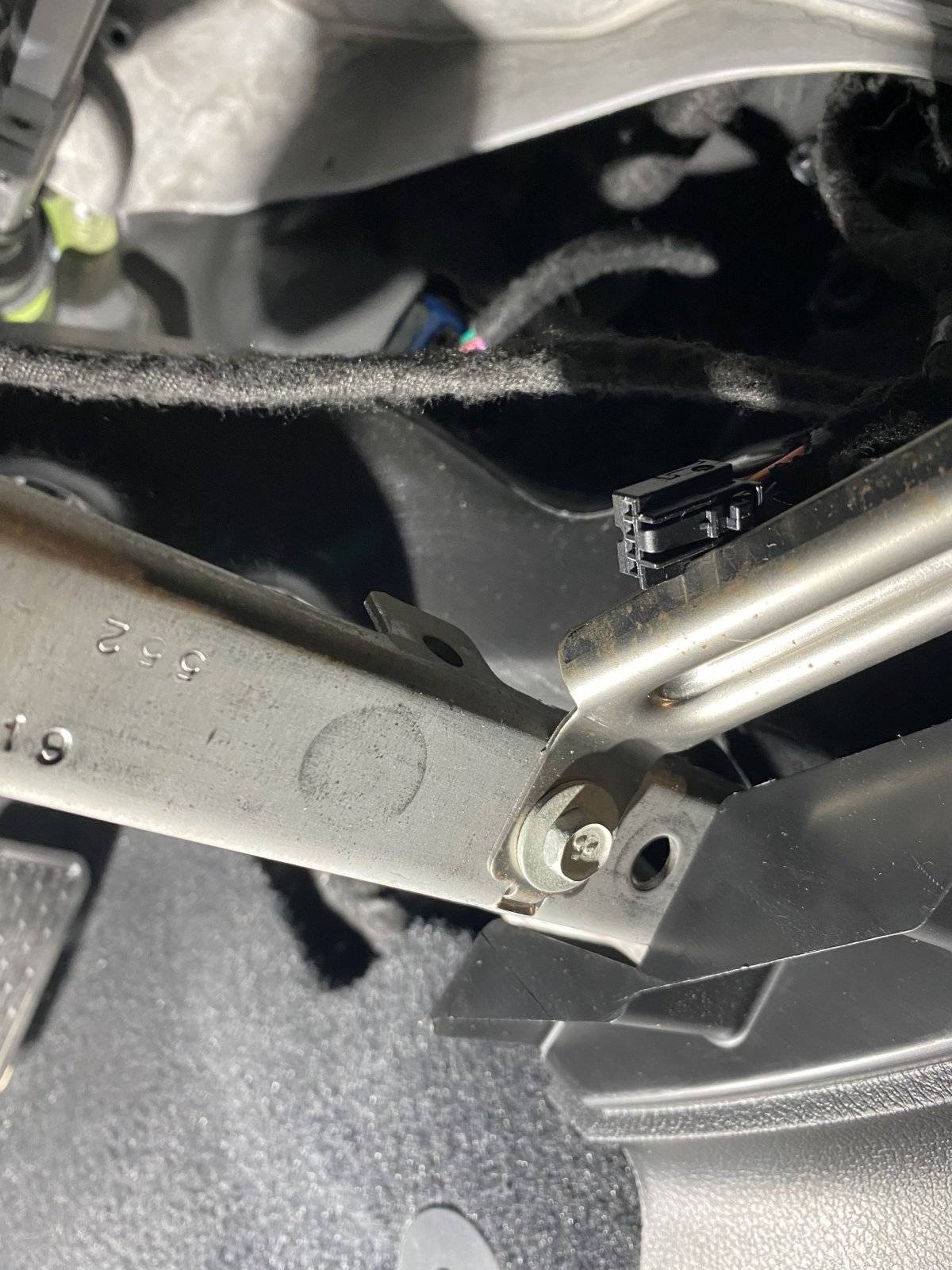

OMG I dont even know what do say. went a head and ordered the sun sensor but had never installed it. I looked everywhere under my cabin area and there was no wire to connect the cabin air sensor i bought. Over the last few months I asked several people about helping me make a harness with no luck. Well I was replace the sun sensor and saw that there was 4 wires not 2 like there were on people that did not have the wire so I said im gonna just start looking and digging all under the cabin and next think you know I felt the extra wire. It was the cabin Air sensor wire. I almost passed out. Well Connected everything and it all works like a charm. No more burning and and sweating or freezing and not really being able to adjust the temp correctly. Listen learned double check or tripple check that wire may be hiding.



BigD70435

New Member
First Name
Daniel
Joined
Mar 31, 2021
Messages
2
Reaction score
1
Location
Louisiana
Vehicle(s)
2020 Jeep Wrangler JL
Anybody Build a harness for the sun sensor and air temp sensor to sell?​
