I installed the lower control arms sold with the Mopar lift kit today. There’s a lot of discussion on this topic in the general section; I thought I’d mention it here amongst my fellow diesel owners.

As others have said, these LCAs are about 1/4” longer than the standard ones, and are an inexpensive means of increasing caster. I didn’t attempt to measure caster before and after, but other people report ending up with 6 degrees or a bit more, when installed on a Rubicon with no lift kit.

The installation was really simple. I did it with the front wheels on typical ramps, removing one LCA and replacing it with the longer one before removing the other. It didn’t fight me at all. With the Jeep on the ramps, the front axle seemed to naturally move forward a bit as I removed the first bolt on the factory LCA. I used ratchet straps to pull the front axle forward, when tightening the bolts, trying to take advantage of any slop in bolt holes to maximize the increase in caster. Having it up on ramps made it easy to brace a foot when pulling on the torque wrench to the 190lbft spec. As reported, 13/16” and 15/16” sockets fit the bolt and nut very snuggly.

I took it for a drive down the highway and back just now, trying hard not to fall victim to the placebo effect! I’m certain it made an improvement in how it tracks down the road. I believe it does a better job of ignoring the little differences in road slope where the majority of traffic travels, the rain grooves I guess people call that. It didn‘t drive terribly before but it’s better imo now; a bit less vague feeling.

My Jeep is otherwise stock, except for 315/70/17 KO2, Method MR313 +25mm wheels, and tazer.

The longer LCAs are part number 68322798AA.
Sponsored



USMC0311

Active Member
First Name
Oslo
Joined
Jul 16, 2020
Threads
2
Messages
28
Reaction score
27
Location
Ogden, UT
Vehicle(s)
2020 JLU diesel Rubicon

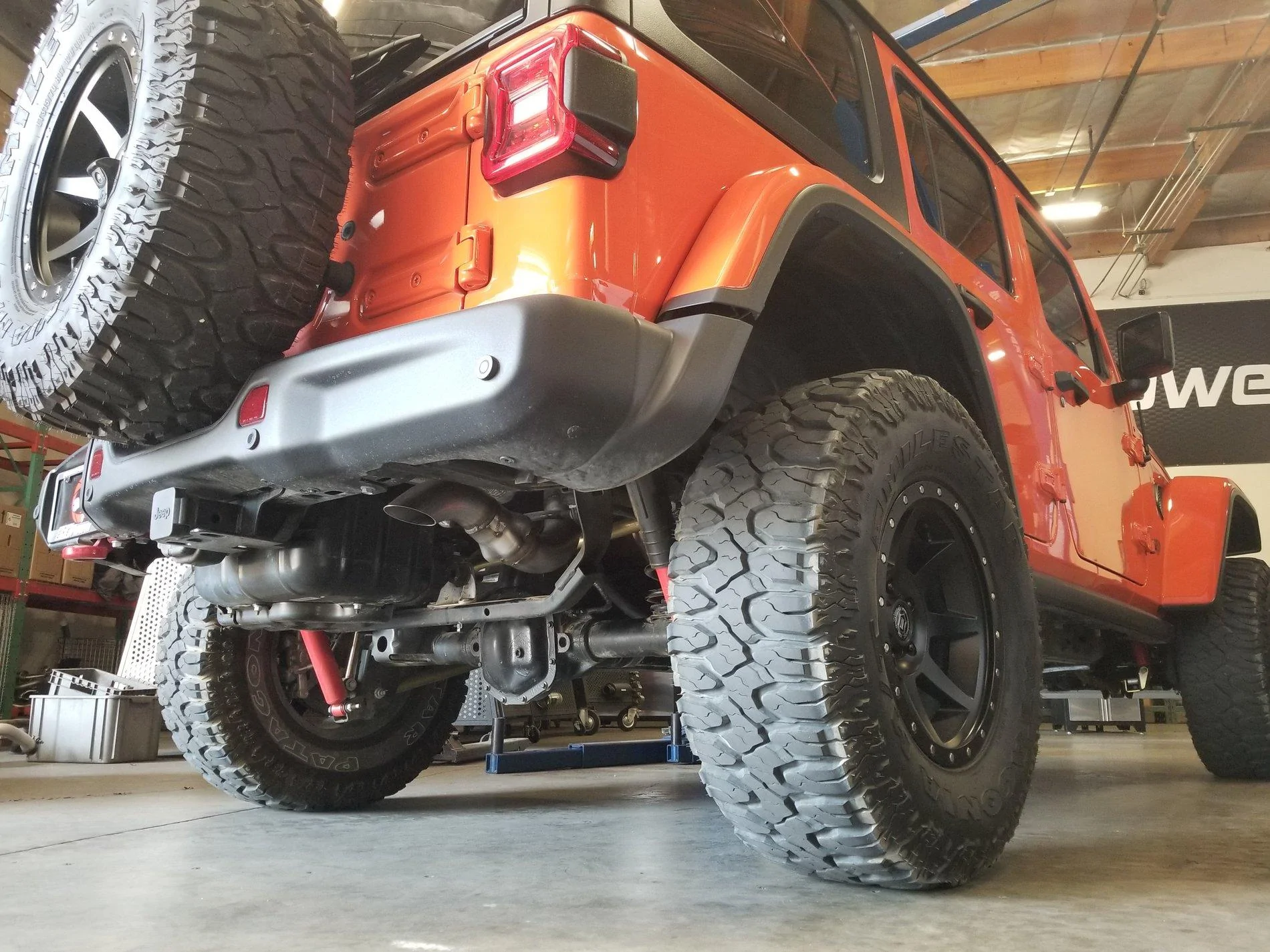

Had the jeep over at S&B today for development of an intake for our eco-diesels.









Waiting for the cold air intake to put on my 3.0L diesel!


USMC0311

Active Member
First Name
Oslo
Joined
Jul 16, 2020
Threads
2
Messages
28
Reaction score
27
Location
Ogden, UT
Vehicle(s)
2020 JLU diesel Rubicon
has anyone had experience with the Rugged Ridge Spartacas HD Tire Carrier Kit? I need to get one and dont want to pay mopars asking price. Also Thinking about metalcloaks version
I had that one installed on my wife's JLUD, really nice.


wannabe

Member
First Name
Jeff
Joined
Feb 29, 2020
Threads
1
Messages
13
Reaction score
42
Location
Tampa, FL
Vehicle(s)
2020 F350, 2020 Jeep JLUR Diesel
Finally got my Mopar Diesel 2" LIft installed, new wheels/tires. 37x12.5x17

Jeep Wrangler JL 3.0 MODS - Show em off 20200816_160714_resized


toolaide4fit

Well-Known Member
First Name
Tom
Joined
Jul 2, 2018
Threads
12
Messages
1,093
Reaction score
1,557
Location
Waxahachie, Texas
Vehicle(s)
2020 JLURD
Occupation
IT Manager
Finally got my Mopar Diesel 2" LIft installed, new wheels/tires. 37x12.5x17

Jeep Wrangler JL 3.0 MODS - Show em off 20200816_160714_resized
Who did the install? How do you like the ride? Have you had any rubbing issues at all? Thinking of doing the same lift when I get my 37” wheels and tires.


Sponsored

rickinAZ

Well-Known Member
First Name
Rick
Joined
Jan 2, 2020
Threads
234
Messages
3,471
Reaction score
4,988
Location
Phoenix
Vehicle(s)
2021 Rubicon EcoDiesel (11th Jeep)
Occupation
Retired CFO. Mayo Clinic volunteer.
Finally got my Mopar Diesel 2" LIft installed, new wheels/tires. 37x12.5x17

Jeep Wrangler JL 3.0 MODS - Show em off 20200816_160714_resized
Looks great. I bought/returned the Mopar lift because I thought my 35s would swim in them, but with 37s - perfect.


wannabe

Member
First Name
Jeff
Joined
Feb 29, 2020
Threads
1
Messages
13
Reaction score
42
Location
Tampa, FL
Vehicle(s)
2020 F350, 2020 Jeep JLUR Diesel
Who did the install? How do you like the ride? Have you had any rubbing issues at all? Thinking of doing the same lift when I get my 37” wheels and tires.
In Tampa, I had Xtreme Offroad do the lift portion. Their hourly rate was reasonable; I think they charged me 4 hours total. No rubbing at all but i haven't taken it offroad yet. The lift is wonderful to drive; you can tell you are driving on Toyo MT but the lift itself is comparative to stock.


wannabe

Member
First Name
Jeff
Joined
Feb 29, 2020
Threads
1
Messages
13
Reaction score
42
Location
Tampa, FL
Vehicle(s)
2020 F350, 2020 Jeep JLUR Diesel
Looks good. How much lift did you actually gain? Can you post some measurements?

I think it was a 2.75" raise. I'll get post measurements before I start adding my winch etc.


wannabe

Member
First Name
Jeff
Joined
Feb 29, 2020
Threads
1
Messages
13
Reaction score
42
Location
Tampa, FL
Vehicle(s)
2020 F350, 2020 Jeep JLUR Diesel
Looks good. How much lift did you actually gain? Can you post some measurements?
The Mopar 2" Diesel lift:
Front Fender: 2 7/8" higher
Rear Fender: 2 1/2" higher

The attachments show measurements from the ground.

FRONT FENDER
Jeep Wrangler JL 3.0 MODS - Show em off Front Fender

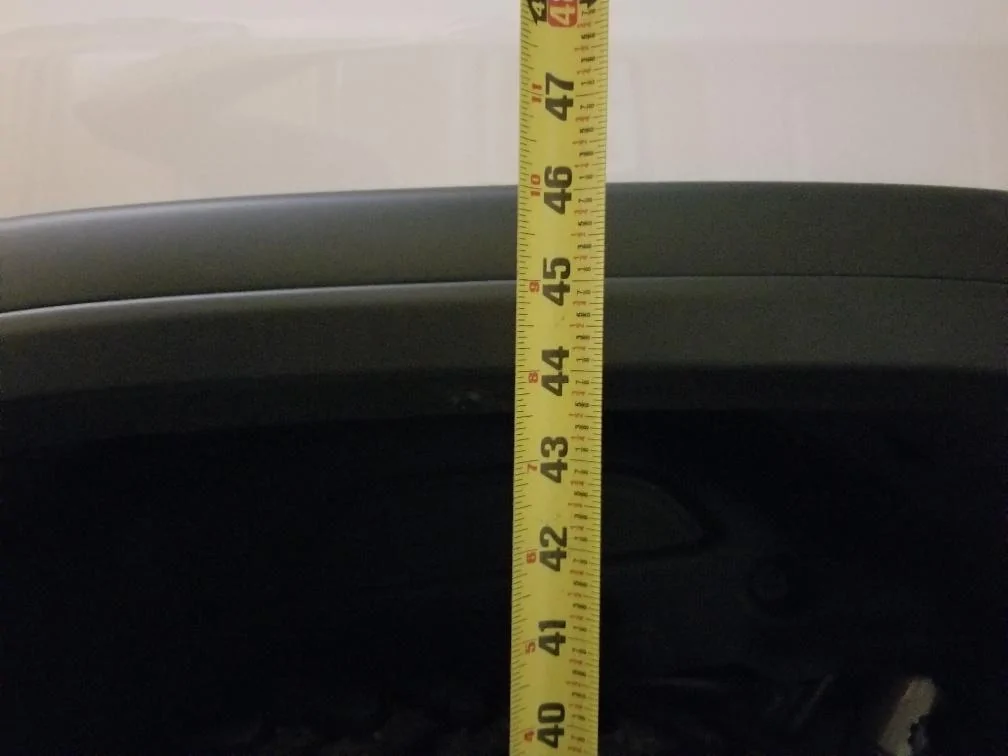

REAR FENDER
Jeep Wrangler JL 3.0 MODS - Show em off Rear Fender

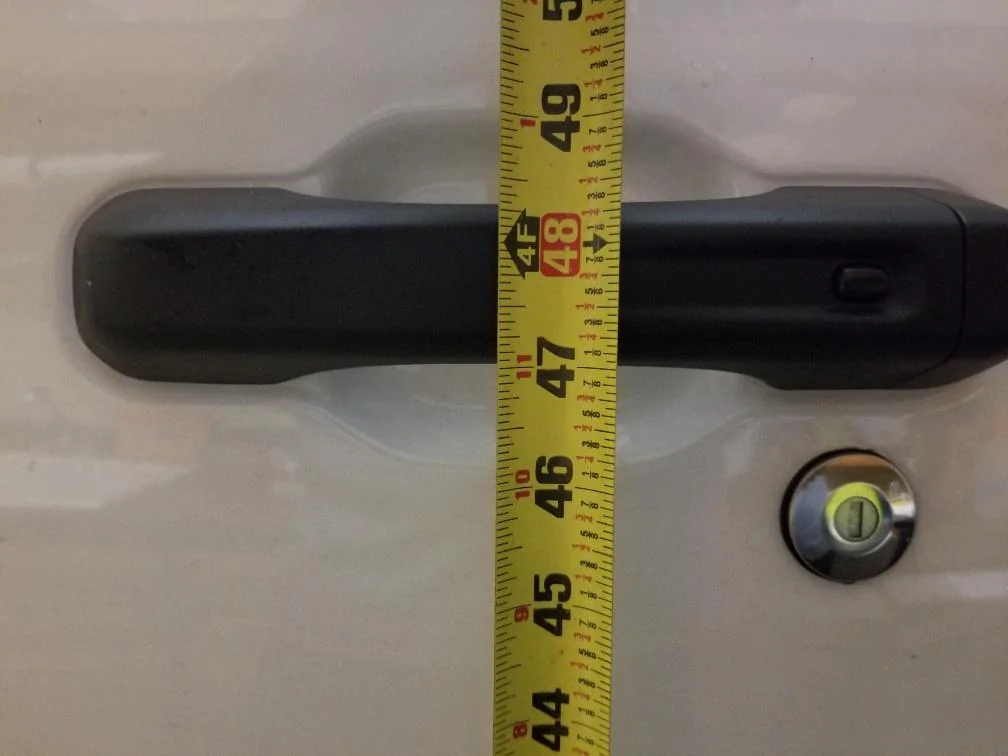

DRIVERS DOOR (b/c someone will ask how high it is to get into their JL)
Jeep Wrangler JL 3.0 MODS - Show em off Drivers Door


Front Fender.jpg


Sponsored

Compression-Ignition

Well-Known Member
First Name
Roy
Joined
Nov 12, 2019
Threads
17
Messages
884
Reaction score
988
Location
Montana
Vehicle(s)
2020 JLUR 3.0 Diesel, 2020 6.7L F350

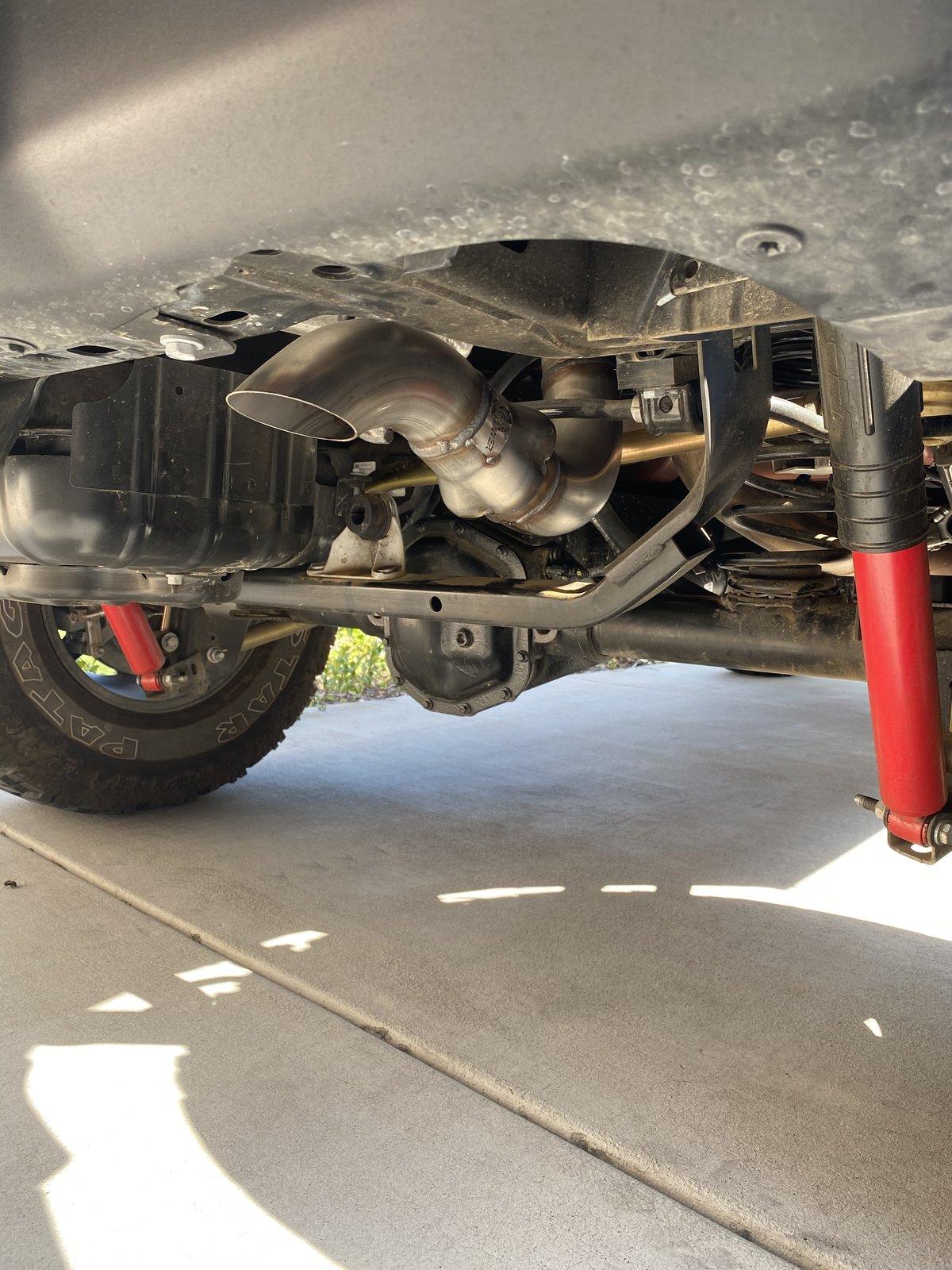

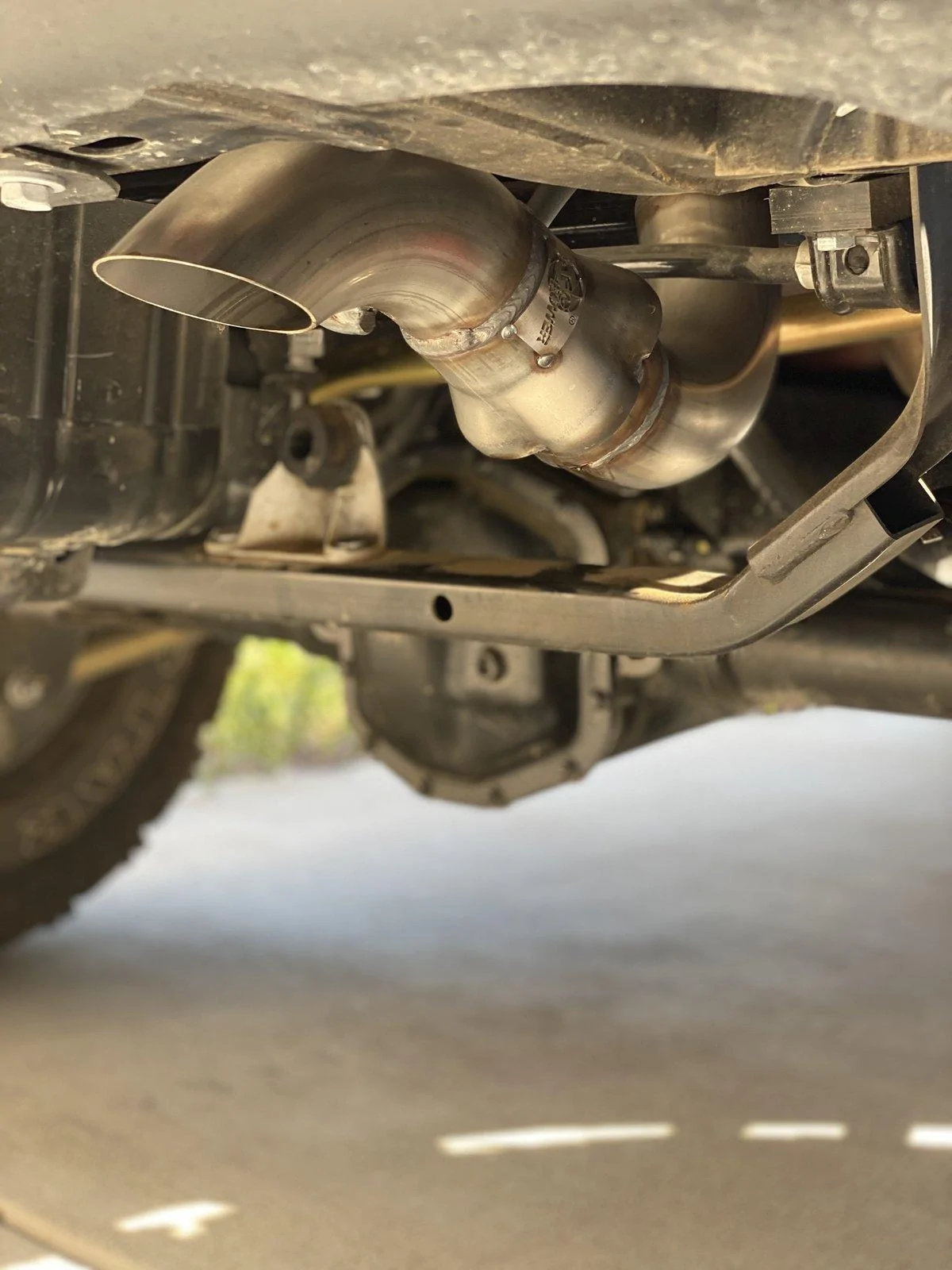

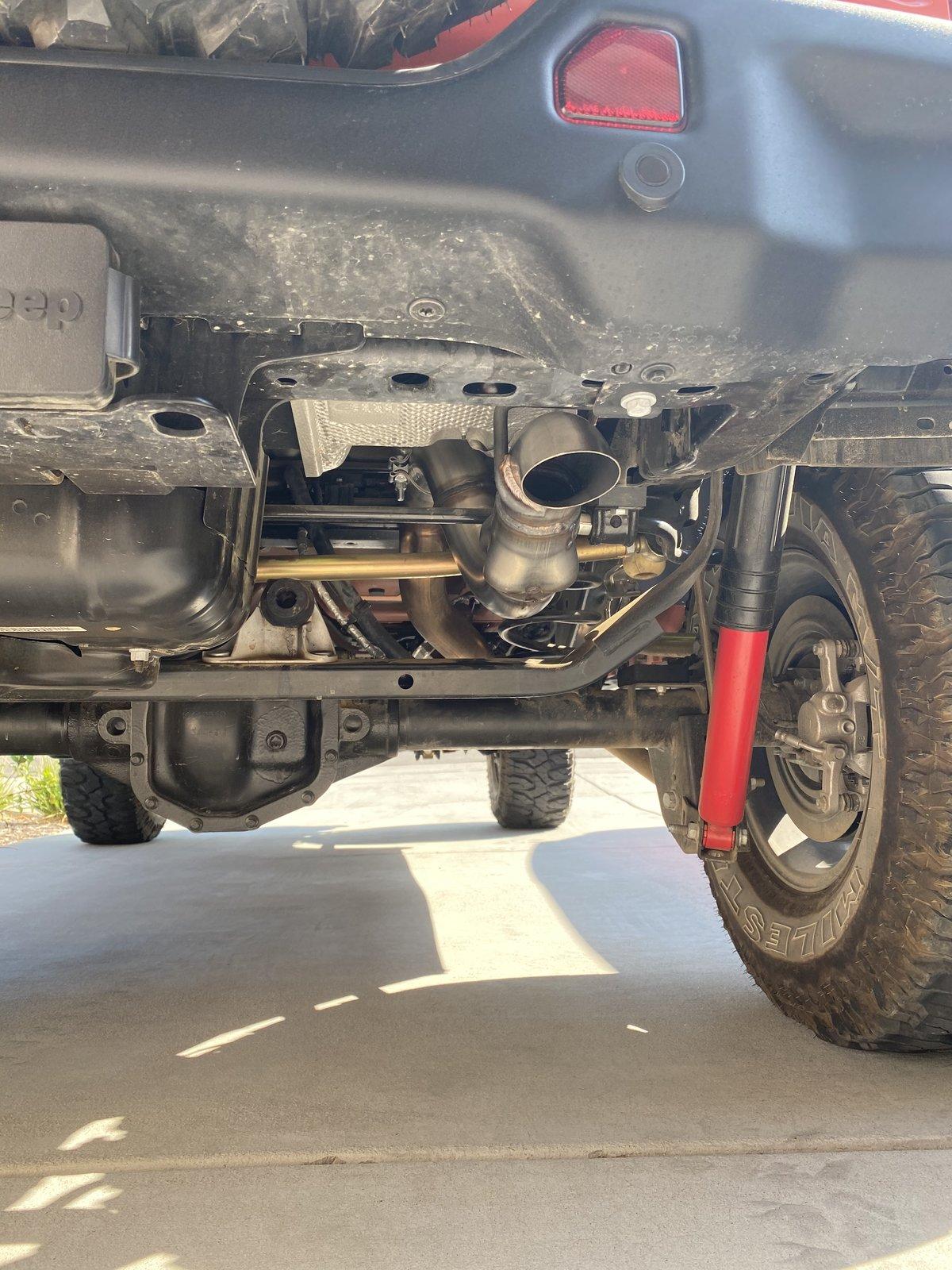

Did they say why they added the little air venturi side slit deals? The stock exhaust doesn't have any that I'm aware of. Just curious if they mentioned it, or if you asked.


hazards280

Well-Known Member
Joined
May 17, 2017
Threads
2
Messages
60
Reaction score
99
Location
Midland MI
Vehicle(s)
22' JLUR 392 - Sarge Green

Cwu21

Well-Known Member
First Name
Joe
Joined
Dec 23, 2017
Threads
14
Messages
755
Reaction score
1,473
Location
SAN Diego/ Meridian ID
Vehicle(s)
2020 JLURD
Build Thread
Link
Vehicle Showcase
1
Come on, you can't post those without a video! :like:
working on it. But from what I can tell I didn’t notice any sound difference. Need to talk with the engineer and see what exactly did they do. But I plan on getting a Video very soon I took clips before the install for comparison
