"ESC On" is the default operating mode when the vehicle is running. The driver may disable it manually using the Partial Off or Full Off features, which are exclusively accessed via the ESC button itself.

A full explanation of the ESC system and how it works is evident beginning on, for example, p. 152 of the 2020 Owner's Manual. It is not stated, there or elsewhere, that the act of shifting in and out of 4WD Low will have any effect on the functioning of the ESC system. If there's proof that this does in fact occur, we'll be happy to review it here.


James,

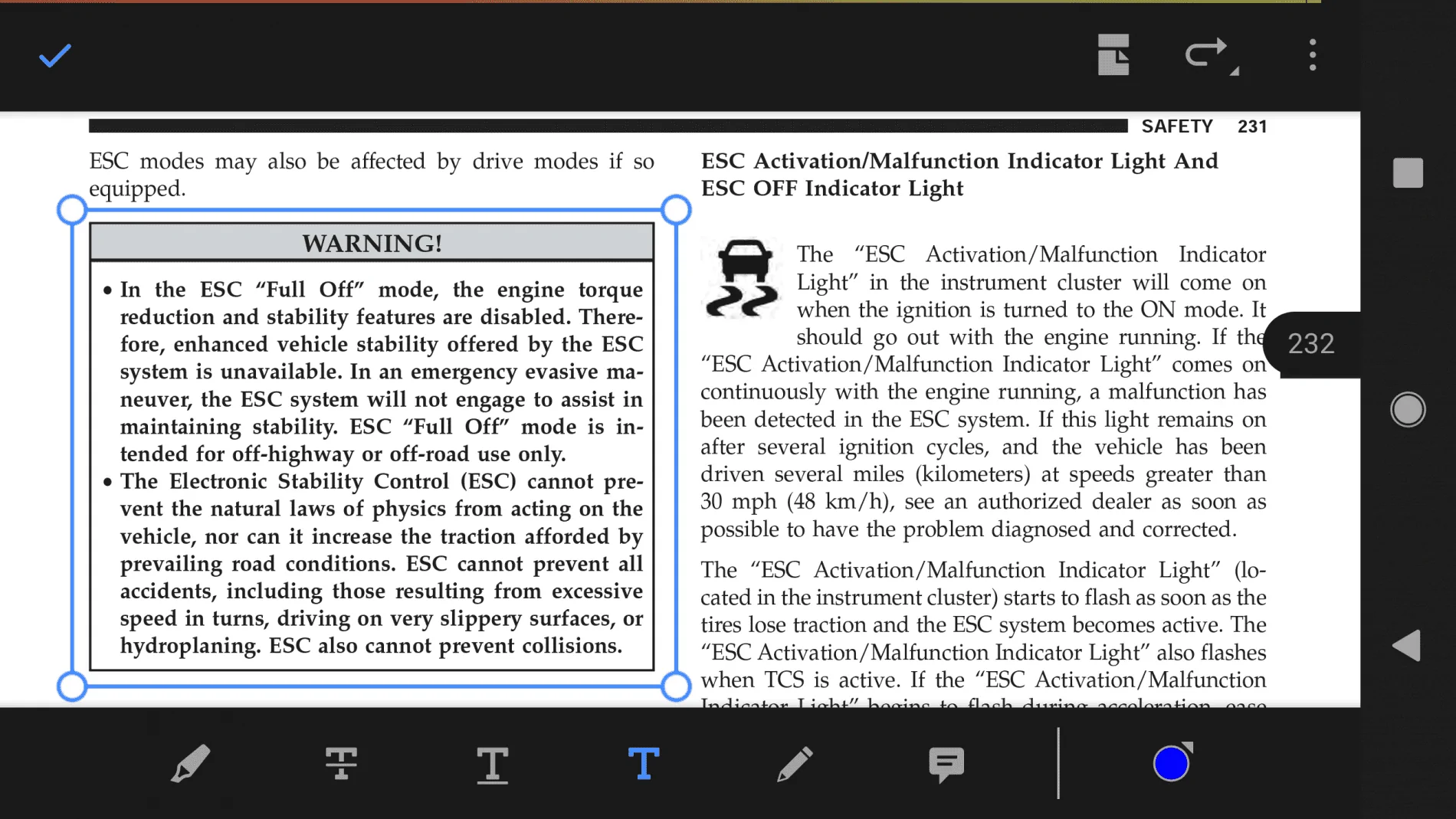

In the highlighted WARNING section, first bullet:
ESC "Full Off" mode is intended for off-highway or off-road only.

Also whenever I drop into 4Lo my 'ESC Off' indicator light comes on.

Jay
Advertisement



JayJay

Well-Known Member
First Name
Johnny
Joined
Feb 13, 2020
Messages
771
Reaction score
1,836
Location
North Georgia
Vehicle(s)
'20 JLR
Just wanted to add a note - BLD (the system that brakes the wheel without traction) cannot be turned off. So even with stability control off it's still active.
Hi Kevin, the manual for my '20 JLR generally supports your comment.

" A feature of the TCS, Brake Limited Differential (BLD), functions similar to a limited slip differential and controls the wheel spin across a driven axle. If one wheel on a driven axle is spinning faster than the other, the system will apply the brake of the spinning wheel. This will allow more engine torque to be applied to the wheel that is not spinning. BLD may remain enabled even if TCS and Electronic Stability Control (ESC) are in a reduced mode."

It does say "may remain enabled" though. I wonder if the manual is wishy washy on this point because the BLD is in fact disabled when the lockers are engaged?

Later,
Johnny


Wabujitsu

Well-Known Member
First Name
Jeff
Joined
Jul 26, 2019
Messages
1,336
Reaction score
2,471
Location
Sarasota, FL
Vehicle(s)
2021 JLUR, 2020 Sahara
Occupation
Retired US Army
Vehicle Showcase
1


James,

In the highlighted WARNING section, first bullet:
ESC "Full Off" mode is intended for off-highway or off-road only.

Also whenever I drop into 4Lo my 'ESC Off' indicator light comes on.

Jay
James, you are spot-on. I too have the ”ESC Off” indicator light up when I put my Jeep in 4Lo.

I found this, which I suspect refers to the JK, but ESC is identical in the JL. It clearly indicates that ESC turns off when the vehicle is put in 4Lo. http://www.jeeclub.com/reco-814.html


jeepoch

Well-Known Member
First Name
Jay
Joined
Nov 13, 2019
Messages
485
Reaction score
1,340
Location
Longmont, CO
Vehicle(s)
2019 JL Wrangler Sport S 3.6L Auto 2 door, 2.5" lift, 35s
Jeff,

Thank you. The linked article from Jeep Manuals (jeeclub.com) looks like it was indeed written around circa 2015 for the JK but as you said is still likely very relevant today for the JL.

I'm just highlighting the most interesting sections here for convenience (since it's not described well in either the 2019 or 2020 JL Owner's Manuals). Hopefully this helps clarify any confusion. Maybe not.

What is very informative is that ESC, TCS and BLD (as quoted directly from the JL Owners Manual) are all in play while in both 2Hi and 4Hi but are independently applied in 4Lo (with ESC being explicitly disabled)

From the JL Owner's Manual:

Electronic Stability Control (ESC):
"This system enhances directional control and stability of the vehicle under various driving conditions. ESC corrects for oversteering or understeering of the vehicle by applying the brake of the appropriate wheel(s) to assist in counteracting the oversteer or understeer condition. Engine power may also be reduced to help the vehicle maintain the desired path."

Traction Control System (TCS):
"This system monitors the amount of wheel spin of each of the driven wheels. If wheel spin is detected, the TCS may apply brake pressure to the spinning wheel(s) and/or reduce engine power to provide enhanced acceleration and stability."

Brake Limited Differential (BLD):
"Functions similar to a limited slip differential and controls the wheel spin across a driven axle. If one wheel on a driven axle is spinning faster than the other, the system will apply the brake of the spinning wheel. This will allow more engine torque to be applied to the wheel that is not spinning."

"BLD may remain enabled even if TCS and ESC are in a reduced mode."


Now directly from the Jeeclub article:

4L Range (4WD Models)

ESC Off


"This is the normal operating mode for ESC in 4L range.

Whenever the vehicle is started in 4L range, or the transfer case (if equipped) is shifted from 4H range or NEUTRAL to 4L range, the ESC system will be in this mode. In 4L range, ESC and TCS, except for the “limited slip” feature described in the TCS section, are turned off until the vehicle reaches a speed of 40 mph (64 km/h). At 40 mph (64 km/h), the normal ESC stability function returns but TCS remains off. When the vehicle speed drops below 35 mph (56 km/h), the ESC system shuts off.

The ESC is off at low vehicle speeds in 4L range so that it will not interfere with off-road driving, but the ESC function returns to provide the stability feature at speeds above 40 mph (64 km/h). The “ESC Activation/ Malfunction Indicator Light” will always be illuminated in 4L range when ESC is off."

In summary:
It looks like the braking systems on the JL (and likely all Jeep Models) are rather sophisticated. While the Electronic Stability Control (ESC) and the Traction Control Systems (TCS) can both be placed into 'Reduced' operating modes by the driver (via cockpit pushbutton), the Brake Limited Differential (BLD) always remains active.

Furthermore in 4Lo, ESC is explicitly disabled, TSC is potentially in a reduced mode and BLD remains enabled and active.

Wow. This is really good news. While in 4Lo my Sport has more capability than I had originally thought.

Please anyone correct me if I have any of this wrong.

Jay

Last edited:
