Where is the engine block heater cord?

OP
bryan8379

bryan8379

Well-Known Member
First Name
Bryan
Joined
Dec 19, 2019
Messages
52
Reaction score
50
Location
Fort Collins CO
Vehicle(s)
2020 JLUR EcoDiesel
  • Thread starter
  • Thread Starter
  • #16
Bastards, charging $95 for a $16 cord...
Should be included free of charge honestly.

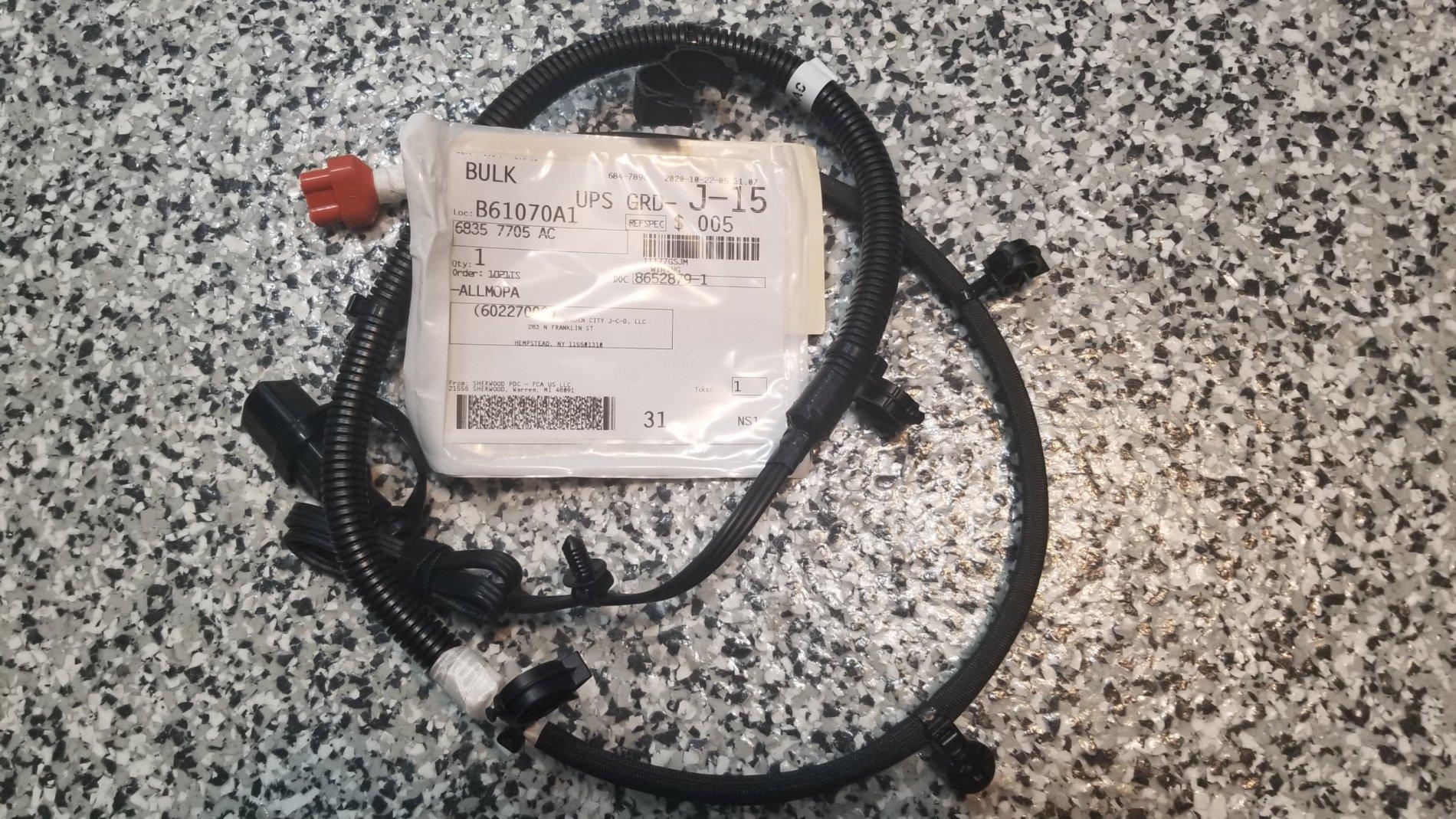

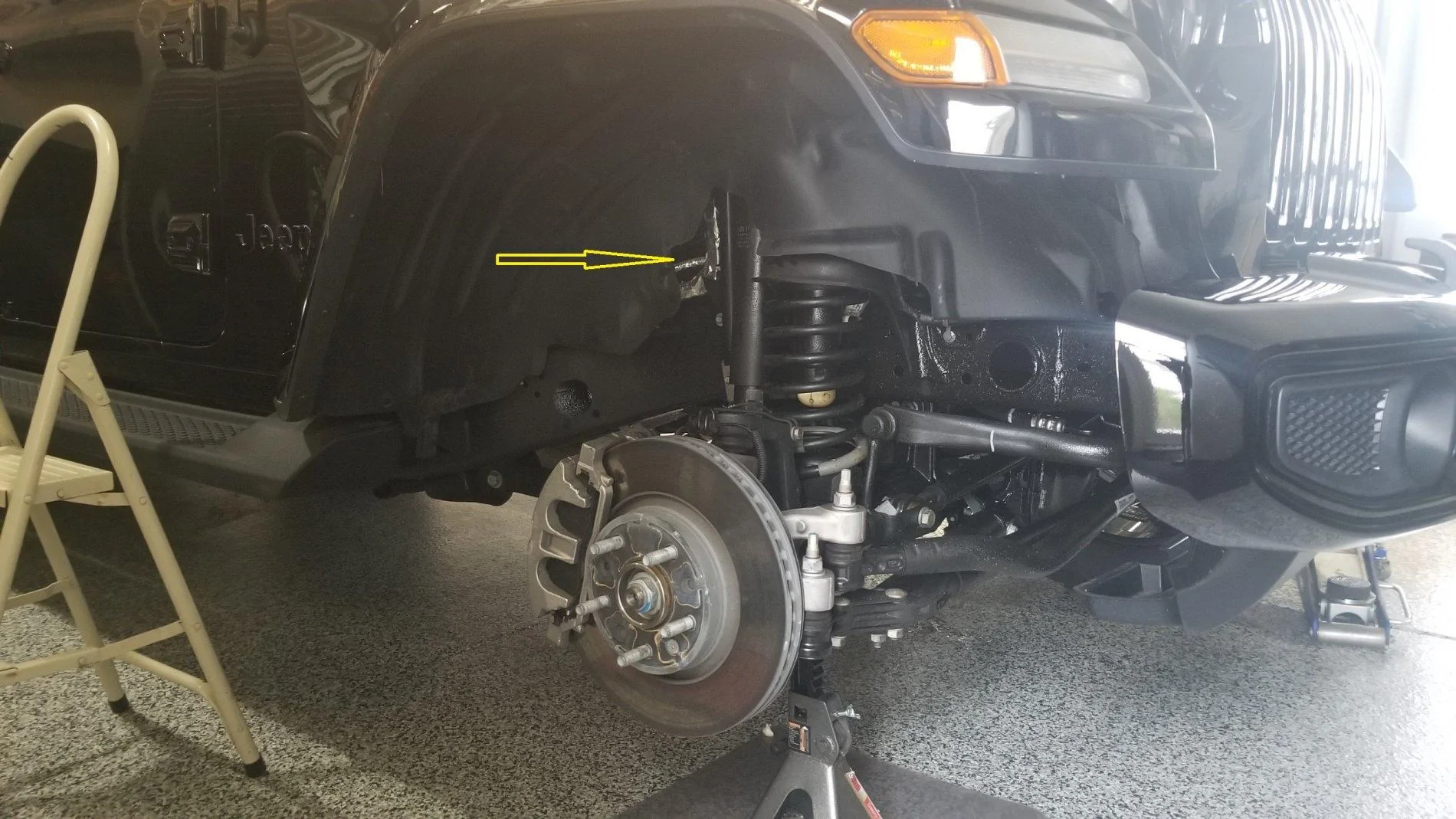

It ended up not being that big a deal to install myself, just partially removed the inner fender liner on front passenger side to get at it. No pics of it right now but I could take some tomorrow if anyone needs them but the computer generated images above is pretty helpful.





Advertisement



Harrybeerbelly

Well-Known Member
Joined
Sep 6, 2020
Messages
64
Reaction score
67
Location
Cleveland Ohio
Vehicle(s)
2020 High Altitude Diesel
Just installed the block heater cord. I purchased the OEM cord as I didnt want to take a chance on a cheap POS.



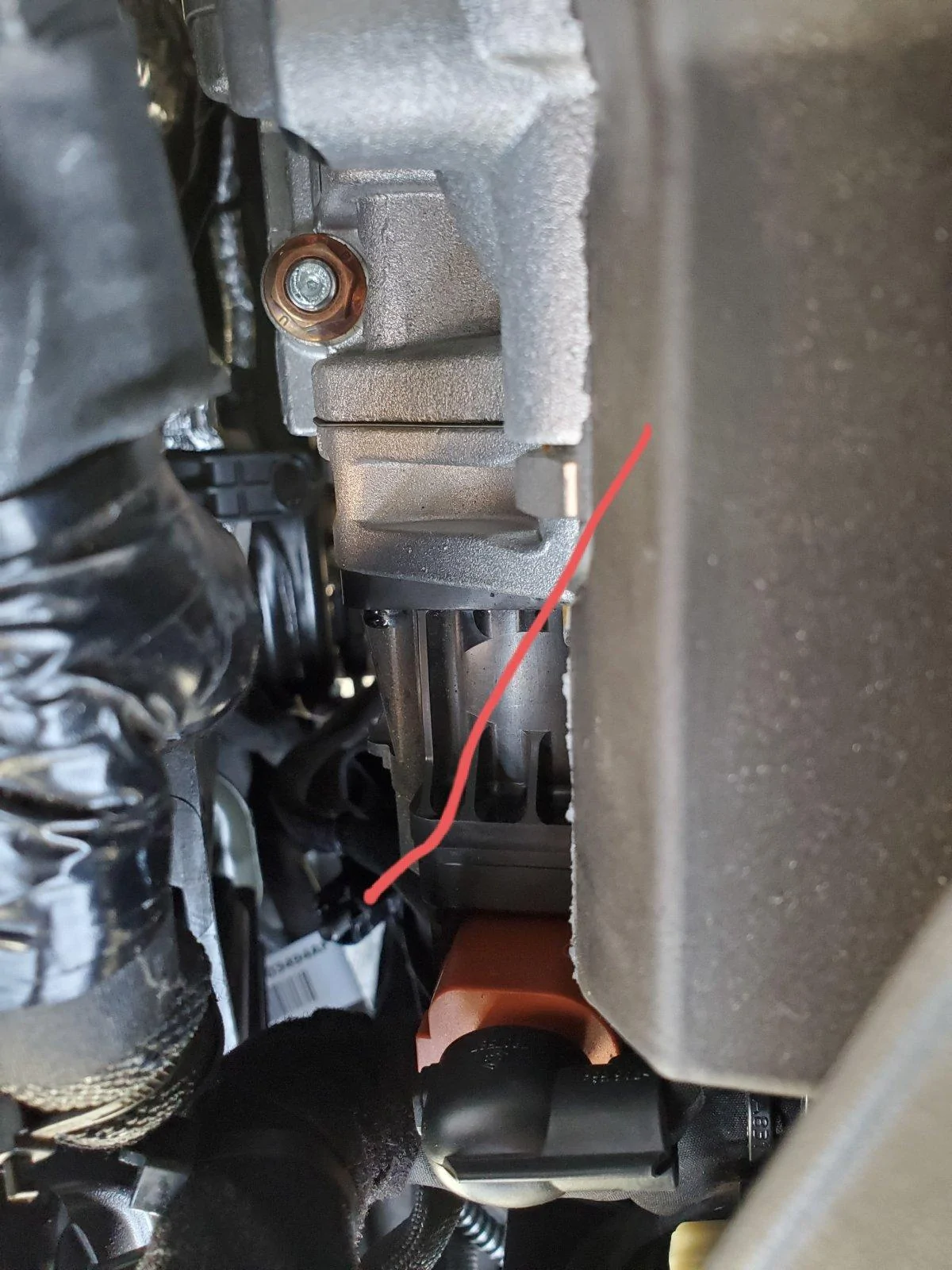

I removed the right wheel then removed the fasteners from the inner fender liner. Pulling back the liner gives good access to the block heater.



I ran the cord from the top down. Then some dielectric grease and plugged in.

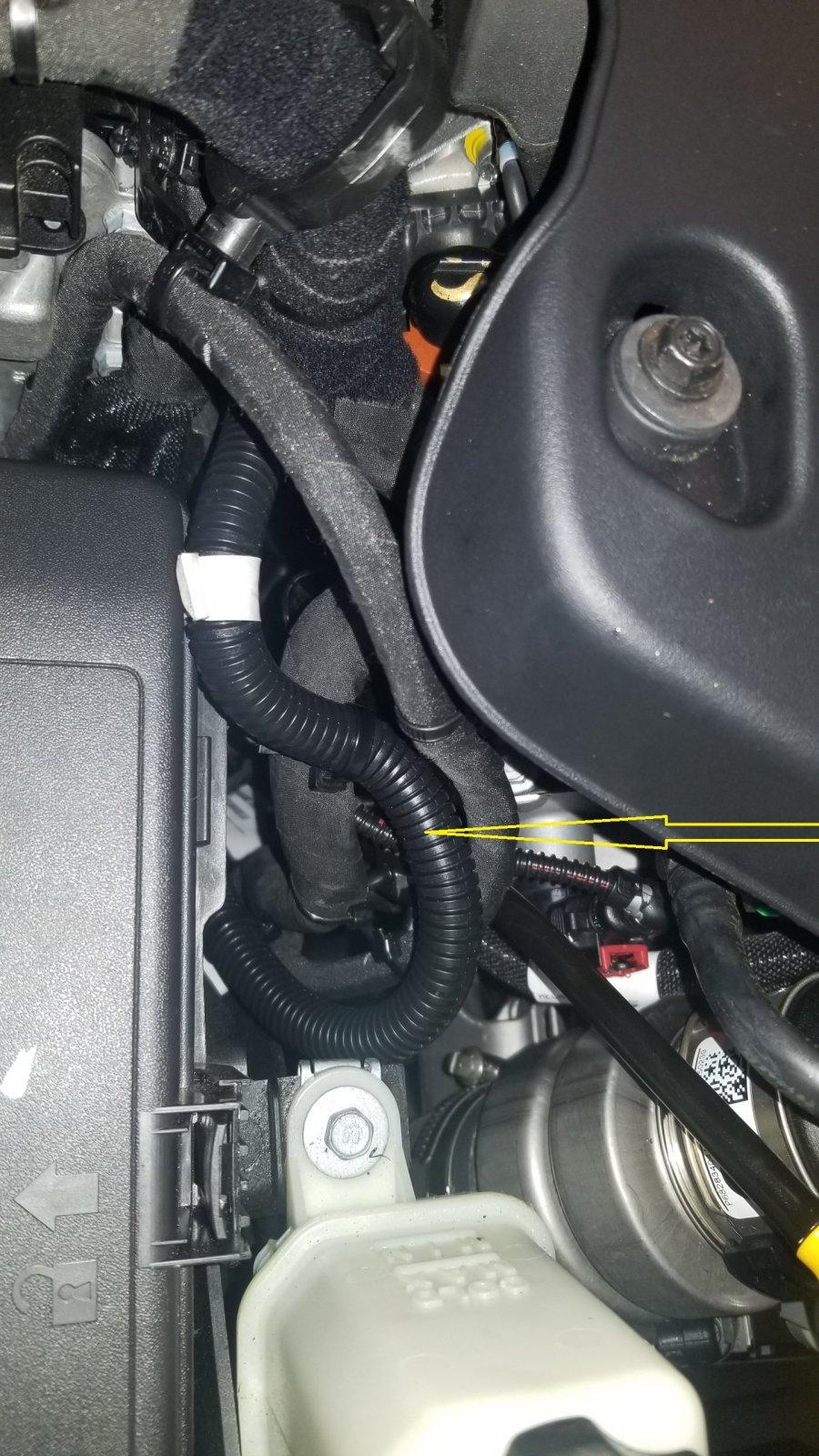

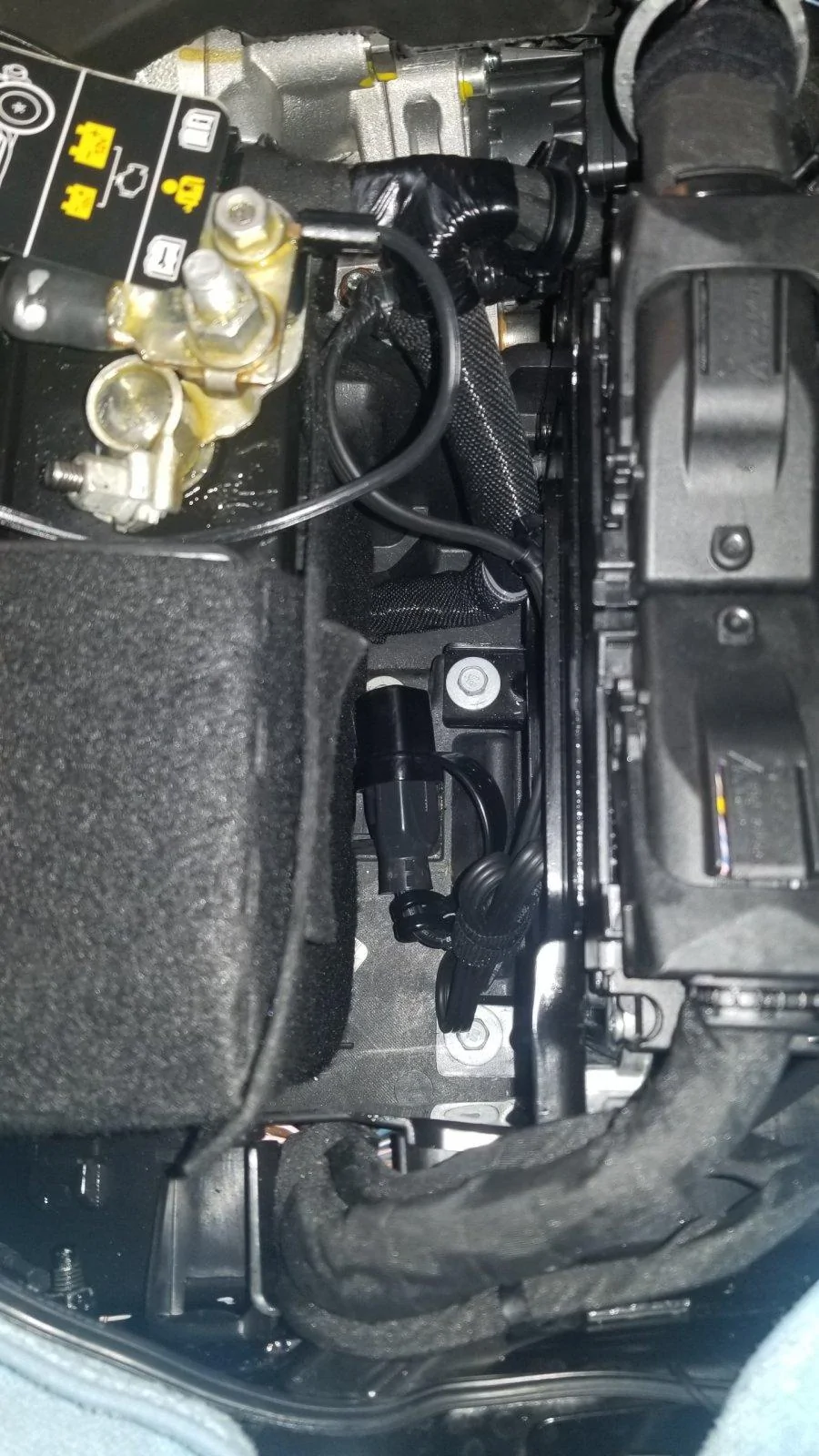

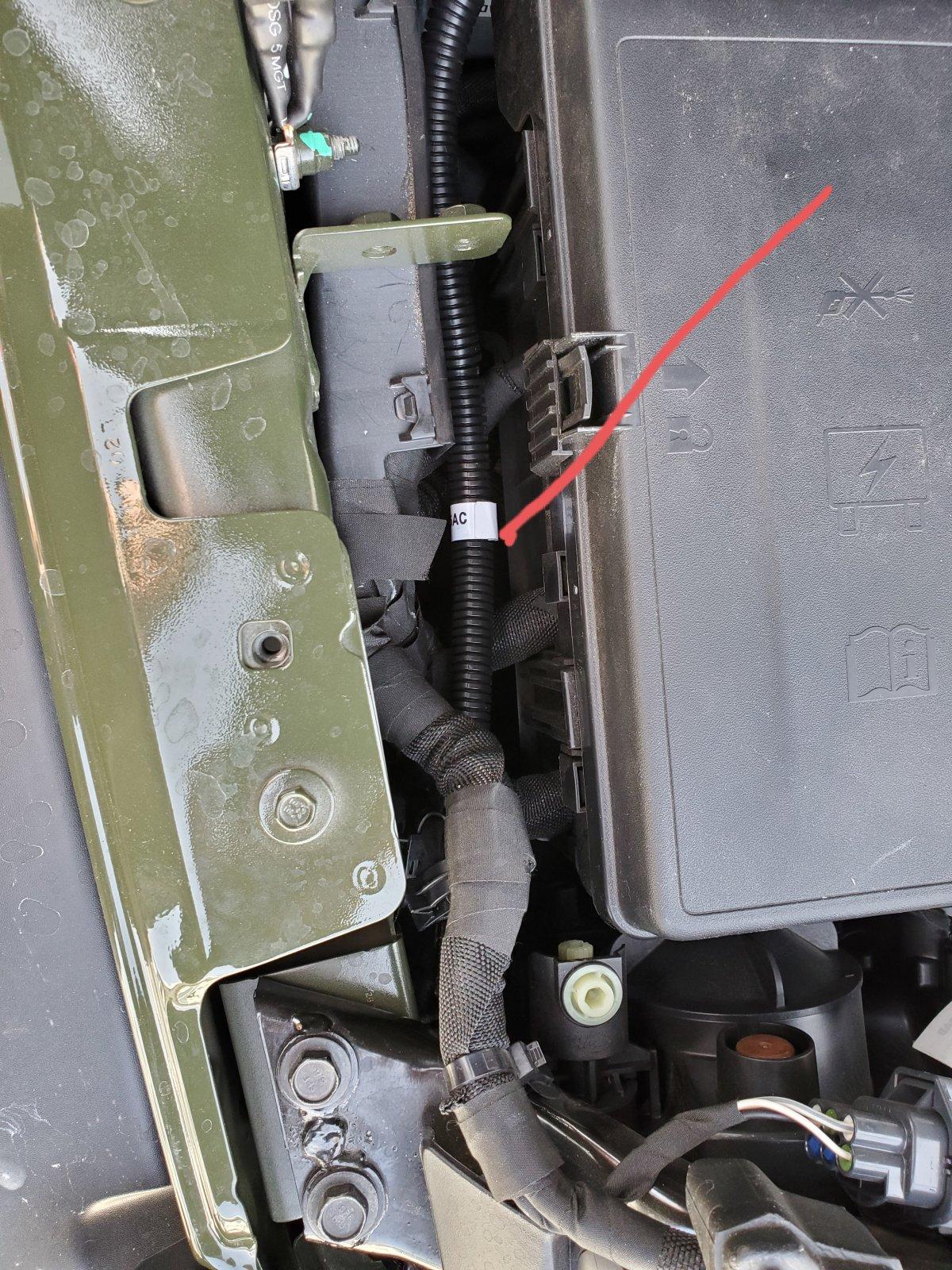

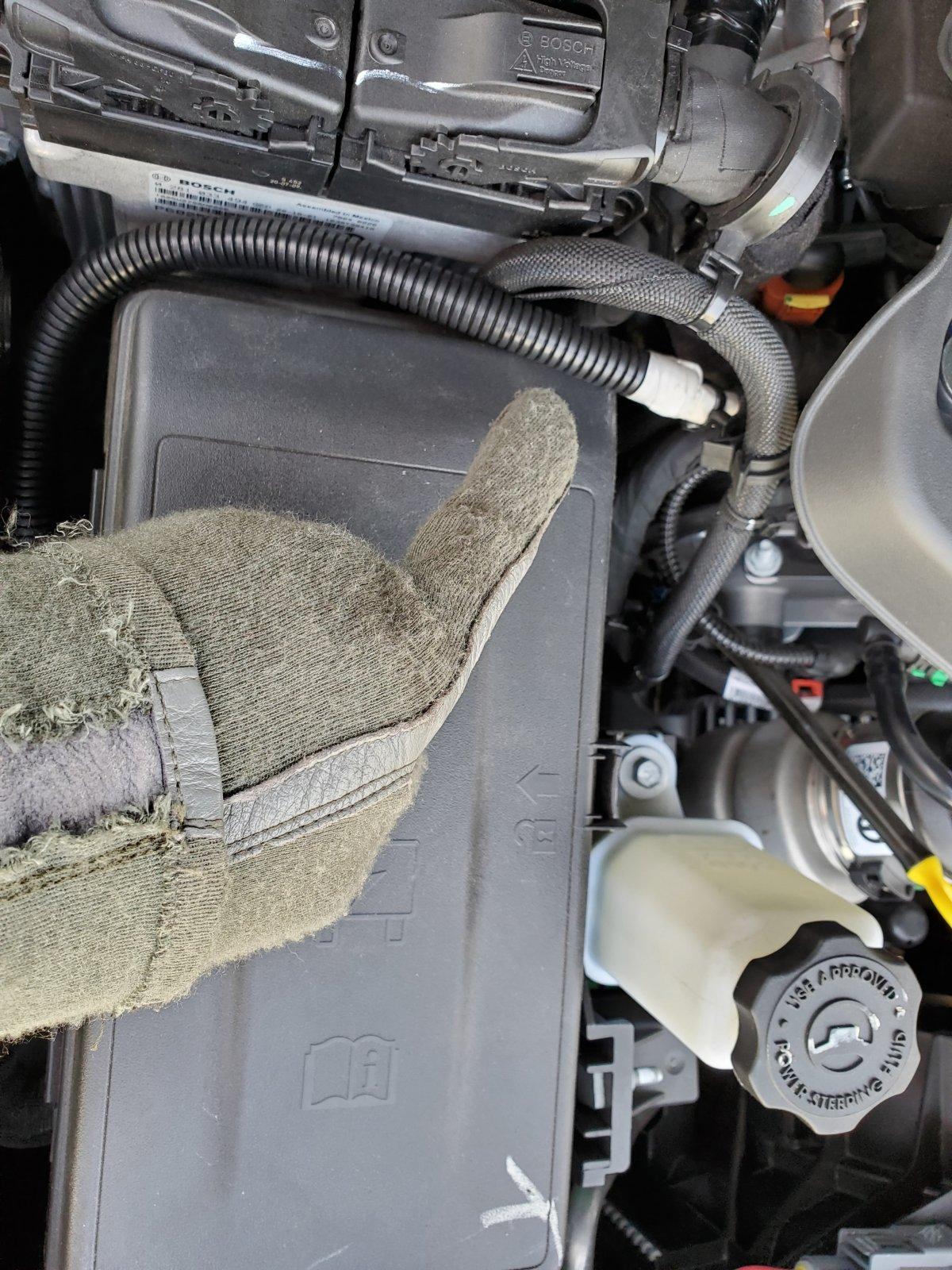

I routed the cord over to the side and forward, up the dipstick tube then over to the open space by the battery.

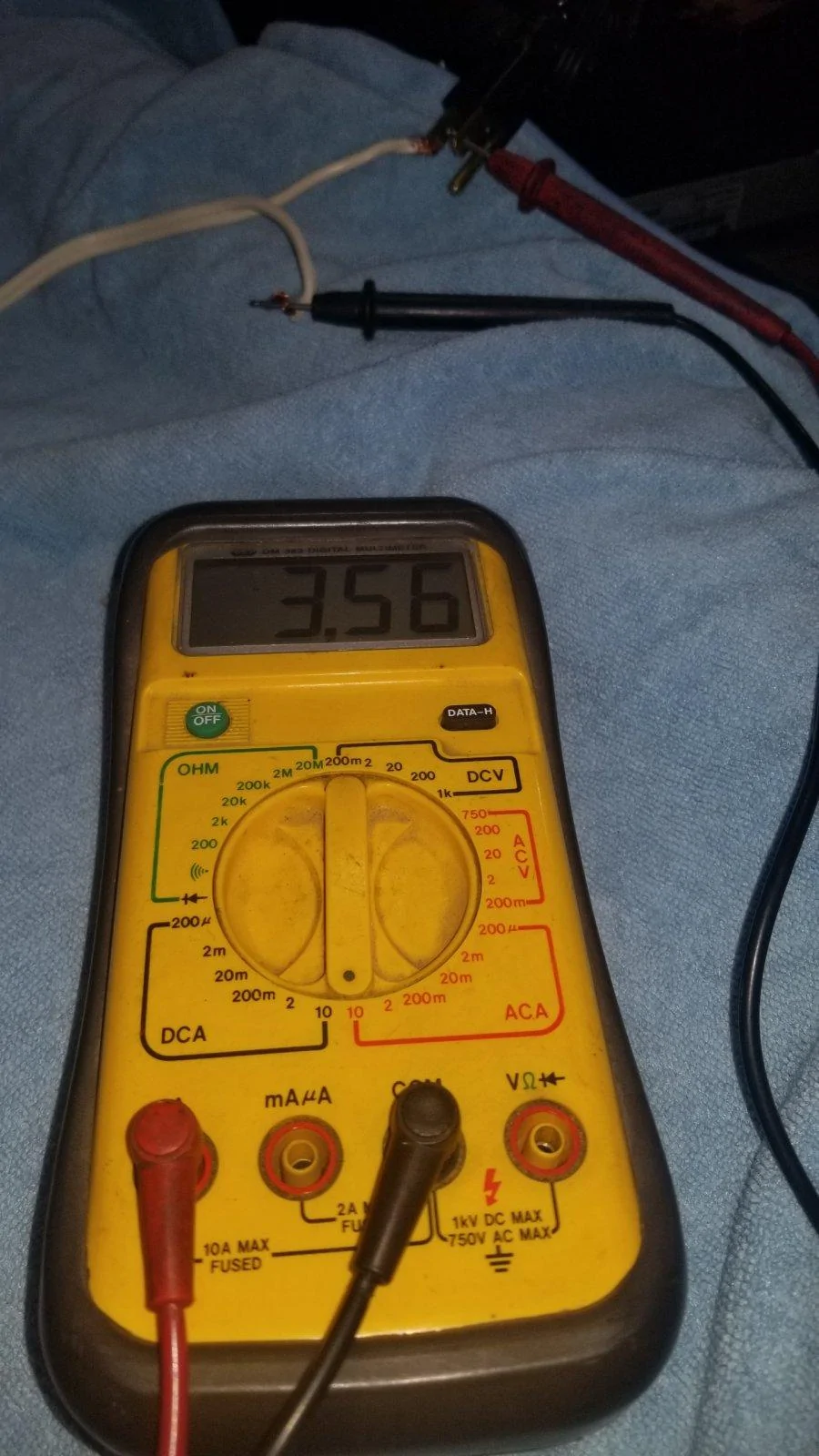

Then I tested the install. All good drawing 3.5 amps.



All in all an easy update. I would say maybe 2 beers.


SolarWizard

Well-Known Member
Joined
Dec 11, 2019
Messages
506
Reaction score
485
Location
SD, CA / Tampa, FL
Vehicle(s)
Model Y Performance / Diesel Gladiator soon
Occupation
energy management tech for homes and businesses
This is the cord that’s included for the $99 when ordering right?


Plongson

Well-Known Member
First Name
Paul
Joined
May 8, 2020
Messages
230
Reaction score
234
Location
So. Utah
Vehicle(s)
2020 Wrangler Rubicon JL Diesel, 1984 Jeep Cherokee XJ
Occupation
Retired engineer and business owner. Vibration analyst, reliability specialist.
Vehicle Showcase
1
It keeps the engine at about 100°f when it was about 10°f outside...


Z06

Member
First Name
Tim
Joined
Nov 26, 2020
Messages
15
Reaction score
14
Location
Montana
Vehicle(s)
21 Wrangler Unltd Sport, Z06 Corvette, HD Ultra
Occupation
Retired

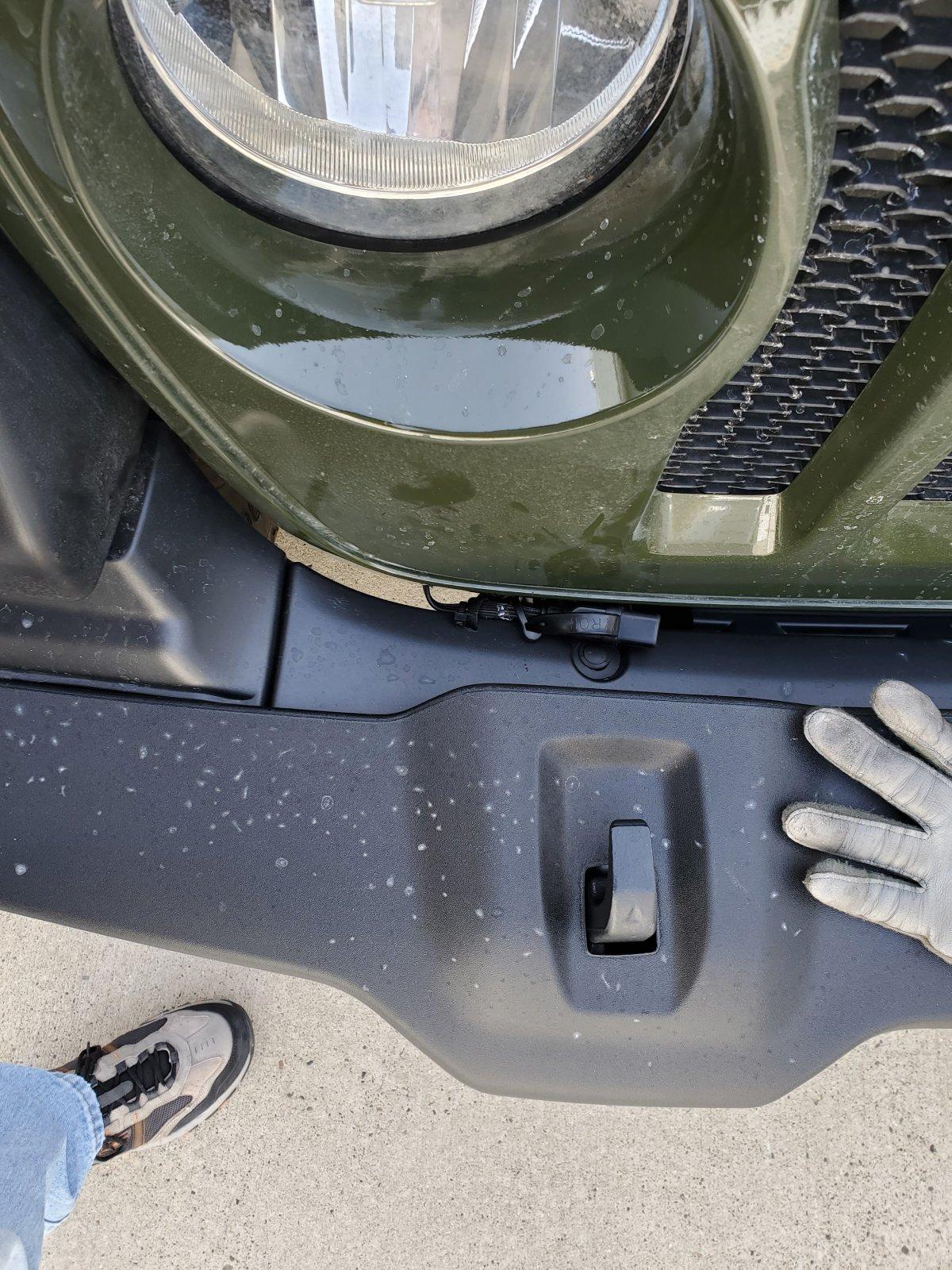

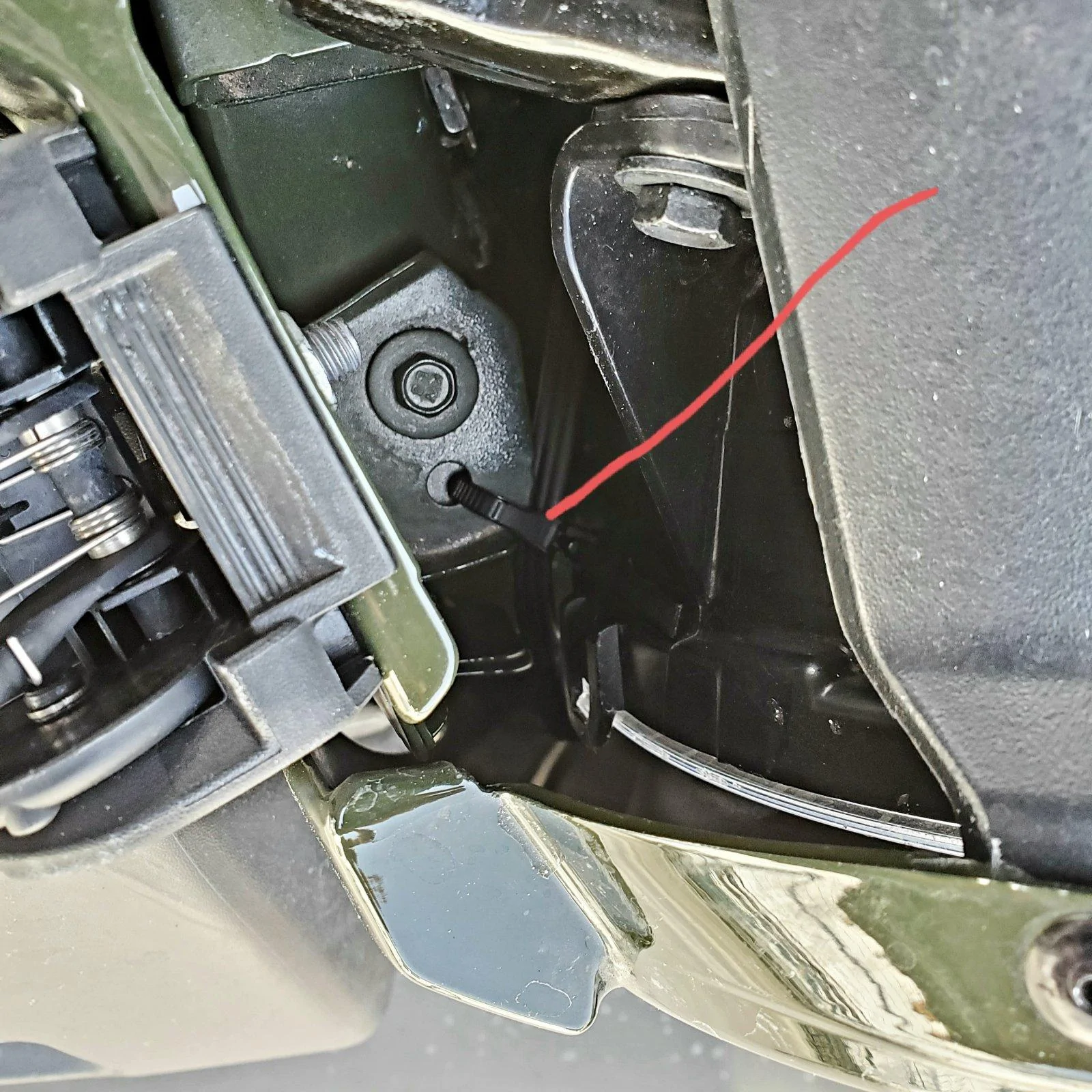

I bought my cord online as well 62 bucks included shipping. The mopar cord will reach the front bumper if so desired. I also followed the dipstick tube upward then routed forward from there. It’s cable tied to the bumper and I kept it short so I don’t think it will move much on the road.


Capricorn

Well-Known Member
Joined
Apr 1, 2018
Messages
418
Reaction score
175
Location
Las Vegas, NV
Vehicle(s)
Jeep Wrangler JL Willys Unlimited 2021 3.0L EcoD, Dodge Durango R/T 2019
Occupation
Network Architect & Engineer

klhjeep2018

Well-Known Member
First Name
Kevin
Joined
Mar 15, 2018
Messages
637
Reaction score
582
Location
Harpers Ferry, WV
Vehicle(s)
2018 Rubicon JL
Occupation
Sales manager
So maybe I'm reading this wrong? But do all JL's come with the heating element in the block and all you have to add is the cord?
Thanks for any reply's.


Capricorn

Well-Known Member
Joined
Apr 1, 2018
Messages
418
Reaction score
175
Location
Las Vegas, NV
Vehicle(s)
Jeep Wrangler JL Willys Unlimited 2021 3.0L EcoD, Dodge Durango R/T 2019
Occupation
Network Architect & Engineer
So maybe I'm reading this wrong? But do all JL's come with the heating element in the block and all you have to add is the cord?
Thanks for any reply's.
All the ecodiesels come with the block heater, Ram and Wrangler. Not sure about the gasoline JLs.


CapnKing

Active Member
First Name
Charlie
Joined
Jan 27, 2021
Messages
38
Reaction score
10
Location
Friendswood, Texas
Vehicle(s)
2020 Wrangler 3.0 diesel
Just installed the block heater cord. I purchased the OEM cord as I didnt want to take a chance on a cheap POS.



I removed the right wheel then removed the fasteners from the inner fender liner. Pulling back the liner gives good access to the block heater.



I ran the cord from the top down. Then some dielectric grease and plugged in.



I routed the cord over to the side and forward, up the dipstick tube then over to the open space by the battery.







Then I tested the install. All good drawing 3.5 amps.



All in all an easy update. I would say maybe 2 beers.

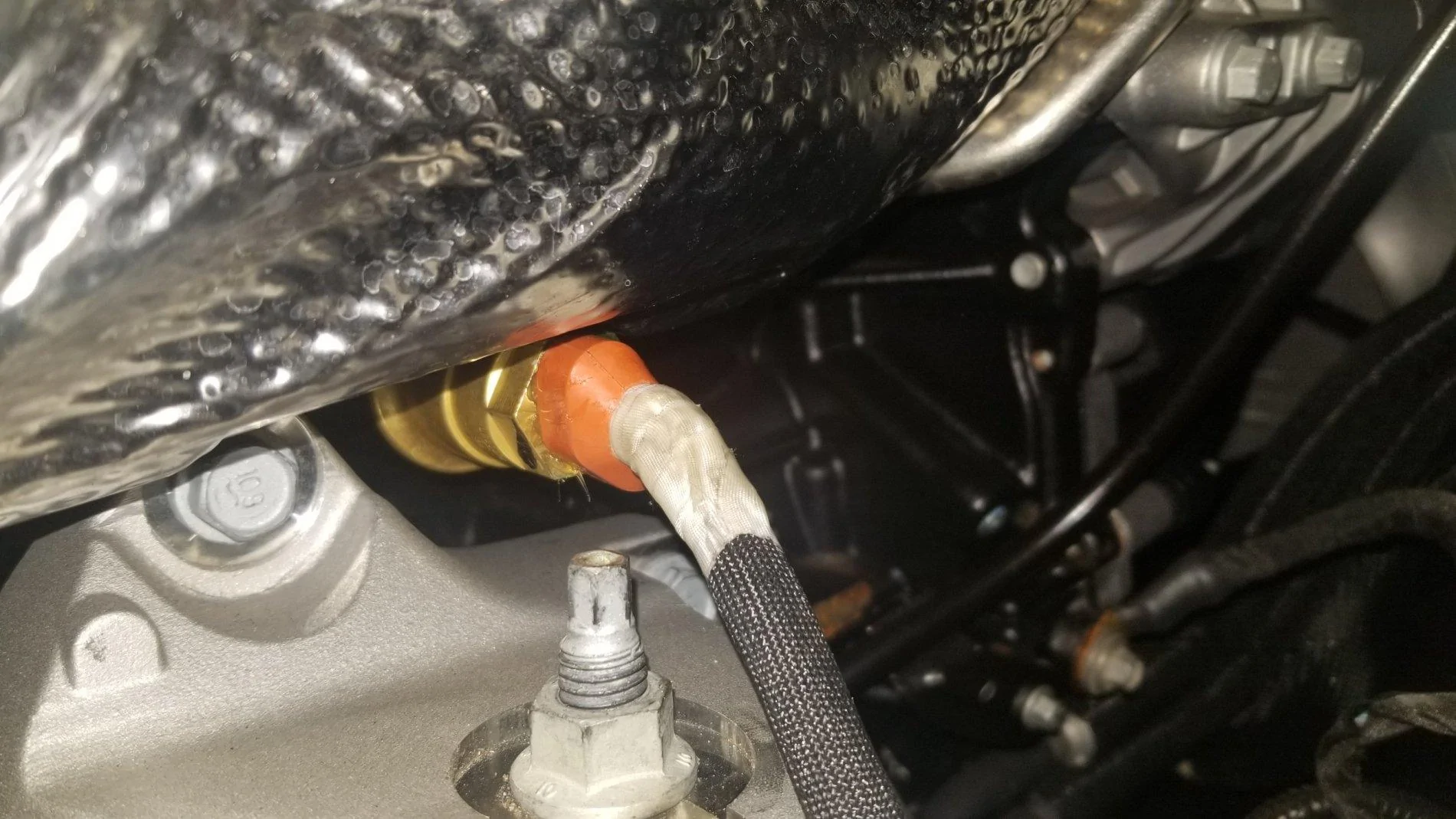

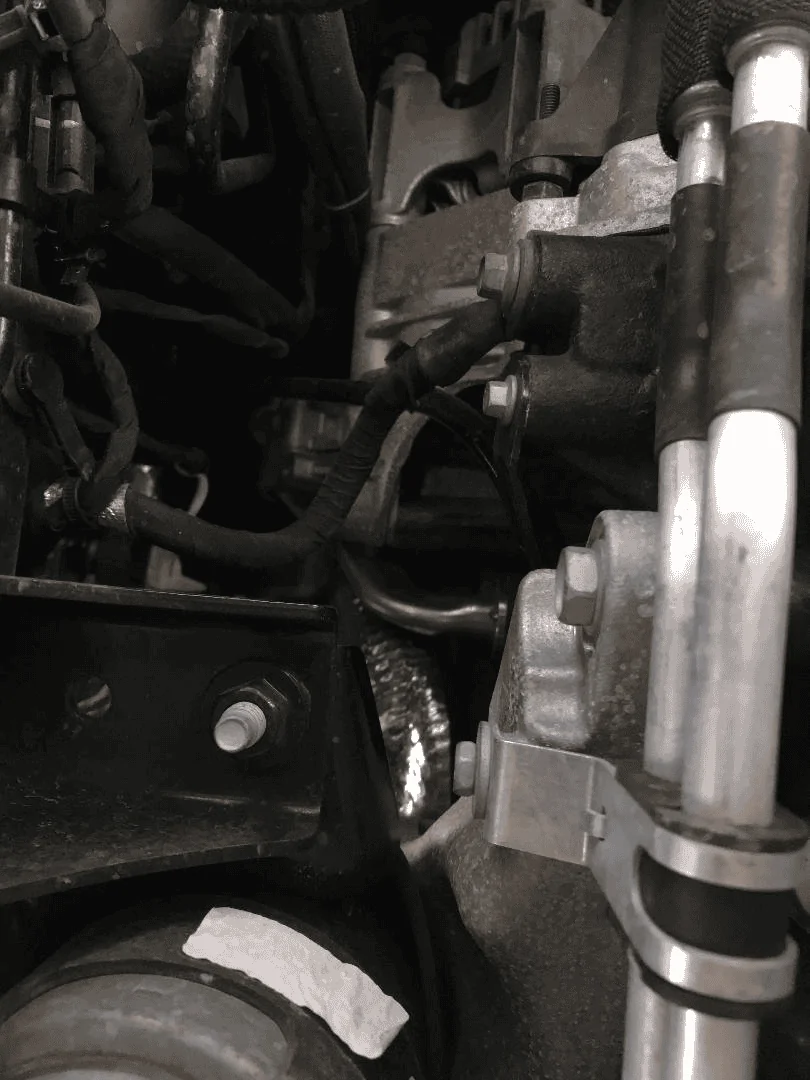

this is a pic of the area where the block heater should be. I dont see the brass plug. It looks like the silver thing is plugged into the block in that location but I cannot find the other end of it


Z06

Member
First Name
Tim
Joined
Nov 26, 2020
Messages
15
Reaction score
14
Location
Montana
Vehicle(s)
21 Wrangler Unltd Sport, Z06 Corvette, HD Ultra
Occupation
Retired
this is a pic of the area where the block heater should be. I dont see the brass plug. It looks like the silver thing is plugged into the block in that location but I cannot find the other end of it

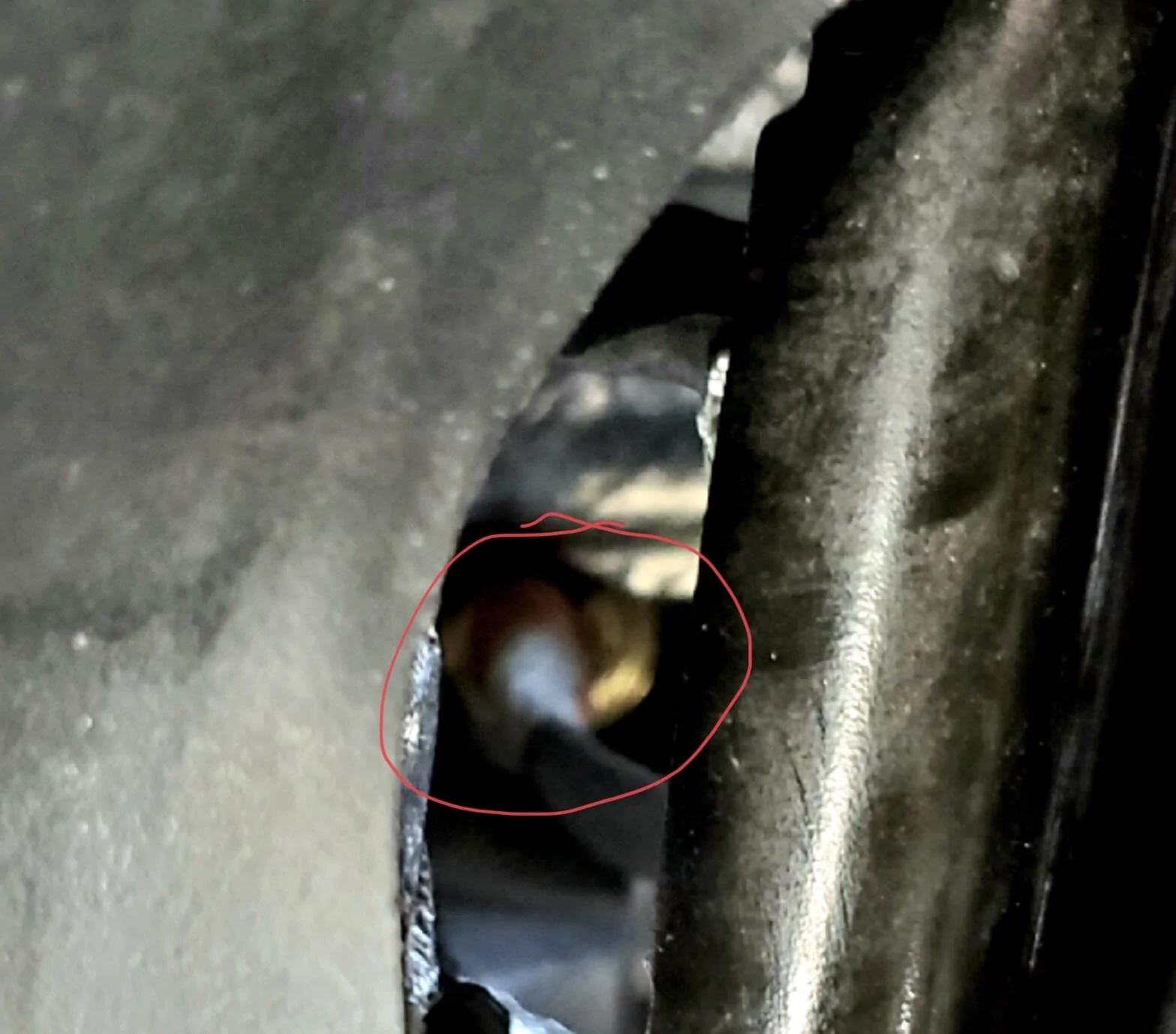

I could never see it from above or below either. I plugged into it by bending the wheel well liner up quite a bit after removing the two rear plastic retainers. Then pulled the orange dust cap and plugged in the cord by feel. The well does pop back into shape when done. The only time I ever saw the brass block plug was through the vertical slot in the wheel well. Using a flashlight shine over the tire through that slot somewhat toward the rear.

Last edited:

Z06

Member
First Name
Tim
Joined
Nov 26, 2020
Messages
15
Reaction score
14
Location
Montana
Vehicle(s)
21 Wrangler Unltd Sport, Z06 Corvette, HD Ultra
Occupation
Retired

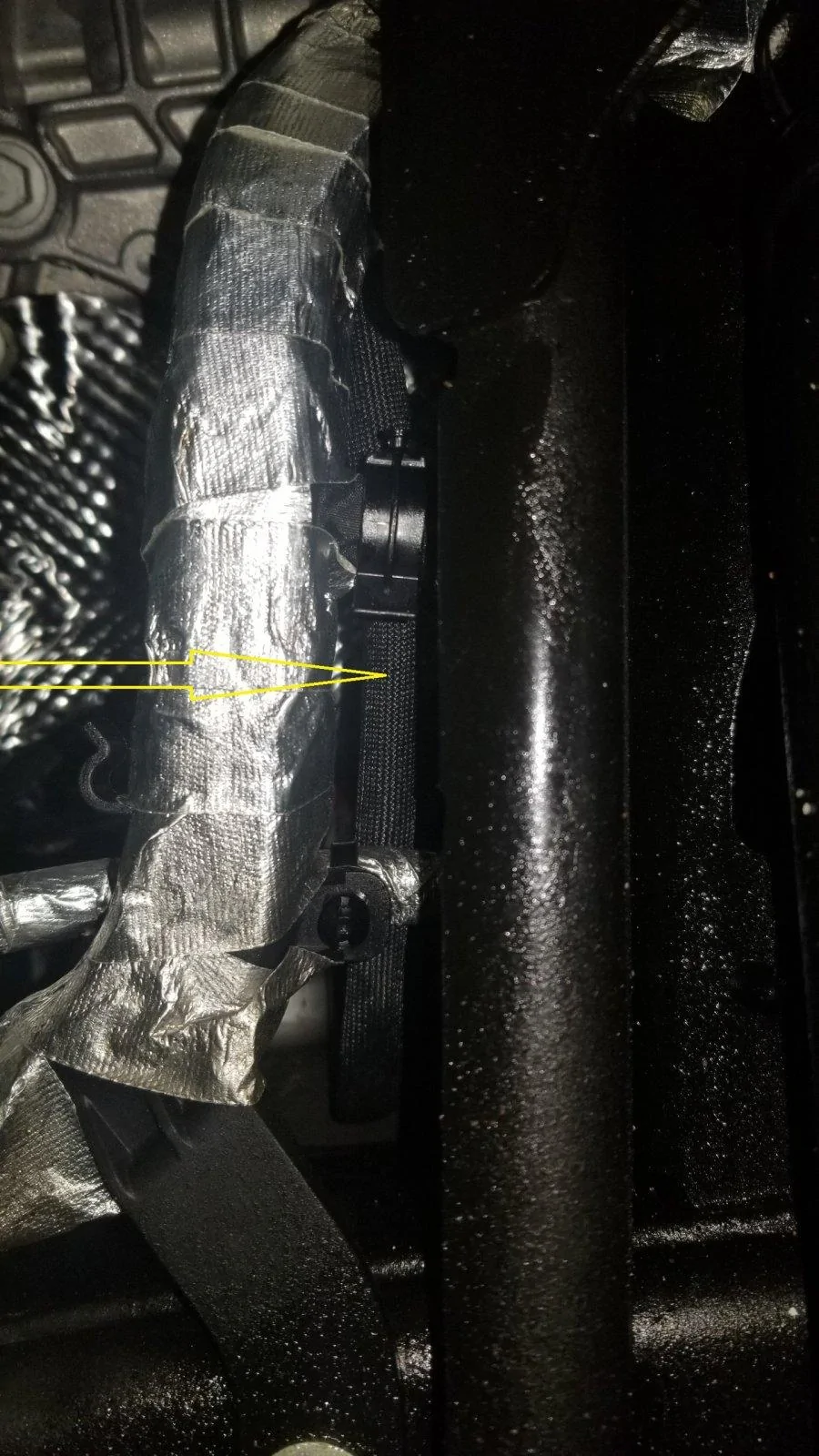

This is a poor picture but it’s way in there.
