I mounted a Baja Designs S2 under the bumper and fished the wiring through the passenger side frame rail to the Aux 3 wiring in the engine bay. Works great, and only comes on when I want.



Shots

Well-Known Member
First Name
Winchell
Joined
Jul 6, 2018
Threads
14
Messages
1,983
Reaction score
2,548
Location
Ohio
Vehicle(s)
Gone but not forgotten '18 Wrangler Sahara

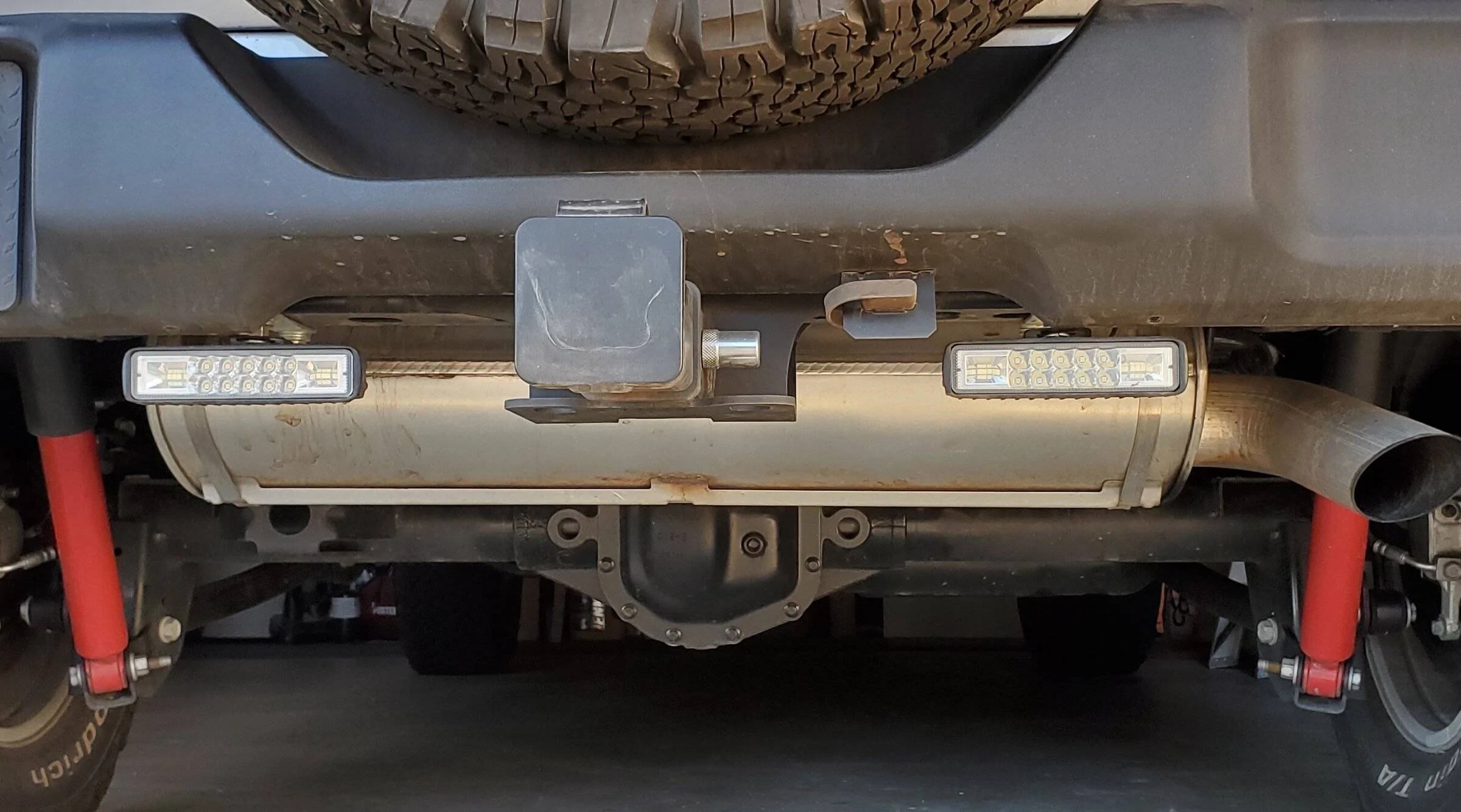

Here you go....Although I used that light set, I had to use a different mount to allow it to fit between the hitch and the bumper. Works great.
How difficult is it to attach the stay chains on a trailer with that configuration? Maybe it's just the angle of the picture, but it looks like they're kind of in the way.


10mmauto

Well-Known Member
Joined
Jan 27, 2019
Threads
9
Messages
175
Reaction score
226
Location
Western NY
Vehicle(s)
2021 Jeep Wrangler Willys, 2008 Mustang Bullitt
Occupation
LEO
Vehicle Showcase
1
How difficult is it to attach the stay chains on a trailer with that configuration? Maybe it's just the angle of the picture, but it looks like they're kind of in the way.
Sorry - don't know. Never towed anything! But I think there's more room when the flag plug isn't in there.


cosine

Well-Known Member
First Name
Chris
Joined
Jun 1, 2019
Threads
68
Messages
6,038
Reaction score
29,089
Location
NY
Vehicle(s)
2019 Wrangler Sport jl
Occupation
Gone Postal
just wondering if a 30* spot would work well as a led backup light. i have them on my windshield mount and was thinking of getting something different for the front. i know flood would be the preferred light for the back. i just got my body armor rear bumper that has cutouts for led lights. so exploring some ideas.


Craigzjeep

Well-Known Member
First Name
Craig
Joined
Apr 13, 2020
Threads
7
Messages
260
Reaction score
520
Location
Mt. Rainier
Vehicle(s)
2019 Sting Gray
Occupation
Teleco installer


zxd9

Well-Known Member
Joined
May 24, 2020
Threads
5
Messages
66
Reaction score
78
Location
GA
Vehicle(s)
2020 Wrangler Sport S, Bright White, Freedom Pkg
just wondering if a 30* spot would work well as a led backup light. i have them on my windshield mount and was thinking of getting something different for the front. i know flood would be the preferred light for the back. i just got my body armor rear bumper that has cutouts for led lights. so exploring some ideas.
I actually used Rigid diffused lights on my F150. A nice wide pattern. Really liked them.


Jeremy8271

Member
First Name
Jeremy
Joined
Mar 20, 2022
Threads
0
Messages
7
Reaction score
1
Location
Tampa
Vehicle(s)
2022 Rubicon
Anyone added an auxiliary reverse light/s?

not needed form off road but just for better illumination in general reversing.

thanks.

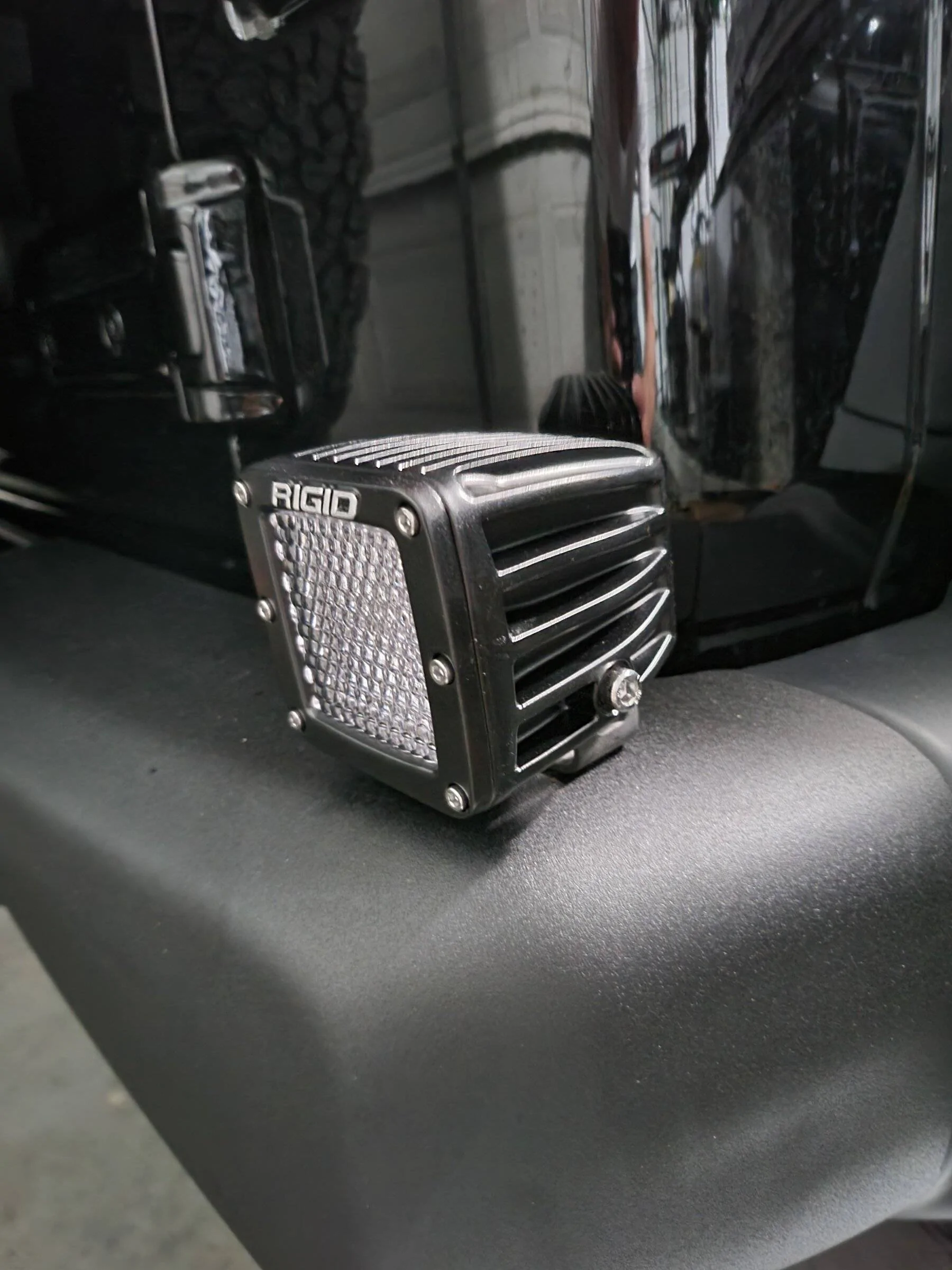

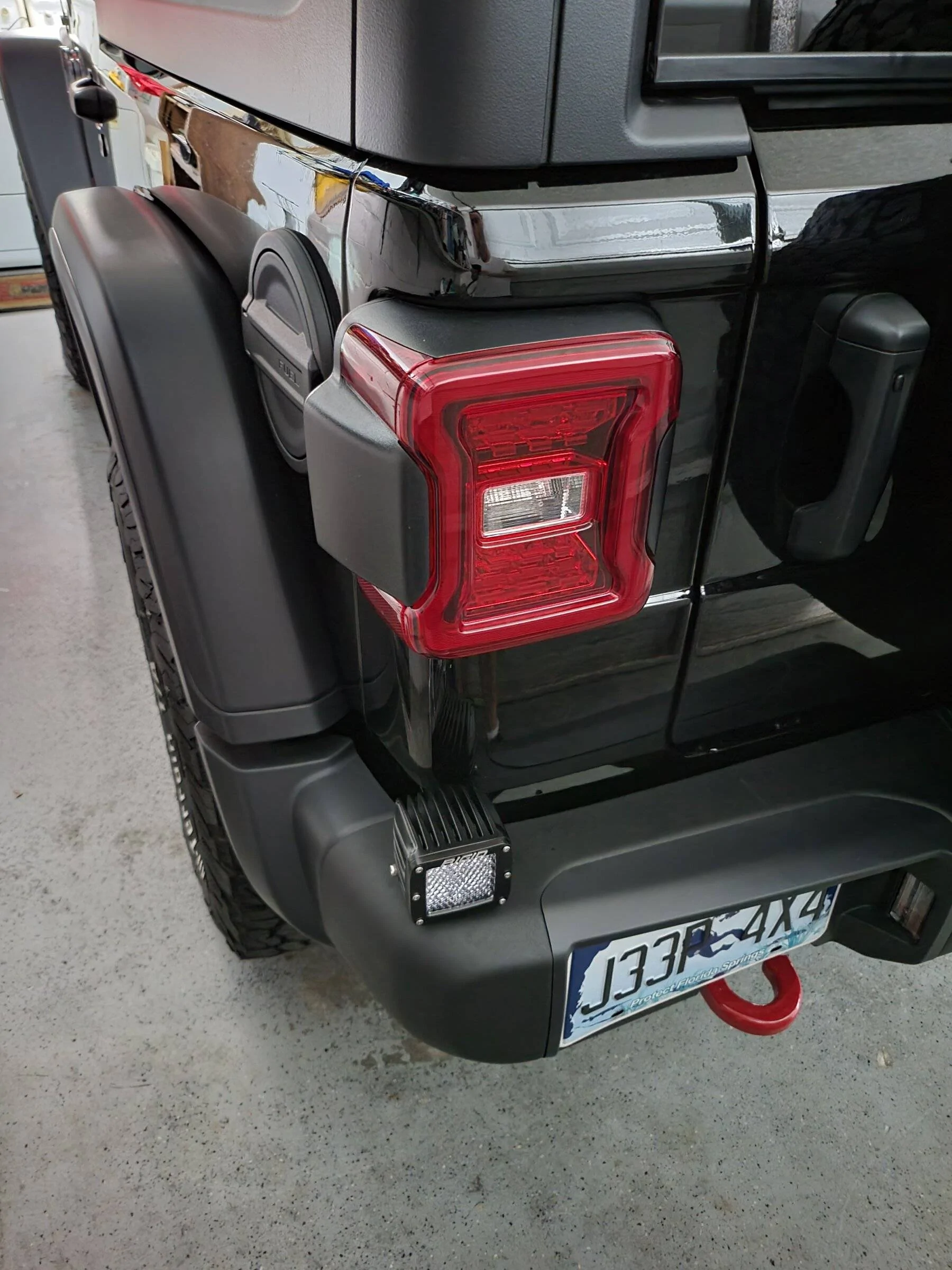

I just finished these, stock steel bumper has 2 bolts on the corners I removed and bolted in these diffused floods. Ran wire through passanger tail light to the passanger foot well aux cables. I read I can also tap into the trailer wires in The tail light housing though I have not tried it yet. Back up cam does not wash out. It is super bright and clear!







Htfan

Well-Known Member
First Name
Jeff
Joined
Nov 18, 2019
Threads
9
Messages
949
Reaction score
758
Location
Orange County, CA
Vehicle(s)
2018 JLU Sport S - 3.6L
Vehicle Showcase
1

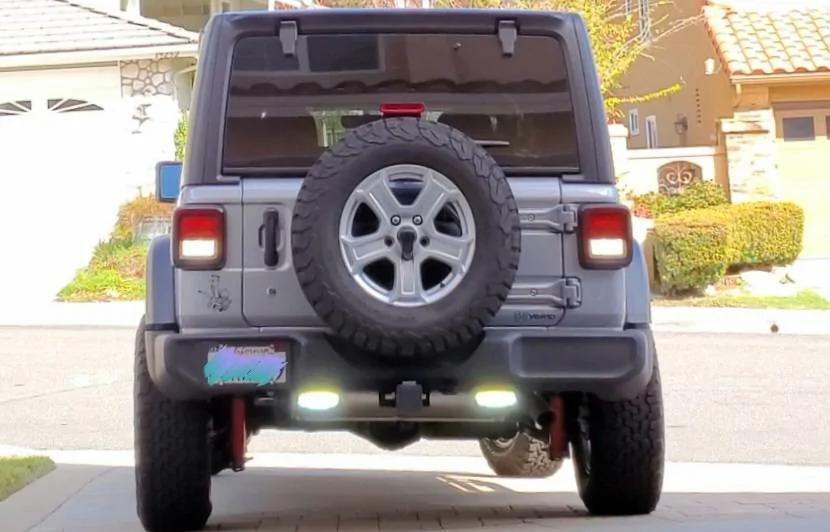

I went the fairly inexpensive way, but very happy with the results.

Used Square "U" brackets as a mount rather than drilling into anything. Spliced into trailer hitch wiring with diodes and left factory harness untouched.



Extremely bright even compared to the replaced factory bulbs with superbright 6k LEDs

20210125_072515 (1).jpg

Last edited:

iamstillvince

Well-Known Member
First Name
Vince
Joined
Oct 13, 2020
Threads
0
Messages
148
Reaction score
160
Location
Alberta, canada
Vehicle(s)
2020 wrangler sport s
I went the fairly inexpensive way, but very happy with the results.

Used Square "L" brackets as a mount rather than drilling into anything. Spliced into trailer hitch wiring with diodes and left factory harness untouched.



Extremely bright even compared to the replaced factory bulbs with superbright 6k LEDs

20210125_072515 (1).jpg
got a pic of the l brackets and mount location? i just screwed into plastic bumper but would like more solid option


Cyber_Jeeper

Well-Known Member
Joined
Jan 16, 2022
Threads
1
Messages
56
Reaction score
92
Location
Utah
Vehicle(s)
2022 JLUR
I went the fairly inexpensive way, but very happy with the results.

Used Square "L" brackets as a mount rather than drilling into anything. Spliced into trailer hitch wiring with diodes and left factory harness untouched.



Extremely bright even compared to the replaced factory bulbs with superbright 6k LEDs

20210125_072515 (1).jpg
Is there a reason you used diodes? I was under the impression that you only needed those when you want multiple power sources, such as the reverse lights OR the aux switches. With just one power source there shouldn’t be any feedback, right?
I’m looking to do something similar and just splice them into the trailer hitch reverse wiring.



Htfan

Well-Known Member
First Name
Jeff
Joined
Nov 18, 2019
Threads
9
Messages
949
Reaction score
758
Location
Orange County, CA
Vehicle(s)
2018 JLU Sport S - 3.6L
Vehicle Showcase
1
got a pic of the l brackets and mount location? i just screwed into plastic bumper but would like more solid option
I did mount them to the bumper at first, but didn't like the location.

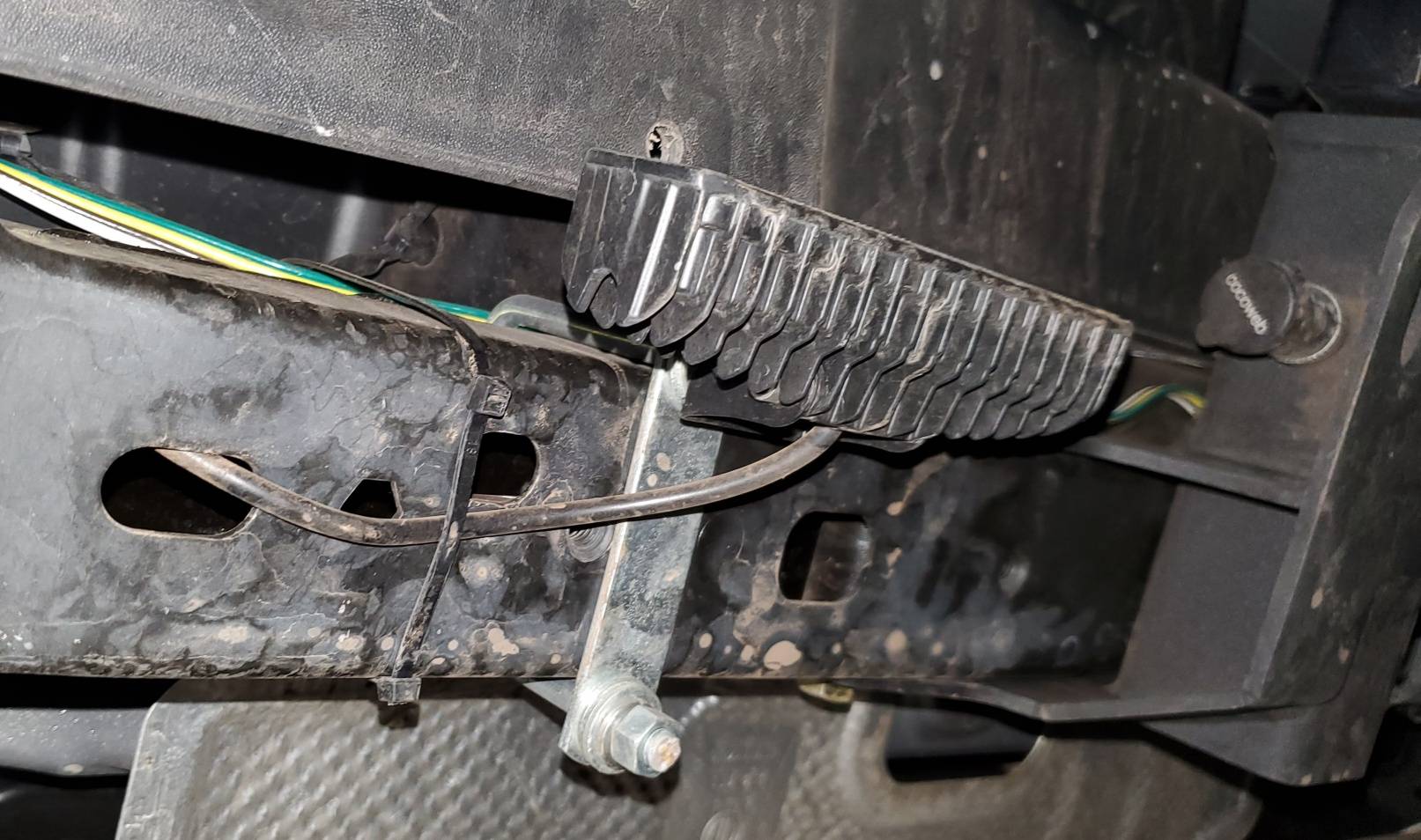

Here's a picture from underneath and example of brackets purchased from home depot.




Htfan

Well-Known Member
First Name
Jeff
Joined
Nov 18, 2019
Threads
9
Messages
949
Reaction score
758
Location
Orange County, CA
Vehicle(s)
2018 JLU Sport S - 3.6L
Vehicle Showcase
1
Is there a reason you used diodes? I was under the impression that you only needed those when you want multiple power sources, such as the reverse lights OR the aux switches. With just one power source there shouldn’t be any feedback, right?
I’m looking to do something similar and just splice them into the trailer hitch reverse wiring.
I added diodes more as a precaution since I also have a trailer harness. It may be fine without them.


zouch

Well-Known Member
Joined
Sep 17, 2020
Threads
14
Messages
911
Reaction score
873
Location
Berkeley, CA
Vehicle(s)
XJ, JLUWD
what lights are those that you used?

i want to use something like that, but want to mount them on top of the tali light housings (where i'm less likely to bash them.)

I went the fairly inexpensive way, but very happy with the results.

Extremely bright even compared to the replaced factory bulbs with superbright 6k LEDs


Bill_P

Well-Known Member
First Name
Bill
Joined
Jan 24, 2022
Threads
2
Messages
154
Reaction score
235
Location
Orange Va
Vehicle(s)
2018 Wrangler JLU, 2013 Tundra 4X4
I made a bracket and added two lights on a separate switch that mount to the third brake light bracket. One light is on each side of the spare. The spare blocks a little bit of the light but they are a lot better than just the factory back-up lights. Plus, they are great for idiots who want to try to get behind me and hi-beam me at night. ;)


thecritter

Well-Known Member
First Name
Rusty
Joined
May 31, 2018
Threads
37
Messages
593
Reaction score
749
Location
East Texas
Vehicle(s)
2018 Crystal Granite JlU Rubicon
Vehicle Showcase
1
@ORACLElights makes some that fit in the bumper reflectors spot. Or get the flush mount taillights they are super bright.
