    I was just reading where someone said make sure you tighten all the Screws on the lights and you won’t have any problems with leaks.

  2. Jeepney18

    Jeepney18 Well-Known Member

    Vehicle(s):
    2008 Toyota Corolla S, 2018 JL Sport S Unlimited
    Joined:
    Aug 9, 2018
    Location:
    Bay Area, California
    Posts:
    313
    Liked:
    257
    Garage Profiles:
    1
    will do devil dog, thanks!

    usmcss likes this.
  3. usmcss

    usmcss Well-Known Member

    First Name:
    Bob
    Vehicle(s):
    Black 2018 Rubicon JL
    Joined:
    Jan 6, 2018
    Location:
    Illinois
    Posts:
    364
    Liked:
    191
    Semper Fi!

  4. Arkewn

    Arkewn Well-Known Member

    First Name:
    Kevin
    Vehicle(s):
    2018 JLU Rubicon
    Joined:
    Dec 15, 2017
    Location:
    CO
    Posts:
    213
    Liked:
    265

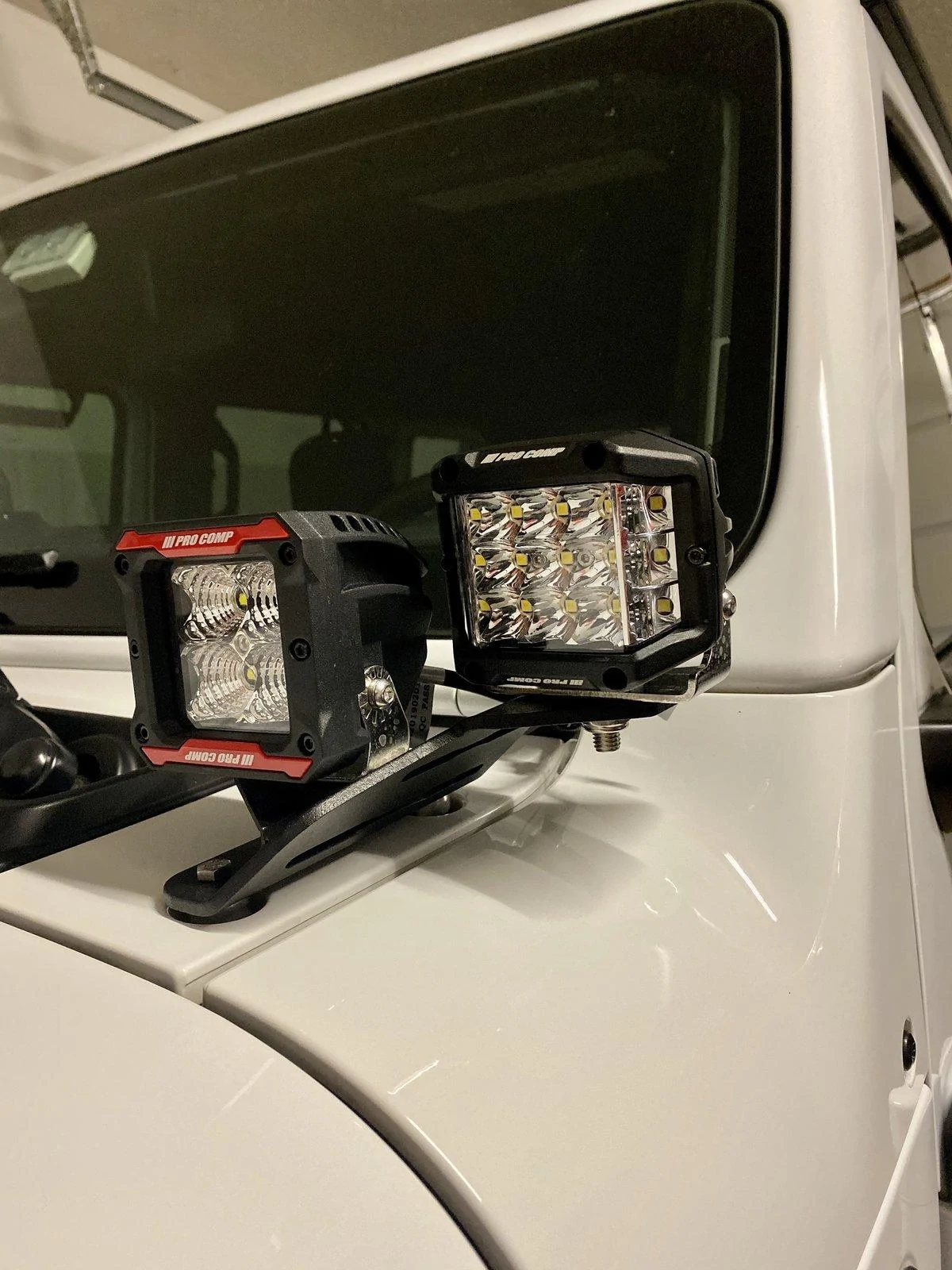

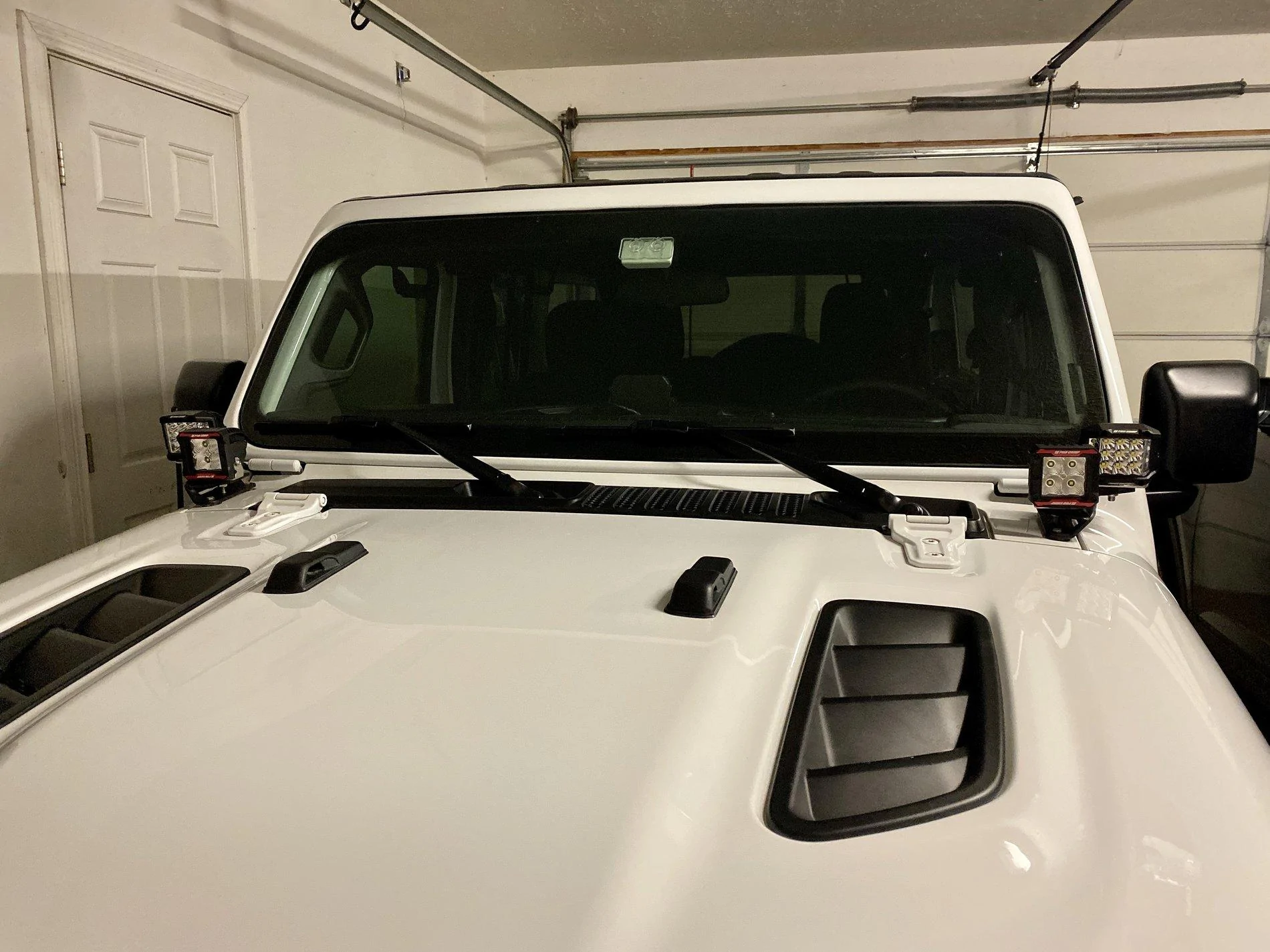

    I also bought these HF lights this past weekend - sort of an impulse buy but figured I could return if I read reviews later that sucked - but reviews seem good. They seem as solid as my Inspired Engineering cubes I put in my bumper. Glad to see your install went well and you are happy with the results.

    I also bought the HF wiring harness (no idea if this will be used) and ordered some hood mounts online. Looking forward to getting these installed.

    If it helps I also ordered these covers below and will update if they fit properly. Hope so as they also had an amber lens cover for the same $7.99 available which might be nice to have.
    https://www.amazon.com/gp/product/B07PCNN5KB/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

    usmcss likes this.
  5. Sbnewsom

    Sbnewsom Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2018 JLUR
    Joined:
    Jun 8, 2018
    Location:
    Indianapolis
    Posts:
    67
    Liked:
    35
  6. MikeS_in_PA

    MikeS_in_PA Member

    First Name:
    Mike
    Vehicle(s):
    2018 JL Rubicon
    Joined:
    Sep 17, 2019
    Location:
    Fort Washington, PA
    Posts:
    13
    Liked:
    35
    18ga stranded wire (red and black) Used my drill to twist two red's and a black for common ground ran that set from Driver to Passenger by fishing through the area under the cowl behind the rubber weather striping. Once I got over to the passenger side I soldered the pigtails from the lights and ran a power feed and ground to the Aux switch lead near the battery.. I was going to do a youtube install video but once I started the harness I just focused on getting it done rather than being a movie producer.

    usmcss likes this.
  7. usmcss

    usmcss Well-Known Member

    First Name:
    Bob
    Vehicle(s):
    Black 2018 Rubicon JL
    Joined:
    Jan 6, 2018
    Location:
    Illinois
    Posts:
    364
    Liked:
    191
    Awesome, thanks a lot Mike!

  8. S2k Chris

    S2k Chris Well-Known Member

    First Name:
    Chris
    Vehicle(s):
    AP1 S2000, JLU Sport S
    Joined:
    Aug 1, 2018
    Location:
    Arlington Heights, IL
    Posts:
    332
    Liked:
    592
    usmcss and Jeepney18 like this.
  9. usmcss

    usmcss Well-Known Member

    First Name:
    Bob
    Vehicle(s):
    Black 2018 Rubicon JL
    Joined:
    Jan 6, 2018
    Location:
    Illinois
    Posts:
    364
    Liked:
    191
    #24 Oct 9, 2019
    Last edited: Oct 10, 2019

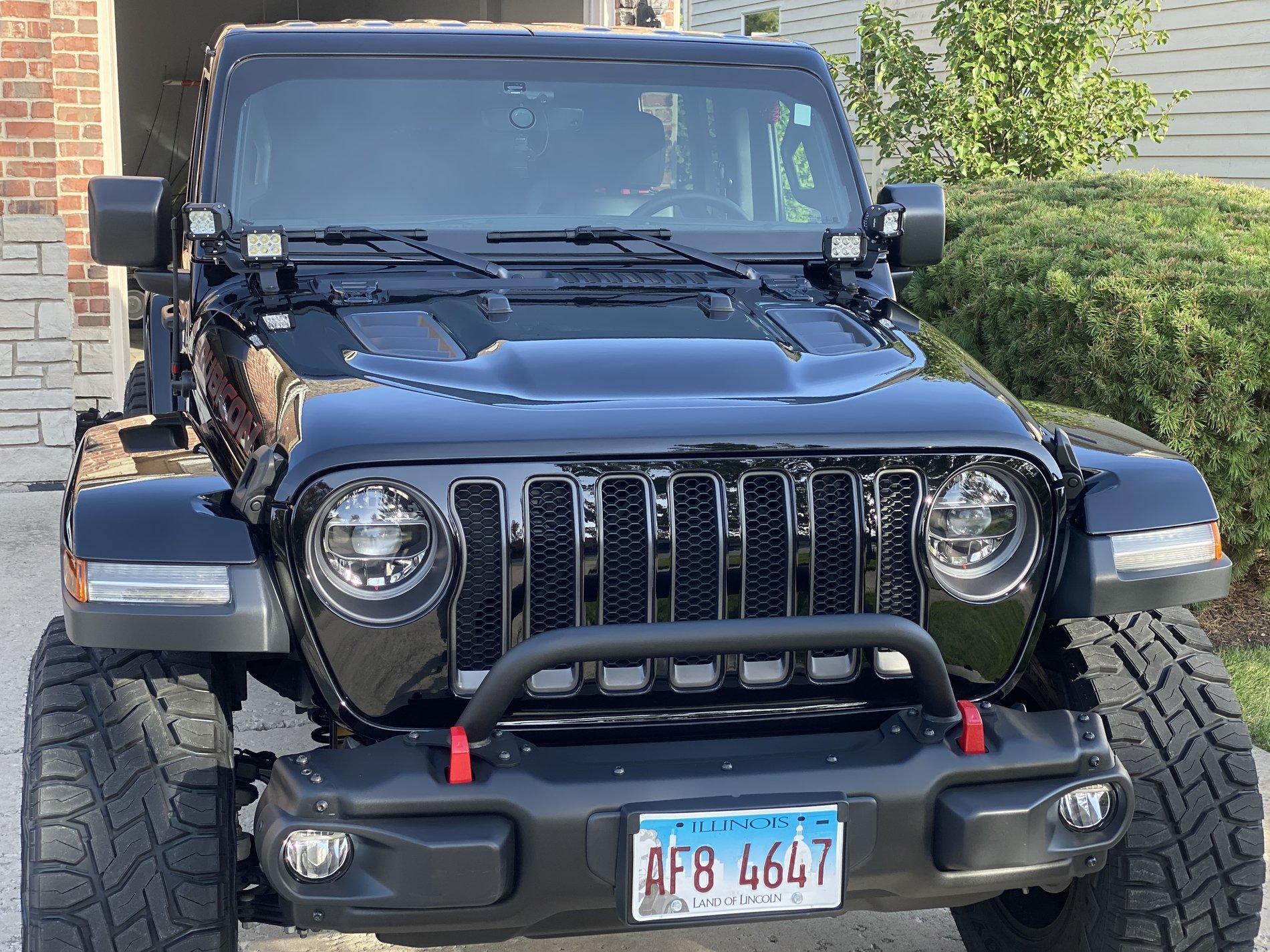

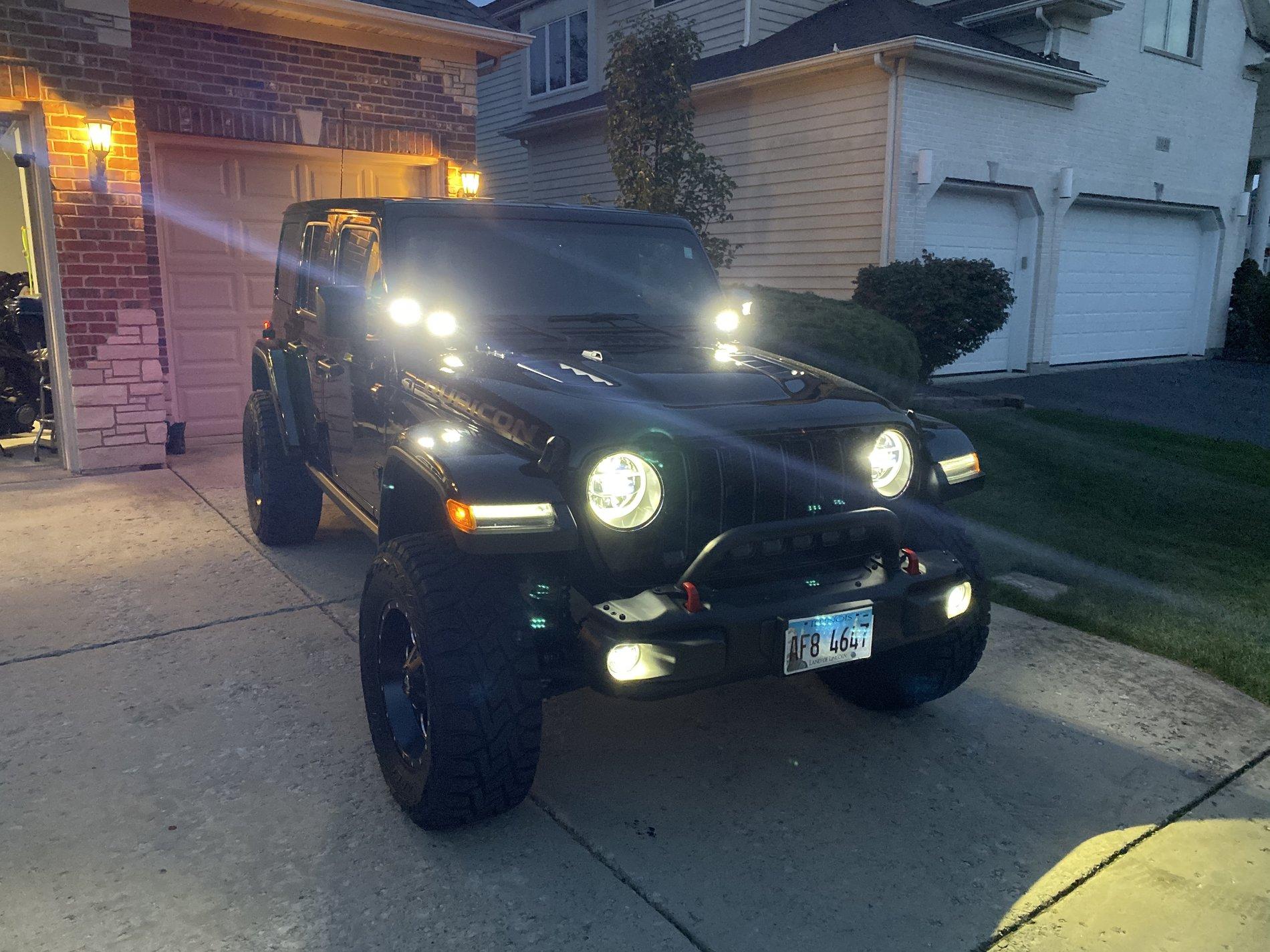

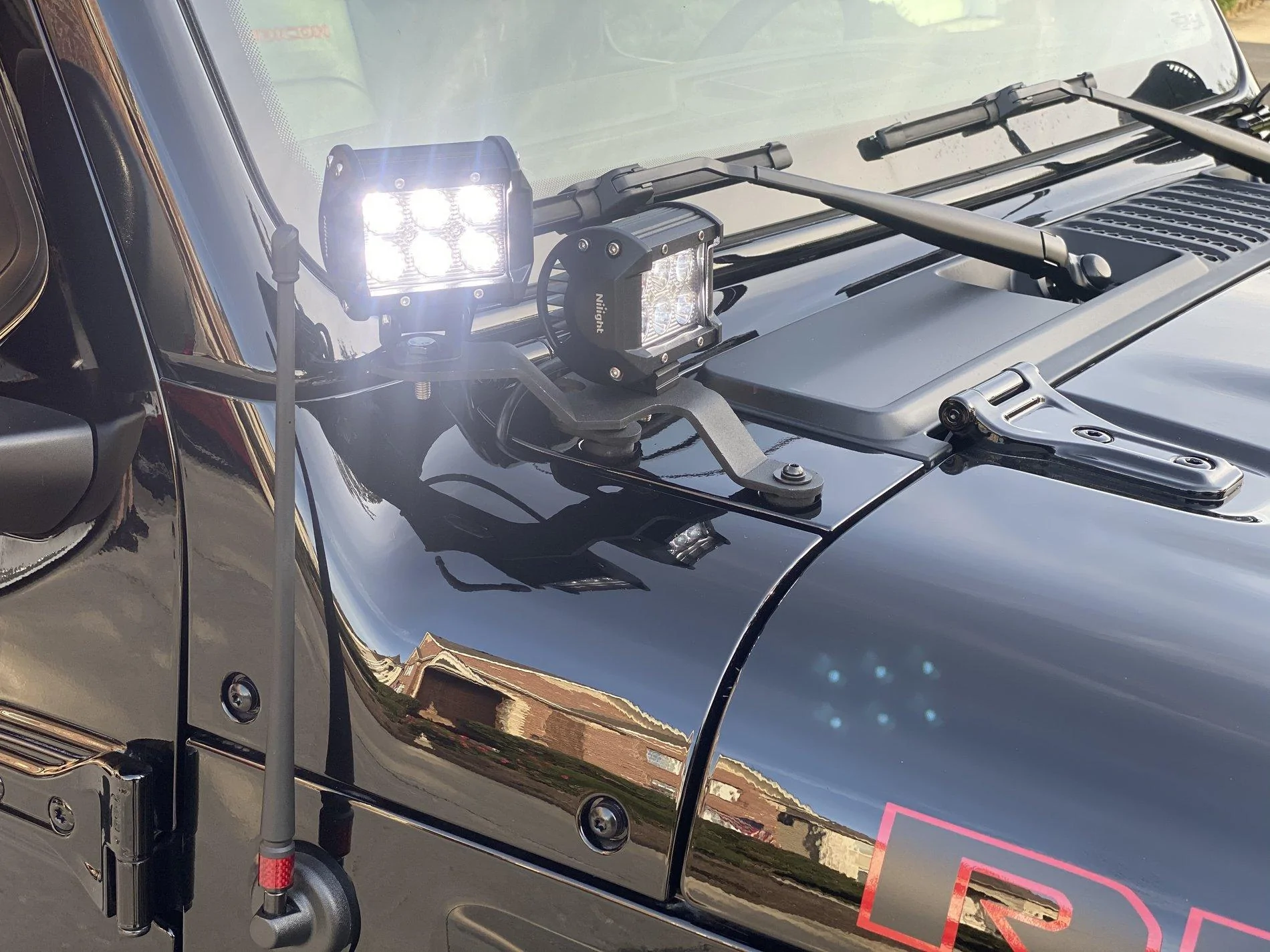

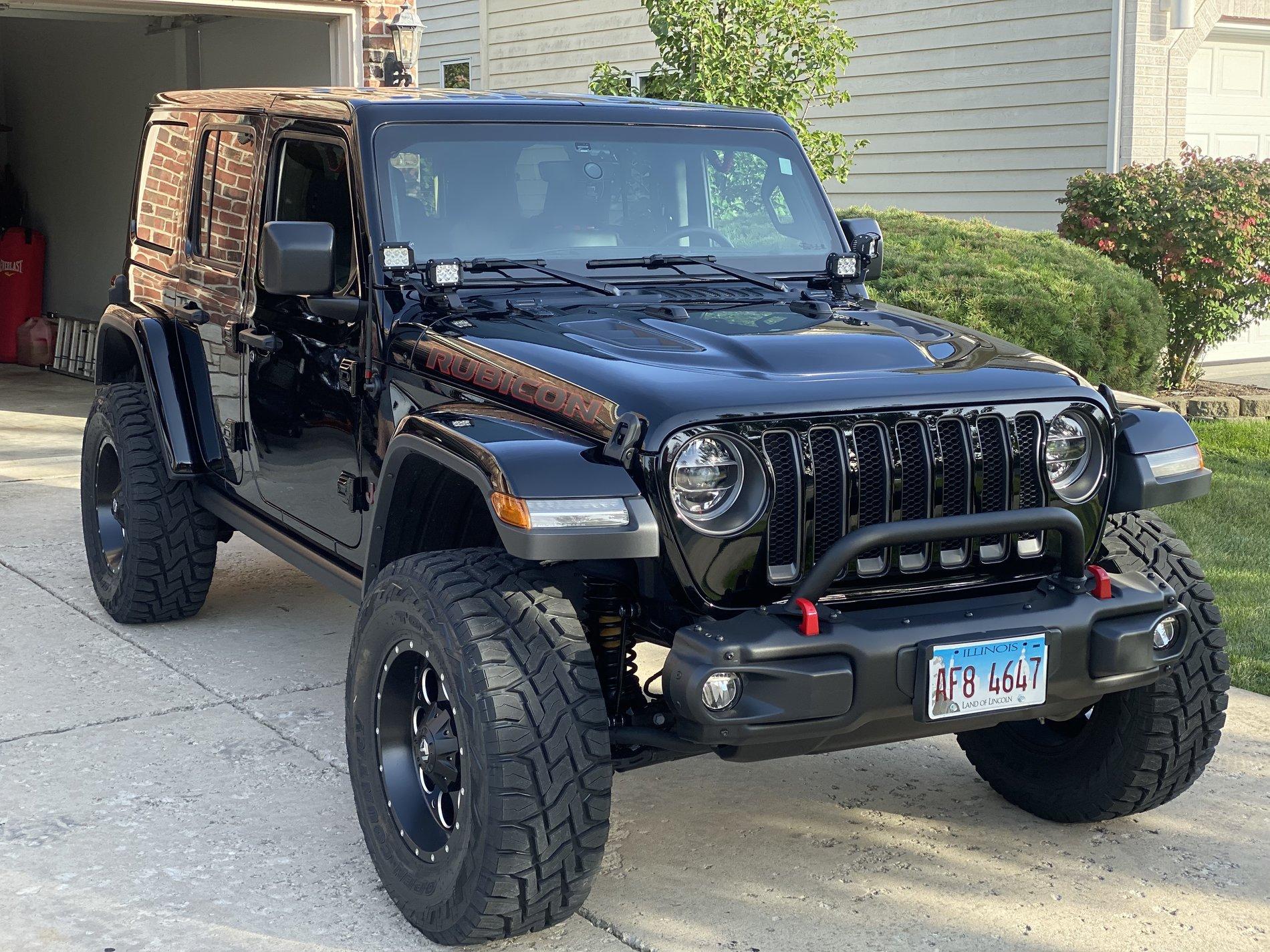

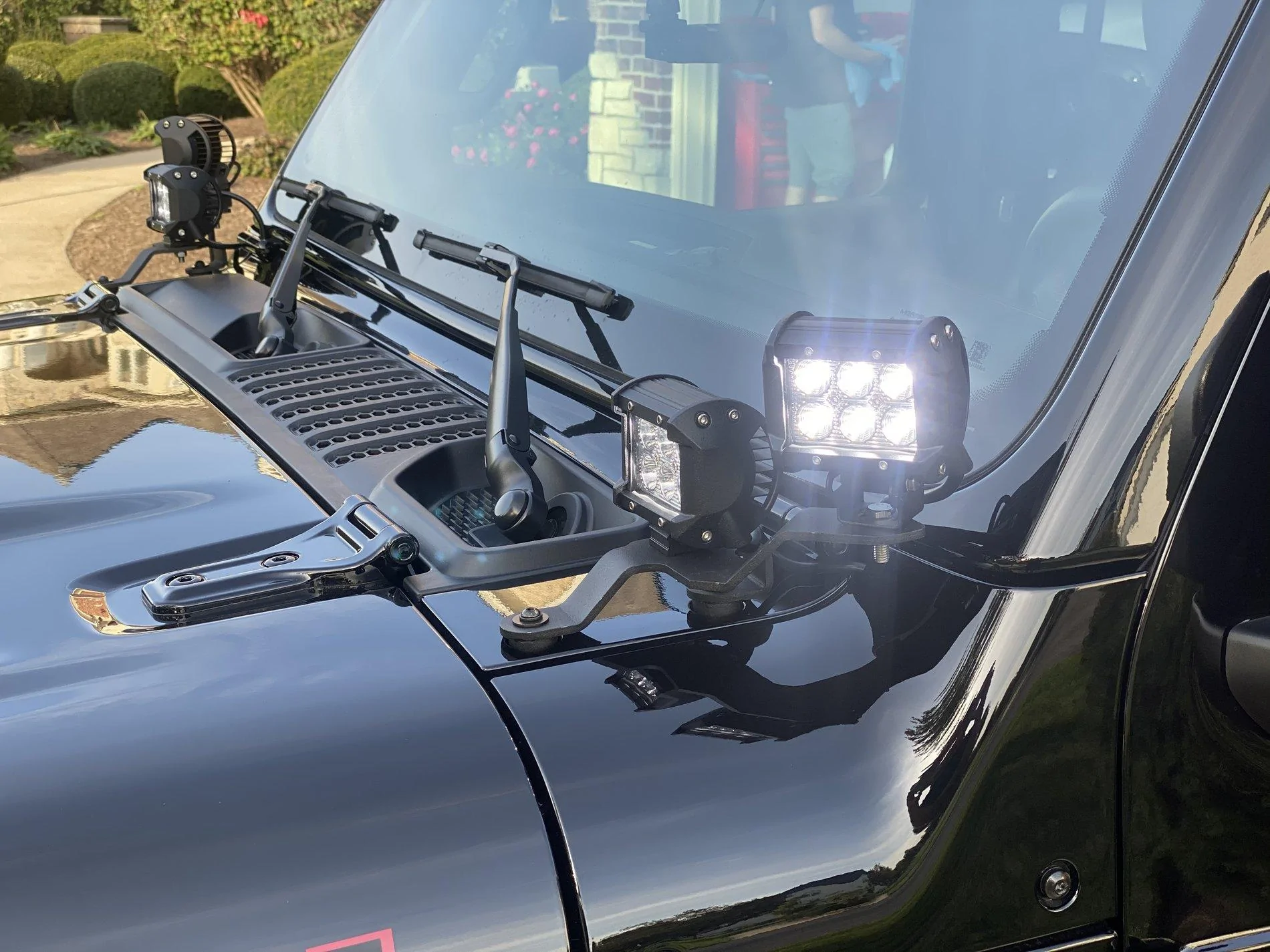

    I went with the lights you got for $25 for all four of them. I still can’t get over the price. These things are actually really nice, well made lights! The lights work really good!

    I bought the Go Rhino Mounts that are $84

    Really can’t go wrong in my opinion with these lights.

    Semper Fi Brother!






    2500 hd and Jeepney18 like this.
  10. Jeepney18

    Jeepney18 Well-Known Member

    Vehicle(s):
    2008 Toyota Corolla S, 2018 JL Sport S Unlimited
    Joined:
    Aug 9, 2018
    Location:
    Bay Area, California
    Posts:
    313
    Liked:
    257
    Garage Profiles:
    1
    They look great, thanks for sharing.

    usmcss likes this.
  11. Jeepney18

    Jeepney18 Well-Known Member

    Vehicle(s):
    2008 Toyota Corolla S, 2018 JL Sport S Unlimited
    Joined:
    Aug 9, 2018
    Location:
    Bay Area, California
    Posts:
    313
    Liked:
    257
    Garage Profiles:
    1
    Are your spots going straight and floods pointed to the side?

  12. usmcss

    usmcss Well-Known Member

    First Name:
    Bob
    Vehicle(s):
    Black 2018 Rubicon JL
    Joined:
    Jan 6, 2018
    Location:
    Illinois
    Posts:
    364
    Liked:
    191
    Yes they are.

  13. usmcss

    usmcss Well-Known Member

    First Name:
    Bob
    Vehicle(s):
    Black 2018 Rubicon JL
    Joined:
    Jan 6, 2018
    Location:
    Illinois
    Posts:
    364
    Liked:
    191
    I’m thinking of pointing the spots more to the side as well, I still have to mess with them. I have to get into an area that’s pitch black.

    when the spots are pointed straight, they don’t seem to do much with the headlights on. That’s why I’m thinking they need to be angled to the sides a little

  14. JSFoster75

    JSFoster75 Well-Known Member

    First Name:
    Scott
    Vehicle(s):
    2018 Jeep Wrangler JL Unlimited Sahara x2
    Joined:
    Oct 6, 2019
    Location:
    Bluff City, TN
    Posts:
    342
    Liked:
    294
    Garage Profiles:
    1
    would love the links to those wiring set ups. Awesome job on the wiring... looks like electrical panels I used wire in houses.

  15. Jeepney18

    Jeepney18 Well-Known Member

    Vehicle(s):
    2008 Toyota Corolla S, 2018 JL Sport S Unlimited
    Joined:
    Aug 9, 2018
    Location:
    Bay Area, California
    Posts:
    313
    Liked:
    257
    Garage Profiles:
    1
    Here are the parts I picked up from Amazon.
    16 Gauge Automotive Wire - 4 Roll... https://www.amazon.com/dp/B07QK119BQ?ref=ppx_pop_mob_ap_share

    Twidec/8Pcs SPST Round Dot Rocker... https://www.amazon.com/dp/B07W4HGMZS?ref=ppx_pop_mob_ap_share

    Install Bay 89-00-9031 ABS... https://www.amazon.com/dp/B0007WTF02?ref=ppx_pop_mob_ap_share

    Uxcell a13052800ux0615 600V 25A... https://www.amazon.com/dp/B01AHJV98A?ref=ppx_pop_mob_ap_share

    GOOACC 6 Pack Automotive Relay... https://www.amazon.com/dp/B01M74X0ZK?ref=ppx_pop_mob_ap_share

    6-Way Fuse Box Blade Fuse Block... https://www.amazon.com/dp/B07HDZVW3P?ref=ppx_pop_mob_ap_share

    Manual Reset Fuse, DROK 100 Amp... https://www.amazon.com/dp/B07QJ3XQ4P?ref=ppx_pop_mob_ap_share

    WindyNation 4 Gauge AWG (3 Feet... https://www.amazon.com/dp/B01N5O8PH1?ref=ppx_pop_mob_ap_share

    Nilight 60001F-B Bar 2PCS 18w 4"... https://www.amazon.com/dp/B00IY3YLCI?ref=ppx_pop_mob_ap_share

    Nilight 2PCS 18W 1260lm Spot... https://www.amazon.com/dp/B00G620ZVU?ref=ppx_pop_mob_ap_share

    100 Feet 1/4" Split Loom - Tubing... https://www.amazon.com/dp/B00KW9PQTE?ref=ppx_pop_mob_ap_share

    I had no clue how to do this when I started.
    I got some help from the guys on this thread, https://www.jlwranglerforums.com/forum/threads/diy-switch-pod-for-jl-wranglers.37928/,
    Watched some YouTube videos

    And


    And did some research on Google.

    You can just buy one of those spods for $200 and up but I learned a lot by setting it up by myself.

    I drew up a diagram to get an idea of how to set it up.

    2019-09-30 16_24_04-Final - Relay  Switch Pod.pptx - PowerPoint.jpg

    I switched out the blue wire for red just like in the YouTube video for the relay.

    I hope this helps. There's more than one way to do things so feel free to change it up or buy other/cheaper parts.

    I bought a heat gun from harbor freight and rotary tool kit or use a Dremel if you already have it.

    Used these items to cut and shape out the plastic, and heat gun to bend it to shape.

    I copied the shape of the cubby onto the plastic with a sharpie. I didn't want to put any screws where the switches are for that face plate so I used a glue gun.

    Run the wires through the passenger grommet. It's a pain so I cut a slit on the outer layer. I left one wire to pull wire through if necessary in the future. Don't want to fish that through again.

    I hope this makes sense but it's after midnight and I'm sleepy. Let me know if you have any questions and I'll try to help.
