JL corrosion

JayJay

Well-Known Member
First Name
Johnny
Joined
Feb 13, 2020
Messages
693
Reaction score
1,308
Location
North Georgia
Vehicle(s)
'20 JLR
I have a 2018. Zero issues with bubbling, and my Jeep sits outside constantly, in southwest Florida tropical humidity and rain. Why?
It could be that a very small percent of the Jeeps have the problem and that you, and so far myself, are part of the majority.

Later,
Johnny





Advertisement



JayJay

Well-Known Member
First Name
Johnny
Joined
Feb 13, 2020
Messages
693
Reaction score
1,308
Location
North Georgia
Vehicle(s)
'20 JLR
I think you’re part of the minority......which in this case is good
If you're right Jay I sure hope that it stays that way. I had an '87 GMC pickup that was built not long after the transition to water based paints. The paint was still peeling in places when I sold it a couple of years ago. I wouldn't want to experience something like that again.

Later,
Johnny


Jay 13

Well-Known Member
First Name
Jay
Joined
Aug 14, 2019
Messages
319
Reaction score
623
Location
Toronto
Vehicle(s)
JLUR
If you're right Jay I sure hope that it stays that way. I had an '87 GMC pickup that was built not long after the transition to water based paints. The paint was still peeling in places when I sold it a couple of years ago. I wouldn't want to experience something like that again.

Later,
Johnny
I hope so, for your sake or anyone else who doesn’t have this (at the moment) and hopefully doesn’t have it occur to have to bother dealing with.

I’ll say that from what I’ve seen is more and more ppl only notice this issue by coming across some of these threads on the issue and then sure enough they go check to find some spots. It sucks!

so I truly believe not everyone may have this issue occur (at least not so early on) but almost every JL in my area that I come across in person....I’d say about 8/10 I see having this issue unfortunately.

it’s a shame really. Even just reading on the forums you find many who have gone to the dealers shops, are informed they’re well aware of this! so that tells me it’s pretty wide spread.

but of course not everyone does. I hope more don’t. All I hope is there a frickin damn fix for this instead of ppl having to

#1 have this occur at all.

#2 FCA do proper prep work on these expensive jeeps to avoid this known issue and provide a true proper fix and therefore a damn proper tsb for the ones that do so it can be corrected CORRECTLY and move on.

#3 because of #1....some have had it repaired only to have the paint work look like a$$ or have the bubbling return again!
Just as @Redneck_Jedi. He knows the unfortunate non sense of that.

just brutal!
What amazes me is how they know it’s an issue and don’t even try and address it on the line. What’s the point of a tsb if you continue to push them out knowing very well your going to spend the money to fix them anyway.

also the tsb proves it’s more wide spread than not.
:mad:
Sorry for the rant, it just :swear: me off

Last edited:

Yogi

Well-Known Member
First Name
Michael
Joined
May 12, 2020
Messages
137
Reaction score
158
Location
Port Dover, Ontario, Canada
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Occupation
GM, P.Log, CITT, 310T
According to my dealer's body shop, Demeyere CDJR, this problem is not specific to Jeep only. It is rampant on Caravan hoods as well.
My dealer's solution is to remove the door hinges from the door, epoxy the bare metal (takes 24 hours to cure) reattach the hinges, and paint.
I've seen the work that comes out of this shop and it is stellar. Mind you this is the first Jeep they have tackled with this issue, but it's a proven process as they have done a couple hundred Caravans.
Mine has it on both hinges on 3 of the 4 doors. The body shop manager has taken pictures, and submitted a request for warranty. I was told it may take a week or two to get an answer.
I have every confidence in my dealer. On a scale of 1 to 10, these guys get an 11. We'll see how it goes.


DaltonGang

Well-Known Member
Joined
Sep 29, 2018
Messages
1,205
Reaction score
1,353
Location
Houston, Tx
Vehicle(s)
2018 Wrangler JLU Sport S, Rubicon Suspension, Tires, and Rims. Firecracker Red
According to my dealer's body shop, Demeyere CDJR, this problem is not specific to Jeep only. It is rampant on Caravan hoods as well.
My dealer's solution is to remove the door hinges from the door, epoxy the bare metal (takes 24 hours to cure) reattach the hinges, and paint.
I've seen the work that comes out of this shop and it is stellar. Mind you this is the first Jeep they have tackled with this issue, but it's a proven process as they have done a couple hundred Caravans.
Mine has it on both hinges on 3 of the 4 doors. The body shop manager has taken pictures, and submitted a request for warranty. I was told it may take a week or two to get an answer.
I have every confidence in my dealer. On a scale of 1 to 10, these guys get an 11. We'll see how it goes.
Hopefully word will get around, and every repair shop will be doing it right.


HeatBird

Well-Known Member
First Name
Mark
Joined
Oct 4, 2020
Messages
132
Reaction score
111
Location
Right Coast
Vehicle(s)
79' Corvette 4 spd. 21'Willys 2dr. 6 spd.
Occupation
Retired
  1. You’re trying to isolate the dissimilar metals.
  2. You put film between the hinge and the door.
  3. Now what about those pesky metal torx bolts?
Nice plan until #3

Pesky bolts
All kinds of products can be applied to the bolts.


sost1sg

Well-Known Member
First Name
Steve
Joined
Mar 11, 2018
Messages
288
Reaction score
384
Location
Oakland, NJ
Vehicle(s)
2018 JLUR; 2015 SRT Grand Cherokee

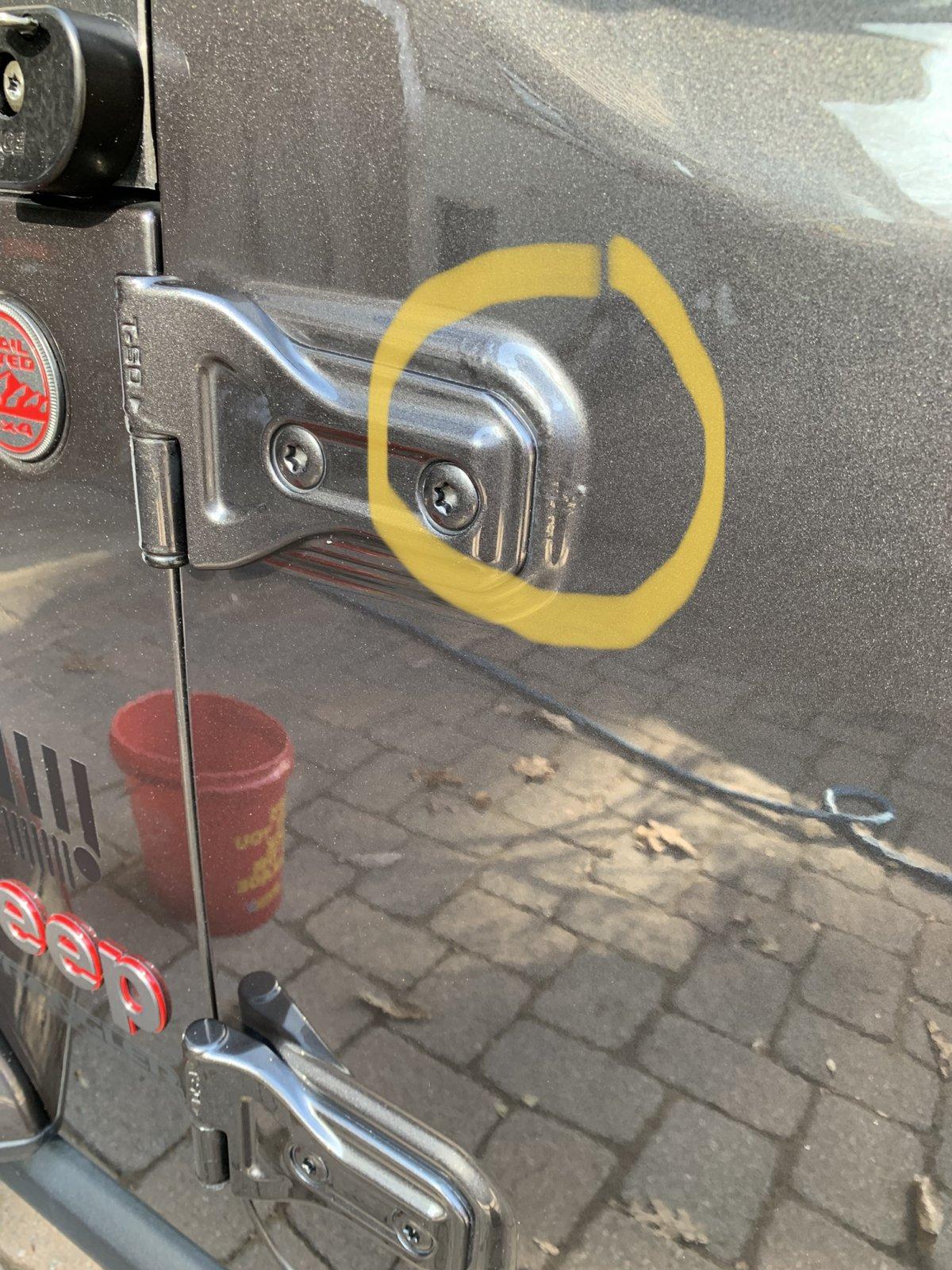

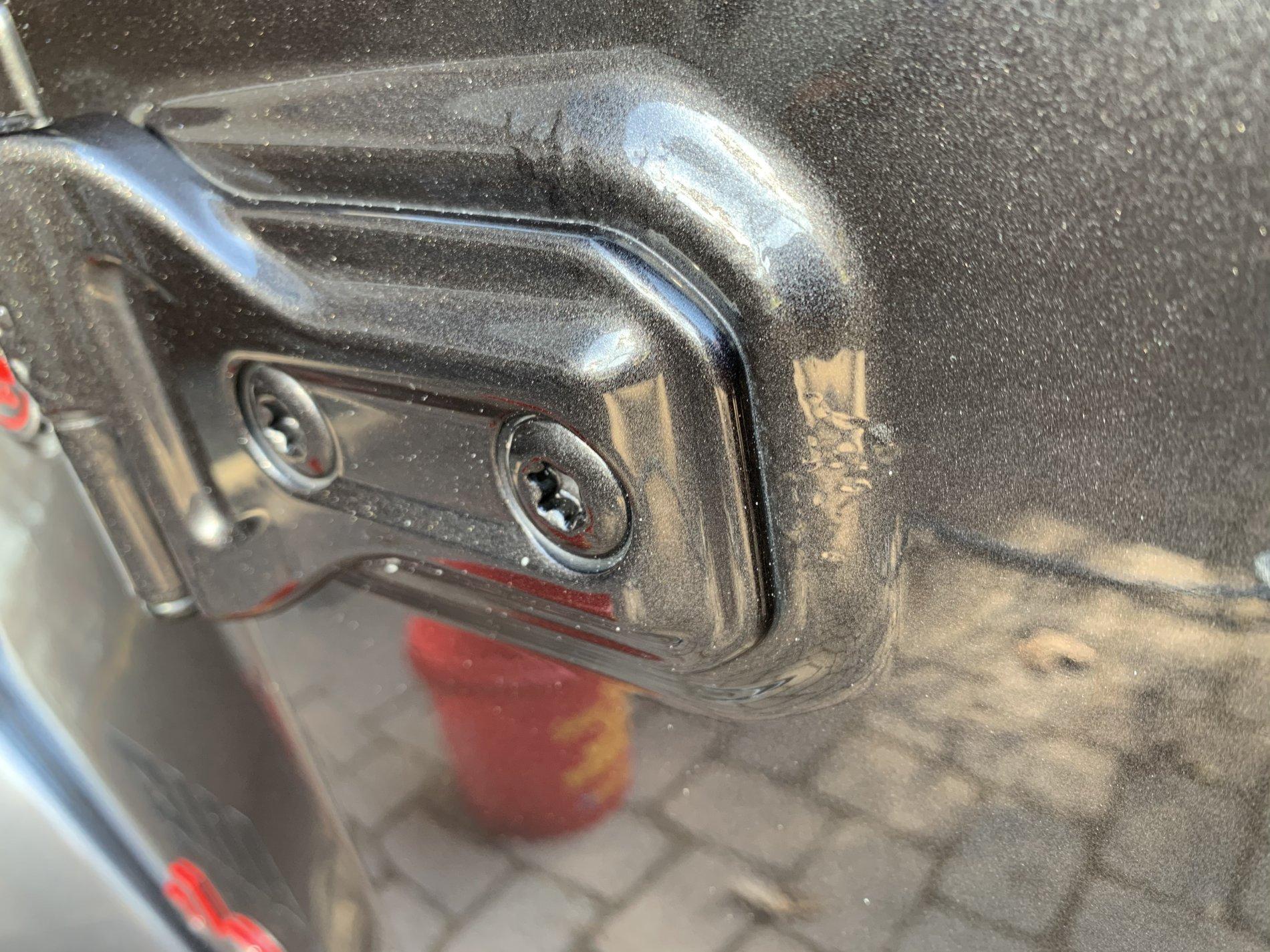

I think I’ve got this issue. Waxed the Jeep this weekend and noticed the below. Is this what is being referred to?




2020OceanBlue

New Member
First Name
Jim
Joined
Oct 12, 2020
Messages
4
Reaction score
5
Location
VA
Vehicle(s)
2020 JLU
The white stuff is galvanic corrosion. Bad stuff. Will spread under the paint and pop the paint off.

Should be using some sort of inert coating/pad between the metal types, and inert material bolts.
Something maybe like a thin piece of rubber, cut to fit of course. Thin like bicycle tire tube thin. Then perhaps a bead of silicone to seal it in?

Thoughts for your engineer types out there??


oceanblue2019

Well-Known Member
First Name
John
Joined
Apr 13, 2019
Messages
2,395
Reaction score
3,303
Location
Maryland
Vehicle(s)
2019 JLUR 2.0L Auto
Something maybe like a thin piece of rubber, cut to fit of course. Thin like bicycle tire tube thin. Then perhaps a bead of silicone to seal it in?

Thoughts for your engineer types out there??
Rubber probably too soft, I would use something like a thin layer of teflon tape or other durable material that can compress to fill any small voids and keep water out. Also need to either ensure the bolts do not make contact to the hinge, or go with a inert material.


ImAJeepskate

Well-Known Member
First Name
Grant
Joined
Nov 1, 2018
Messages
185
Reaction score
128
Location
Minnesota
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport (JLU)
Rubber probably too soft, I would use something like a thin layer of teflon tape or other durable material that can compress to fill any small voids and keep water out. Also need to either ensure the bolts do not make contact to the hinge, or go with a inert material.
Get those cheap super thin cutting boards, cqnd even color match and cut those to size


HeatBird

Well-Known Member
First Name
Mark
Joined
Oct 4, 2020
Messages
132
Reaction score
111
Location
Right Coast
Vehicle(s)
79' Corvette 4 spd. 21'Willys 2dr. 6 spd.
Occupation
Retired
Rubber probably too soft, I would use something like a thin layer of teflon tape or other durable material that can compress to fill any small voids and keep water out. Also need to either ensure the bolts do not make contact to the hinge, or go with a inert material.
Too soft for what? Rubber would be perfect as it is obviously very pliable. The pic is of my 84' Carrera. See where the side mirror is attached to the door? There is a rubber gasket there. Worked perfectly well. It was for keeping water out but the mirror housing was aluminum so without it there could have been galvanic corrosion also.
With all that being said if this starts with my Willys I'm taking it back to the dealer the second I see a single friggin bubble. They'll take the hinges off and paint behind them like they should have in Toledo's paint shop.



oceanblue2019

Well-Known Member
First Name
John
Joined
Apr 13, 2019
Messages
2,395
Reaction score
3,303
Location
Maryland
Vehicle(s)
2019 JLUR 2.0L Auto
Too soft for what? Rubber would be perfect as it is obviously very pliable. The pic is of my 84' Carrera. See where the side mirror is attached to the door? There is a rubber gasket there. Worked perfectly well. It was for keeping water out but the mirror housing was aluminum so without it there could have been galvanic corrosion also.
With all that being said if this starts with my Willys I'm taking it back to the dealer the second I see a single friggin bubble. They'll take the hinges off and paint behind them like they should have in Toledo's paint shop.

Rubber is a poor material choice for something like a door that is used frequently and has some mass to it.

Very different use case to holding a mirror pod on, and in 1984 they didn't have the material choices they have now. Today that mirror pod is composite.


TheBigBadWolf

Well-Known Member
Joined
Nov 17, 2020
Messages
264
Reaction score
1,524
Location
NC
Vehicle(s)
2021 JLUR Firecracker (3 Pedal Version)
Interesting first post for me here.
I had a 2015 JKU WW.
This was happening to the JKs too. Sometime around 2015 they added a gasket in between the two layers to help mitigate this process. I remember getting mine, wondering if it came through with these all important gaskets. You could barely see the thing, but it was there.
I’m a little confused to see this here on the JLs since it seems they made moves to fix it on the JKs.
