OEM LED headlights

JLEEPER

Active Member
Rock Sponsor (Level 1)
First Name
JEFF
Joined
Jan 28, 2019
Messages
32
Reaction score
29
Location
NEW YORK
Website
www.headlighthaven.com
Vehicle(s)
2019 SAHARA, 2003 EVOLUTION, KX125
Occupation
lighting specialist

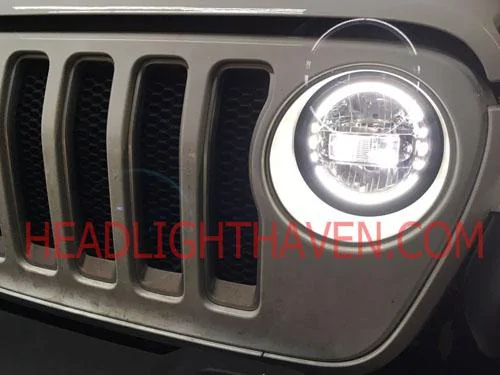

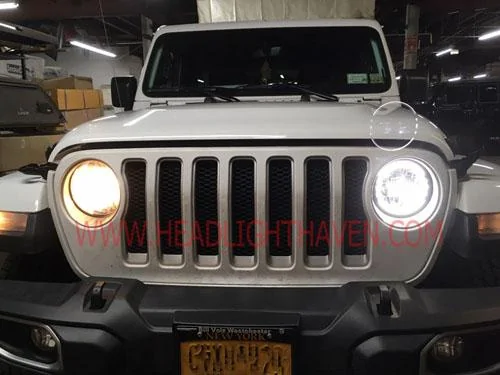

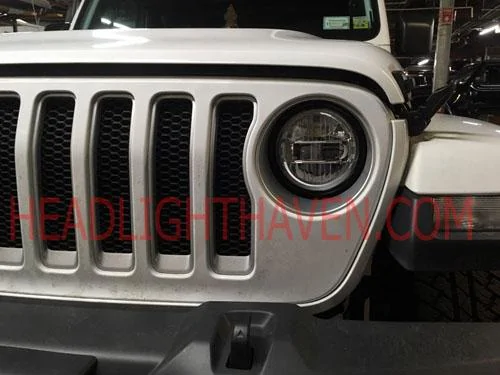

for anyone without the factory LED headlights, there are other options. We just installed set of our aftermarket LED headlights. They require our adapter rings, but they line up great. They are a little smaller in diameter to the OEM version, but our adapter rings feature a nice rubber ring to fill in some of the gap. These DOT approved headlights have excellent beam pattern and no flickering, all plug and play to factory connector using our adapter. The halo will turn on as soon the lights are turned on, or using the included 'trigger wire', the halo can be wired separately to parking lights(or anywhere)





Advertisement



nag22

Member
First Name
Nick
Joined
Oct 10, 2018
Messages
23
Reaction score
21
Location
New Jersey
Vehicle(s)
2018 JLU Wrangler Sport, 2012 JKUR Gecko Wrangler
Is the middle part projector for low beam and then it uses the reflector part for high beam?

Can you throw HID bulbs into this without blinding oncoming traffic from the "no cutoff" problem?
I honestly have no idea


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
126
Reaction score
40
Location
Wisconsin
Vehicle(s)
2020 Gladiator Sport S (Gladys) - 89' Civic SI
for anyone without the factory LED headlights, there are other options. We just installed set of our aftermarket LED headlights. They require our adapter rings, but they line up great. They are a little smaller in diameter to the OEM version, but our adapter rings feature a nice rubber ring to fill in some of the gap. These DOT approved headlights have excellent beam pattern and no flickering, all plug and play to factory connector using our adapter. The halo will turn on as soon the lights are turned on, or using the included 'trigger wire', the halo can be wired separately to parking lights(or anywhere)





are the middles of the lights projector and the top and bottom reflector?


JLEEPER

Active Member
Rock Sponsor (Level 1)
First Name
JEFF
Joined
Jan 28, 2019
Messages
32
Reaction score
29
Location
NEW YORK
Website
www.headlighthaven.com
Vehicle(s)
2019 SAHARA, 2003 EVOLUTION, KX125
Occupation
lighting specialist

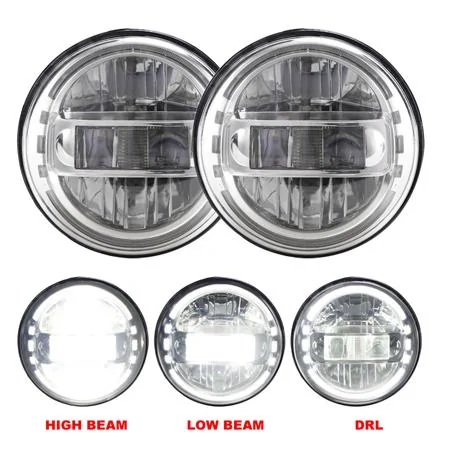

yes, the middles are LED projectors, very bright with a nice DOT cutoff line. Tops and bottoms are reflectors. 3000lumen low beam, 6000 high beam. Total power 60w


steffen707

Well-Known Member
Joined
Jan 28, 2018
Messages
126
Reaction score
40
Location
Wisconsin
Vehicle(s)
2020 Gladiator Sport S (Gladys) - 89' Civic SI
yes, the middles are LED projectors, very bright with a nice DOT cutoff line. Tops and bottoms are reflectors. 3000lumen low beam, 6000 high beam. Total power 60w
Are there separate led bulbs for the high and low beam, or is it a single bulb?


JLEEPER

Active Member
Rock Sponsor (Level 1)
First Name
JEFF
Joined
Jan 28, 2019
Messages
32
Reaction score
29
Location
NEW YORK
Website
www.headlighthaven.com
Vehicle(s)
2019 SAHARA, 2003 EVOLUTION, KX125
Occupation
lighting specialist
these are all sealed units. Have a 2yr warranty if any defects we would just replace the light


weeitsmikelee

Well-Known Member
First Name
Michael
Joined
Feb 26, 2018
Messages
856
Reaction score
759
Location
NYC
Vehicle(s)
‘21Wrangler392; ‘20 F-Pace; '15 XL883N; '82 CX500
Occupation
Healthcare
Vehicle Showcase
1
These are kinda cool. How much for just headlight(s)? In case I order for the bike


Mickgolf00

Well-Known Member
First Name
Mike
Joined
May 10, 2018
Messages
68
Reaction score
34
Location
Perry GA
Vehicle(s)
Jeep Wrangler JL

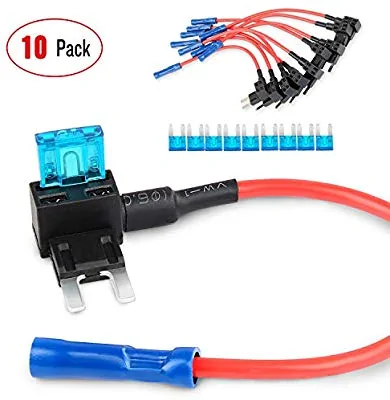

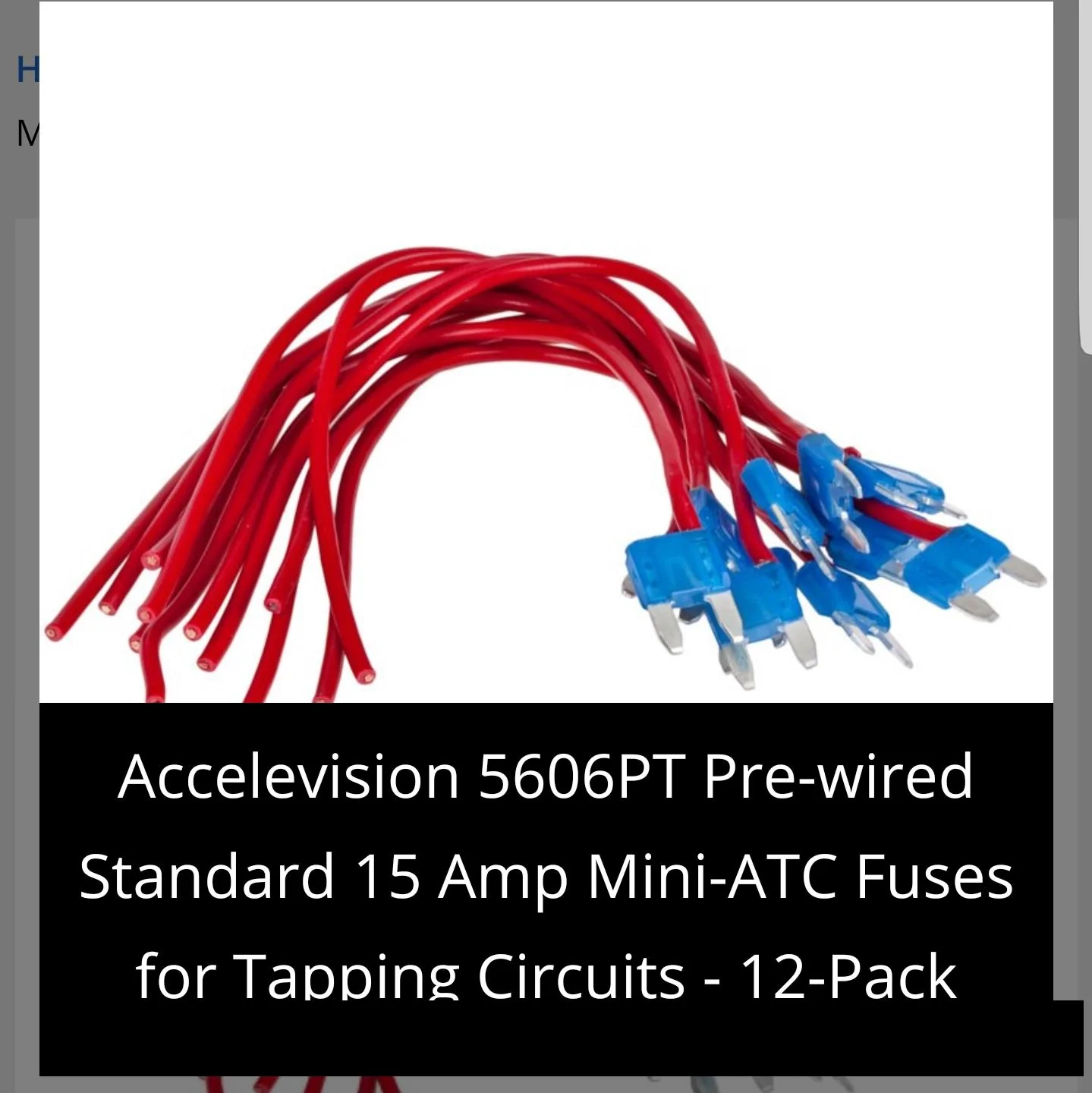

*UPDATE*. Ran into a little delay. The original idea of using the first fuse adapter was a bust. It's too big to go into the JL fuse box spare slots. I found a company that pre wires fuses. Gonna HAVE to go with that one. Other than that. Everything is ready to go. Just gonna wait on that to come in the mail. I'll keep you folks posted...



Just curious. When you're wiring these in, do you run both lights into (1) fuse (ie..cigarette lighter) or will you run to two separate fuses? I may have missed that in this thread but wanted to confirm with someone that's done it. Finished pictures would be nice if you/anyone has them. Appreciate it!

OP
OP
dcdanny

dcdanny

Well-Known Member
First Name
Daniel
Joined
Dec 19, 2018
Messages
61
Reaction score
39
Location
CA
Vehicle(s)
2014 wrangler sport. 2018 Rubicon
So you just took an oem LED housing, and put beamtech LED bulbs into them off of Amazon? Do you have that "the snow won't melt" problem?
Nope. They're OEM. Take offs from another JL

OP
OP
dcdanny

dcdanny

Well-Known Member
First Name
Daniel
Joined
Dec 19, 2018
Messages
61
Reaction score
39
Location
CA
Vehicle(s)
2014 wrangler sport. 2018 Rubicon
Just curious. When you're wiring these in, do you run both lights into (1) fuse (ie..cigarette lighter) or will you run to two separate fuses? I may have missed that in this thread but wanted to confirm with someone that's done it. Finished pictures would be nice if you/anyone has them. Appreciate it!

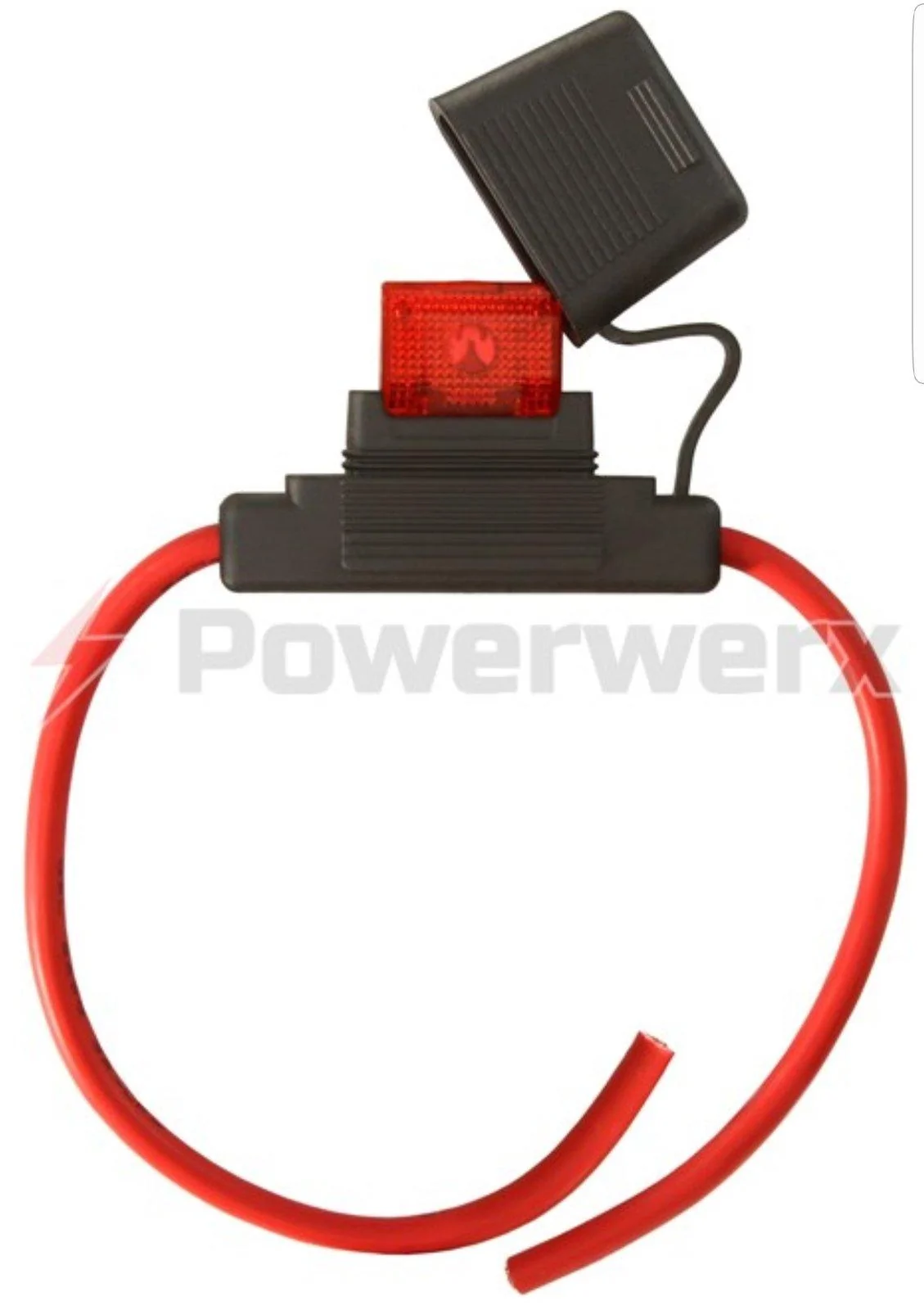

Both into 1. So ultimately you'll be splicing 3 wires together. One from each light & the fuse wire. Which is (pic posted). Then into the cigarette fuse slot



Mickgolf00

Well-Known Member
First Name
Mike
Joined
May 10, 2018
Messages
68
Reaction score
34
Location
Perry GA
Vehicle(s)
Jeep Wrangler JL

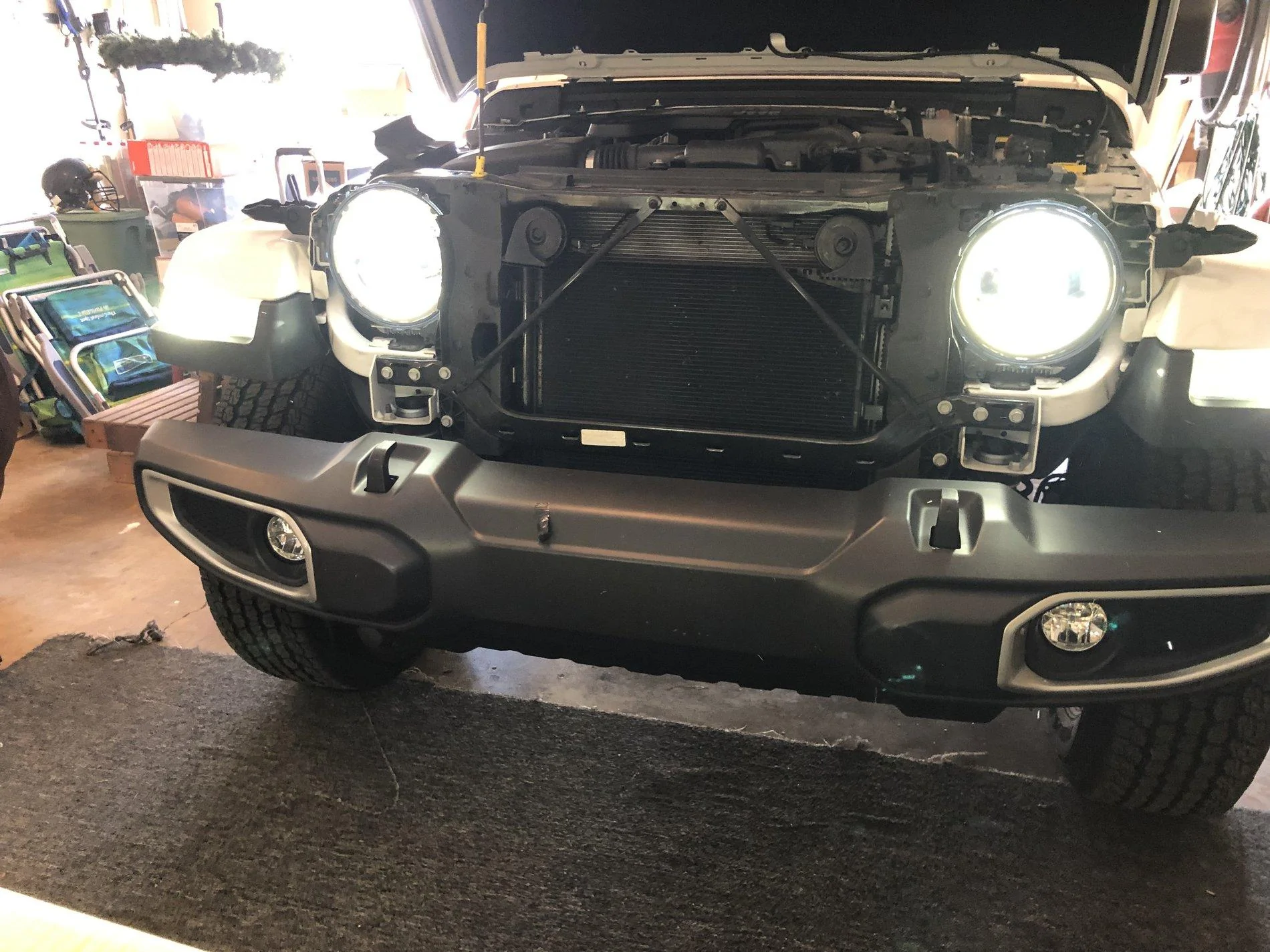

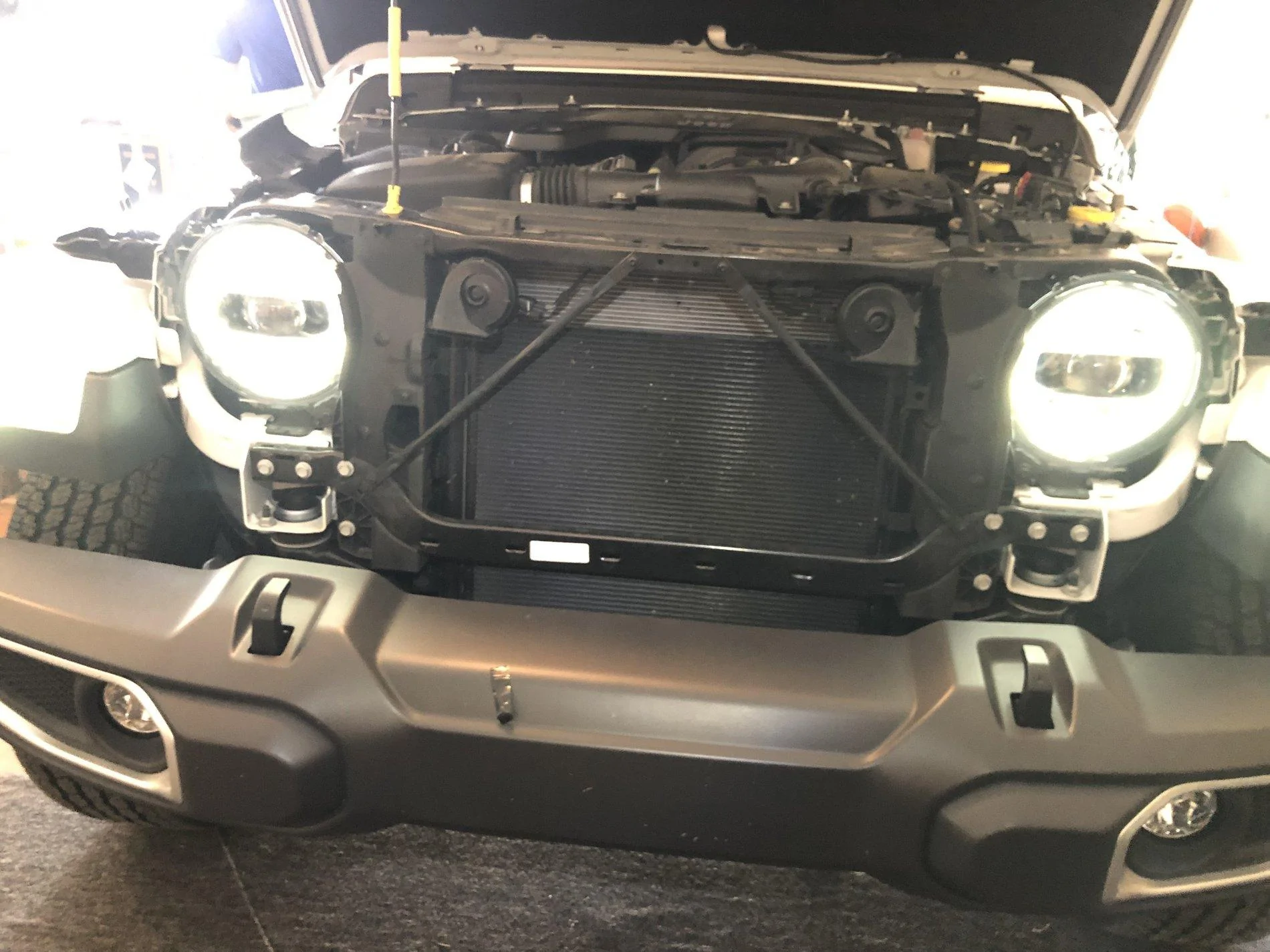

Another successful upgrade thanks to the folks contributing to this thread. I want to especially thank @EgGreg. I ordered his harness and wired it up. Flashed my Jeep with the JL TazerMini. Everything worked as advertised.

OP
OP
dcdanny

dcdanny

Well-Known Member
First Name
Daniel
Joined
Dec 19, 2018
Messages
61
Reaction score
39
Location
CA
Vehicle(s)
2014 wrangler sport. 2018 Rubicon
Another successful upgrade thanks to the folks contributing to this thread. I want to especially thank @EgGreg. I ordered his harness and wired it up. Flashed my Jeep with the JL TazerMini. Everything worked as advertised.
Badass!!!!!
