Exact measurements might be tough as there are some curved and angled parts, but I could get rough ones if that would help. Basically just started with a couple big pieces of cardboard and started to shape from there. Then once you have to shape, transfer that to the metal and cut away. I have it off the Jeep now for the winter, if you want I can take photos of it off to see the shapes of the two pieces.
If you wouldn't mind pictures would be great. Thank you!



Advertisement




OP
TadL5

TadL5

Member
First Name
Tad
Joined
May 28, 2018
Messages
8
Reaction score
37
Location
IL
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport S
  • Thread starter
  • Thread Starter
  • #18
If you wouldn't mind pictures would be great. Thank you!

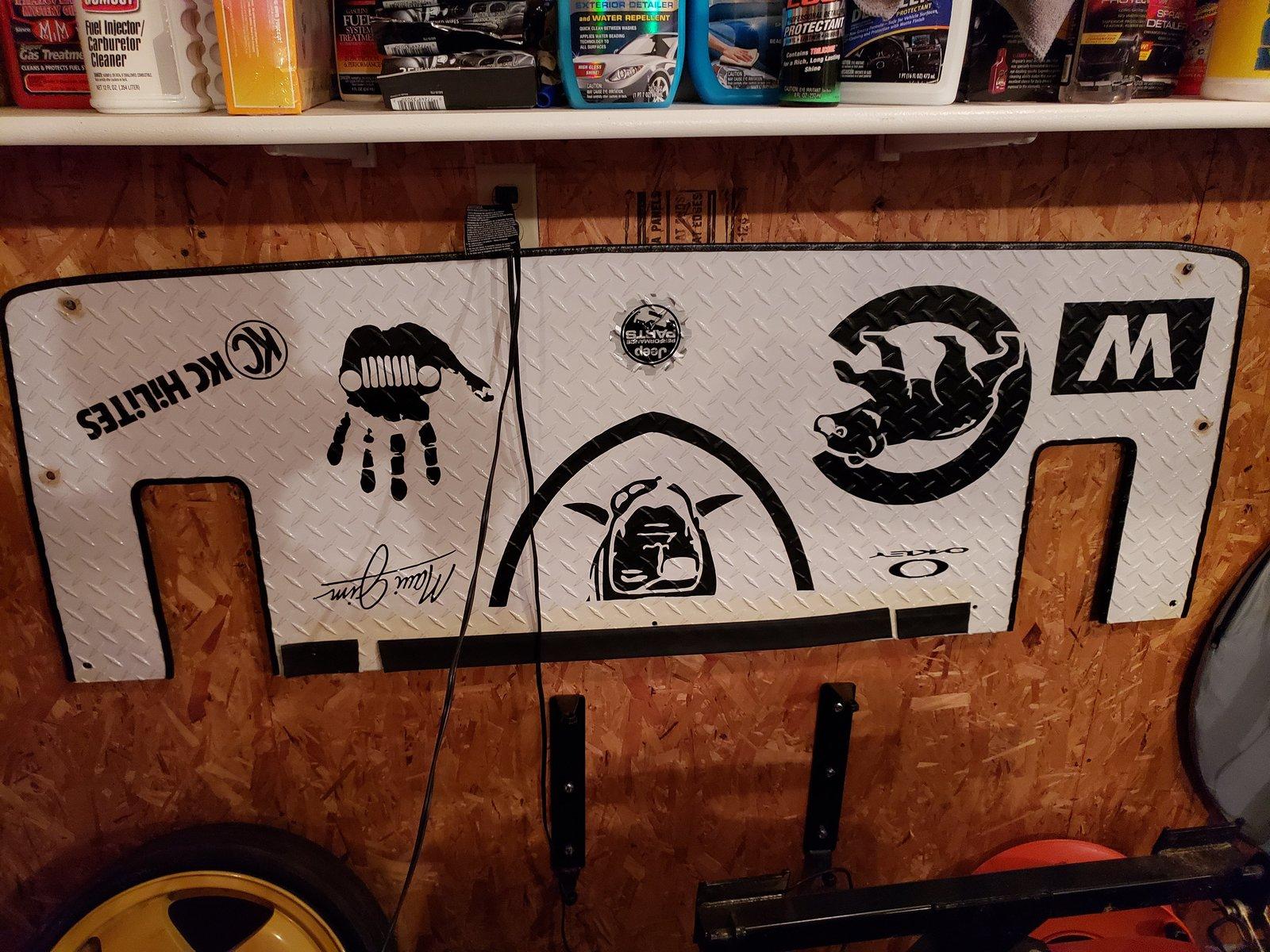

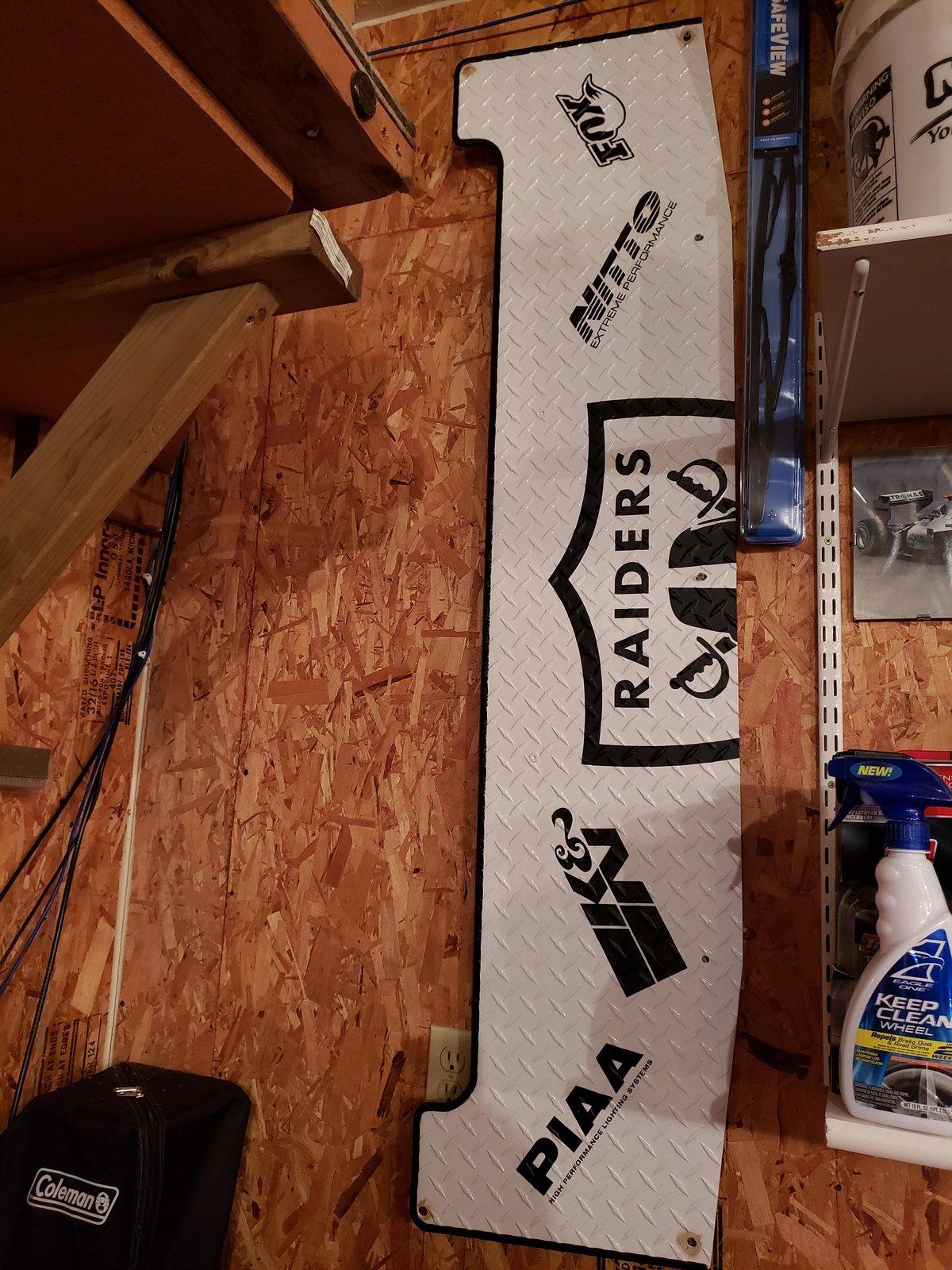

Let me know if you want to see anything more close up or measure a certain spot.





Tjtep

New Member
First Name
Theron
Joined
May 1, 2019
Messages
1
Reaction score
0
Location
California
Vehicle(s)
2019 Jeep unlimited Wrangler Moab
Let me know if you want to see anything more close up or measure a certain spot.



Could you provide the overall dimensions of each piece? I’m going to order diamond plate and would like to have factory cut to the overall size I need.


Oskar79

Well-Known Member
Joined
Jan 28, 2019
Messages
56
Reaction score
80
Location
Los Angeles California
Vehicle(s)
2019 Wrangler JLU
Vehicle Showcase
1
Let me know if you want to see anything more close up or measure a certain spot.



This would not work with the soft top huh?

Can you post again now that you got that awesome Raider decal on? thanks!


Blu bi Kong

Well-Known Member
First Name
Vic
Joined
Apr 3, 2018
Messages
995
Reaction score
1,487
Location
Los Angeles, CA
Vehicle(s)
2018 Rubicon JL
Let me know if you want to see anything more close up or measure a certain spot.

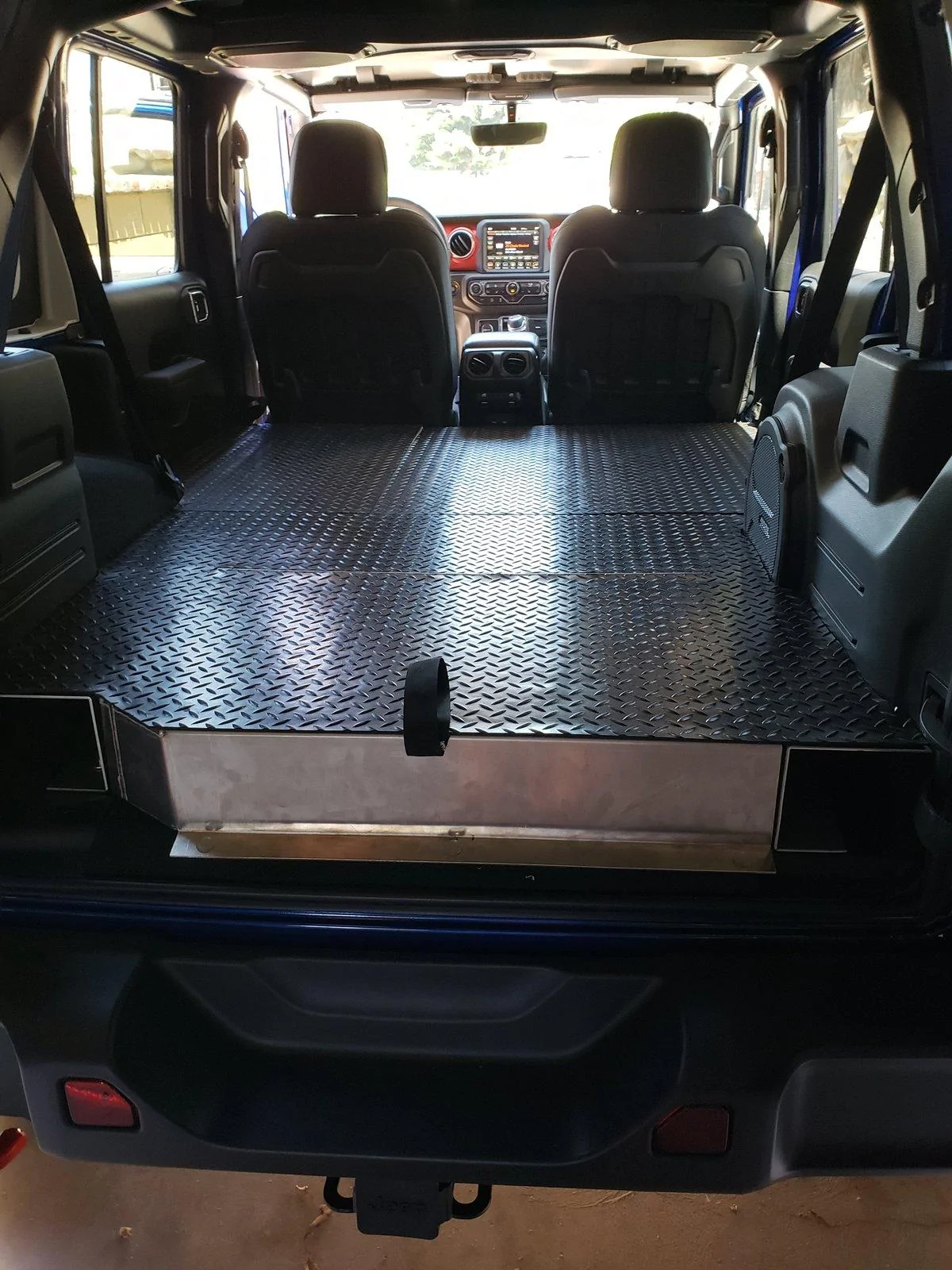

I flipped a coin a year ago. Do exactly as you have or do something a little lower down to be able to keep it in place with or without top. I came up with this


stitch

Member
Joined
Sep 15, 2018
Messages
24
Reaction score
59
Location
Europe
Vehicle(s)
Wrangler JL UnLtd Rub

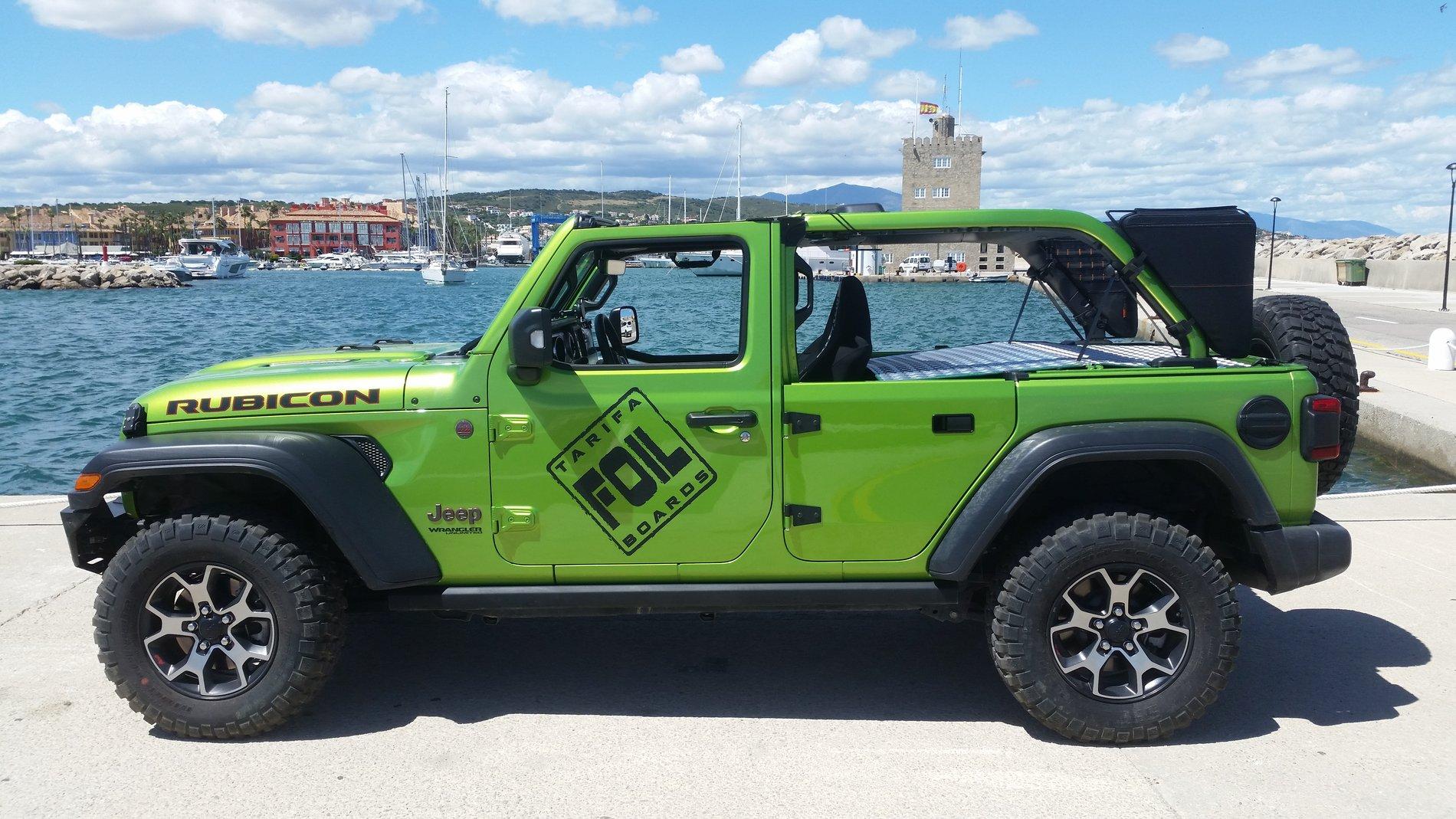

I got some full length tonneau cover made up. I had this very simple design in my head for a long time and am pretty pleased how it turned out, with limited tools (read: hands) used..
My priority was no loss of valuable cargo space , use of full length of boot space when seats are up and or down,, and lockable. It flips up in two parts like a butterfly shape.

Basically the construction consists of:

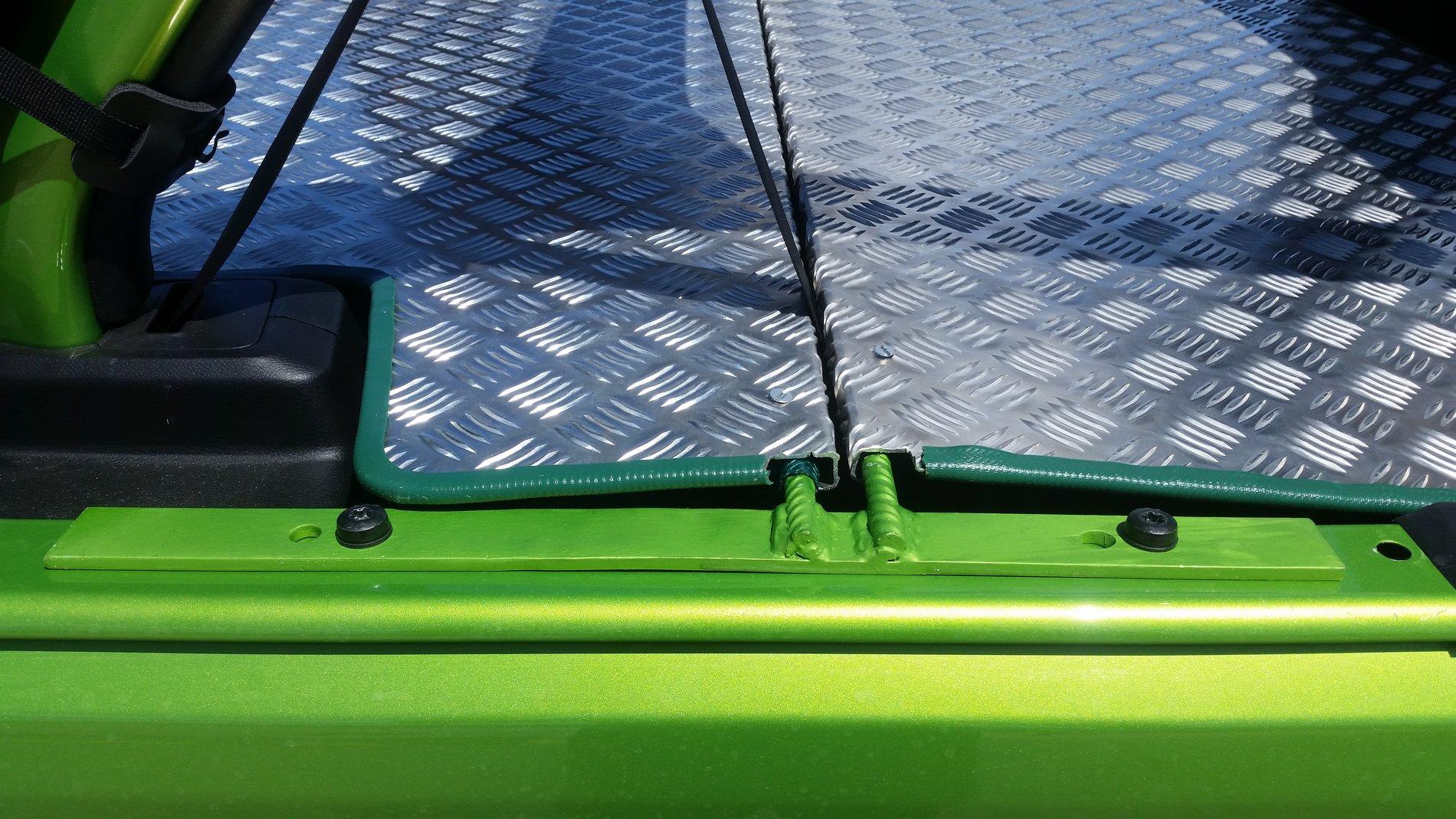

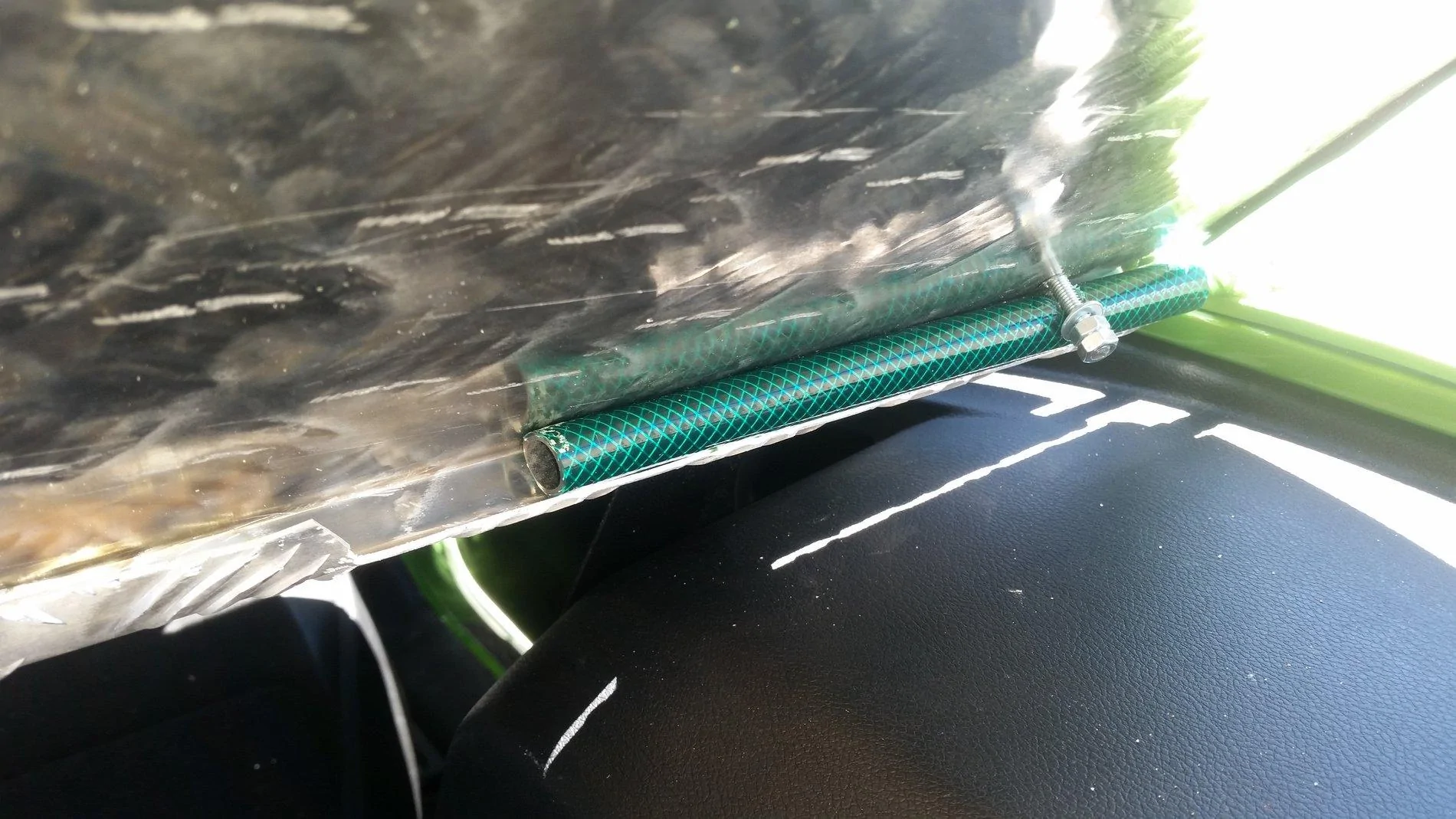

- two simple TT-hinge brackets (steel building rods on a plate) made, Some garden hose tubing ensuring no ratle and a tight fit and smooth rotation on the TT hinge.

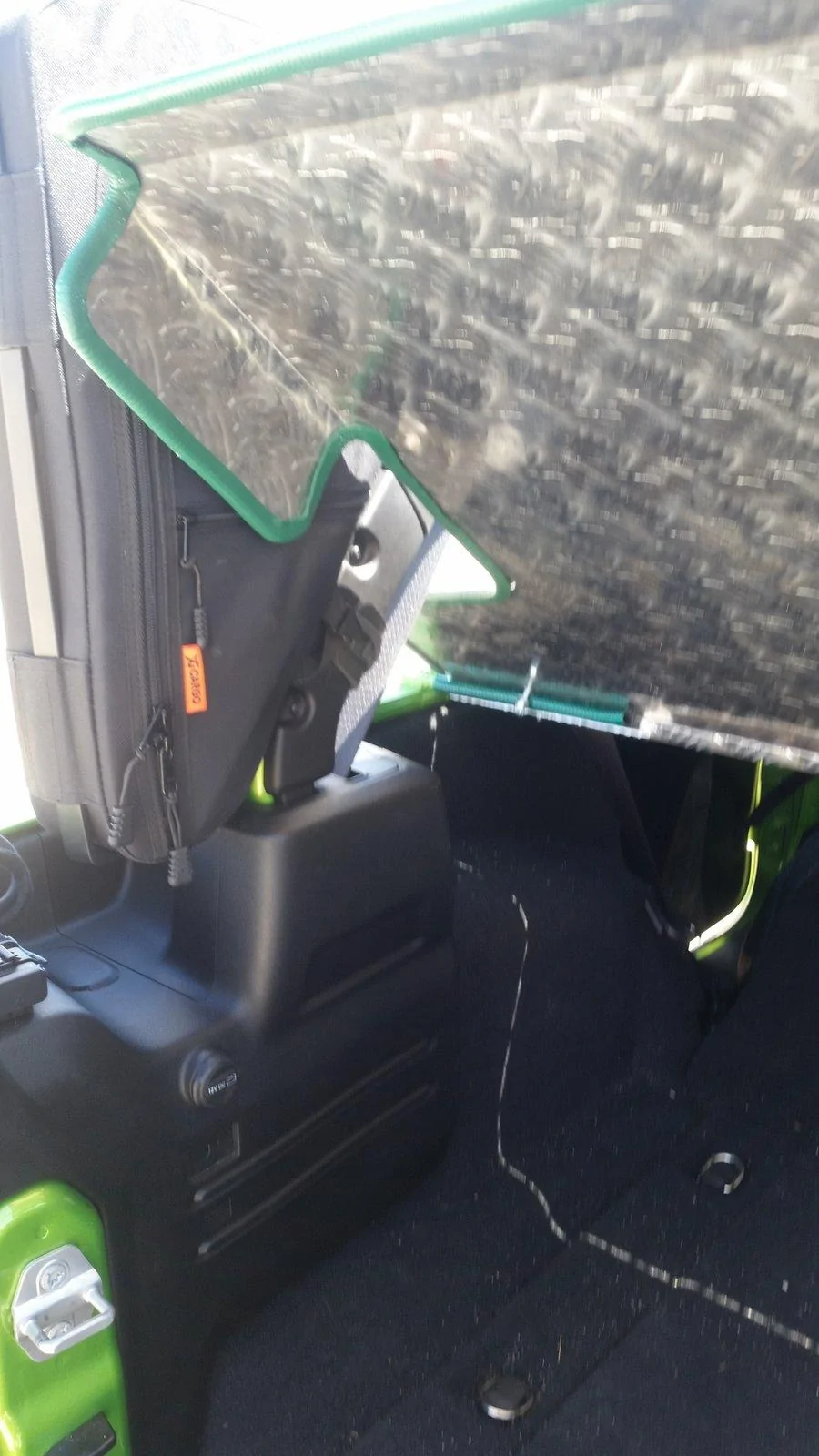

- diamand plate ( 2(3)mm thick ) : curved by a plate bender machine shop. cut with my oscillating cutter tool. The inner edge curved for hooking into the TT-hinges. The outer edges are cut to follow the interiour (cutted out a carboard template first).
Some small screws keep it from (curious hands) sliding it fwd/af or popping it up and out.

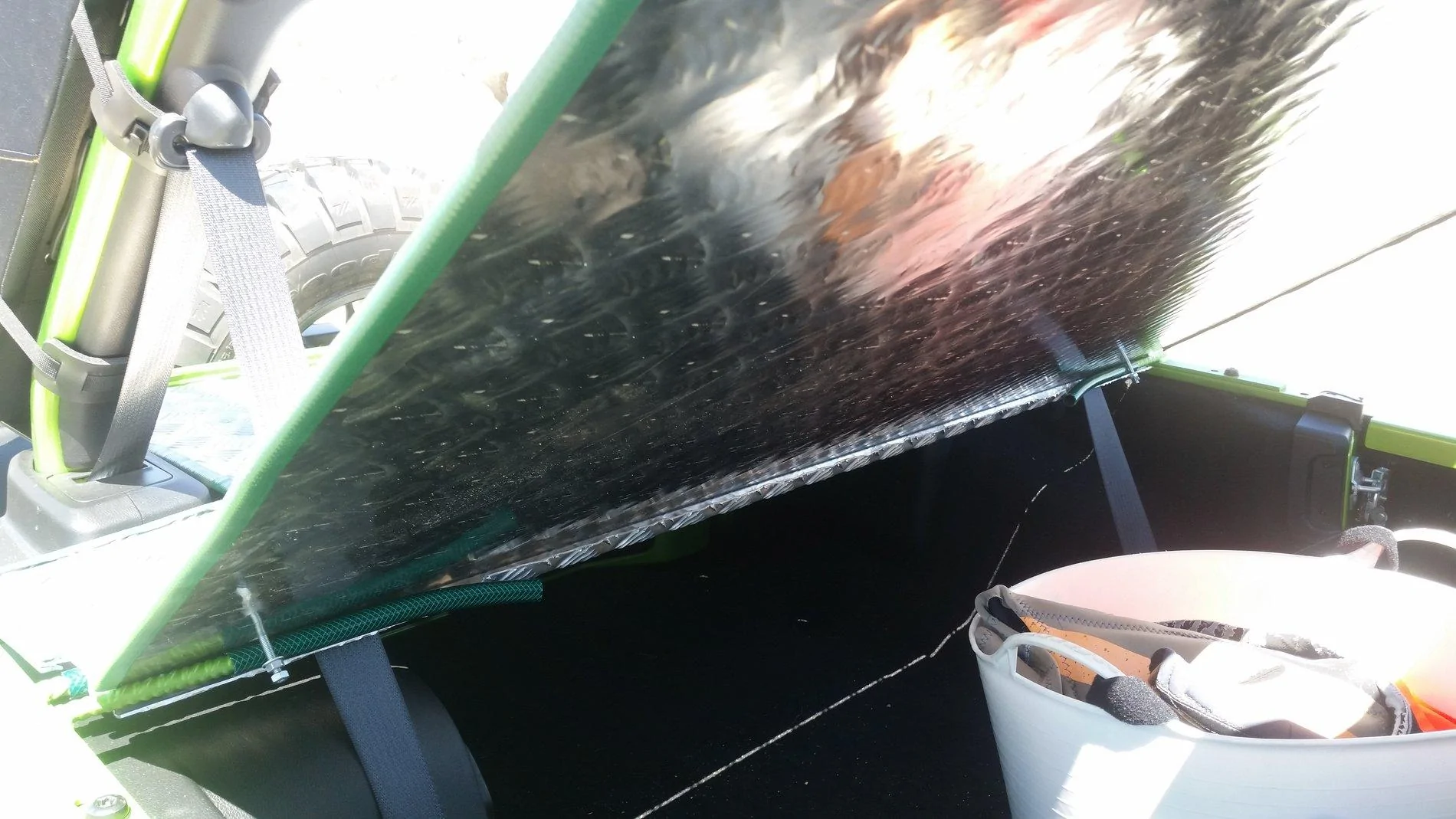

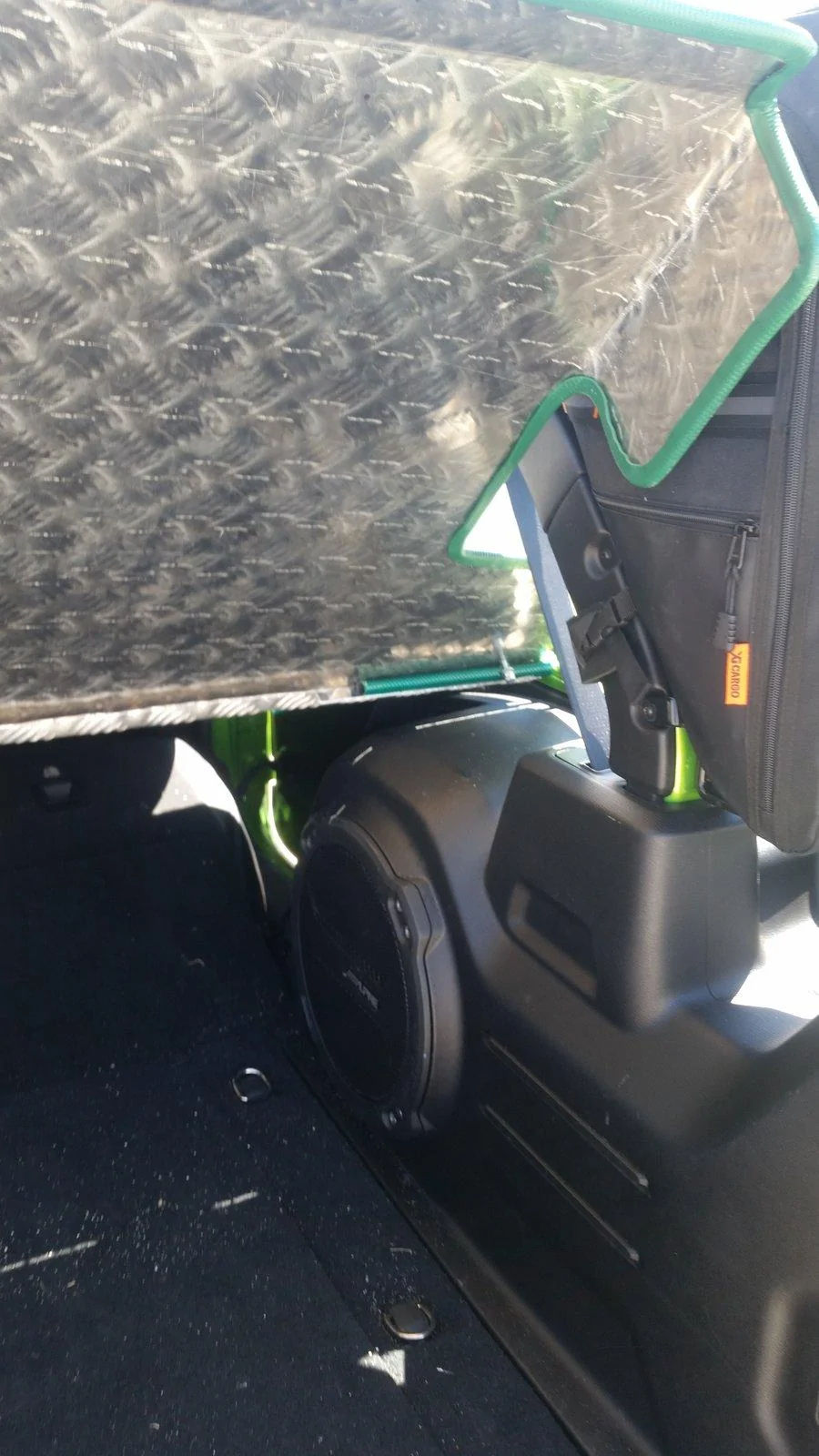

- I made 2 covers : one for the forward part, and one for the aft part.
- the aft cover locks under the top side of the gate (lip).
- Still need to finalise the locking mechanism of the front cover to get it locked to the half doors (so both cover and door get locked at same time - probably a simple hanglock could do) ....
I might add another small plate +hinges to the forward side cover so i can lock it onto the back side of the fwd seat somehow.
- system works also with hard top on.

System is not bullet proof security assured, but will be good enough for daylight parking. I geuss you can make it more secure if you go for thicker plate, and more handy in fabricating accurately dimensions adding secure lock mechanisms.
I was hoping aftermarket might like this idea.... but with a more processional design :)

PS: yeah, I received two right side tube doors that is why one tube door is missing ...:facepalm:.
Attached a lot of pics for the curiousers.
