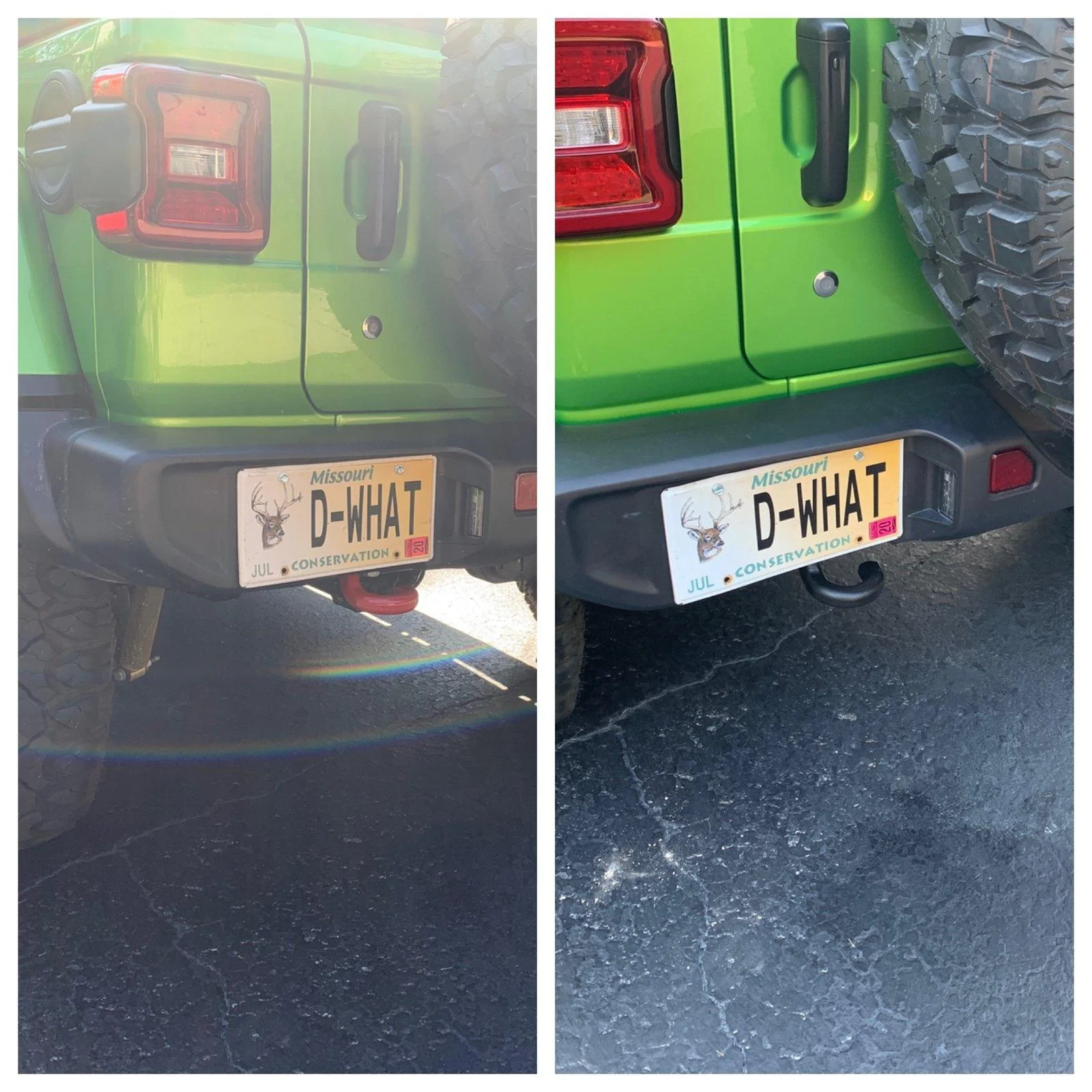

Finally got rid of the last of my external red pieces: my recovery hooks. I plasti-dipped all hooks. This is until some new bumpers come my way :)


OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #94
Time for some "eyes and ears": dashcams and CBs!

We took advantage of Amazon prime day and went with the Rexing V1P Pro, dual cam setup. We didnt want anything really expensive, but wanted a piece of mind while driving.

Cam - https://www.rexingusa.com/products/rexing-v1p-pro/
Hardwire kit - https://www.amazon.com/Hardwire-Battery-Protection-Supply-Installation-Include/dp/B078T5T21G/ref=sr_1_1_sspa?crid=17VGTQOAP3FU1&keywords=rexing+hardwire+kit&qid=1566770519&s=gateway&sprefix=rexing+hard,aps,168&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUE5S0k2RUNGQkUzOEomZW5jcnlwdGVkSWQ9QTAyMDUzMTczMkdMUTRFQ1NBVTBMJmVuY3J5cHRlZEFkSWQ9QTA2MTAwMTFDWEY5UlRQMDNLTTgmd2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl
MicroSD - https://www.amazon.com/gp/product/B07T2N1WNX/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Even though we ordered the hardwire kit, we only wired it to the "ignition" wire, for now. Dont feel the need for 24hr recording.

I actually installed the dashcam and CB on separate days on mine, so i decided to use "quick disconnect" wire connectors. Eventually, i used the same on hers, nice to be able to change/add options in the future , without losing wire each time.

Again - having the AUX group, has made things A LOT easier for these types of projects.

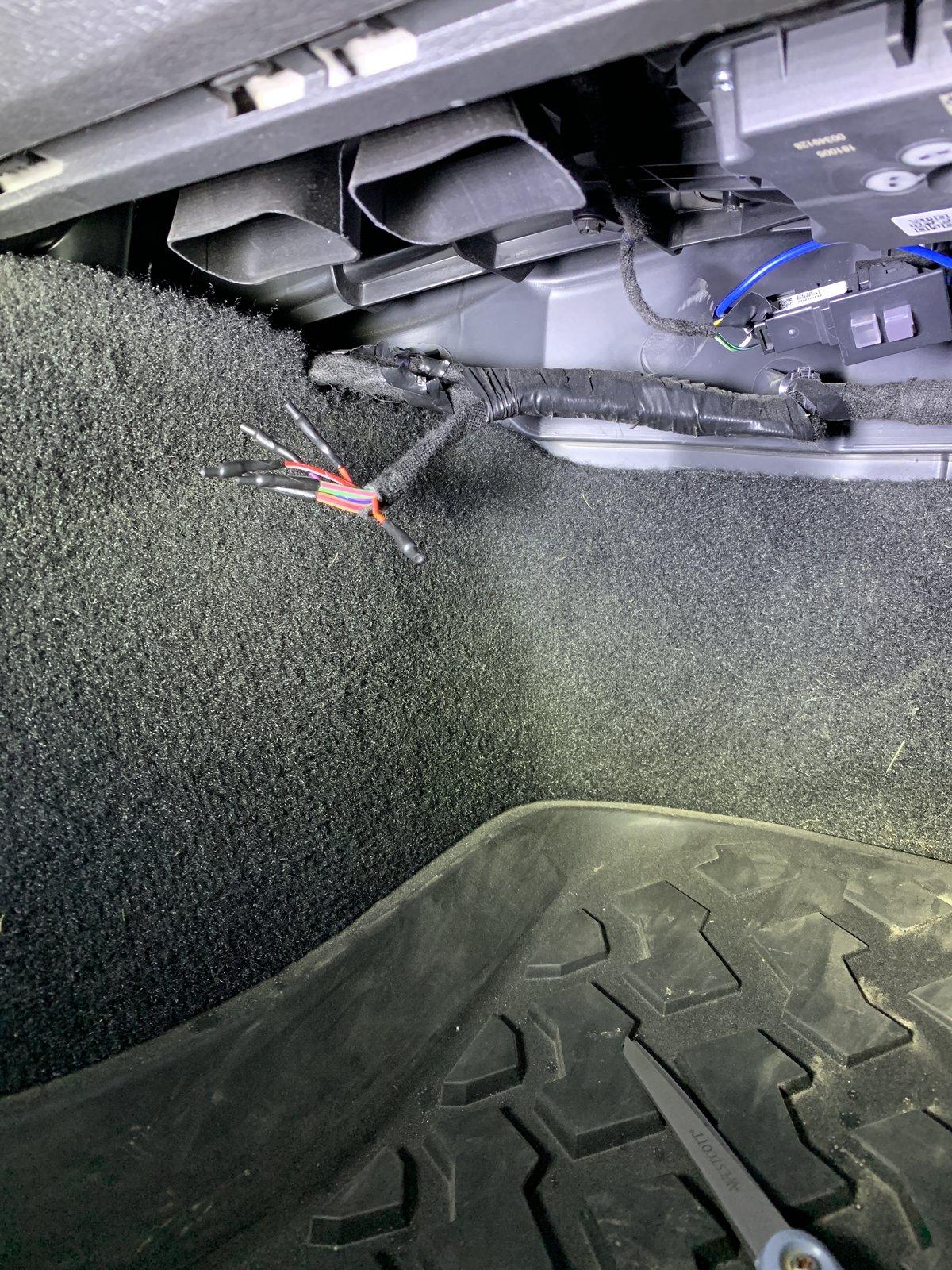

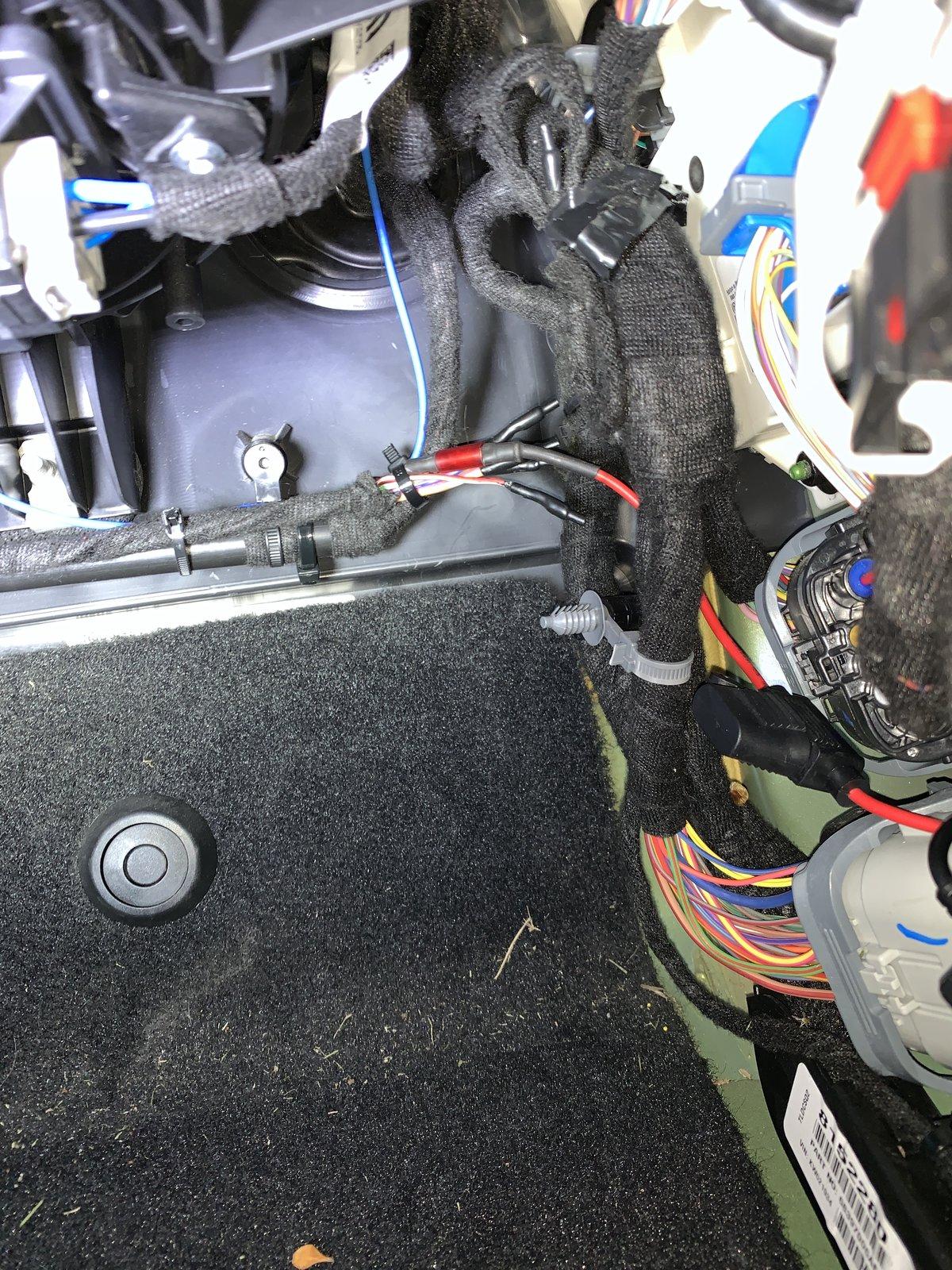

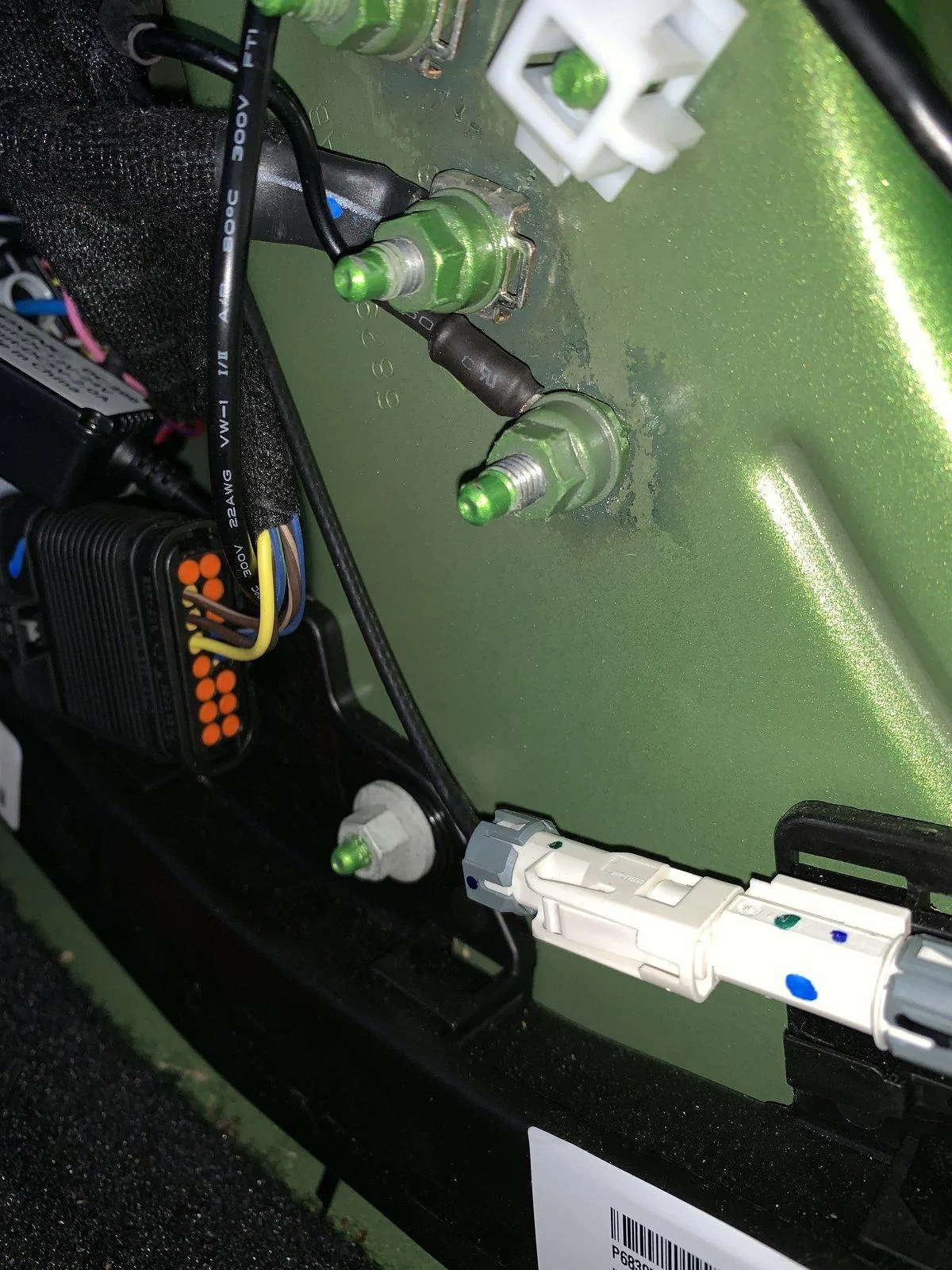

Pulled the AUX group wires, from factory tape:



Put the quick disconnect on the power wire; ignition is the pink wire with orange stripe, WHICH IS VERY CLOSE TO THE OTHER WIRE: ORANGE WITH PINK STRIPE. WHY ON EARTH WE WOULD YOU OPPOSITE COLORS WITHIN A WIRE BUNDLE IS BEYOND ME. Had to use a multimeter to determine which wire. SO STUPID

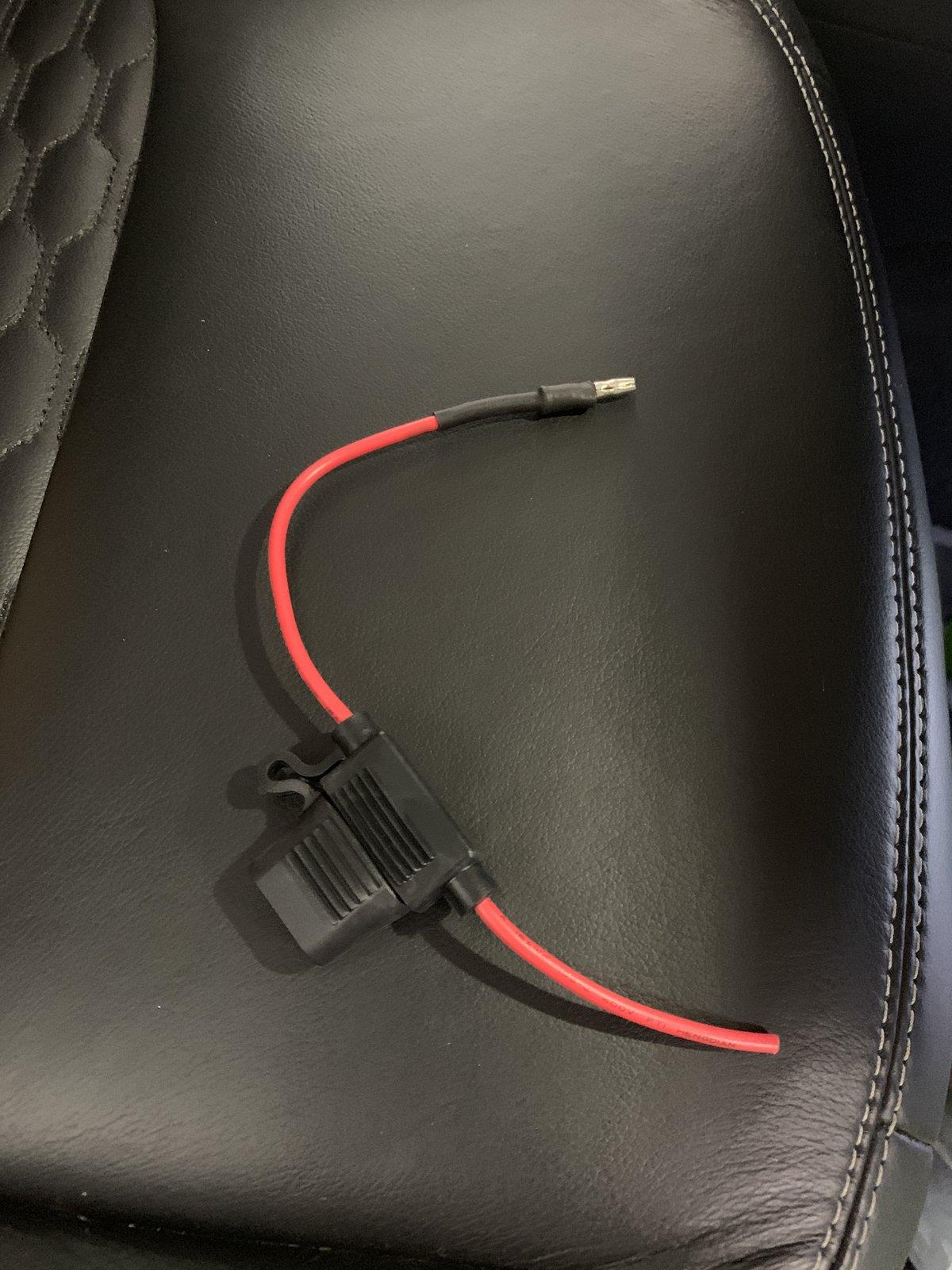

Added an in-line fuse to the dashcam. Used a 5A fuse.

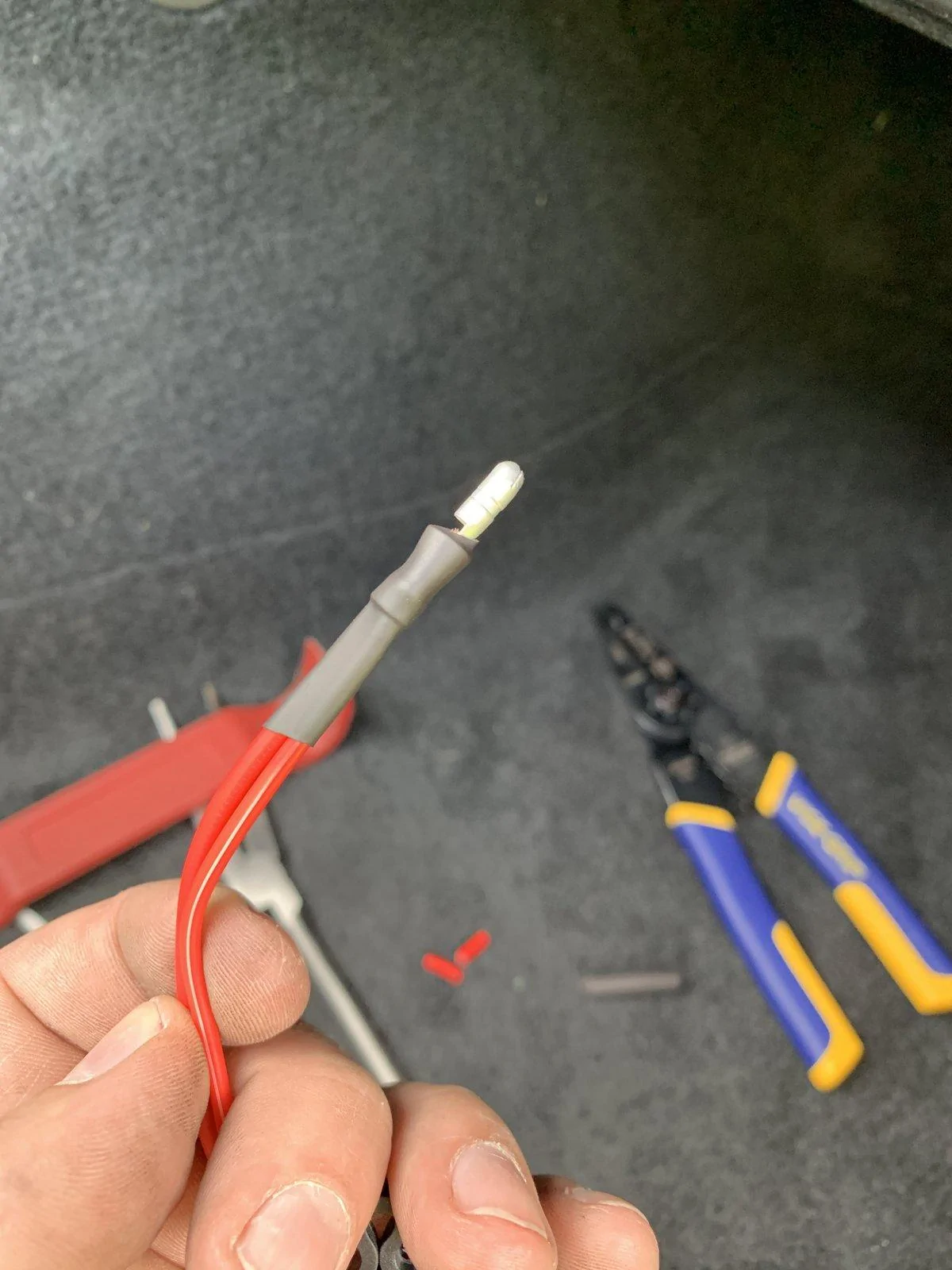

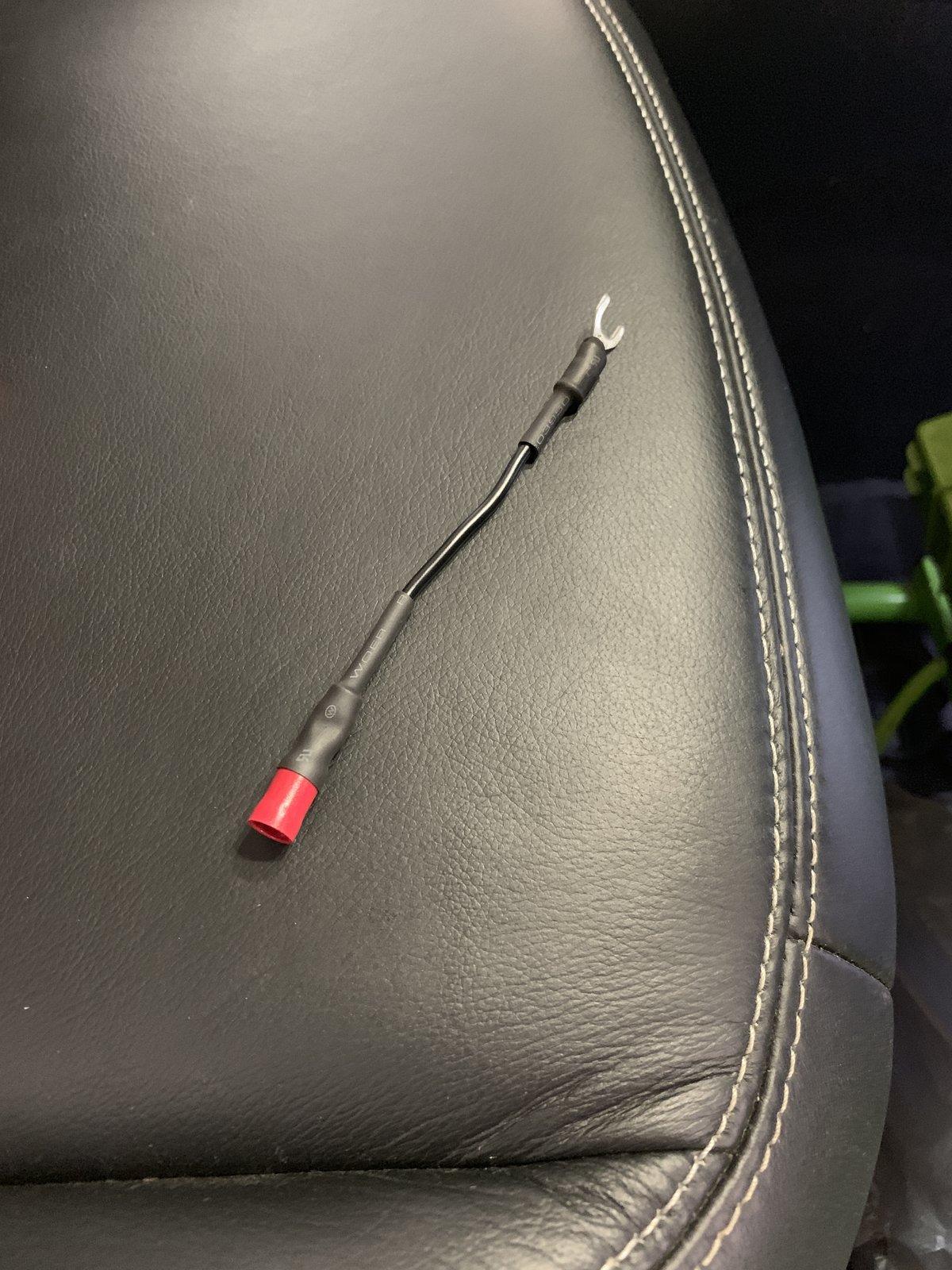

Made a ground wire with a quick disco:


Used the bottom of the 3 nuts, at the passenger footwell:


Dashcam kit ready to plugin:


Plugged in power:




Here's how it looked with both power wires:

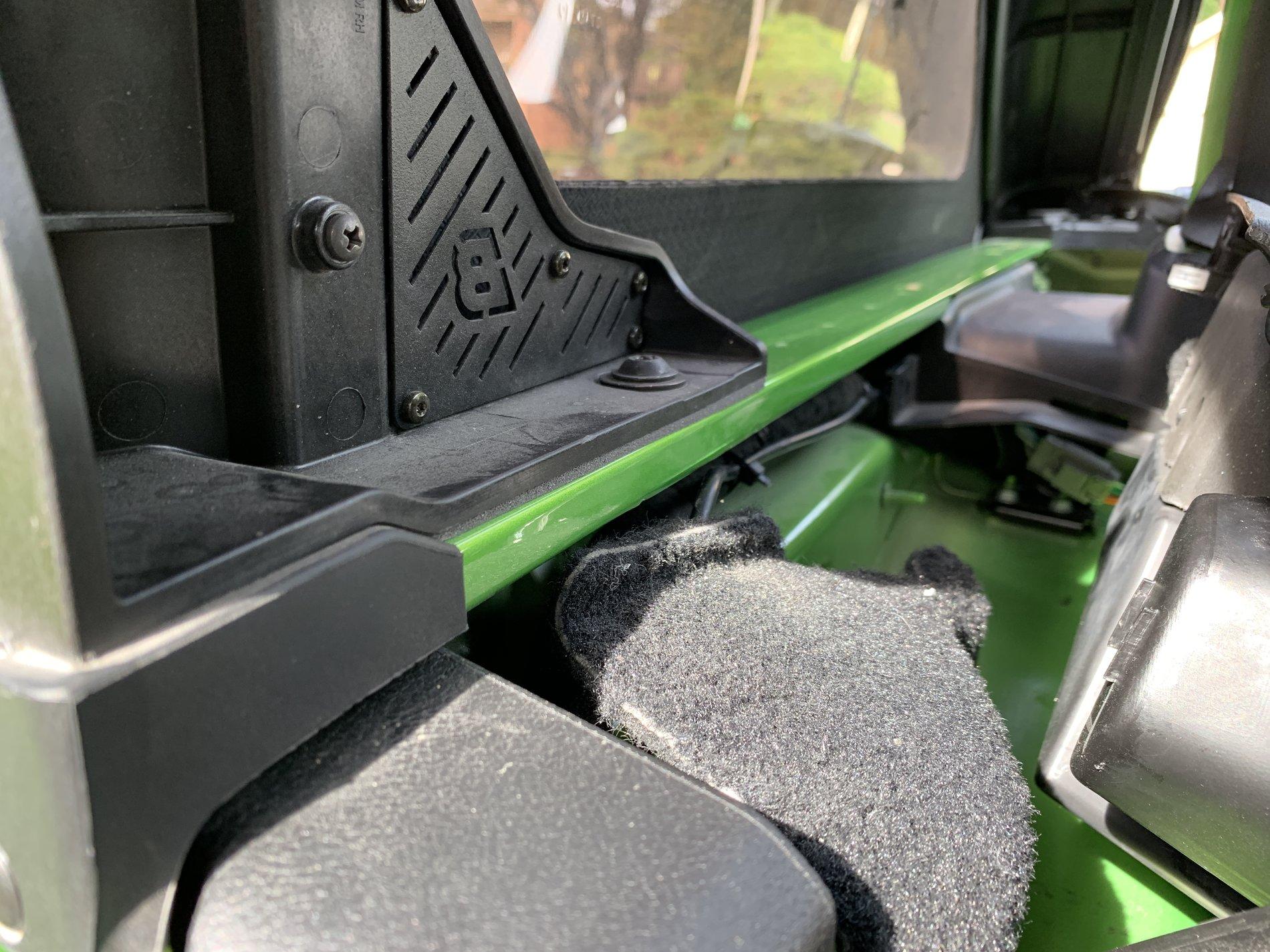

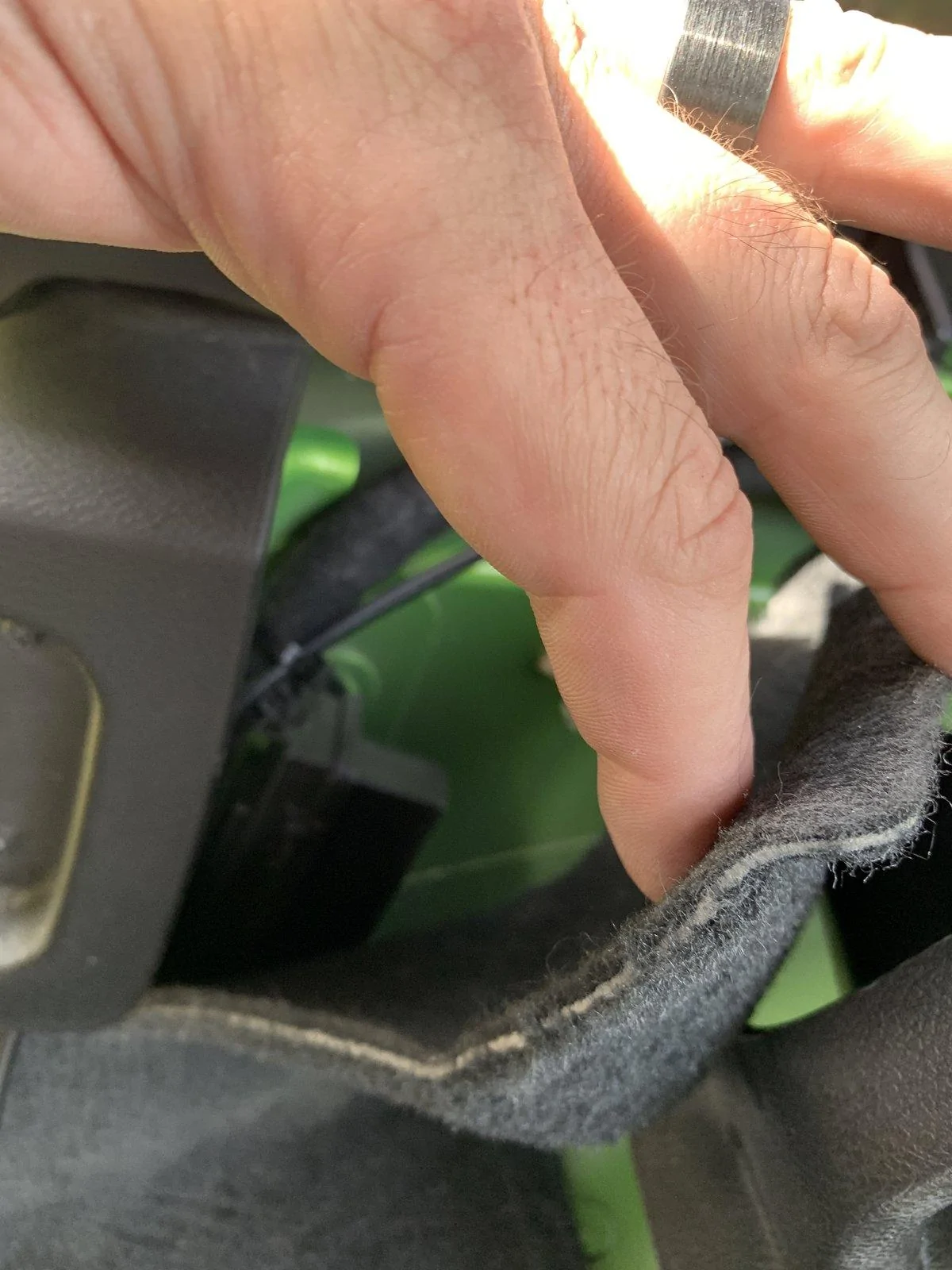

I ran the hardwire kit wires up the right side A-pillar (removed the grab handle) and just tucked up behind the visor trim. Pulled the wires down to the cam in front. The 2nd wire up front is the power wire for the rear camera. That ran from the front cam, down the A-pillar, across the passenger kickplate, up the B-pillar, down the top bar to the rear bar, and over. I found that having the rear cam on the soundbar interfered with the XM receiver.

For the CBs, we went with coolTech - https://www.cooltechllc.com/2018-je..._black/71-mopar_tailgate_reinforcement_kit-no

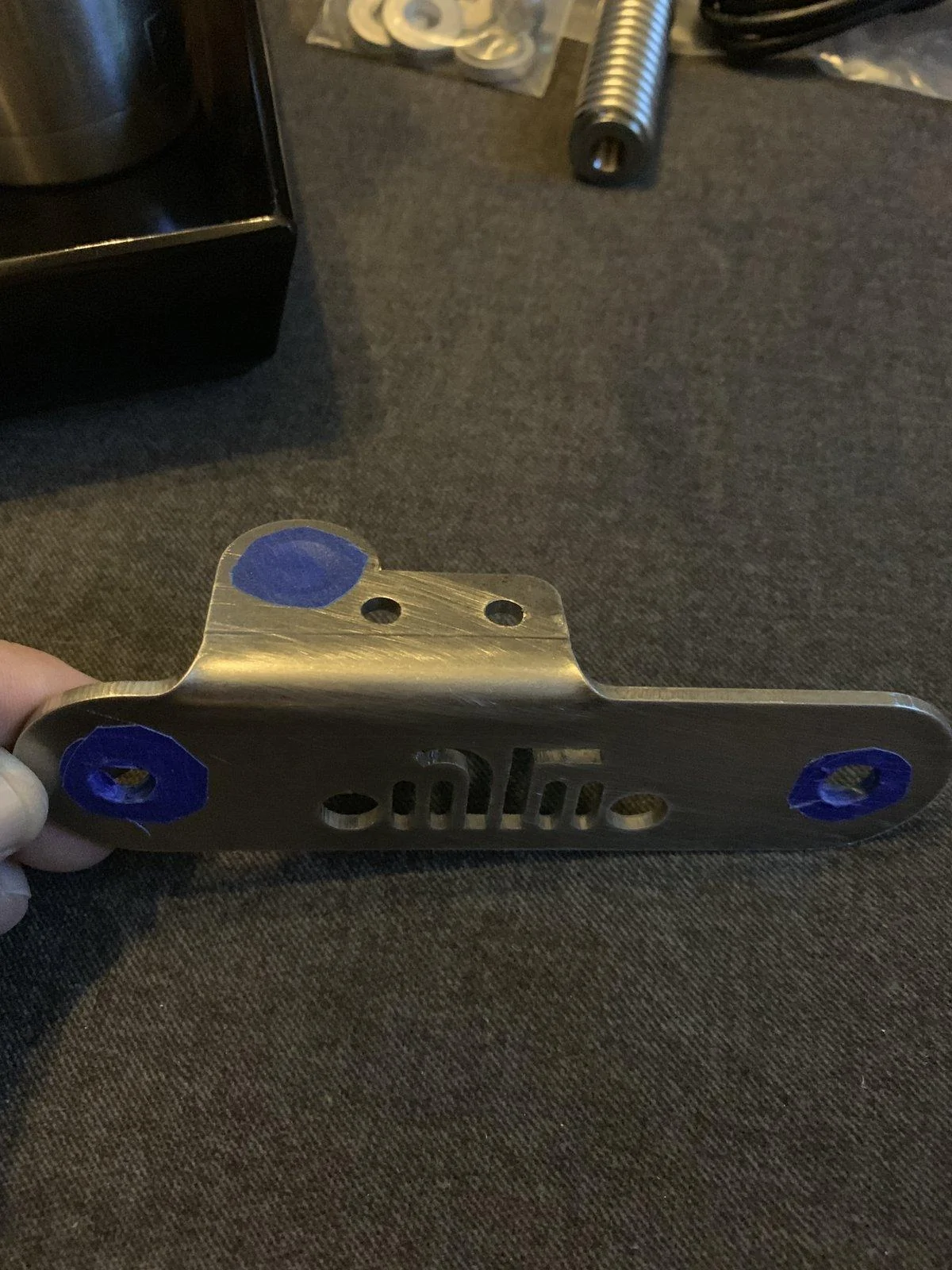

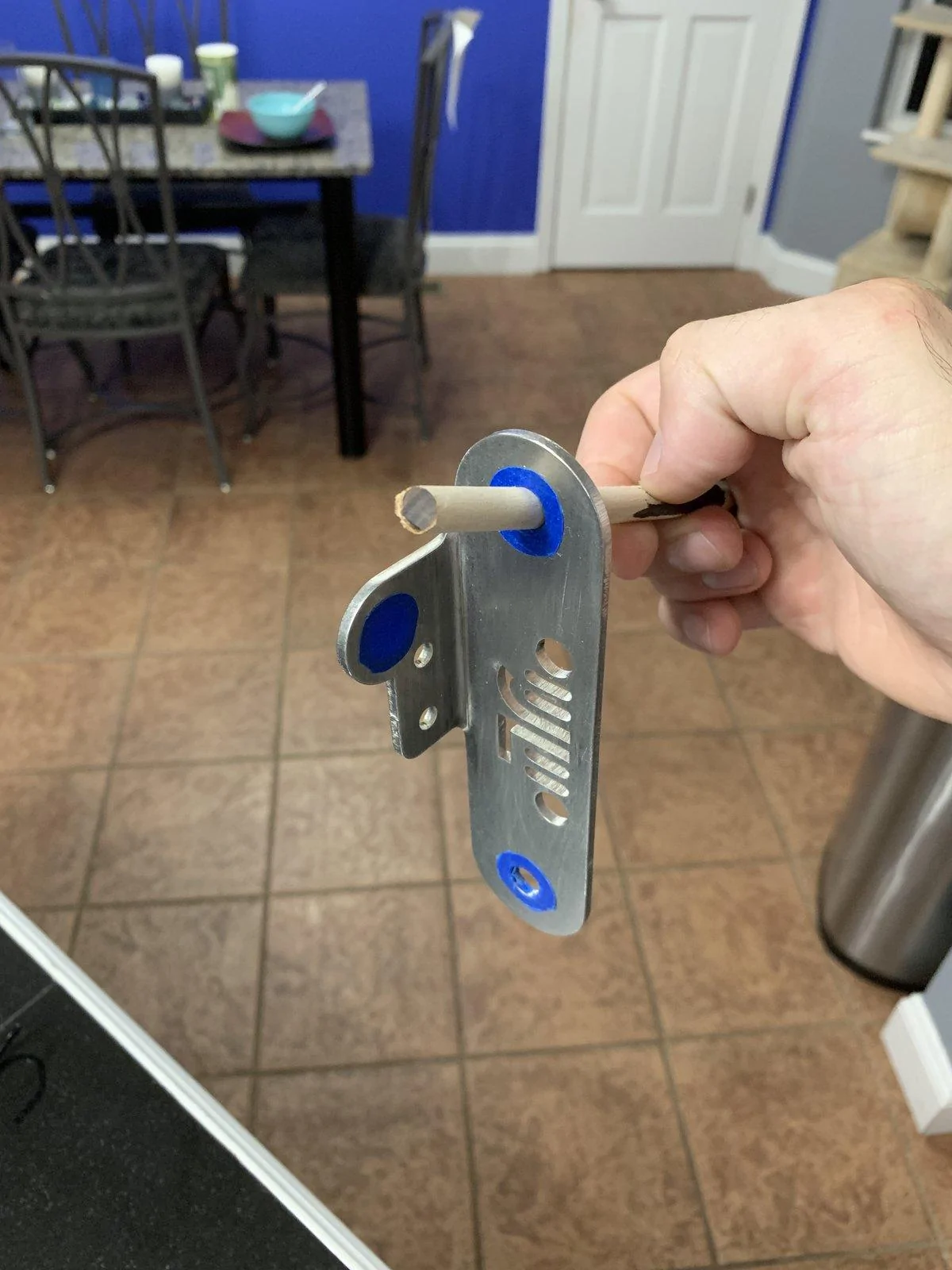

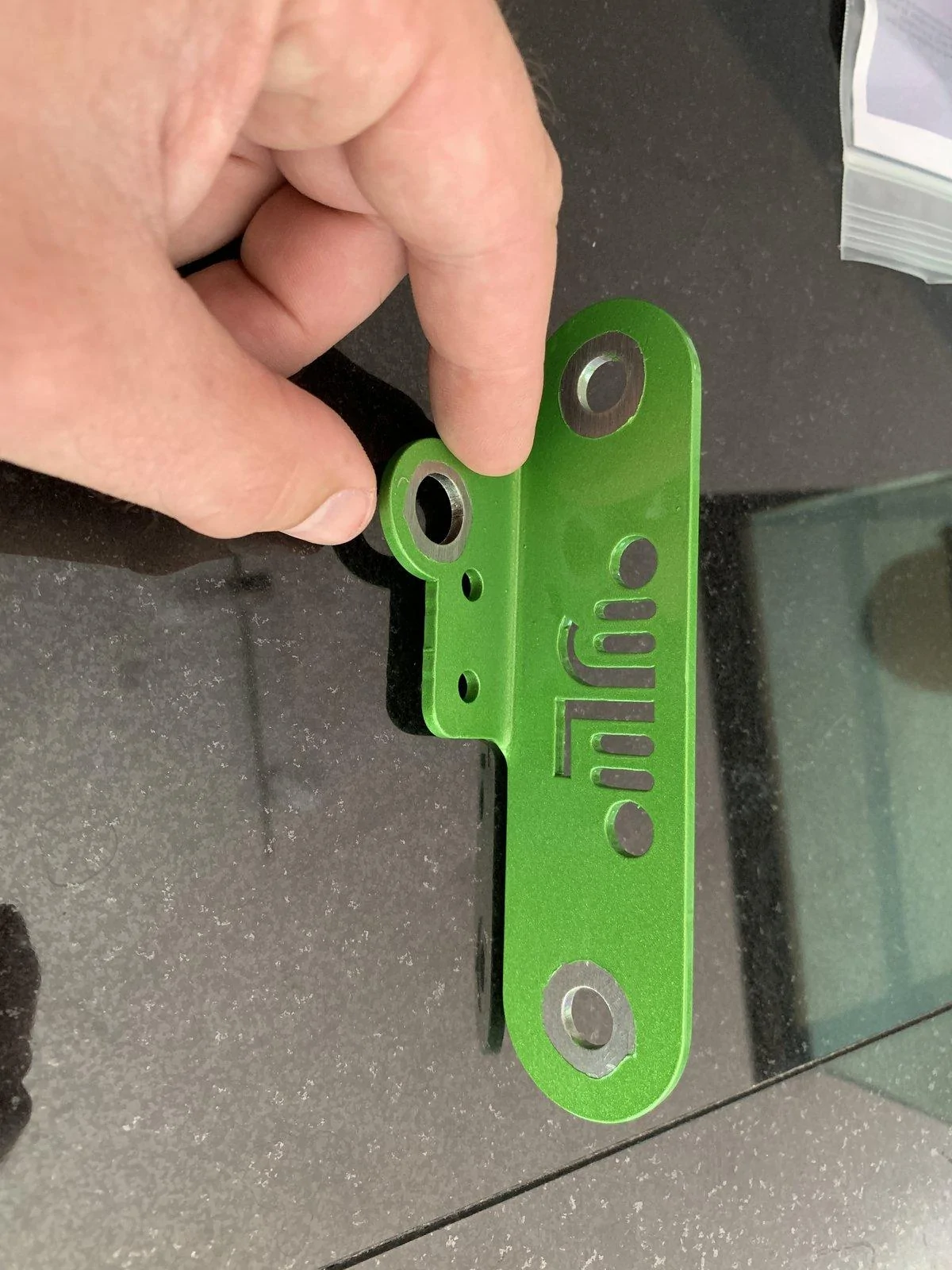

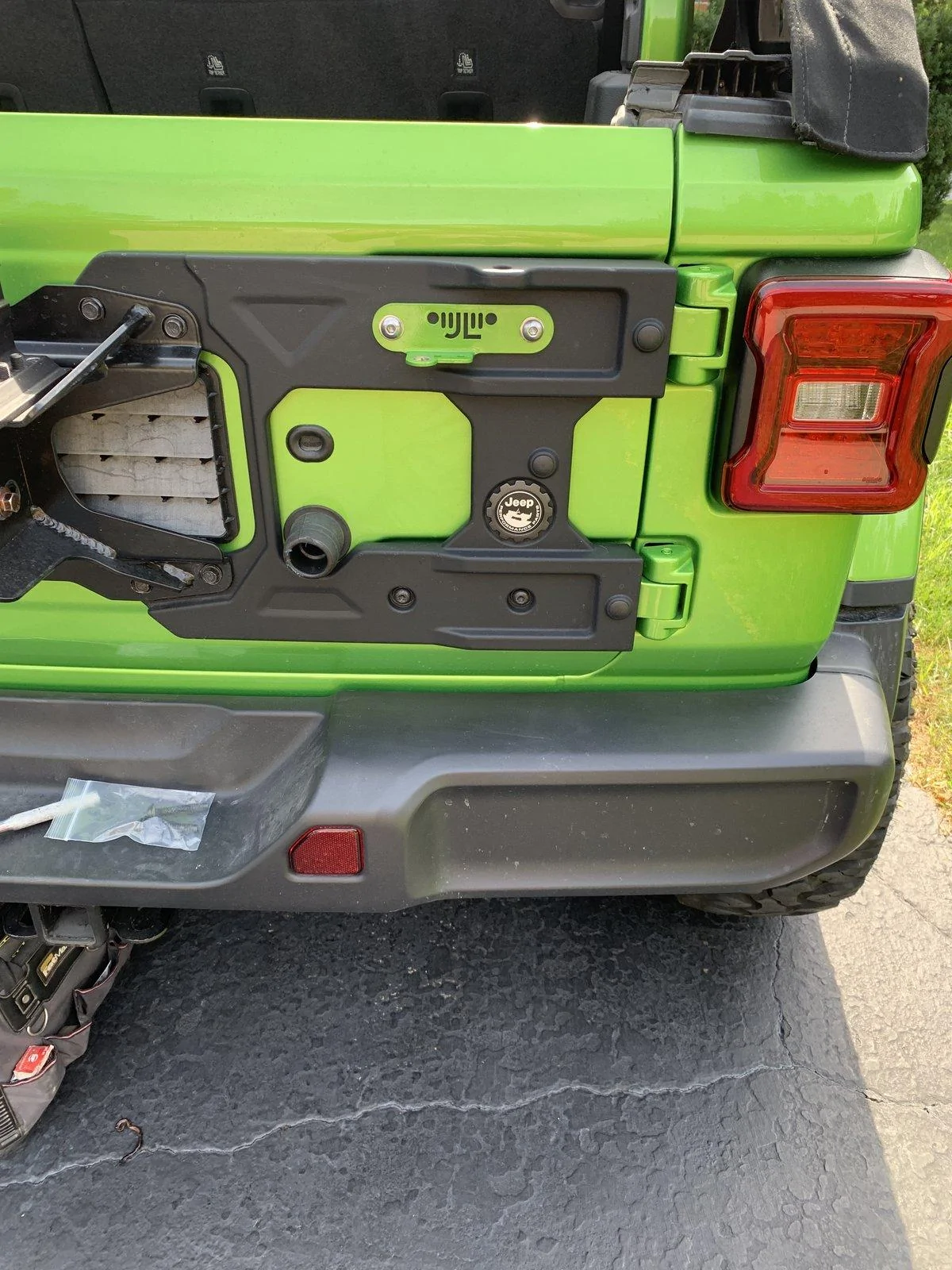

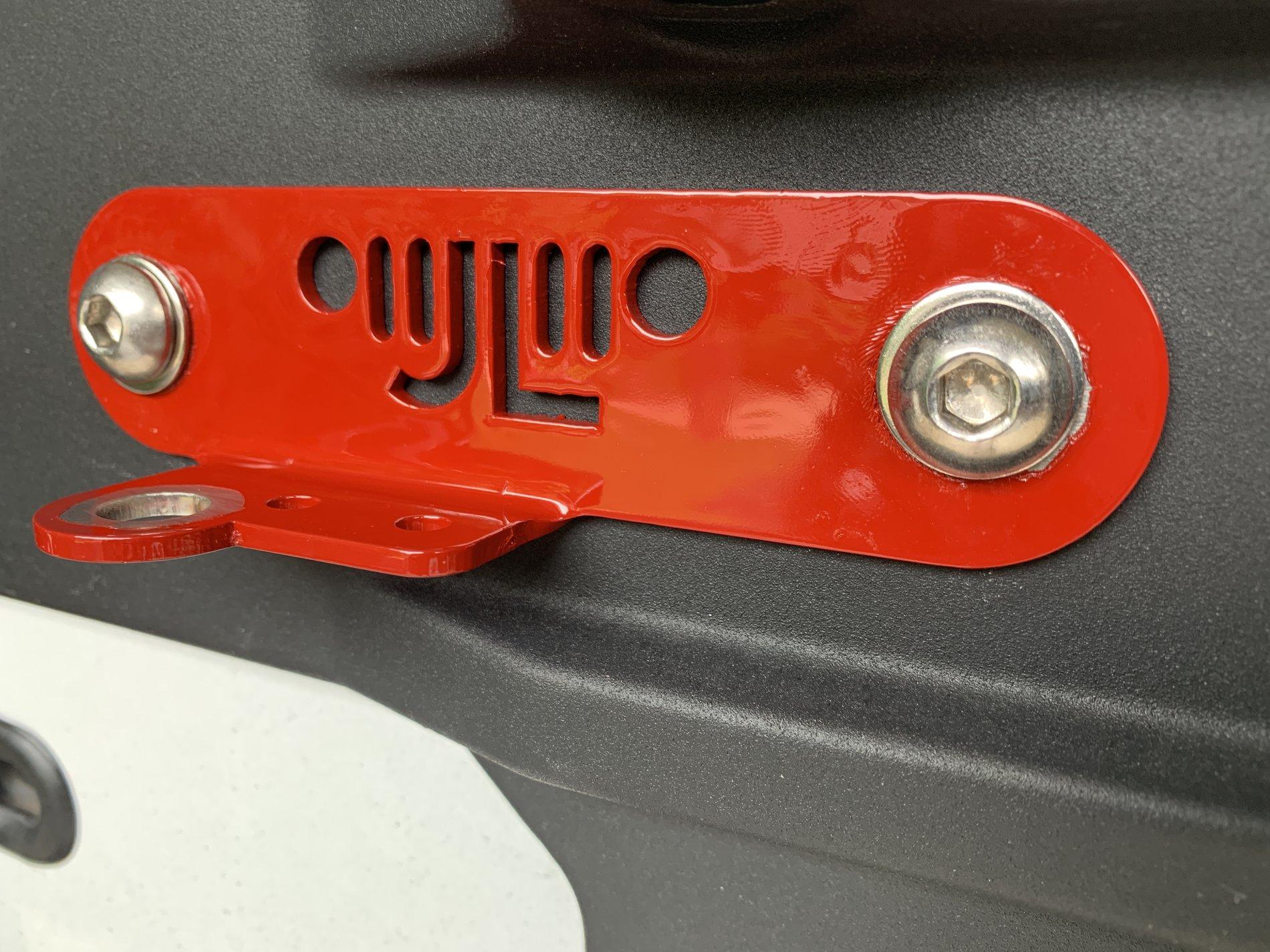

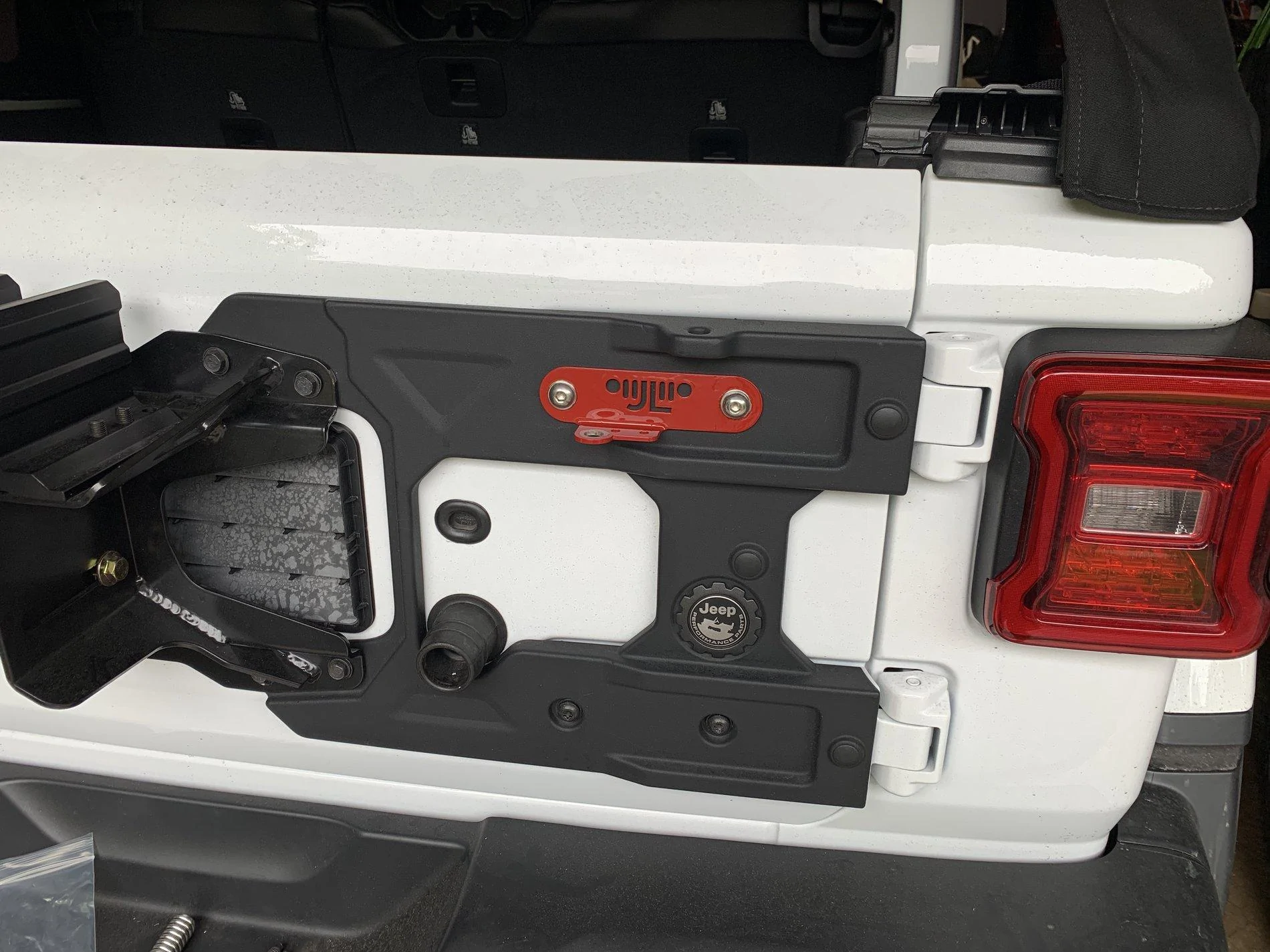

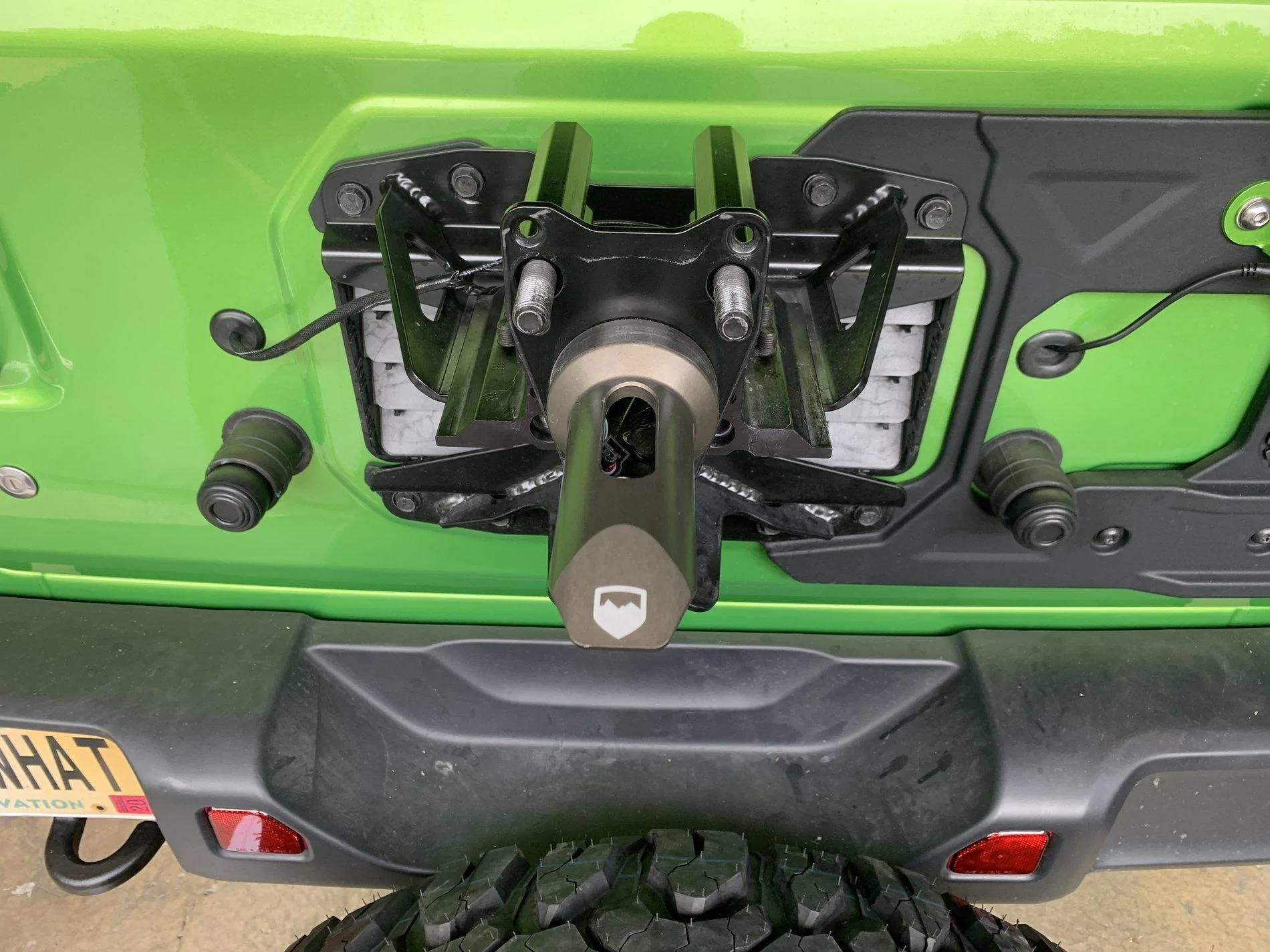

Since we have the hinge gate reinforcement, we wanted to paint the CB mount to have some contrast. Here's how we did this:

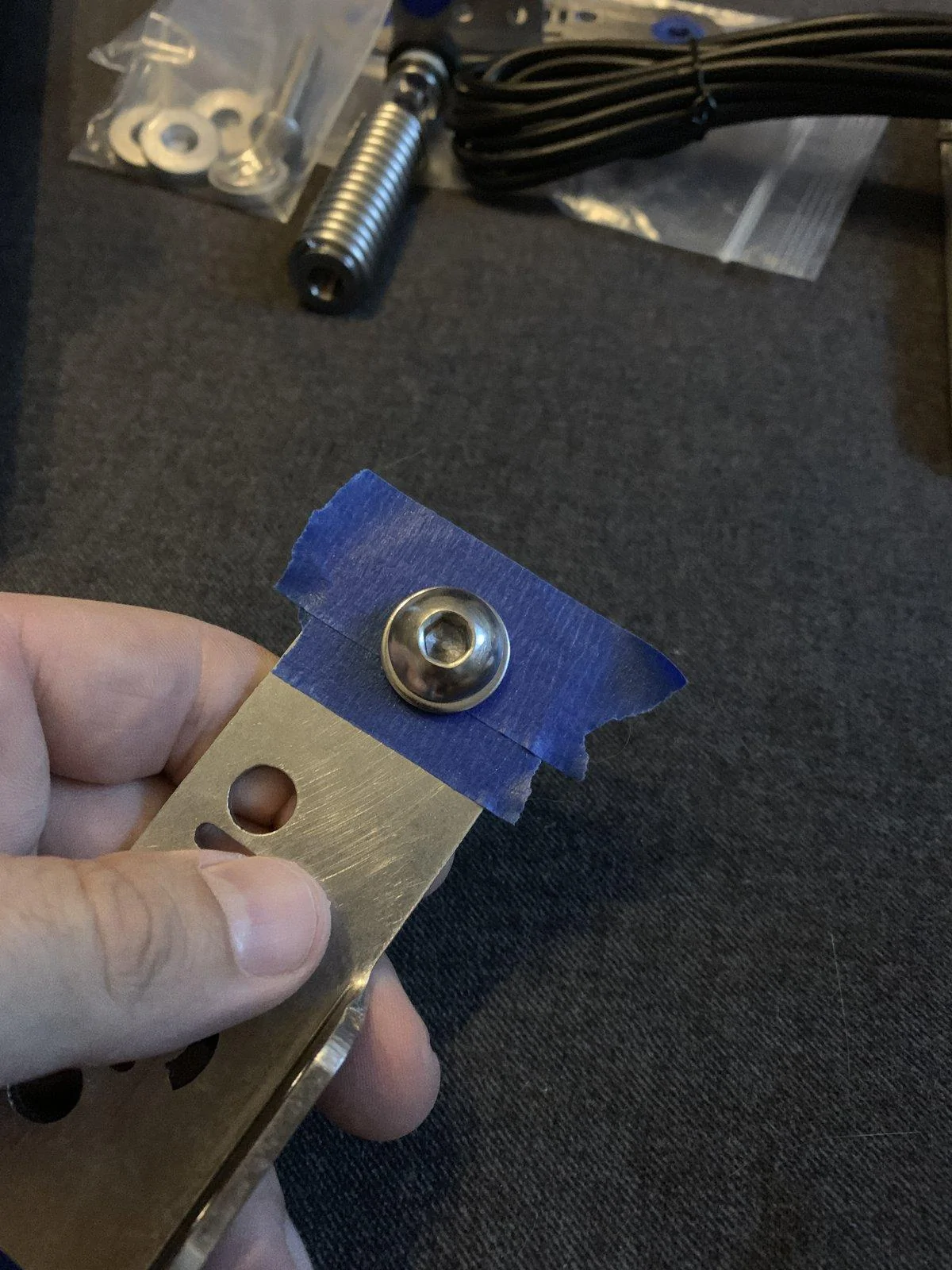

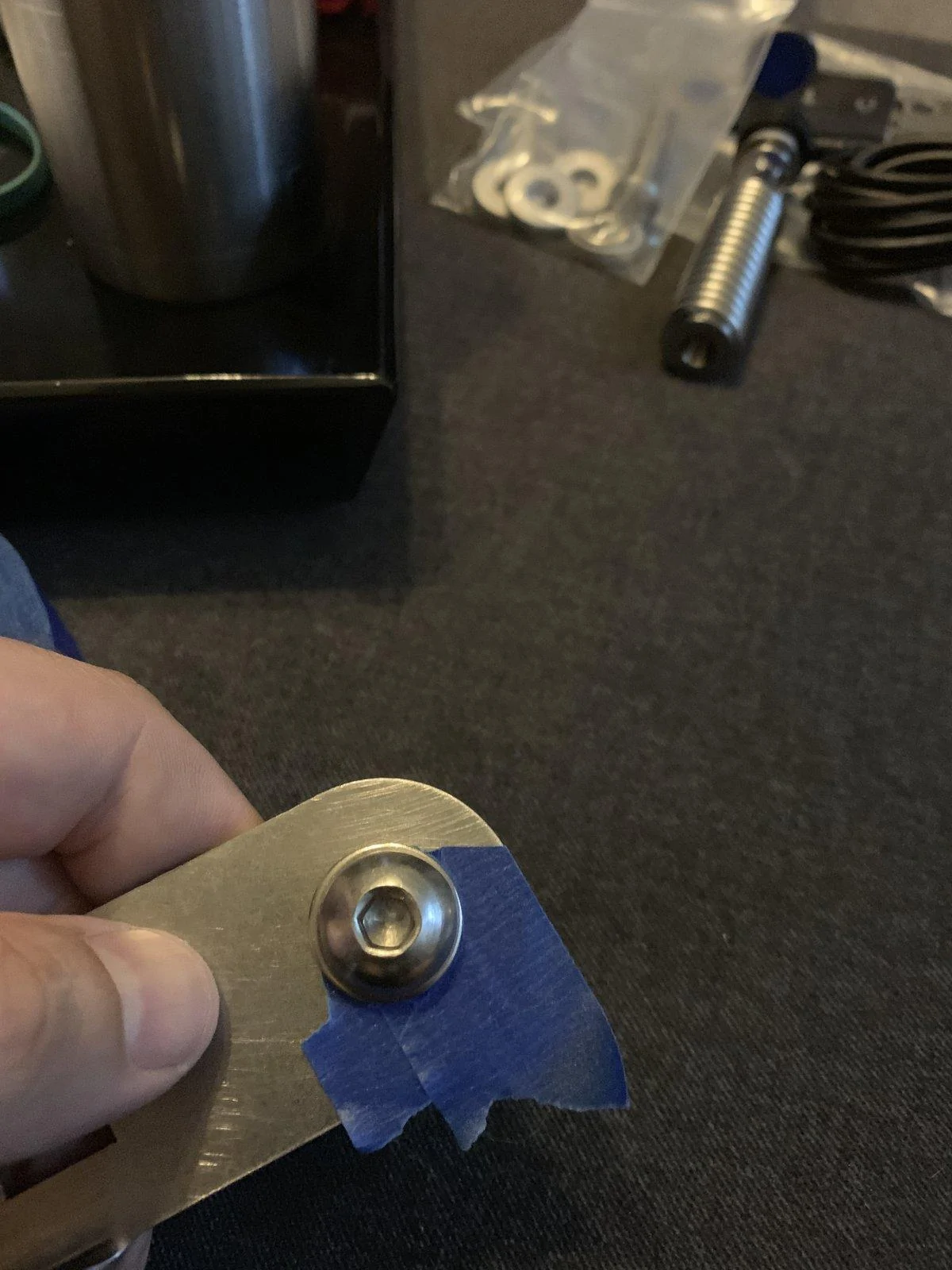

Use painters tape on 1 side of the mount:


Cut an X in the hole:

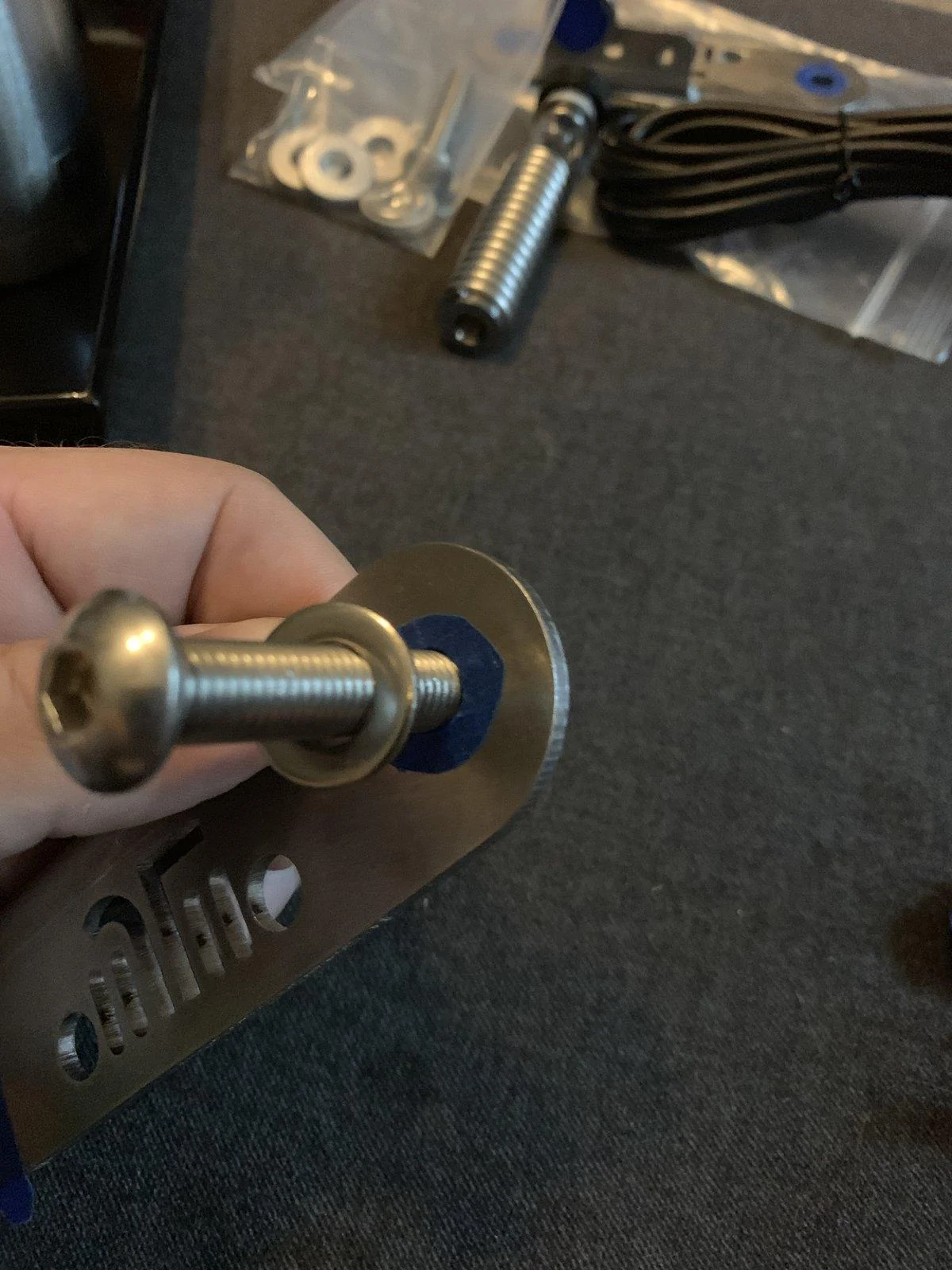

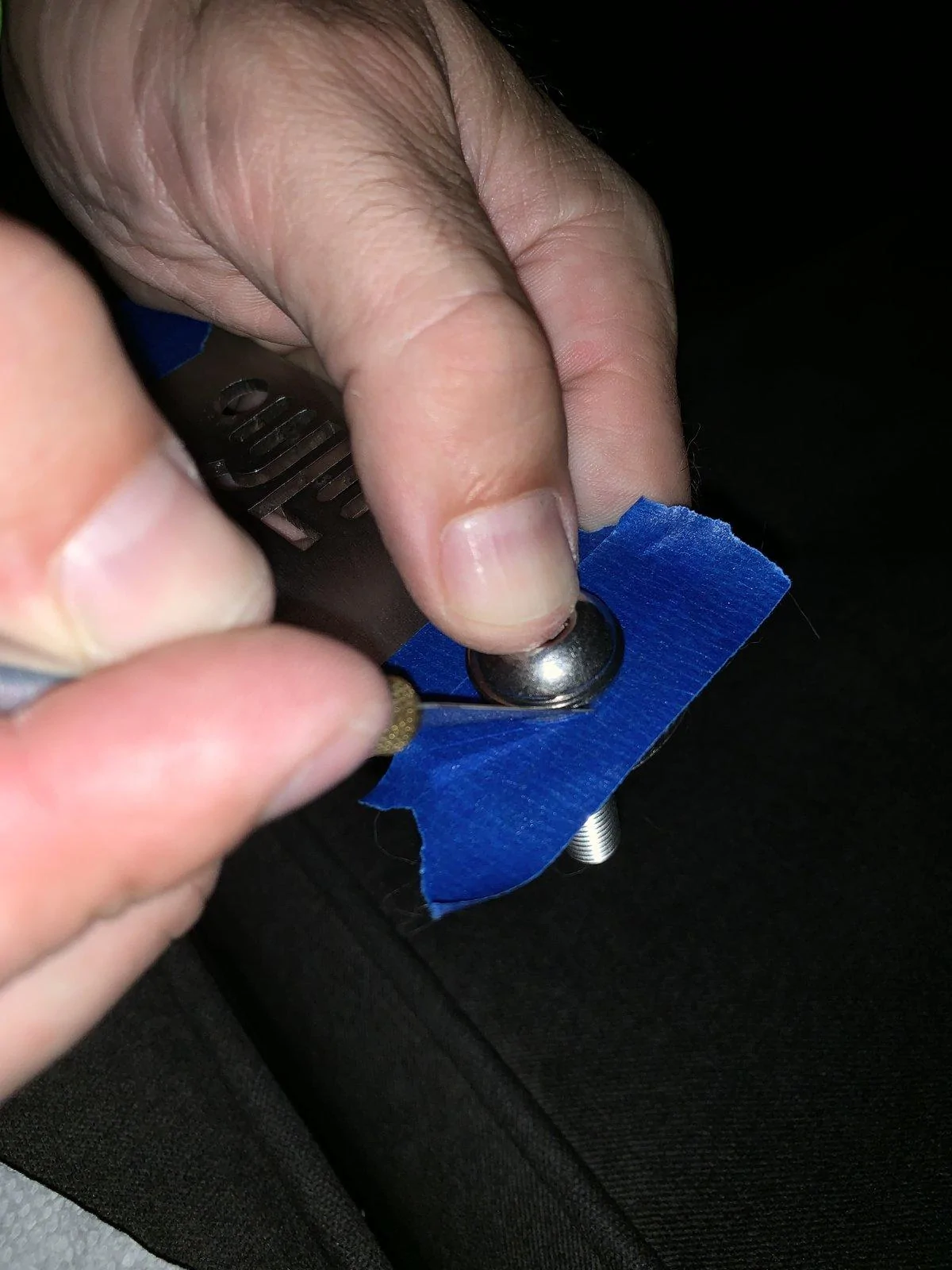

Put the bolt and washer through:


Cut/trace around the washer:


Do the same for the other holes:. i just eyed the bottom antenna hole:


Used a spare cut dowel for handling and painting:


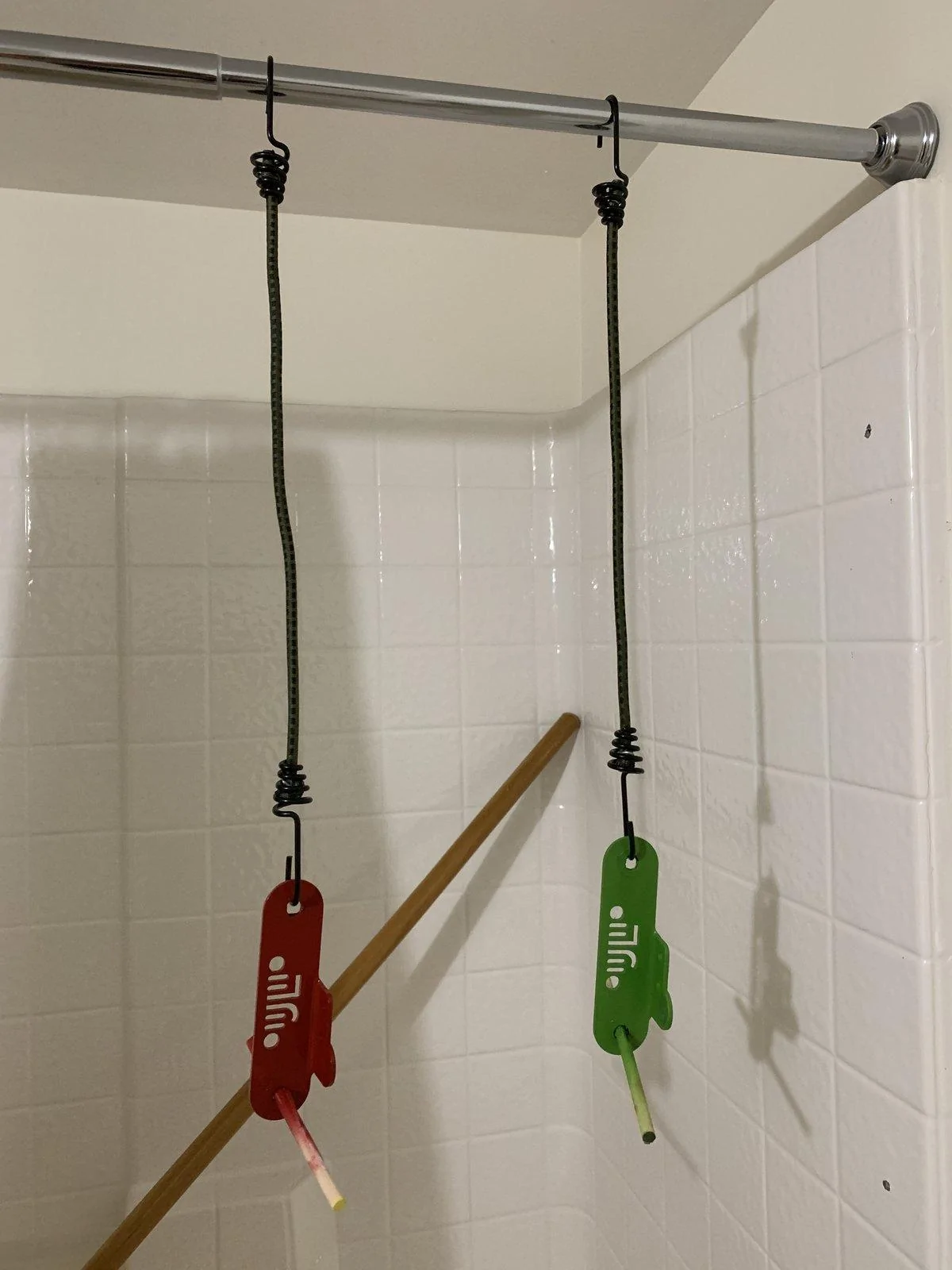

Bungees helped hang dry :)

After tape peeled (48hr dry):

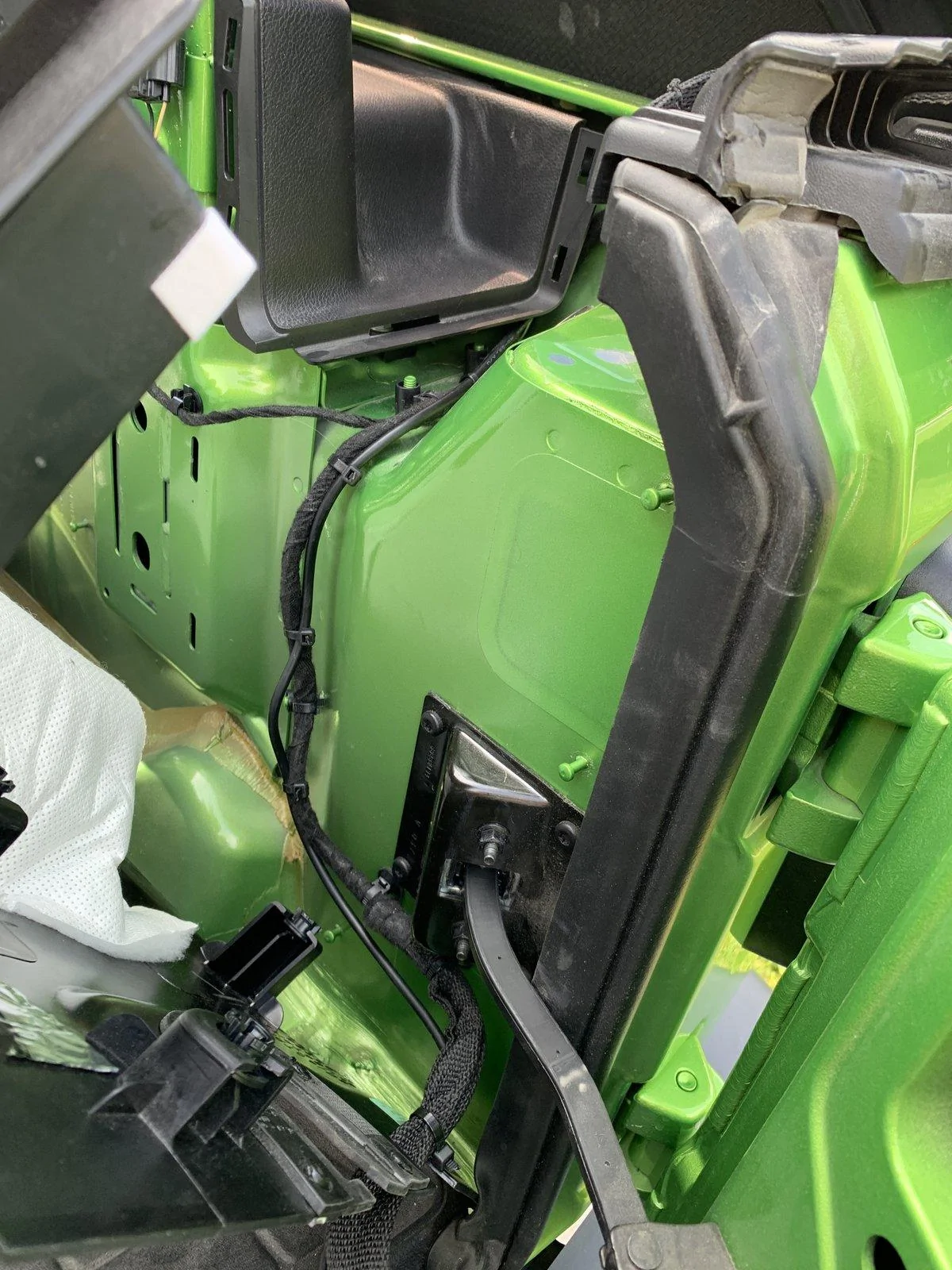

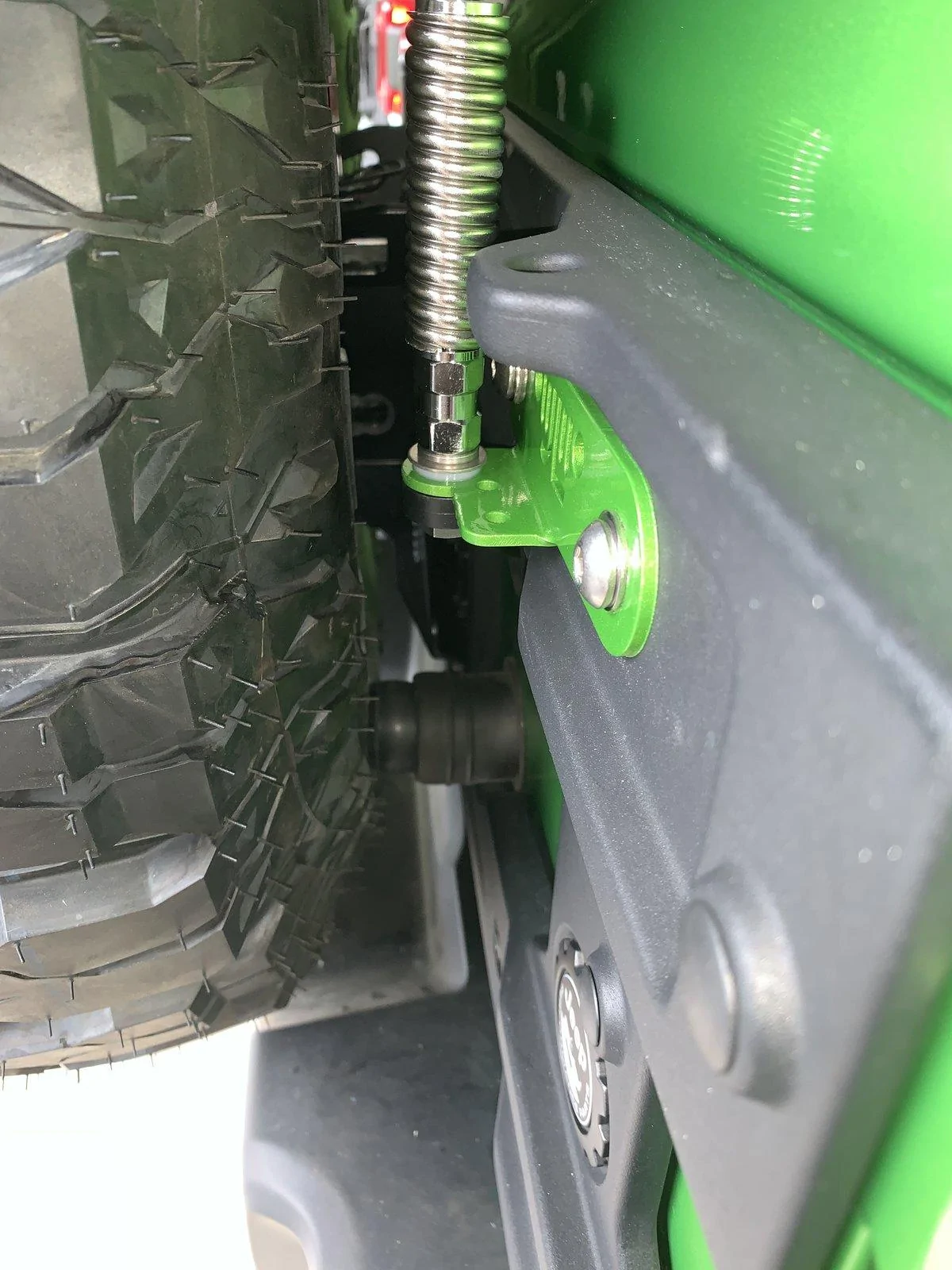

Cut a cross pattern in the rubber grommet and ran the antenna cable through. I basically followed and ziptied the wire hardness all the way to the front.....along side of that harness the entire passenger side. I removed the screw for the sub and pulled everything out a bit.

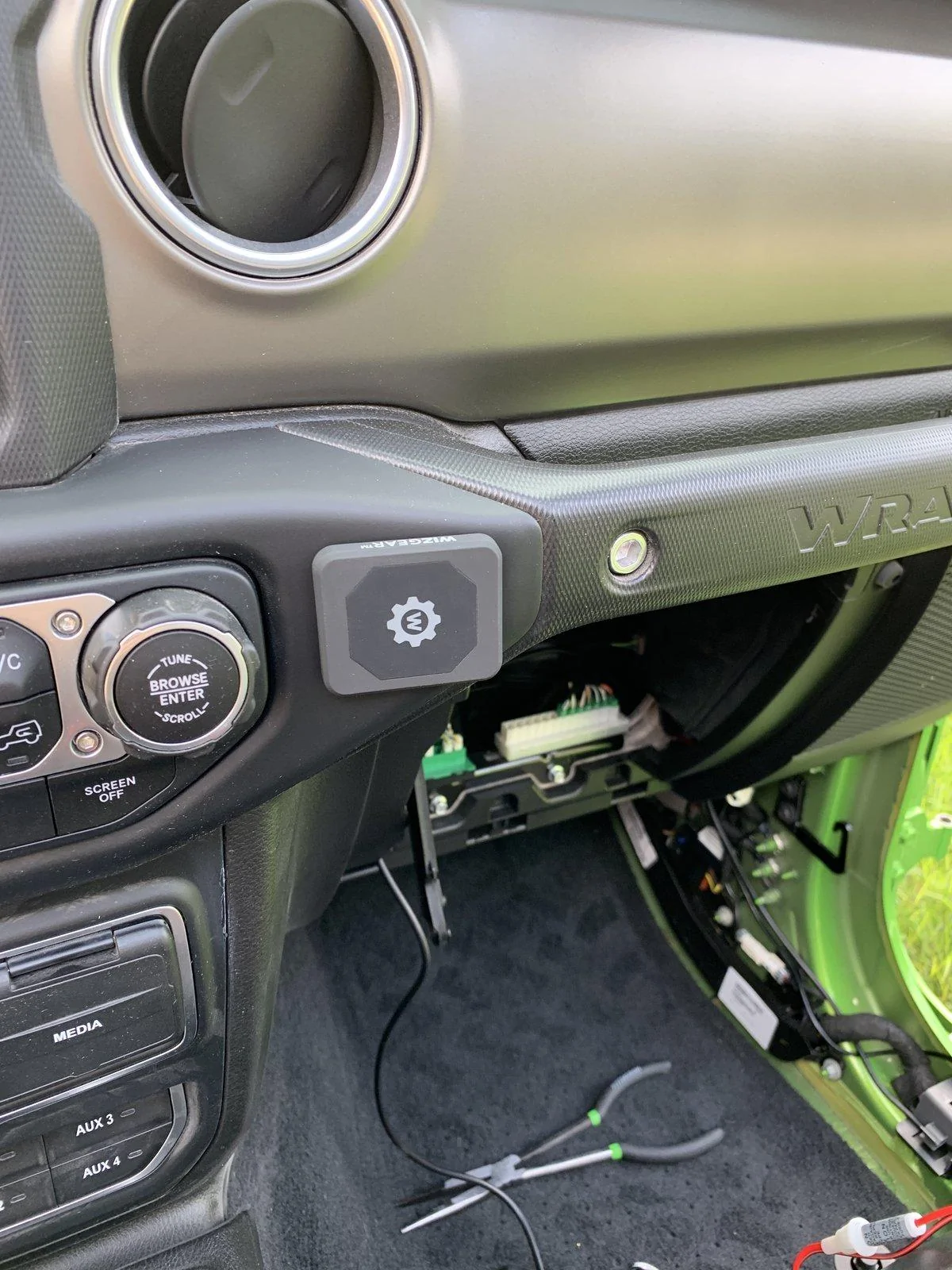

I tucked the "brain" to the upper left of the glovebox. I found a spot on top the passenger footwell vent duct:

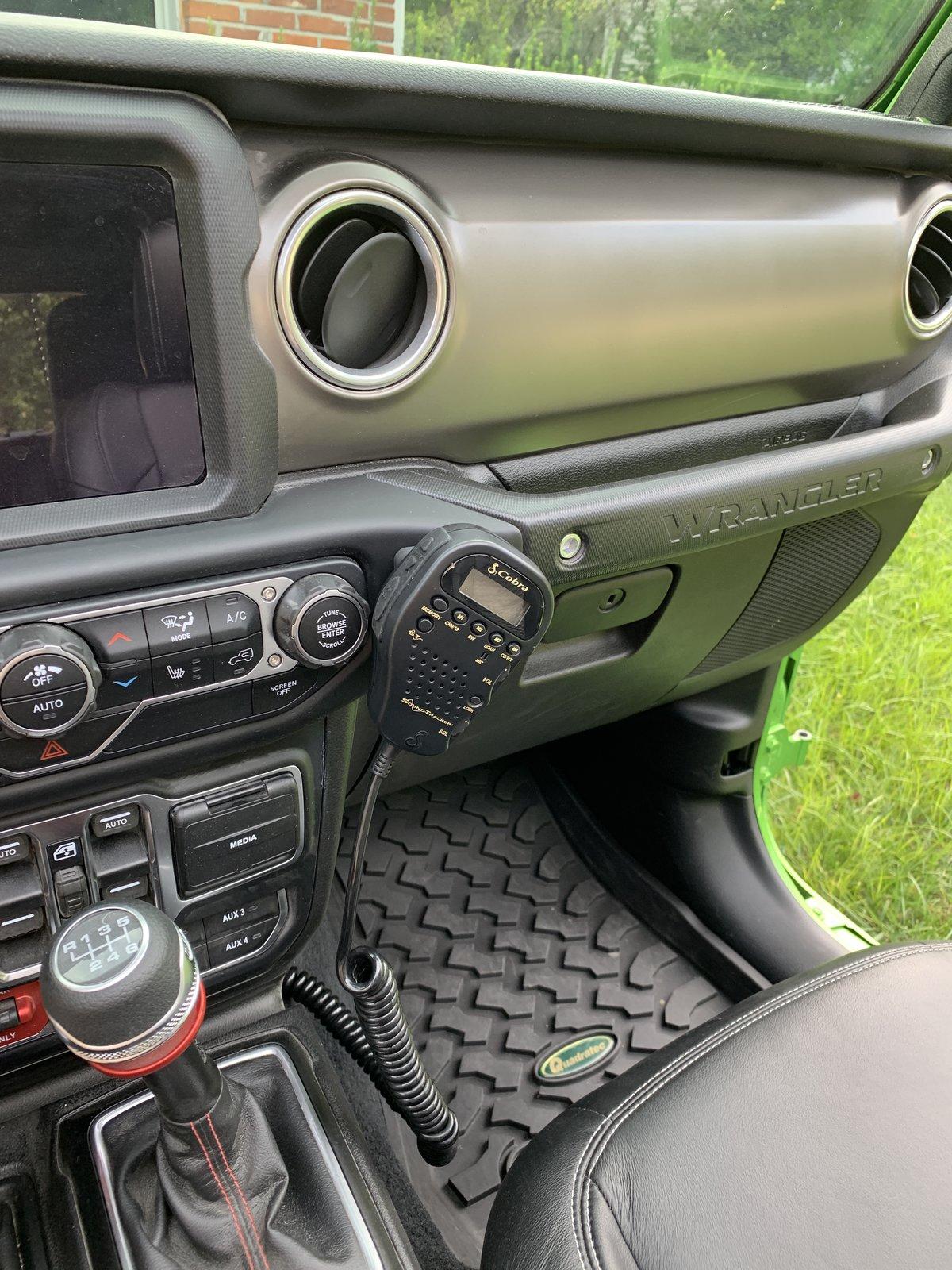

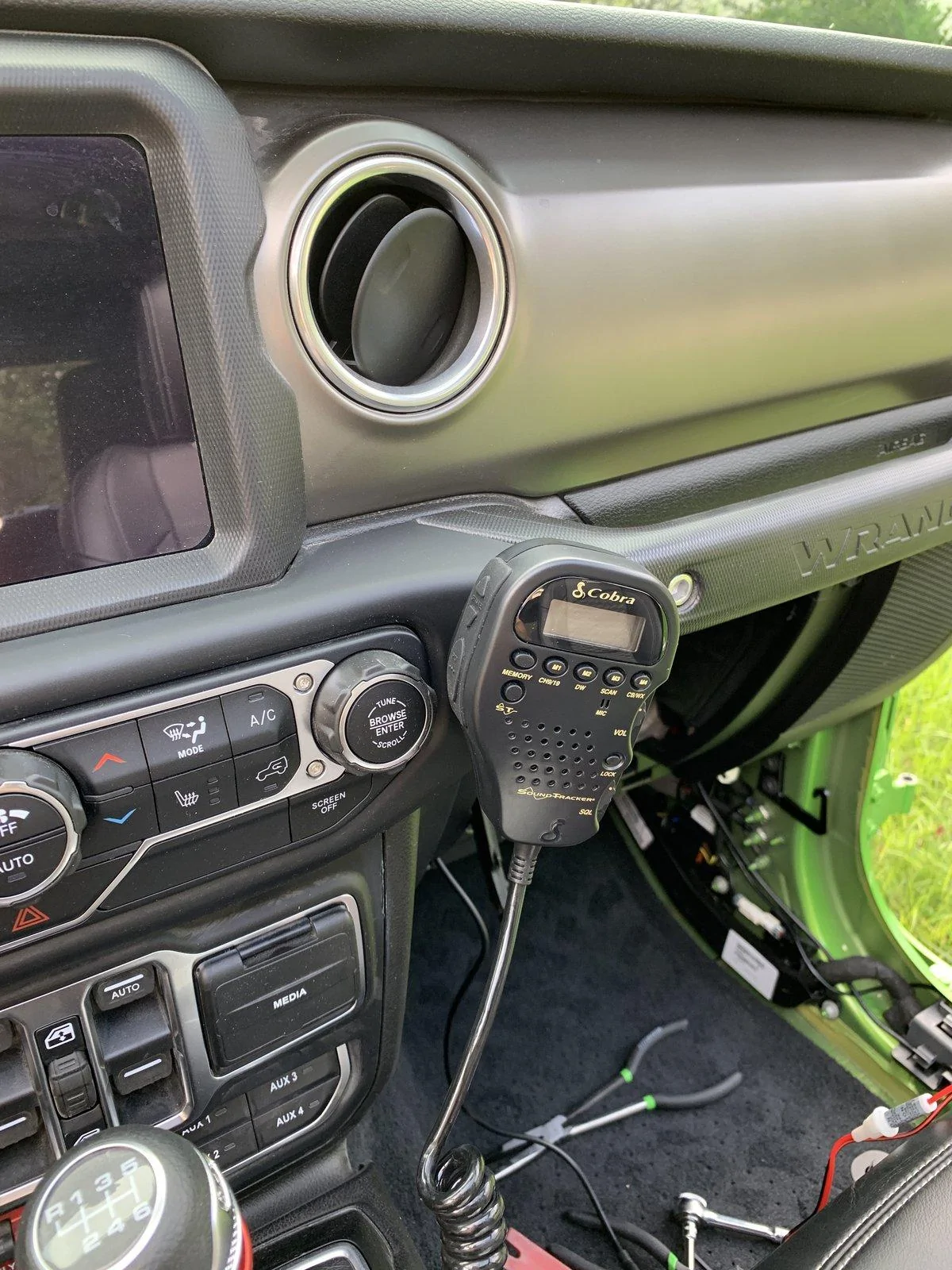

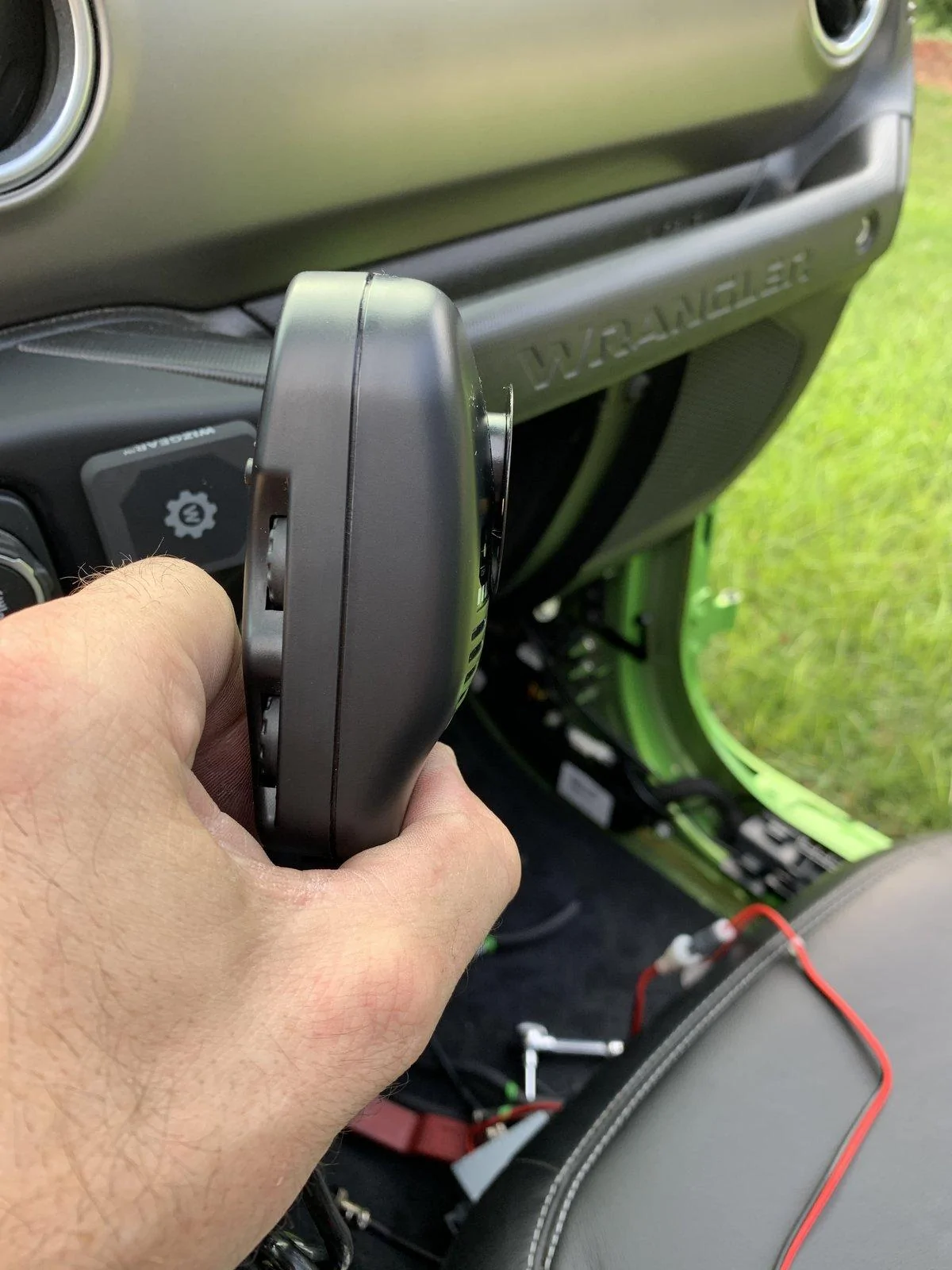

For the mic, we tried something different. Instead of using the supplied hook, we have liked the magnetic options lately, so we continued that. We used the magnetic pad that we used for our phones and attached that do the dash with the supplied double-sided tape:

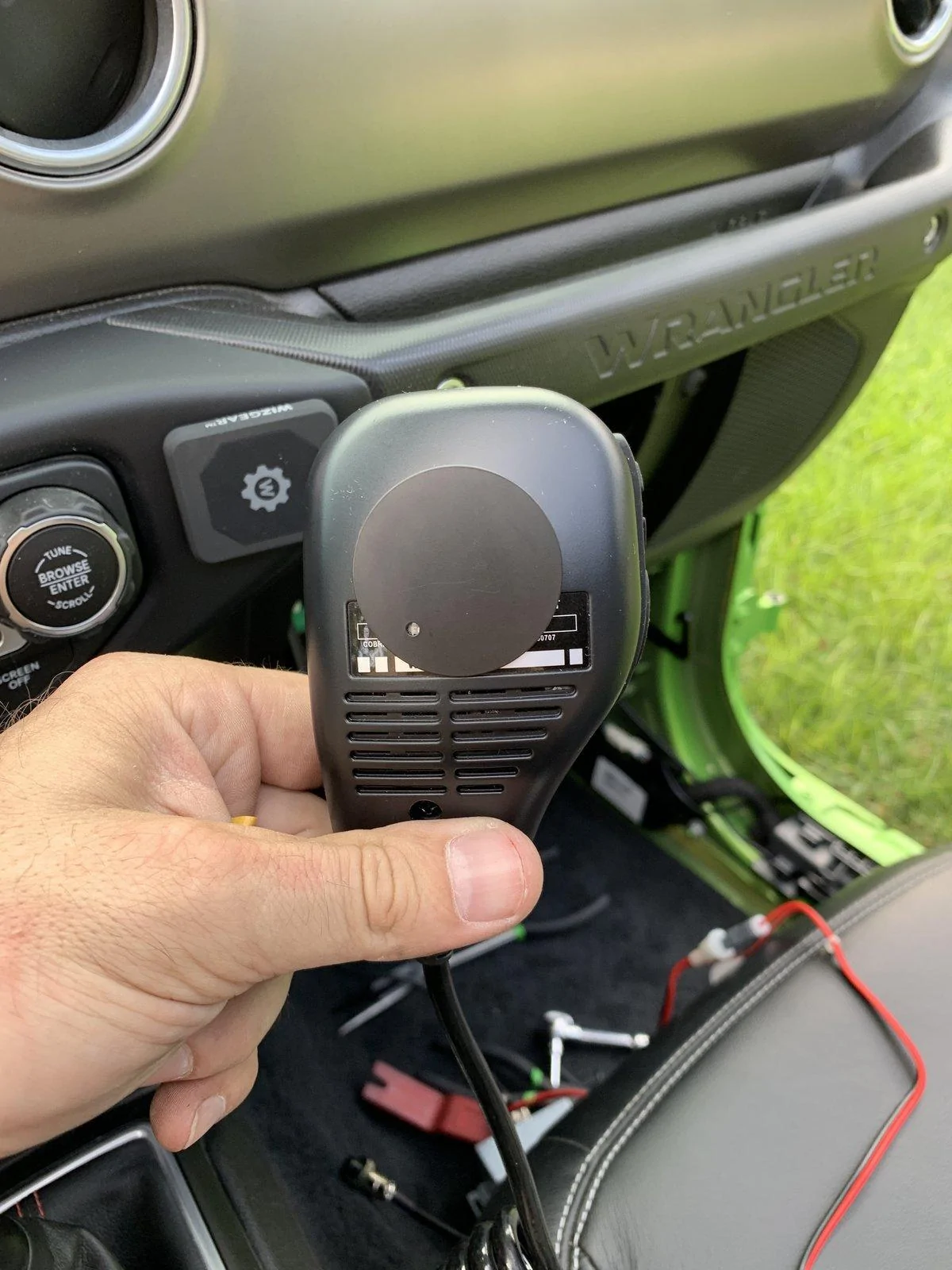

We removed the "clip" on the back of the mic. I drilled a hole in 1 of the supplied magnetic disks and screwed that magnetic disk on the back of the mic:

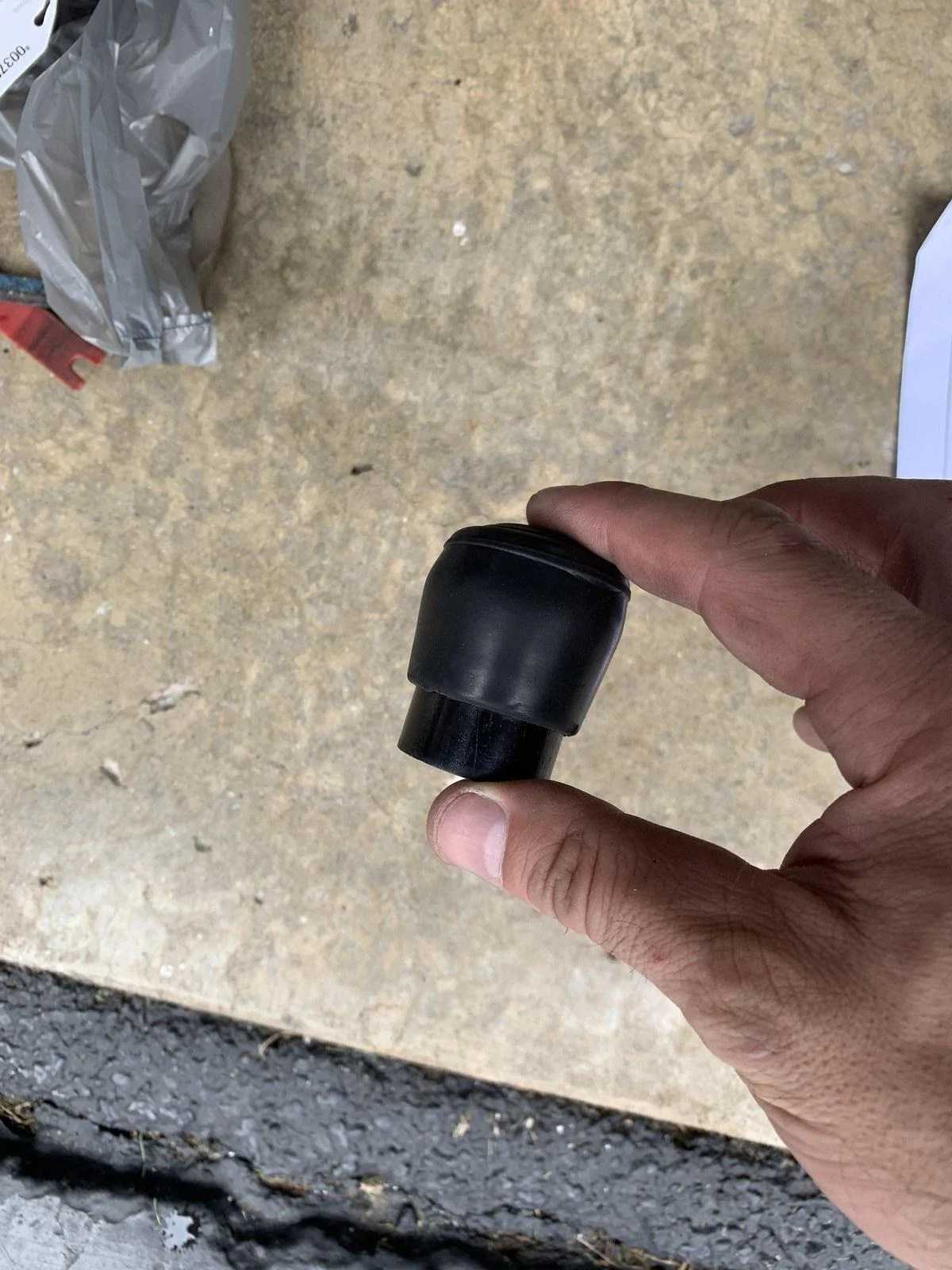

We're still waiting on the spare for the "Archangel", but i had to deal with the CB mount hitting the spare. As others have done, i extended my spare bumpstops using 1" PVC and stool feet:
https://www.lowes.com/pd/SoftTouch-4-Pack-1-1-8-in-Black-Rubber-Tips/3032995

I painted the PVC black and cut about 2" sections (results may vary for your needs)

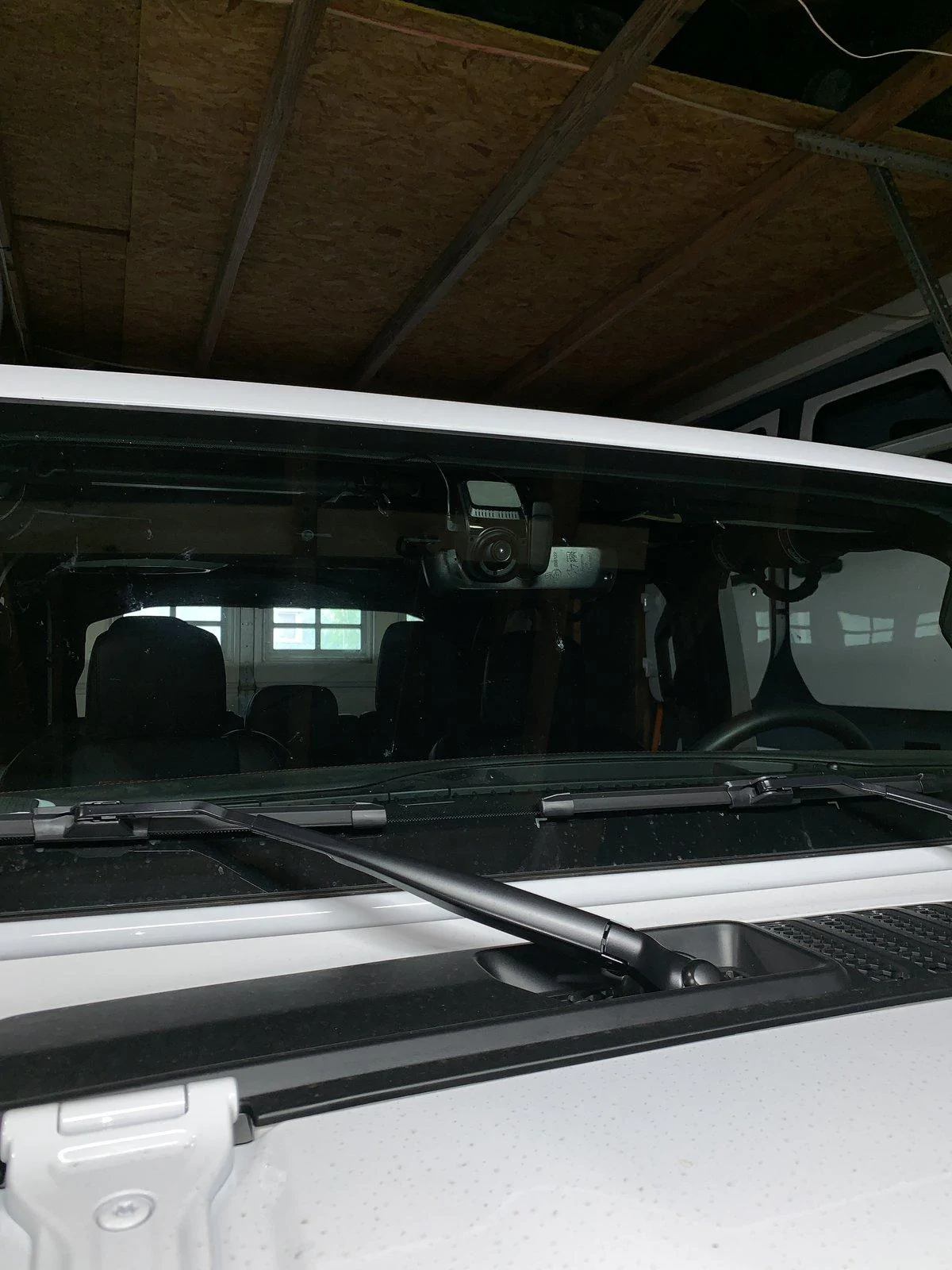

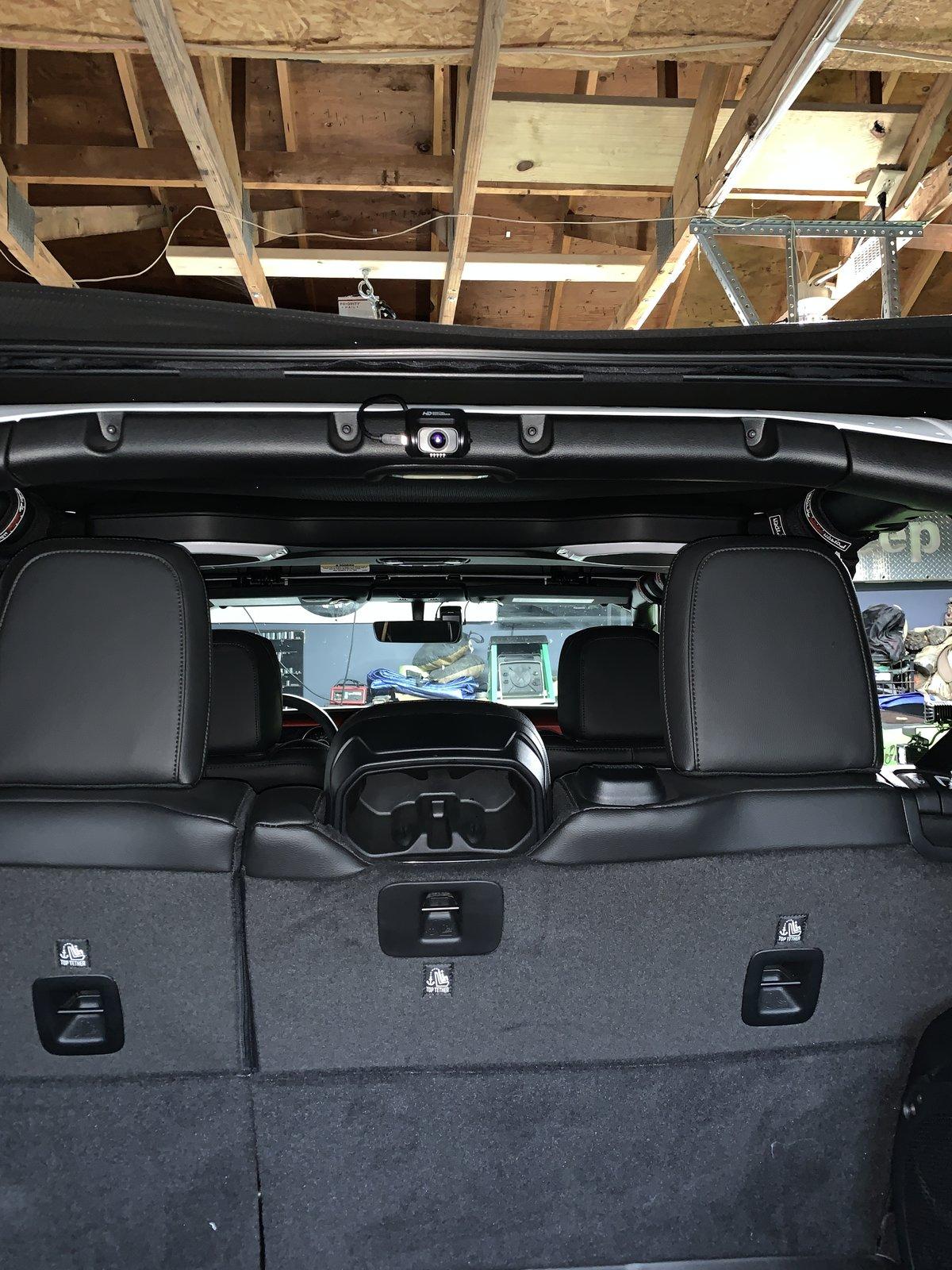

Dashcam mounted and installed:





Last edited:
OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #96

Midwesttrekker

Well-Known Member
First Name
Galen
Joined
Apr 16, 2019
Messages
46
Reaction score
31
Location
O Fallon MO
Vehicle(s)
2020 Rubicon Granite Crystal Ordered 7/19. 2017 Honda Civic Si
Vehicle Showcase
1
Sure did! Got the Rhino Rack & Pioneer Platform installed along with an iKamper RTT last Friday in Denver. Did a couple trails Saturday. Winch and air compressor going on this week.




OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #98
Sure did! Got the Rhino Rack & Pioneer Platform installed along with an iKamper RTT last Friday in Denver. Did a couple trails Saturday. Winch and air compressor going on this week.



Awesome, congrats!!

OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #99
Just got back from a trail run in Alley Springs, MO, through MidWestJeepThing club. Was a fun (easy) run and fun camping weekend. Here are some shots from the weekend. After seeing all the cool Jeeps, it REALLY makes our front end look naked. Need to start looking into front bumpers. :)

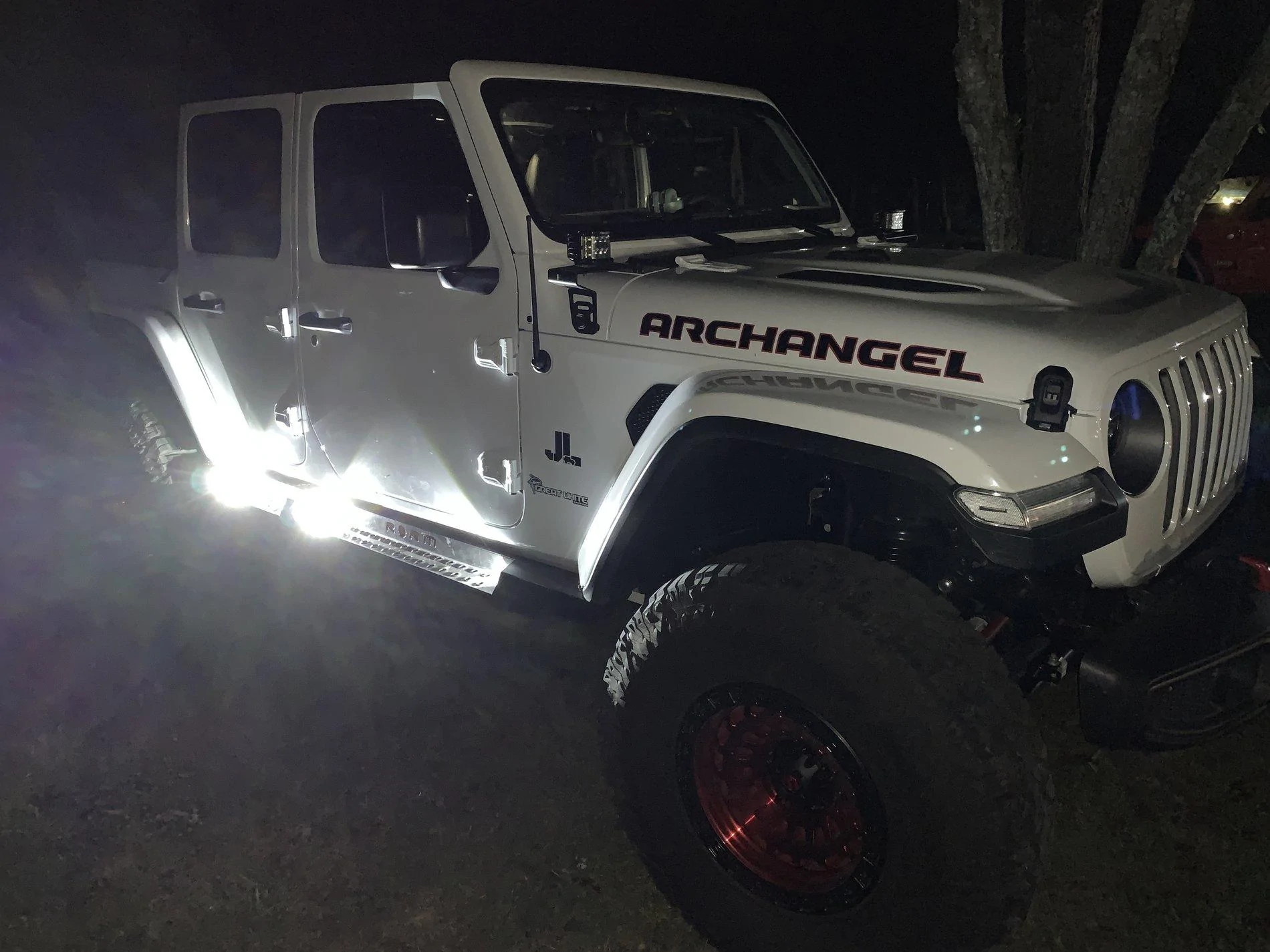

At our campsite:


Camping cheating:


Little NYTE shot:


OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #100
OP
jlewissystem

jlewissystem

Well-Known Member
First Name
J
Joined
Jan 24, 2019
Messages
850
Reaction score
1,433
Location
STL
Vehicle(s)
2019 JLUR MANUAL Mojito!
Build Thread
Link
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #101
Small, but cool mod on this one....i know a few other guys have done it. Thanks to @Tritonman for the idea and tips!!

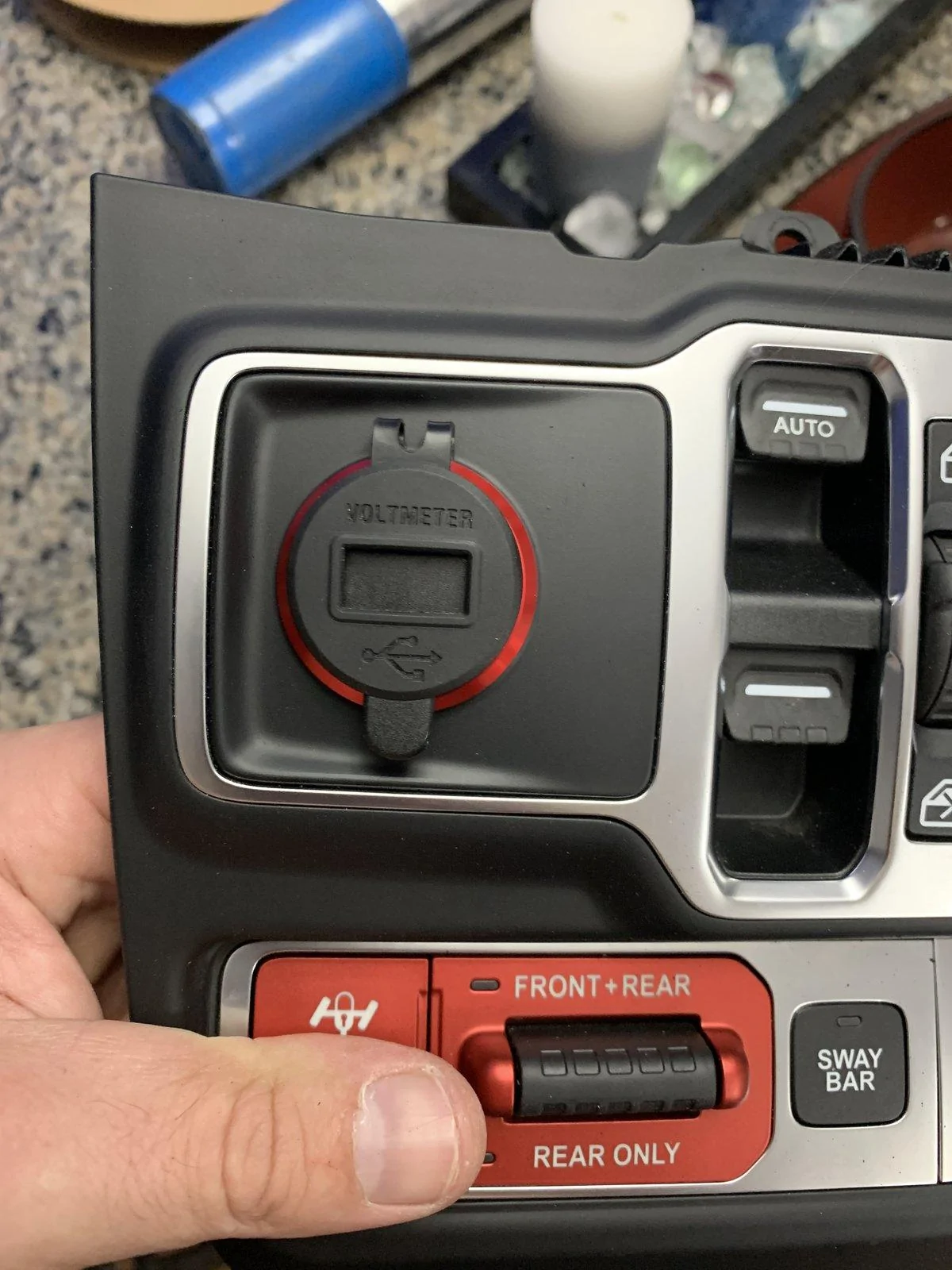

We replaced the front cig outlet with these quick-charge outlets. The Archangel got the red bezel.

Red - https://www.amazon.com/gp/product/B07PP7RLT9/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
Black - https://www.amazon.com/gp/product/B07PN5YZX3/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

Used a trim-tool to pull the top ignition button bezel out - it's in with push-tabs.

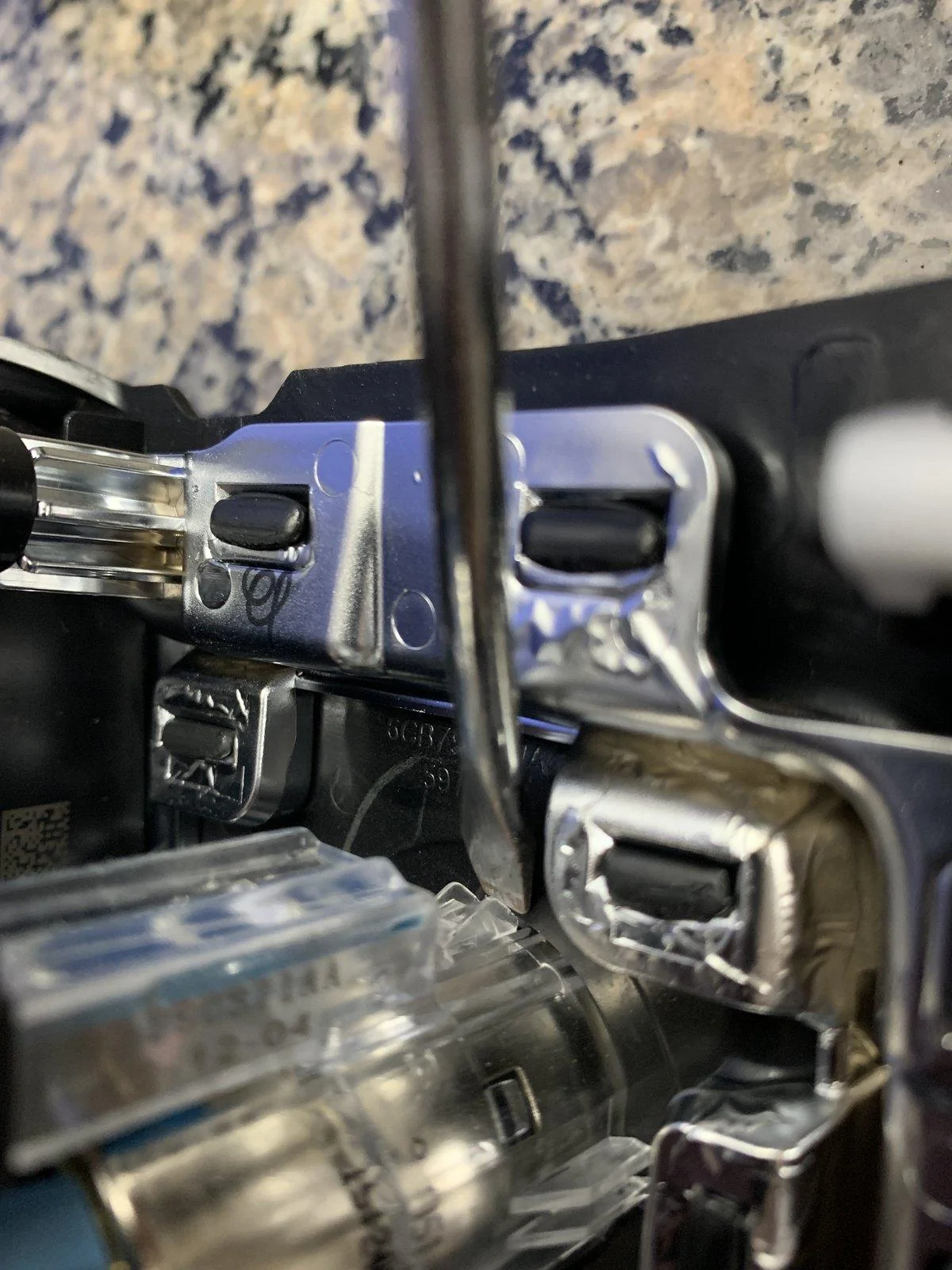

After that's out, there's a single phillips-head screw holding the bottom bezel panel in. Remove the screw and used your hands to pull the top 2 corners, then the bottom corners. Obviously, unplug stuff.

You are obviously removing the cig outlet. This thing will be trashed, so this is a one-way street, if you decide to do this.

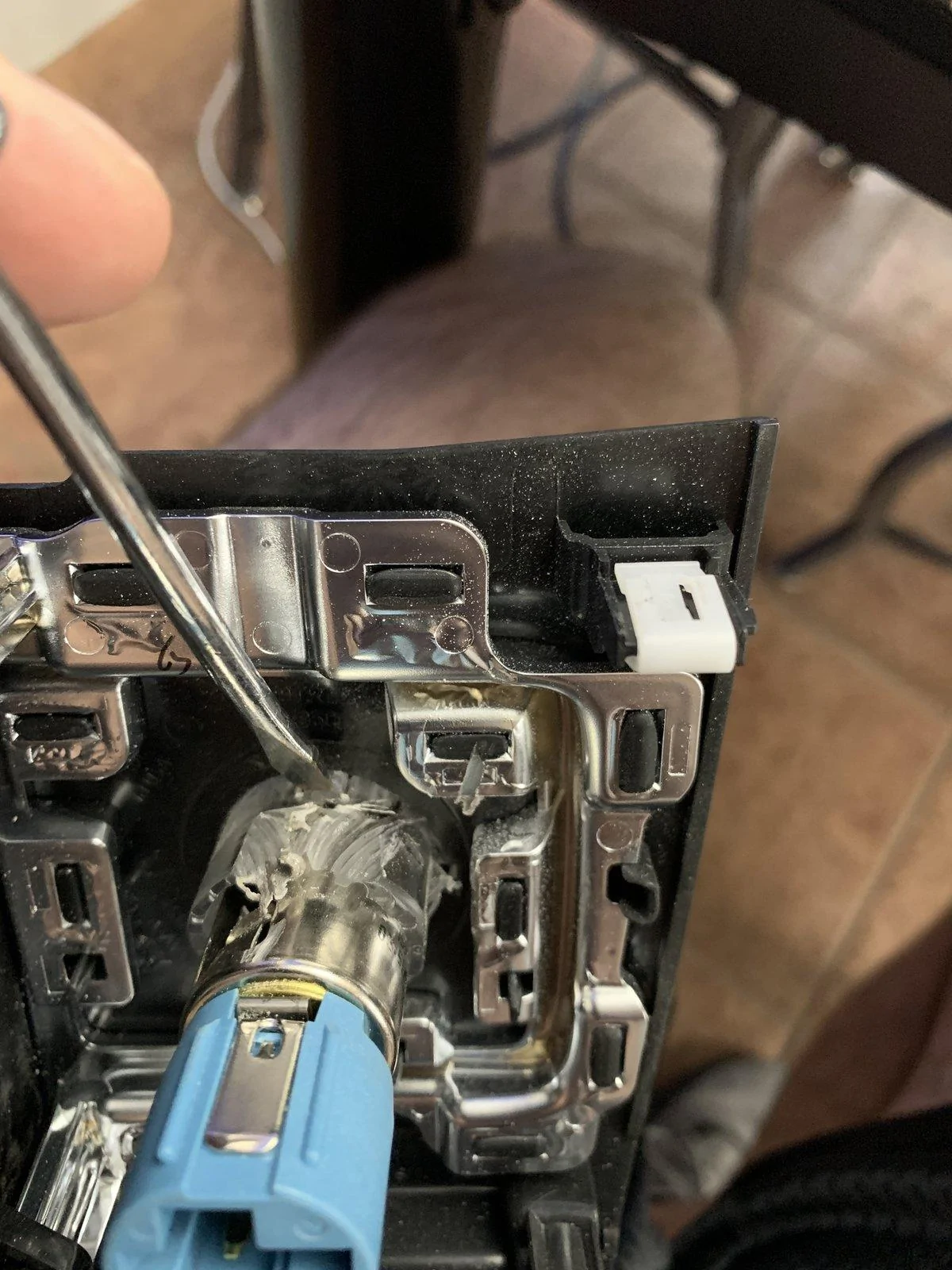

1st - i used a needle-nose pliers and clipped the top and bottom clear tabs of the outlet. The side tab can stay, as there's a notch that will allow it to be pushed through the hole. The screwdriver is pointing to them:

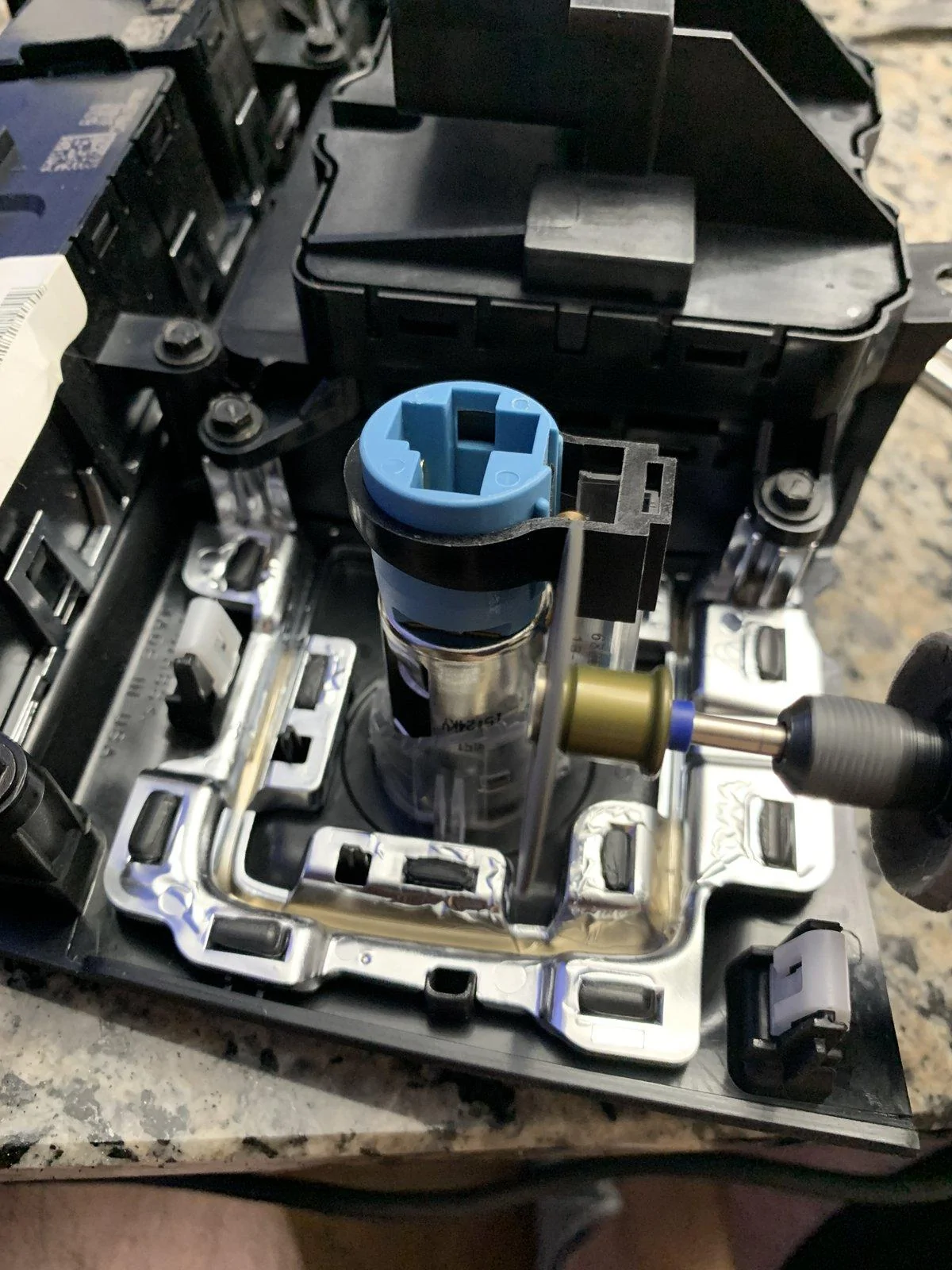

2nd - I used my Dremel to cut the black ring and clear top-rail off. Cut the same place on both pieces, all the way down the sides. The outward facing side is easy. Then, pull the outlet outwards, to help cut the other side.

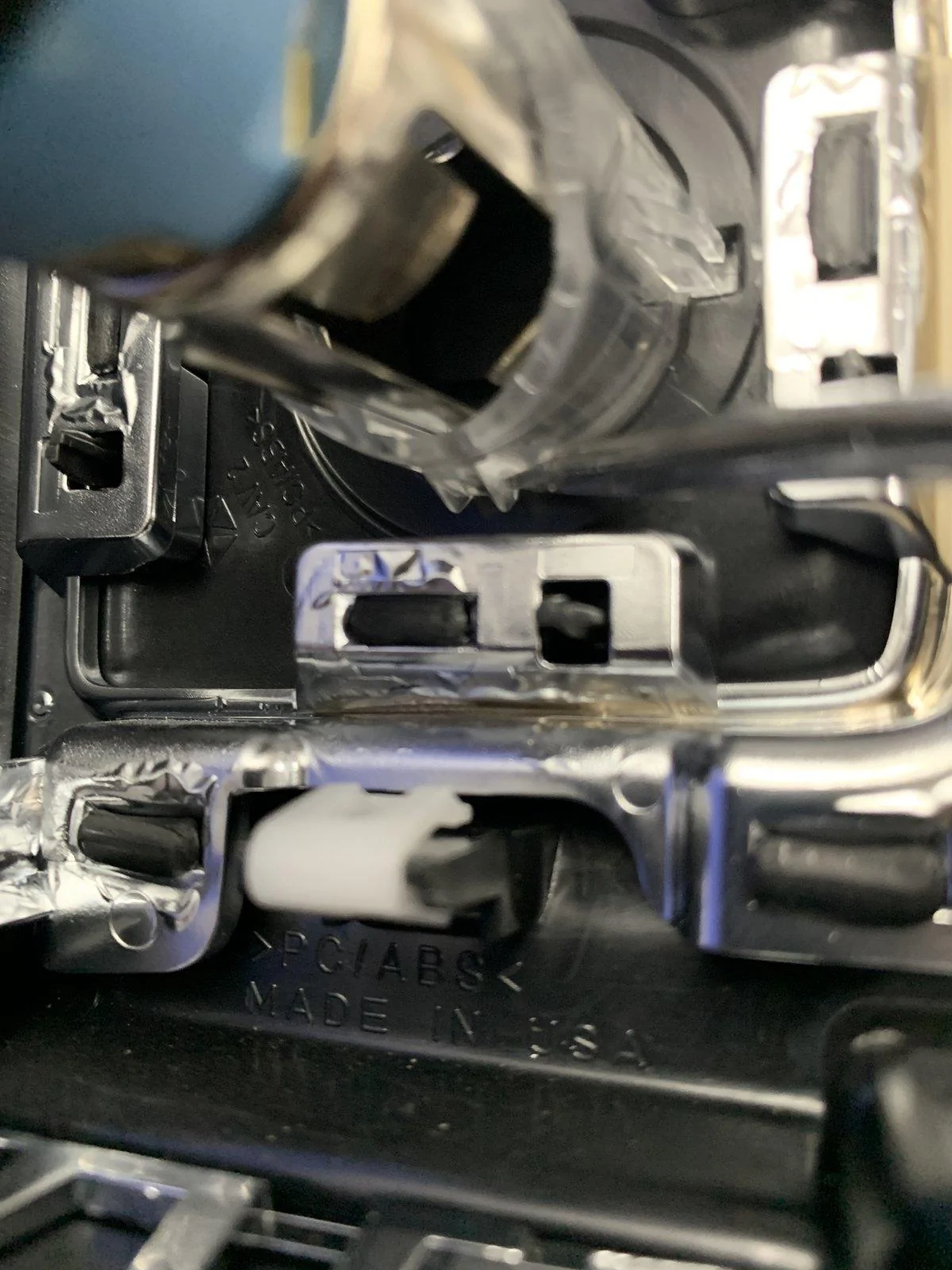

3rd - Used a small flathead to push the top and bottom tabs (slightly) through the hole. Then just wiggle and push from the back. Should pop out pretty easy.

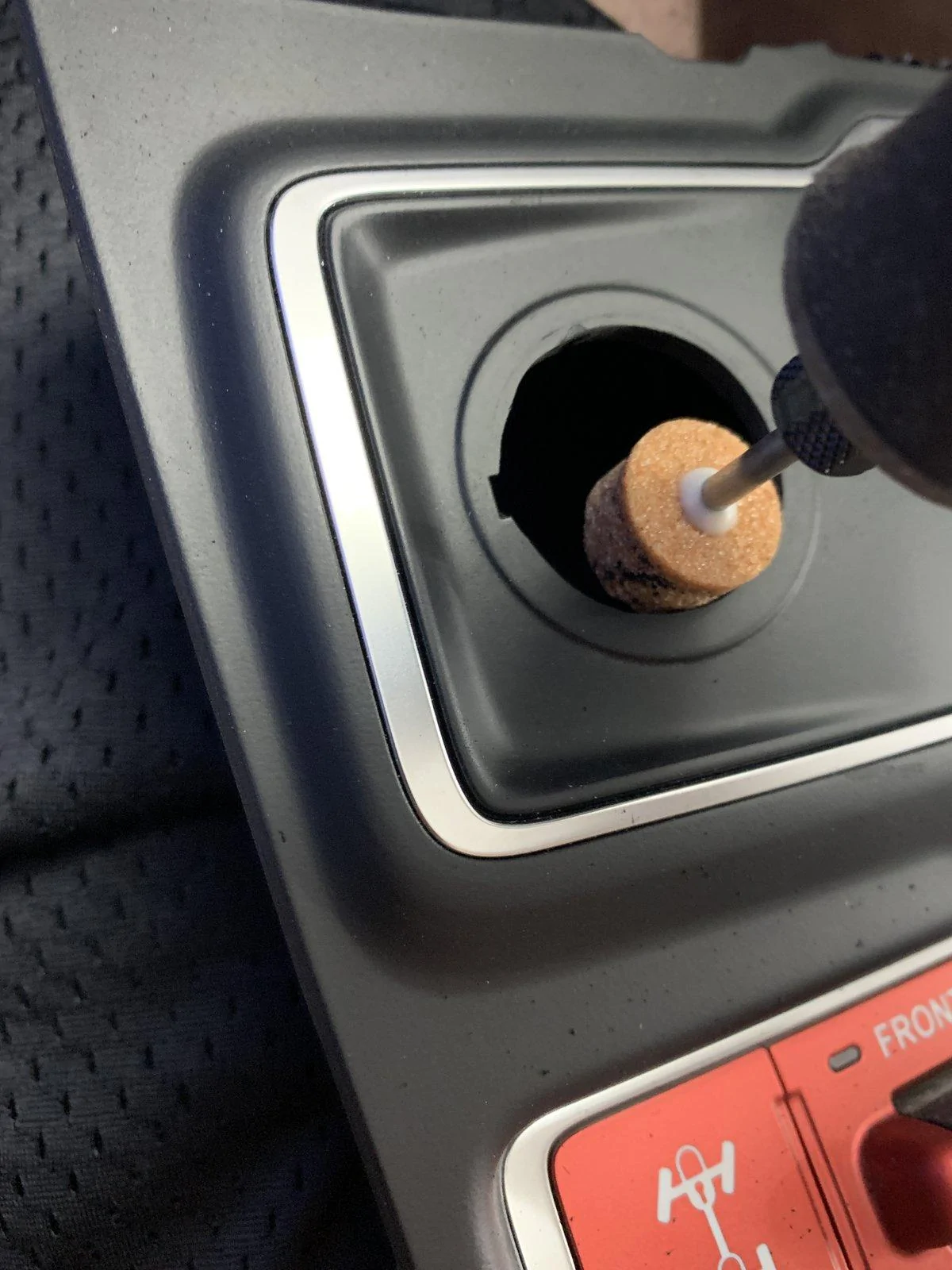

4th - The hole is too small for the new outlets, so used my Dremel grinding stone. Didnt use too much pressure and just went in a circle a few times...going evenly.

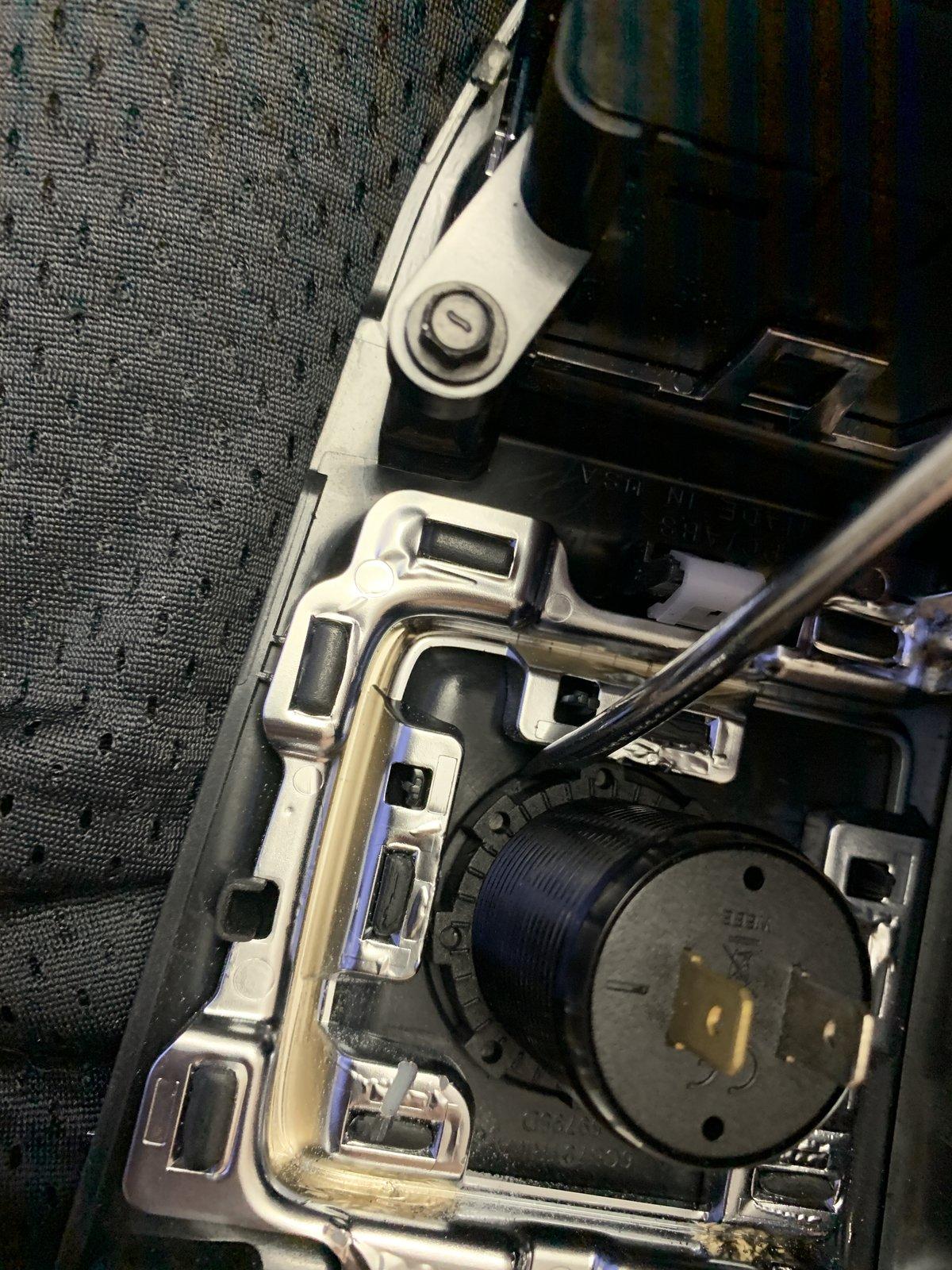

5th - Install new outlet. When you get the backing nut down the the bottom, the rear mold gets in the way to spin it, in the final couple spins. Used that same flat-head to tighten.


6th - Wiring. Used the supplied (inline) fuse - cut that part off the supplied wire and connected that to speaker wire. I had spare speaker wire (16awg), so figured just use that. The speaker wire was 4.5ft long. Final wire, with heat shrink.


7th - Ran the wire behind the glove box and down to my previously wired ground and AUX ignition wires. For reference, i have 3 devices coming off my AUX ignition (10amp): CB, DashCam & this outlet. All have independent inline fuses off the AUX.

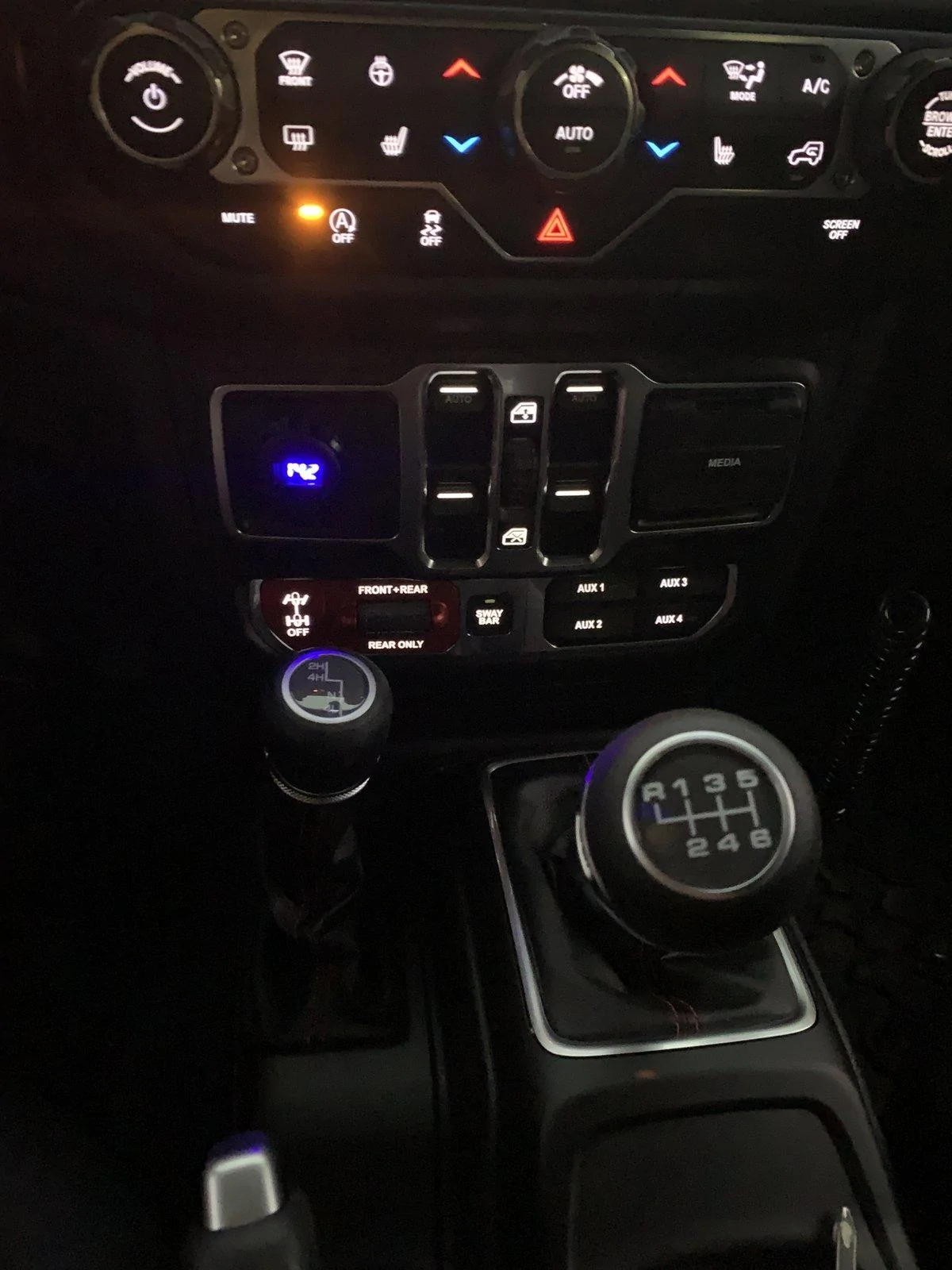

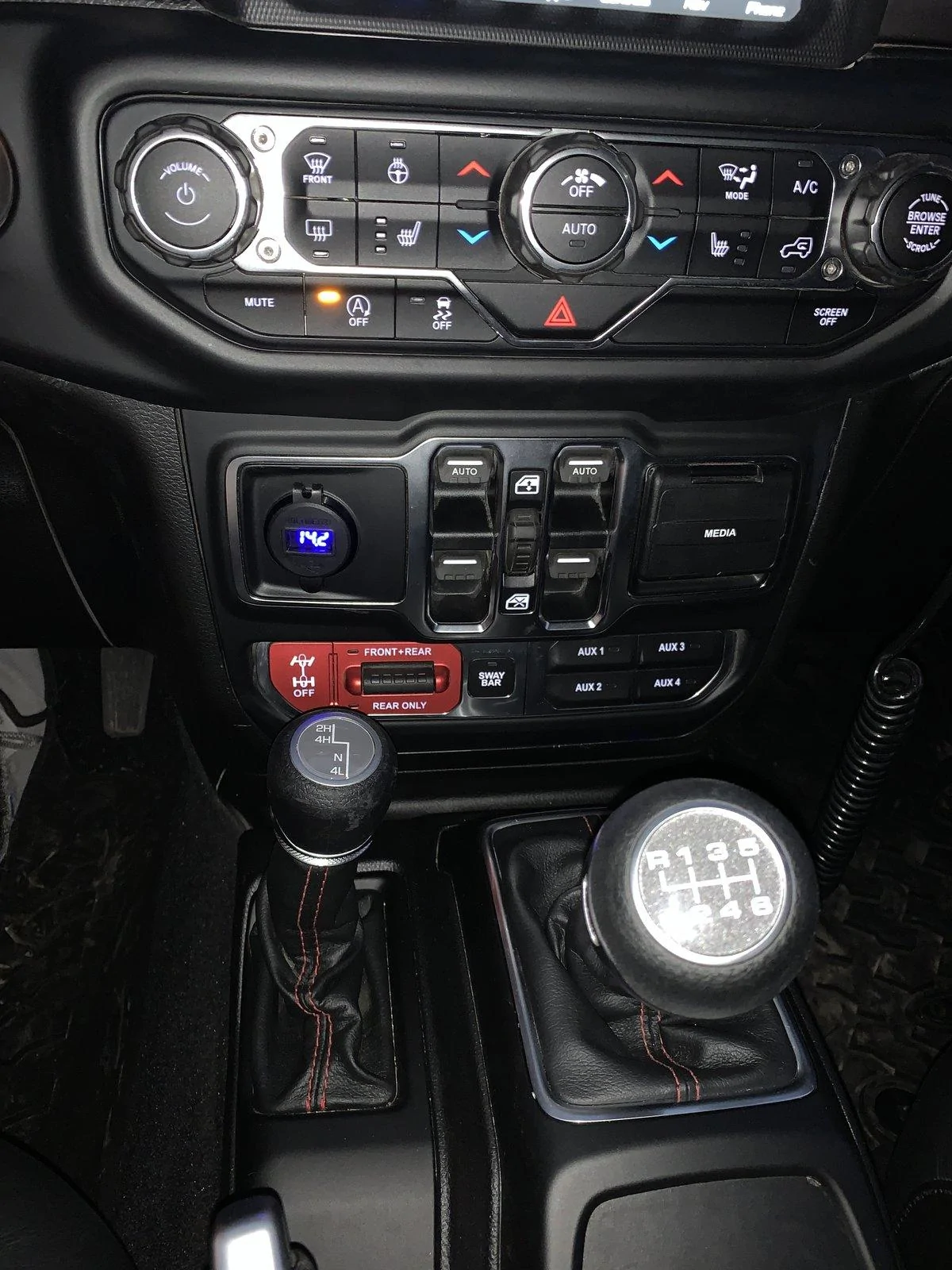

Looks cool and will be better used than a cig outlet.
