How did you wire your winch?

How did you wire your winch?


  • Total voters
    175

GtX

Well-Known Member
First Name
David
Joined
Nov 9, 2019
Threads
8
Messages
1,913
Reaction score
3,010
Location
Illinois
Vehicle(s)
2020 JLUR 3.0D
Occupation
Working for the man.
Vehicle Showcase
1
That is well done but it is also A Lot. It looks like you have the V6. The 2.0 as shown @PocketsEmptied pic is what I have. One of my goals is to insure that I don't hinder access to anything I might need in the future. For example, I don't want to have to remove my relay to get to he battery mounting bolt. Further up the thread there is someone that used the bolts on the firewall/cowl. That's not bad either but I also wanted to keep this all as far away from engine heat as possible.
That's a 3.0L diesel . I also have a fuse panel in the middle along the firewall for my rock lights. It's really just a few bolts then the whole assembly rotates out of the way.
Sponsored



Catiajockey

Well-Known Member
First Name
Jon
Joined
Dec 4, 2020
Threads
9
Messages
150
Reaction score
283
Location
Melbourne FL
Vehicle(s)
2018 JL Rubicon unlimited

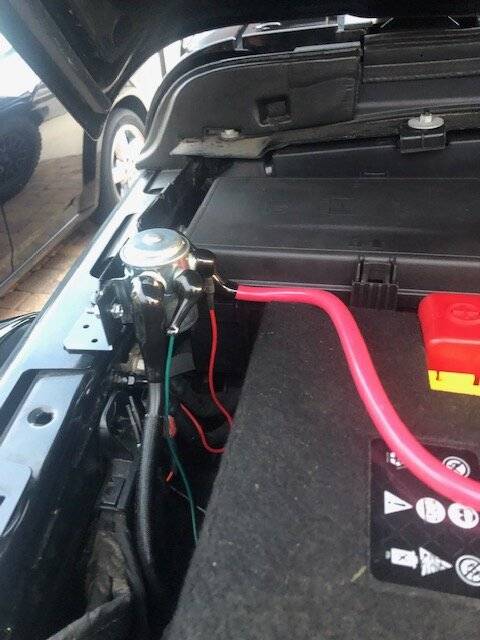

Not 100% on the routing for the cable to the battery but it functions as it should. I'll clean it up tomorrow. Signal is from aux 3. The bracket I found at Lowes in the lumber section. I just drilled it and painted it with some engine enamel.





iddpaul

Well-Known Member
First Name
Paul
Joined
Sep 24, 2020
Threads
5
Messages
51
Reaction score
177
Location
Florida
Vehicle(s)
2020 JLUR
Vehicle Showcase
1
So I bought a VR 12 and wanted to say thanks for everyone's post...helped me greatly clean up the connection and relocate the control box to provide better air flow to the radiator. (thx @Roky for your pics as well). Added a relay and moved the control box under the hood. I no longer have my workshop so instead of fabricating everything as I once would have done, I just looked for other brackets and cables that would work. I bought the 7' relocation kit from Vice Designs (excellent product and service), pulled the air box and inner fender and ran the cables from the winch up to a new bracket mounted on the firewall. Connected the cables, added a relay, connected to the Aux 3 switch and then bought a cover for the winch (Amazon $12) to finish everything off. Thx again and hope this gives some ideas..!

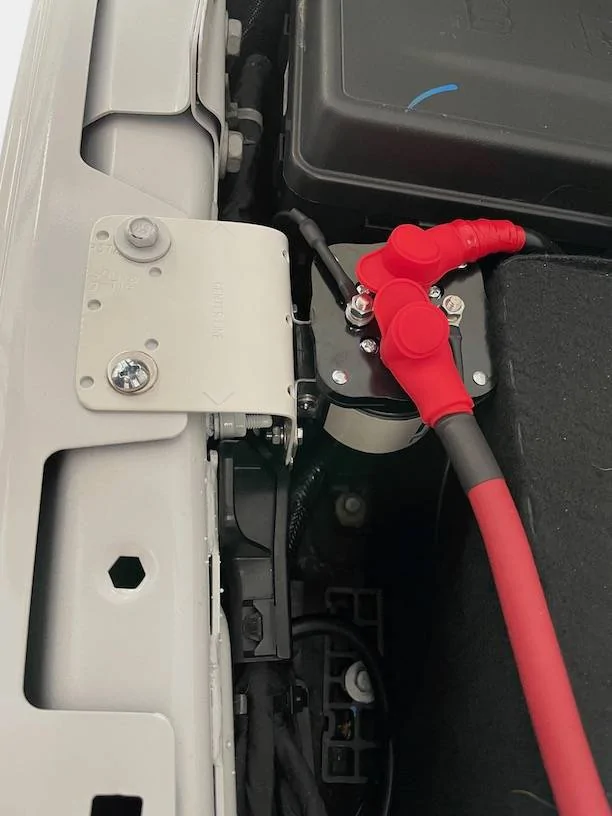

winch relay.jpeg

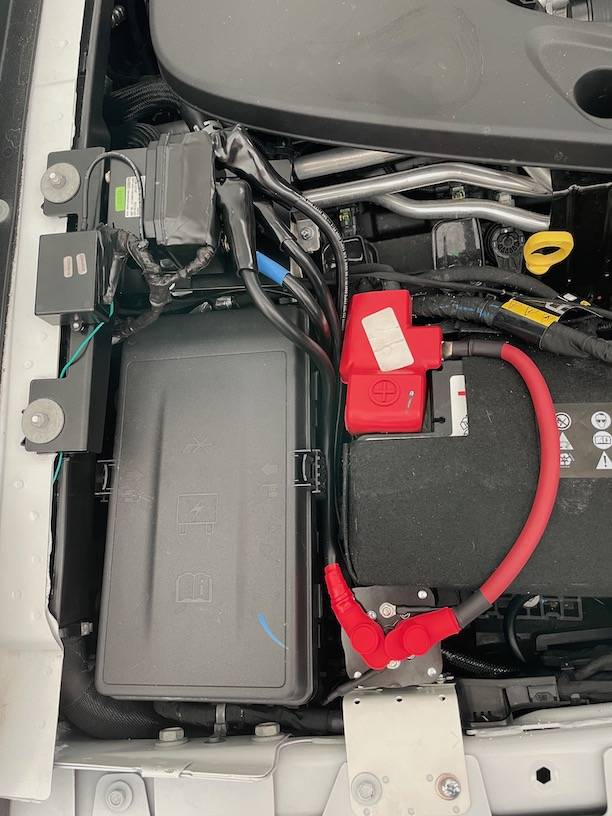

winch control  relocation.jpeg


winch relocation bracket.jpeg


winch Vice.jpeg

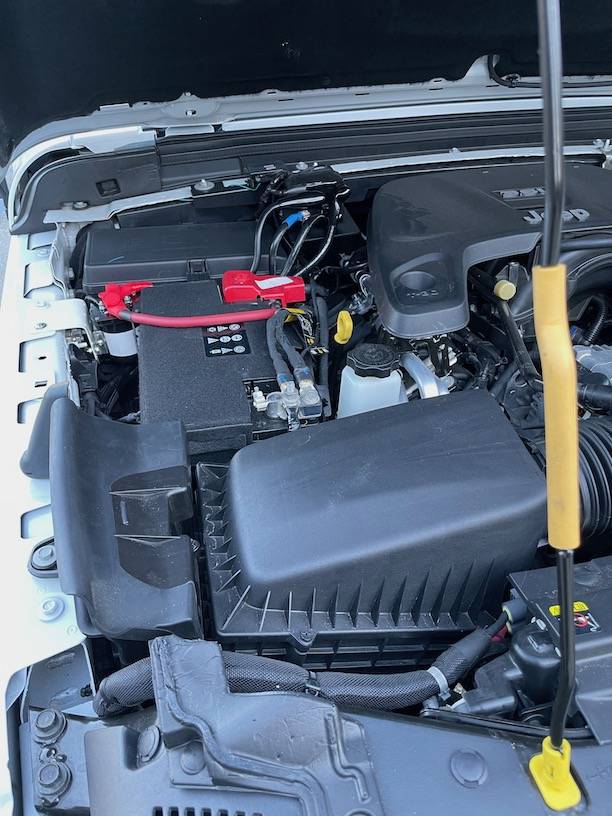

Winch Final.jpeg

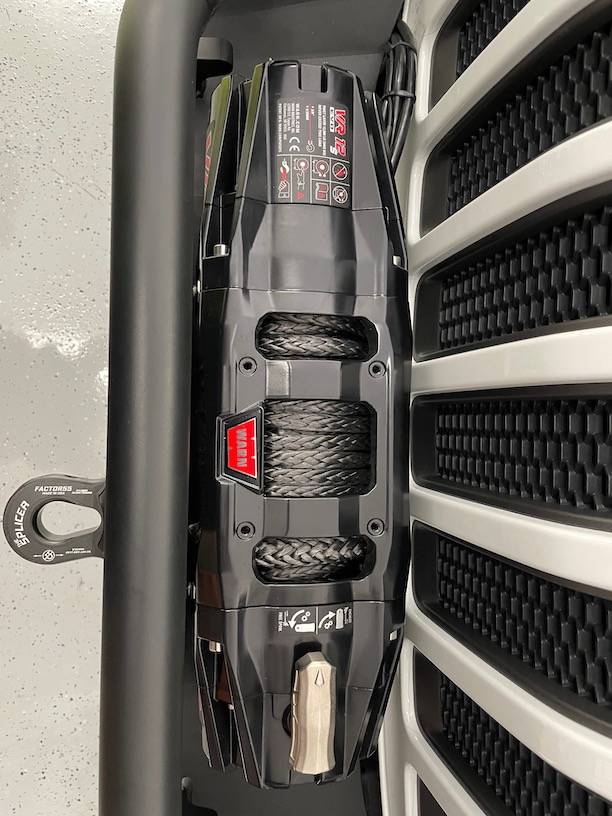

winch no control.jpeg

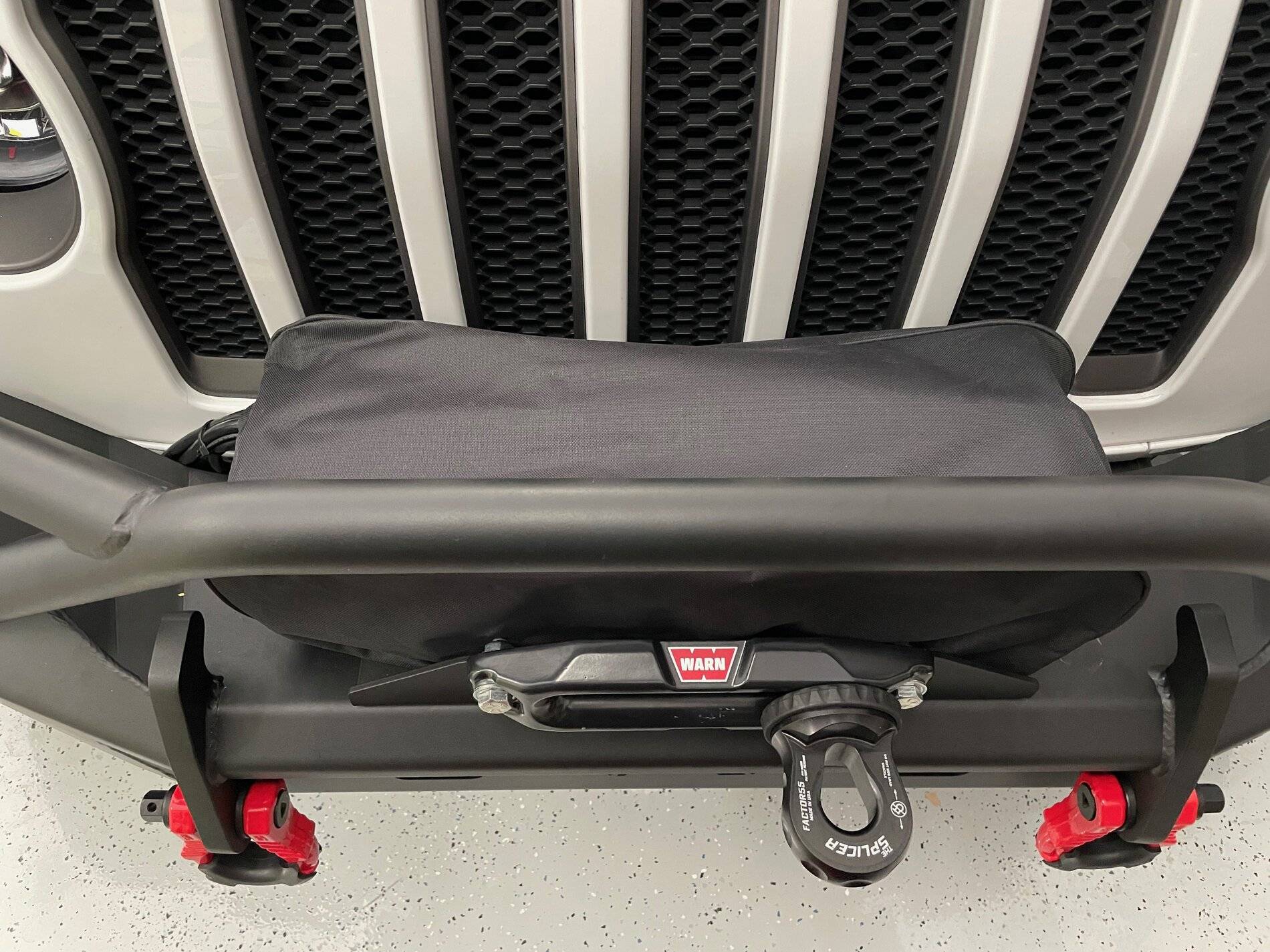

winch 9.jpeg


Roky

Well-Known Member
First Name
Roky
Joined
Oct 4, 2018
Threads
45
Messages
8,924
Reaction score
24,051
Location
Florida
Vehicle(s)
2018 JLUR
Build Thread
Link
Vehicle Showcase
1
So I bought a VR 12 and wanted to say thanks for everyone's post...helped me greatly clean up the connection and relocate the control box to provide better air flow to the radiator. (thx @Roky for your pics as well). Added a relay and moved the control box under the hood. I no longer have my workshop so instead of fabricating everything as I once would have done, I just looked for other brackets and cables that would work. I bought the 7' relocation kit from Vice Designs (excellent product and service), pulled the air box and inner fender and ran the cables from the winch up to a new bracket mounted on the firewall. Connected the cables, added a relay, connected to the Aux 3 switch and then bought a cover for the winch (Amazon $12) to finish everything off. Thx again and hope this gives some ideas..!

Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9


Jeep Wrangler JL How did you wire your winch? winch 9
Looks good brother , nice work !


iddpaul

Well-Known Member
First Name
Paul
Joined
Sep 24, 2020
Threads
5
Messages
51
Reaction score
177
Location
Florida
Vehicle(s)
2020 JLUR
Vehicle Showcase
1
Looks good brother , nice work !
Thanks Roky...greatly appreciated everyone's posts and pics...the biggest tip is to remove the airbox and inner fender to run the cables...very easy to do and then allows unlimited access and a way to wire-tie everything in place.
