First Diesel Oil Change

JRMedic19

Well-Known Member
First Name
Josh
Joined
Nov 18, 2019
Messages
144
Reaction score
192
Location
East San Francisco Bay
Vehicle(s)
'20 JLURD, '14 Toyo Highlander, '19 Toyo Camry
Occupation
Wang-Jangler
Vehicle Showcase
1
Shit, now something else to worry about. I wonder if the dealer can just give me the supplies and i do the service at home myself. Torque specs correct, parts correct, everything done right.

I've never been burned by a dealer oil change but they definitely are lazy. Spilled oil, slightly overfilled, etc.


BuffaloBill

Well-Known Member
First Name
Bill
Joined
Oct 14, 2019
Messages
211
Reaction score
272
Location
WI
Vehicle(s)
2018 Wrangler, 2014 Ram 1500 EcoDiesel 2020 JLUR Ecodiesel
I did the first oil change the other day, at 2750 miles on the odometer. Used Motul 8100 X-cess gen2 5W-40 and Mopar filter. It’s only within the last month or so that Motul’s website shows MS-12991 for this gen2 version.

My drain plug was not leaking, but was kind of scary how loose it was. Barely needed the wrench to move it. And I mean barely.

I followed the recommended draining procedure where you loosen the filter housing just till air can enter below the o-ring, giving it 5-10 mins to drain. This done to prevent the ”dirty” oil (on the outside of the filter) from mixing with and entering the engine through the center hole.

I used an oil extractor (a Pela hand pump model) to suck out the oil pooled up in the oil filter cavity. It must have been a cup or two in the cavity on the dirty side and down the center hole combined. I poured fresh oil back in those two cavities, thinking that would be a good idea to minimize the seconds where bearings are not receiving pressurized oil on the first start.

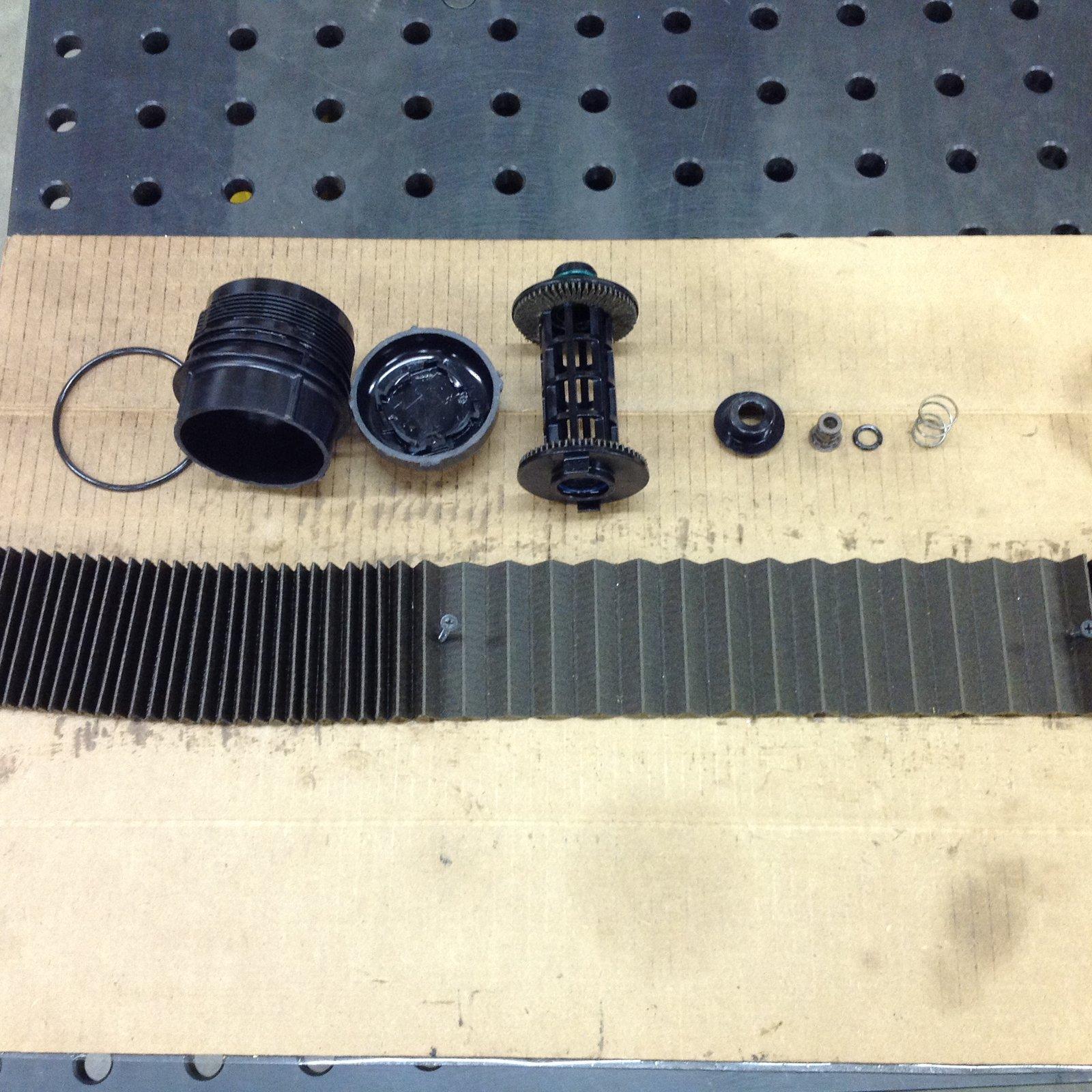

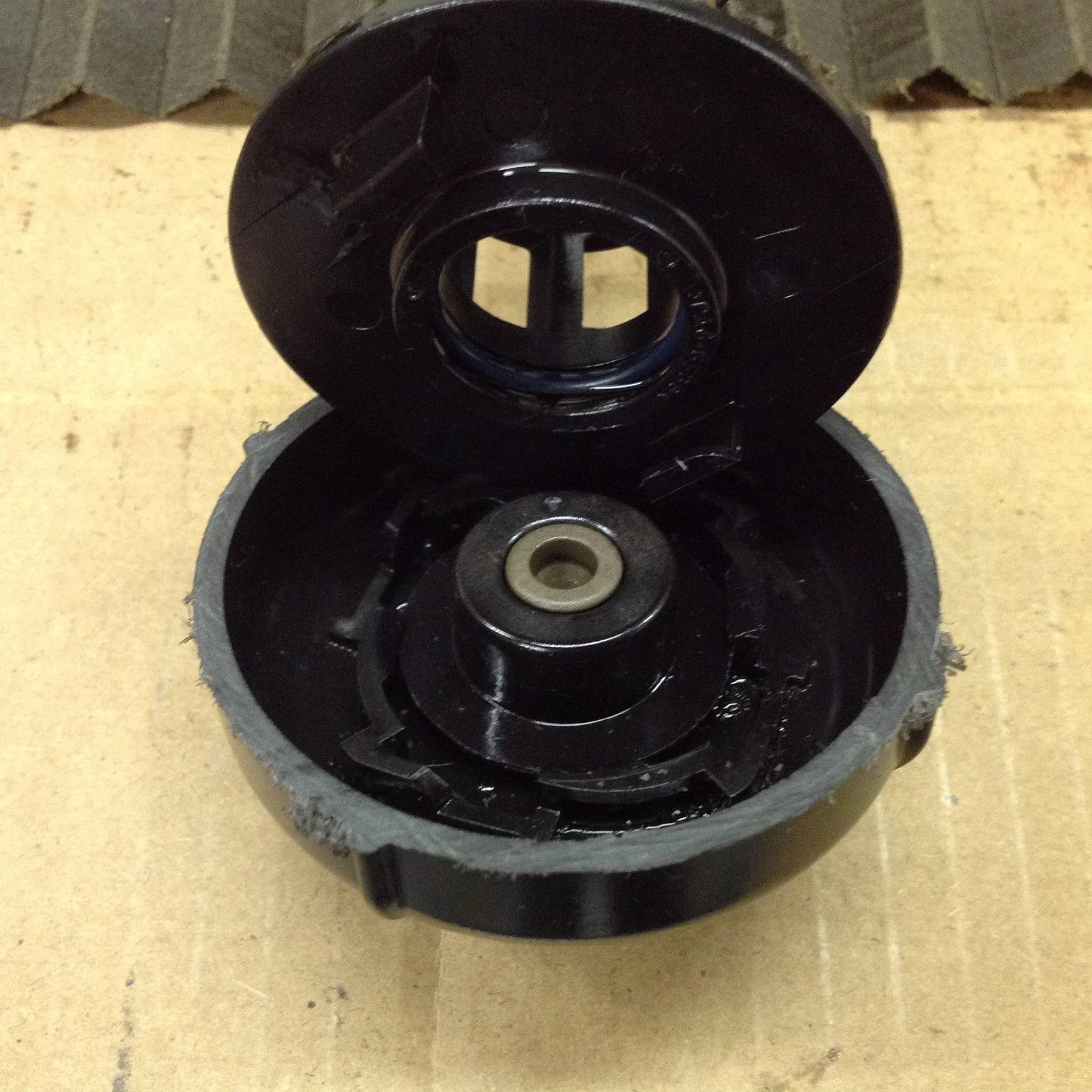

I was curious what metal the filter element caught, so took it all apart. As others had mentioned, there’s a bypass valve at the bottom of the assembly (or top, as mounted on the engine). The element took just a twist and a tug to get it out of the housing. It seals to the valve housing with a blue o-ring. After seeing how it’s constructed, I feel a new element could be reliably changed out in the housing with a little care taken. I understand the public isn’t able to buy just the element. Is that correct?

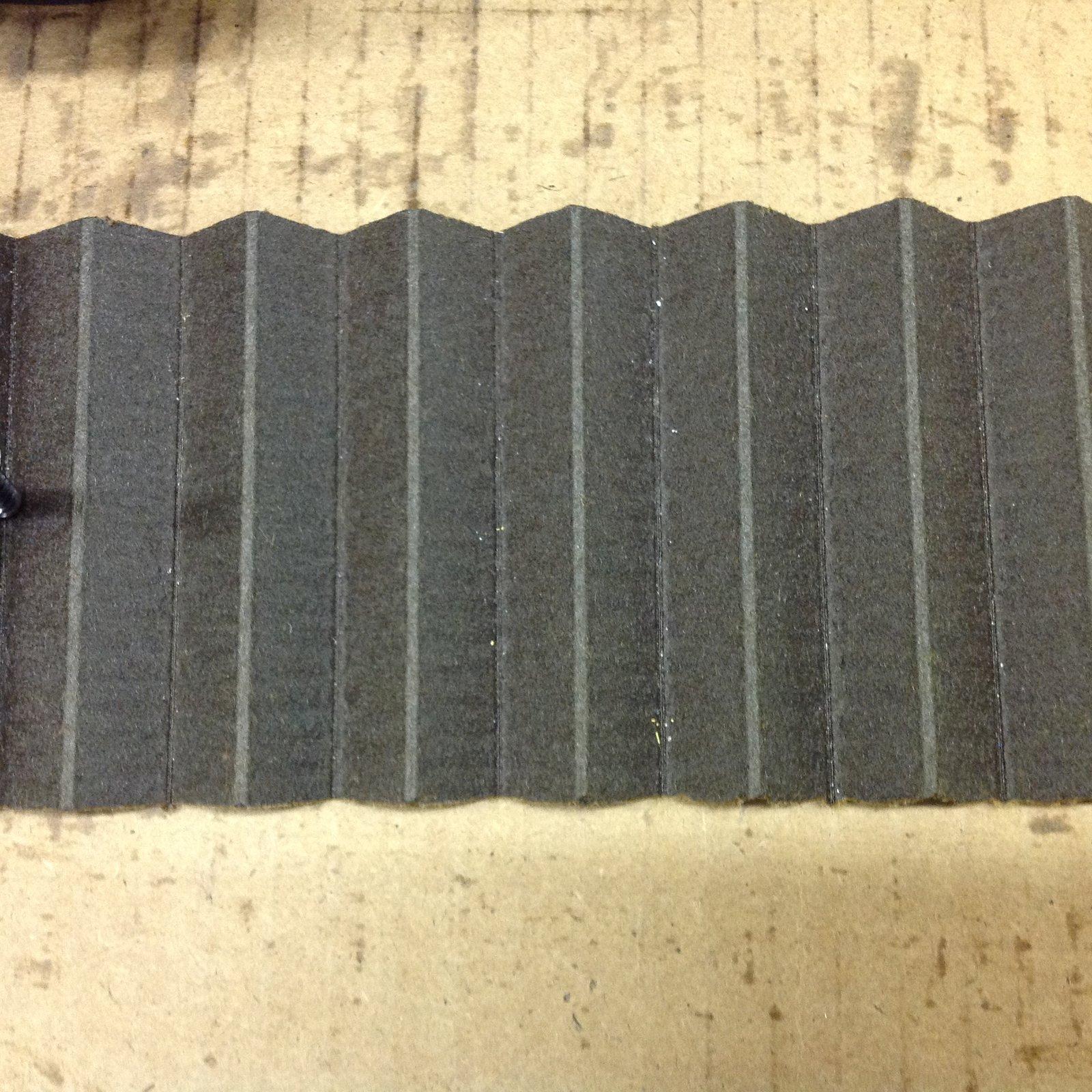

I stretched out the entire folded element, looking for metal bits large enough to see, and took the attached pic of the one area having as much or more than other areas. I found less metal than any other 1st-change filter I’ve dissected.
