Need to recalibrate/flash computer after regearing?

OP
OP

WildCatguy

Active Member
First Name
Luis
Joined
Jun 6, 2018
Threads
9
Messages
43
Reaction score
13
Location
Tucson, AZ
Vehicle(s)
2018 Jeep Wrangler Sport
You should have bought a Rubicon, or maybe your dealer will give you a fair trade out.
Just changing gears so I can get my 6th gear back on the highway.
Sponsored



MartyP

Member
First Name
Marty
Joined
Feb 12, 2019
Threads
2
Messages
6
Reaction score
30
Location
NorCal
Vehicle(s)
2019 JL 2door
You don't need a flash or programmer to recal if you have a MT. I have a 2019 JL/MT and was getting ESS errors on the dash after I swapped the stock axles (3:45) for Ribicon axles (4:10). I followed the attached procedure (can't remember which post I got this from, sorry) and the Jeep reprogrammed itself! Basically, disconnect the negative terminal on both batteries, wait 30 sec or so, then reconnect. Drive the Jeep at a constant speed in 6th gear (50-55 mph) and hold it there for at least 30 seconds. That's it. Worked for me.



wrangster

Well-Known Member
First Name
Ray
Joined
Dec 8, 2018
Threads
5
Messages
261
Reaction score
240
Location
Texas
Vehicle(s)
Sold the JLUS, New Ford Ranger 4X4 Lariat
Occupation
Retired and happy!
Vehicle Showcase
2
Just changing gears so I can get my 6th gear back on the highway.
I still have 8 on flat highway, otherwise 7 is still strong using 275/65/18s on a sport pentstar 6. The tires are light XL load rating Nitto Terra grapplers. After these wear out going to 265/65/18s to get my ride back! my daily driver.


rizion

Well-Known Member
First Name
Caleb
Joined
May 27, 2022
Threads
23
Messages
174
Reaction score
142
Location
Houston
Vehicle(s)
Wrangler JL 2dr Sport S
You don't need a flash or programmer to recal if you have a MT. I have a 2019 JL/MT and was getting ESS errors on the dash after I swapped the stock axles (3:45) for Ribicon axles (4:10). I followed the attached procedure (can't remember which post I got this from, sorry) and the Jeep reprogrammed itself! Basically, disconnect the negative terminal on both batteries, wait 30 sec or so, then reconnect. Drive the Jeep at a constant speed in 6th gear (50-55 mph) and hold it there for at least 30 seconds. That's it. Worked for me.

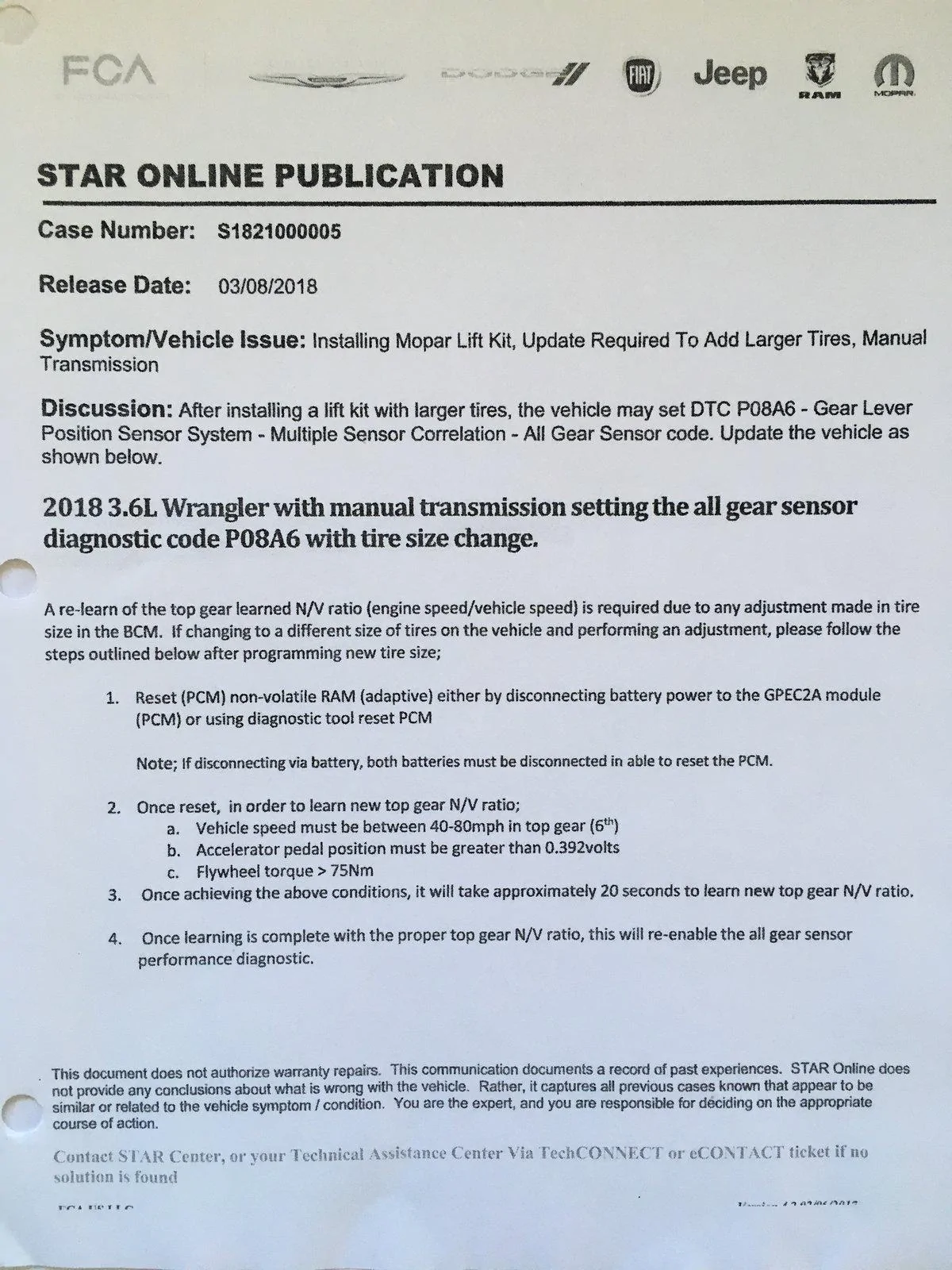

Jeep Wrangler JL Need to recalibrate/flash computer after regearing? recal.JPG
Do I have to disconnect the aux battery at its terminal or just at the main battery? Looks like both are ran to the main battery connection


Chupacabra

Well-Known Member
First Name
John
Joined
Oct 13, 2020
Threads
17
Messages
1,077
Reaction score
1,312
Location
Greenville, SC
Vehicle(s)
2021 JLU
You may not need to program anything with a manual. Buddy has a JK and went to 4.xx gears and the speed sensor on the JK is on a front wheel, not the transmission. So there's no need to reprogram on the JK at least. I wouldn't be surprised if JL is the same.


Sponsored

word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,151
Reaction score
5,724
Location
Oregon
Vehicle(s)
JLU
You don't need a flash or programmer to recal if you have a MT. I have a 2019 JL/MT and was getting ESS errors on the dash after I swapped the stock axles (3:45) for Ribicon axles (4:10). I followed the attached procedure (can't remember which post I got this from, sorry) and the Jeep reprogrammed itself! Basically, disconnect the negative terminal on both batteries, wait 30 sec or so, then reconnect. Drive the Jeep at a constant speed in 6th gear (50-55 mph) and hold it there for at least 30 seconds. That's it. Worked for me.

Jeep Wrangler JL Need to recalibrate/flash computer after regearing? recal.JPG
That procedure isn’t going to properly adjust your speedometer for the new gears. You definitely need a flash/programmer.


Chupacabra

Well-Known Member
First Name
John
Joined
Oct 13, 2020
Threads
17
Messages
1,077
Reaction score
1,312
Location
Greenville, SC
Vehicle(s)
2021 JLU
That procedure isn’t going to properly adjust your speedometer for the new gears. You definitely need a flash/programmer.
Pretty sure the speed sensor on the JK/JL is not tied to the transmission or driveshaft. It's on one of the wheels, hence no speedometer issues with new gears. If it's a manual, then there's no transmission issues either.
