Mopar Tow Harness Install

LoganDzwon

Well-Known Member
First Name
Logan
Joined
Oct 20, 2018
Messages
86
Reaction score
26
Location
SoFla
Vehicle(s)
JLUR
I just got done installing mine. Mine is actually slightly different. They changed how the red wire from the battery attaches. Now instead of installing it into the little controller’s harness has its own seporate plug.

I also managed to do it with just pulling the inner fender back. That did not make it easier, but I had already perfected the method when I installed the CB power and didn’t have replacement rivets.


I have suggestion how FCA/Mopar could make this kit much better. Actually, if I ever install another one I’ll make these changes in the house before I start install.
(1) Make loom “A” (red wire,) much shorter. The connector should be in the passenger floor area with the bulk of then wire in “B” loom with with the ground and blue wire. This would reduce a whole step and make install about 15 -20 minutes faster.

(2) make blue wire longer to be correct length.

(3) Include a brake light lead from the controller to run along with blue wire.

(4) include the four pin connector factory installs have with the following
- make blue wire longer
- t-off red power wire at the afore mentioned passages floor area to provide power lead with blue wire.
- include a second ground lug to attach under passenger area that runs with blue wire.

And for the love of all that is holy, please, please bring the Gladiator brake controller into something we retro fit into JLs for a reasonable price!!!





Advertisement


  • Like
Reactions: aai

Cutterwolf

Well-Known Member
First Name
Dave
Joined
Jan 17, 2018
Messages
49
Reaction score
25
Location
Ontario , Canada
Vehicle(s)
2018 Wrangler Rubicon JL, 1963 Ford Fairlane, 2012 Honda Civic EXL
Maybe I missed it. Do you have a part number for this harness? I’m only seeing JK harnesses listed.
Sorry I missed thjis post...this is what I have...
# 82215398AB


aai

Well-Known Member
First Name
aai
Joined
Dec 17, 2017
Messages
217
Reaction score
528
Location
somd
Vehicle(s)
'18 JL Sting G 2.0 Rubicon
Vehicle Showcase
1

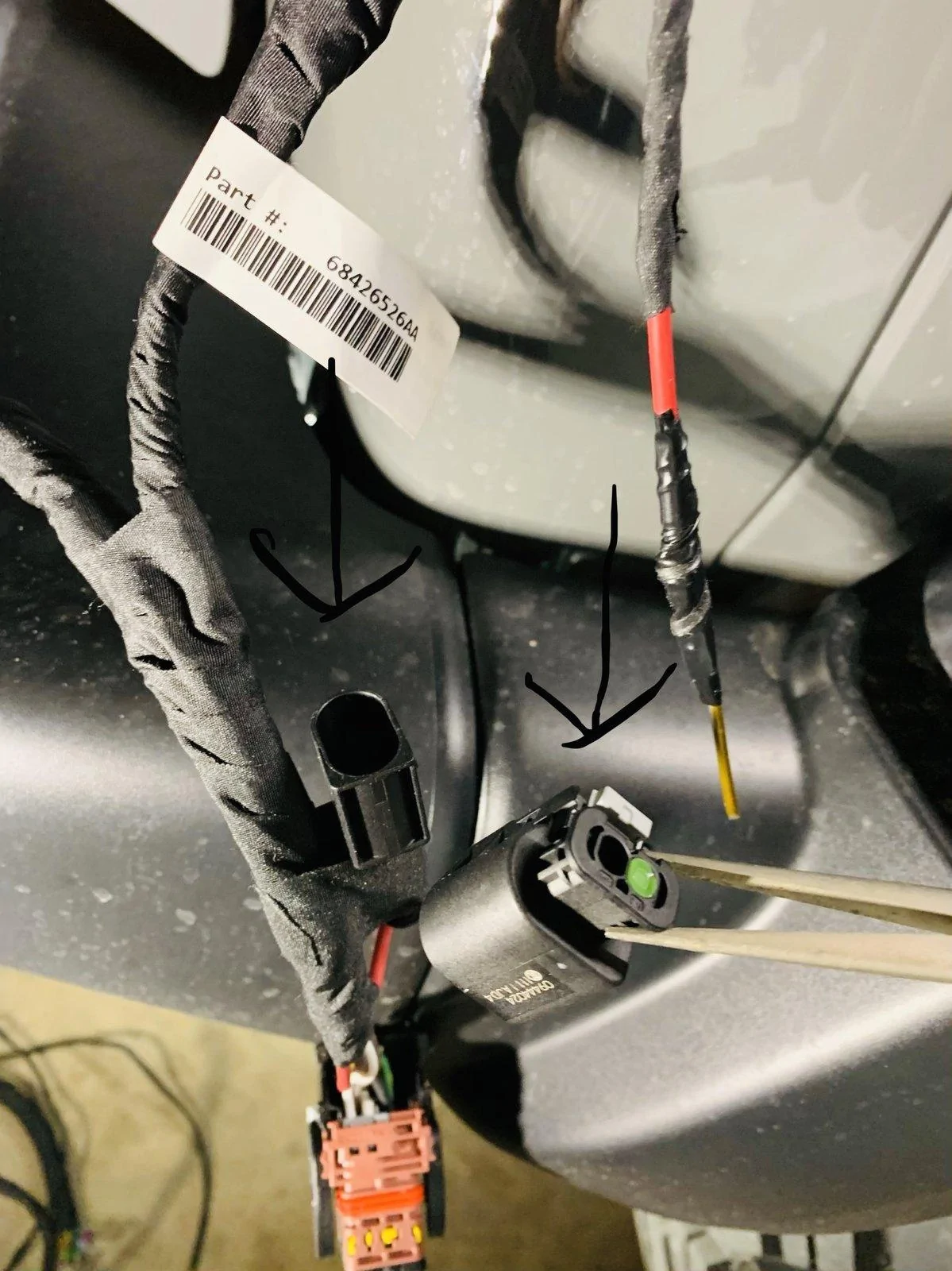

thanks for creating this thread on the mopar harness Merge, just finished it. Took approx. 5hrs checking and rechecking looking for a 100% success rate. Everything as posted in your pics and the CJ video minus one thing, not sure if it has been mentioned on this thread. The Red wire from the engine bay ( fuse panel connection) doesn't need to be fished into the main harness plug anymore. They have supplied a pigtail running out of the main connector with its own little plug and you just click on to that. Guess it saves 10 minutes of going thru that step but it took me 15 minutes to figure out what's going on lol. Regardless thanks again for starting this thread.


OP

mergedown

Well-Known Member
First Name
Jason
Joined
Feb 11, 2018
Messages
209
Reaction score
130
Location
Columbus, OH
Vehicle(s)
2018 JLU Sahara
  • Thread starter
  • Thread Starter
  • #95
thanks for creating this thread on the mopar harness Merge, just finished it. Took approx. 5hrs checking and rechecking looking for a 100% success rate. Everything as posted in your pics and the CJ video minus one thing, not sure if it has been mentioned on this thread. The Red wire from the engine bay ( fuse panel connection) doesn't need to be fished into the main harness plug anymore. They have supplied a pigtail running out of the main connector with its own little plug and you just click on to that. Guess it saves 10 minutes of going thru that step but it took me 15 minutes to figure out what's going on lol. Regardless thanks again for starting this thread.

Well isn’t that handy!!!

Congrats on the install!

  • Like
Reactions: aai

aai

Well-Known Member
First Name
aai
Joined
Dec 17, 2017
Messages
217
Reaction score
528
Location
somd
Vehicle(s)
'18 JL Sting G 2.0 Rubicon
Vehicle Showcase
1
Thanks! took it for a spin, and it did surprisingly well. Little sagging due to I didn't throw the lower 2" bump stops that came with my ST1 kit but will now. Towed a 7x12 enclosed trailer. Will do the brake controller next.



View attachment 153780


Attachments

  • 0 bytes Views: 0
OP

mergedown

Well-Known Member
First Name
Jason
Joined
Feb 11, 2018
Messages
209
Reaction score
130
Location
Columbus, OH
Vehicle(s)
2018 JLU Sahara
  • Thread starter
  • Thread Starter
  • #97
Thanks! took it for a spin, and it did surprisingly well. Little sagging due to I didn't throw the lower 2" bump stops that came with my ST1 kit but will now. Towed a 7x12 enclosed trailer. Will do the brake controller next.



View attachment 153780
Nice, I have a similar trailer, also 7x12 enclosed. I towed it on on 3 hour trip without a brake controller with no issue sitting at about 3200lbs. I’ve tried to get my brake controller working but have not been able to find a signal wire from the brake pedal.

Last edited:

aai

Well-Known Member
First Name
aai
Joined
Dec 17, 2017
Messages
217
Reaction score
528
Location
somd
Vehicle(s)
'18 JL Sting G 2.0 Rubicon
Vehicle Showcase
1

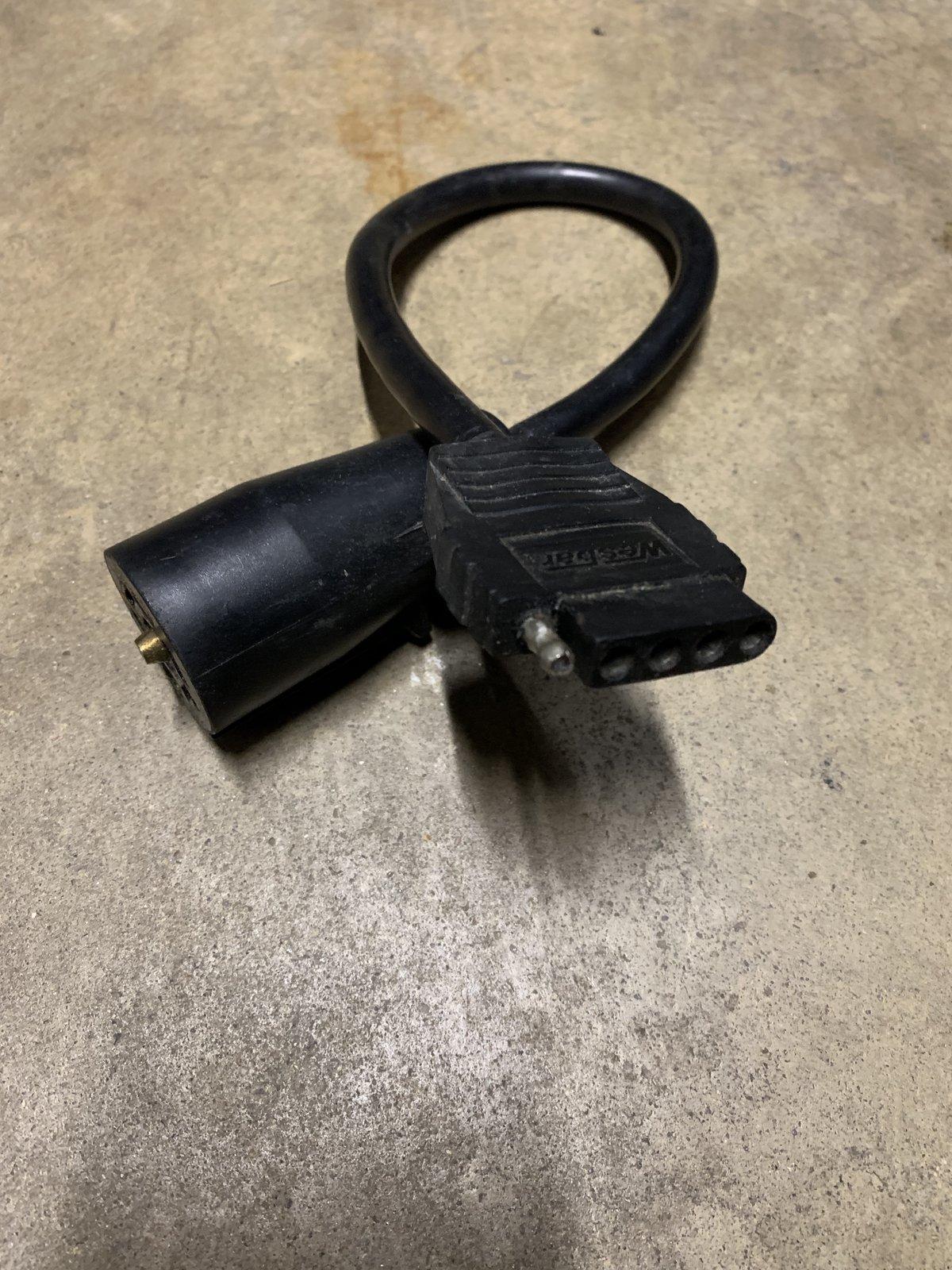

brake controller is probably a bit much for this 2 door lol. Regardless, glad I went this route and got the mopar stuff instead of the easier 4 pin install Ive read that e-trailer and Quadratec has. We have a small boat that we usually tow with the 4 Runner. It has this funky 7pin to 5 pin adapter. This way the Jeep can step up as an option if needed.




OP

mergedown

Well-Known Member
First Name
Jason
Joined
Feb 11, 2018
Messages
209
Reaction score
130
Location
Columbus, OH
Vehicle(s)
2018 JLU Sahara
  • Thread starter
  • Thread Starter
  • #99
brake controller is probably a bit much for this 2 door lol. Regardless, glad I went this route and got the mopar stuff instead of the easier 4 pin install Ive read that e-trailer and Quadratec has. We have a small boat that we usually tow with the 4 Runner. It has this funky 7pin to 5 pin adapter. This way the Jeep can step up as an option if needed.



Yes, I went Mopar as well! Good luck with your brake controller, let me know if you figure it out as no one else has, unless it came with factory towing.


MrMora

Member
First Name
Joseph
Joined
Feb 20, 2019
Messages
14
Reaction score
14
Location
Riverside
Vehicle(s)
2019 Jeep Wrangler JLU
Occupation
Carpenter
@mergedown thanks for this post this helped quite a bit in my install got the harness in with no hiccups also thank you to anyone else that had helpful info



NC4x4

Well-Known Member
First Name
Bryan
Joined
Apr 26, 2018
Messages
117
Reaction score
231
Location
North Carolina
Vehicle(s)
2018 JLU
Does any one know the size of the bolts that hold the 7 and 4 pin harness on the rear? I upgraded rear bumpers and I need to fab p some spacers and need longer bolts to make the trailer harness sit low enough to be used again. Thanks!


Halstem1

Well-Known Member
First Name
Mike
Joined
Jun 23, 2019
Messages
1,044
Reaction score
637
Location
Grimes, IA
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Anyone know any trouble shooting recommendations for this? I stalled yesterday. Process was pretty smooth. About 5 hours start to finish like everyone says. However, I don’t seem to have power to the back. Or at least i can’t get any trailer lights when I plug in. Is there a fuse to check or anything? Or should I just check connectors? Not sure really what it could be. I already checked the battery connection and the location of the pins in the plug.

OP

mergedown

Well-Known Member
First Name
Jason
Joined
Feb 11, 2018
Messages
209
Reaction score
130
Location
Columbus, OH
Vehicle(s)
2018 JLU Sahara
  • Thread starter
  • Thread Starter
  • #103
Anyone know any trouble shooting recommendations for this? I stalled yesterday. Process was pretty smooth. About 5 hours start to finish like everyone says. However, I don’t seem to have power to the back. Or at least i can’t get any trailer lights when I plug in. Is there a fuse to check or anything? Or should I just check connectors? Not sure really what it could be. I already checked the battery connection and the location of the pins in the plug.
Double check and make sure the wires you had to re-pin in the harness are seated all the way. This is the problem I had at first as well.


Halstem1

Well-Known Member
First Name
Mike
Joined
Jun 23, 2019
Messages
1,044
Reaction score
637
Location
Grimes, IA
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon
Double check and make sure the wires you had to re-pin in the harness are seated all the way. This is the problem I had at first as well.
Thanks! That was the first thing I checked actually. Ended up being the fuse in the little box off the battery. It must have been blown when I got it. Not sure. Quick trip to store and replaced it and all good.


chris4prez

Well-Known Member
First Name
Chris
Joined
Sep 14, 2019
Messages
130
Reaction score
52
Location
Tampa
Vehicle(s)
'20 JLUR

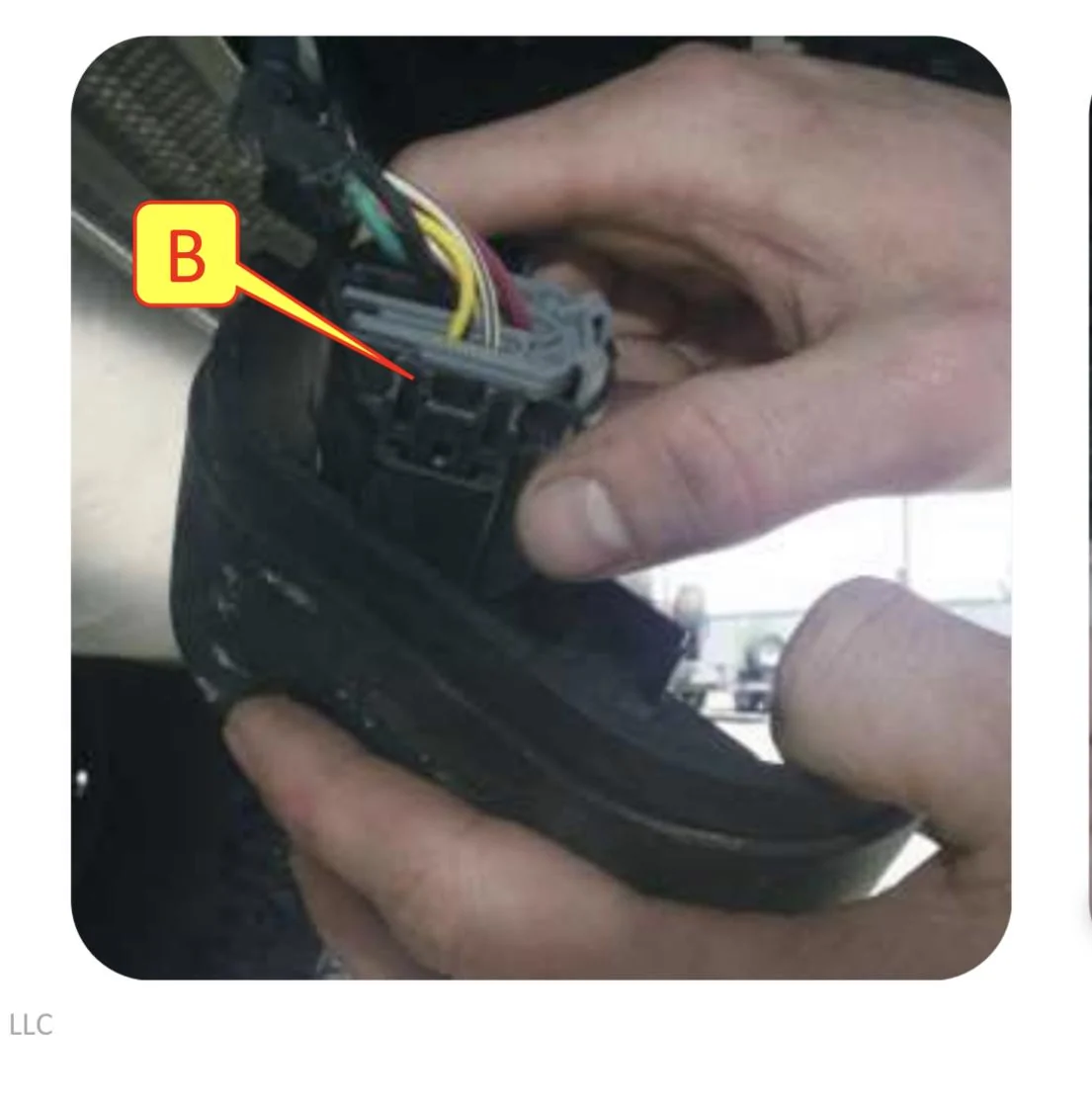

Can anyone explain the trick on unplugging the tow wiring harness from the tow plugs in the rear? I need to replace the housing mounted on the rear bumper but can’t figure out if I need to just pull it hard or need to push a pin in etc.

Picture to show what I’m trying to unattached.
