For anyone with 35 or 315’s, How’s the spare tire and backup camera fit with these? Any issues or problems with stock bumper or stock tire carrier clearance. How does the camera finish out? Haven’t found any pictures of the spare. Thanks :jk:
Sponsored



Focker

Well-Known Member
First Name
Scott
Joined
Jan 30, 2020
Threads
26
Messages
395
Reaction score
706
Location
Sacramento, CA
Website
www.ducati.ms
Vehicle(s)
2020 Jeep Rubicon
Occupation
General Manager
Vehicle Showcase
1
I didn't know there were options. I'd go 2" since if 1.5" is too short you're screwed but if 2" is too long you're ok.
EDIT:
My bad, looks like the ones I posted are 1.5".
I ended up finding the McGard JL kit for a fairly reasonable price. Their lugs are 1.648 inches long.
This is the kit: http://www.mcgard.com/product/jeep-...splinedrive-install-tool-1-key-storage-pouch/

For anyone with 35 or 315’s, How’s the spare tire and backup camera fit with these? Any issues or problems with stock bumper or stock tire carrier clearance. How does the camera finish out? Haven’t found any pictures of the spare. Thanks :jk:
If no one else post up before, we will have the tires and wheels installed by next Tuesday at the latest and I can post a photo after that.


Jeepdude101

Well-Known Member
First Name
Isaac
Joined
Oct 28, 2019
Threads
3
Messages
441
Reaction score
1,817
Location
Arlington Texas
Vehicle(s)
18 JLUR black
Occupation
Construction field worker
Vehicle Showcase
1
I have 315’s on my JLUR with 17x8.5 -6 offset rebounds and it fits perfect.

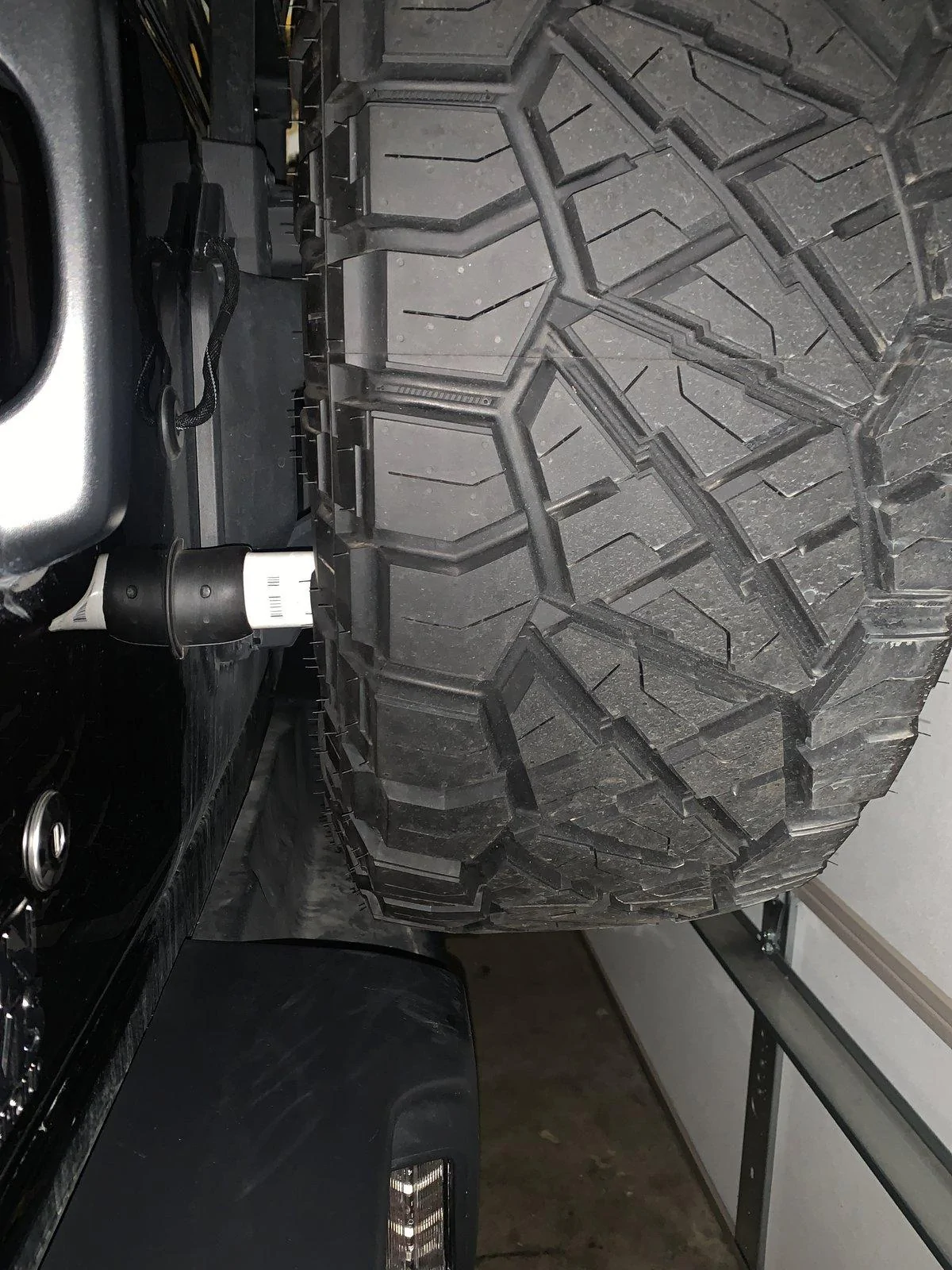

you will have to extend your bumpstops though I used a PVC cap and pipe to extend mine also just move the third brake light up a hole.





CM⛰

Well-Known Member
First Name
Chris
Joined
Feb 15, 2018
Threads
16
Messages
290
Reaction score
616
Location
Austin, Texas Y'all
Vehicle(s)
2018 JLUR Granite Crystal
I have 315’s on my JLUR with 17x8.5 -6 offset rebounds and it fits perfect.
you will have to extend your bumpstops though I used a PVC cap and pipe to extend mine also just move the third brake light up a hole.



Thanks, that is good to know. Do you by chance have a picture of the spare that shows how the wheel bore fits around the camera housing? I've seen some wheels that leave a big gap around the camera's tube and others that have to be cut out further and just want to make sure thats not the situation here.


Jeepdude101

Well-Known Member
First Name
Isaac
Joined
Oct 28, 2019
Threads
3
Messages
441
Reaction score
1,817
Location
Arlington Texas
Vehicle(s)
18 JLUR black
Occupation
Construction field worker
Vehicle Showcase
1
Thanks, that is good to know. Do you by chance have a picture of the spare that shows how the wheel bore fits around the camera housing? I've seen some wheels that leave a big gap around the camera's tube and others that have to be cut out further and just want to make sure thats not the situation here.

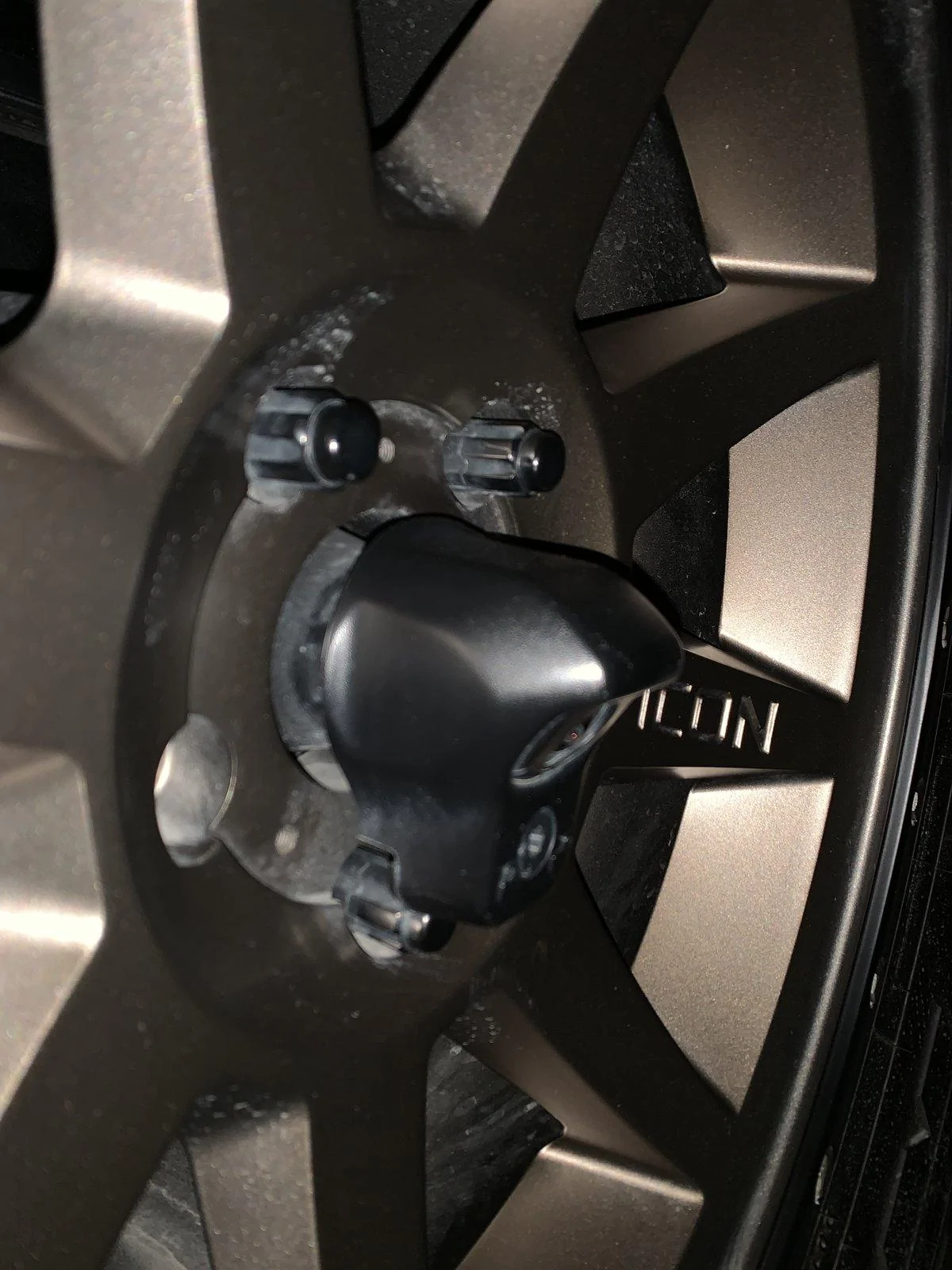

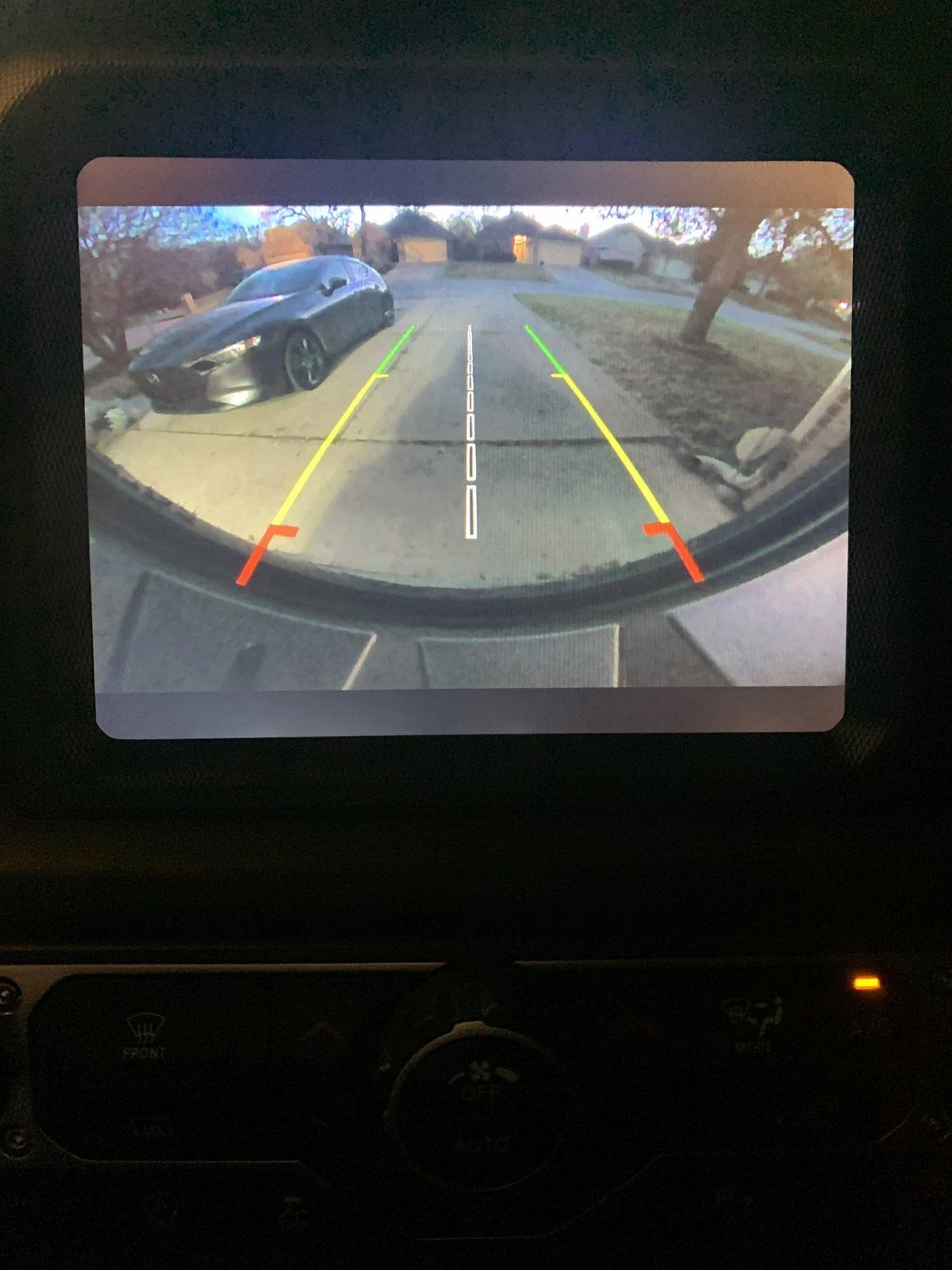

Here you go...





Sponsored

CM⛰

Well-Known Member
First Name
Chris
Joined
Feb 15, 2018
Threads
16
Messages
290
Reaction score
616
Location
Austin, Texas Y'all
Vehicle(s)
2018 JLUR Granite Crystal

laniercruzer

Well-Known Member
Joined
Oct 25, 2019
Threads
13
Messages
108
Reaction score
75
Location
N Georgia
Vehicle(s)
2022 392 XR

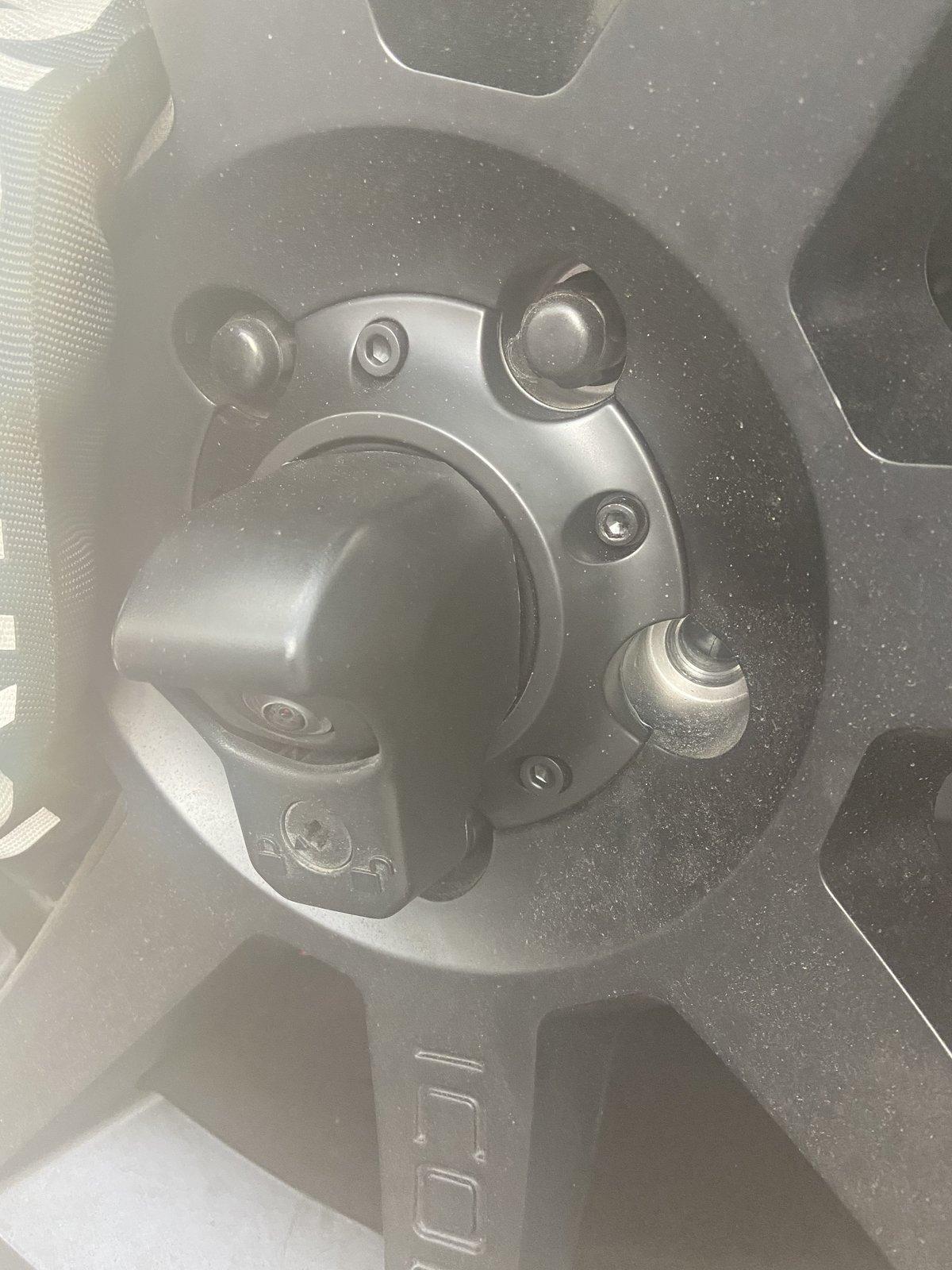

You can fit the center cap back on the rim as well if you drill out a hole, then trim about 2-3mm off the plastic camera cover with a pair of scissors. Looks a lot more finished


CM⛰

Well-Known Member
First Name
Chris
Joined
Feb 15, 2018
Threads
16
Messages
290
Reaction score
616
Location
Austin, Texas Y'all
Vehicle(s)
2018 JLUR Granite Crystal
You can fit the center cap back on the rim as well if you drill out a hole, then trim about 2-3mm off the plastic camera cover with a pair of scissors. Looks a lot more finished
Interesting. Do you have a picture of this setup?


laniercruzer

Well-Known Member
Joined
Oct 25, 2019
Threads
13
Messages
108
Reaction score
75
Location
N Georgia
Vehicle(s)
2022 392 XR
Interesting. Do you have a picture of this setup?
I'll snap one shortly. I used a hole saw to cut out the center section of the stock icon center cap, then just trimmed the camera cover with a set of heavy duty scissors all the way around. You should take off the icon logo from the center cap first though, heat it up for a bit with a hair dryer or heat gun then just peal it off.



CM⛰

Well-Known Member
First Name
Chris
Joined
Feb 15, 2018
Threads
16
Messages
290
Reaction score
616
Location
Austin, Texas Y'all
Vehicle(s)
2018 JLUR Granite Crystal
Thanks! Super clean look. I think this is what I’ll be going for. Very nice!


Sponsored

Focker

Well-Known Member
First Name
Scott
Joined
Jan 30, 2020
Threads
26
Messages
395
Reaction score
706
Location
Sacramento, CA
Website
www.ducati.ms
Vehicle(s)
2020 Jeep Rubicon
Occupation
General Manager
Vehicle Showcase
1
I'll snap one shortly. I used a hole saw to cut out the center section of the stock icon center cap, then just trimmed the camera cover with a set of heavy duty scissors all the way around. You should take off the icon logo from the center cap first though, heat it up for a bit with a hair dryer or heat gun then just peal it off.

That looks EXCELLENT!


laniercruzer

Well-Known Member
Joined
Oct 25, 2019
Threads
13
Messages
108
Reaction score
75
Location
N Georgia
Vehicle(s)
2022 392 XR
Thanks! Yea it came out good, if I had my Dremel on me I could have done it a little cleaner, but it looks a lot better than leaving the center cap off.


CM⛰

Well-Known Member
First Name
Chris
Joined
Feb 15, 2018
Threads
16
Messages
290
Reaction score
616
Location
Austin, Texas Y'all
Vehicle(s)
2018 JLUR Granite Crystal
Wheels and Tires Installed. Now have to trim out the backup camera.

Texas Hill Country Overland-3.jpg


Texas Hill Country Overland-4.jpg


Focker

Well-Known Member
First Name
Scott
Joined
Jan 30, 2020
Threads
26
Messages
395
Reaction score
706
Location
Sacramento, CA
Website
www.ducati.ms
Vehicle(s)
2020 Jeep Rubicon
Occupation
General Manager
Vehicle Showcase
1
Wheels and Tires Installed. Now have to trim out the backup camera.

Jeep Wrangler JL Icon wheels Texas Hill Country Overland-4


Jeep Wrangler JL Icon wheels Texas Hill Country Overland-4
I trimmed out the camera cover by sanding it down. Came out perfect.
