How did you configure your dash?

[randyhub]

Curious what options you chose for the top right, center, and display left windows? I typically have the Eco display up which shows the range and mpg, and my Uconnect displays the temp and direction already. I have trip meter top left, Android Auto in the center, and time right side.

Thanks

Sponsored



[ScotM]

I have a 2.0, so the main center is the engine temp. Top center is speedometer, upper left is compass, and upper right range



[AFD]

Have the outdoor temp in the upper-right corner, miles to empty in upper-left, small MPH speedo at top in between those and below that, it's usually on the tire pressure screen (or voltage or oil pressure). Think the only other change is to show the numerical gear indicator over the PRND indicator.



[Heimkehr]

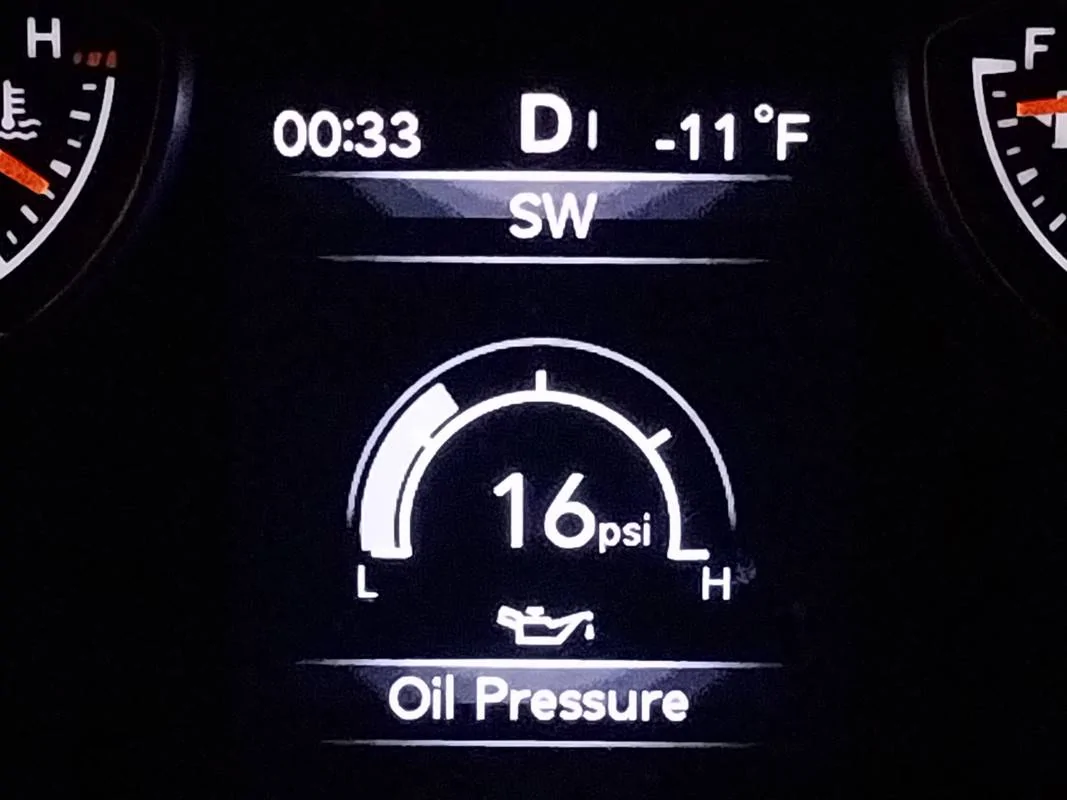

My config:

24 hour time
Transmission status (auto, or Auto Stick) and corresponding gear engagement
Outside temperature
Direction of travel

Oil pressure



[rk911]

Just the outdoor temp in the upper left and the speed in fhe center.



[Grayhound]

I'm compass top left. Boost/vacuum center. Temp in F top right.



[Heimkehr]

I'm compass top left. Boost/vacuum center. Temp in F top right.

IIRC, boost/vacuum data is possible only via the Tazer device?



[THAW]

IIRC, boost/vacuum data is possible only via the Tazer device?

Correct. The Tazer menu lives in the Audio menu, so technically the upper dash custom display is set to Audio (where it normally would show the audio input/content), and the Audio/Tazer menu is cycled to Vac/Boost.



[Max Headroom]

Curious what options you chose for the top right, center, and display left windows? I typically have the Eco display up which shows the range and mpg, and my Uconnect displays the temp and direction already. I have trip meter top left, Android Auto in the center, and time right side.

Thanks

UL - Compas
UC - Trip A
UR - Temp

Usually the center is on the MPG - eco graph
Current gear (it's an auto) is enabled
I usually run the center screen on the off road, extra gauges setting.



[Grayhound]

IIRC, boost/vacuum data is possible only via the Tazer device?

That's correct!



[Max Headroom]

IIRC, boost/vacuum data is possible only via the Tazer device?

I run a Scangauge III and can see boost, the VGT position, regen status, EGT, intercooler in/out and many other things.



[SadRobot]

I keep mine on the TPMS. I like the little picture of a Jeep and then when all 4 tire pressures match it makes me happy like I've won some sort of Bingo.

.



[zouch]

i also typically keep the main screen on the TPMS.

Range on the Top Left.
Compass in the Center.
Outside Air Temp on the Top Right.

i have all the other things that are interesting to me displayed on an iDash.



[jludave]

Range on top left.
Compass in center.
Outside Air Temp on top right.



[DarthAWM]

I really can't recall what I keep in the UL avg. economy I think, upper center is speed, upper right is range. and main is usually the instant economy gauge so I play mind games with myself to get good gas mileage
