GenRight Front Bumper w/Winch Plate Install

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

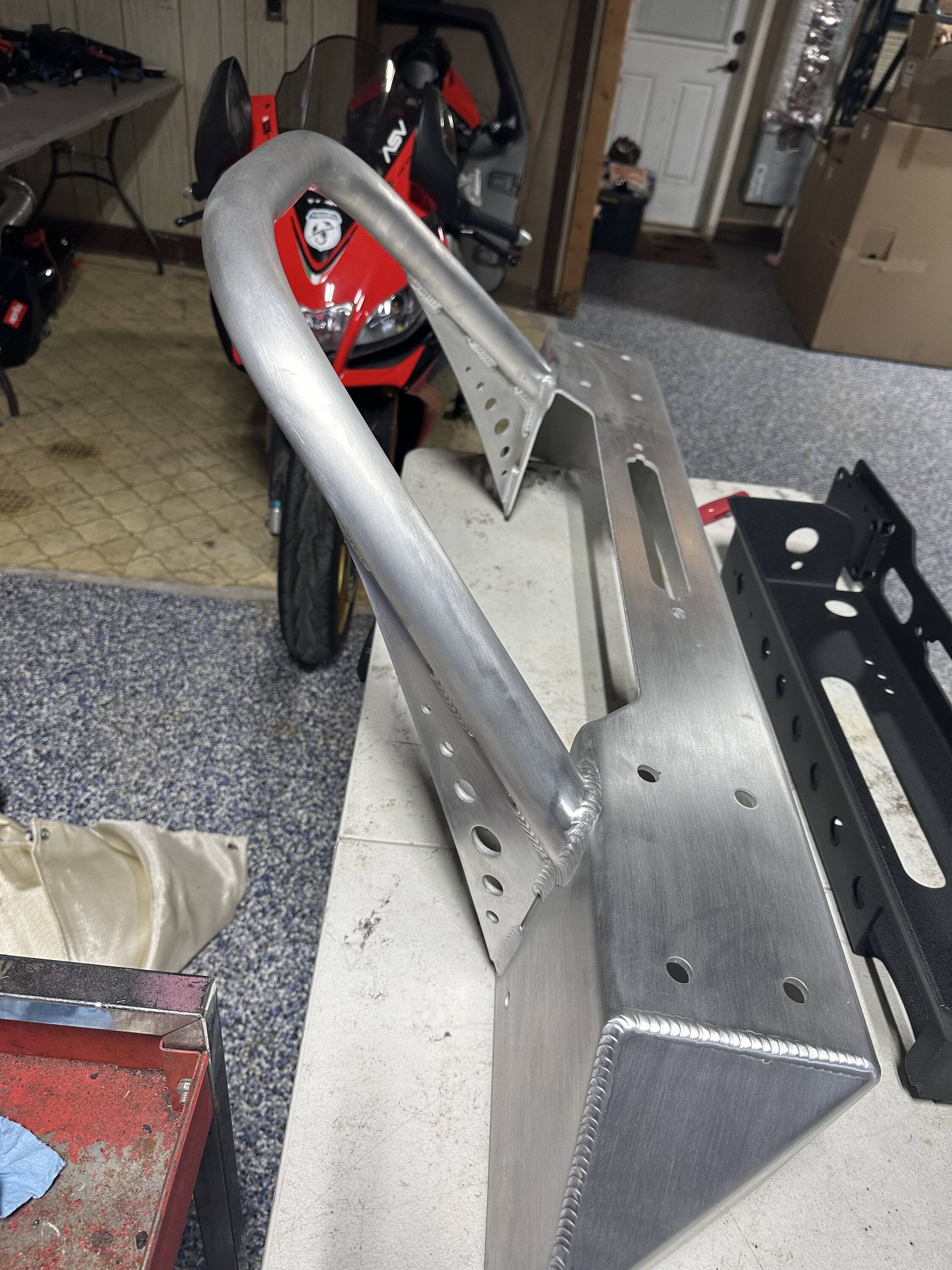

The bumper I ordered is P/N - FBB-10255.

I’m using a Zeon 12-S winch from a PowerWagon. I’ll cover the conversion to a regular use winch later in this thread.

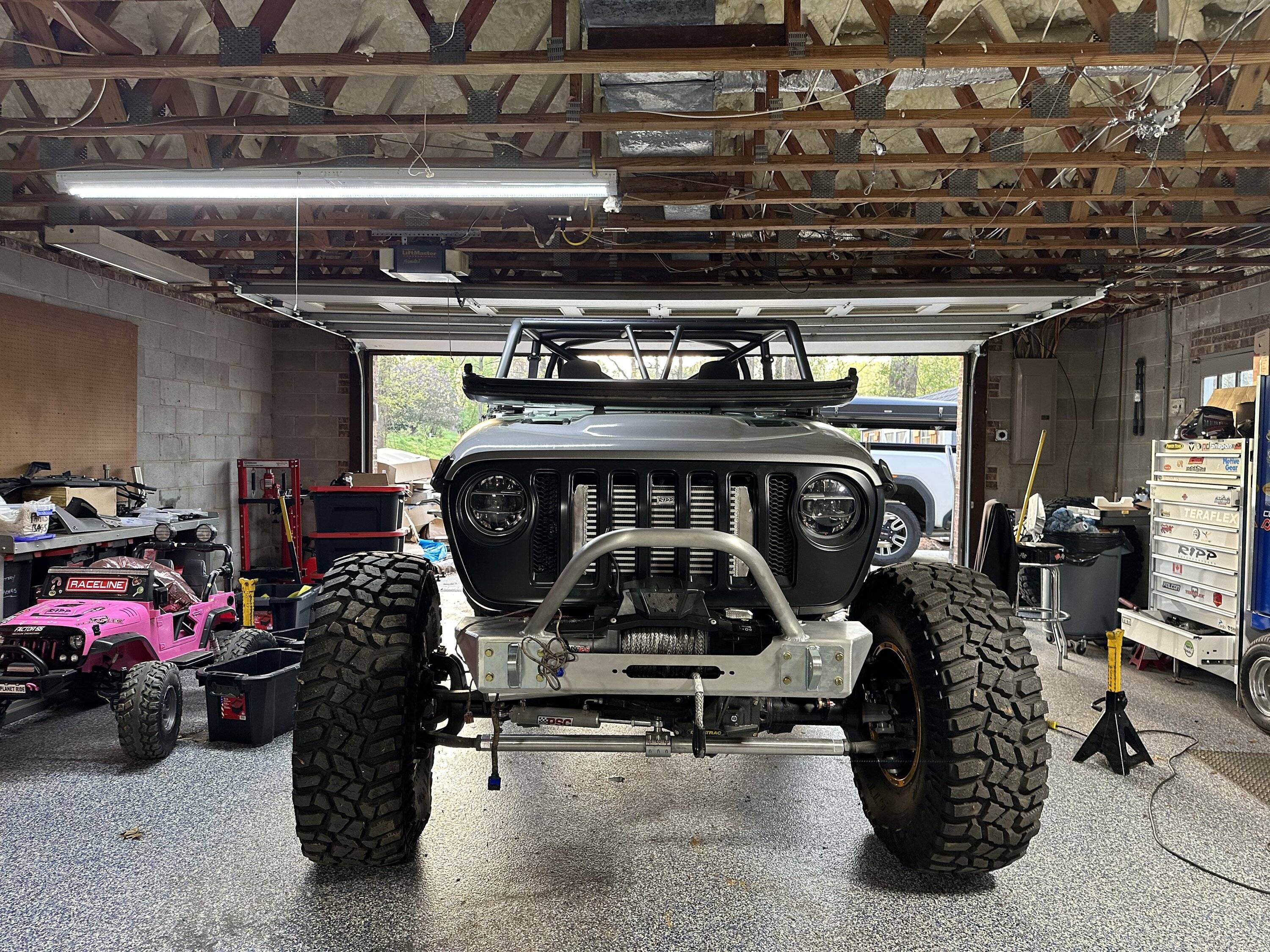

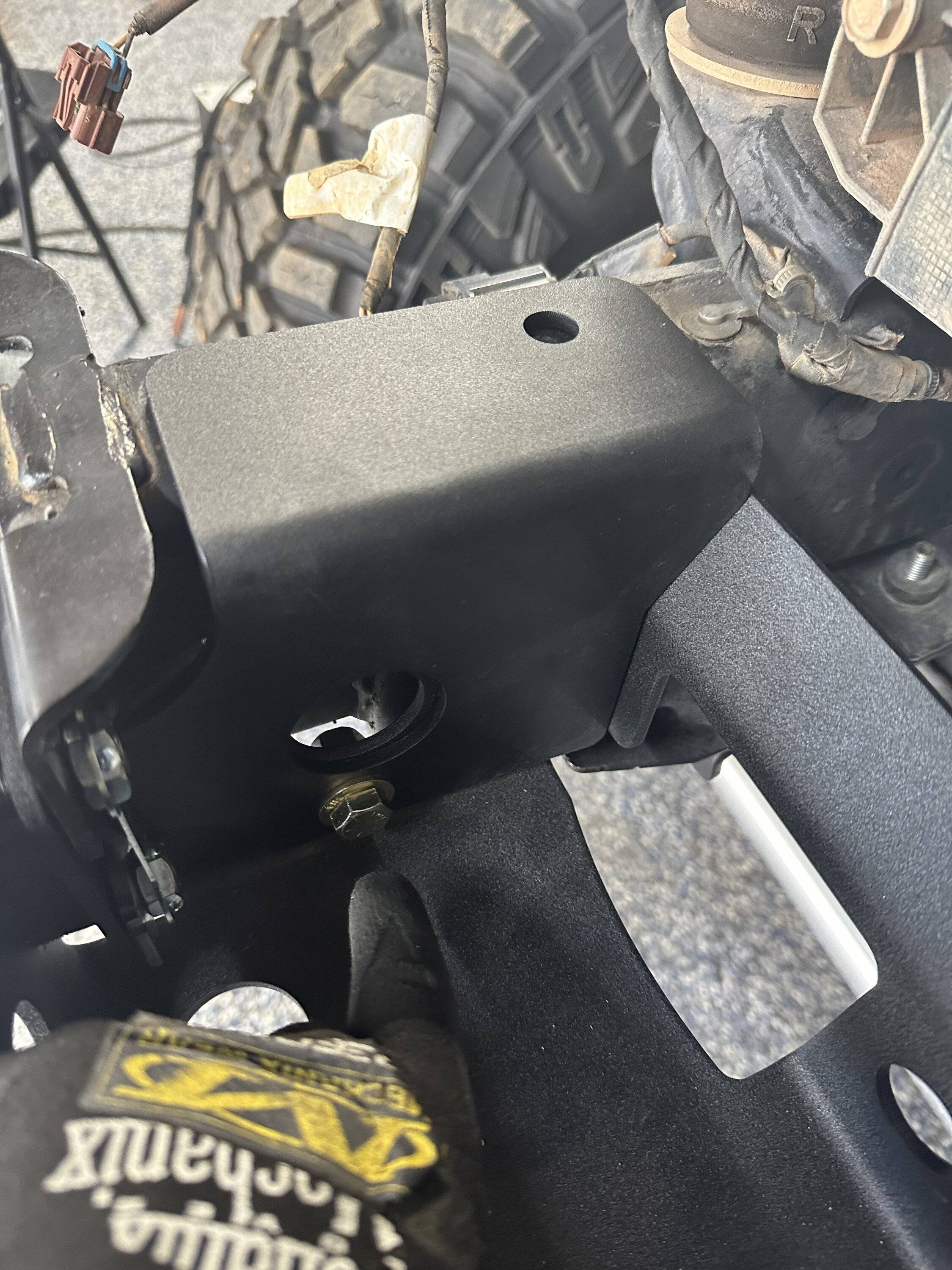

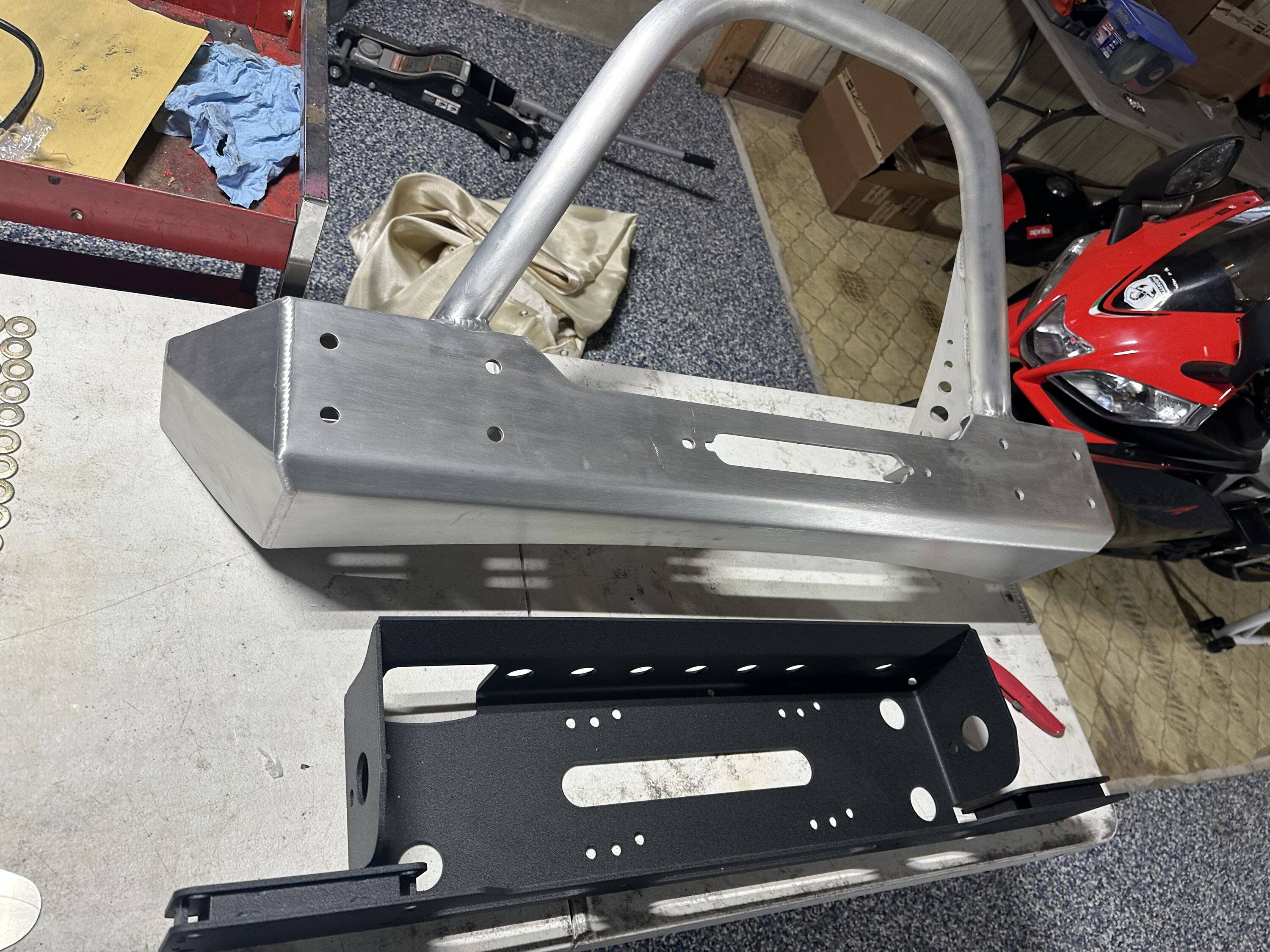

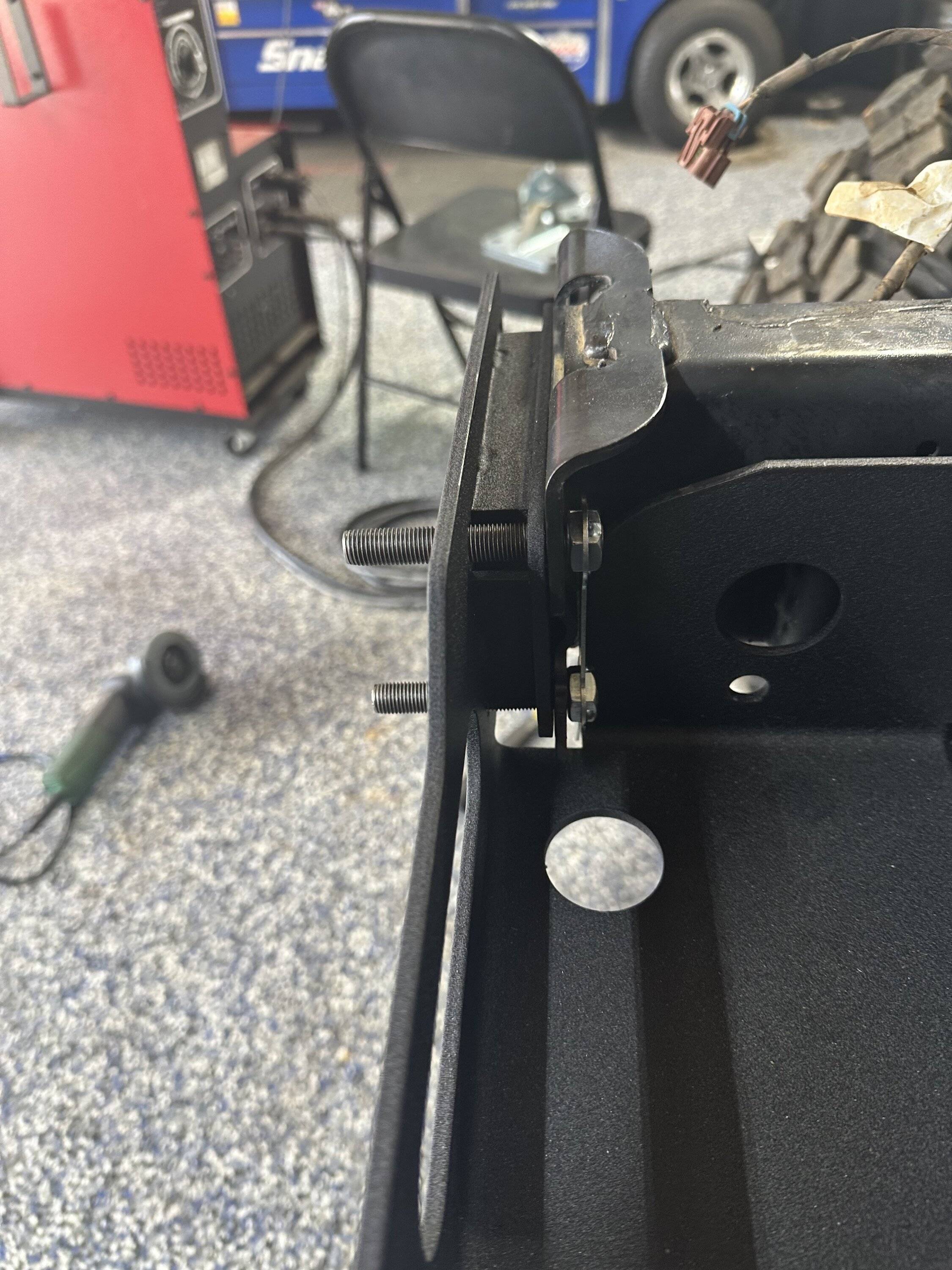

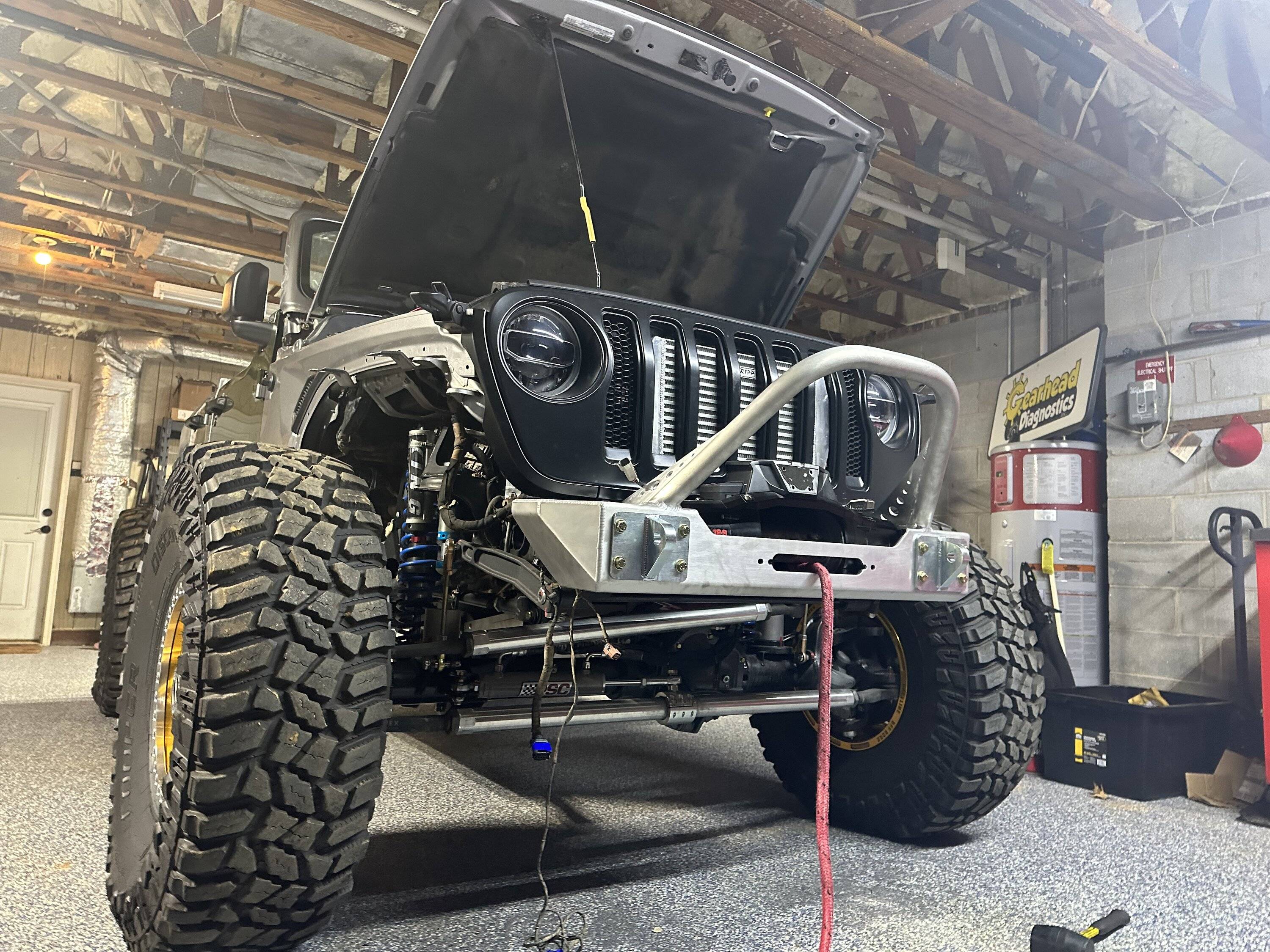

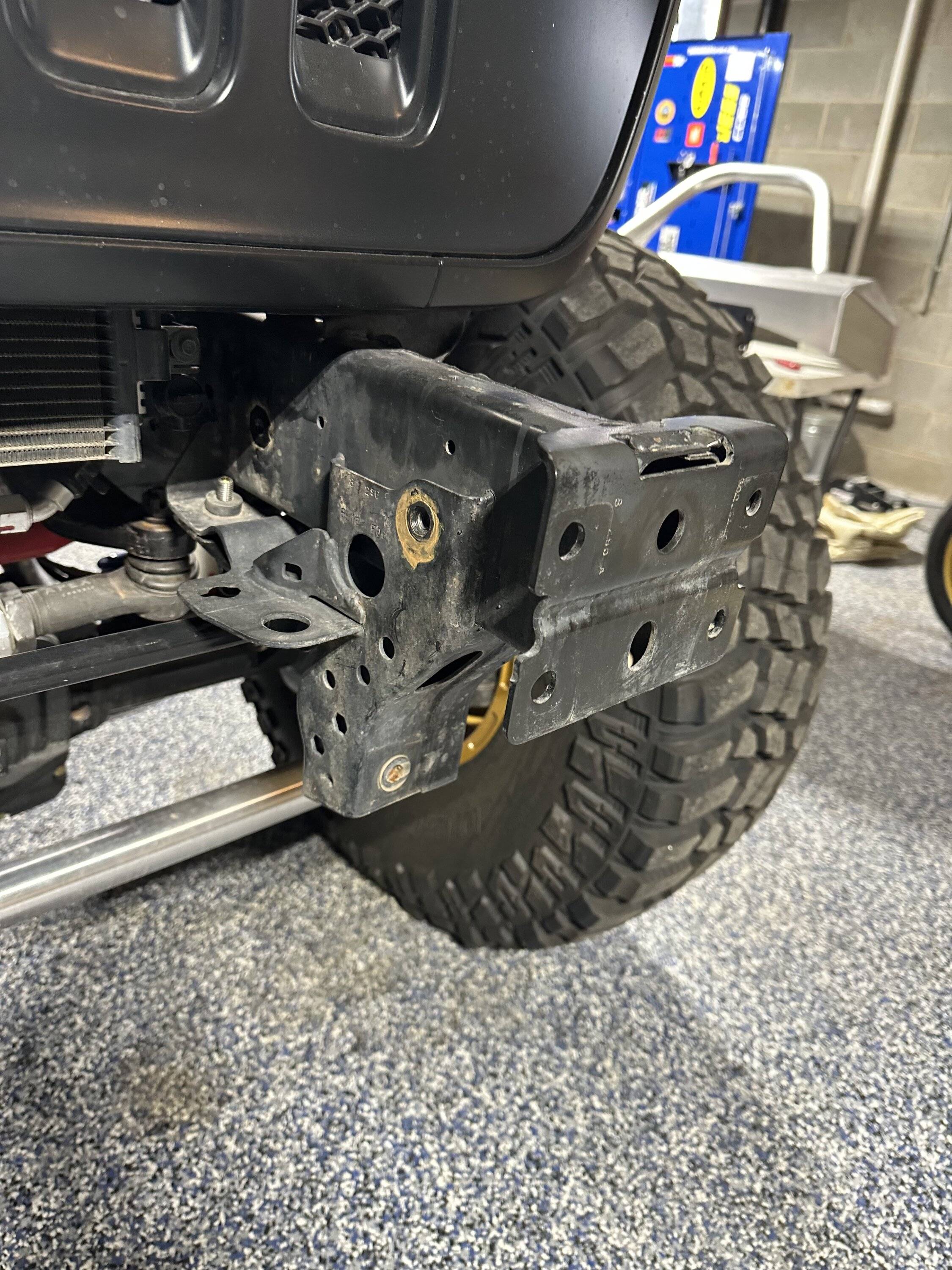

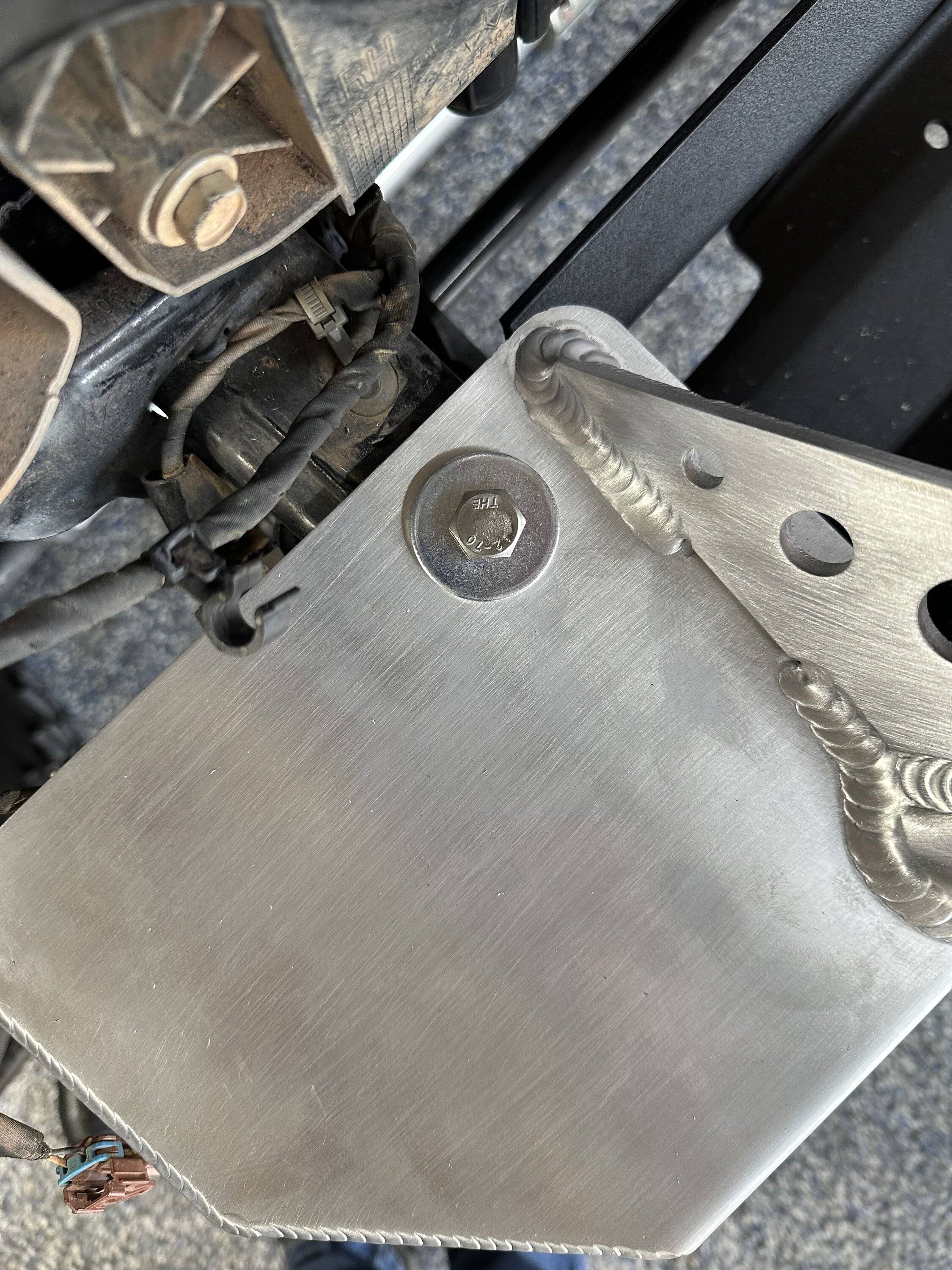

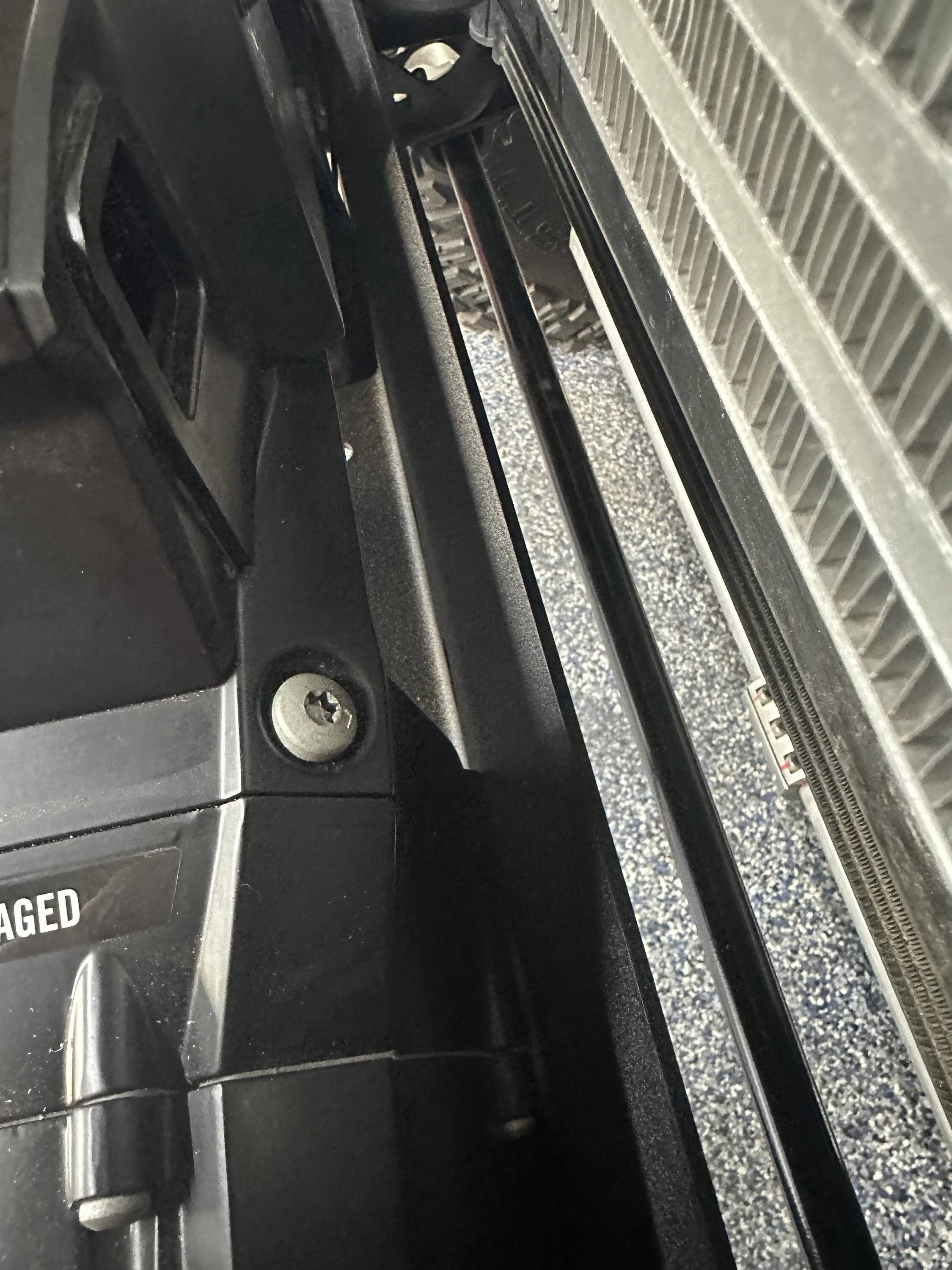

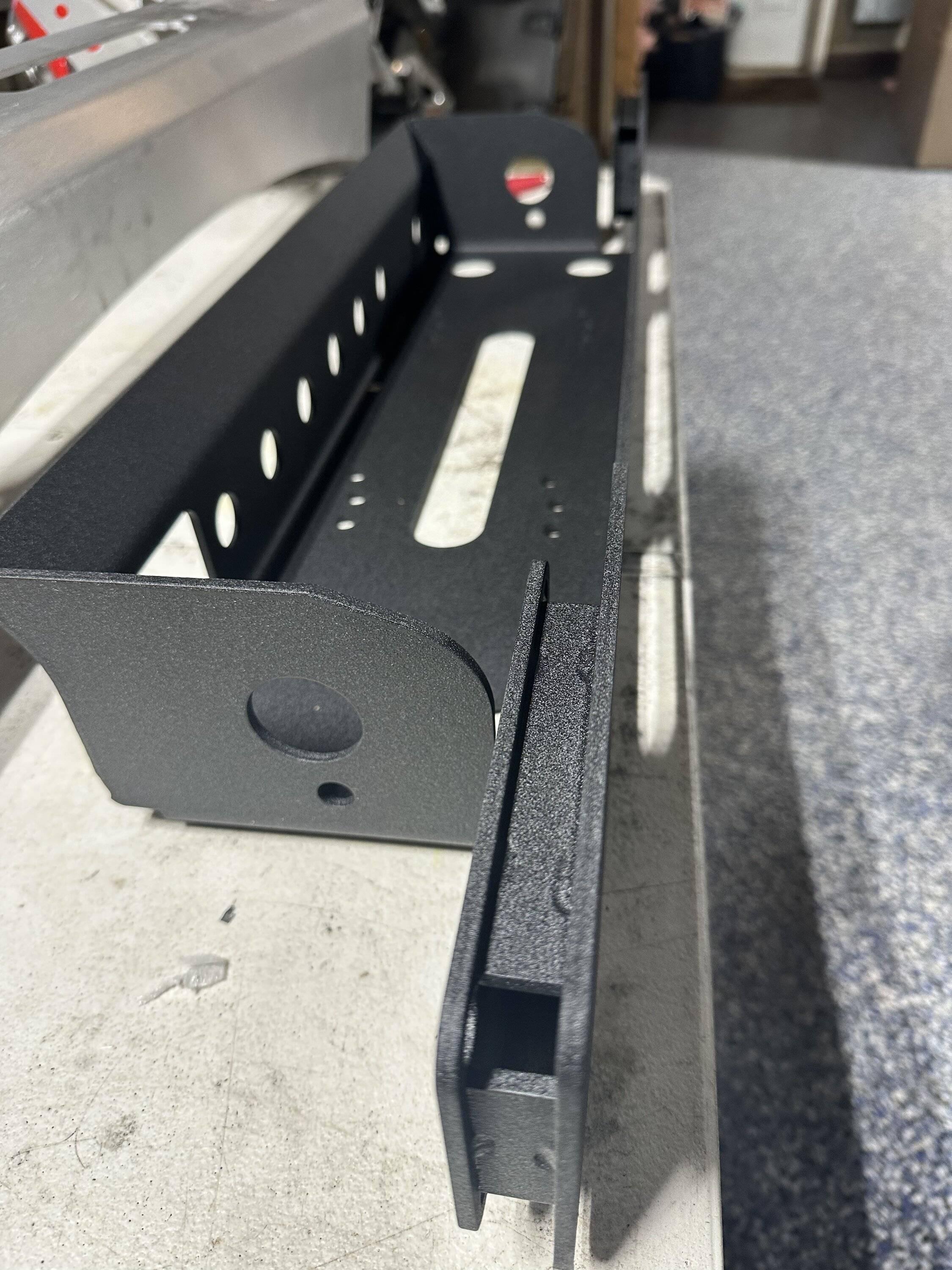

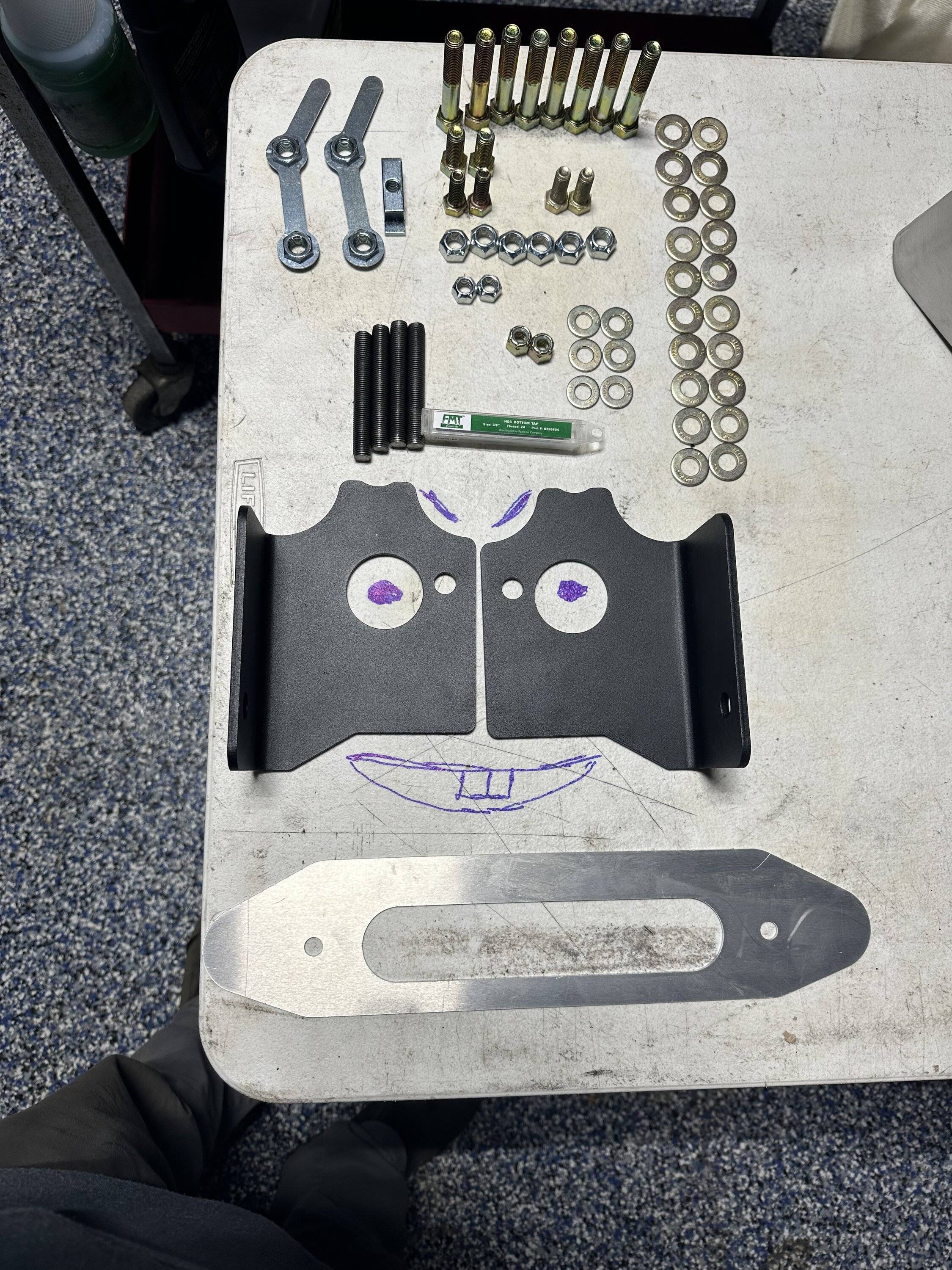

Here’s a few pics to get started.















Sponsored


OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

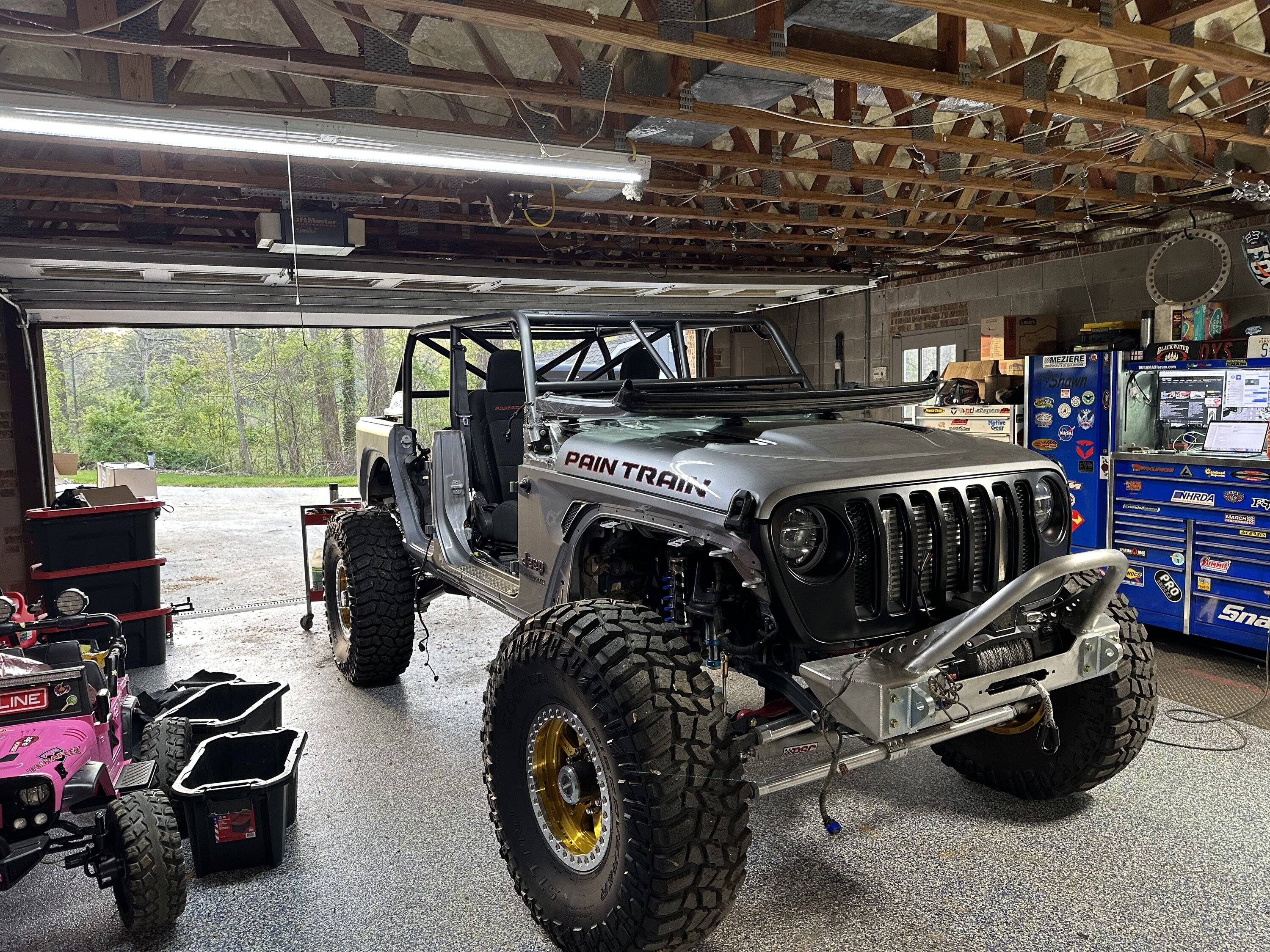

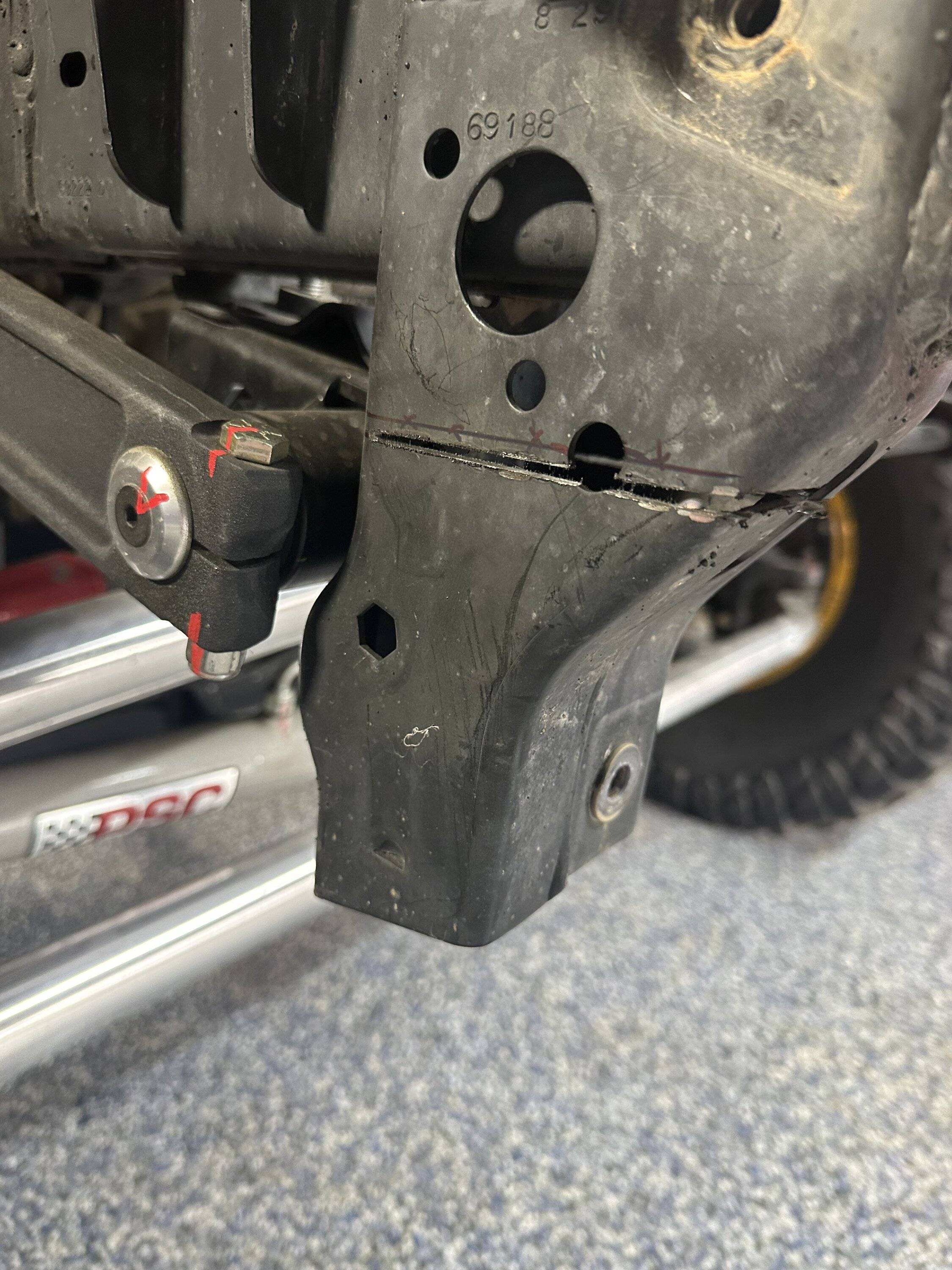

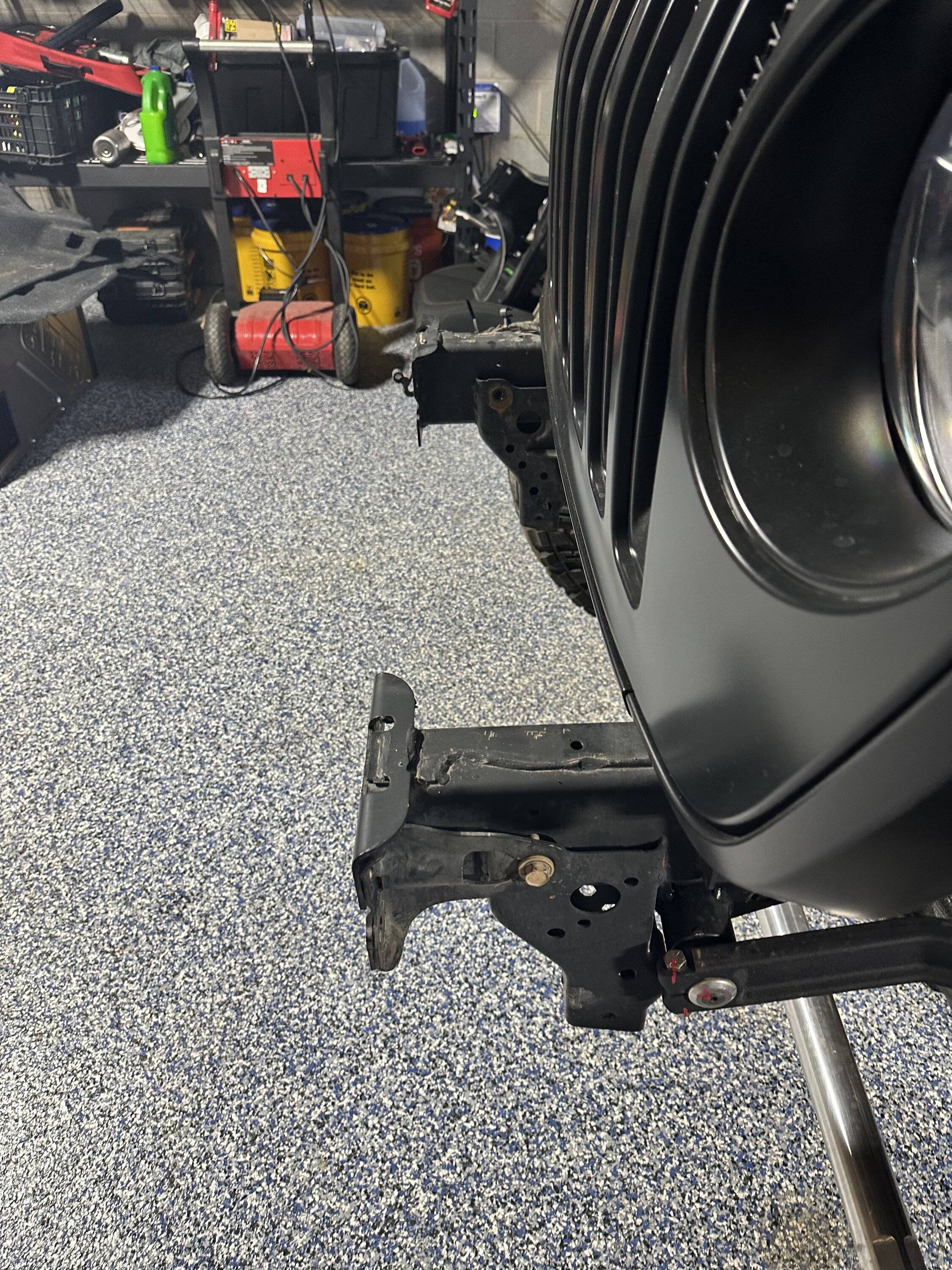

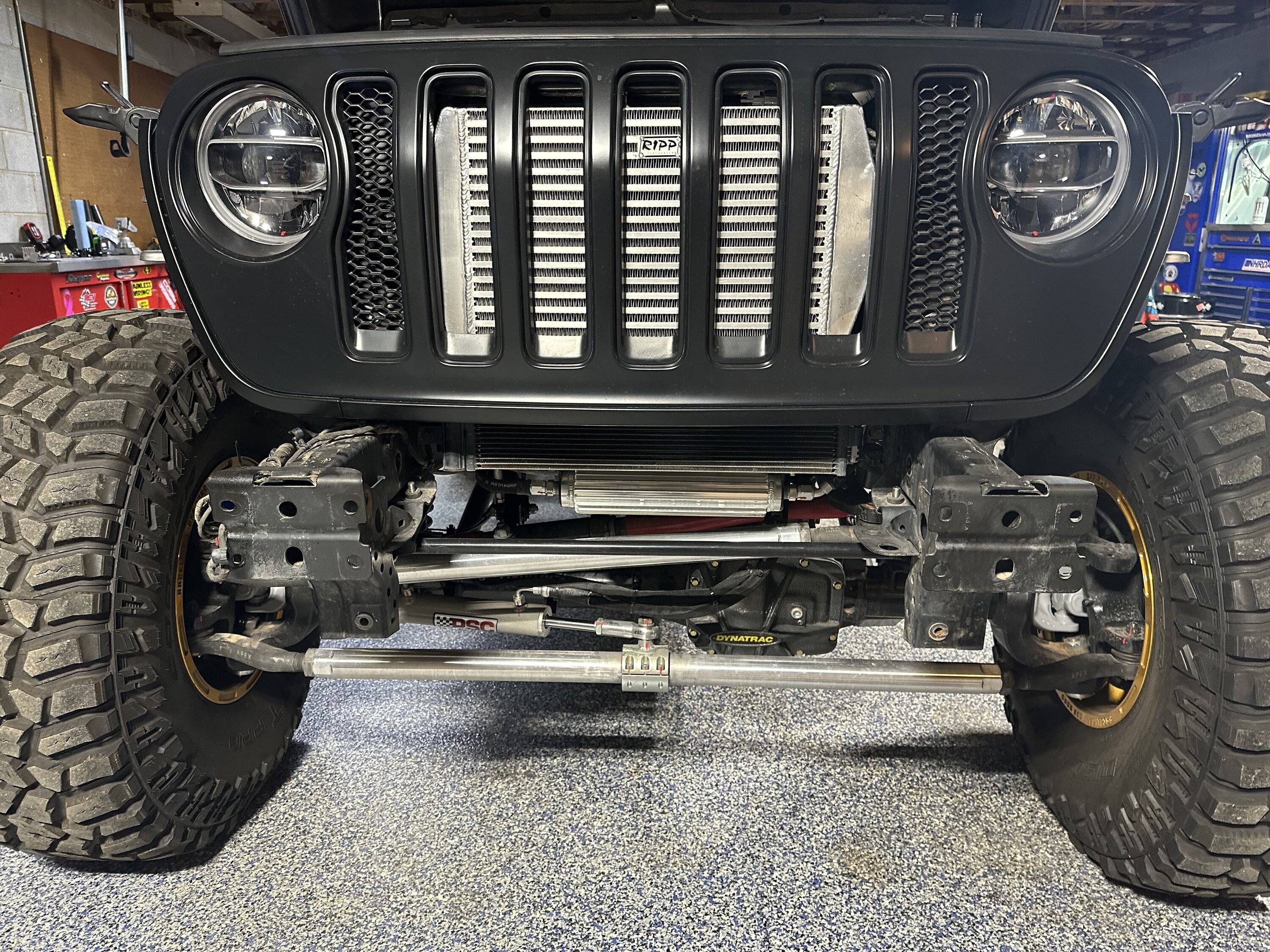

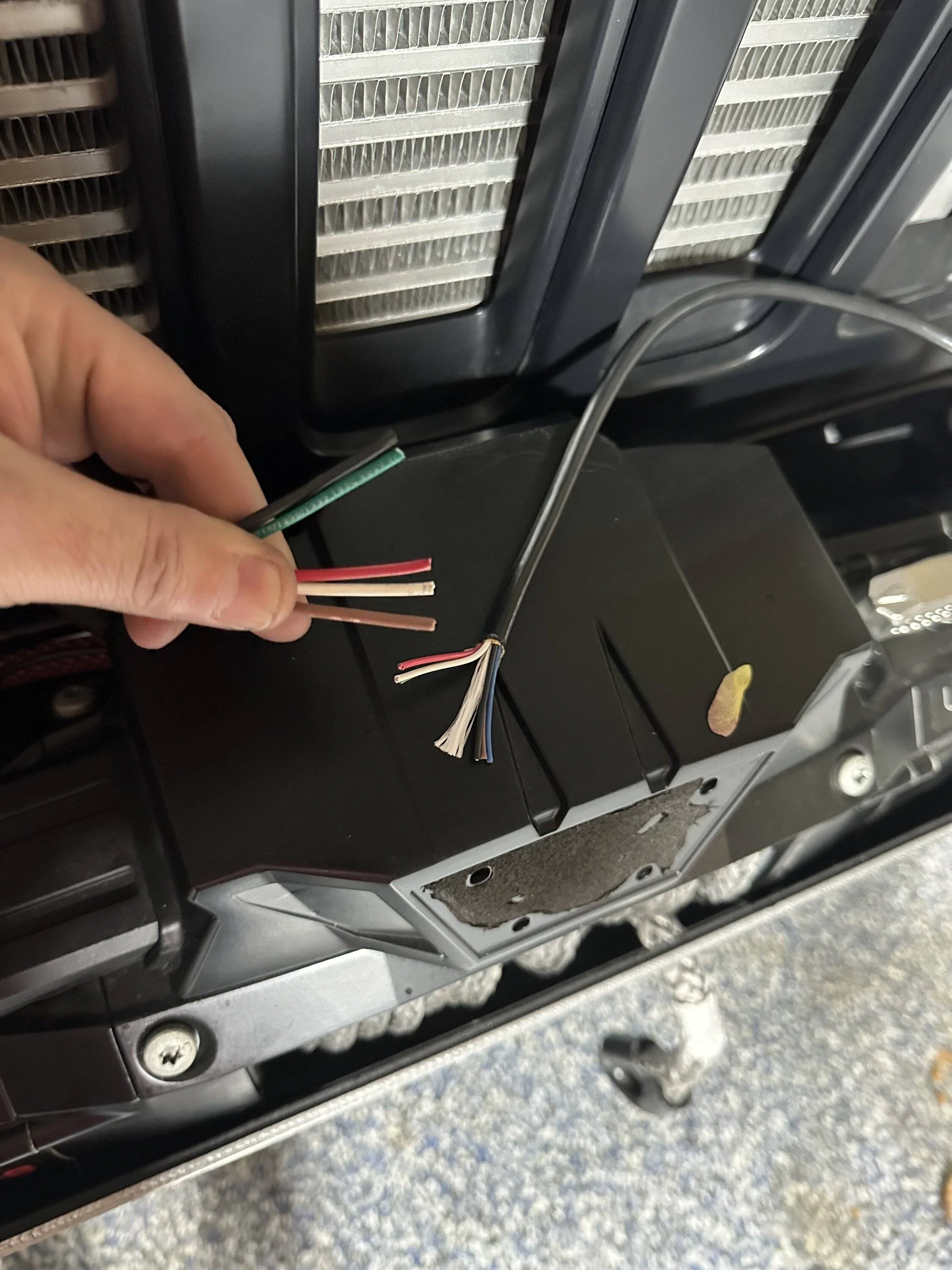

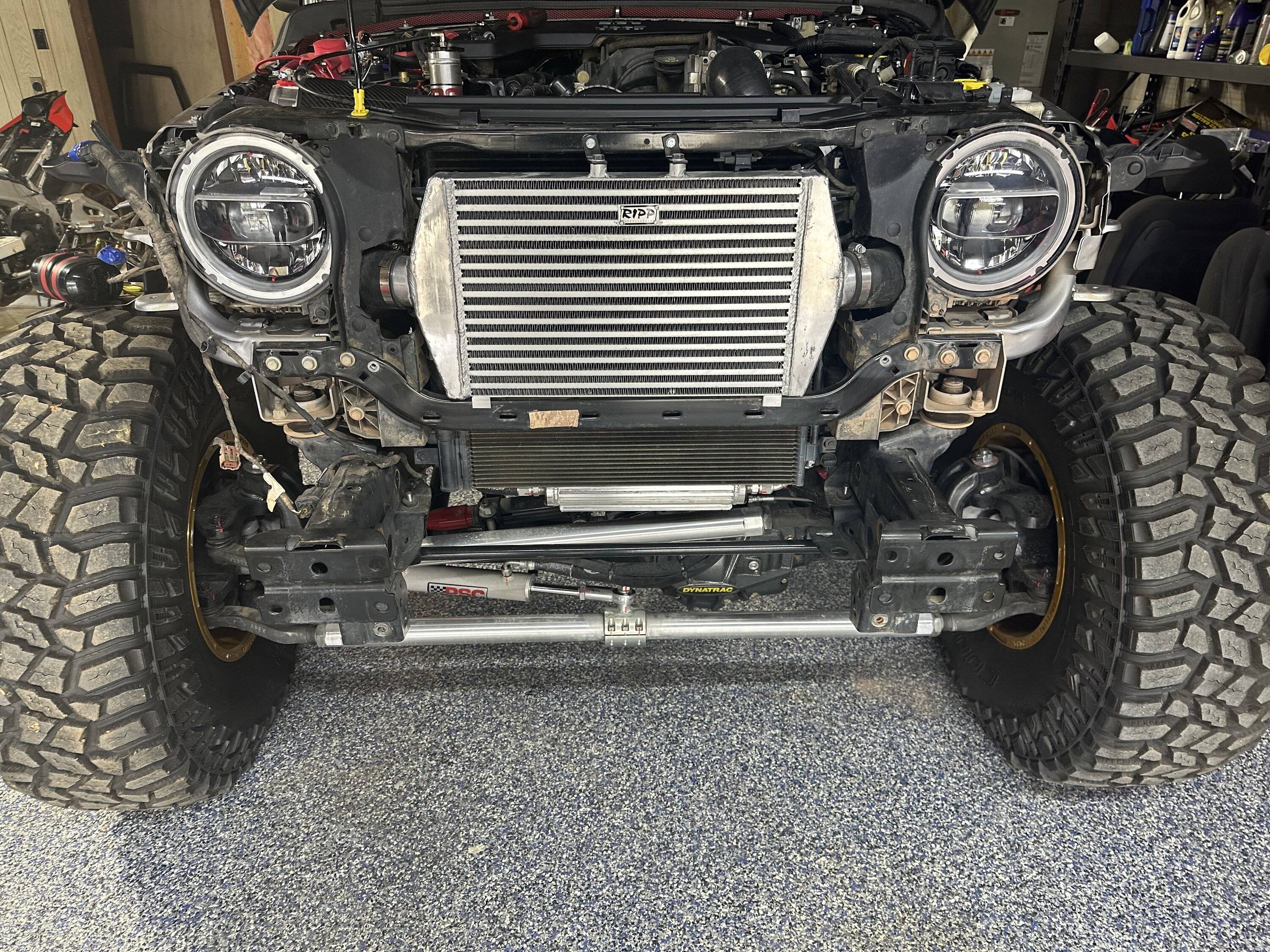

Got the grill removed and the horns cut off.

I wish I could weigh how much of this Jeep has been chopped off and ground away. Lol. There are several pounds of powdered Jeep all over the floor.







TaZ_65

Well-Known Member
First Name
Eric
Joined
Feb 19, 2021
Threads
6
Messages
83
Reaction score
148
Location
Northern Illinois
Vehicle(s)
JLUR
Enjoy fitting the Zeon in. Had to grind down a lot of the winch and the inside of the frame horns to get a 10-S in.

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer
Enjoy fitting the Zeon in. Had to grind down a lot of the winch and the inside of the frame horns to get a 10-S in.
I don't mind grinding on it. I'm not one of those guys that bitches about my scratched winch. Lol

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

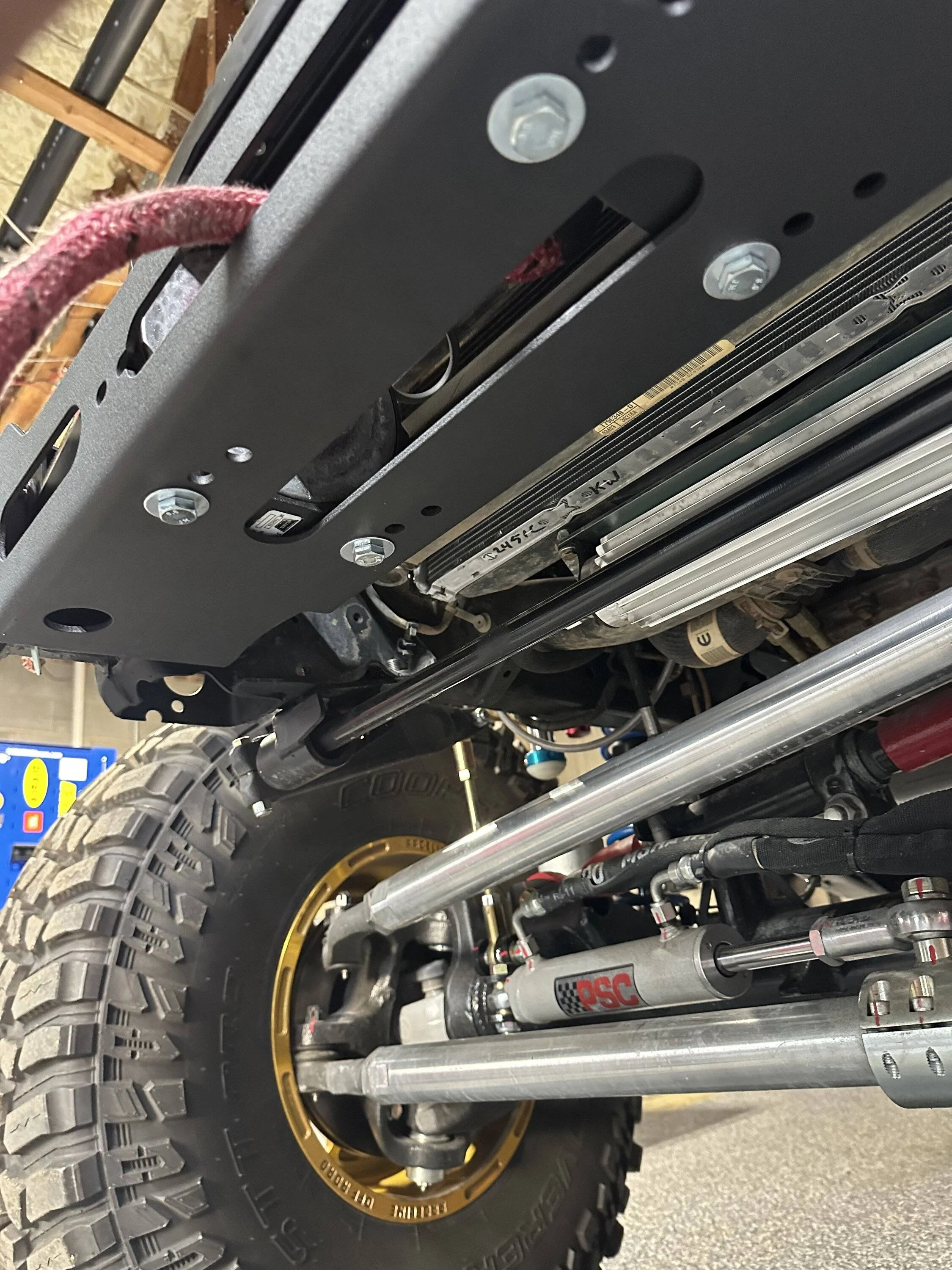

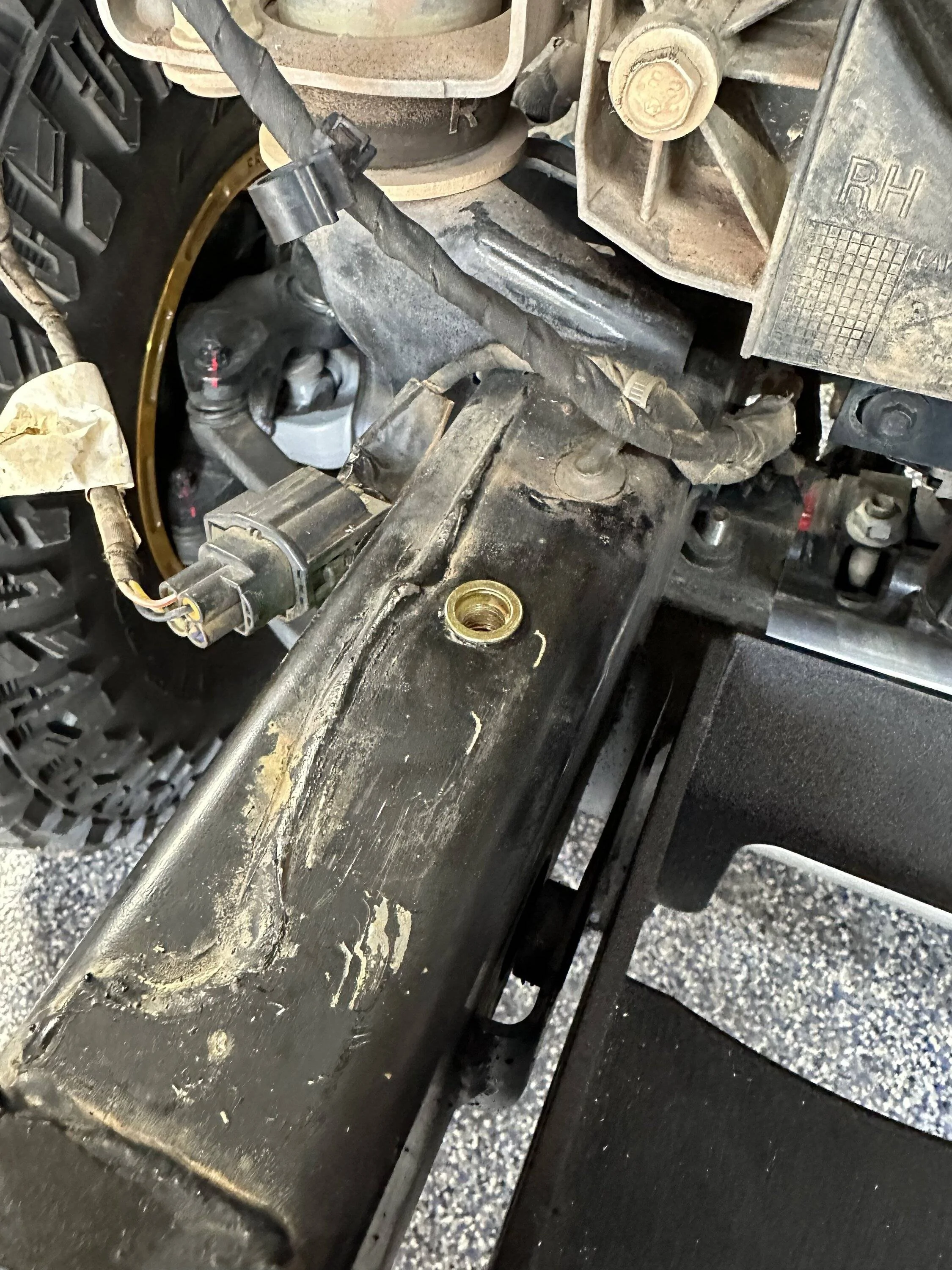

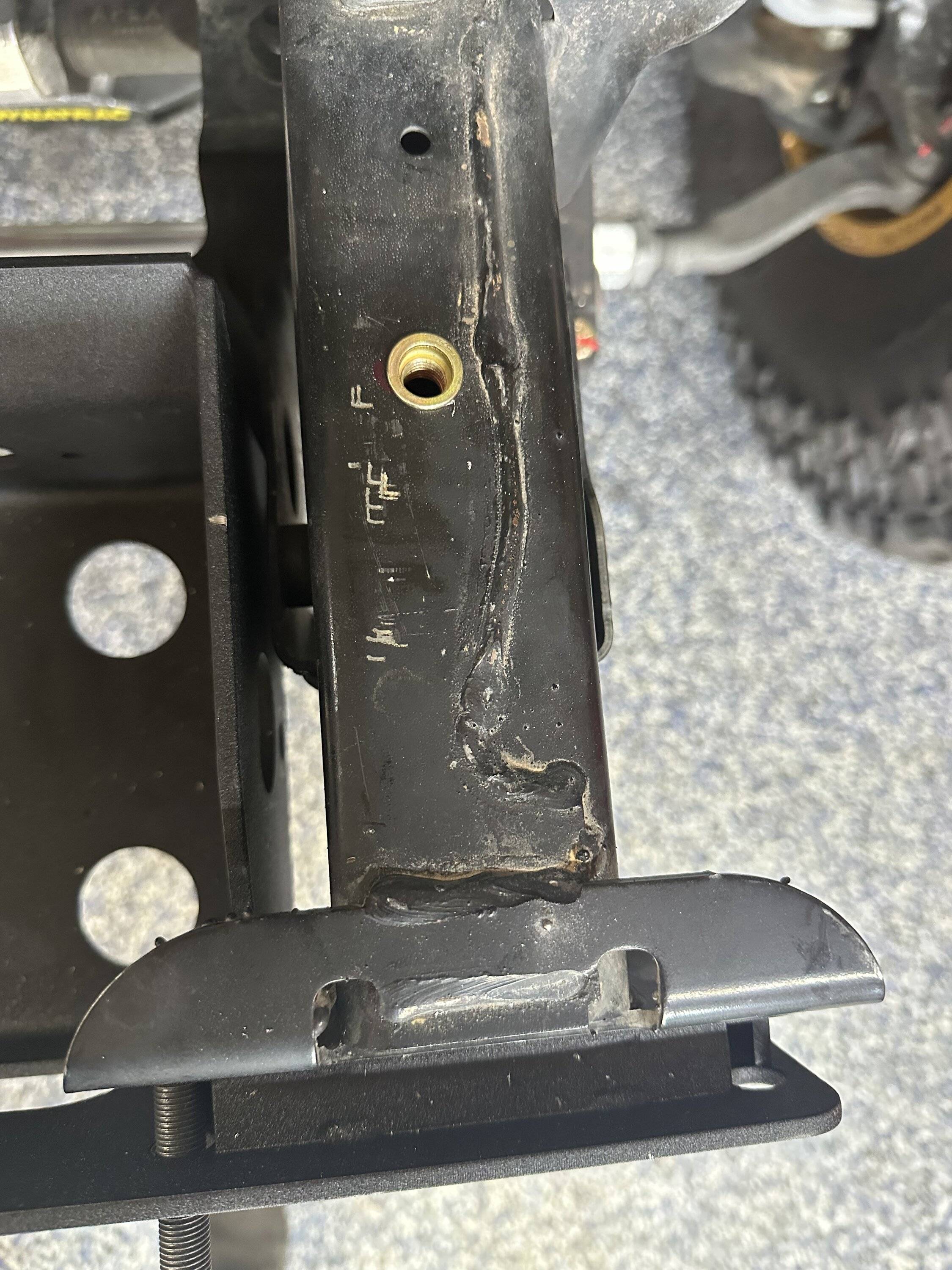

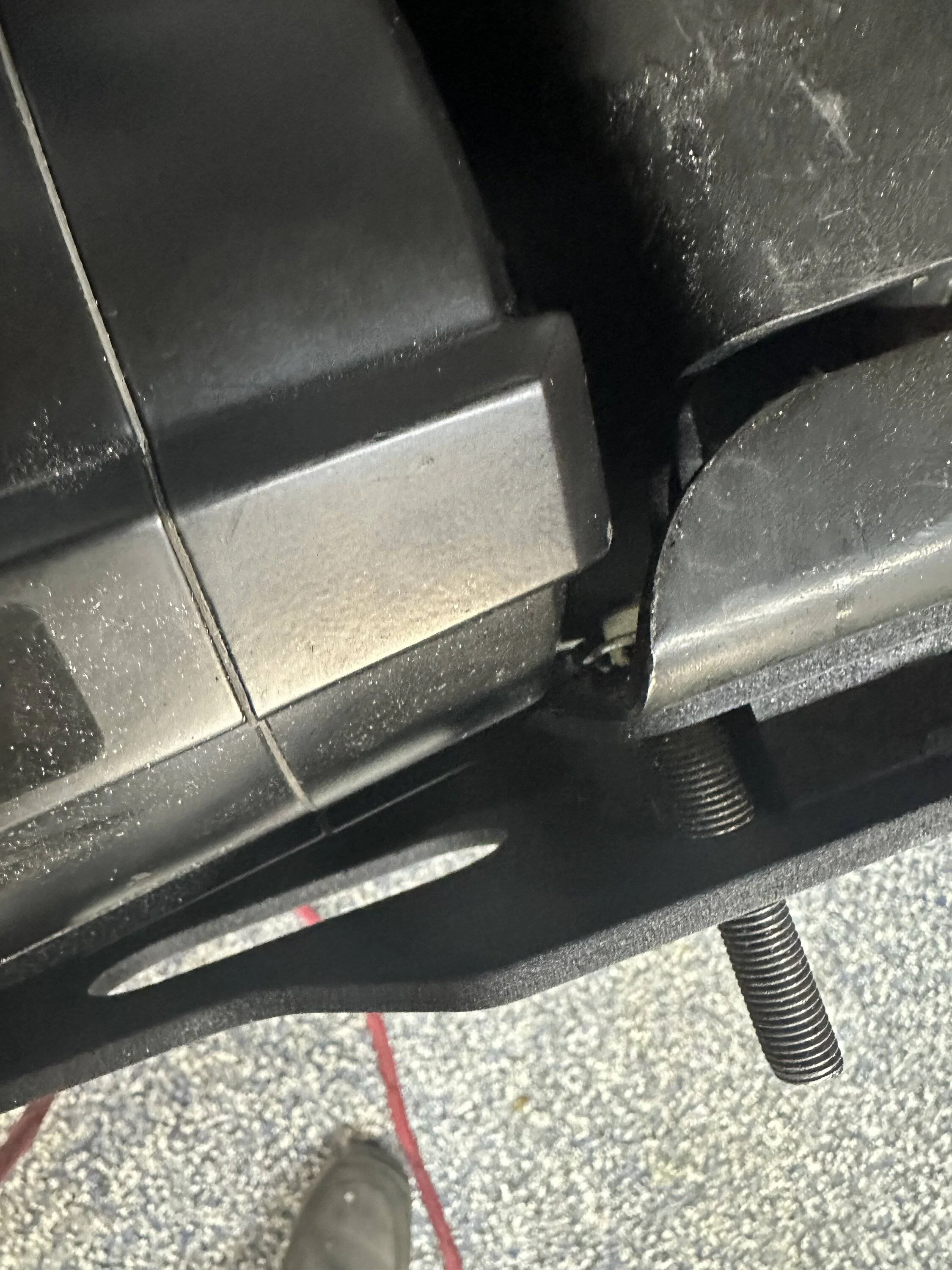

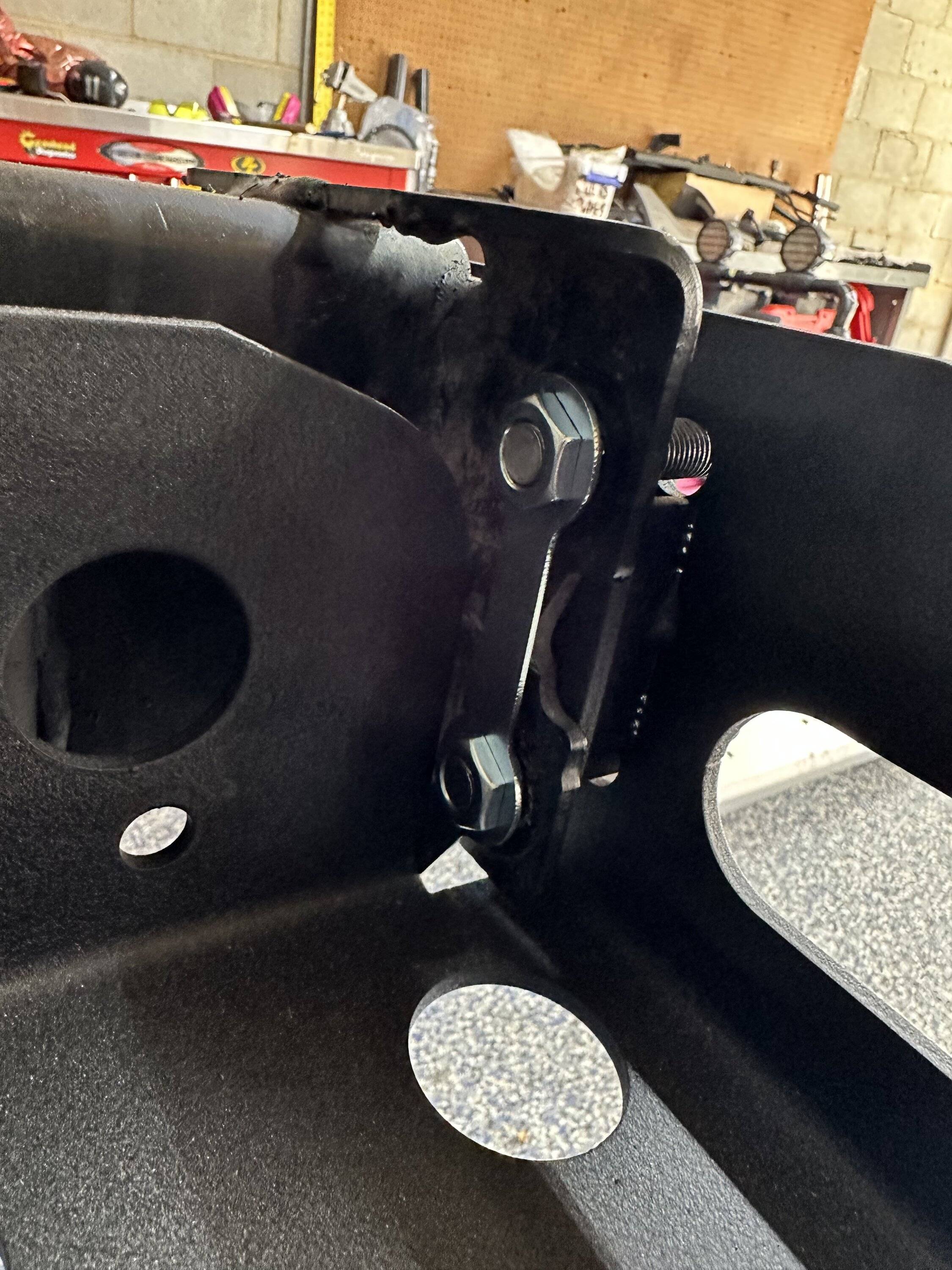

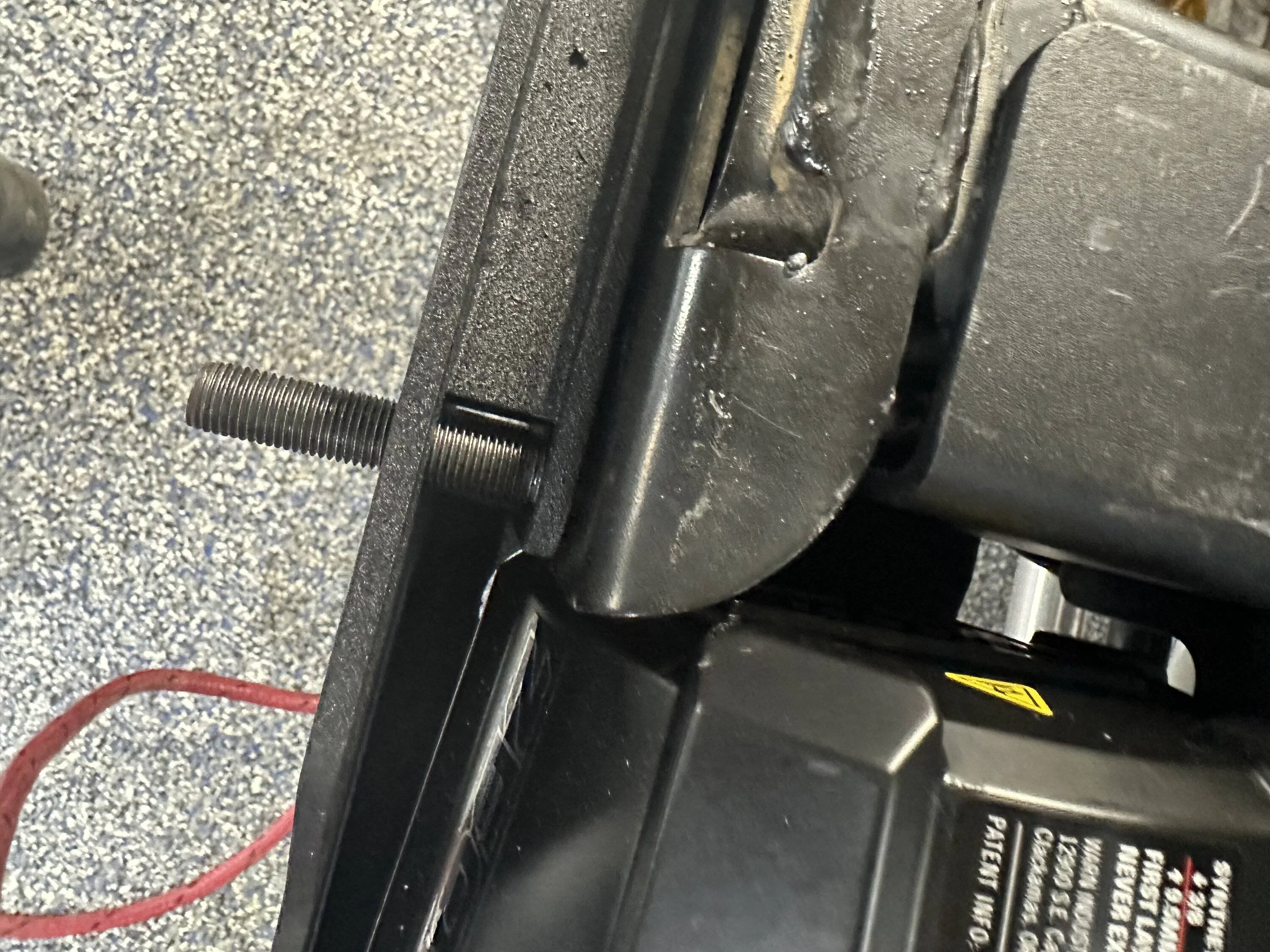

I ended up putting in some M10 rivnuts and making the top bolts bigger and stronger. I did this so I have a place to mount anything in the future.















Sponsored

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

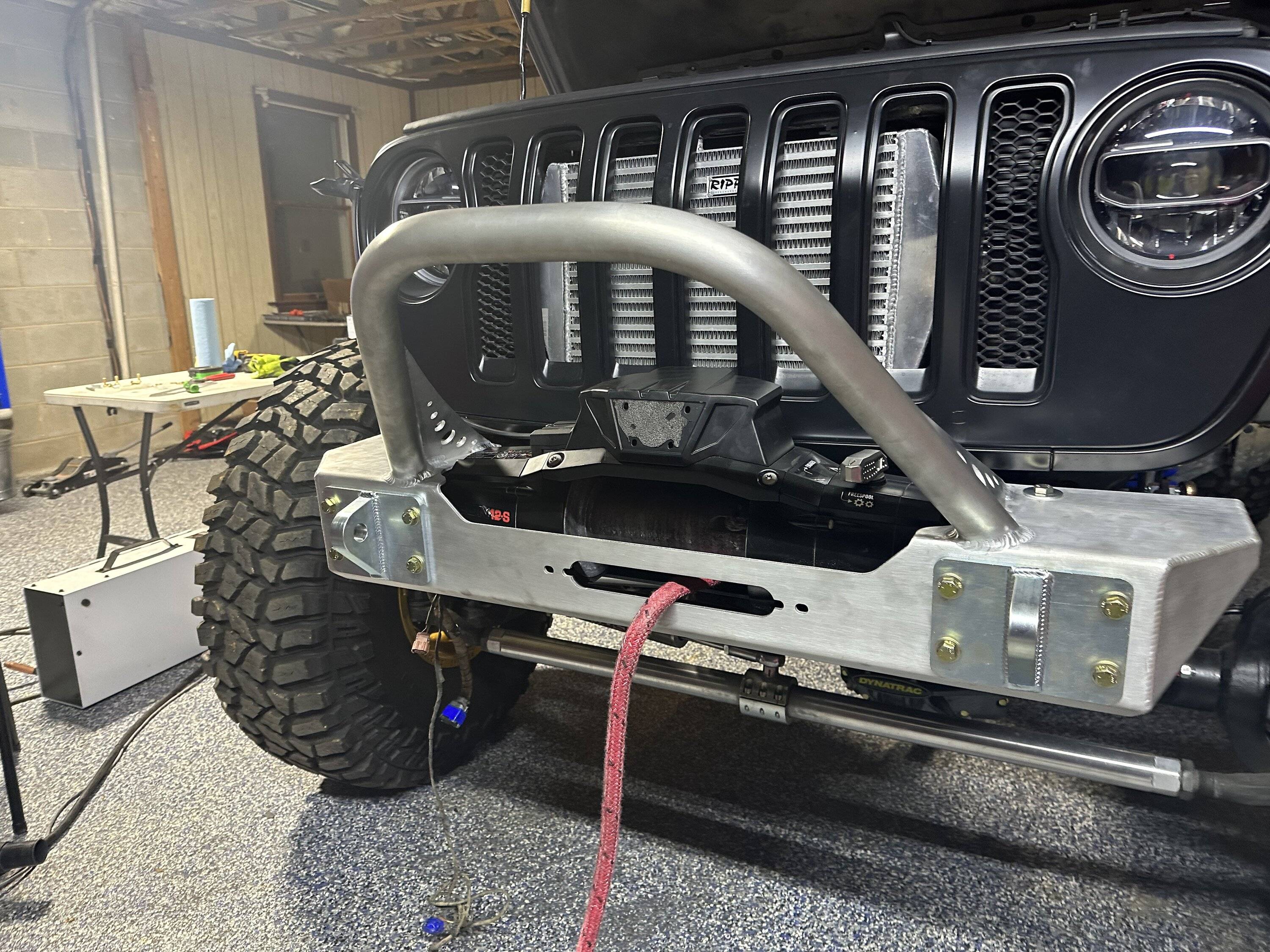

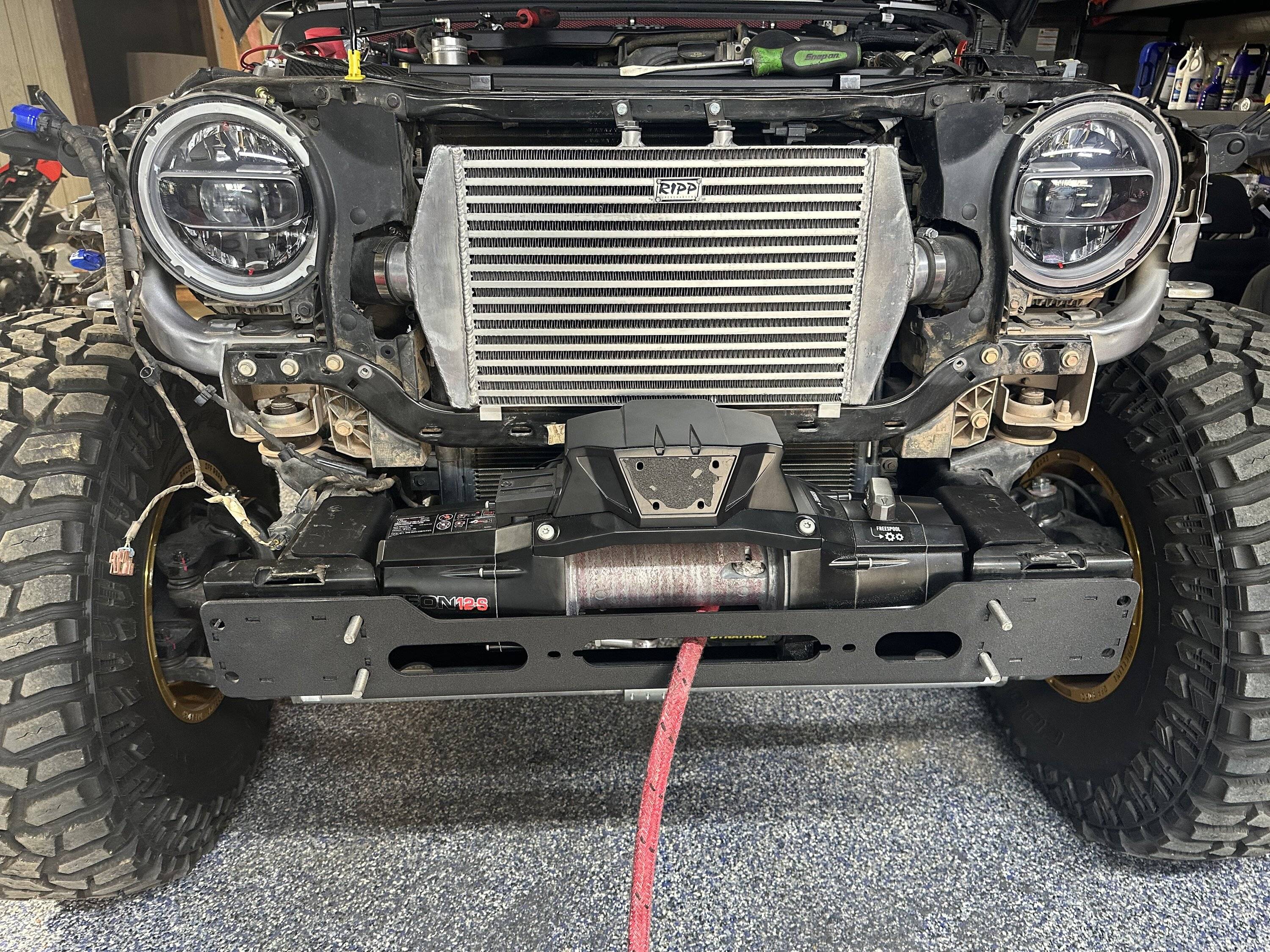

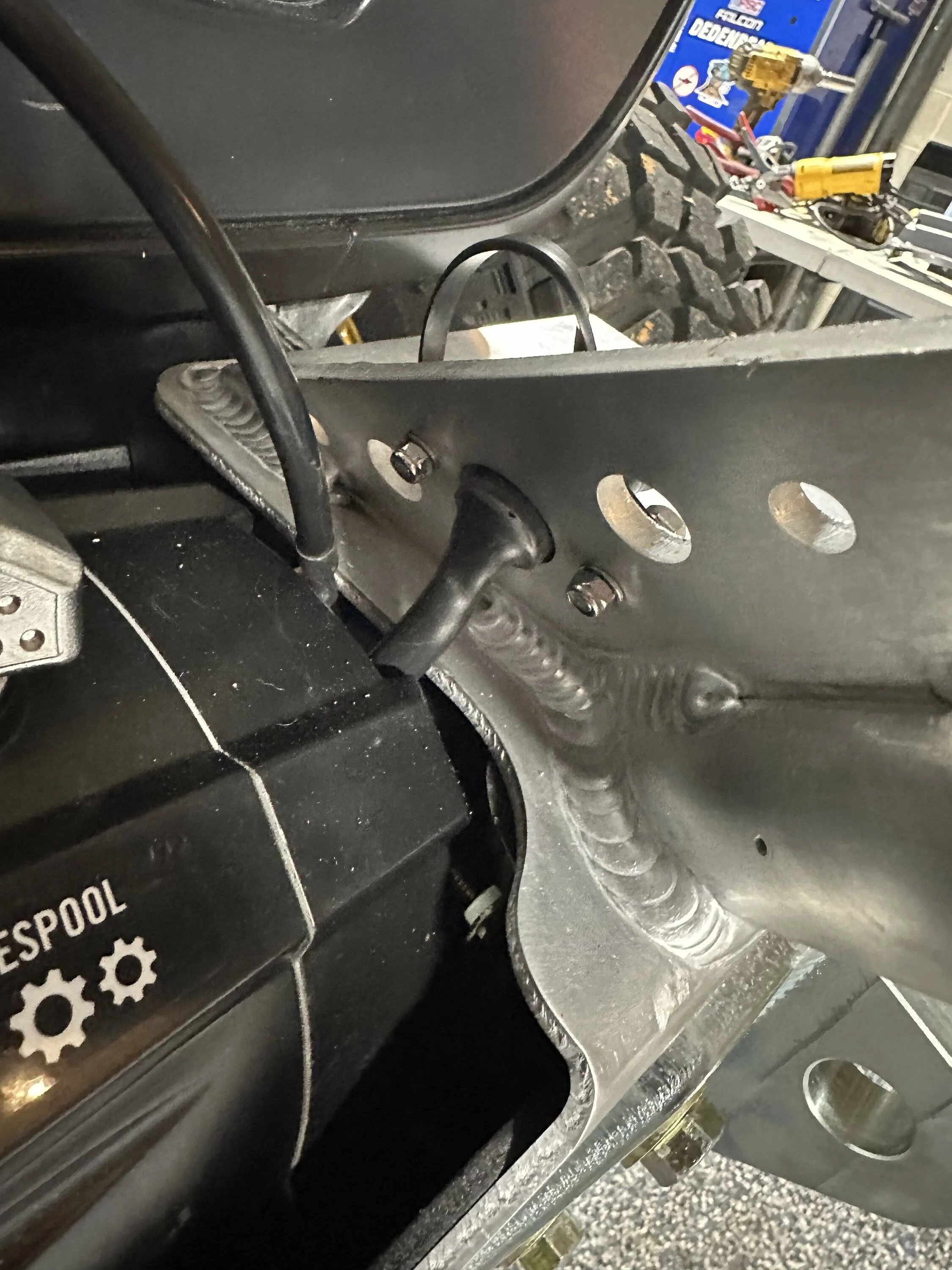

No grinding of the winch needed. It’s hitting in nearly every corner, but I just pushed it down to the plate and it went down and lined up great.











BradyW

Well-Known Member
First Name
Brady
Joined
Nov 13, 2021
Threads
11
Messages
324
Reaction score
1,044
Location
Weatherford TX
Vehicle(s)
2021 392XR
Vehicle Showcase
1
I'm not going to lie. It was an excellent write-up, but I had difficulty looking at the winch or the bumper. I was too mesmerized by the rest of the components in that front end. That is some serious Jeep porn you have there.

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer
I'm not going to lie. It was an excellent write-up, but I had difficulty looking at the winch or the bumper. I was too mesmerized by the rest of the components in that front end. That is some serious Jeep porn you have there.
Lol. Thanks man. Going on 20 months of this project. Labor of love.

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer
I'm not going to lie. It was an excellent write-up, but I had difficulty looking at the winch or the bumper. I was too mesmerized by the rest of the components in that front end. That is some serious Jeep porn you have there.
Just noticed you're in Weatherford. I stay there every few months. The company
I work for is out of Mineral Wells.

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

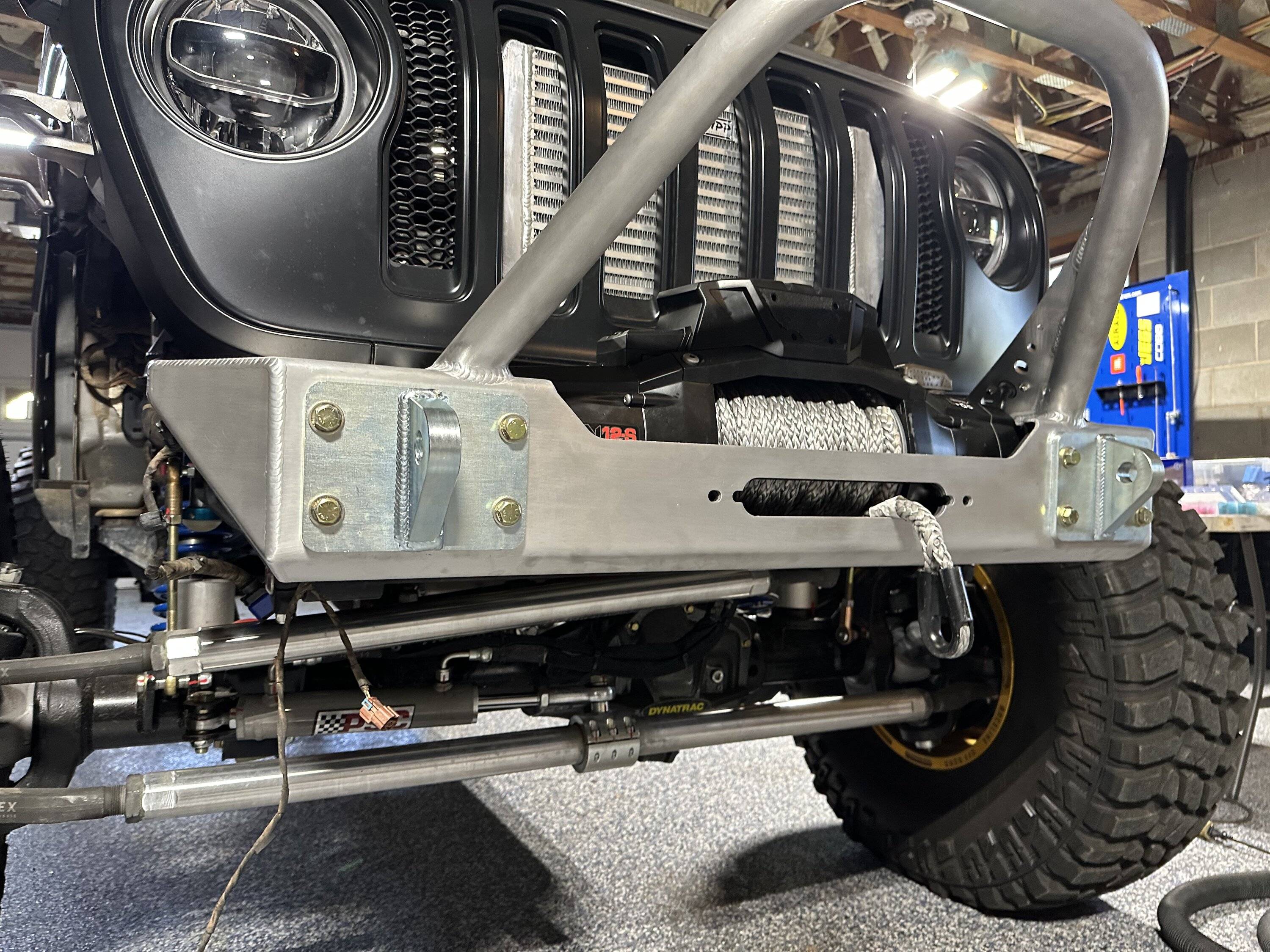

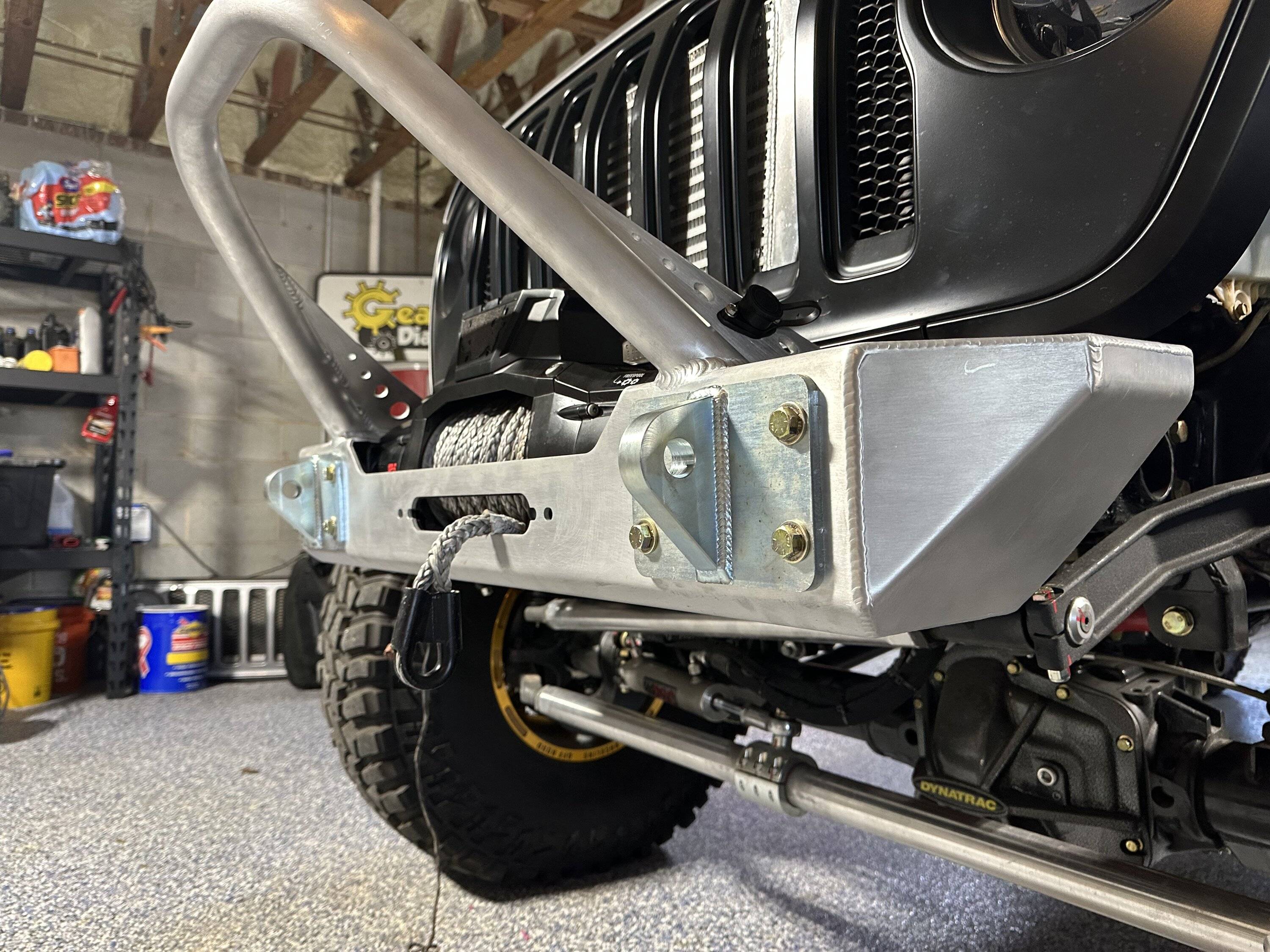

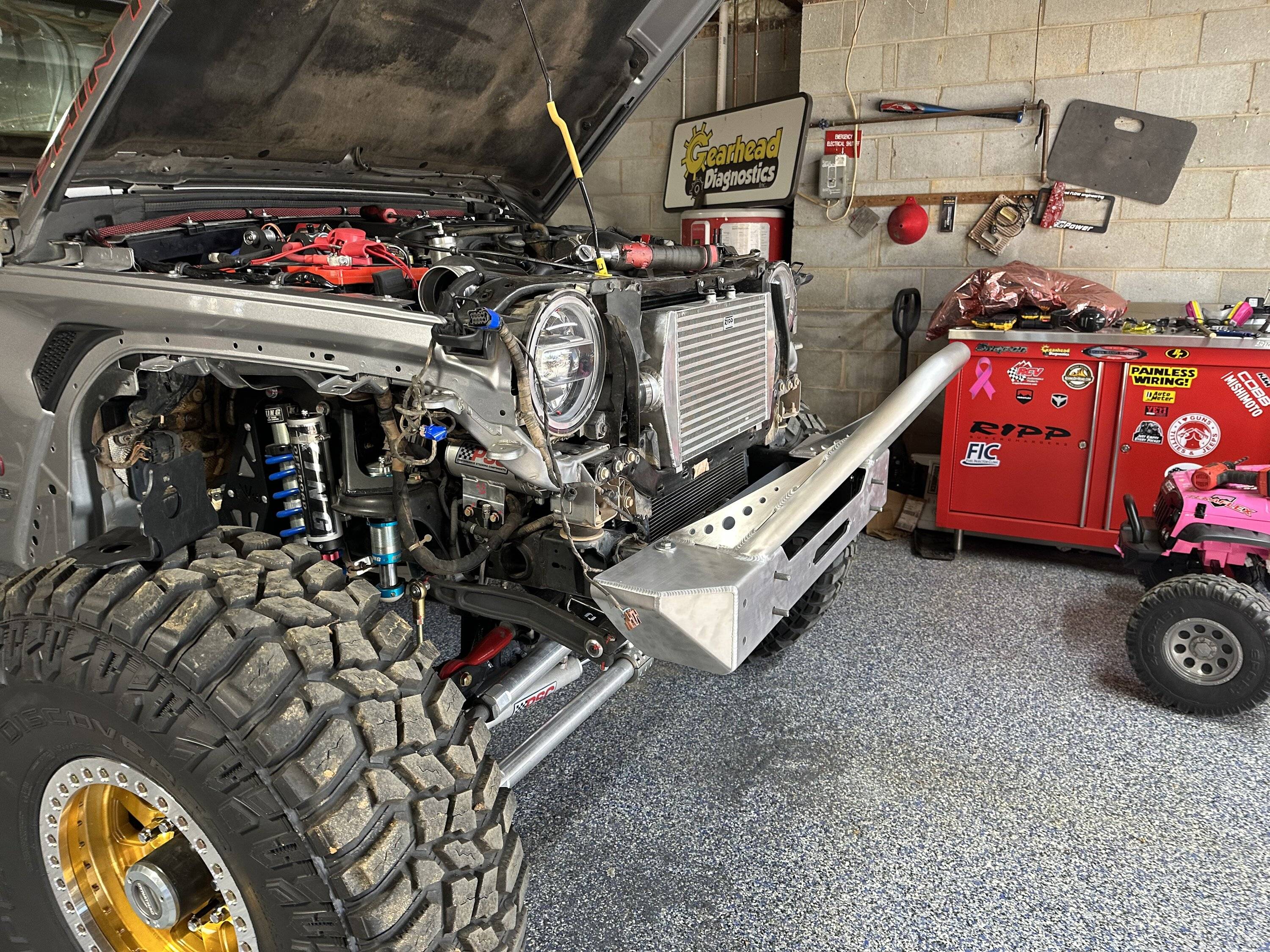

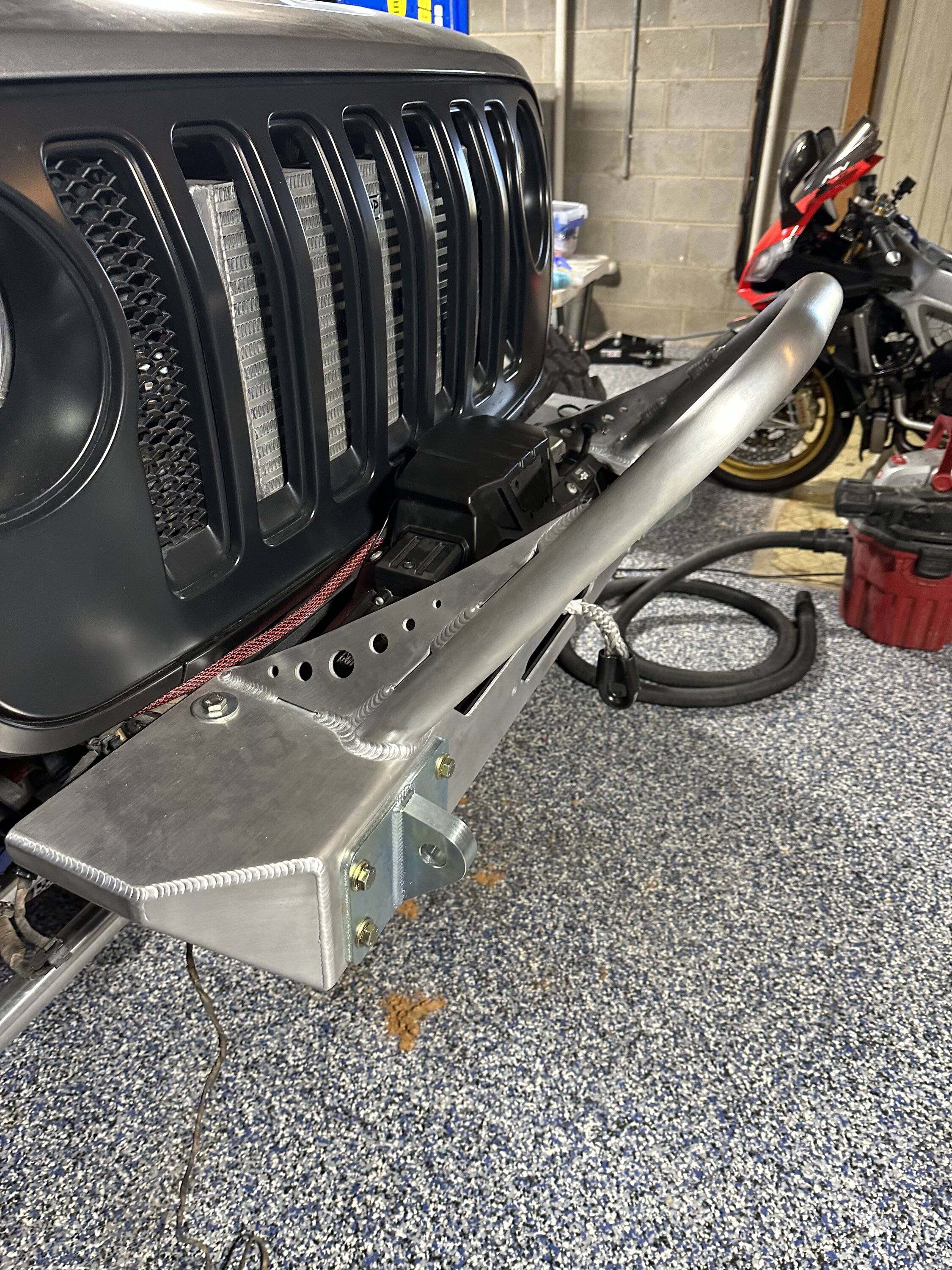

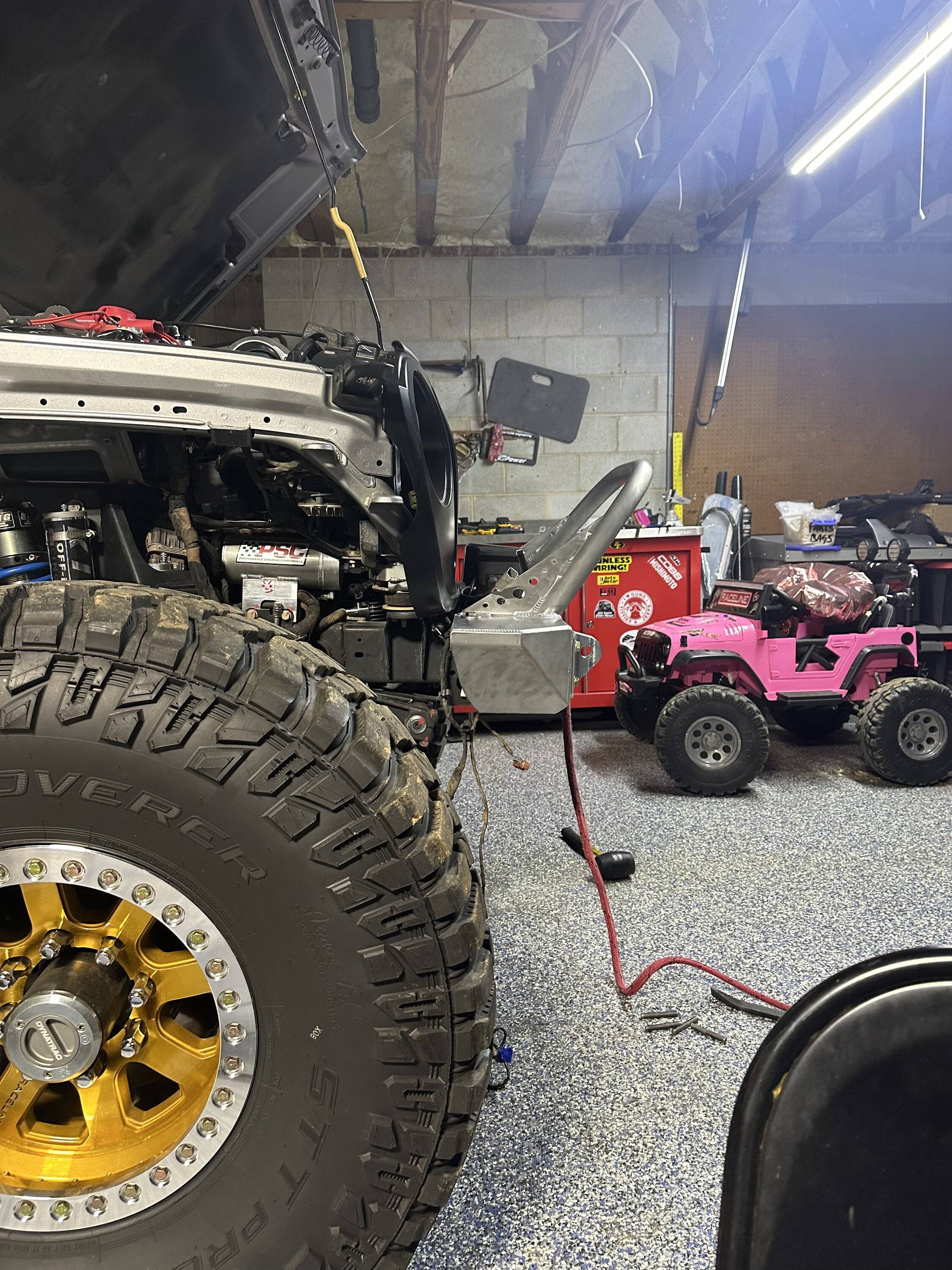

Got it all mounted up. I’ve got a little work to do to finish the winch itself. There’s no remote plug-in on the side of the control pack on this one. I’m going to run an extension cable to the cab then mount a remote switch and aux plug-in for the wired remote. One day at a time.









Sponsored

TaZ_65

Well-Known Member
First Name
Eric
Joined
Feb 19, 2021
Threads
6
Messages
83
Reaction score
148
Location
Northern Illinois
Vehicle(s)
JLUR
Nice! Jealous of your winch fitment, glad it worked out for you. Looking great! Along with others, amazed by the quality and craftsmanship of your build. I'm following your cage thread as well.

OP
OP
chevymitchell

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
94
Messages
4,268
Reaction score
10,228
Location
K-ville, NC
Vehicle(s)
2019 JLUR (Pain Train), 2022 2500 AT4
Occupation
Avi Engineer

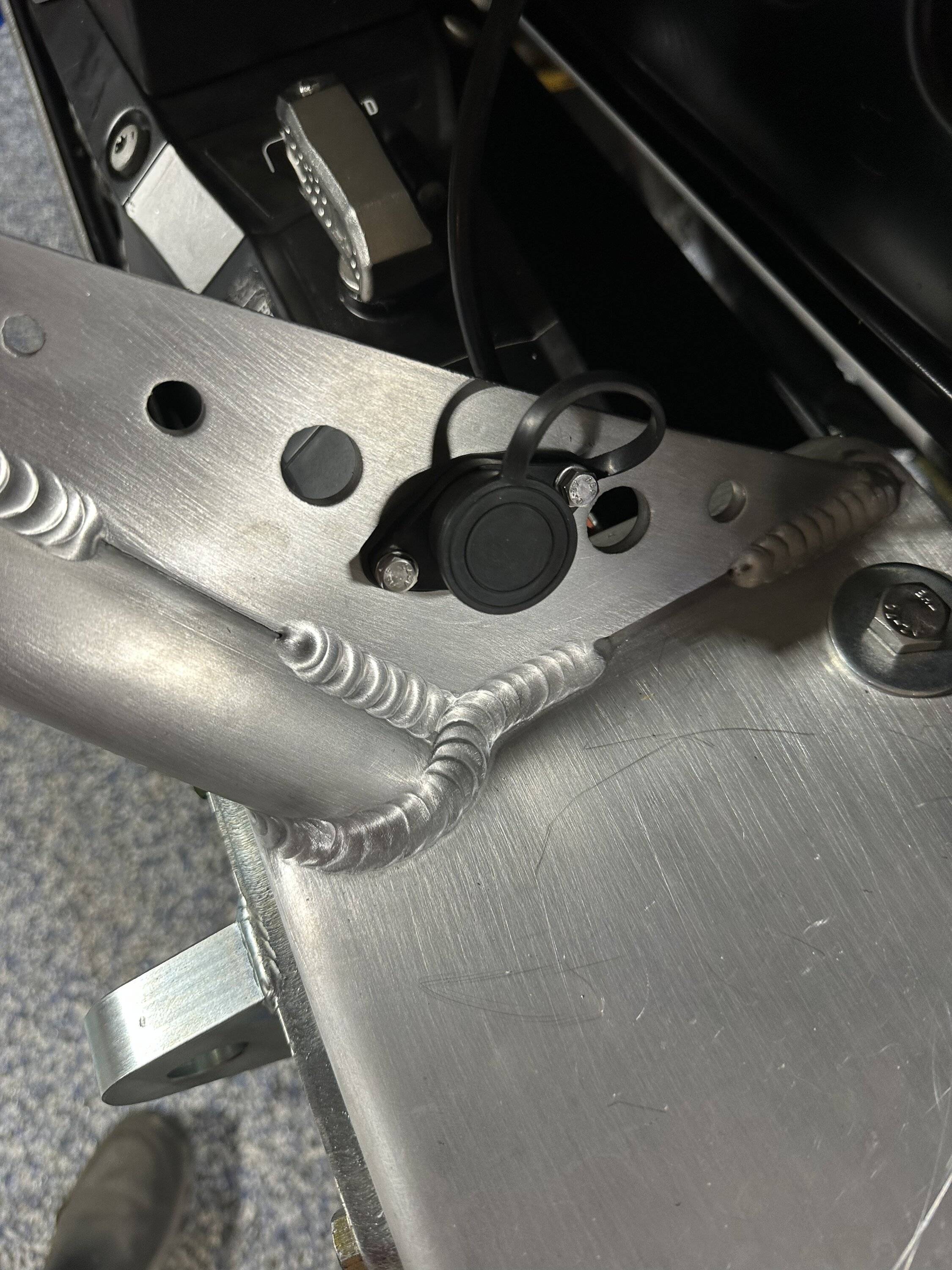

Last thing now is to get a fairlead. The winch I used, being from a Power Wagon, needed a wiring change and a remote harness. The Power Wagon 12-S has several differences from the regular 12-S, but can easily be converted. I spliced the 5 wire from the winch into a 6 wire remote plug in. The blue wire in the harness can be cut and it’s not used. Ended up mounting the remote harness to the bumper. Pretty clean looking. Need a Warn sticker for the control pack, too, I suppose.
