Yeah I mentioned that as one of my concerns and probably the reason I will get rid of it :movember:
I purchased it blind and figured it would mount similar to the JK variation(over the tie rod)

I will be switching to hydro assist in the near future :like:
Redneck ram?

Brett
Sponsored


OP
OP
TTEChris

TTEChris

Well-Known Member
First Name
Chris
Joined
May 17, 2017
Threads
66
Messages
2,154
Reaction score
5,103
Location
Houston, TX
Website
www.tankcustoms.com
Vehicle(s)
2021 JTD & 2021 4XE
Vehicle Showcase
5
Redneck ram?

Brett
Probably, or I will port/tap my own box and use a PSC cylinder like I did in the past.
I would have already pulled the trigger on the Redneck Ram, but they don't have any JL boxes in stock so I would have to pull mine and wait for them to rebuild/port and send it back.


rustyshakelford

Banned
Banned
Banned
First Name
Brett
Joined
Sep 14, 2018
Threads
41
Messages
2,430
Reaction score
3,017
Location
Navasota, TX
Vehicle(s)
2019 JLUR-8 speed 2020 F-350
Probably, or I will port/tap my own box and use a PSC cylinder like I did in the past.
I would have already pulled the trigger on the Redneck Ram, but they don't have any JL boxes in stock so I would have to pull mine and wait for them to rebuild/port and send it back.
Let me know your thought process as you go for. It’s less than $800 I think for the kit. Maybe we could make a day trip and run over to San Angelo and have them do a couple. I think this might be a good fix for the guys and galls that are getting the dead spot

Brett


word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,146
Reaction score
5,718
Location
Oregon
Vehicle(s)
JLU
Anyone figured out a way to relocate this yet? Wish I would have seen this thread before purchasing.


Sponsored

Topher

Member
First Name
Christopher
Joined
Nov 27, 2018
Threads
1
Messages
10
Reaction score
3
Location
San Francisco, CA
Vehicle(s)
2019 JLUR, Ford Explorer PI
Occupation
US Steel Bracelet Application Specialist
Which is why I said I wish I would have known this before purchasing.
Fox has a bracket you can use to attach to the tie rod. Part number is below:

Fox Shocks 803-02-039 Tie Rod Mounting Clamp; 1 5/8

You can purchase a relocation bracket from Metal Cloak, Steer Smarts, or Synergy. I’m currently waiting for the Fox Tie Rod Mount to come in. I’ll update you as soon as I get it installed.


word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,146
Reaction score
5,718
Location
Oregon
Vehicle(s)
JLU
Fox has a bracket you can use to attach to the tie rod. Part number is below:

Fox Shocks 803-02-039 Tie Rod Mounting Clamp; 1 5/8

You can purchase a relocation bracket from Metal Cloak, Steer Smarts, or Synergy. I’m currently waiting for the Fox Tie Rod Mount to come in. I’ll update you as soon as I get it installed.
But why go through all the trouble and cost when you can just buy the jk version that has everything you need? I ordered one and will be selling my JL version once I get it. I’m don’t think that clamp will even work with the JL version.


Carlton

Well-Known Member
Joined
Sep 2, 2018
Threads
22
Messages
2,912
Reaction score
3,228
Location
Chicago
Vehicle(s)
Jeeps lots of jeeps

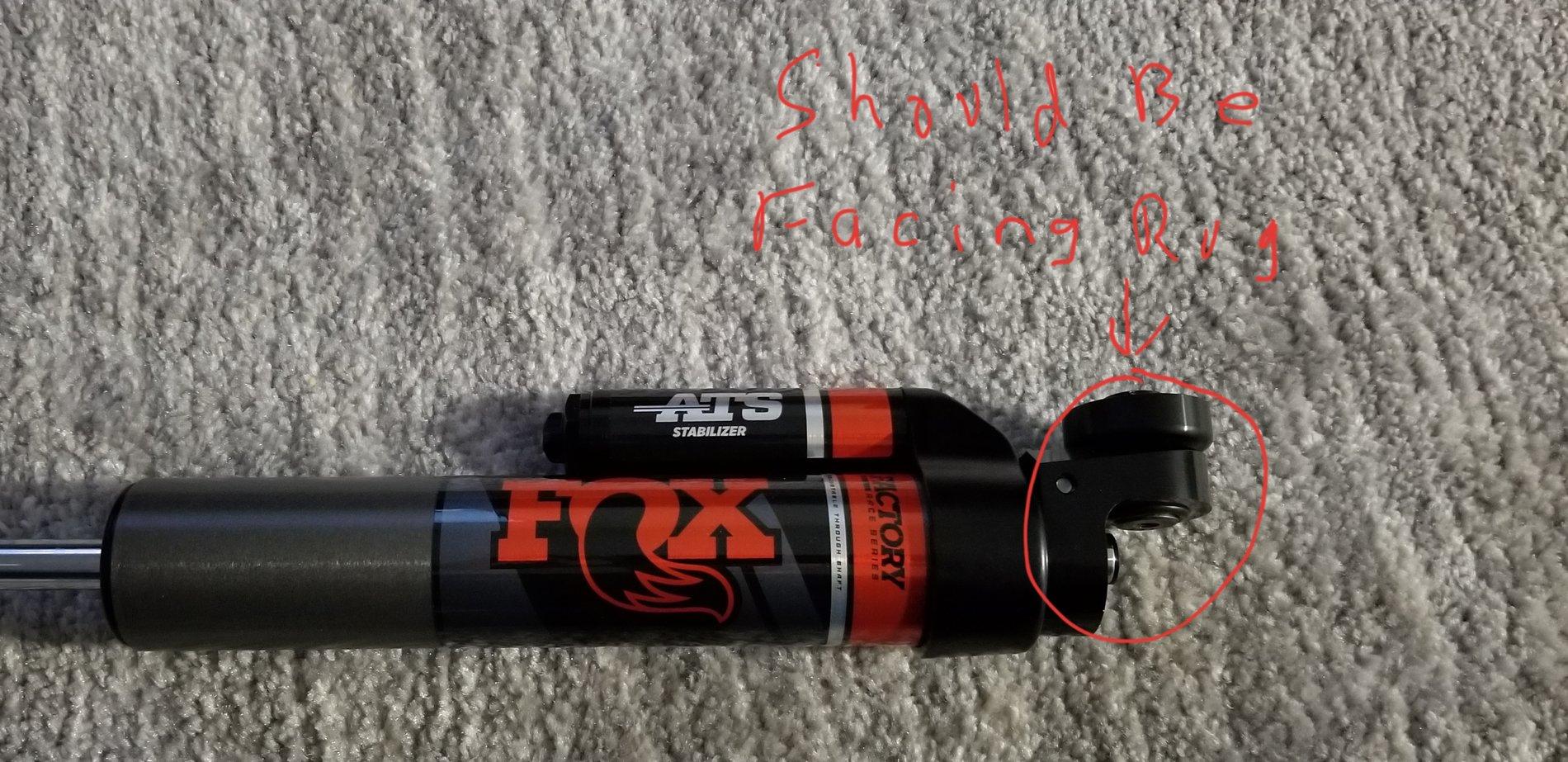

The Fox ATS I ordered from Northridge 4x4 arrived today. It appears to have some issues.

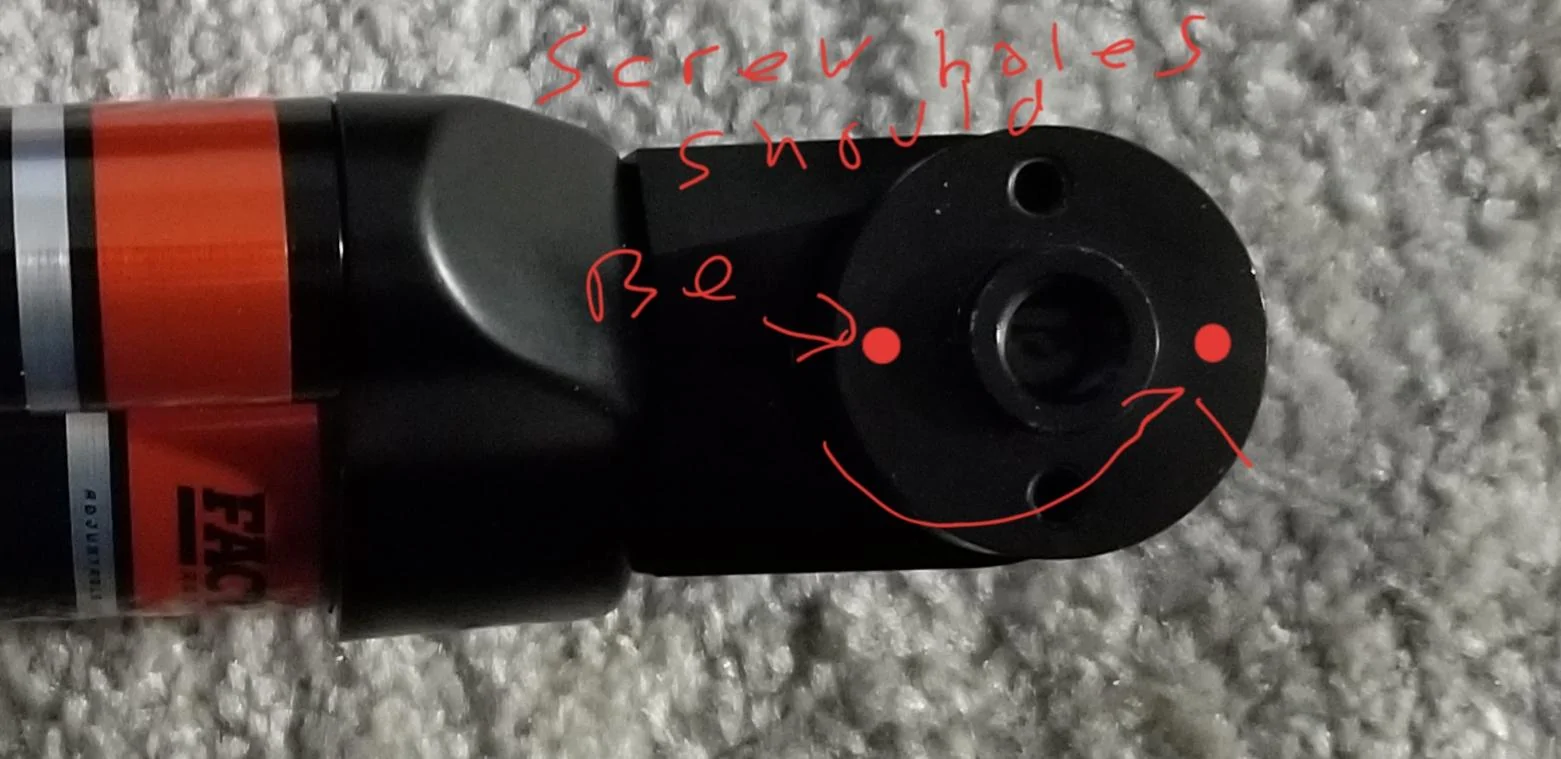

The L bracket is facing the wrong direction. The circular mount is also twisted so that the screw holes are in the incorrect position. I believe I should be able to correct this by loosening the bolts and changing orientations on the L bracket as well as the circular mount.

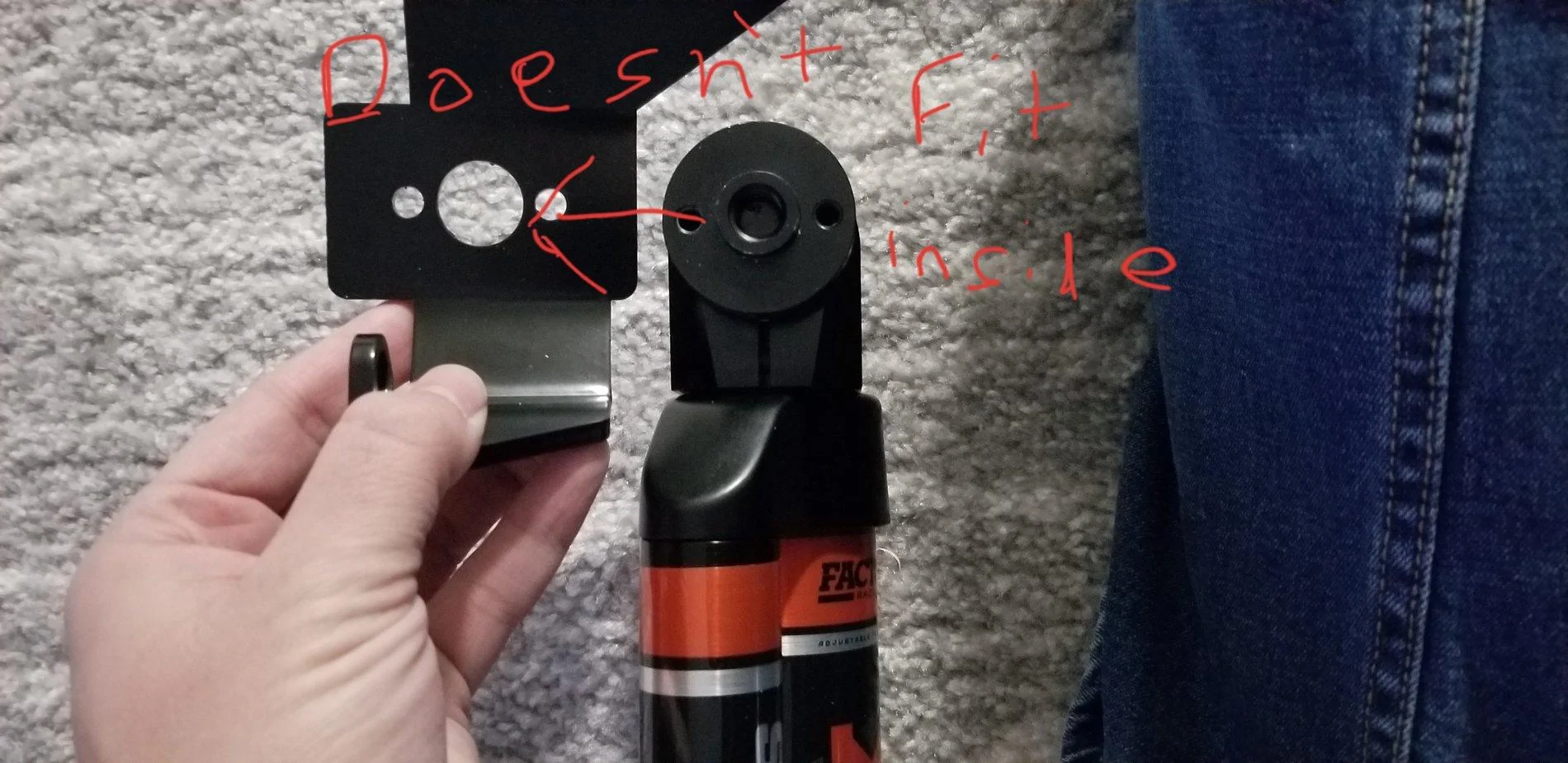

According to the pictures in the directions, it appears that the circle on the circular mount is to fit inside the circle on the mounting bracket. Is this correct? Mine does not fit and seems that I will have to grind out the circle on the bracket.

I have attached pictures for clarification.







word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,146
Reaction score
5,718
Location
Oregon
Vehicle(s)
JLU
Are you running the jk version of the fox ats ss. Did it come with an extended track bar bolt? Do you have pic?
thanks
It did come with the stud mount. I still ended up with clearance issues with my tie rod so I made some minor modifications to a Metalcloak bracket and got a new spacer through Northridge. It was kind of a pain in the ass but it's dialed in now. I've talked to multiple people that had no issues just running the stud mount.


Sponsored

word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,146
Reaction score
5,718
Location
Oregon
Vehicle(s)
JLU
The Fox ATS I ordered from Northridge 4x4 arrived today. It appears to have some issues.

The L bracket is facing the wrong direction. The circular mount is also twisted so that the screw holes are in the incorrect position. I believe I should be able to correct this by loosening the bolts and changing orientations on the L bracket as well as the circular mount.

According to the pictures in the directions, it appears that the circle on the circular mount is to fit inside the circle on the mounting bracket. Is this correct? Mine does not fit and seems that I will have to grind out the circle on the bracket.

I have attached pictures for clarification.





Something seems jacked up. Mine all booked right up when I got it.


word302

Well-Known Member
Joined
Sep 13, 2017
Threads
11
Messages
5,146
Reaction score
5,718
Location
Oregon
Vehicle(s)
JLU
Are you running stock tie rod, or aftermarket? And did the mc relo bracket make it closer to the track bar than putting it on track bar bolt?
Stock tie rod. The bracket raised the axle end slightly, which was all I needed. I had trouble with the SS body hitting the tie rod near the axle mount at full lock right turns when using the stud mount. I haven't seen anyone else with that issue. Guess I'm just lucky.


Cypher

Well-Known Member
First Name
J
Joined
Feb 8, 2018
Threads
37
Messages
2,424
Reaction score
2,216
Location
AZ
Vehicle(s)
2021 JLUR Eco-Diesel now. 18, 19, 20 JLUR 3.6 old.
Occupation
Cybersecurity Leader
Vehicle Showcase
5
The Fox ATS I ordered from Northridge 4x4 arrived today. It appears to have some issues.

The L bracket is facing the wrong direction. The circular mount is also twisted so that the screw holes are in the incorrect position. I believe I should be able to correct this by loosening the bolts and changing orientations on the L bracket as well as the circular mount.

According to the pictures in the directions, it appears that the circle on the circular mount is to fit inside the circle on the mounting bracket. Is this correct? Mine does not fit and seems that I will have to grind out the circle on the bracket.

I have attached pictures for clarification.





I had to twist mine, loosen the screw, twist it to where you need it, and tighten. I was confused at first as well, It it all worked out.


Carlton

Well-Known Member
Joined
Sep 2, 2018
Threads
22
Messages
2,912
Reaction score
3,228
Location
Chicago
Vehicle(s)
Jeeps lots of jeeps
I had to twist mine, loosen the screw, twist it to where you need it, and tighten. I was confused at first as well, It it all worked out.
Did the circle on the circular mount fit inside the circle on the bracket? In the instructions it looks like it is supposed to but mine doesn't. You can see what I'm talking about in one of the pictures.
