Dana 44 gear pattern

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
112
Messages
5,017
Reaction score
12,147
Location
Pueblo West, CO
Vehicle(s)
2022 392XR, 2025 Wagoneer S, 2006 LJ 6-spd
Occupation
Avi Engineer

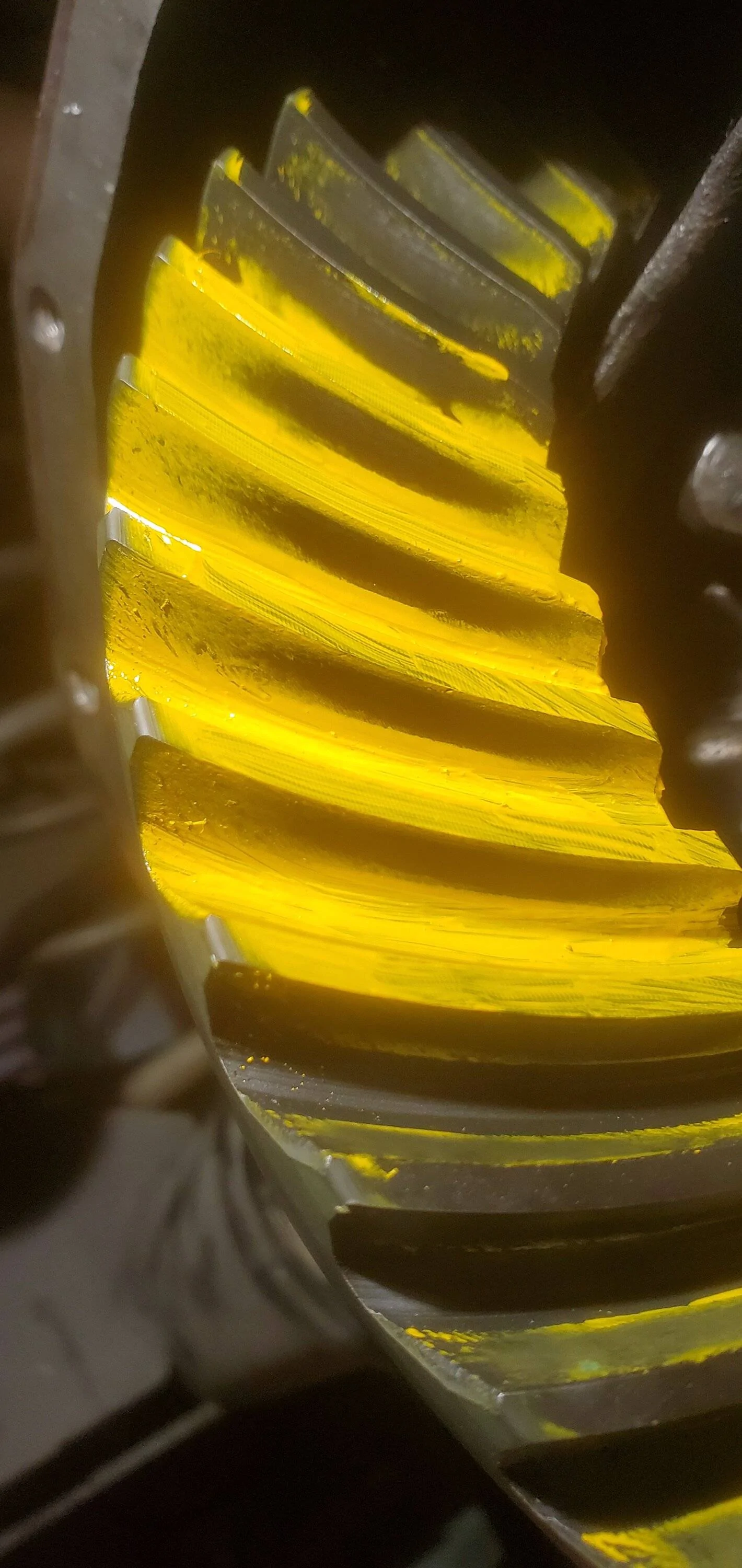

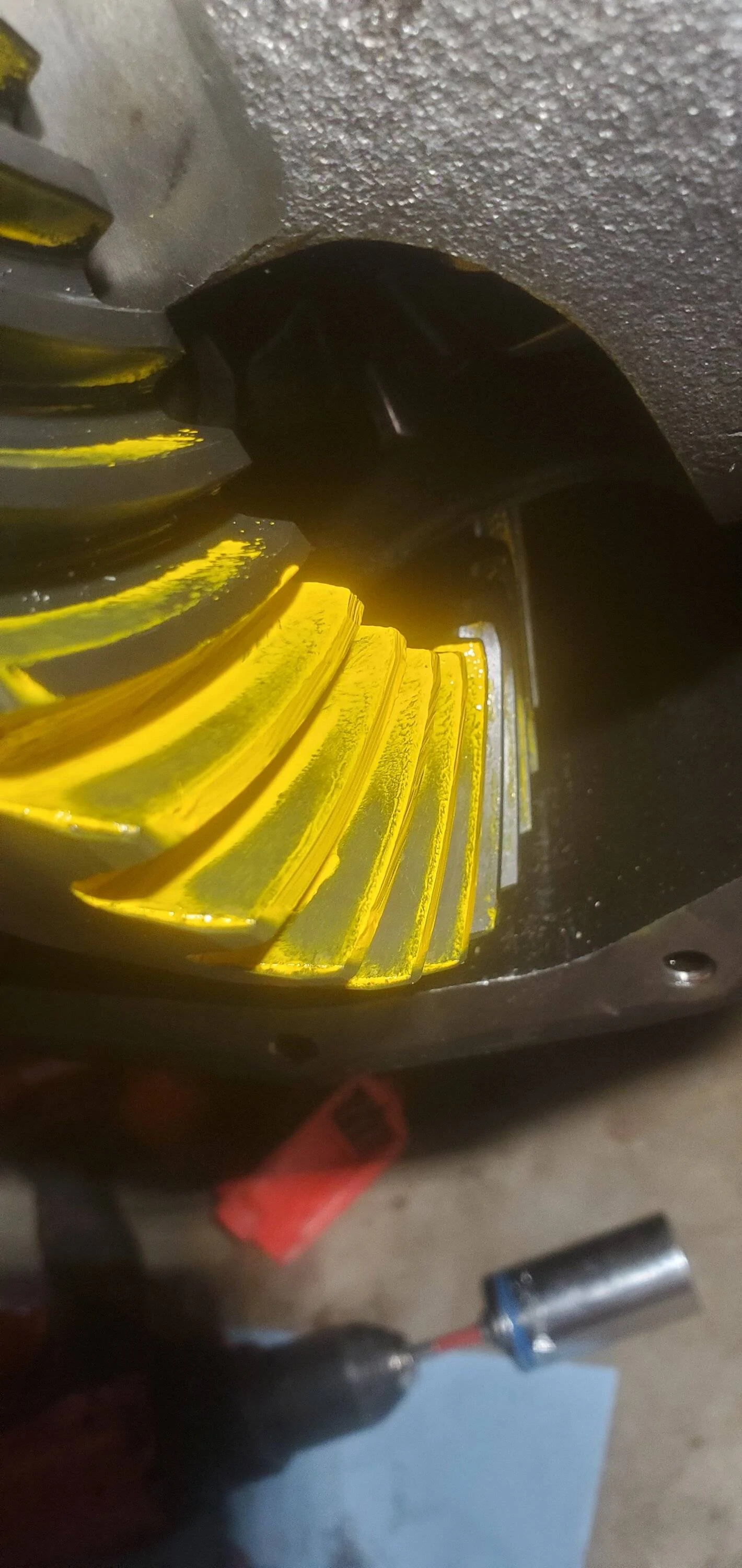

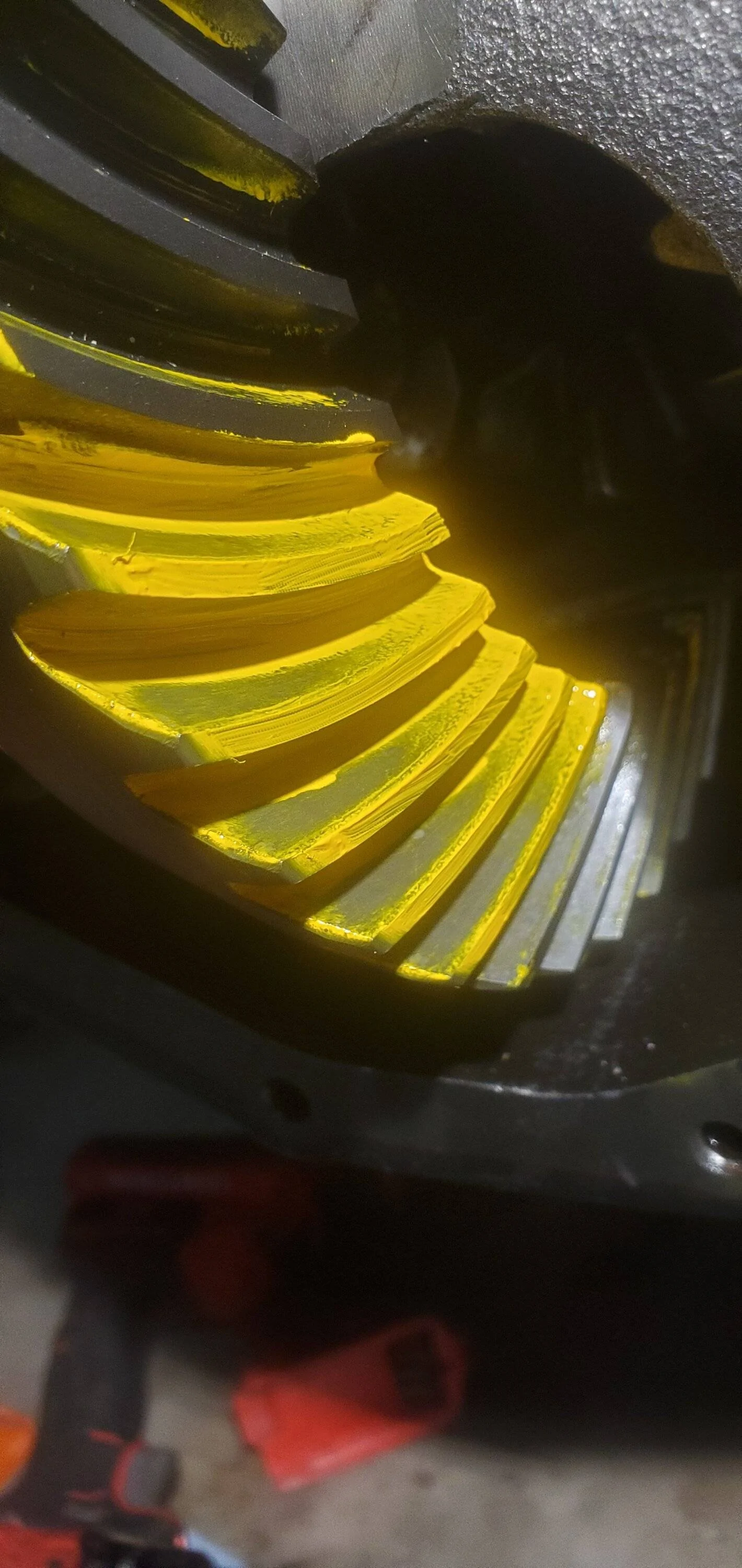

Just put in revolution 4.88. What do y'all think of this pattern? 18' Sahara LS Dana 44.
@The BFH Garage @chevymitchell
You guys have been a HUGE help, thanks!

Hmm... usually when the drive side is toe and the coast is heel, this indicates backlash needs adjusted.

What's the current backlash value and were the caps torqued when you looked at the pattern?

What are your PTQR value and TTQR values?

I'm literally doing gears myself right now. Lol. Just another day here in NC.

Last edited:

grimmjeeper

Well-Known Member
First Name
Roy
Joined
May 6, 2021
Threads
13
Messages
8,282
Reaction score
41,346
Location
Castle Rock, CO
Website
www.grimmjeeper.com
Vehicle(s)
2021 Wrangler, 1987 Comanche, 1997 F250
Build Thread
Link
Occupation
enginerd
Hmm... usually when the drive side is toe and the coast is heel, this indicates backlash needs adjusted.

What's current backlash value and were the caps torqued when you looked at the pattern?

What are your PTQR value and TTQR values?

I'm literally doing gears myself right now. Lol. Just another day here in NC.
What he said. ?


Sponsored

OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
Backlash is 6. I just hand tighted the caps didn't torque them yet.
Thanks for the help

Last edited:
OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
My Torque to rotate is off. I'm at 10. I'll tighten that and run the pattern again.


chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
112
Messages
5,017
Reaction score
12,147
Location
Pueblo West, CO
Vehicle(s)
2022 392XR, 2025 Wagoneer S, 2006 LJ 6-spd
Occupation
Avi Engineer
My Torque to rotate is off. I'm at 10. I'll tighten that and run the pattern again.
Excellent. That will change the backlash from a 6 to something tighter. Once you get it back to 6 or so, you'll be alright.

Be careful though. It'll jump from 10 to 35+ with a quickness.

OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
Excellent. That will change the backlash from a 6 to something tighter. Once you get it back to 6 or so, you'll be alright.

Be careful though. It'll jump from 10 to 35+ with a quickness.
You ain't kidding. I think it went up 5lbs just looking at it ?

OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
Excellent. That will change the backlash from a 6 to something tighter. Once you get it back to 6 or so, you'll be alright.

Be careful though. It'll jump from 10 to 35+ with a quickness.
Ok, on my third set up. My caps are torqued, torque to rotate is 15, backlash is 7. Pinion shim is .042. It looks like the coast side is too far toward the heel. What are your thoughts?

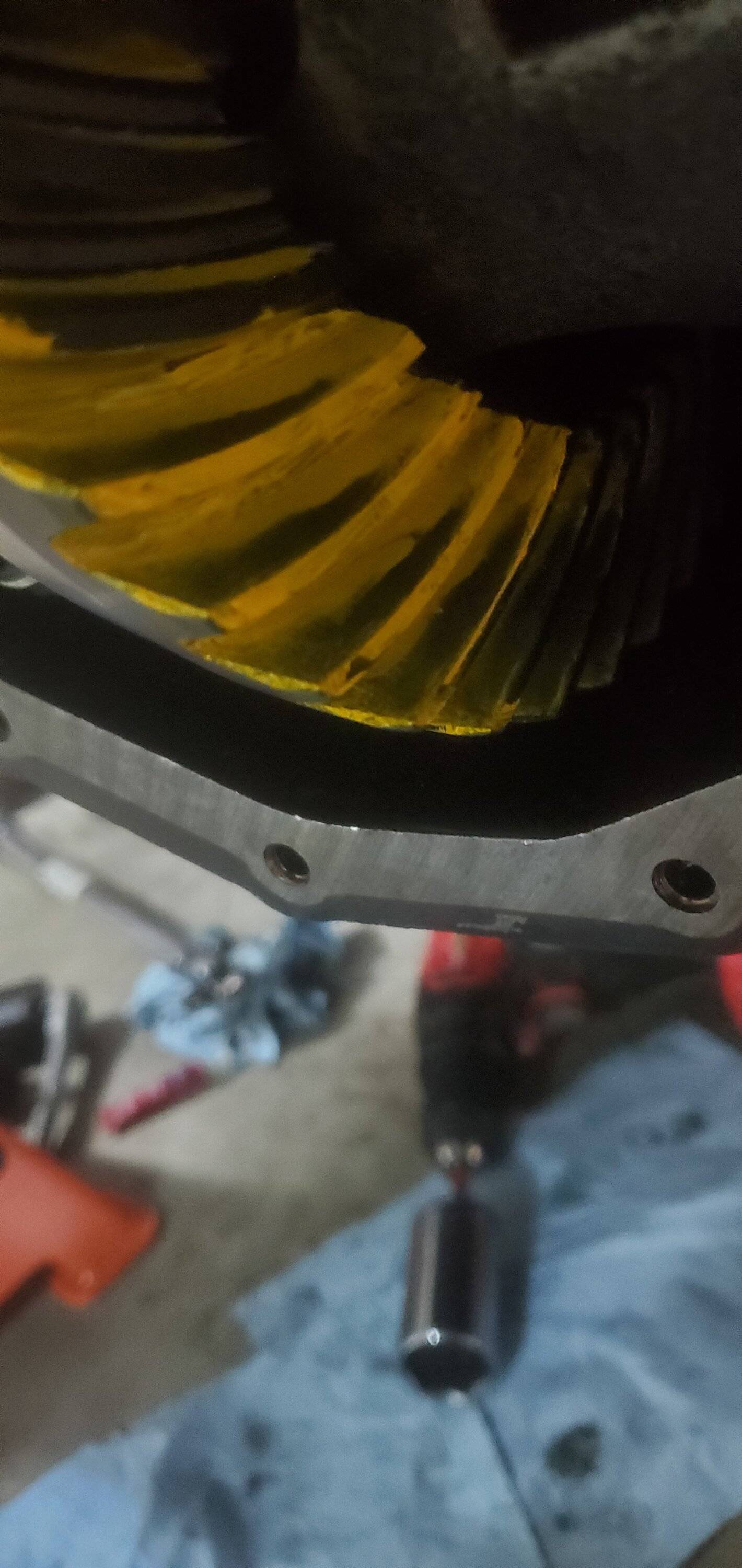

Jeep Wrangler JL Dana 44 gear pattern 20230730_024806
Jeep Wrangler JL Dana 44 gear pattern 20230730_024824


Sponsored

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
112
Messages
5,017
Reaction score
12,147
Location
Pueblo West, CO
Vehicle(s)
2022 392XR, 2025 Wagoneer S, 2006 LJ 6-spd
Occupation
Avi Engineer
Ok, on my third set up. My caps are torqued, torque to rotate is 15, backlash is 7. Pinion shim is .042. It looks like the coast side is too far toward the heel. What are your thoughts?

My real thoughts …? This is why I stopped installing Revolution gear sets years ago. I’ll only install Dana or Yukon now.

What was the etch on both pinions?

What was the factory shim amount?

Where are the shims located? Behind the bearing race or under the pinion head bearing.

OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
My real thoughts …? This is why I stopped installing Revolution gear sets years ago. I’ll only install Dana or Yukon now.

What was the etch on both pinions?

What was the factory shim amount?

Where are the shims located? Behind the bearing race or under the pinion head bearing.

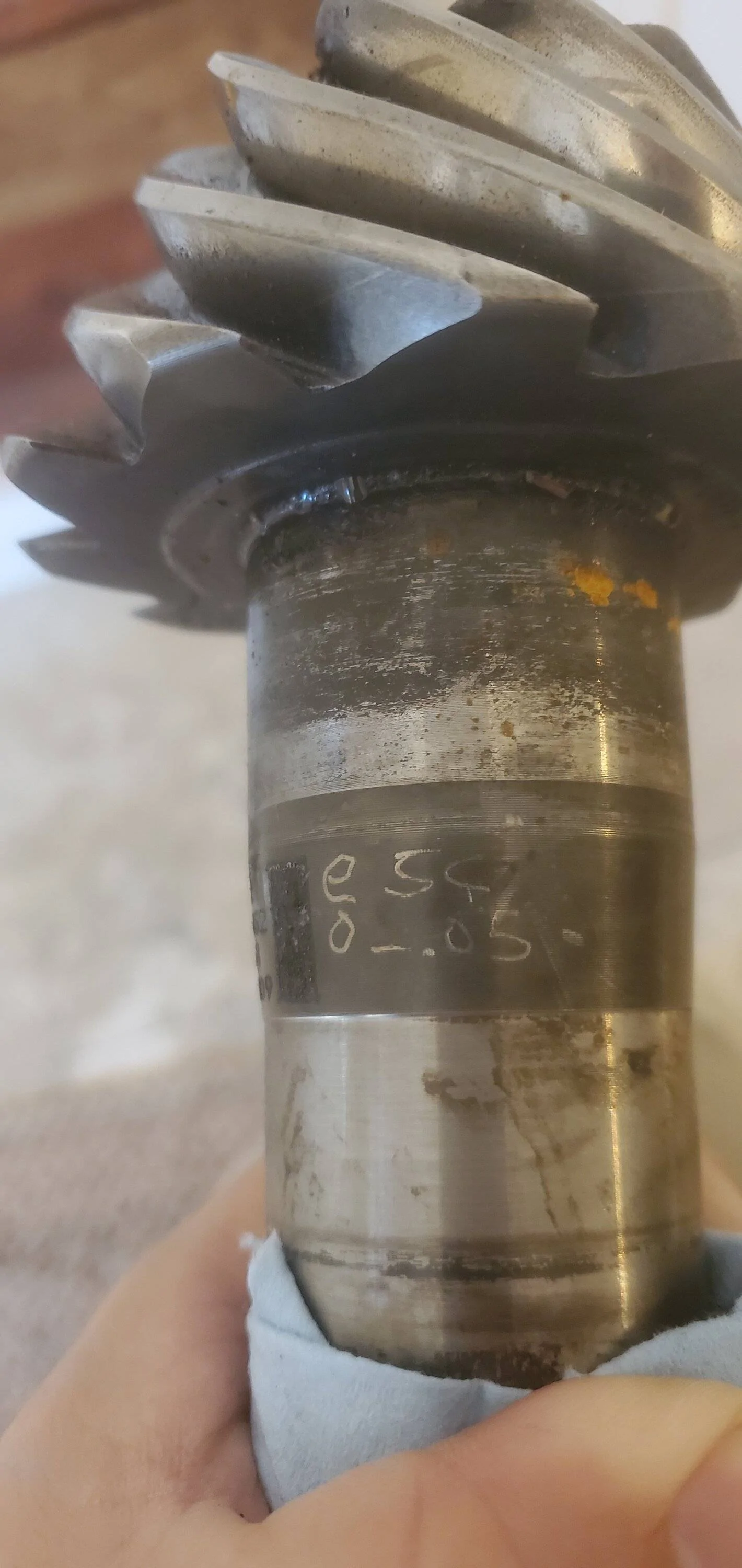

Factory shim was .042, the first pattern was set at .047. The shims are behind the race. Apparently I didn't write down the etch numbers any where. Pic of the old one below, looks like I'll be tearing down again ?
Jeep Wrangler JL Dana 44 gear pattern 20230730_111252


chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
112
Messages
5,017
Reaction score
12,147
Location
Pueblo West, CO
Vehicle(s)
2022 392XR, 2025 Wagoneer S, 2006 LJ 6-spd
Occupation
Avi Engineer
Factory shim was .042, the first pattern was set at .047. The shims are behind the race. Apparently I didn't write down the etch numbers any where. Pic of the old one below, looks like I'll be tearing down again ?
Yeah...I'd keep making adjustments. There's something not right.

Is the race pounded in all the way?


chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Threads
112
Messages
5,017
Reaction score
12,147
Location
Pueblo West, CO
Vehicle(s)
2022 392XR, 2025 Wagoneer S, 2006 LJ 6-spd
Occupation
Avi Engineer
Factory shim was .042, the first pattern was set at .047. The shims are behind the race. Apparently I didn't write down the etch numbers any where. Pic of the old one below, looks like I'll be tearing down again ?
Also, be mindful how you're getting your patterns. Don't spin the pinion nut with a drill and socket.

Spin the flange by hand while providing as much resistance on the ring as you can. You can use a rag, hammer handle, or anything of the sort. I use a couple rags and push as hard as I can while spinning the flange by hand. If you don't provide resistance to the ring, the pattern will not be accurate or provide you good data for analyzing and corrective actions. If both pinions are 0 in the bottom left corner of the etch, then go back to the factory shim stack size, but with NEW shims. Then get a pattern with resistance on the ring and don't use the drill. The drill method will lie to you more than it will help you. Also known as the VA or Spectrum method. Lol

OP
OP

Jetpilot03

Active Member
Joined
Mar 25, 2018
Threads
4
Messages
40
Reaction score
12
Location
TN
Vehicle(s)
2018 JL
Also, be mindful how you're getting your patterns. Don't spin the pinion nut with a drill and socket.

Spin the flange by hand while providing as much resistance on the ring as you can. You can use a rag, hammer handle, or anything of the sort. I use a couple rags and push as hard as I can while spinning the flange by hand. If you don't provide resistance to the ring, the pattern will not be accurate or provide you good data for analyzing and corrective actions. If both pinions are 0 in the bottom left corner of the etch, then go back to the factory shim stack size, but with NEW shims. Then get a pattern with resistance on the ring and don't use the drill. The drill method will lie to you more than it will help you. Also known as the VA or Spectrum method. Lol
Thanks! I have been using the drill method with resistance applied. I'll run one by hand. Races all seated well.
I'm confused about the PMD. Install kit says reduce pinion shim size to move the coast side closer to the toe. It seems like I had the opposite effect?
