Broken locker wire - can this be fixed?

[Tooth]

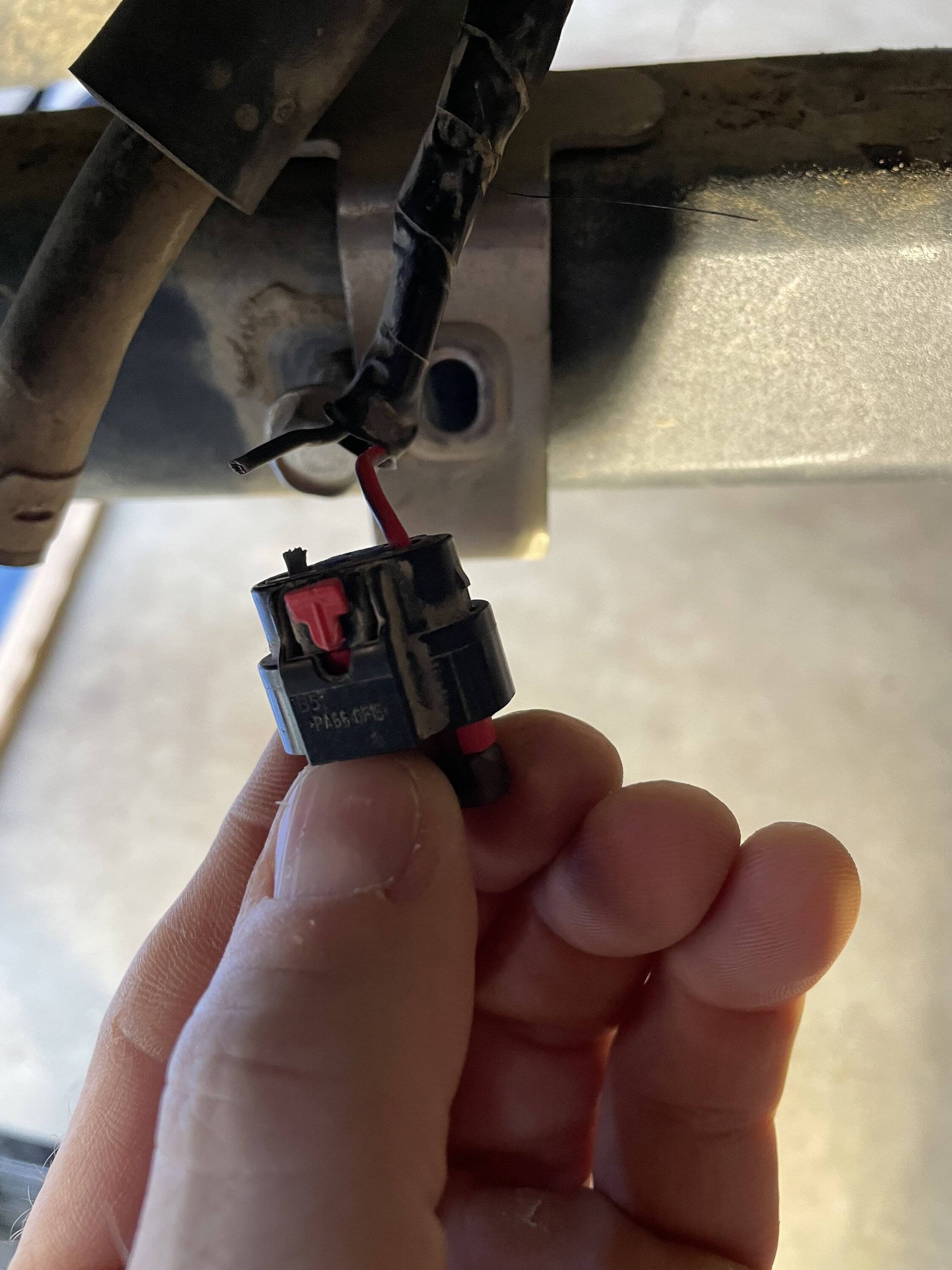

My elocker wire broke off when I was removing the plug. Can this be repaired or do I need to spend $100 for a new harness? Ggrraahhhh!

Sponsored



[Jeep Wick]

My elocker wire broke off when I was removing the plug. Can this be repaired or do I need to spend $100 for a new harness? Ggrraahhhh!

You can remove the pin from the plug and probably repair that with solder. May require tools you don't have. I also found a new pigtail on ebay that should work, it's $30.
https://www.ebay.com/itm/2544525423...LdyFpK+pc2v4ZM3ts/k8dX7oA=|tkp:Bk9SR6z9zO6JYw



[Valpo Jeep]

Something like this?

https://labworkauto.com/products/fo...axles-with-electric-lockers-wire-harness-axle



[Ang1Sgt]

One thing you could do is peel back the harness, get a tool to release the old pin, crimp a new pin on a new color correct piece of wire and then solder/heatshrink the repair.

Of course I am assuming that you may either have all the tools needed, or know of someone that does.

I would NOT make a repair so close to the connector. It won’t hold up well and could cause issues down the road for you.



[Tooth]

Thanks all. I removed the wire from the harness, but finding a replacement connector Pin looks impossible. Guy on eBay custom makes harnesses for $35, so I bought one. We shall see how it works.
eBay harness
