OEM LED headlights

[dcdanny]

I have a set of headlights coming from Rock Auto soon enough. And Greg's harness is sitting at home next to the Tazer. Can't wait!

Did tazer finally get to the headlights update? Last I spoke to the automotive z. He said he only had the fog lights option

Sponsored



[Joaozao]

Did tazer finally get to the headlights update? Last I spoke to the automotive z. He said he only had the fog lights option

Headlight LED seems to be included in the latest public beta



[weeitsmikelee]

Headlight LED seems to be included in the latest public beta

Does this mean I don’t have to rely on dealership flash for aftermarket lights?



[Joaozao]

Does this mean I don’t have to rely on dealership flash for aftermarket lights?

That's what I got from this post here



[weeitsmikelee]

That's what I got from this post here

Much appreciated! I’ll wait and learn from you guys



[Kenny]

Then Danny and a few others confirmed that a reflash solved all the issues with installing these headlights (in regards to flickering and the low beams staying on with the highs) which is definitely the way to go.

Just confirming, I install the OEM LEDs and get the RE flash - and the lights work - I don’t care about the halos for now. Anyone?



[JLEEPER]

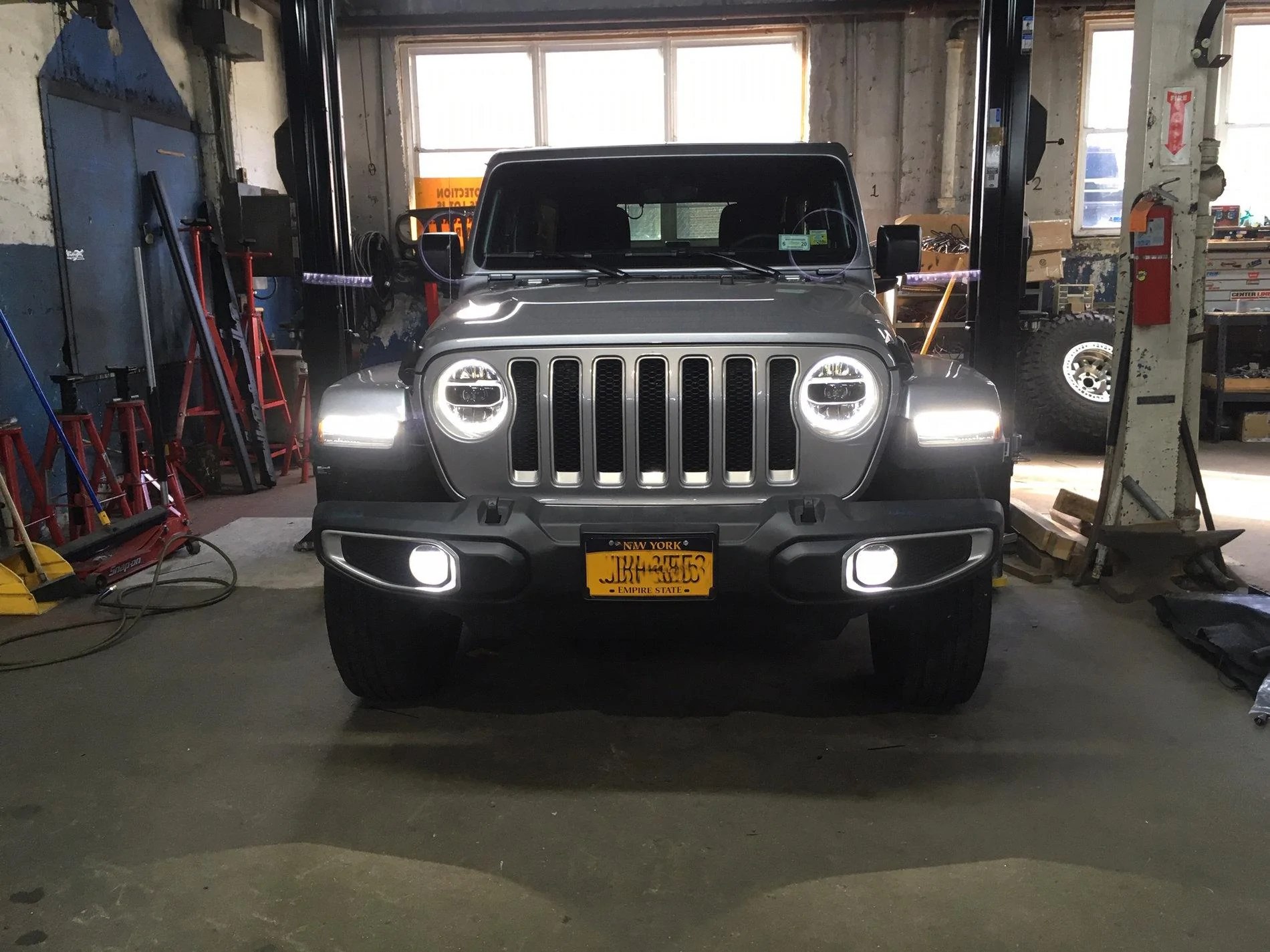

my local dealership sold a Sahara with halogen package, but told customer they were getting the LED package. They asked me to help out, with a few of my own adapters and personally visiting with Tazer, I have done full headlight and foglight conversion from Halogen to OEM LED, including the LED turn signals flashing correctly with no faults or errors, halos work properly and high-beams work as they should.

View attachment 146822



[dcdanny]

Just confirming, I install the OEM LEDs and get the RE flash - and the lights work - I don’t care about the halos for now. Anyone?

That is correct!



[weeitsmikelee]

my local dealership sold a Sahara with halogen package, but told customer they were getting the LED package. They asked me to help out, with a few of my own adapters and personally visiting with Tazer, I have done full headlight and foglight conversion from Halogen to OEM LED, including the LED turn signals flashing correctly with no faults or errors, halos work properly and high-beams work as they should.

View attachment 146822

If you don’t mind my asking, which dealership ? I’m contemplating getting the tazer or trying my local dealer.



[Joaozao]

my local dealership sold a Sahara with halogen package, but told customer they were getting the LED package. They asked me to help out, with a few of my own adapters and personally visiting with Tazer, I have done full headlight and foglight conversion from Halogen to OEM LED, including the LED turn signals flashing correctly with no faults or errors, halos work properly and high-beams work as they should.

View attachment 146822

How did you manage to wire the halos?



[dcdanny]

How did you manage to wire the halos?

I was gonna ask the same thing.



[Joaozao]

I was gonna ask the same thing.

I'm planning on using Greg's harness and taping the power side mirrors in the fuse box but if there's a better way I'm all ears!



[dcdanny]

I'm planning on using Greg's harness and taping the power side mirrors in the fuse box but if there's a better way I'm all ears!

I'm planning on using Greg's harness and taping the power side mirrors in the fuse box but if there's a better way I'm all ears!

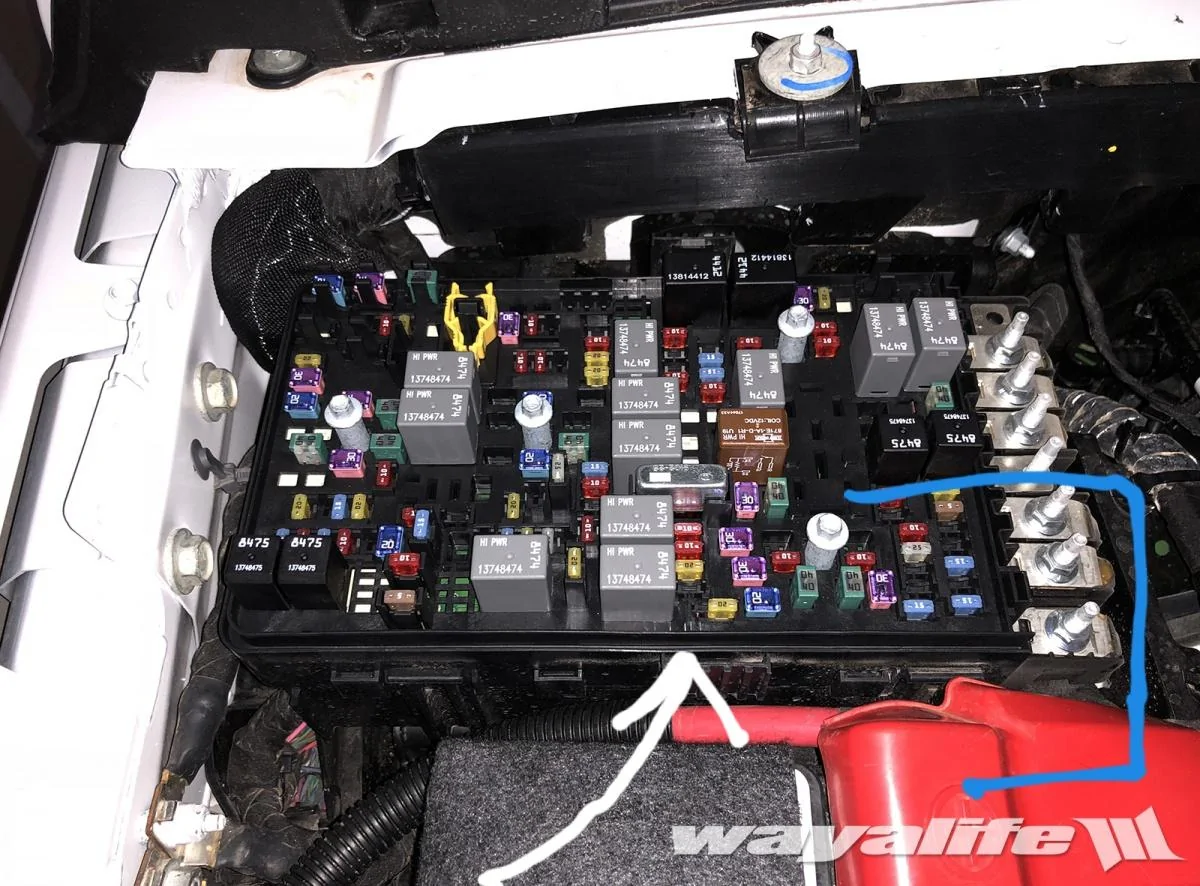

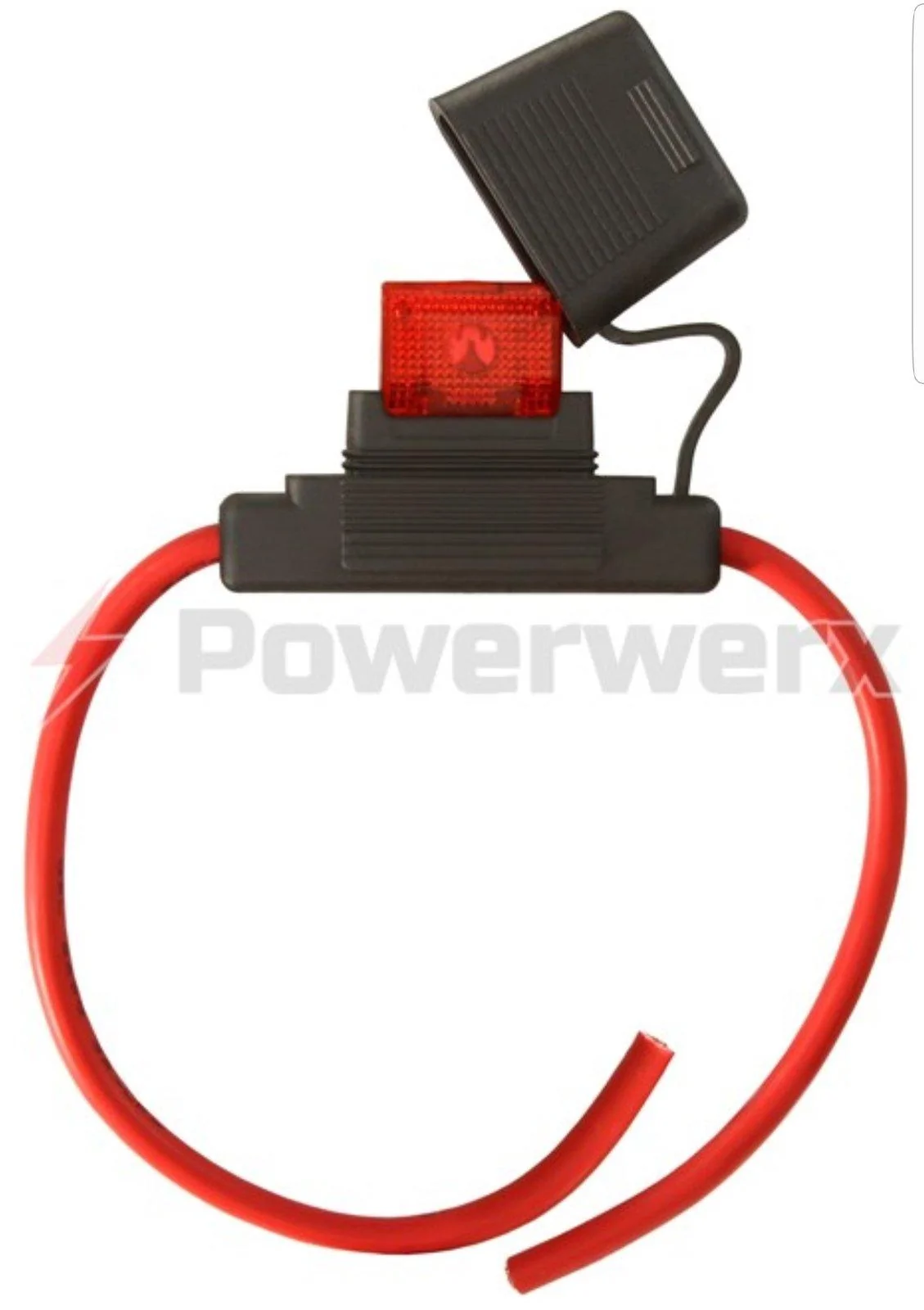

Run it to where the arrow points. The blue line is where I suggest to the run the wire out. So the fuse box can close. Also add one a fuse to it, like the 2nd pic... I added 2. Lights were too pricey to blow



[Joaozao]

Run it to where the arrow points. The blue line is where I suggest to the run the wire out. So the fuse box can close. Also add one a fuse to it, like the 2nd pic... I added 2. Lights were too pricey to blow

With that spot I might not be able to use the fuse tap I have. What kind of fuse did you use inline?



[dcdanny]

With that spot I might not be able to use the fuse tap I have. What kind of fuse did you use inline?

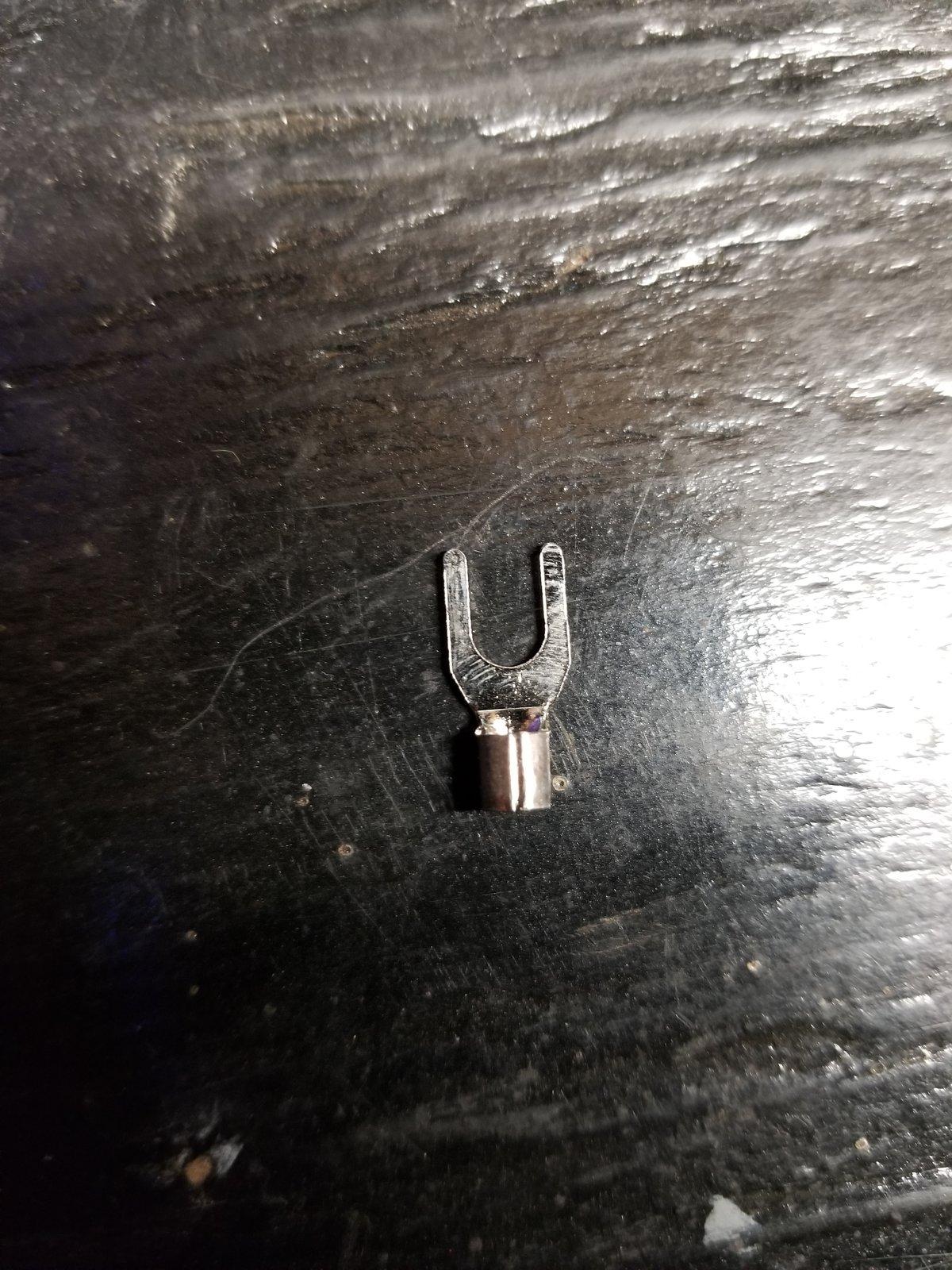

That was true. Only reason I didn't use the fuse tap was cause there was no type of connections in the open slots. That was the only one that had power. Ended up using one of these & clipping one side off. Went in easy & is being held in tight.
