Negative Bus Bar

[bobholthaus]

Maybe checkout something like this: https://www.amazon.com/Extreme-Battery-Terminals-Wrangler-Gladiator/dp/B09W24MCHD/

Wow, I didn't know this existed. This may work perfectly for me!

Sponsored



[emarrero]

It probably has to do with Duty Cycle.. I won't recommend which direction to go, but I will say I follow the 12v charts, accounting for engine or environment temperature and up to 2% loss whenever I do wiring.

I've got enough on my mind usually to not have the spare capacity to also worry about my wire sizes. I like to be conservative when dealing with large currents.

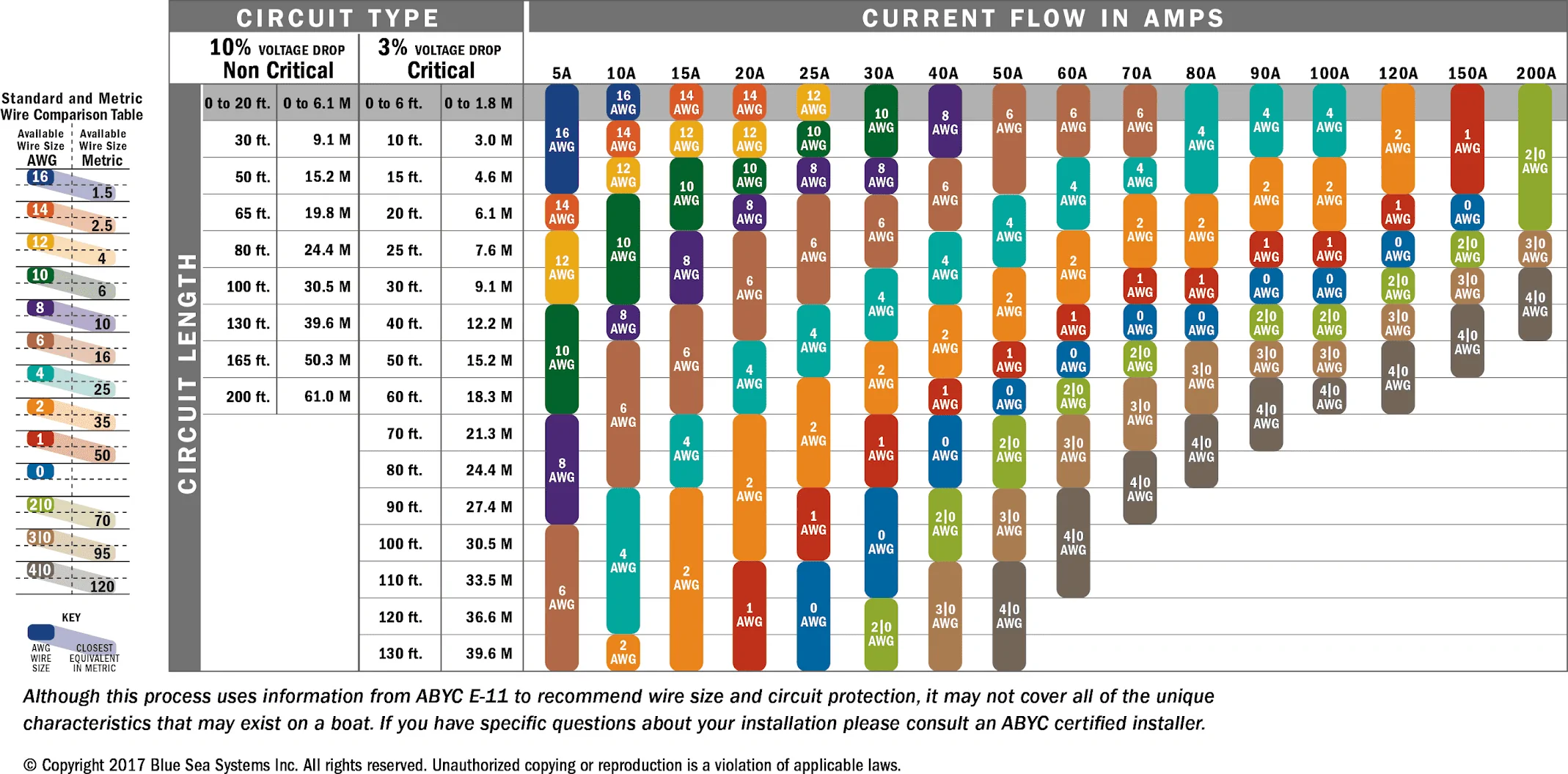

Sharing this 12V wire size guide



[Pareto Offroad]

Wow, I didn't know this existed. This may work perfectly for me!

I agree! I just searched Amazon for “terminal extender” and found that. Looks to be great for a winch, arb twin, and an accessory box. I’ve got these myself and can’t wait to try it out. Mine will be here in 2 days.

The listing says it’s “bronze”. That’s not the best conductor, but I’m willing to try it out and will return if I see more than a 0.3-0.5% loss from one end to the other.



[BDinTX]

When I tried using that L shaped thing it didn’t work out. You might find something useful in this thread:
https://www.jlwranglerforums.com/forum/threads/ess-battery-cable-change.86624/



[Mguy]

Another bus bar option for a direct connection to the intelligent battery sensor (IBS) is to make your own. Tinned copper is the best material, but a bit inconvenient because threading will be weak. Best to thru-bolt. One source on Amazon:

https://www.amazon.com/dp/B0CGJS1PH...XXASPNCQ&psc=1&ref_=list_c_wl_lv_ov_lig_dp_it



[bobholthaus]

I agree! I just searched Amazon for “terminal extender” and found that. Looks to be great for a winch, arb twin, and an accessory box. I’ve got these myself and can’t wait to try it out. Mine will be here in 2 days.

The listing says it’s “bronze”. That’s not the best conductor, but I’m willing to try it out and will return if I see more than a 0.3-0.5% loss from one end to the other.

Please let me know what you find out. I'm going to try this solution before I order a custom cable to run up to the Blue Sea setup that I already installed and was hoping to use. I also need to call Warn, which I will do.



[THAW]

I would be surprised if the 409 amp draw spec from Warn is talking about continuous draw.

The current draw is highly dependent on the pull load.



[bobholthaus]

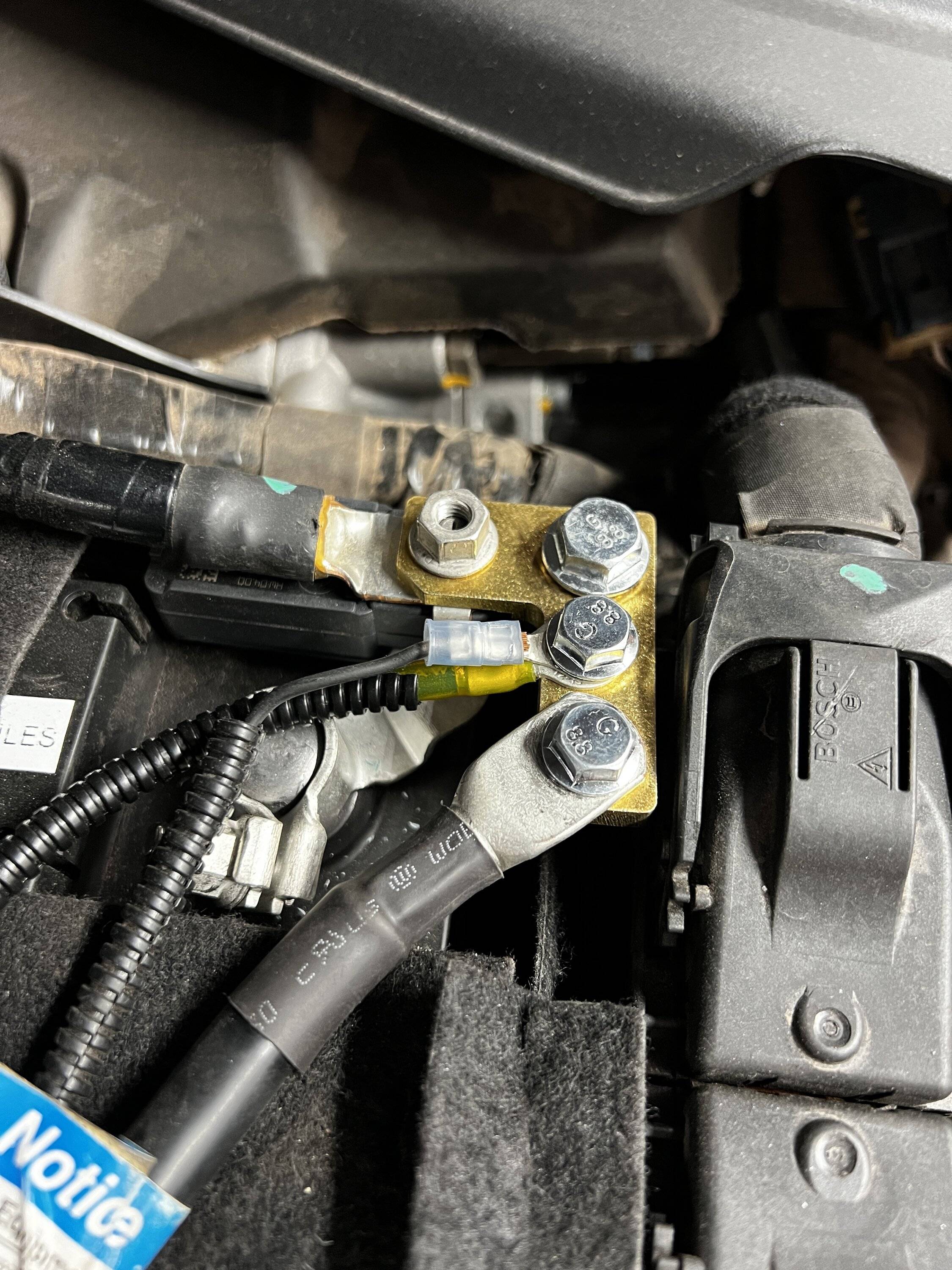

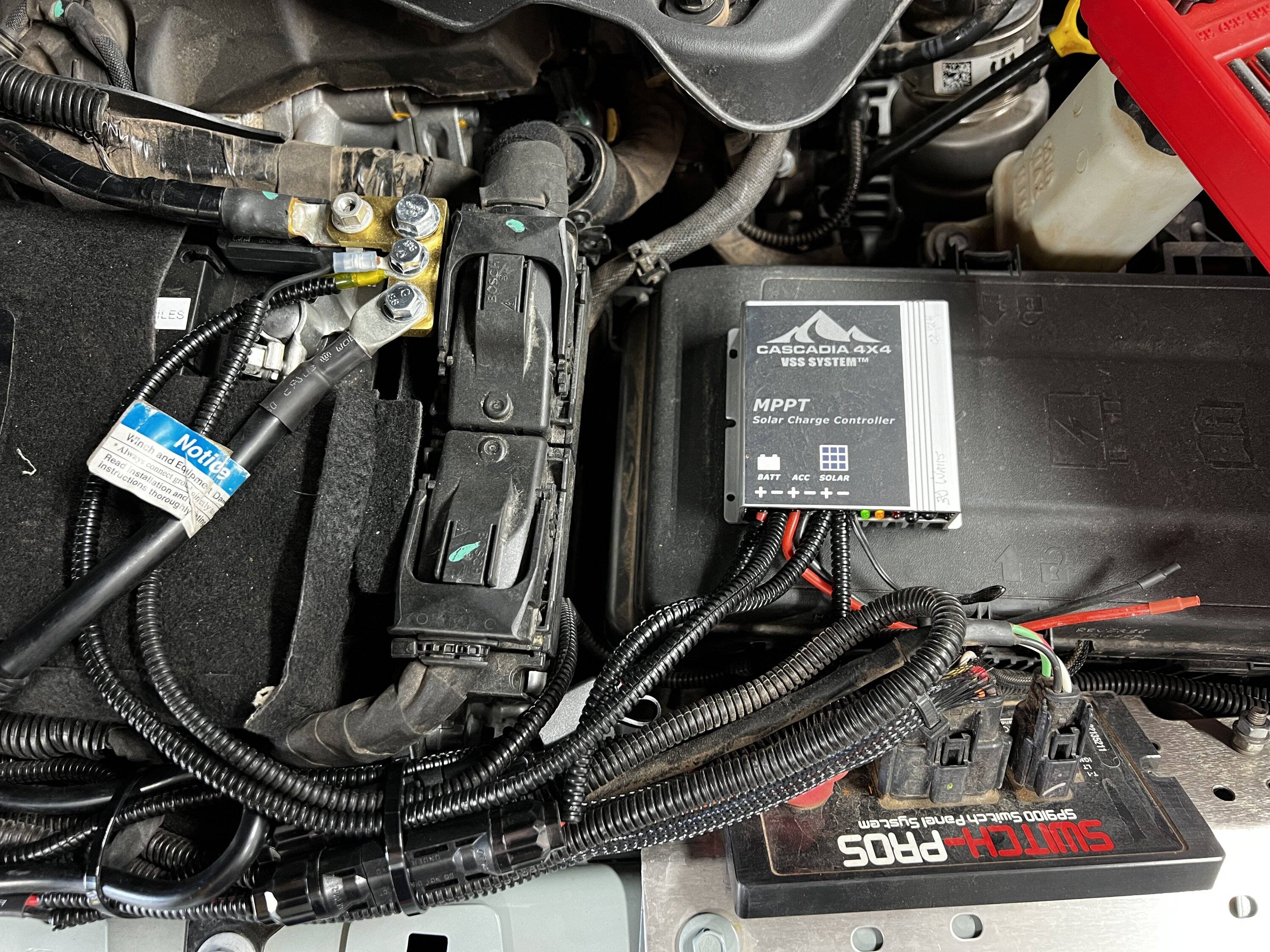

So I wired up the Amazon piece today and I think it will work perfectly. The three lugs are perfect: 1 Is my winch ground: 2 is my hood solar ground and my switch pros ground; and 3 will be for my Kraken/ARB twin ground. There aren’t much threads on the main nut holding it on, so I used blue locktite. I used the thinner one and flipped it over for my diesel. I think it looks pretty OEM. I’m completely happy.

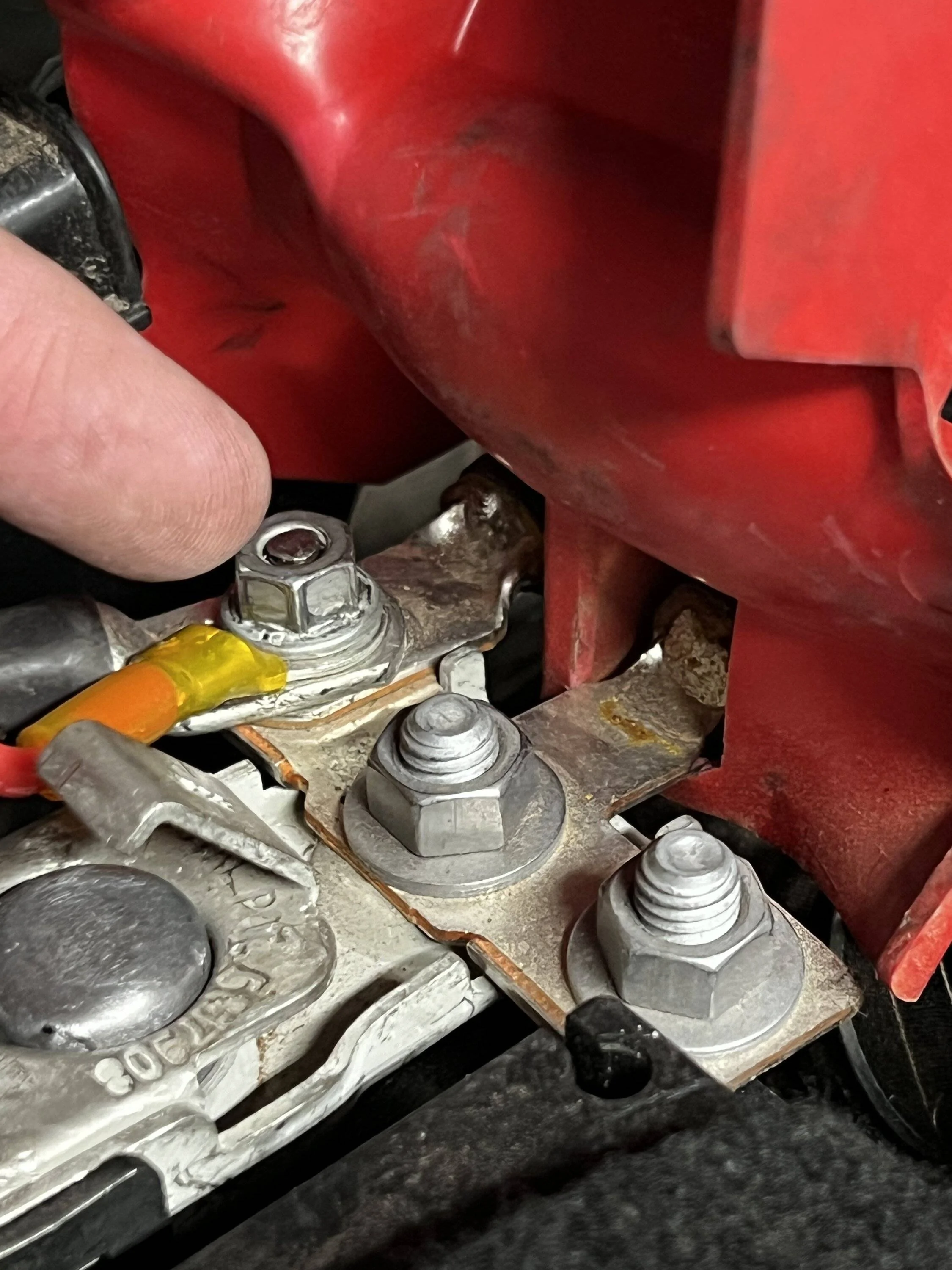

The third pic of my positive: I couldn’t seem to get that nut that I’m pointing at totally tight; that’s where I connected my positive feed from my solar panel. I’m wondering if there’s a bolt in there that’s spinning. I got it snug with blue loctite and let it be. If you think I need to worry about it, please advise.
