At some point (MY21?) a change was made to the ESS negative battery cables, swapping the cable ends between the aux battery cable and the body ground cable. This makes it easier to disconnect both batteries from body ground, but makes it more difficult to disconnect just the aux battery.

Here's the main battery negative terminal with the battery sensor attached and the cables disconnected.
Cable A old connects to the body ground, new connects to the aux battery negative.
Cable B old connects to the aux battery negative, new connects to the body ground.
Jeep Wrangler JL ESS Battery Cable Change neg cables a b 2


With the old cables, disconnecting cable B disconnects just the aux battery negative. With the new cables, this should disconnect both batteries from the body ground.
Jeep Wrangler JL ESS Battery Cable Change neg cables aux disconnected 2


With the new cables, removing both cables and reconnecting cable B (body ground) should disconnect just the aux battery.
Jeep Wrangler JL ESS Battery Cable Change neg cables aux only 2
Sponsored



Canucklesammich

Well-Known Member
Joined
Apr 14, 2022
Threads
4
Messages
242
Reaction score
550
Location
SoCal
Vehicle(s)
2022 JLR
Just to clarify, you're referring to the terminal styles, right? The thinner cable, regardless of the terminal used, still goes to the aux?

  • Like
Reactions: OBD

BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon

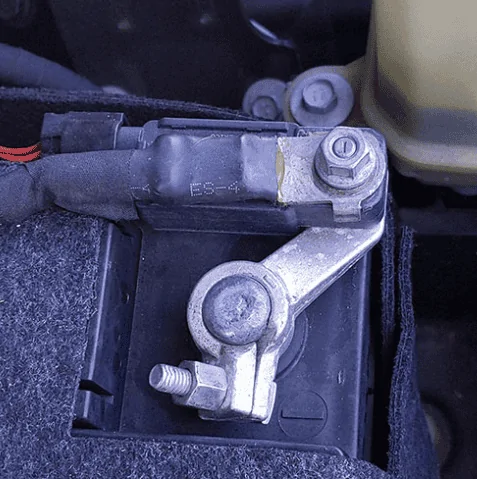

Hey folks, I finally decided to pull my aux battery out of the mix and found that I have these new style battery connectors. So I could do this:
Jeep Wrangler JL ESS Battery Cable Change 1663598154925


But there isn't enough of that bolt to also add my winch ground to it.

I feel like I need something similar to this:
Quadratec JK-HDBT12 Extreme Duty Battery Terminals for 12-18 Jeep Wrangler JK | Quadratec
Jeep Wrangler JL ESS Battery Cable Change 1663598388944

But I don't like the idea of using brass since, according to the googles, Brass is only 28% as conductive as copper.

I saw somewhere on here where somebody used tinned copper bus bar but I haven't been able to find something small. Any suggestions?


jaymz

Well-Known Member
First Name
Jay
Joined
Aug 11, 2021
Threads
17
Messages
1,259
Reaction score
2,322
Location
Inland Empire
Vehicle(s)
2018 Rubicon Unlimited
Hey folks, I finally decided to pull my aux battery out of the mix and found that I have these new style battery connectors. So I could do this:
Jeep Wrangler JL ESS Battery Cable Change 1663598388944


But there isn't enough of that bolt to also add my winch ground to it.

I feel like I need something similar to this:
Quadratec JK-HDBT12 Extreme Duty Battery Terminals for 12-18 Jeep Wrangler JK | Quadratec
Jeep Wrangler JL ESS Battery Cable Change 1663598388944

But I don't like the idea of using brass since, according to the googles, Brass is only 28% as conductive as copper.

I saw somewhere on here where somebody used tinned copper bus bar but I haven't been able to find something small. Any suggestions?
It won’t be pretty, but it looks like you could attach your winch ground to the bolt that clamps the negative terminal to the battery post.


Sponsored

21JLURDG

Well-Known Member
First Name
Bill
Joined
Sep 22, 2021
Threads
19
Messages
256
Reaction score
506
Location
Olympia, WA
Vehicle(s)
2021 Wrangler Unlimited Rubicon 3.0 Gecko
Hey folks, I finally decided to pull my aux battery out of the mix and found that I have these new style battery connectors....But there isn't enough of that bolt to also add my winch ground to it...I saw somewhere on here where somebody used tinned copper bus bar but I haven't been able to find something small. Any suggestions?
What was your final solution?


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
What was your final solution?

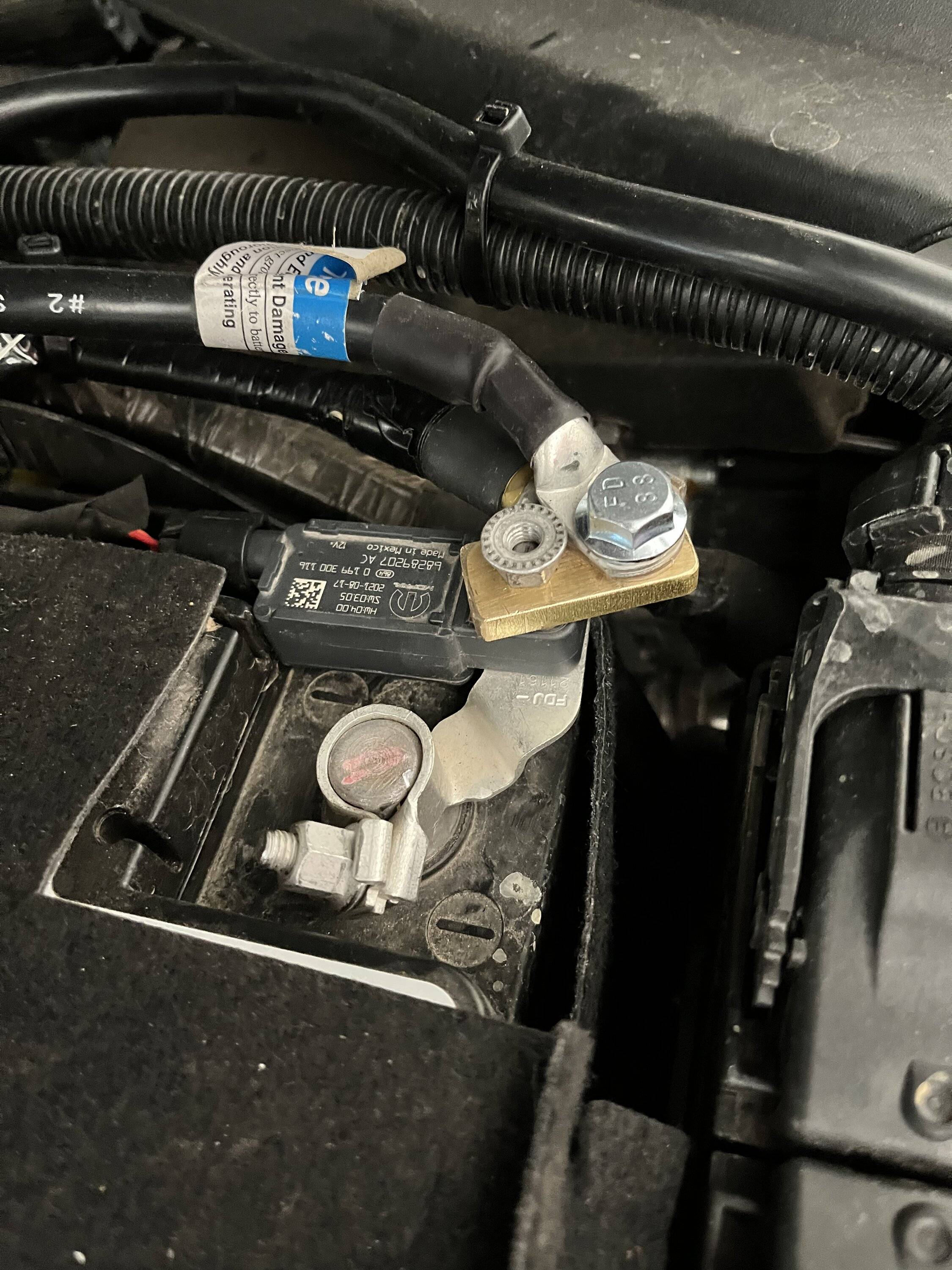

Not the cleanest thing but it seems to work. I’d like to find something better. The upside down flange nut isn’t necessary, the gold part is threaded and snug. I just screwed it on for a place to keep it handy.

https://www.amazon.com/gp/aw/d/B09TDD63P9?psc=1&ref=ppx_pop_mob_b_asin_title

I cut the ends off and just used the middle part.
Jeep Wrangler JL ESS Battery Cable Change 2DD6D098-48D4-48F6-B212-F4A7FC930090


the threaded stud that goes through the sensor makes things challenging. @Mhonda found these which might work better:
https://www.amazon.com/Terminal-Connector-Charging-Extender-Conversion/dp/B09V58QJY4/ref=sr_1_10?crid=N4T3AAROJNJ6&keywords=battery+post+adapter&qid=1665186427&qu=eyJxc2MiOiI2LjI1IiwicXNhIjoiNS41MSIsInFzcCI6IjUuMjAifQ==&sprefix=battery+post+adapte,aps,161&sr=8-10&th=1


21JLURDG

Well-Known Member
First Name
Bill
Joined
Sep 22, 2021
Threads
19
Messages
256
Reaction score
506
Location
Olympia, WA
Vehicle(s)
2021 Wrangler Unlimited Rubicon 3.0 Gecko

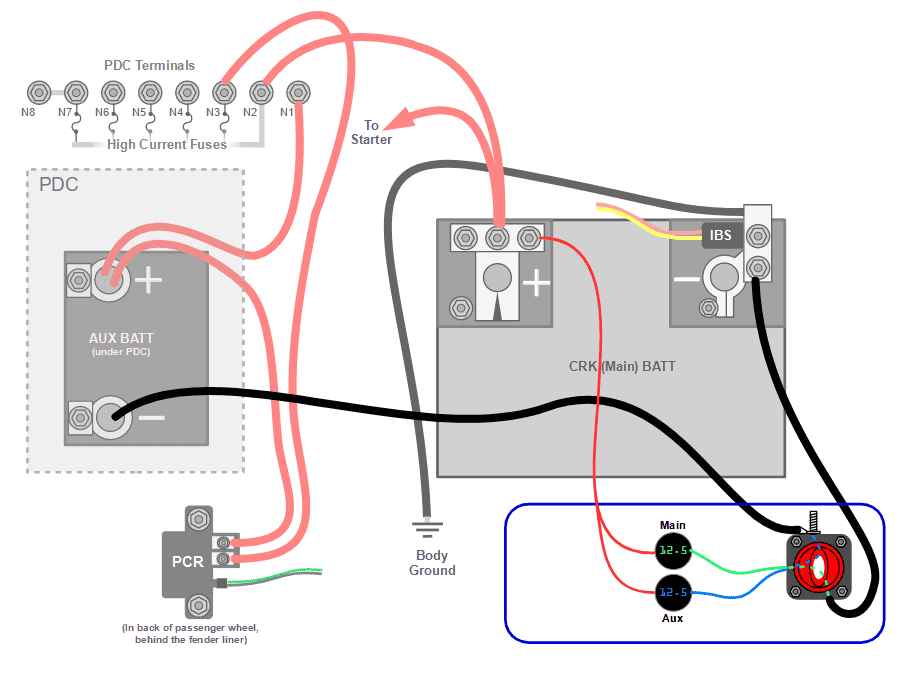

I'm trying to implement Jerry's idea in the 1st image below (RE: https://www.jlwranglerforums.com/forum/threads/ess-dual-battery-management.60034/post-2061724 ) but I'm running into problems connecting the aux cable (version A in the 2d image) with the battery disconnect switch, and then running a 2d cable back to the negative post. The usvehj terminal kit (3rd image) you used might work, but I don't see how the Kolodogo terminal post adapter helps connect additional cables. I doubt we can remove the existing battery posts to replace them, or did you have a different use of them in mind?

Jeep Wrangler JL ESS Battery Cable Change battery management panel 4.PNG

Jeep Wrangler JL ESS Battery Cable Change neg cables a b 2-c
Jeep Wrangler JL ESS Battery Cable Change Usvehj copper battery terminal kit AZ


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon

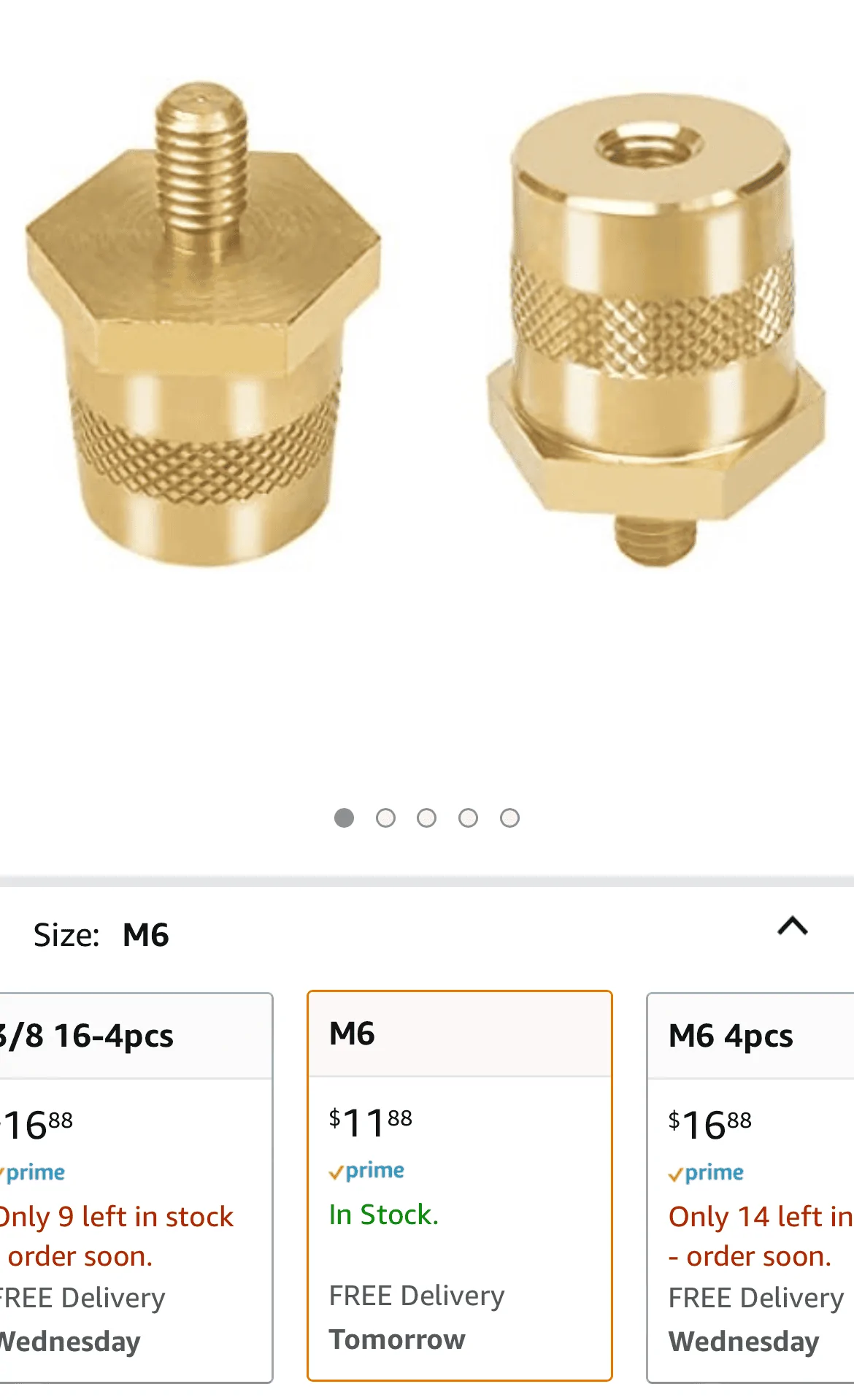

The thinking was that the post could be put on upside down, oriented like the one on the left. As long as the female part is also M6 x 1.0 it will thread onto the top of the sensor. Then the battery and winch grounds could go on the male portion of this do-dad with enough threads left to use the flange nut.

Jeep Wrangler JL ESS Battery Cable Change 1665452351682


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon

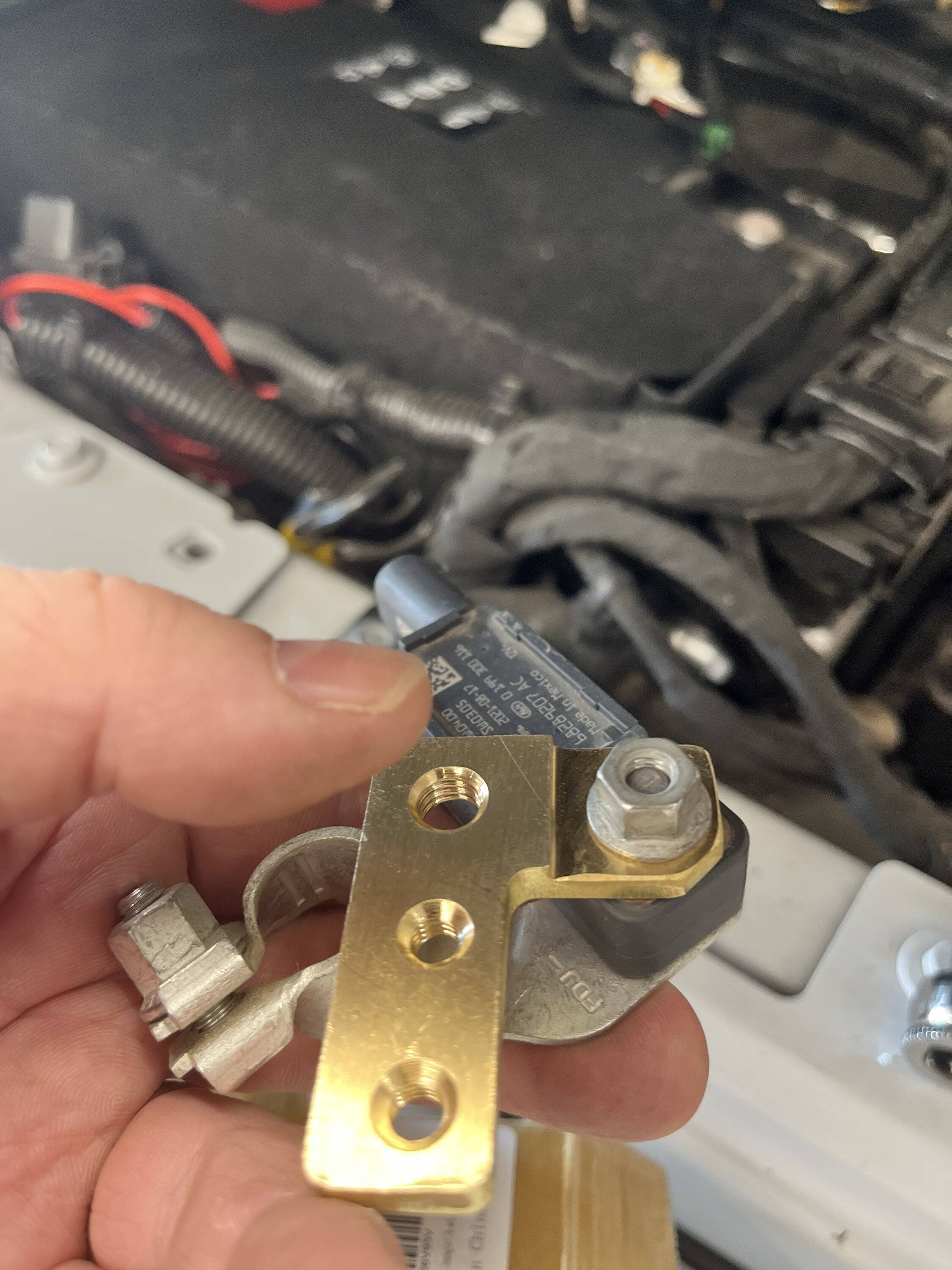

Also notice the narrowed portion on the L adapter isn’t thin enough to get the flange nut on too. It’s also a larger diameter hole than the threaded stud. So this was no good.

Jeep Wrangler JL ESS Battery Cable Change BD7C0613-BD6A-4019-8195-EAB6F7D7D3CC

Edit: I went ahead and ordered the other thing. Will update once it’s here.


Sponsored

BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon

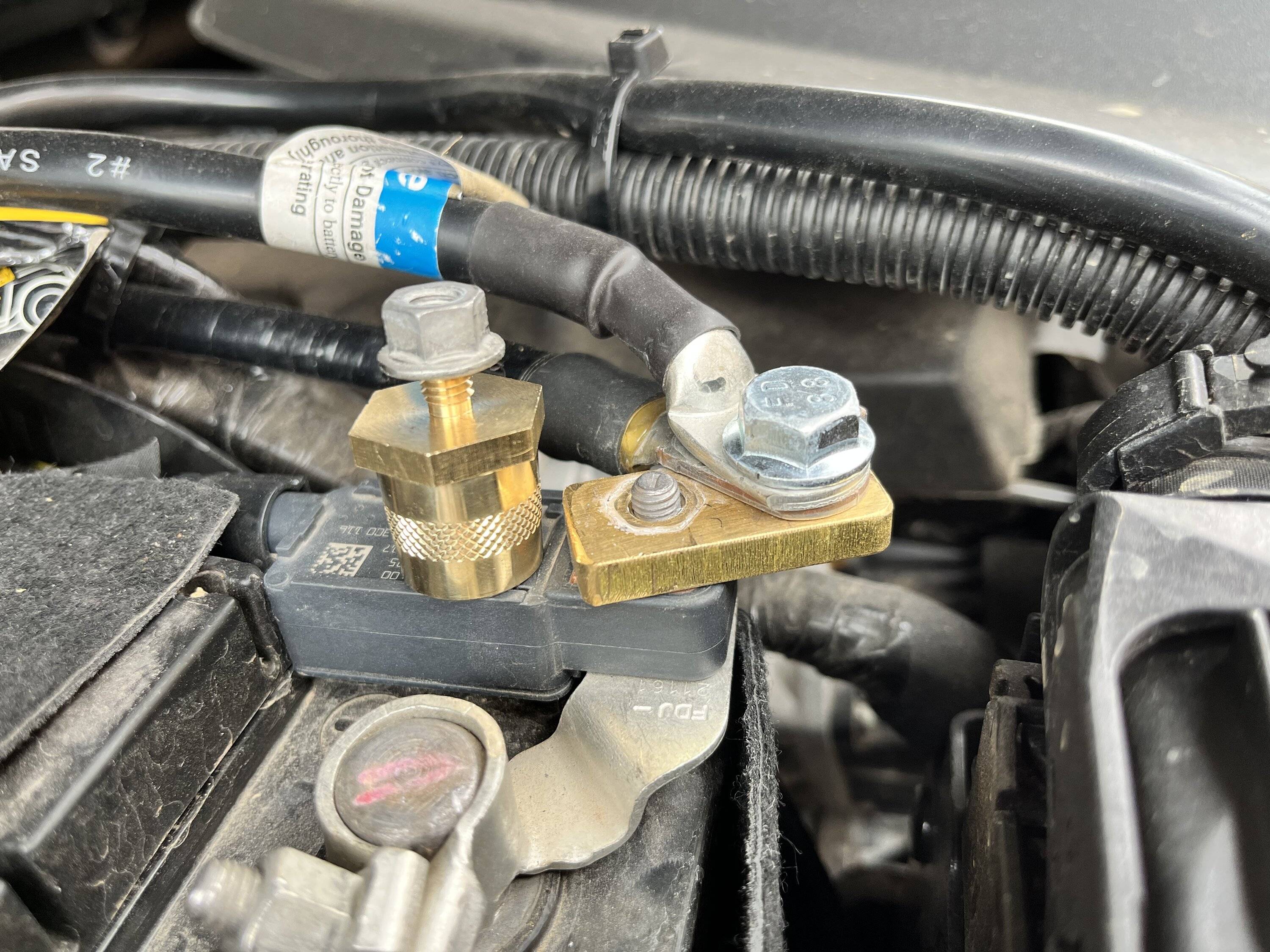

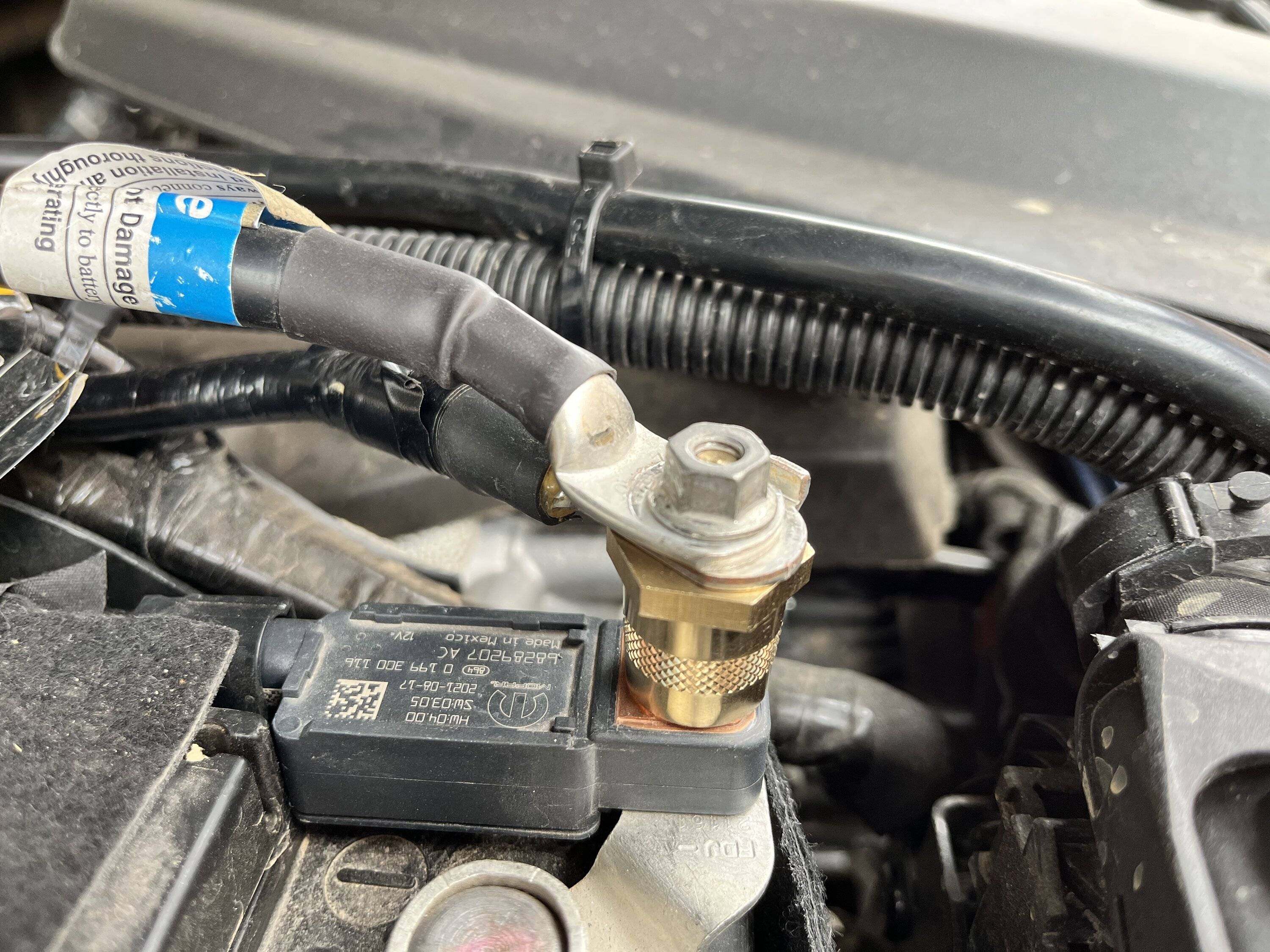

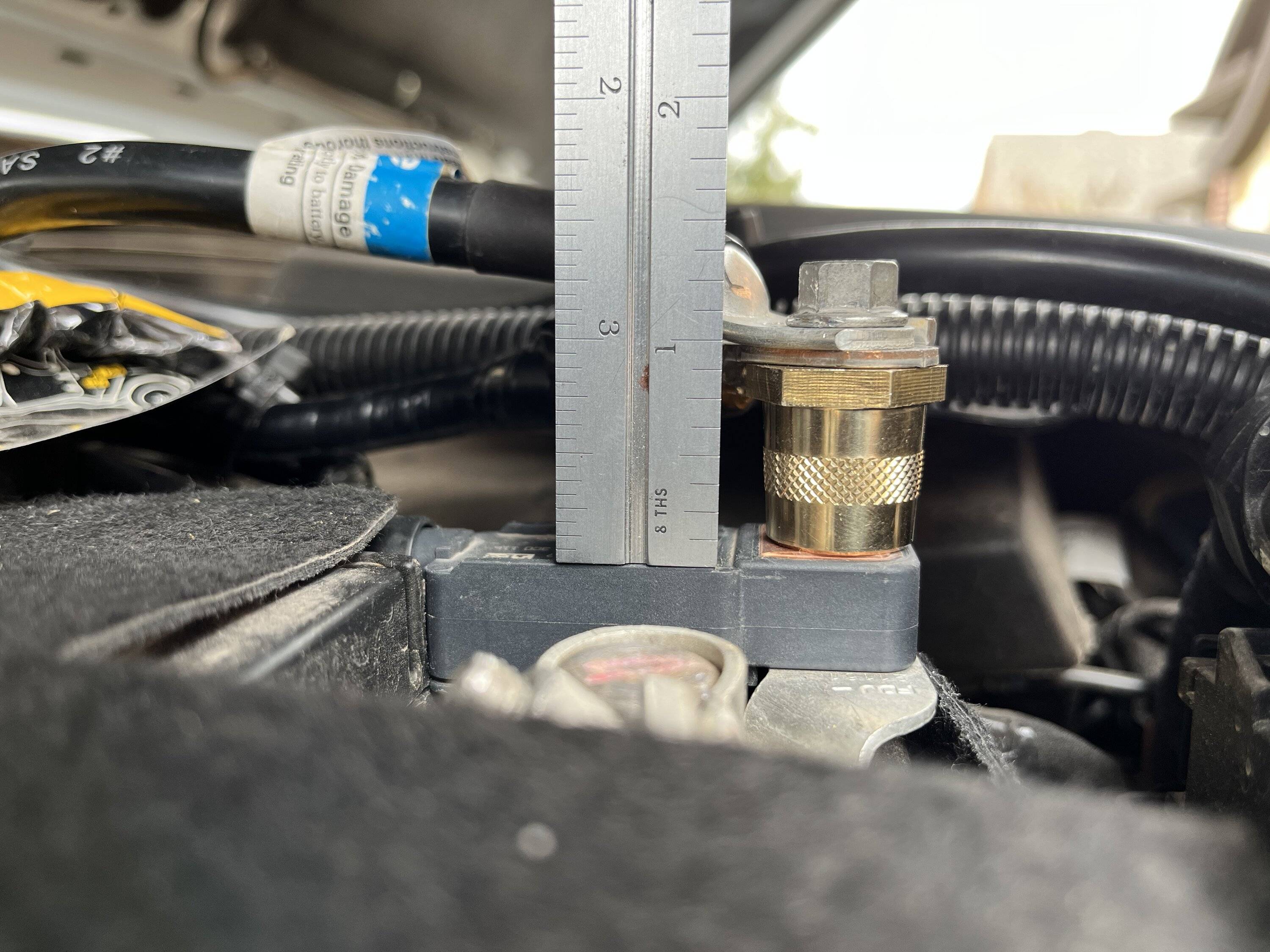

Ok so I swapped it out to the item @Mhonda found (thanks for showing it to me). The male threads could be a smidge longer but I think there is enough there to work.

Jeep Wrangler JL ESS Battery Cable Change FEF8217D-8B93-4DC6-B568-0C29A375BD9D

Jeep Wrangler JL ESS Battery Cable Change EFDE9B0E-9619-4313-B46B-1D9B6FFCF88F

Jeep Wrangler JL ESS Battery Cable Change D0A7A99A-4E7E-4771-9E9A-609532D6CF78

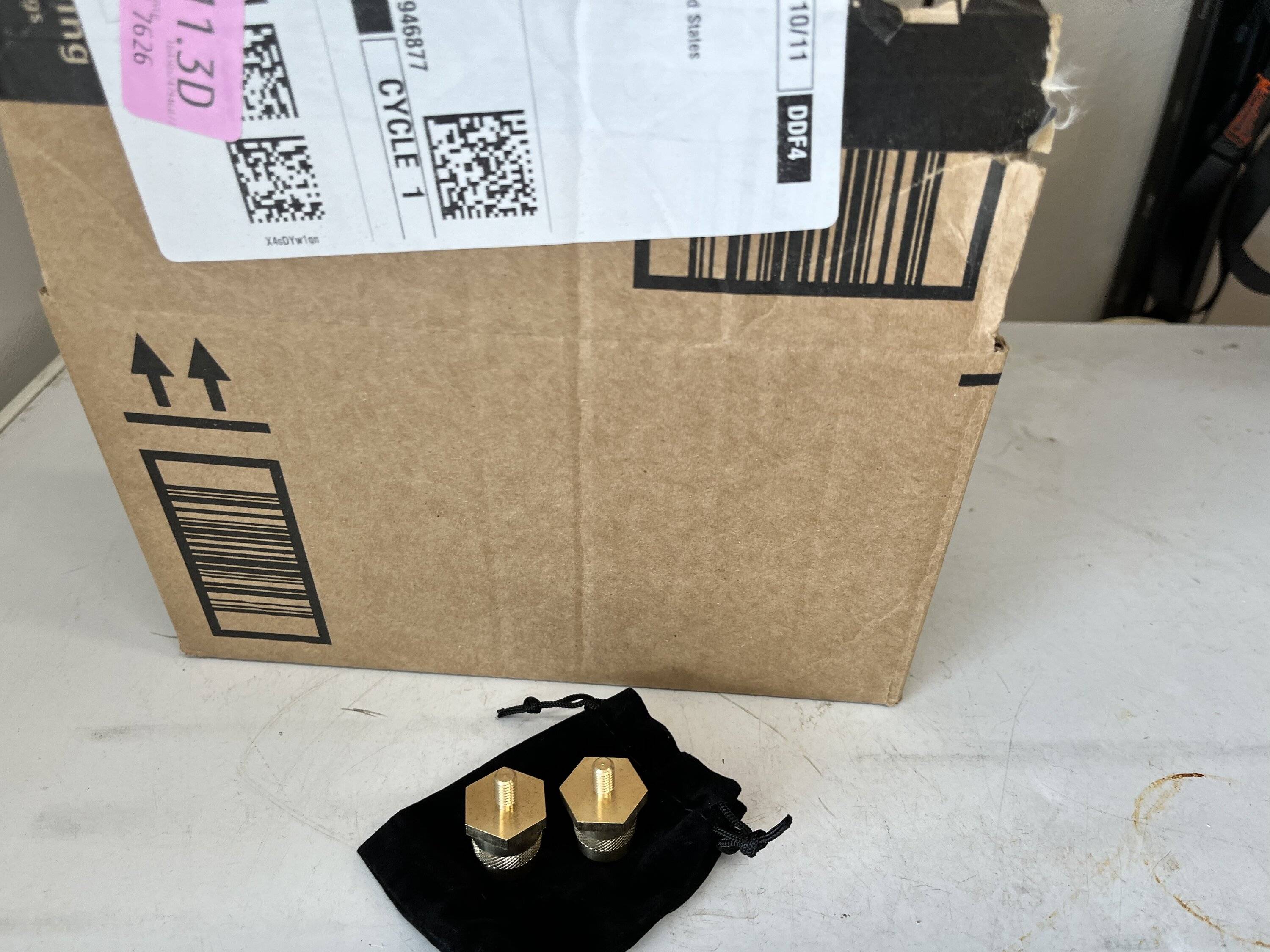

In other news, the packaging was ridiculous, box way too big and they came in a felt baggie! 😂
Jeep Wrangler JL ESS Battery Cable Change 712E6BA9-A4FB-4A10-AC06-DC98B9FBD6BF


If anyone has the ability to machine these things, the female part only needs to have threads 3/8” deep. The male part would be perfect for this at 1/2” tall. Threads are M6 x 1.0.

NOW they’re $2 cheaper… wtf
link to these on Amazon
https://www.amazon.com/dp/B09V59NX9C?psc=1&smid=A1OUHRIC0G8FCS&ref_=chk_typ_quicklook_imgToDp

OP
OP
Jebiruph

Jebiruph

Well-Known Member
First Name
Jerry
Joined
Feb 18, 2018
Threads
56
Messages
2,133
Reaction score
2,711
Location
Iowa
Vehicle(s)
2018 JLU, 2019 KL, 2020 JT
Wonder why they changed the ends? The smaller diameter cable is the Aux ground though no matter what end is on it?
The only reason I can think of is that it makes it easier to disconnect both batteries from the body ground. With the old cables, you have to disconnect both cables at the main battery negative terminal. With the new cables you only have to disconnect one cable.

Last edited:

lakebuster

Member
First Name
David
Joined
Sep 23, 2019
Threads
1
Messages
17
Reaction score
6
Location
SE Louisiana
Vehicle(s)
2020 Jeep Rubicon JL and 2015 Jeep JK Willys Wheeler
I pulled fuse F42 and disconnected the smaller cable on the negative terminal.

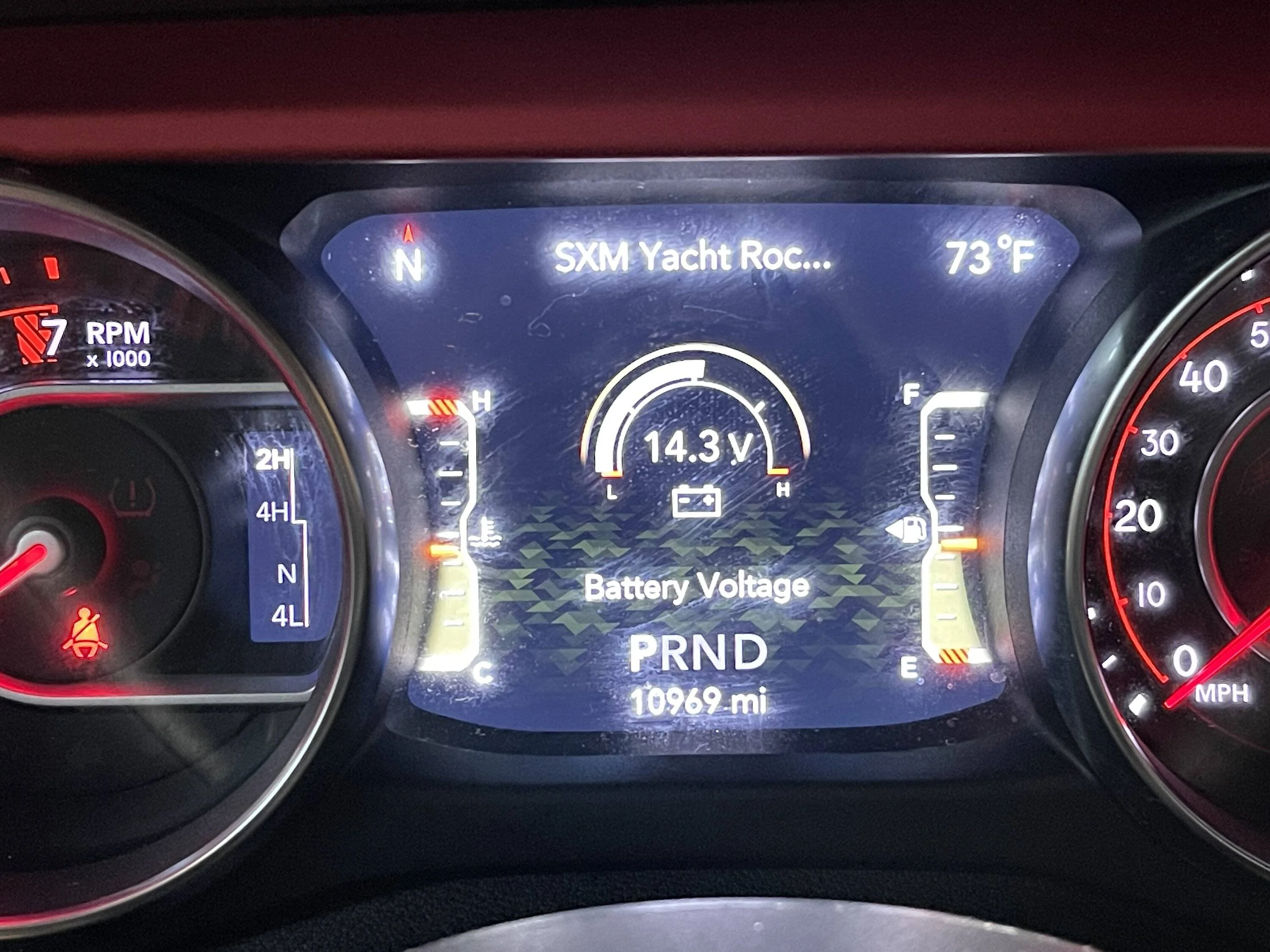

I am getting a beeping noise, sounds like from exterior of Jeep and voltage from alternator is pegged out.
