My main battery did indeed die on Sunday, so I’m guessing that’s what it was.
Sponsored



zw470

Well-Known Member
First Name
McFly
Joined
Aug 23, 2021
Threads
70
Messages
872
Reaction score
2,238
Location
PA
Vehicle(s)
'21 JLR
If I can't afford to lose the big ground stud can I just remove the aux battery and tape up the cables at that end instead?


Mguy

Well-Known Member
Joined
Nov 29, 2023
Threads
6
Messages
408
Reaction score
386
Location
Far Away
Vehicle(s)
2020 JLUR 6spd MT
If I can't afford to lose the big ground stud can I just remove the aux battery and tape up the cables at that end instead?
Yes, but adding a multi-stud terminal and leaving the disconnected aux battery in place is likely easier.


aeonixx1001

Well-Known Member
First Name
Kim
Joined
Apr 26, 2020
Threads
4
Messages
842
Reaction score
780
Location
Arizona
Vehicle(s)
2020 Jeep JL
Yes, but adding a multi-stud terminal and leaving the disconnected aux battery in place is likely easier.
Remove the smaller negative wire from the Ground terminal (goes to Aux Battery) Tape it up so it cannot make contact. Pull fuse 42. When you have an opportunity, remove the Aux battery completely. I have been running like this for over a year. I do have a Tazer Mini, but the ESS option doesn't show up at all. I pushed the button once and the light came on, but it stays in this state, I have never had to push the button again.


zw470

Well-Known Member
First Name
McFly
Joined
Aug 23, 2021
Threads
70
Messages
872
Reaction score
2,238
Location
PA
Vehicle(s)
'21 JLR
Remove the smaller negative wire from the Ground terminal (goes to Aux Battery) Tape it up so it cannot make contact. Pull fuse 42. When you have an opportunity, remove the Aux battery completely. I have been running like this for over a year. I do have a Tazer Mini, but the ESS option doesn't show up at all. I pushed the button once and the light came on, but it stays in this state, I have never had to push the button again.
I have the "updated" terminal configuration, if I do that I lose the big stud that my winch and amp connect to.


Sponsored

aeonixx1001

Well-Known Member
First Name
Kim
Joined
Apr 26, 2020
Threads
4
Messages
842
Reaction score
780
Location
Arizona
Vehicle(s)
2020 Jeep JL
I have the "updated" terminal configuration, if I do that I lose the big stud that my winch and amp connect to.
Post a pic. You are losing a wire not adding one? I'd have to see to understand. Thanks. Have good day


zw470

Well-Known Member
First Name
McFly
Joined
Aug 23, 2021
Threads
70
Messages
872
Reaction score
2,238
Location
PA
Vehicle(s)
'21 JLR
Post a pic. You are losing a wire not adding one? I'd have to see to understand. Thanks. Have good day
The one wire I would lose has the big stud attached to it now.

With the original terminal configuration this is what it looks like when you disconnect the aux ground. The big secondary stud is on the terminal for the main battery ground cable so you still have it available to attach additional grounds for aftermarket equipment.

Jeep Wrangler JL Jumperless Aux Battery Bypass 556906-3f713d36c7ac81ee5cd68220815b2c57

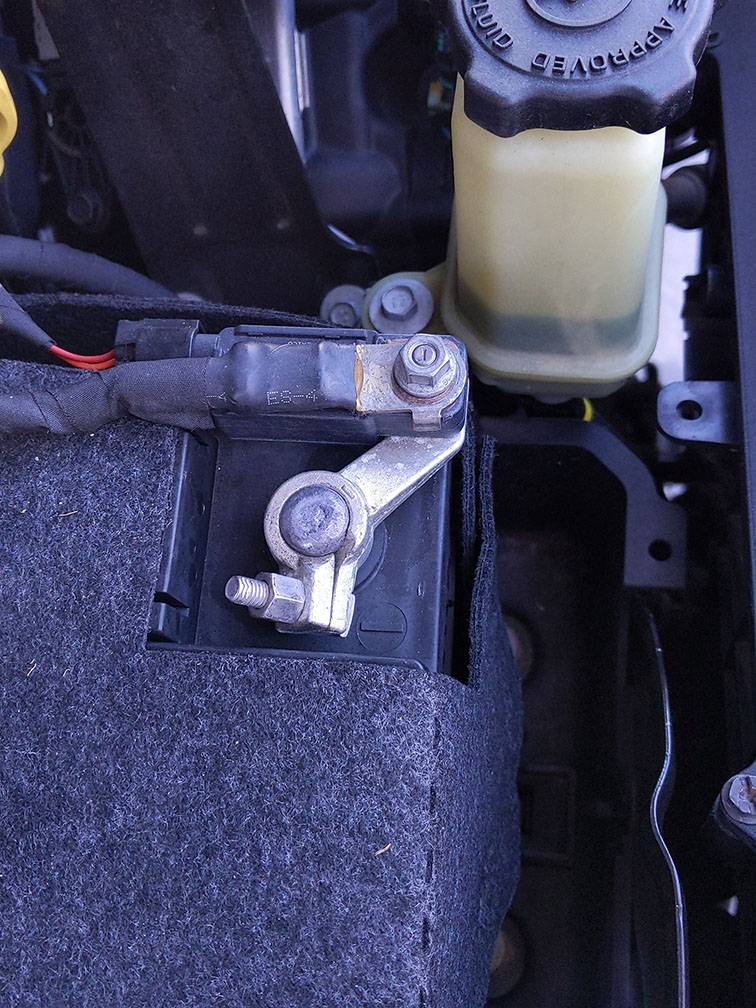

With the updated terminal configuration this is what it looks when you disconnect the aux battery ground. The big secondary stud is on the terminal for the aux battery now and the remaining stud isn't big enough to add to.

Jeep Wrangler JL Jumperless Aux Battery Bypass 556907-c6ee2ca8a44b88ace0b78caeb97c661b


People have added extension terminals but they seem very cobbled together and, assuming it would work, I'd rather take the time to just pull the aux battery and be done with it.


THAW

Well-Known Member
First Name
Foster
Joined
Oct 28, 2022
Threads
4
Messages
2,251
Reaction score
3,109
Location
PNW - prefer Middle of Nowhere
Vehicle(s)
23 JL4DrRubicon
The solution to the "lost AUX stud problem" is to use the primary body ground stud on the side of the engine bay where the main ground cable to the battery is attached.

With the possible exception of a winch negative cable, it's safer to attach accessory negative wires there so they won't become unintended undersized connections from the chassis to the negative battery post (i.e. a fire risk) should the main ground cable become disconnected.


Bryce919er

Well-Known Member
Joined
Oct 24, 2025
Threads
6
Messages
61
Reaction score
102
Location
USA
Vehicle(s)
2024 Sahara
When I go aux delete Im also just going to remove the aux battery and leave the top cable as is. Doesnt look hard to get out from the bottom thru the fender liner. I dont want the dead carcass left in the Jeep.


zw470

Well-Known Member
First Name
McFly
Joined
Aug 23, 2021
Threads
70
Messages
872
Reaction score
2,238
Location
PA
Vehicle(s)
'21 JLR
When I go aux delete Im also just going to remove the aux battery and leave the top cable as is. Doesnt look hard to get out from the bottom thru the fender liner. I dont want the dead carcass left in the Jeep.
That was my reasoning, as well.

Also I went back and double-checked, the only thing I have connected to the big stud is my winch ground. My amp is grounded to a chassis ground inside the cab.


Sponsored

ScotM

Well-Known Member
First Name
Scot
Joined
Jan 3, 2023
Threads
38
Messages
1,240
Reaction score
1,902
Location
Southern California
Vehicle(s)
2022 Jeep Willy's JL 2 Door
Clubs

When I go aux delete Im also just going to remove the aux battery and leave the top cable as is. Doesnt look hard to get out from the bottom thru the fender liner. I dont want the dead carcass left in the Jeep.

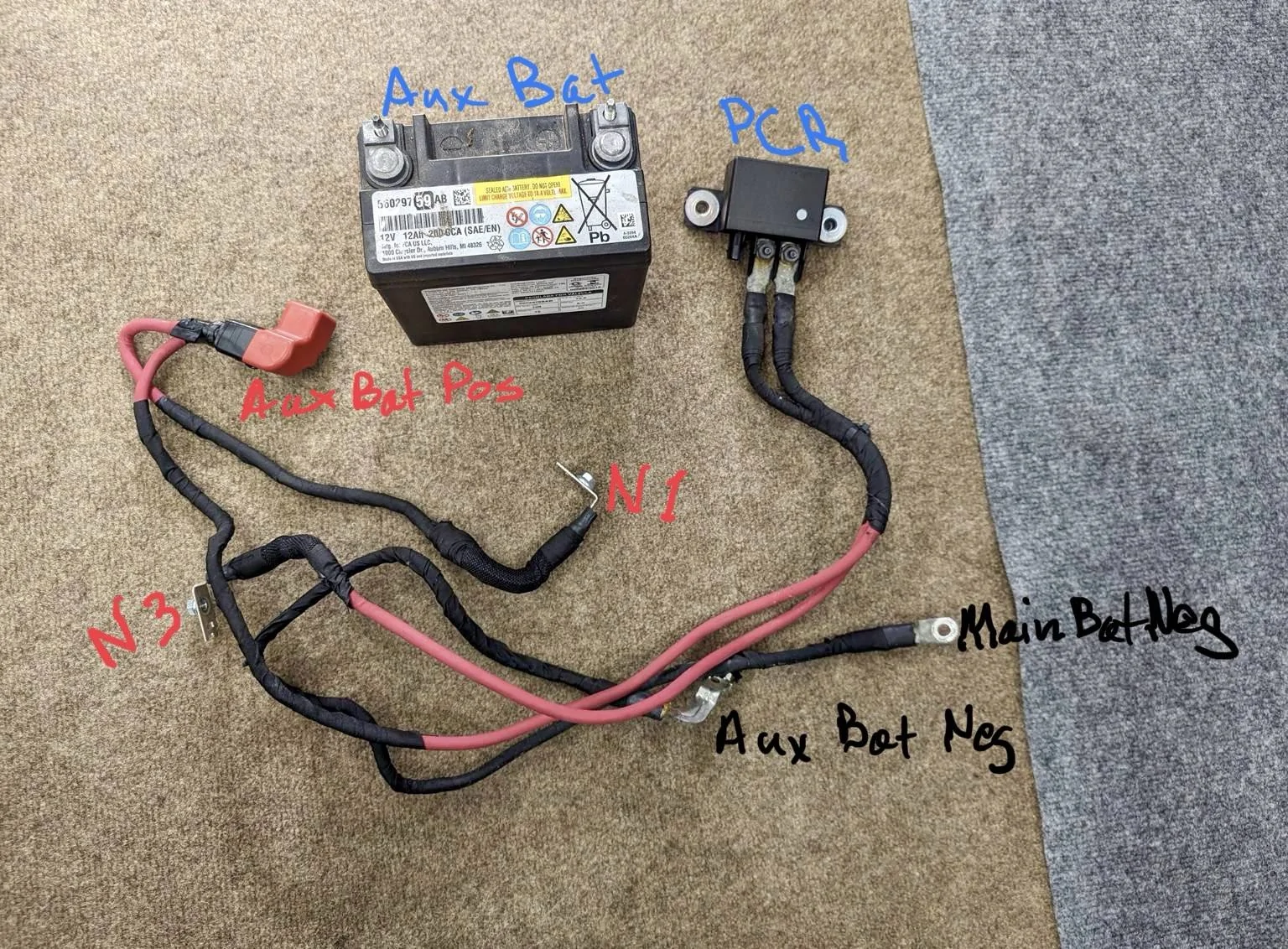

When I removed the aux battery and cables and The control module, I actually had to remove the fuse box to get all the cables out. Then I had a custom jumper made to go from N3 to N1 , if I’m recalling correctly to make sure everything kept working. That was about a year ago. No issues since . The labeled one is stolen from another forum member

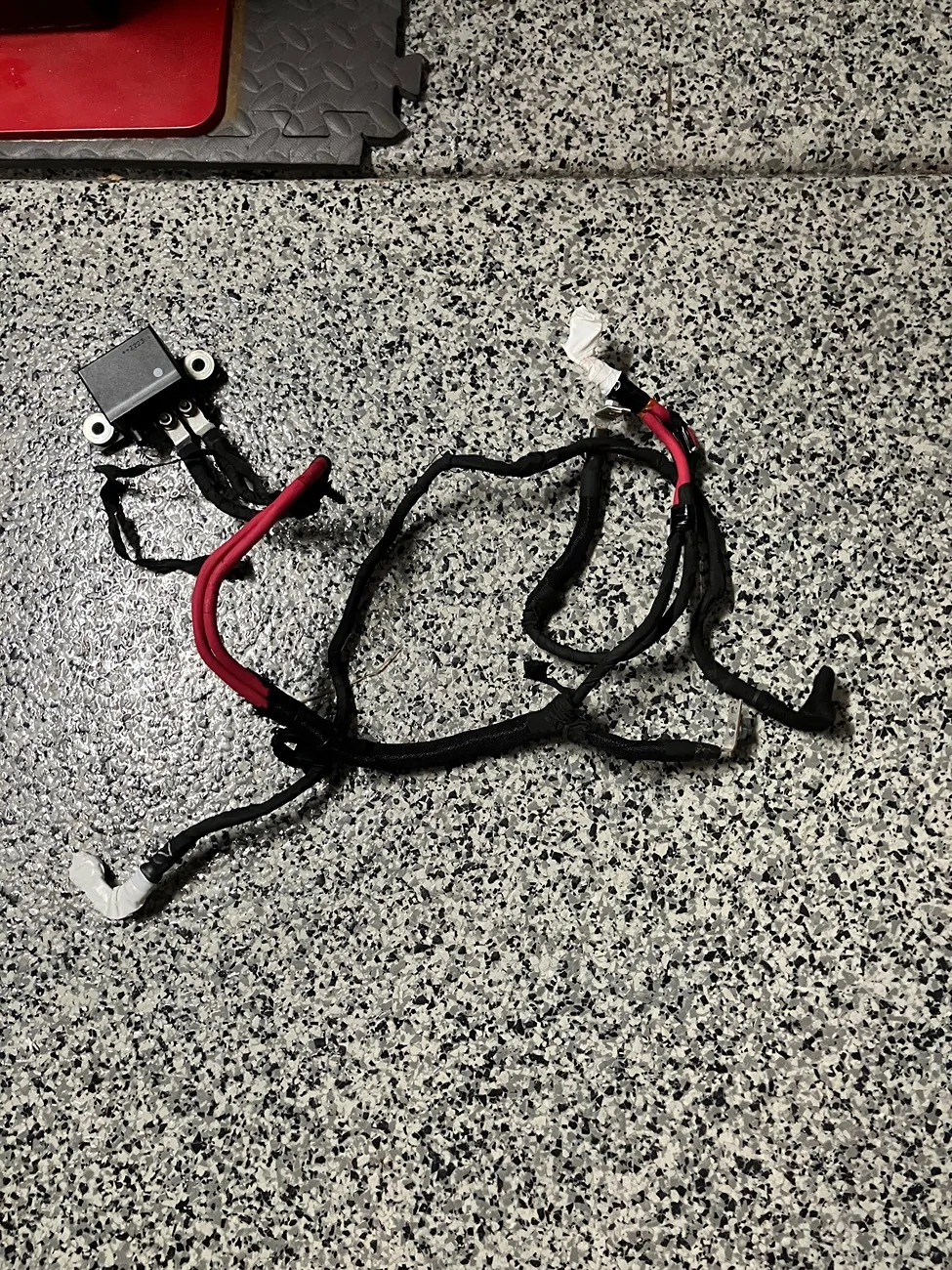

Jeep Wrangler JL Jumperless Aux Battery Bypass Image 1


Jeep Wrangler JL Jumperless Aux Battery Bypass IMG_4880


Bryce919er

Well-Known Member
Joined
Oct 24, 2025
Threads
6
Messages
61
Reaction score
102
Location
USA
Vehicle(s)
2024 Sahara
When I removed the aux battery and cables and The control module, I actually had to remove the fuse box to get all the cables out. Then I had a custom jumper made to go from N3 to N1 , if I’m recalling correctly to make sure everything kept working. That was about a year ago. No issues since . The labeled one is stolen from another forum member

Image 1.webp


Thanks for the pics that helps as I have yet to actually see inside the aux box. If you go as far as to remove all the cables yes I agree you need to fool around with jumpers as you did. I am ok leaving the unused cables. So long as whatever cables are landed to the positive terminal of the aux battery remain connected or are reconnected together after the aux battery is removed there should be no need for jumpers as connecting all the positive cables within the aux box is the jumper.

The only thing i plan to do is remove the aux battery and fuse 42. Everything will appear as factory otherwise. I believe this is actually easier to do and to reverse to factory on the currently produced jeeps with the negative battery cables reversed from the previous jeeps.


ScotM

Well-Known Member
First Name
Scot
Joined
Jan 3, 2023
Threads
38
Messages
1,240
Reaction score
1,902
Location
Southern California
Vehicle(s)
2022 Jeep Willy's JL 2 Door
Clubs

Thanks for the pics that helps as I have yet to actually see inside the aux box. If you go as far as to remove all the cables yes I agree you need to fool around with jumpers as you did. I am ok leaving the unused cables. So long as whatever cables are landed to the positive terminal of the aux battery remain connected or are reconnected together after the aux battery is removed there should be no need for jumpers as connecting all the positive cables within the aux box is the jumper.

The only thing i plan to do is remove the aux battery and fuse 42. Everything will appear as factory otherwise. I believe this is actually easier to do and to reverse to factory on the currently produced jeeps with the negative battery cables reversed from the previous jeeps.
I ended up using the battery box to mount my controller for my rock lights


wibornz

Well-Known Member
First Name
Ted
Joined
Aug 3, 2018
Threads
194
Messages
14,684
Reaction score
71,576
Location
lansing, Mi.
Website
www.instagram.com
Vehicle(s)
JL Unlimited Rubicon
Occupation
Retired from Corrections....I have stories.
