Jeep JL Back Up Camera Wiring

[WFRANCO]

Hey guys and gals,

Hope everyone’s doing great.

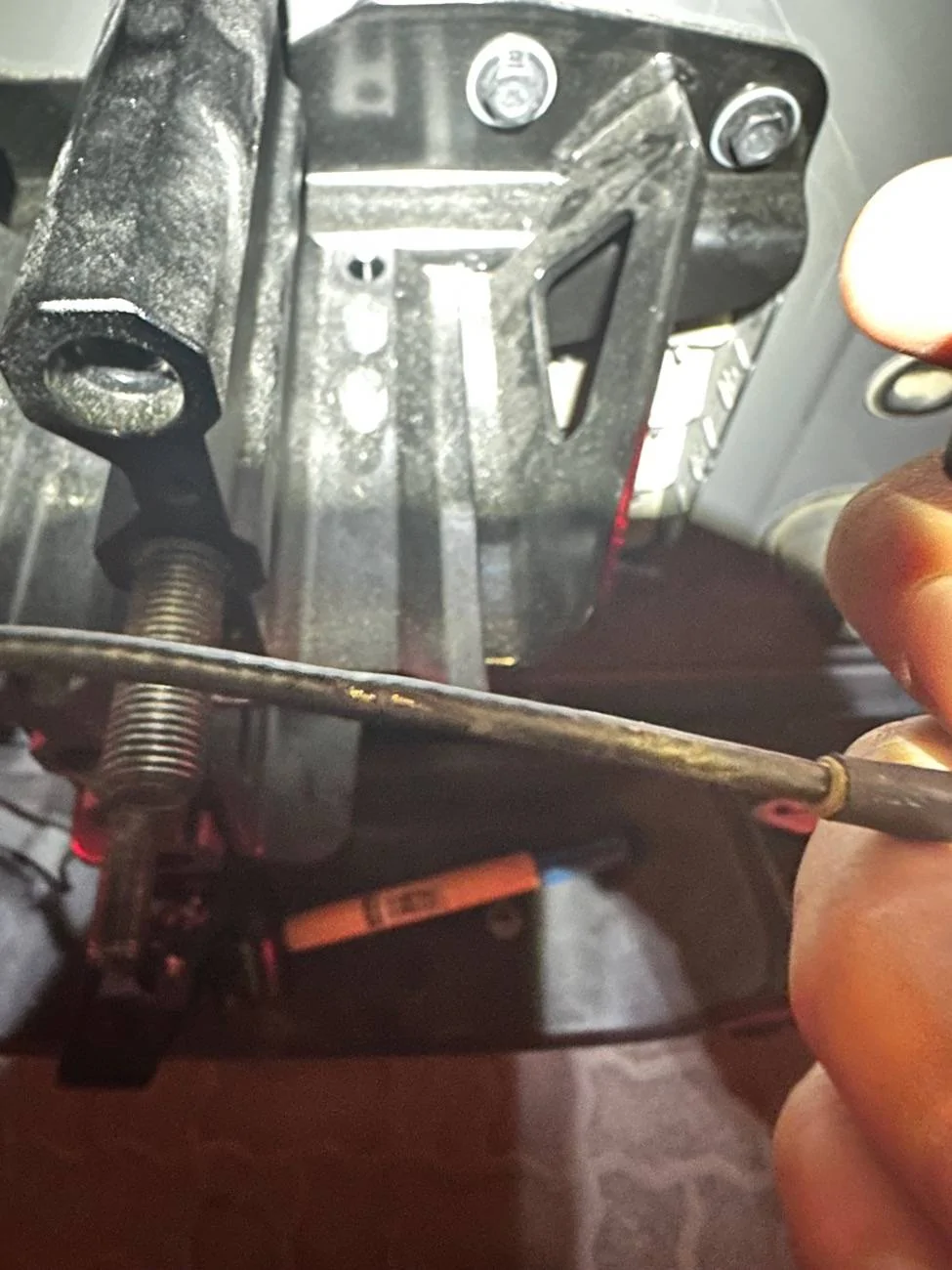

I installed my adjustable spare tire carrier earlier today. But then my back up camera failed to work. I think the damaged wire shown in the pic is the problem. I’m new to jeeps and have basic to no electrical knowledge. Can anyone tell me if there are 2 wires (+ and ~) in this harness so i can just cut and reconnect them properly? Just wanna make sure before i do more damage. Thanks in advance.

Sponsored



[AndySpill]

Hey guys and gals,

Hope everyone’s doing great.

I installed my adjustable spare tire carrier earlier today. But then my back up camera failed to work. I think the damaged wire shown in the pic is the problem. I’m new to jeeps and have basic to no electrical knowledge. Can anyone tell me if there are 2 wires (+ and ~) in this harness so i can just cut and reconnect them properly? Just wanna make sure before i do more damage. Thanks in advance.

It's not an area I have much experience with, but that said:

https://www.jlwranglerforums.com/forum/threads/jeep-jl-wrangler-wiring-diagrams.19185/

Then under this menu:

Backup Camera System

https://www.jlwranglerforums.com/JL-Wiring-Diagrams/BACK-UP-CAMERA-SYSTEM.pdf

might be a good starting place.



[WFRANCO]

It's not an area I have much experience with, but that said:

https://www.jlwranglerforums.com/forum/threads/jeep-jl-wrangler-wiring-diagrams.19185/

Then under this menu:

Backup Camera System

https://www.jlwranglerforums.com/JL-Wiring-Diagrams/BACK-UP-CAMERA-SYSTEM.pdf

might be a good starting place.

Thanks.
